Ubiquiti U7 In-Wall

Produkt

Tillverkare

Ubiquiti

Produktnamn

U7 In-Wall

Tillverkarens länk

https://eu.store.ui.com/eu/en/category/wifi-wall/products/u7-iw

Produktkoder

Tillverkarens produktkoder

• U7-IW

GTIN- / EAN-koder

• 0810084698754

Produktbilder

Features

2.4 GHz

Ja

5 GHz

Ja

6 GHz

Nej

Maximum data transfer rate

4300 Mbit/s

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Ethernet LAN data rates

2500 Mbit/s

Frequency band

2.4 - 5 GHz

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

Coverage area

115 m²

Number of users

200 user(s)

MIMO

Ja

MIMO type

Multi User MIMO

Spatial streams

4

Fit AP mode features

Hotspot 2.0

Fast roaming

Ja

VLAN support

Ja

Wireless meshing

Ja

Band steering

Ja

Maximum Tx power (2.4 GHz)

23 dBmW

Maximum Tx power (5 GHz)

24 dBmW

Security

Security algorithms

PPSK

Management features

Access point management

Wi-Fi schedule

Ports & interfaces

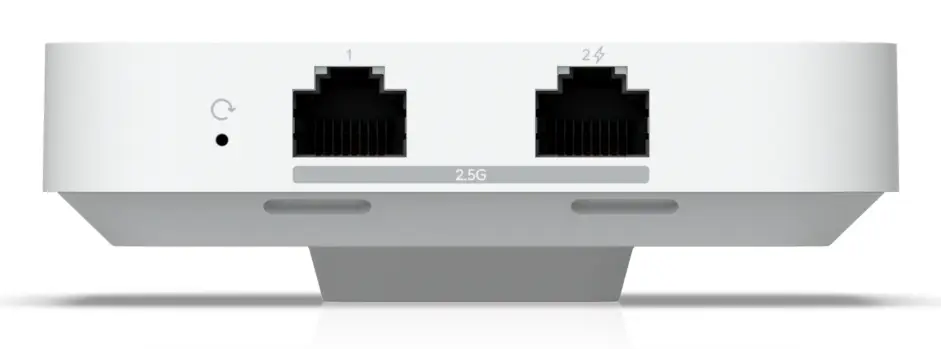

Ethernet LAN (RJ-45) ports

3

Power

Power over Ethernet (PoE)

Ja

DC voltage range

42.5 - 57 V

Power consumption (max)

13 W

Design

Placement

Wall

Product colour

White

Housing material

Aluminium, Polycarbonate (PC)

Reset button

Ja

LED indicators

Status

Antenna

Antenna type

Internal

Antennas quantity

4

Antenna gain level (max)

8 dBi

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width

98.7 mm

Depth

30.2 mm

Height

137 mm

Weight

400 g

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Ja

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 40 °C
