MSI Pro AP242P 14M-691EU

Produkt

Tillverkare

MSI

Produktfamilj / -serie

Pro

Produktnamn

Pro AP242P 14M-691EU

Tillverkarens länk

https://www.msi.com/All-in-One-PC/PRO-AP242P-14M

Produktkoder

Tillverkarens produktkoder

• 14M-691EU
• PRO AP242P 14M-691EU

GTIN- / EAN-koder

• 4711377225021
• 4711377388931

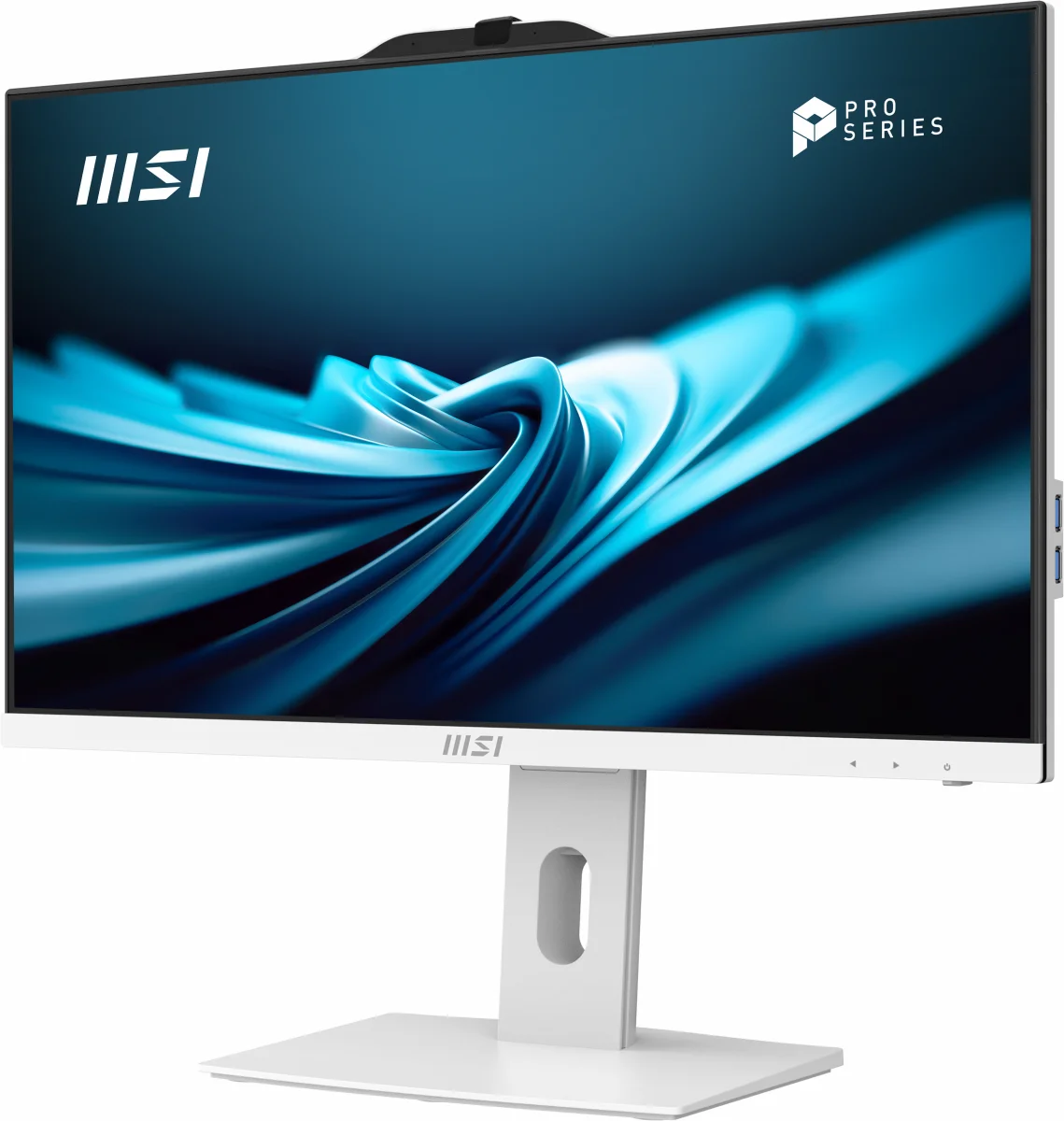

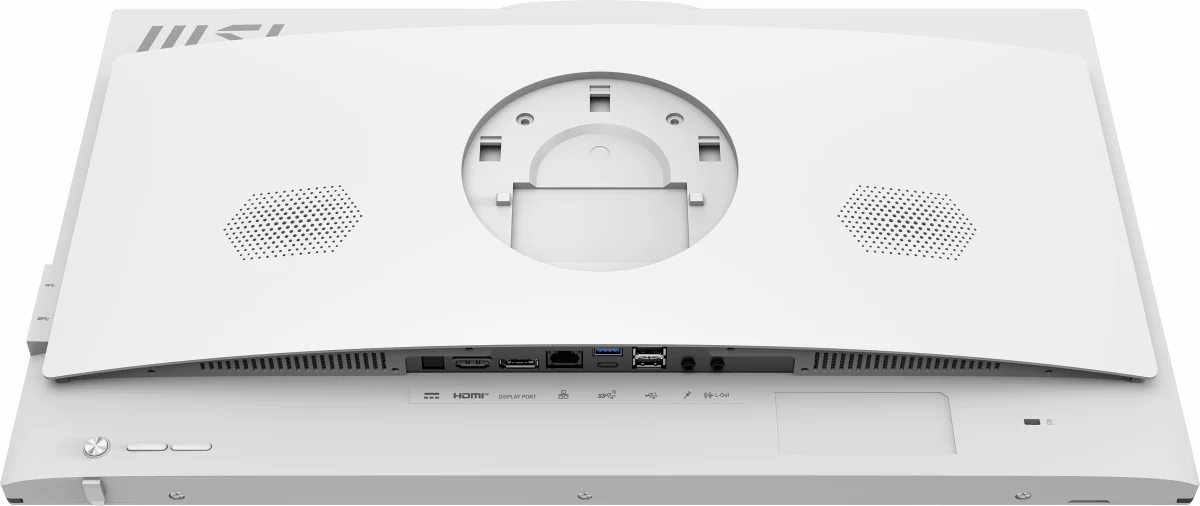

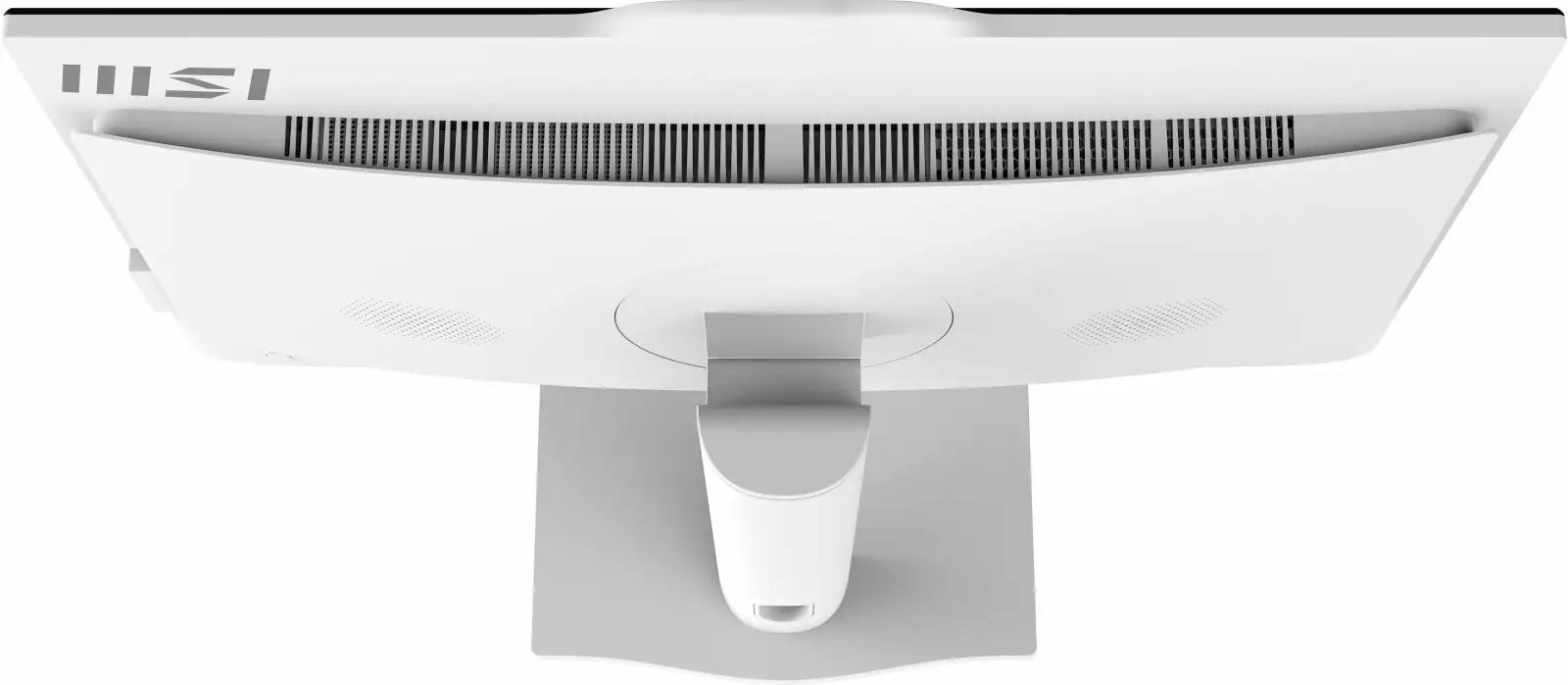

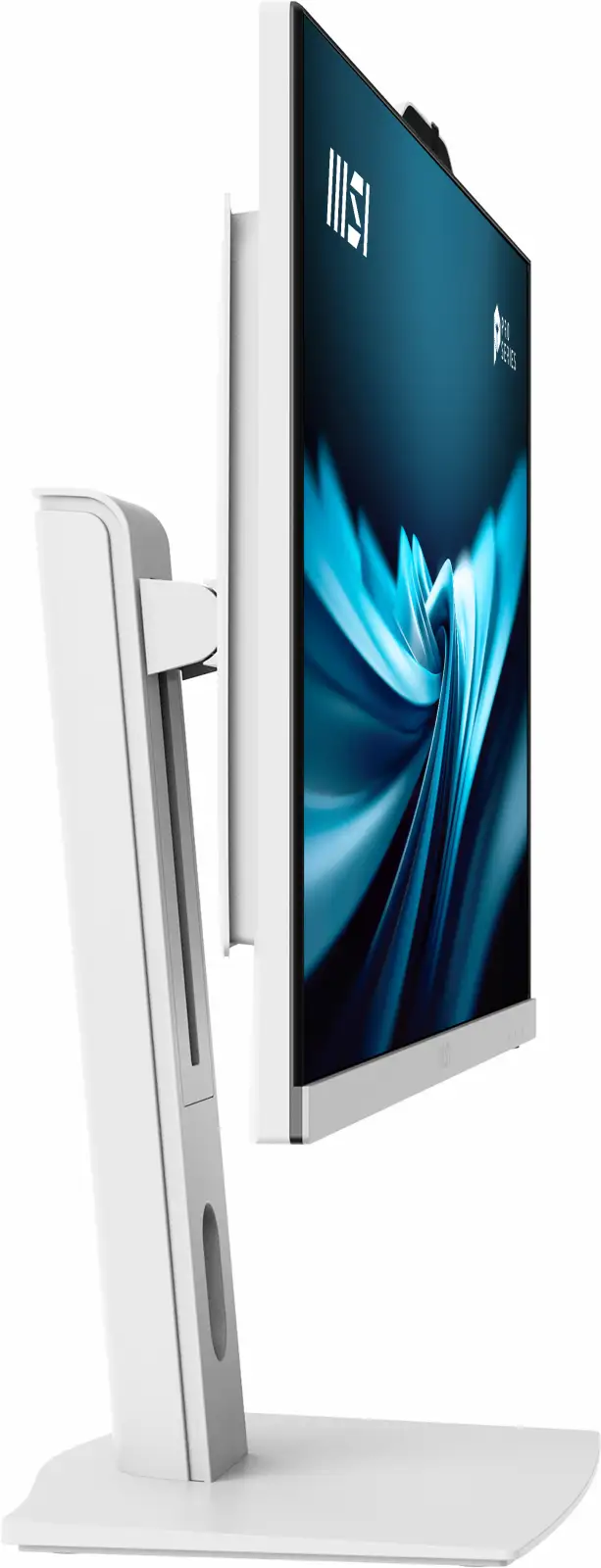

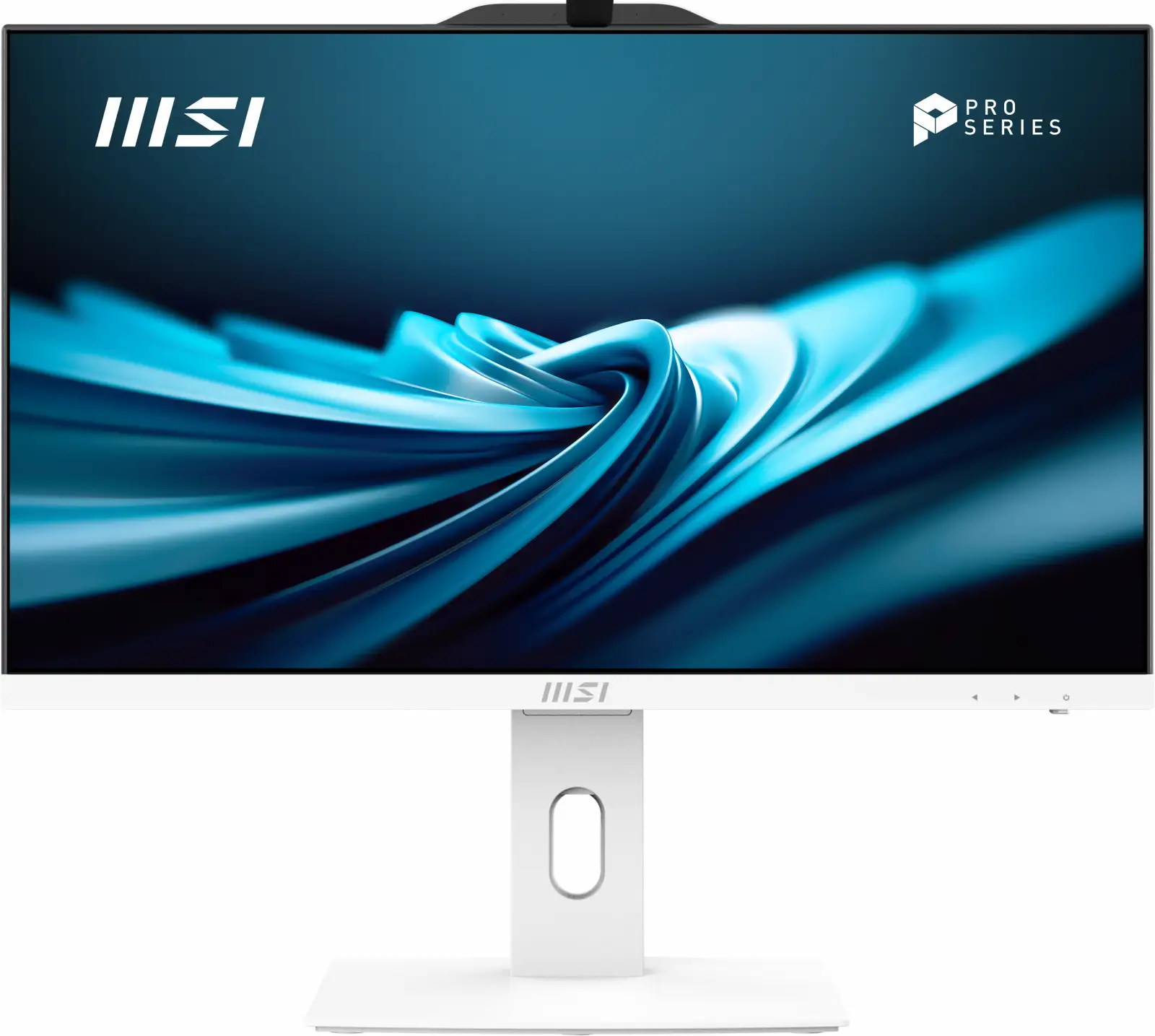

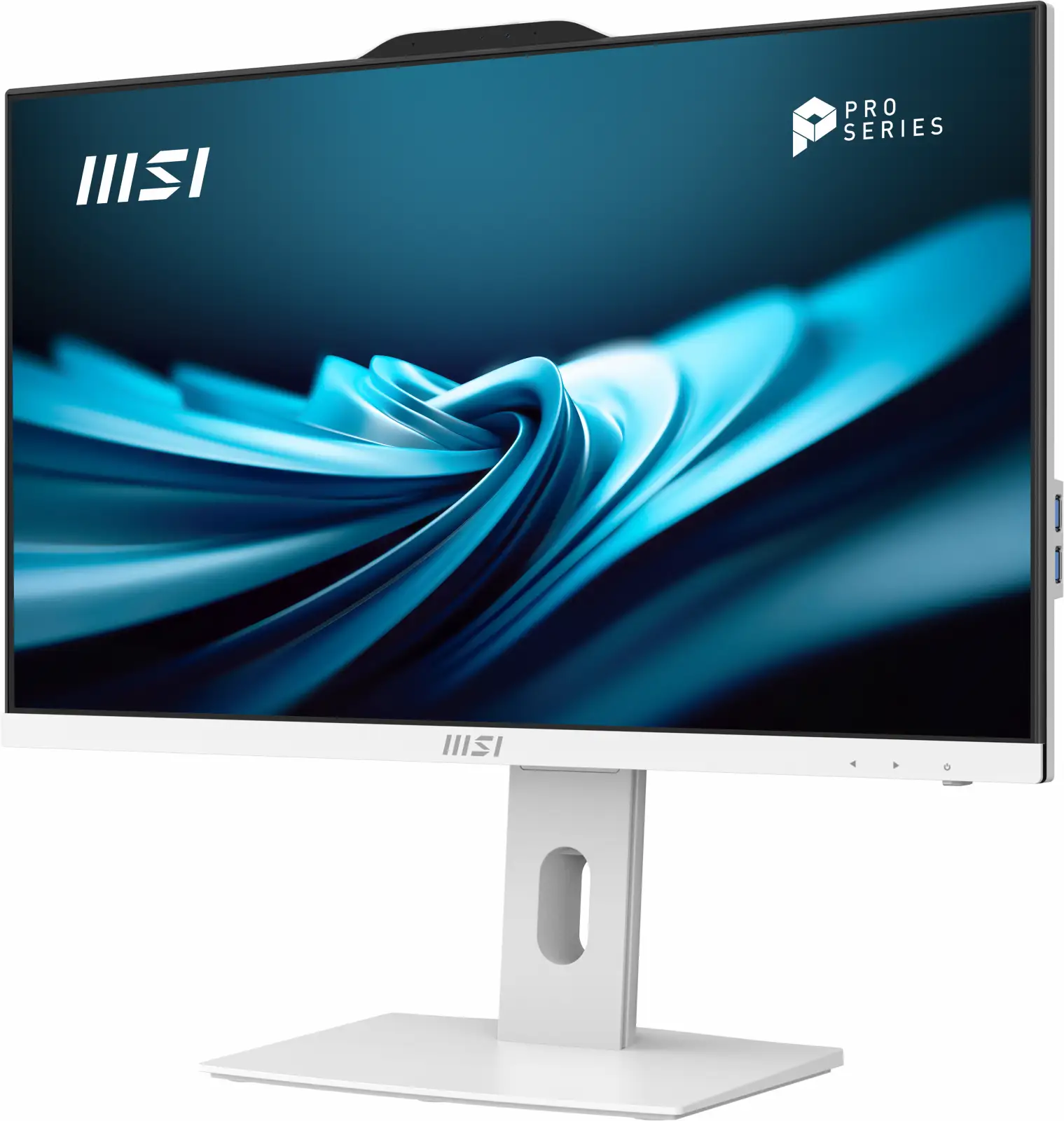

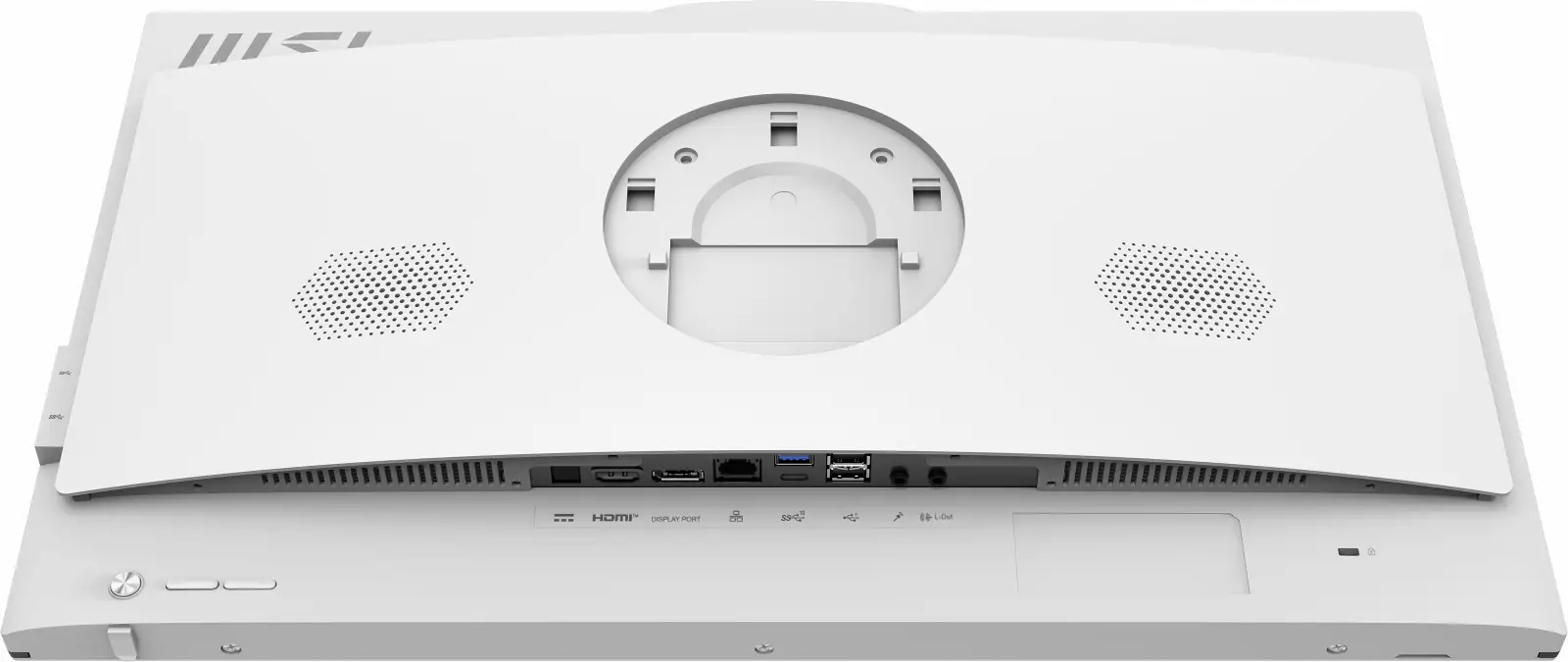

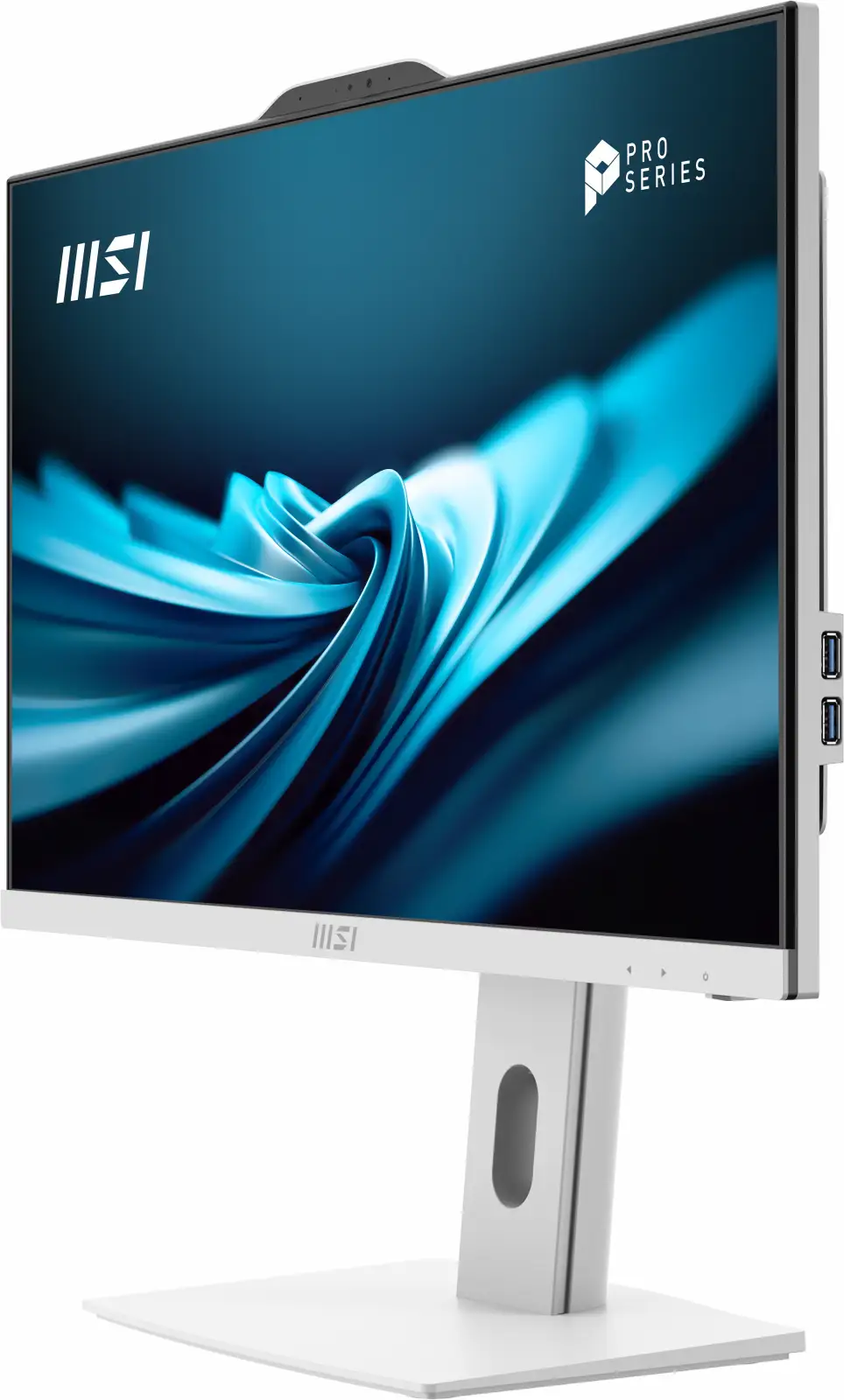

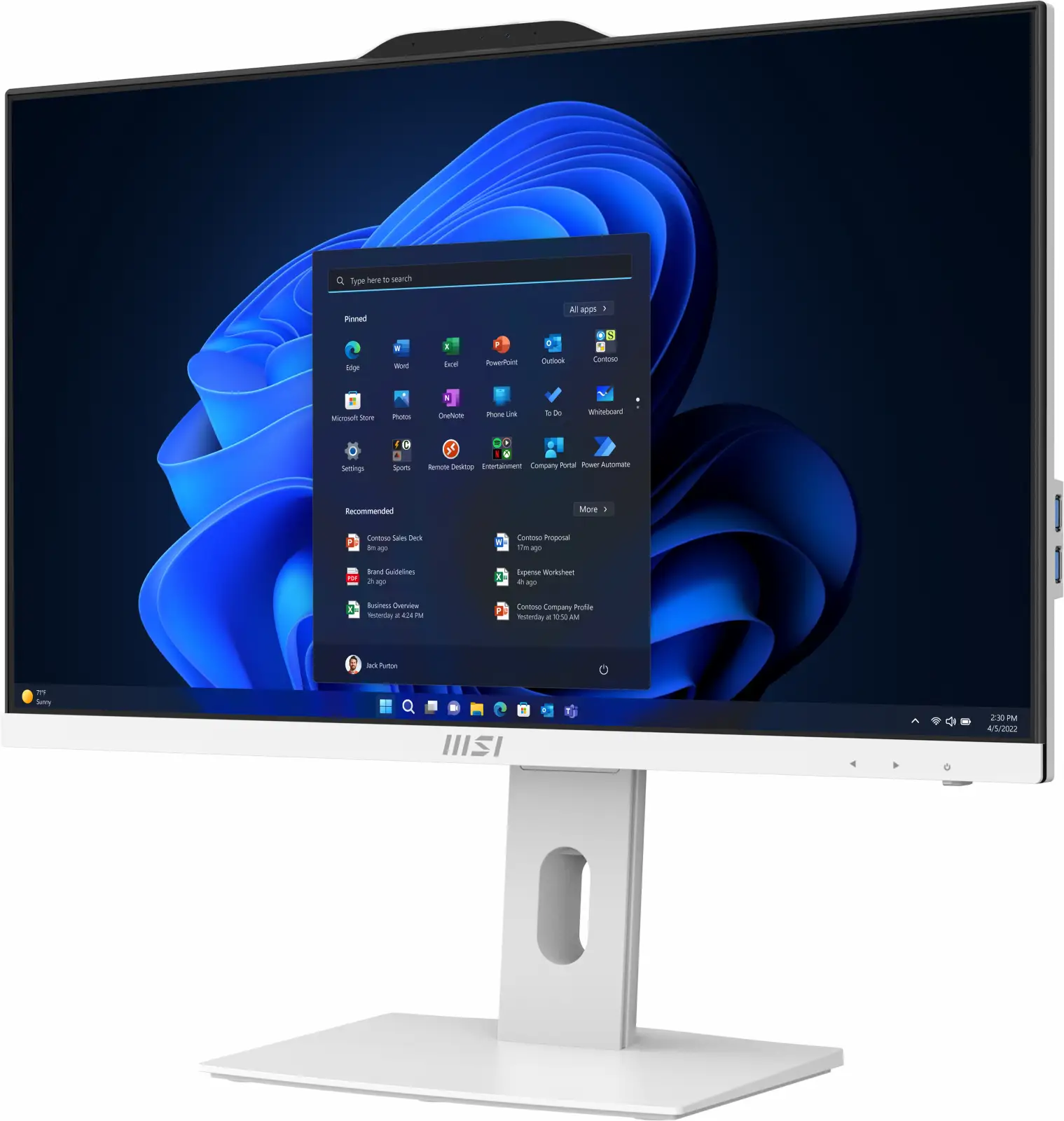

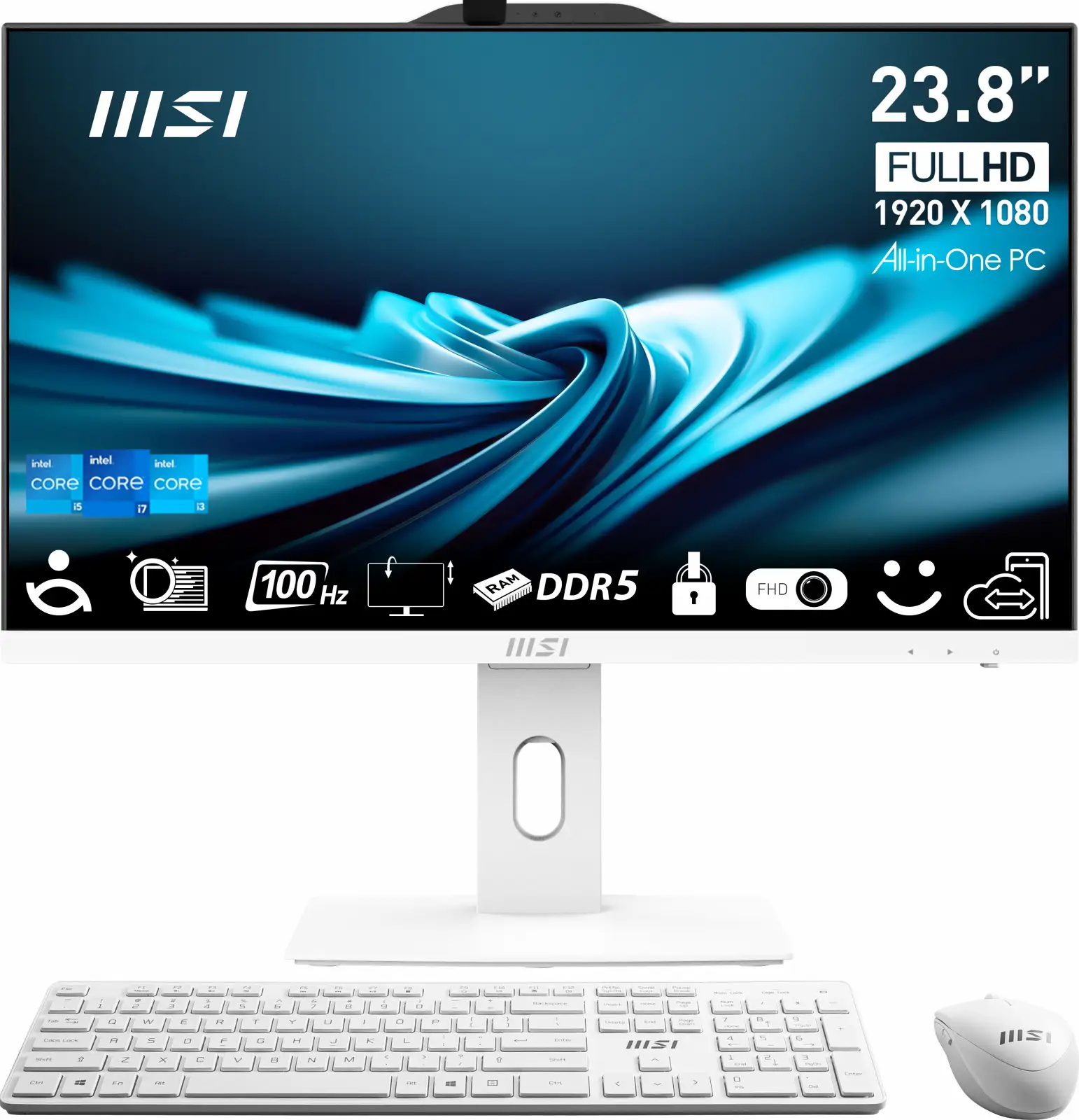

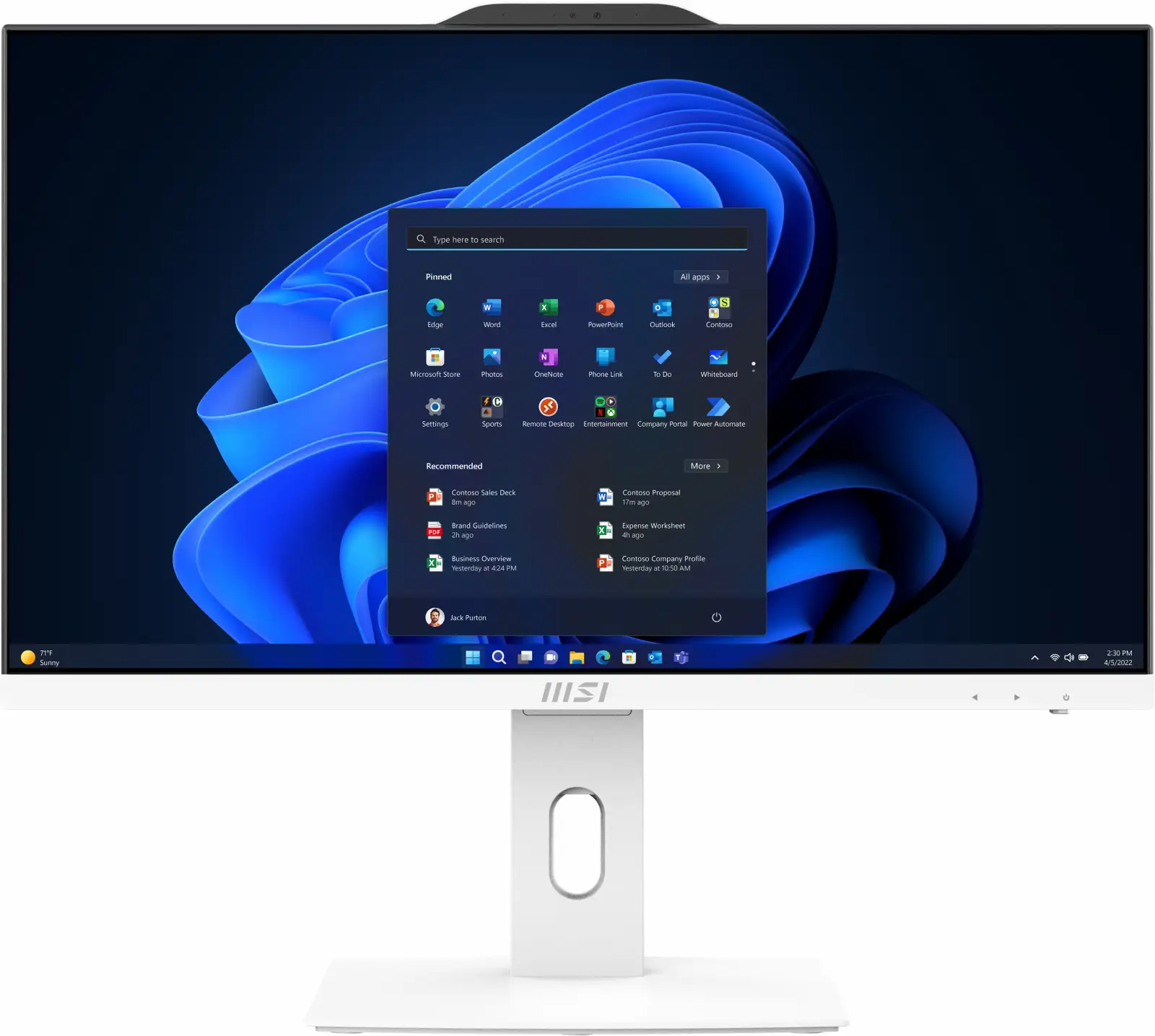

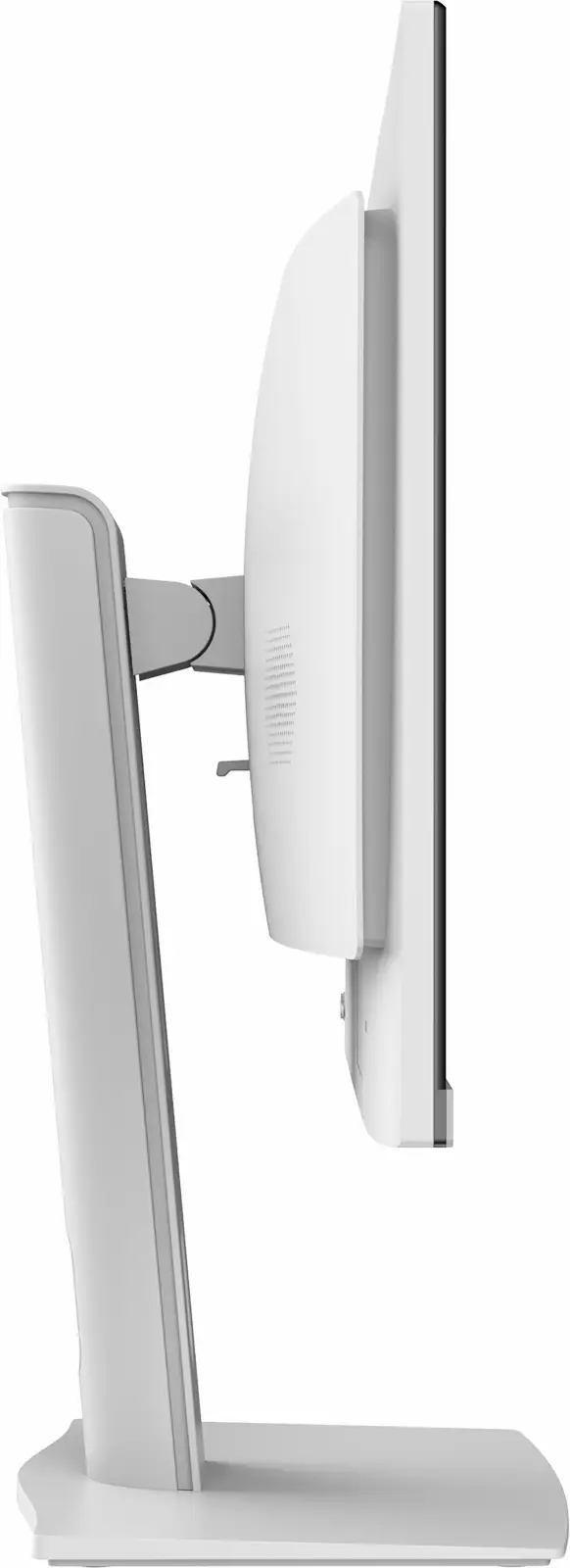

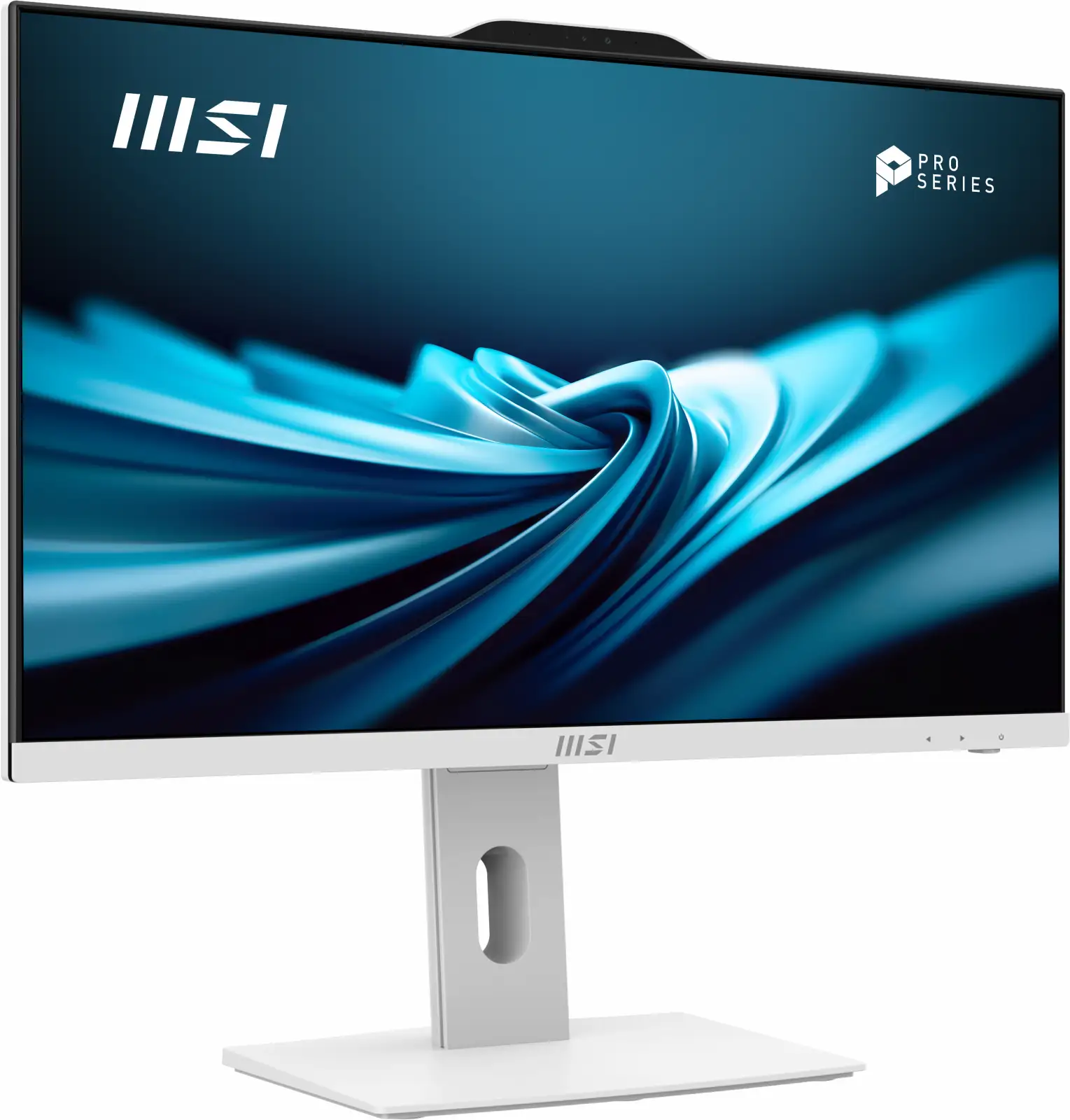

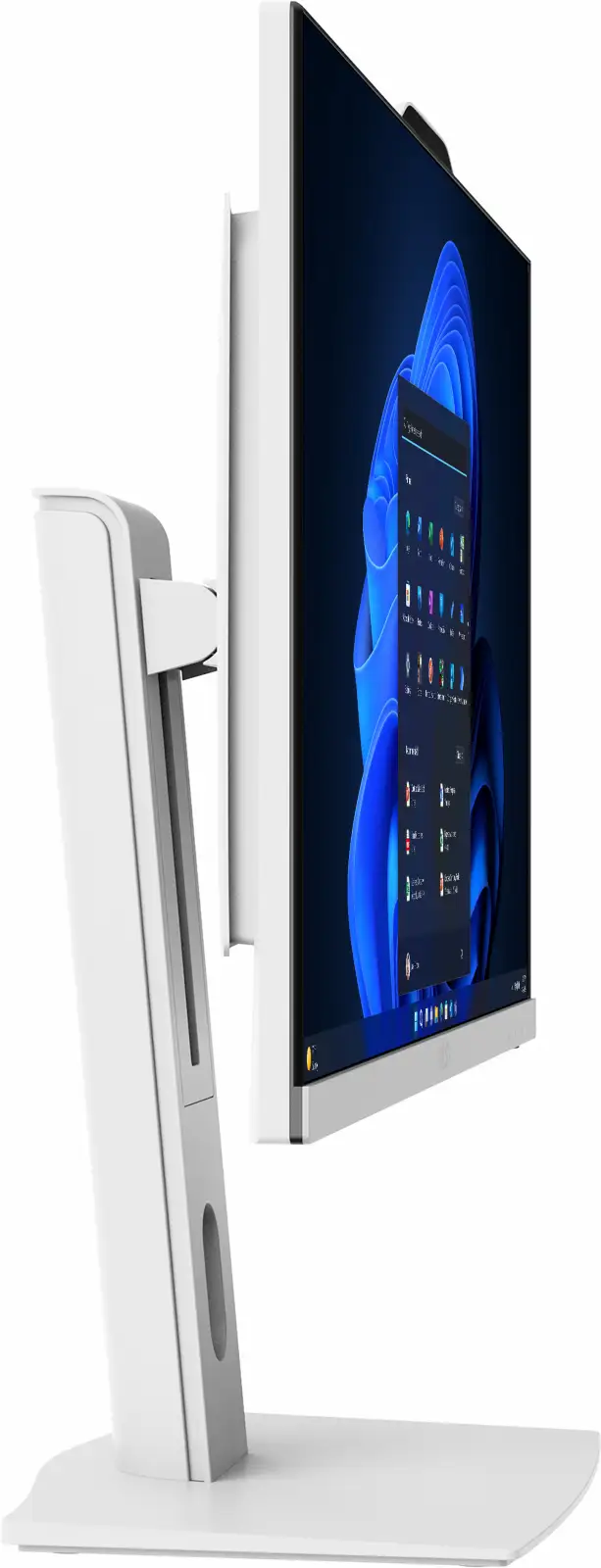

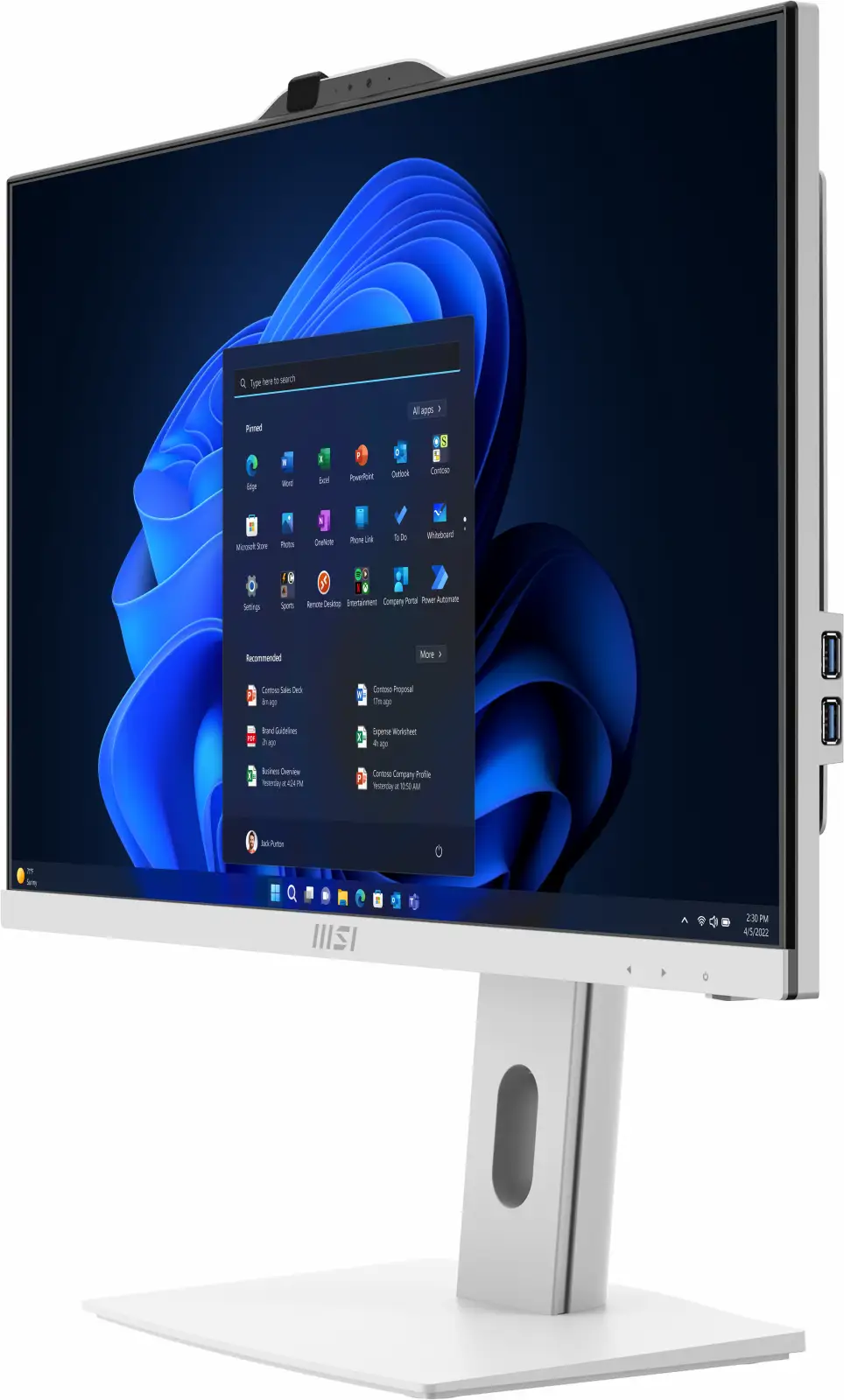

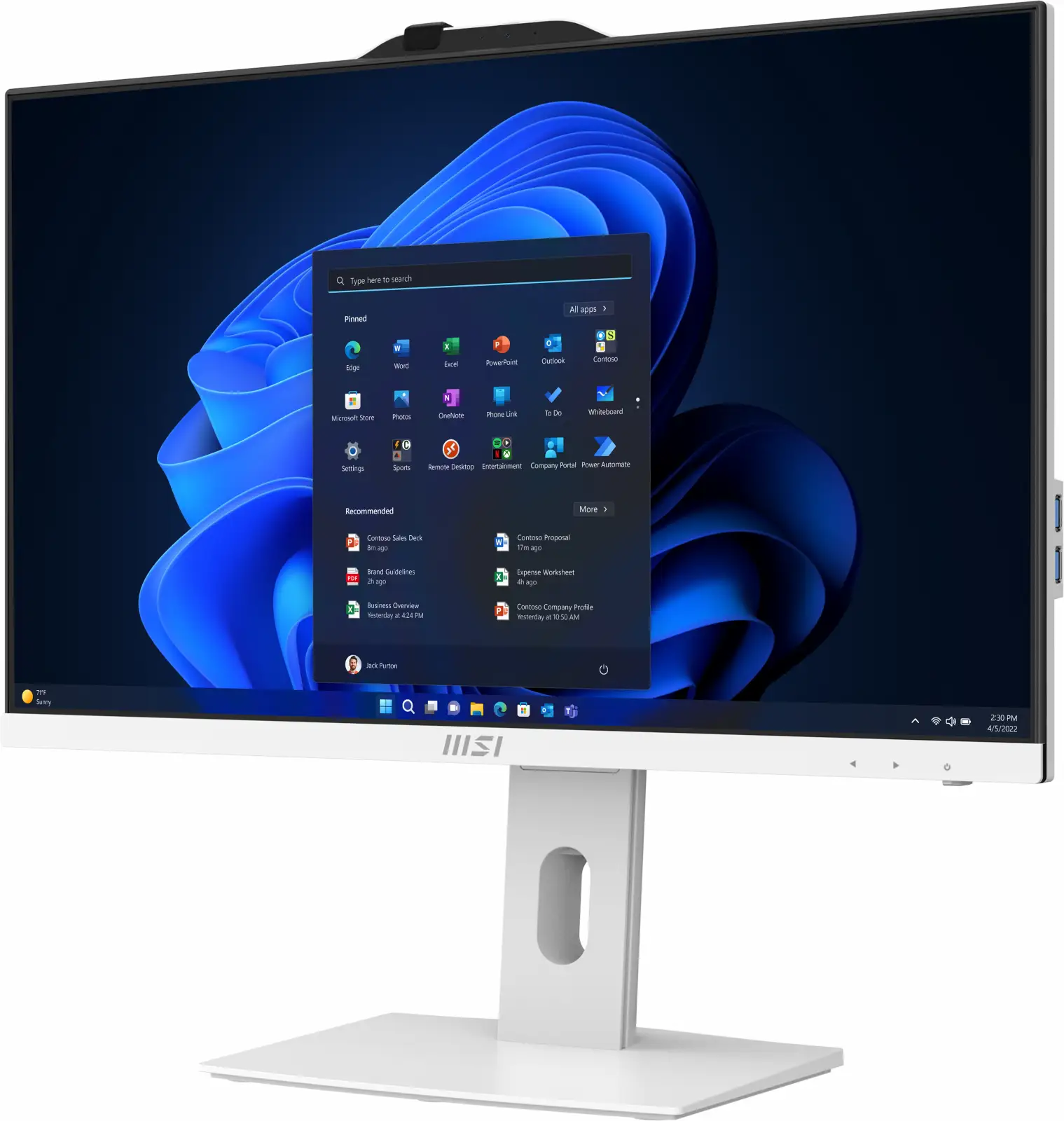

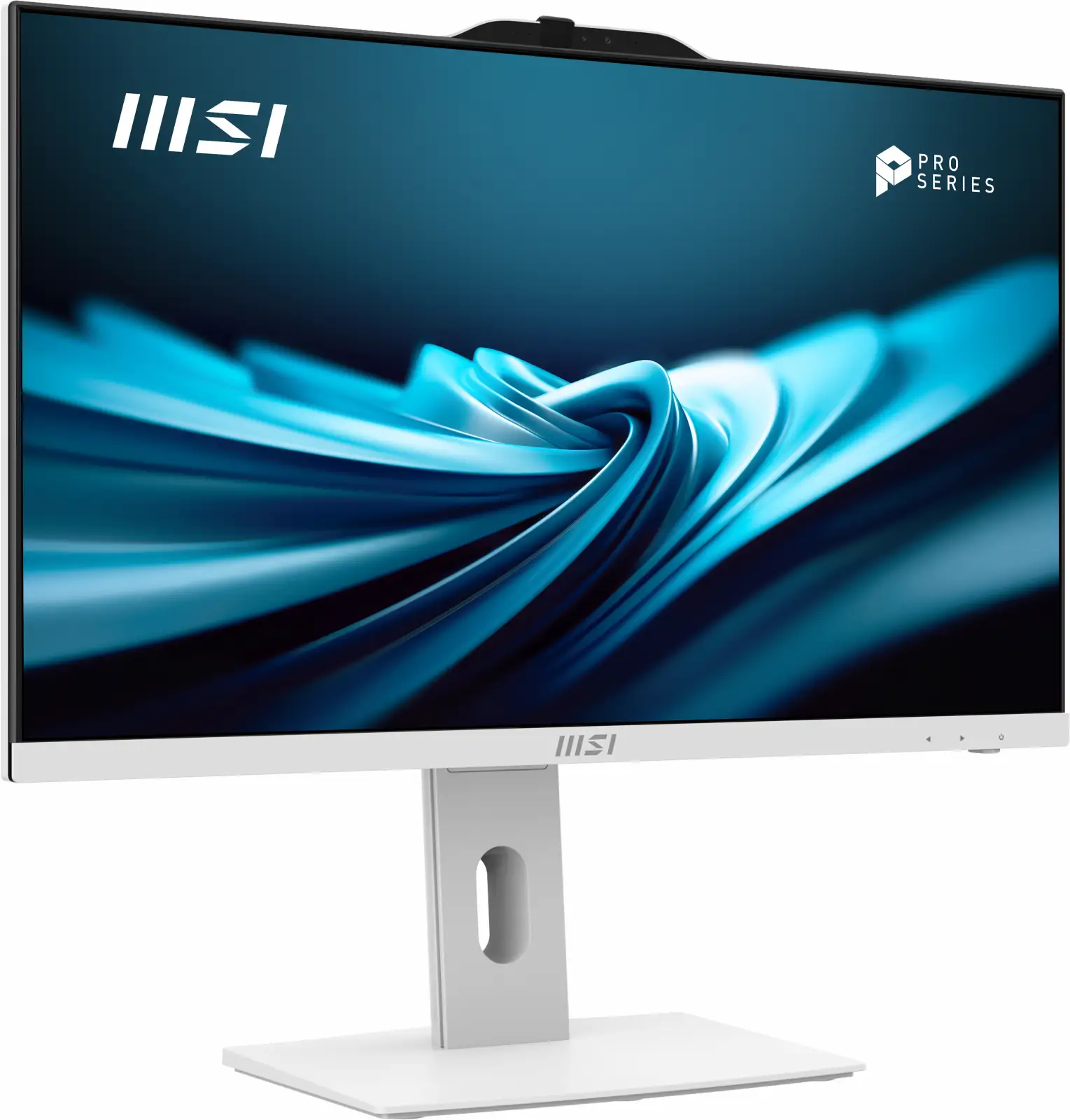

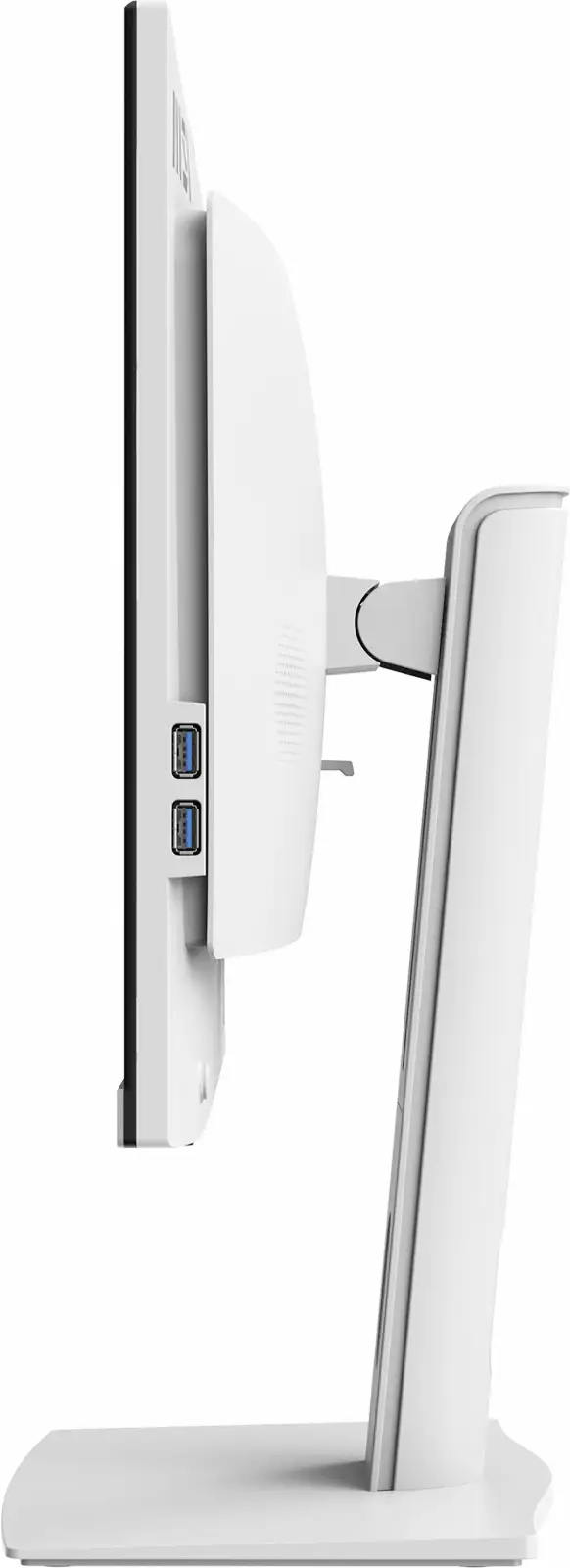

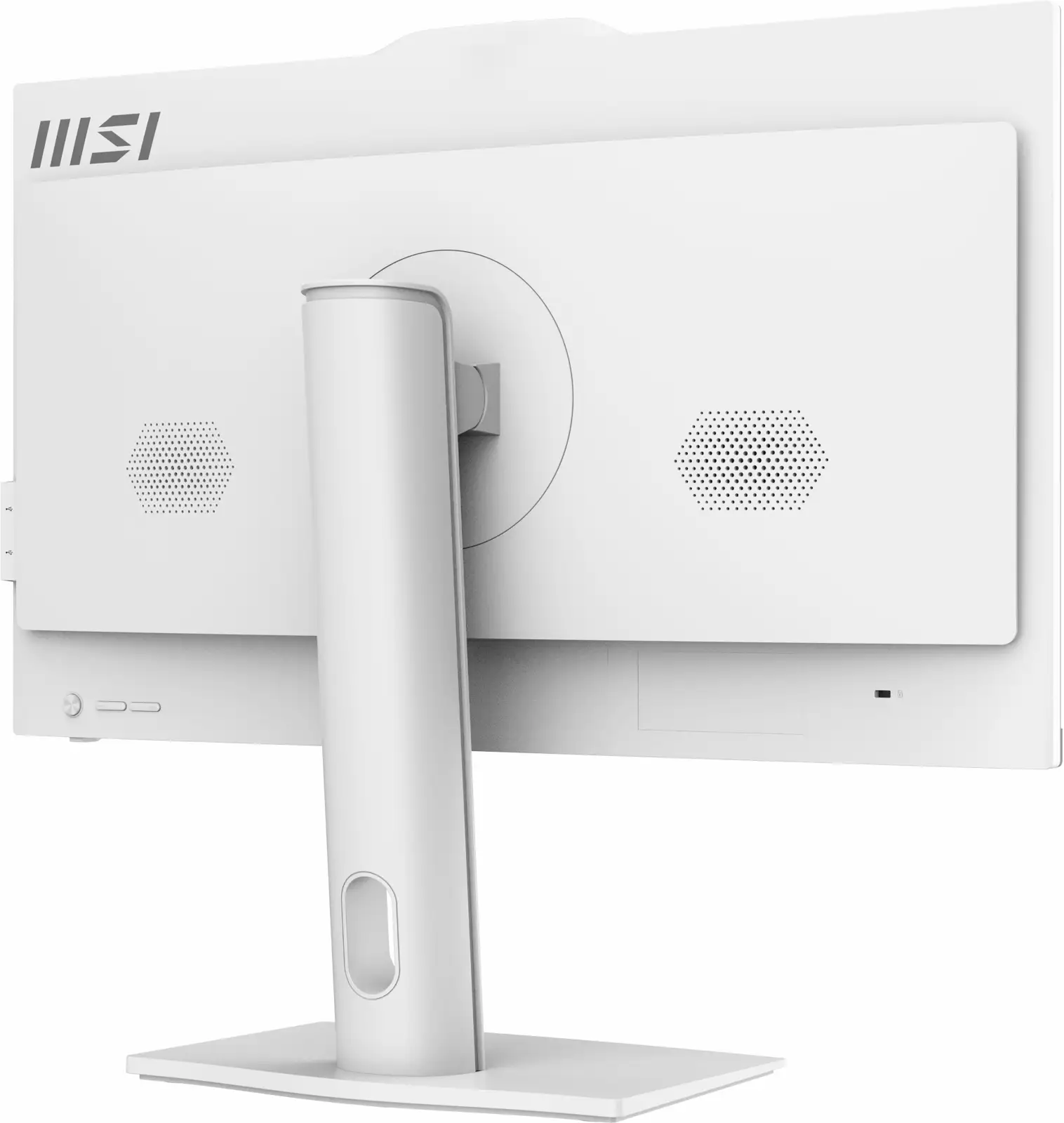

Produktbilder

Display

Display diagonal

23.8 "

Display resolution

1920 x 1080 pixels

Touchscreen

Nej

HD type

Full HD

Native aspect ratio

16:9

Display brightness

250 cd/m²

Panel type

IPS

Tilt adjustment

Ja

Tilt angle range

-4 - 20 °

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

Intel® Core™ i5 (14th gen)

Processor model

i5-14400

Processor cores

10

Processor threads

16

Processor boost frequency

4.7 GHz

Performance cores

6

Efficient cores

4

Performance-core Max Turbo Frequency

4.7 GHz

Efficient-core Max Turbo Frequency

3.5 GHz

Performance-core base frequency

2.5 GHz

Efficient-core base frequency

1.8 GHz

Processor cache

20 MB

Processor cache type

Smart Cache

Processor base power

65 W

Maximum turbo power

148 W

Memory

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

Maximum internal memory

64 GB

Memory slots type

SO-DIMM

Memory layout (slots x size)

2 x 8 GB

Storage

Total storage capacity

512 GB

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 3.0

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Optical drive type

Nej

Graphics

Discrete graphics card

Nej

Discrete graphics card model

Not available

On-board graphics card

Ja

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 730

Audio

Built-in speaker(s)

Ja

Number of speakers

2

RMS rated power

6 W

Audio chip

Realtek ALC897

Camera

Built-in camera

Ja

Total megapixels

2 MP

Camera resolution

1920 x 1080 pixels

Camera HD type

Full HD

Network

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Ethernet LAN

Ja

Bluetooth

Ja

Bluetooth version

5.3

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB4 Gen 3x2 ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

1

Microphone in

Ja

Audio output

Ja

Design

Product colour

White

Cable lock slot

Ja

Cable lock slot type

Kensington

Performance

Product type

All-in-One PC

Market positioning

Business

Motherboard chipset

Intel H610

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Software

Operating system installed

Windows 11 Pro

Power

AC adapter power

120 W

Weight & dimensions

Width (with stand)

541.93 mm

Depth (with stand)

333.25 mm

Height (with stand)

479.5 mm

Weight (with stand)

4630 g

Package width

640 mm

Package depth

243 mm

Package height

508 mm

Package weight

8000 g

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 90 %
