Funktioner
- Modell
- IP-säkerhetskamera
- Placeringar som kan användas
- Inomhus & utomhus
- Anslutningsteknologi
- Kabel
- Formfaktor
- Projektil (form)
- Monteringssätt
- Vägg
- Produktens färg
- Svart, Vit
Recensioner
Recensera produktLägsta pris på 30 dagar
50 733 kr
+8,65 %
Priset är nu 4 388 kr högre.
PrishistorikInformation
Produkt
- Tillverkare
- Axis
- Produktnamn
- Q1971-E
- Tillverkarens länk
- https://www.axis.com/products/axis-q1971-e
Produktkoder
- Tillverkarens produktkoder
- 02953-001
- GTIN- / EAN-koder
- 7331021086739

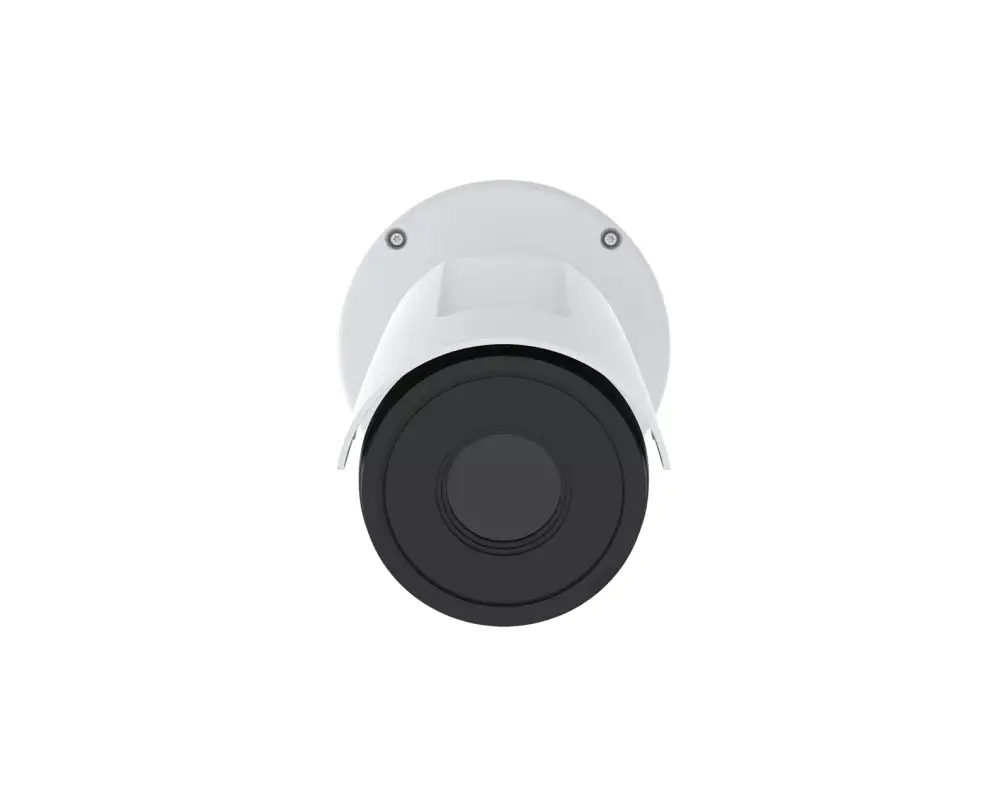

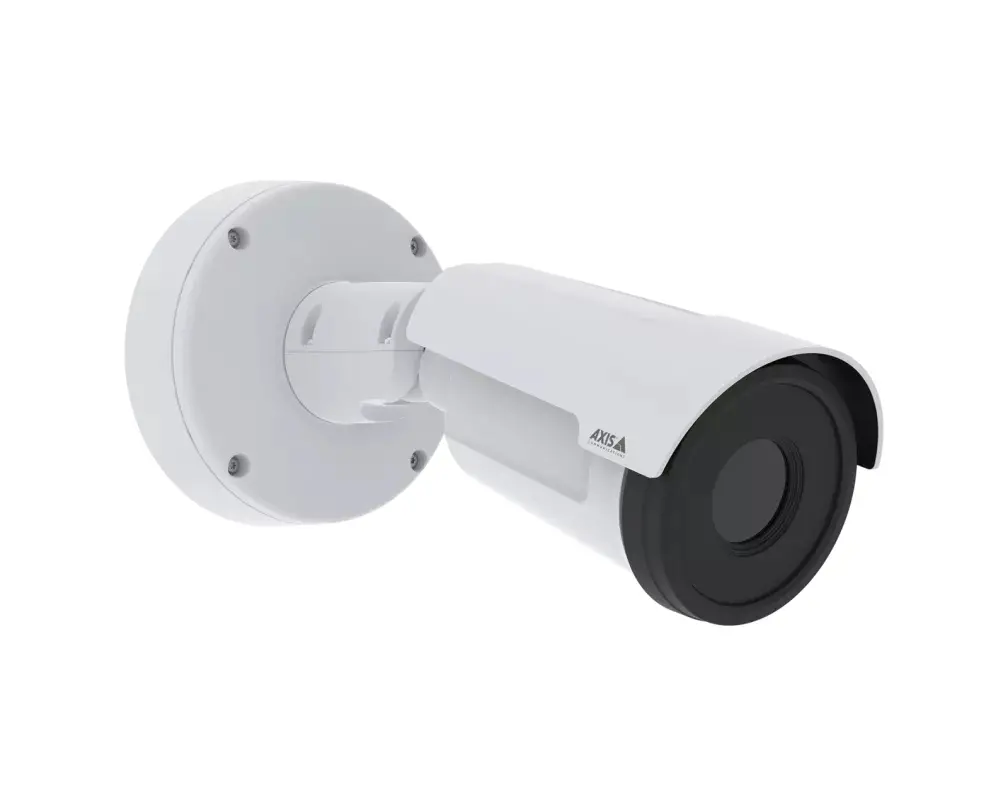

Produktbilder
Performance
- Type
- IP security camera
- Placement supported
- Indoor & outdoor
- Connectivity technology
- Wired
- Thermal module
- Ja
Design
- Form factor
- Bullet
- Mounting type
- Wall
- Product colour
- Black, White
- Housing material
- Aluminium, Polycarbonate (PC)
- International Protection (IP) code
- IP66, IP67
- IK code
- IK10
Camera
- Lens viewing angle, horizontal
- 10.5 °
- Lens viewing angle, vertical
- 8 °
- Camera pixel size
- 17 µm
Image sensor
- Sensor type
- Microbolometer
- Number of sensors
- 1
- Effective sensor resolution (thermal module)
- 384 x 288 pixels
Lens system
- Number of lenses
- 1
- Lens diameter
- 35 mm
- Maximum aperture number
- 1.14
- Closest focusing distance
- 31.3 m
Video
- Maximum resolution
- 768 x 576 pixels
- Video formats supported
- AVC, H.264, H.265, HEVC, M-JPEG
- Frame rate
- 30 fps
- Video streaming
- Ja
- Gain control type
- Auto
- Image quality adjustment
- Brightness, Contrast, Sharpness
- Flip & mirror
- Ja
- Text caption overlay
- Ja
- Image stabilizer
- Ja
- Bit rate control
- Variable Bit Rate (VBR)
Audio
- Audio system
- 2-way
- Audio system full duplex
- Ja
- Audio formats supported
- AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
- Audio detection
- Ja
Network
- Ethernet LAN
- Ja
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Networking standards
- IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Supported network protocols
- IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
- Streaming method
- Multicast
Storage
- Card reader integrated
- Ja
- Compatible memory cards
- MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory
- 8192 MB
- RAM capacity
- 2048 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Ja
- Terminal block port
- Ja
- DC-in jack
- Ja
Security
- Password protection
- Ja
- Video motion detection
- Ja
- Active tampering alarm
- Ja
- Security algorithms
- EAP-TLS, HTTPS, MSCHAPv2
- Alert notification type
- Privacy protection
- Ja
- Pixel counter
- Ja
- Digest authentication
- Ja
Management features
- Cloud-managed
- Ja
Power
- Power source type
- DC, PoE
- Power consumption (typical)
- 3.6 W
- Power consumption (max)
- 12.95 W
- Power consumption (Power over Ethernet (PoE))
- 12.95 W
Operational conditions
- Operating temperature (T-T)
- -40 - 60 °C
- Storage temperature (T-T)
- -40 - 65 °C
- Operating relative humidity (H-H)
- 10 - 100 %
- Storage relative humidity (H-H)
- 5 - 95 %
Weight & dimensions
- Width
- 132 mm
- Depth
- 272 mm
- Height
- 132 mm
- Weight
- 1400 g
Packaging content
- Number of cameras
- 1
Other features
- Doesn't contain
- CFR, Halogen, PVC/BFR
