Lenovo ThinkCentre M75q

Produkt

Tillverkare

Lenovo

Produktfamilj / -serie

ThinkCentre M

Produktnamn

M75q

Tillverkarens länk

https://www.lenovo.com/gb/en/p/desktops/thinkcentre/m-series-t..

Produktkoder

Tillverkarens produktkoder

• 12RQ001LMX

GTIN- / EAN-koder

• 0198154673253

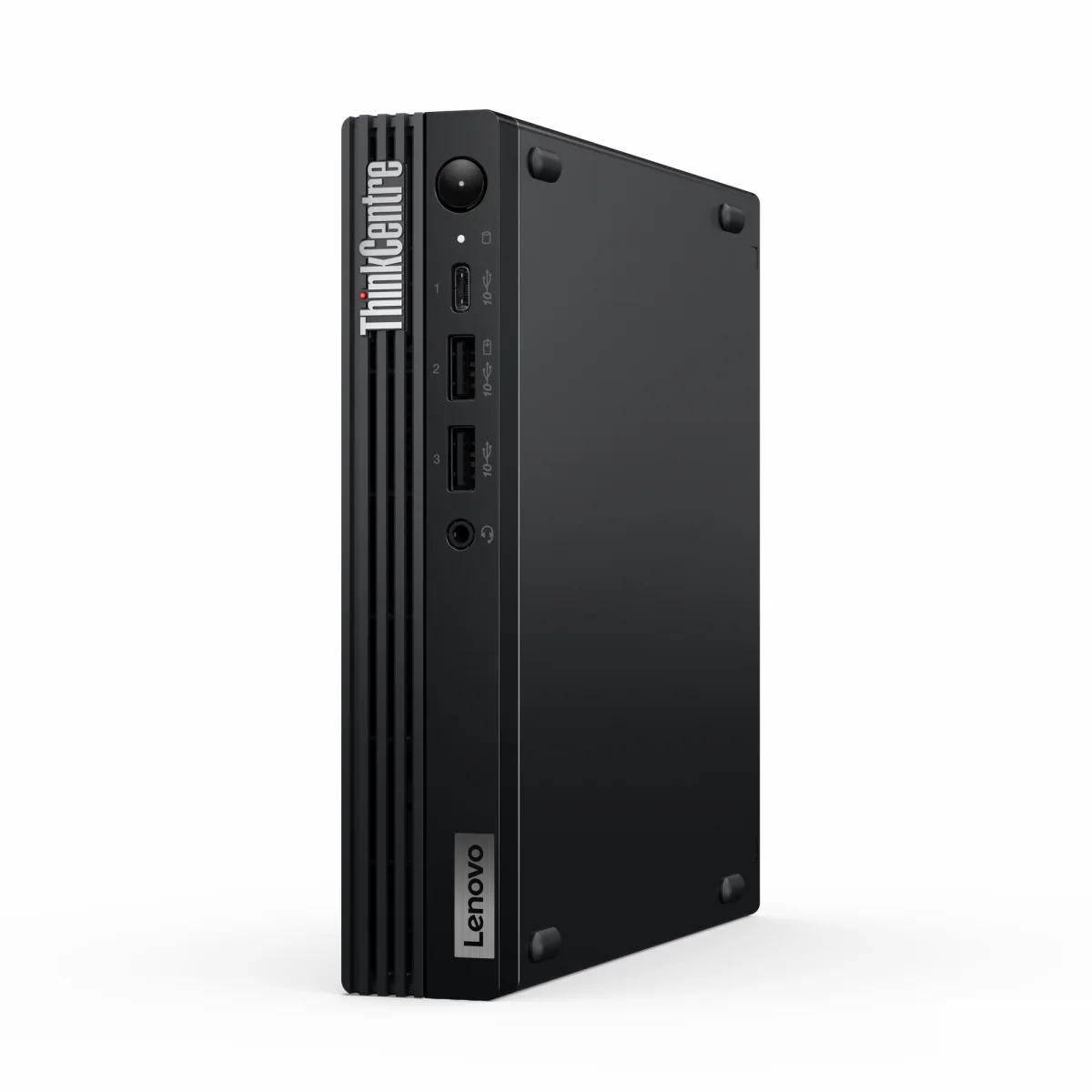

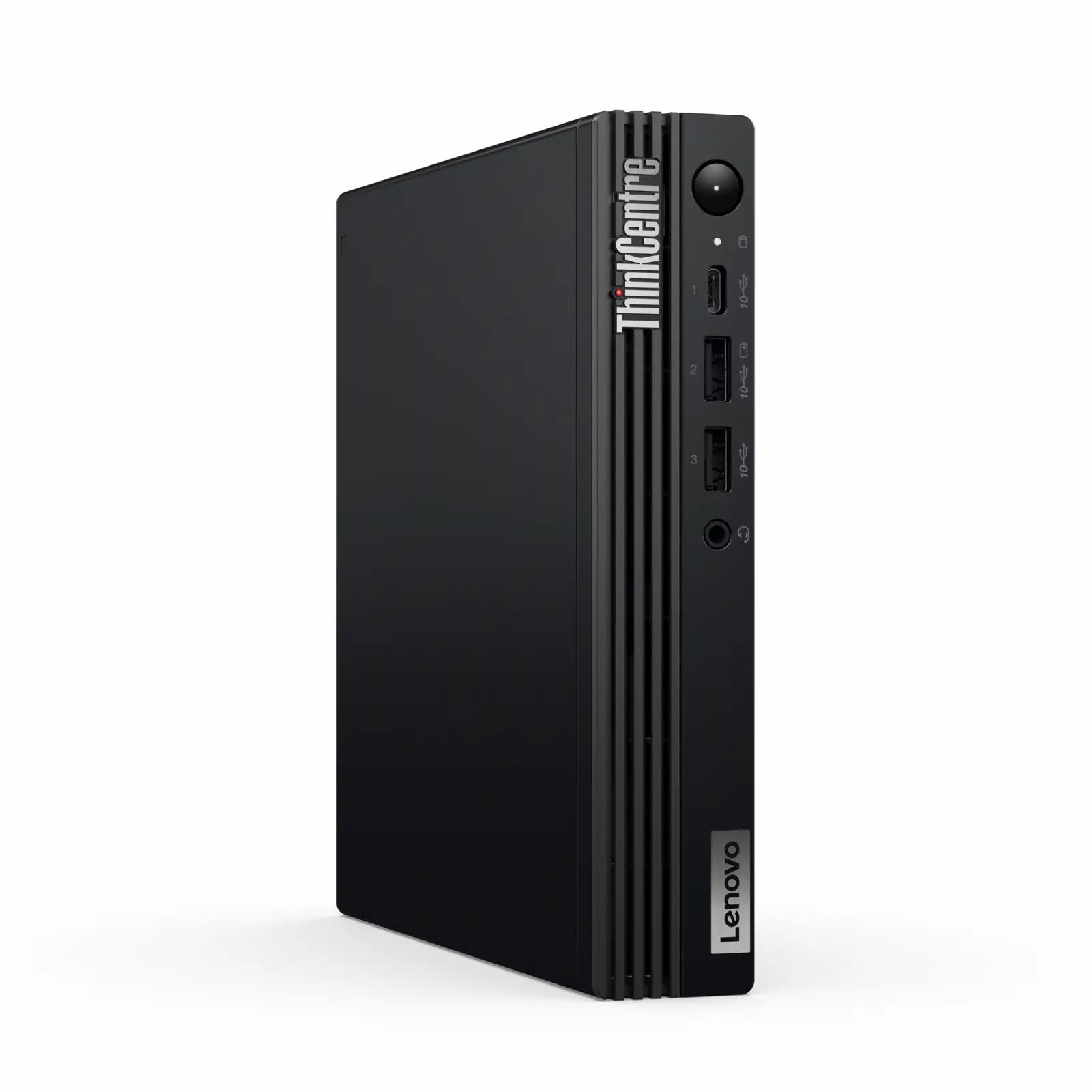

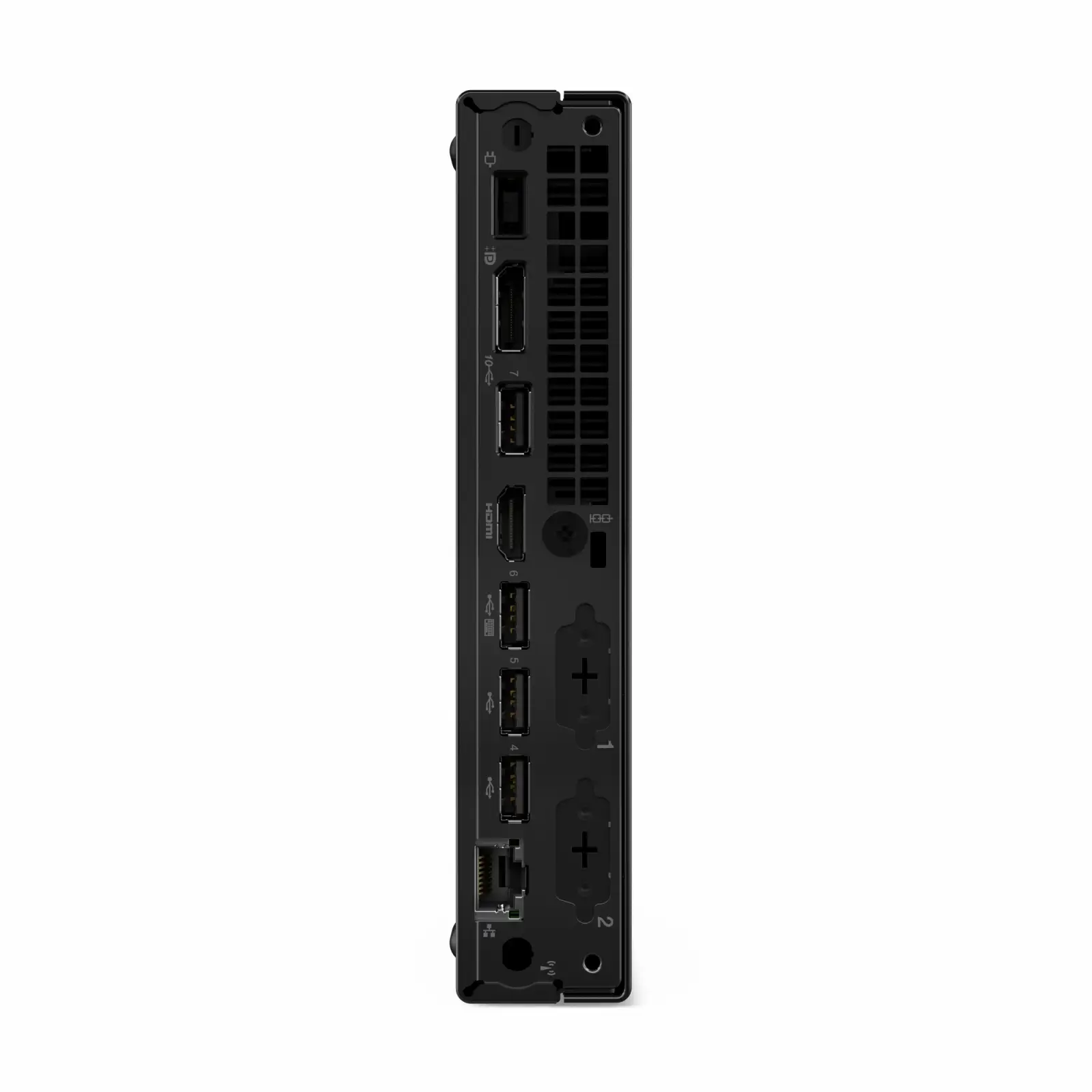

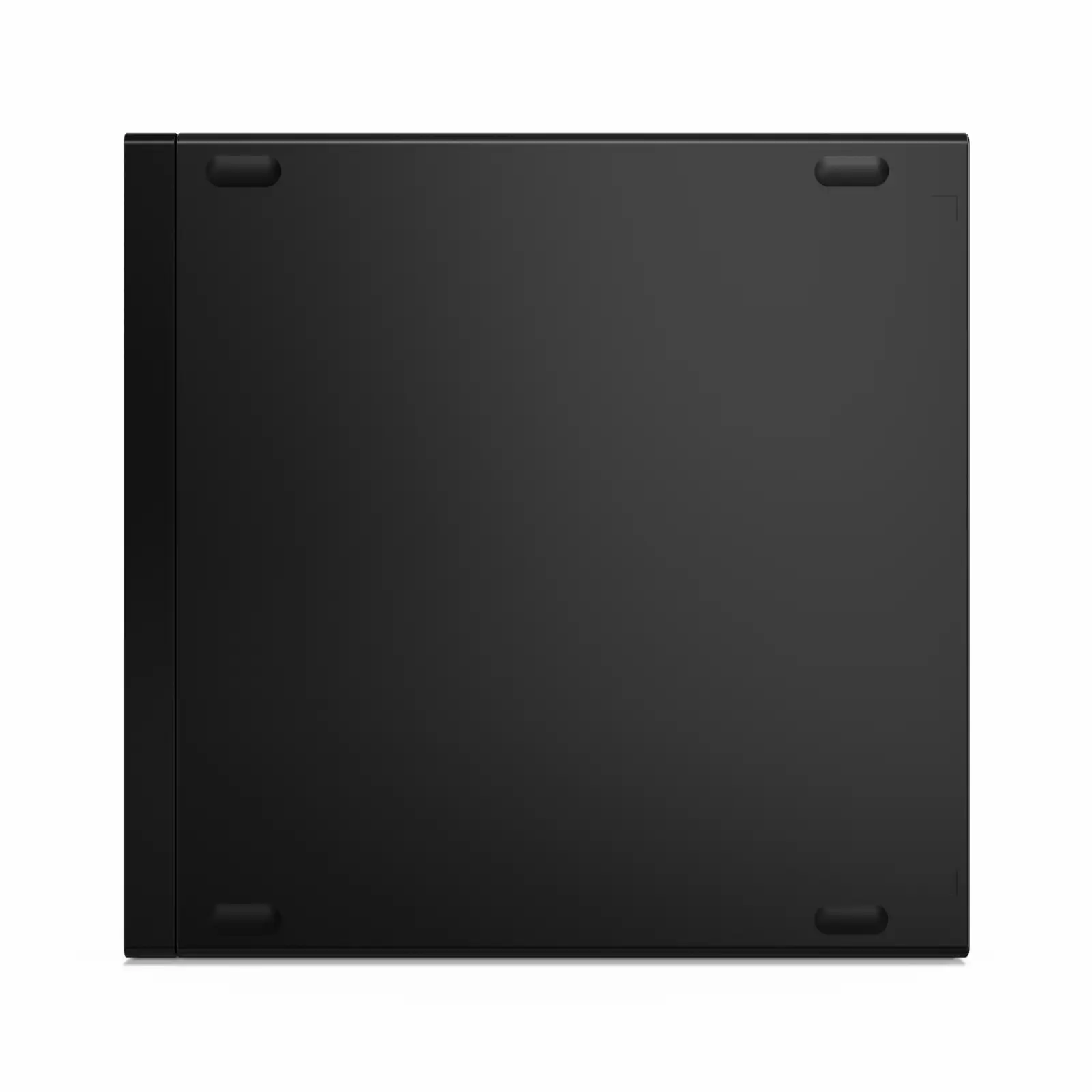

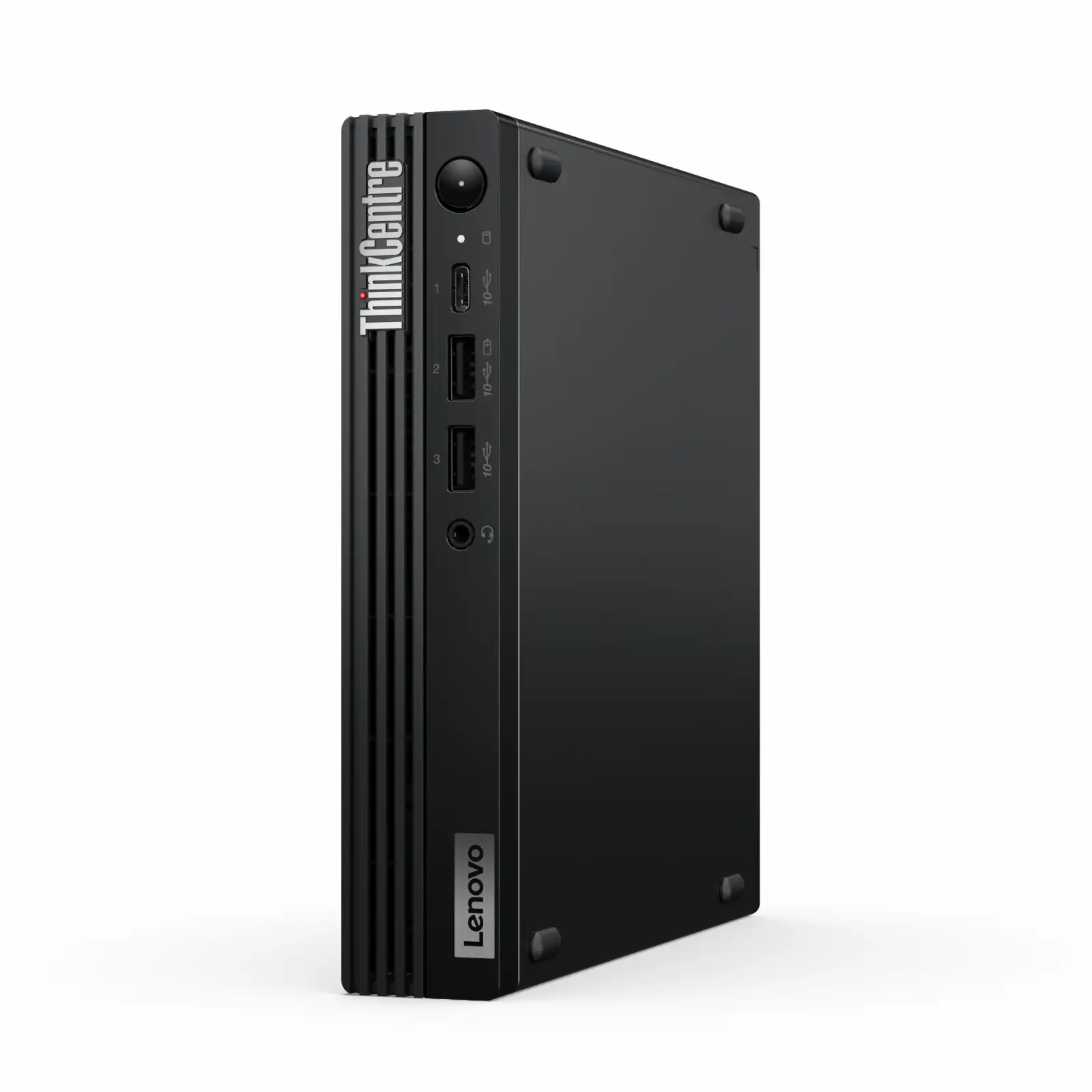

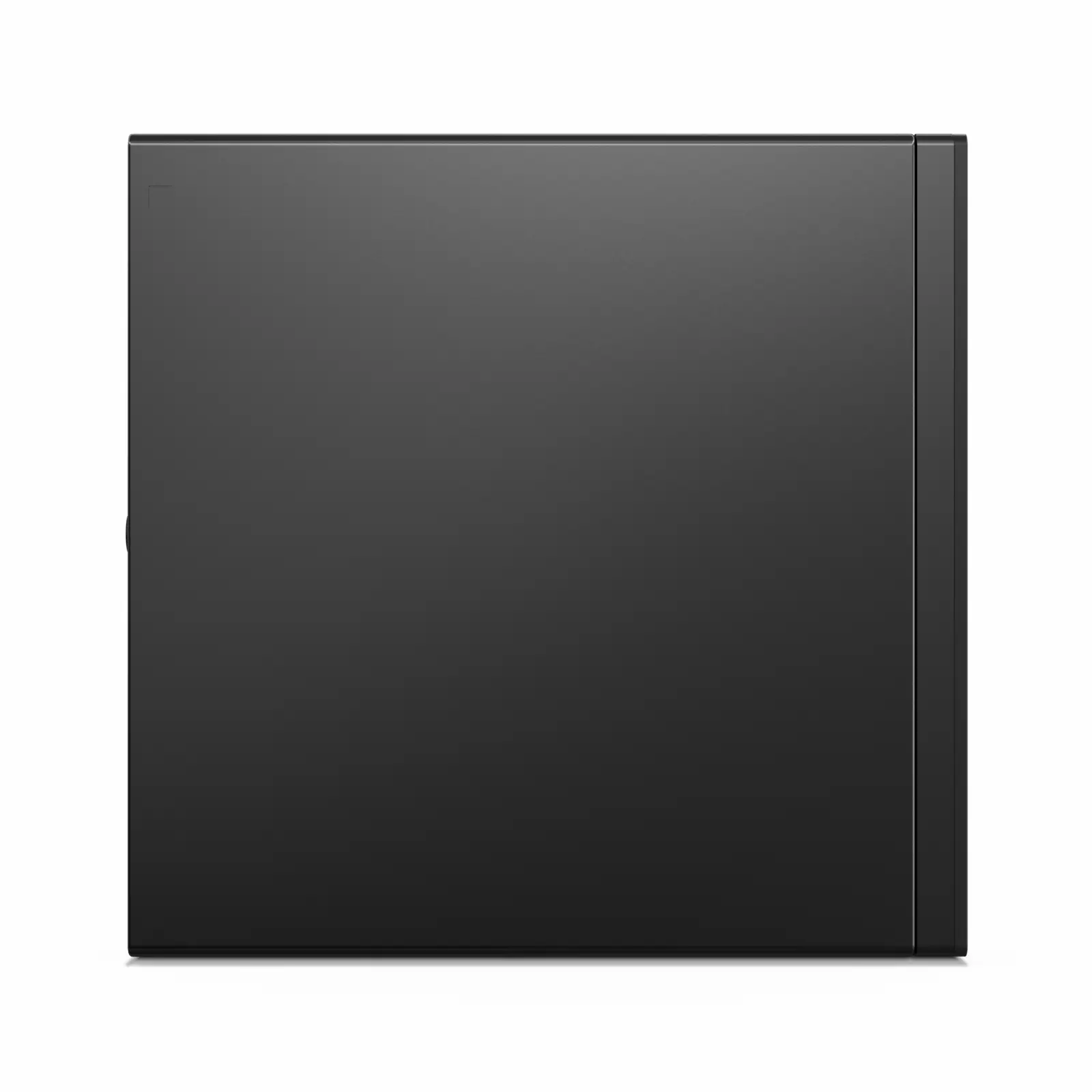

Produktbilder

Processor

Processor manufacturer

AMD

Processor family

AMD Ryzen™ 5

Processor generation

AMD Ryzen 8000 Series

Processor model

8500GE

Processor cores

6

Processor threads

12

Processor boost frequency

5 GHz

Processor frequency

3.4 GHz

Processor cache

16 MB

Processor cache type

L3

Number of processors installed

1

Memory

Internal memory

16 GB

Maximum internal memory

32 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x SO-DIMM

Memory clock speed

5200 MHz

Memory channels

Dual-channel

Storage

Total storage capacity

512 GB

Optical drive type

Nej

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

Card reader integrated

Nej

Graphics

Discrete graphics card

Nej

On-board graphics card

Ja

Discrete graphics card model

Not available

On-board graphics card model

AMD Radeon 740M

Performance

Product type

Mini PC

Password protection

Ja

Password protection type

HDD, Power on, Supervisor

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Built-in speaker(s)

Ja

Network

Ethernet LAN

Ja

Ethernet LAN data rates

100,1000 Mbit/s

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

WLAN controller model

Realtek RTL8852BE

Antenna type

2x2

Bluetooth

Ja

Bluetooth version

5.3

Ports & interfaces

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

2

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Ja

Serial ports quantity

1

Power

Power supply

65 W

Design

Chassis type

Mini PC

Colour name

Black

Volume

1 L

Placement supported

Vertical

VESA mounting

Ja

Cable lock slot

Ja

Cable lock slot type

Kensington

Product colour

Black

Software

Operating system installed

Windows 11 Pro

Operating system language

English, Swedish, Finnish, Danish, Norwegian

Display

Display included

Nej

Audio

Audio chip

Realtek ALC233

Audio system

High Definition Audio

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

20 - 80 %

Storage relative humidity (H-H)

10 - 90 %

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width

179 mm

Depth

182.9 mm

Height

36.5 mm

Weight

1250 g

Packaging content

Mouse included

Ja

Mouse connectivity

Wired

Keyboard included

Ja

Certificates

Compliance certificates

RoHS

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT Gold, ErP, TCO

Keyboard

Keyboard connectivity

Wired
