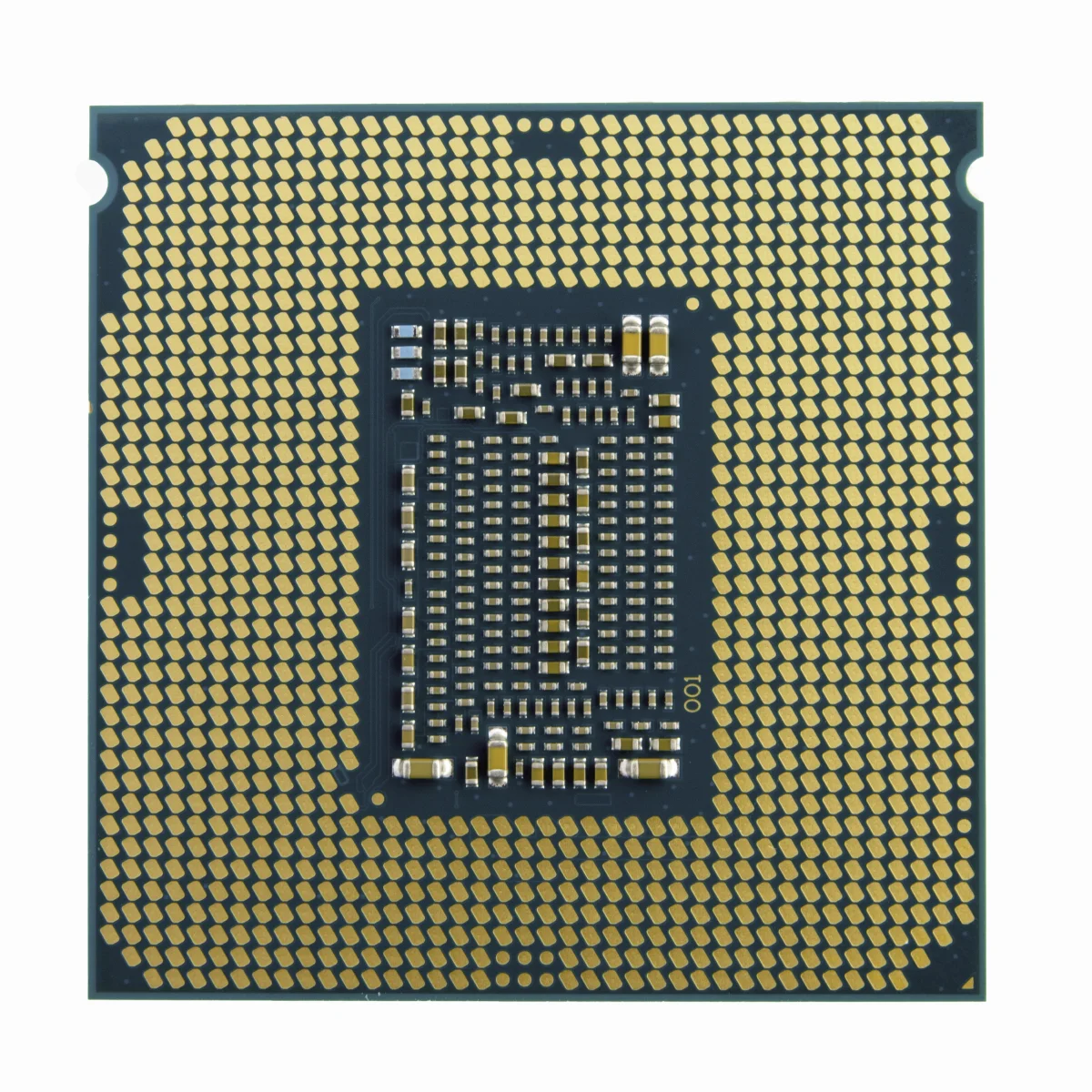

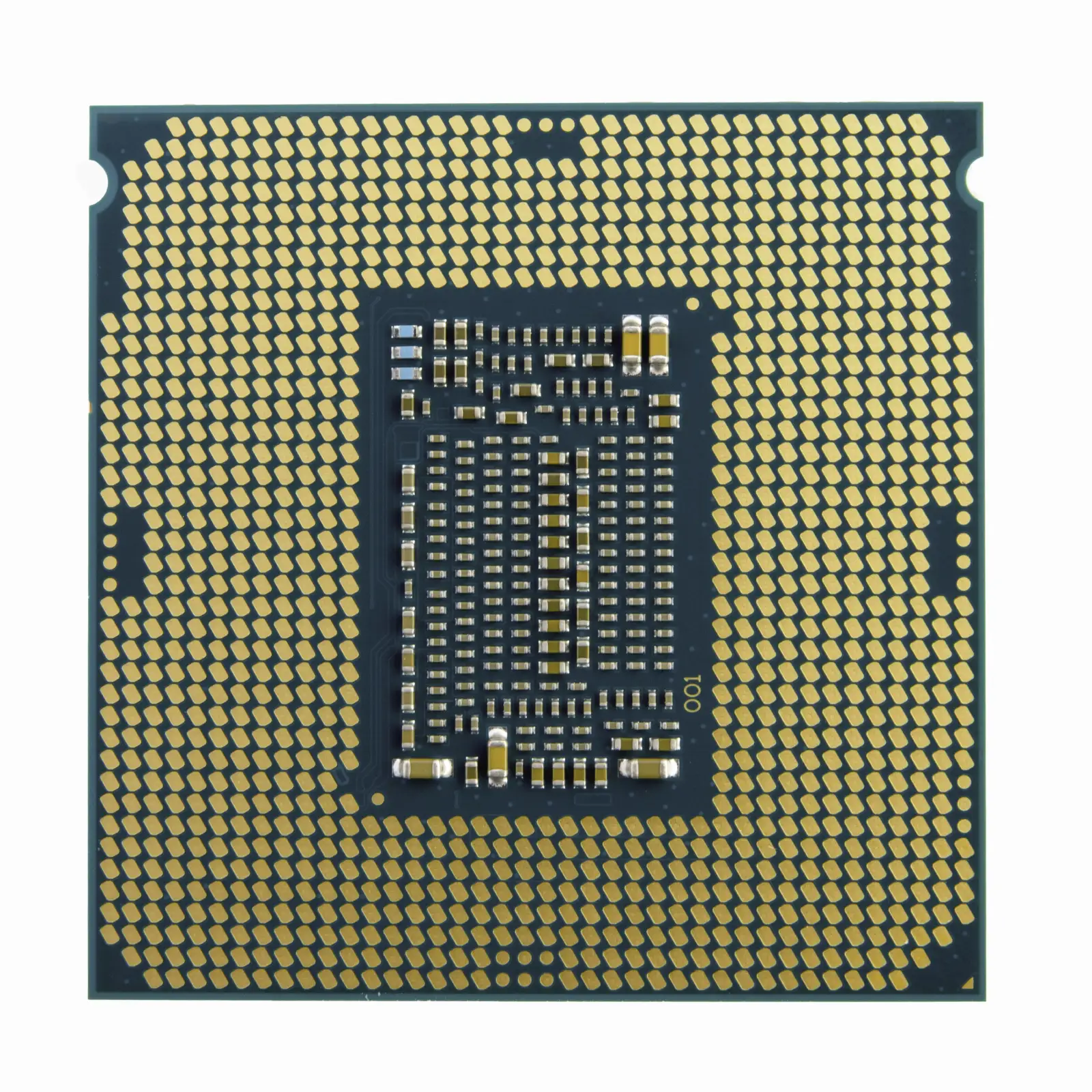

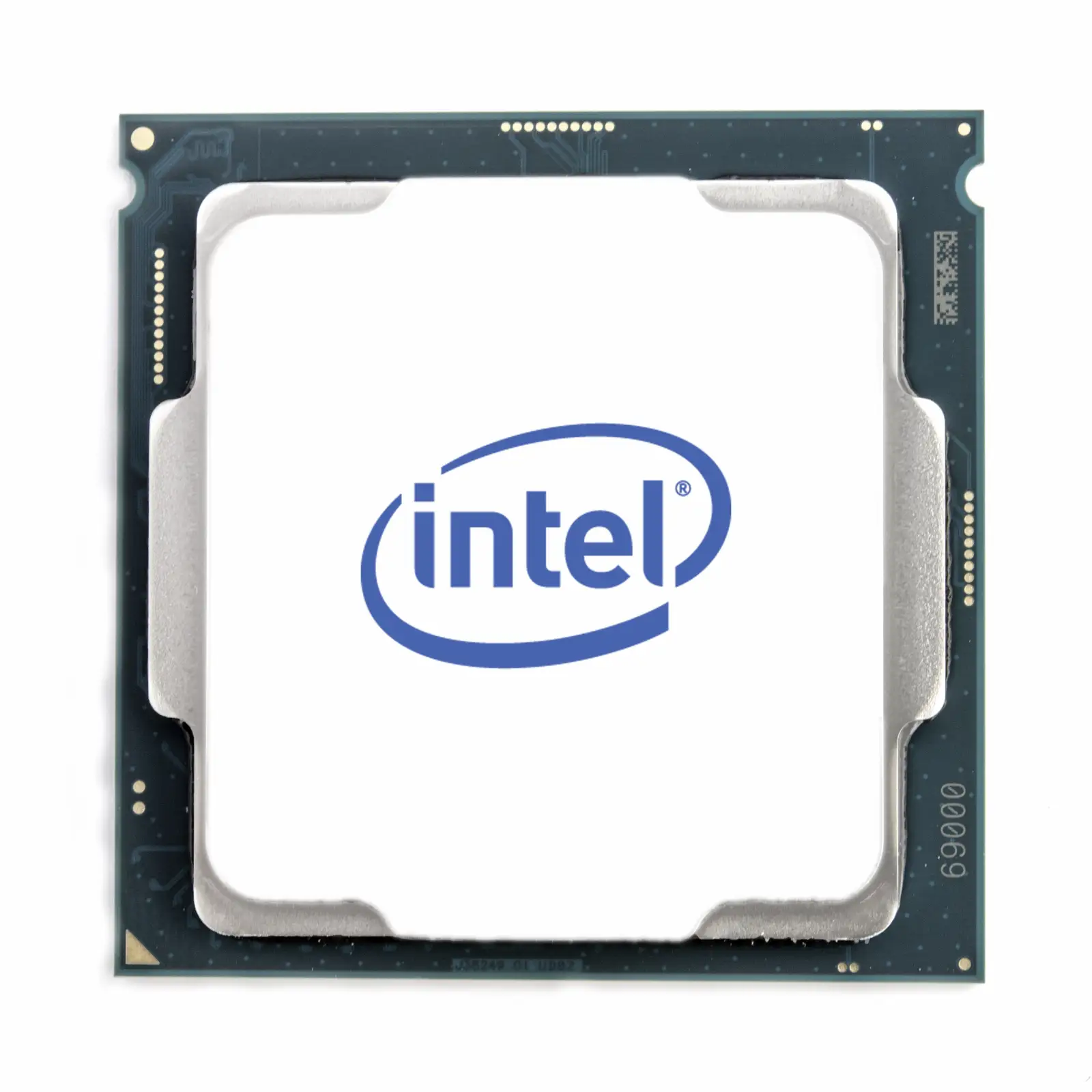

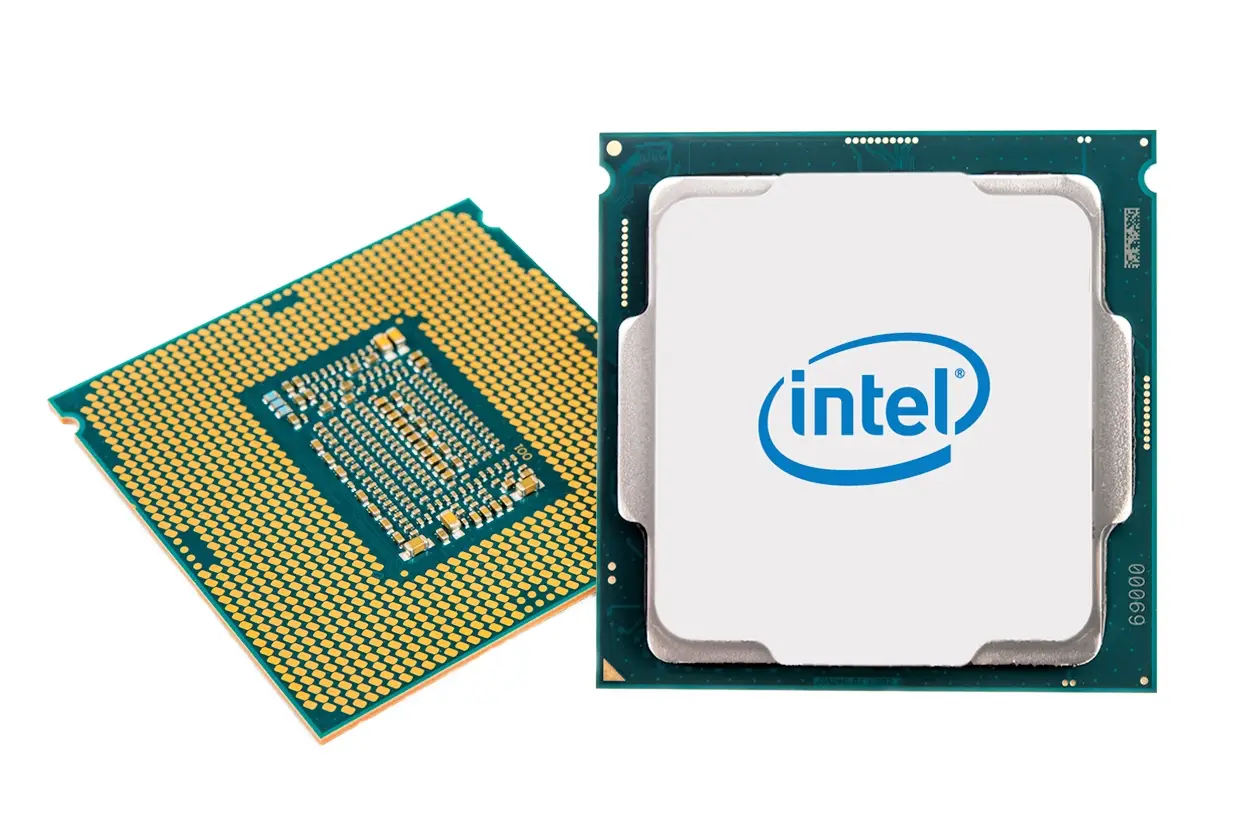

DELL Xeon Silver 4314

Produkt

Tillverkare

DELL

Produktfamilj / -serie

Xeon

Produktnamn

Silver 4314

Tillverkarens länk

https://www.dell.com/

Produktkoder

Tillverkarens produktkoder

• 338-CBXX

GTIN- / EAN-koder

• 5397184660232

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Xeon Silver

Processor generation

3rd Generation Intel® Xeon® Scalable

Processor model

4314

Processor base frequency

2.4 GHz

Processor cores

16

Processor socket

LGA 4189

Processor lithography

10 nm

Cooler included

Nej

Component for

Server/workstation

Processor threads

32

System bus rate

10.4 GT/s

Processor operating modes

64-bit

Processor boost frequency

3.4 GHz

Processor cache

24 MB

Thermal Design Power (TDP)

135 W

Processor codename

Ice Lake

Processor ARK ID

215269

Memory

Maximum internal memory supported by processor

6144 GB

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

2667 MHz

Memory channels

Octa-channel

ECC

Ja

Graphics

On-board graphics card

Nej

Discrete graphics card

Nej

On-board graphics card model

Not available

Discrete graphics card model

Not available

Features

Execute Disable Bit

Ja

Market segment

Server

Maximum number of PCI Express lanes

64

PCI Express slots version

4.0

Supported instruction sets

SSE4.2, AVX, AVX 2.0, AVX-512

Scalability

2S

Embedded options available

Ja

Export Control Classification Number (ECCN)

5A992CN3

Commodity Classification Automated Tracking System (CCATS)

G178966

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Ja

Intel® Turbo Boost Technology

2.0

Intel® AES New Instructions (Intel® AES-NI)

Ja

Intel Trusted Execution Technology

Ja

Intel® Speed Shift Technology

Ja

Intel® Transactional Synchronization Extensions

Ja

Intel® Total Memory Encryption

Ja

Intel® Crypto Acceleration

Ja

Intel® Platform Firmware Resilience Support

Ja

Maximum Enclave Size Support for Intel® SGX

8 GB

Intel VT-x with Extended Page Tables (EPT)

Ja

Intel Software Guard Extensions (Intel SGX)

Ja

Intel 64

Ja

Intel Virtualization Technology (VT-x)

Ja

Intel Virtualization Technology for Directed I/O (VT-d)

Ja

AVX-512 Fused Multiply-Add (FMA) units

2

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Ja

Intel® Resource Director Technology (Intel® RDT)

Ja

Intel® Volume Management Device (VMD)

Ja

Mode-based Execute Control (MBE)

Ja

Intel® Optane™ DC Persistent Memory Supported

Ja

Operational conditions

Tcase

86 °C

Technical details

Supported memory types

DDR4-SDRAM

Launch date

Q2'21

Status

Launched

Memory speed (max)

2667 MHz

Number of UPI links

2

Logistics data

Harmonized System (HS) code

85423119

Weight & dimensions

Processor package size

77.5 x 56.5 mm

Other features

Maximum internal memory

6000 GB
