DELL Pro Max FCT2250 T2

Produkt

Tillverkare

DELL

Produktfamilj / -serie

Pro Max

Produktnamn

FCT2250 T2

Produktkoder

Tillverkarens produktkoder

• F1TKG

GTIN- / EAN-koder

• 5397184936825

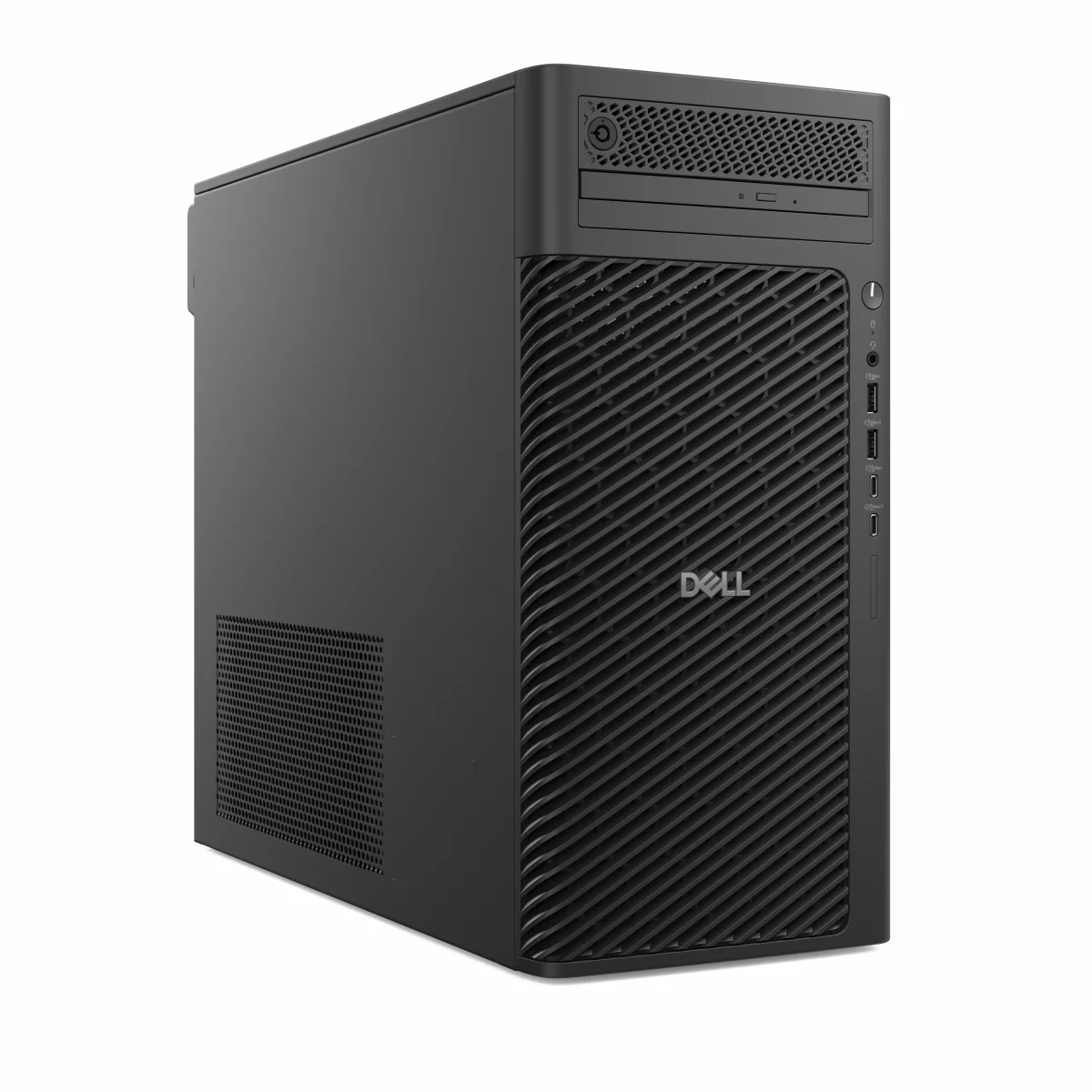

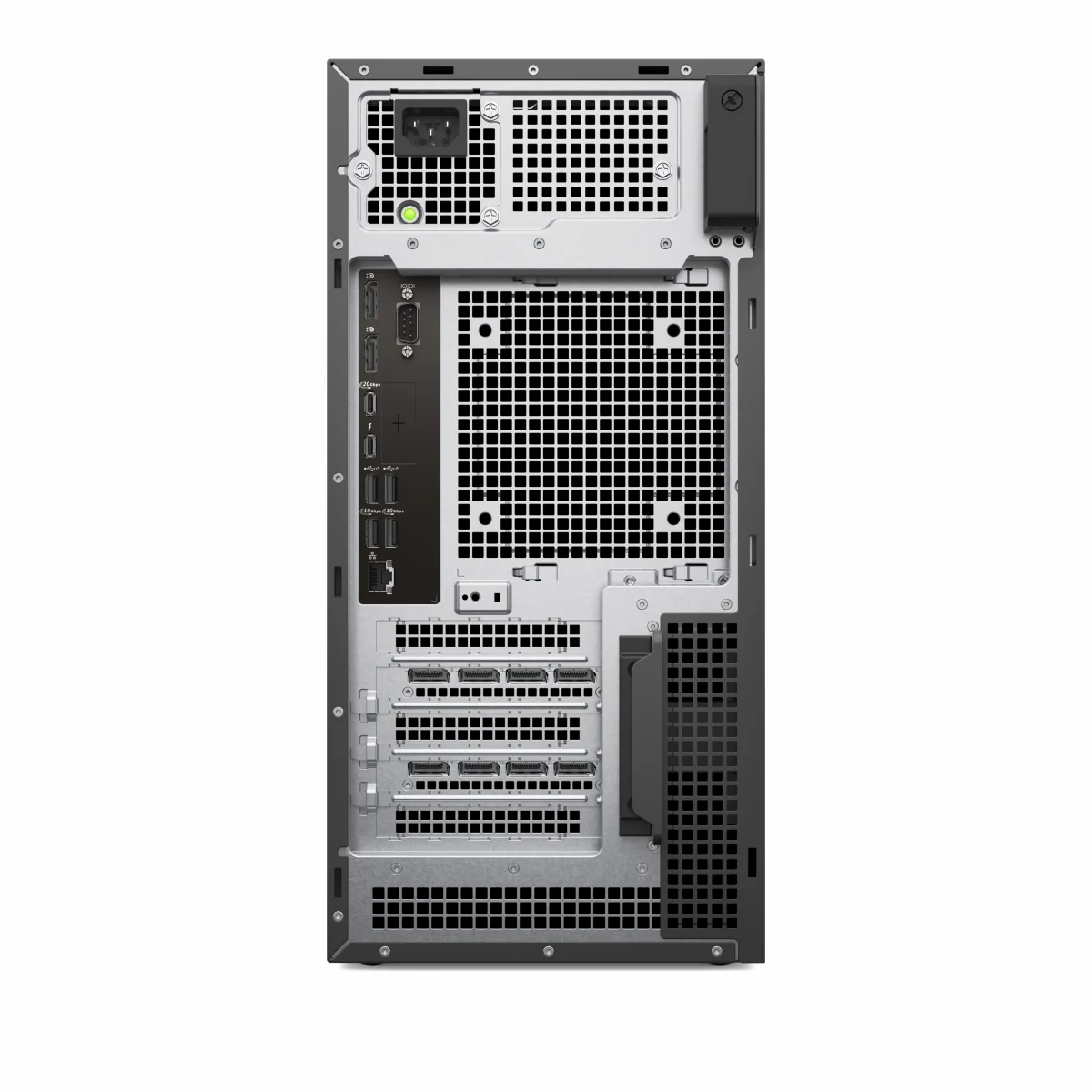

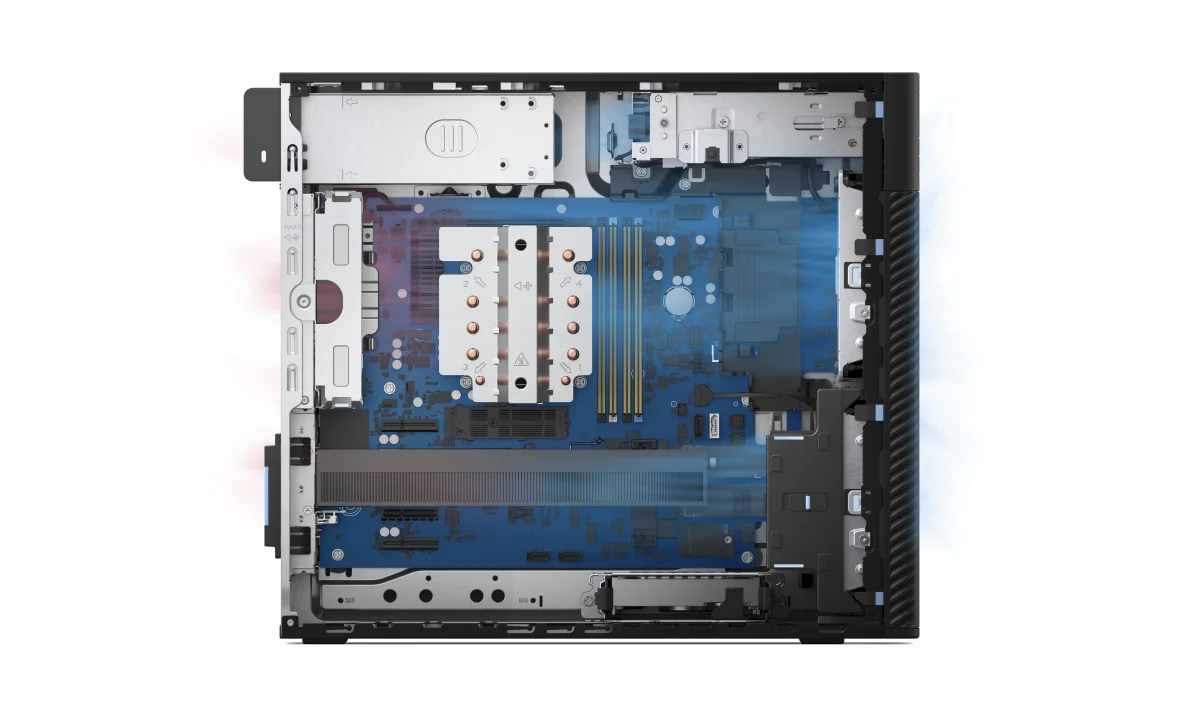

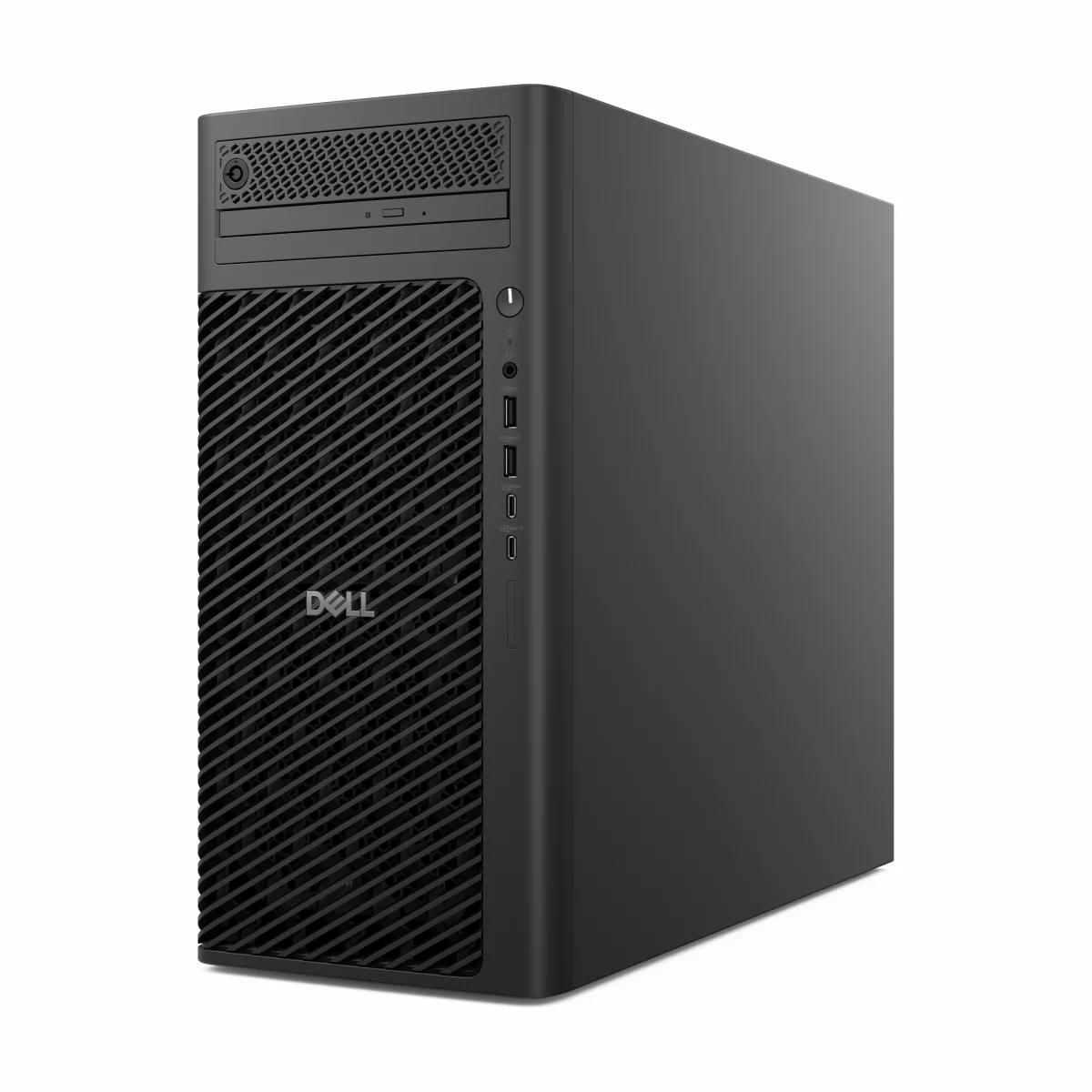

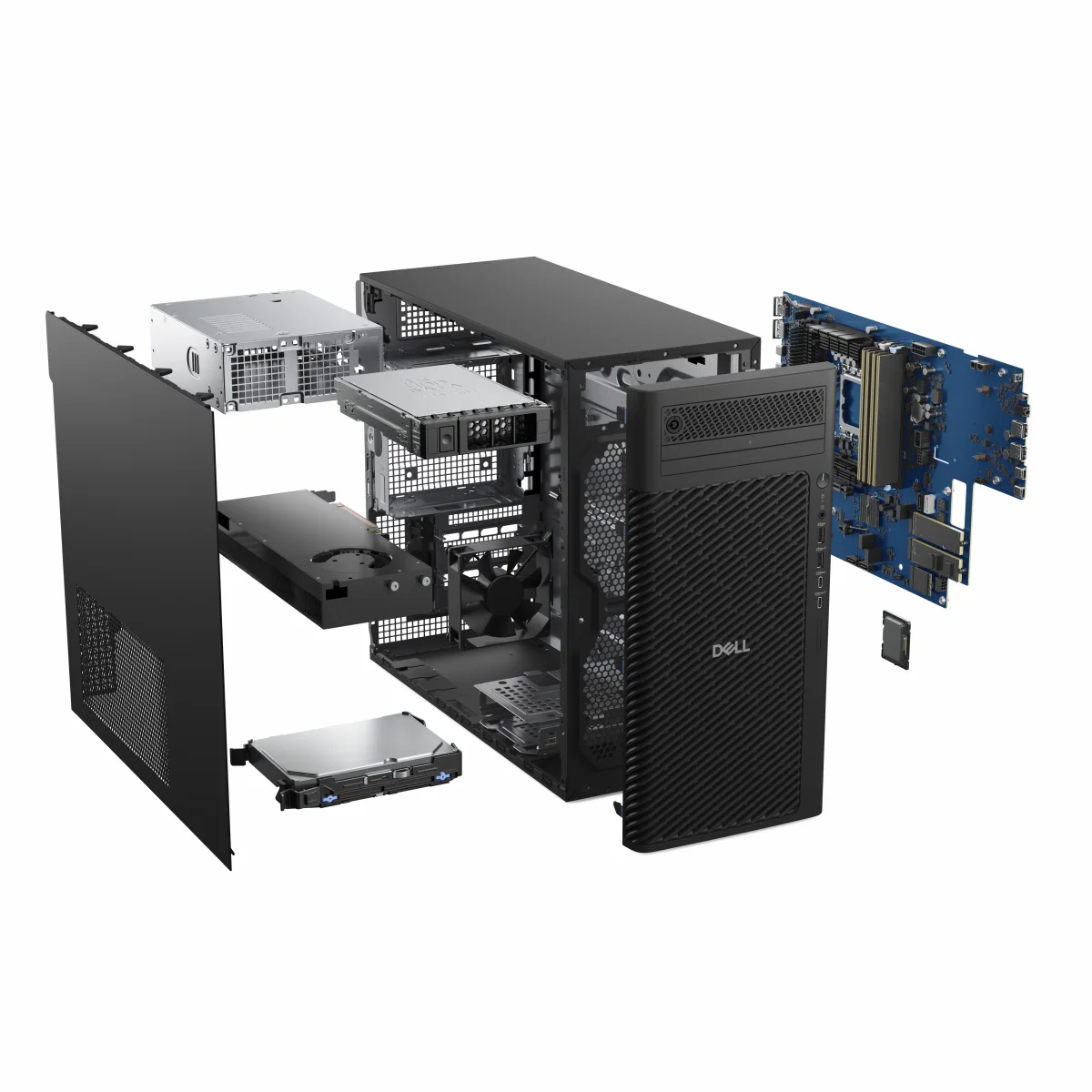

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor generation

Intel Core Ultra (Series 2)

Processor model

265

Processor cores

20

Processor threads

20

Processor boost frequency

5.3 GHz

Performance cores

8

Efficient cores

12

Performance-core Max Turbo Frequency

5.2 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Performance-core base frequency

2.4 GHz

Efficient-core base frequency

1.8 GHz

Processor cache

30 MB

Processor cache type

Smart Cache

Number of processors installed

1

Processor base power

65 W

Maximum turbo power

182 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Ja

Windows Studio effects support

Ja

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

33 TOPs

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Memory

Internal memory

32 GB

Maximum internal memory

128 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

2 x 16 GB

Memory slots

4x DIMM

Non-ECC

Ja

Memory channels

Dual-channel

Memory data transfer rate

5600 MT/s

Storage

Total storage capacity

1000 GB

Optical drive type

Nej

Storage media

SSD

Number of storage drives installed

1

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

SSD memory type

TLC

SSD interface

PCI Express

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Graphics

Discrete graphics card

Ja

On-board graphics card

Ja

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA RTX 2000 Ada

Discrete graphics card memory

16 GB

Discrete graphics memory type

GDDR6

Number of discrete graphics cards

1

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® Graphics

On-board graphics card model

Intel® Graphics

Graphics card Mini DisplayPort ports quantity

4

Performance

Product type

PC

Market positioning

Business

Motherboard chipset

Intel W880

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

LAN controller

Intel® I219-LM

Wi-Fi

Nej

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

2

Thunderbolt 3 ports quantity

0

Intel® Thunderbolt 4

Ja

Thunderbolt 4 ports quantity

1

DisplayPorts quantity

2

DisplayPort version

1.4a

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Ja

DC-in jack

Ja

Number of rear USB ports

6

Number of front USB ports

4

Number of SATA III connectors

4

Expansion slots

PCI Express x4 (Gen 3.x) slots

2

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Power

Power supply

500 W

Power supply input voltage

90 - 264 V

Power supply input frequency

47/63 Hz

80 PLUS certification

80 PLUS Platinum

Design

Chassis type

Tower

Volume

32 L

Placement supported

Vertical

Cable lock slot

Ja

Cable lock slot type

Kensington

Product colour

Black

Intel® vPro™ Platform Eligibility

Ja

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Trial software

Activate Your Microsoft 365 For A 30 Day Trial

Processor special features

Intel® Active Management Technology (Intel® AMT)

Ja

Display

Display included

Nej

Audio

Audio chip

Realtek ALC3204

Audio system

High Definition Audio

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

0 - 95 %

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Operating shock

110 G

Non-operating shock

160 G

Weight & dimensions

Width

187.7 mm

Depth

438 mm

Height

387 mm

Weight

9700 g

Packaging content

Cables included

AC

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT Climate +

Doesn't contain

PVC/BFR

Carbon footprint

Total carbon footprint (kg of CO2e)

406

Carbon emissions, manufacturing (kg of CO2e)

145.35

Carbon emissions, logistics (kg of CO2e)

15.43

Carbon emissions, energy usage (kg of CO2e)

231.42

Carbon emissions, end-of-life (kg of CO2e)

13.8

PAIA version

GaBi version 1, 2024
