GIGABYTE B760 GAMING X DDR4 GEN5

Produkt

Tillverkare

GIGABYTE

Produktnamn

B760 GAMING X DDR4 GEN5

Tillverkarens länk

https://www.gigabyte.com/

Produktkoder

Tillverkarens produktkoder

• B760 GAMING X D4 GEN5
• B760 GAMING X DDR4 GEN5

GTIN- / EAN-koder

• 4719331873448

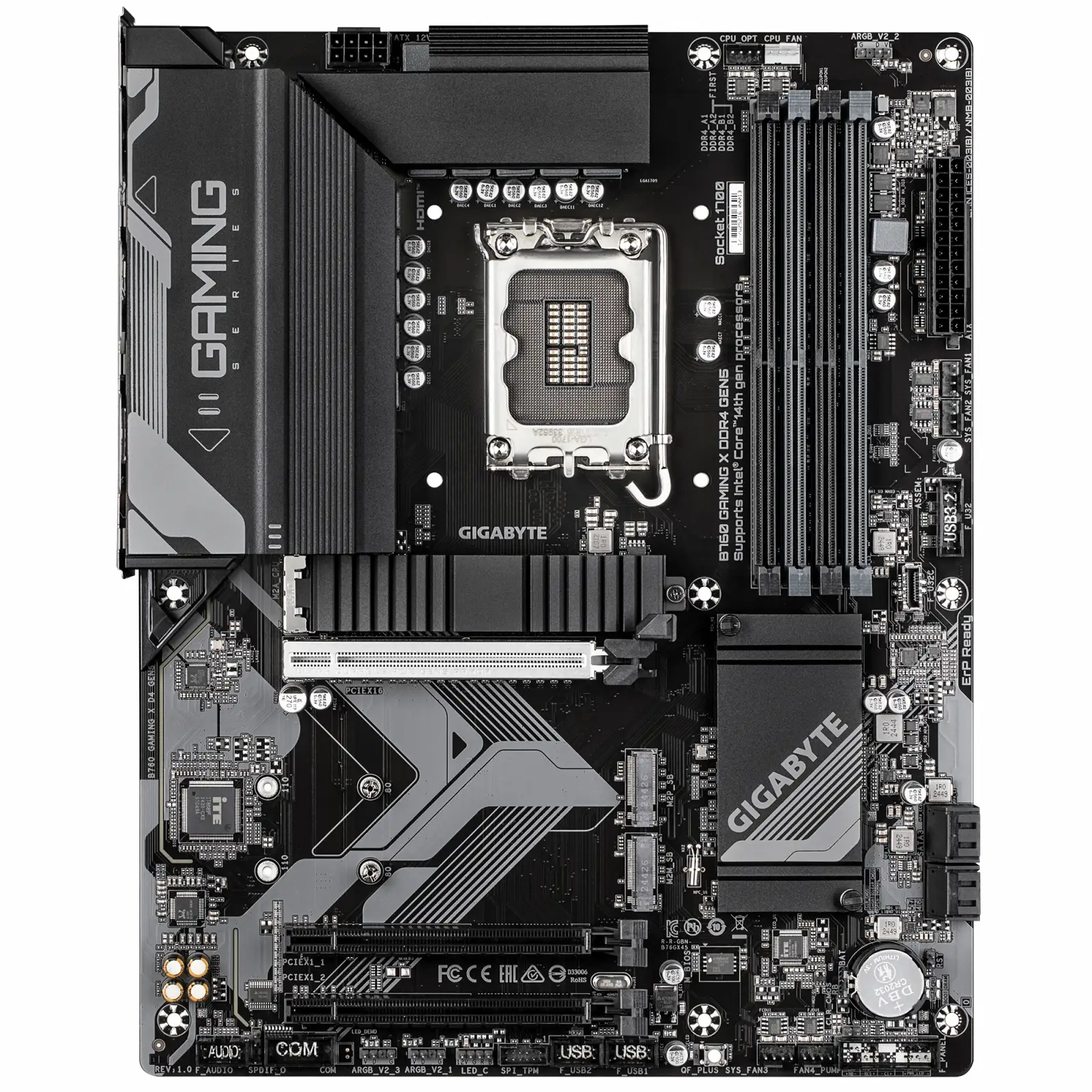

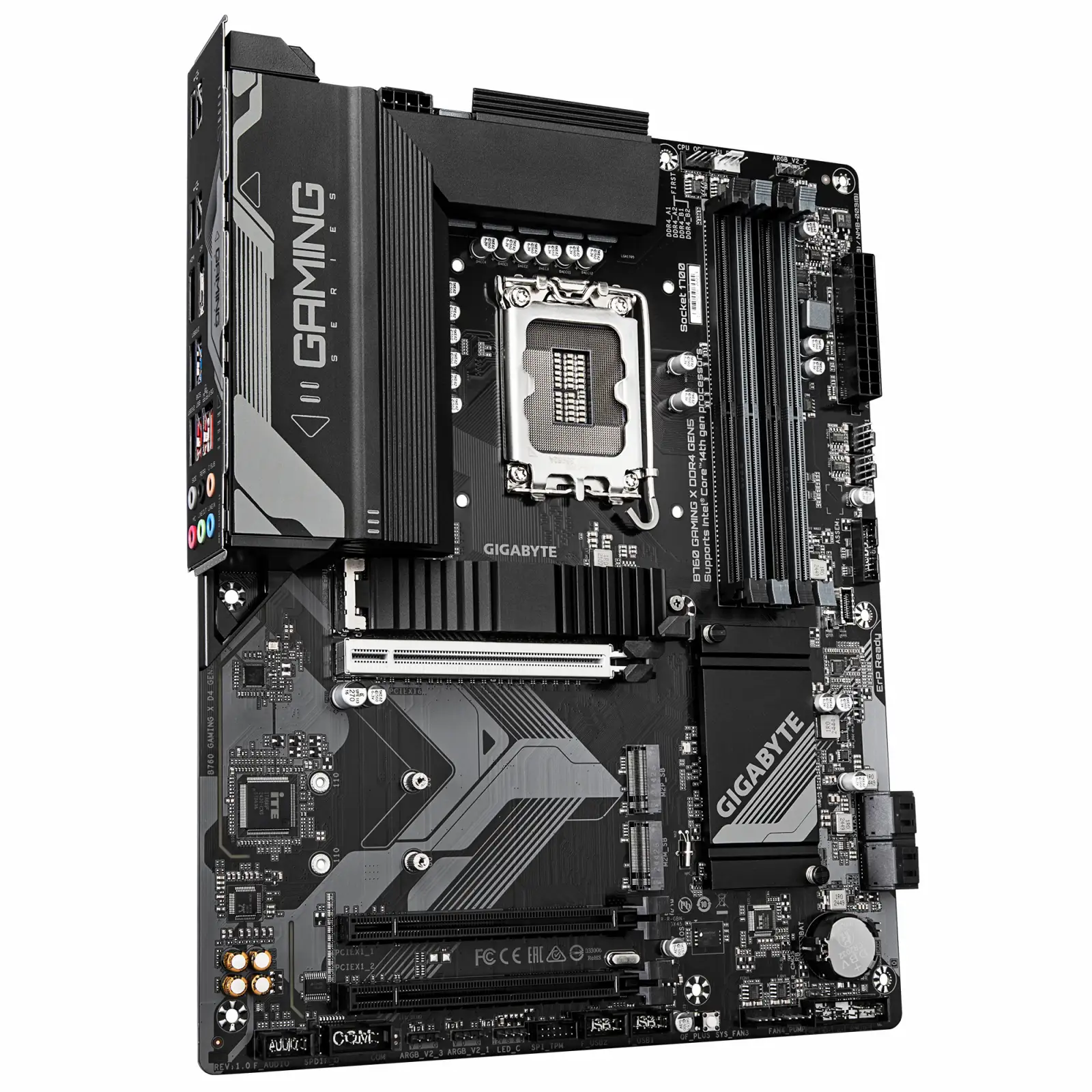

Produktbilder

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

128 GB

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz

Supported memory clock speed (max)

5333 MHz

Maximum internal memory

128 GB

Unbuffered memory

Ja

Maximum internal memory per slot

32 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Ja

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

HDCP

Ja

DirectX version

12.0

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

S/PDIF out connector

Ja

Front panel audio connector

Ja

Front panel connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of CPU fan connectors

2

Number of chassis fan connectors

4

EPS power connector (8-pin)

Ja

Number of EPS power connectors (8-pin)

1

TPM connector

Ja

Serial port headers

1

Number of water pump connectors

2

RGB LED pin header

Ja

Number of RGB LED pin headers

4

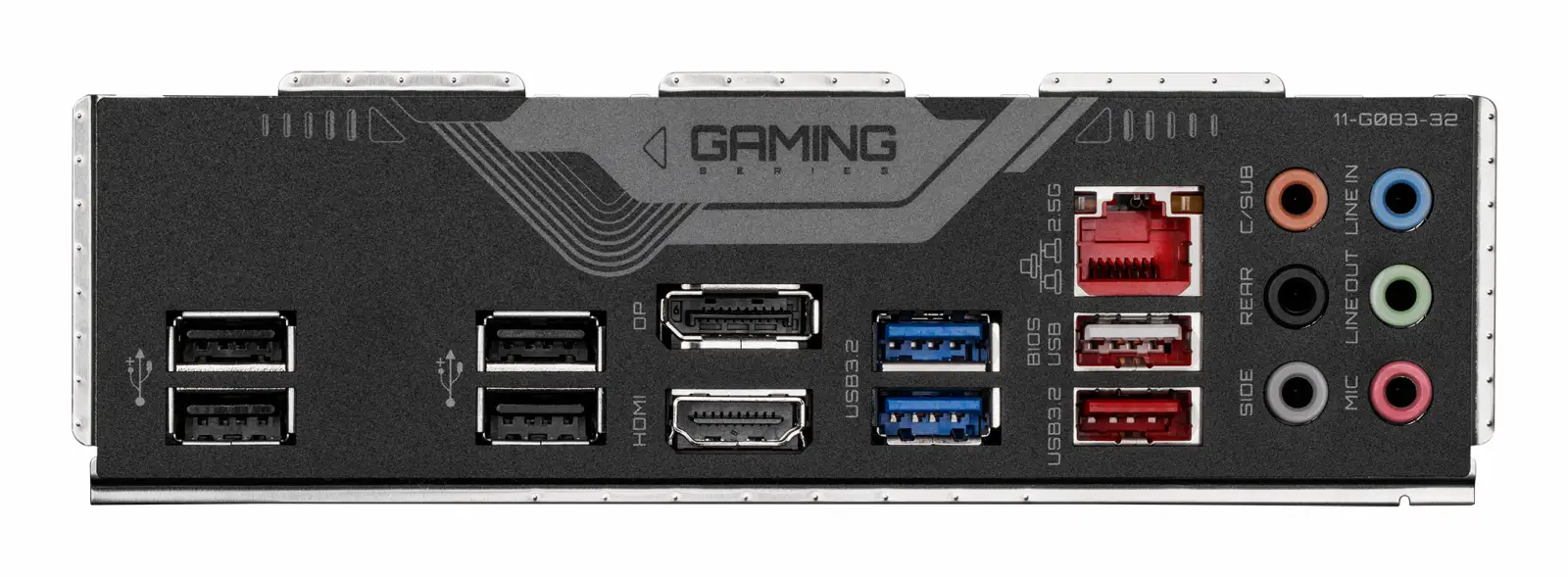

Rear panel I/O ports

USB 2.0 ports quantity

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.2

Headphone outputs

1

Line-in

Ja

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Wi-Fi

Nej

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Product colour

Dark brown

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Cooling type

Passive

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Ja

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery capacity

220 mAh

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1800 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

35 mm

Packaging content

Batteries included

Ja

Screws included

Ja

Bundled software

Norton® Internet Security (OEM version)

Other features

Weight

1590 g

Technical details

Warranty period

3 year(s)
