MSI MPG Trident AS AI 2NVM5-074EU

Produkt

Tillverkare

MSI

Produktfamilj / -serie

MPG Trident

Produktnamn

MPG Trident AS AI 2NVM5-074EU

Tillverkarens länk

https://www.msi.com/Desktop/MPG-Trident-AS-AI-2nd

Produktkoder

Tillverkarens produktkoder

• MPG TRIDENT AS AI 2NVM5-074EU

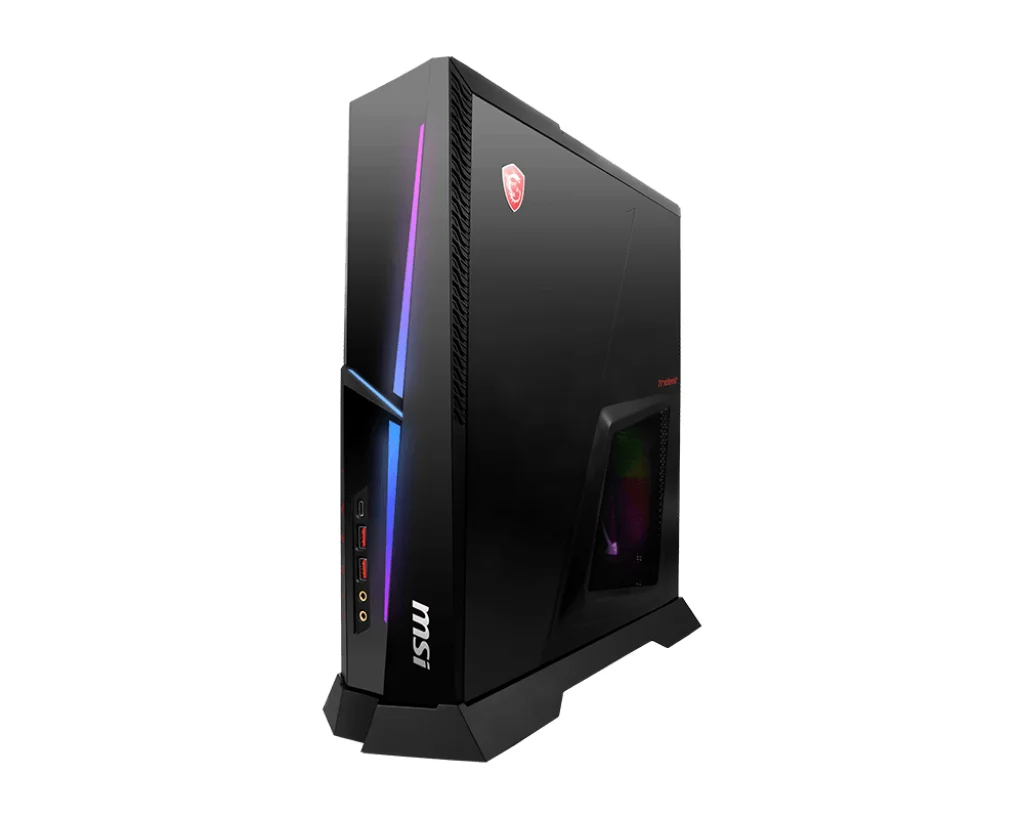

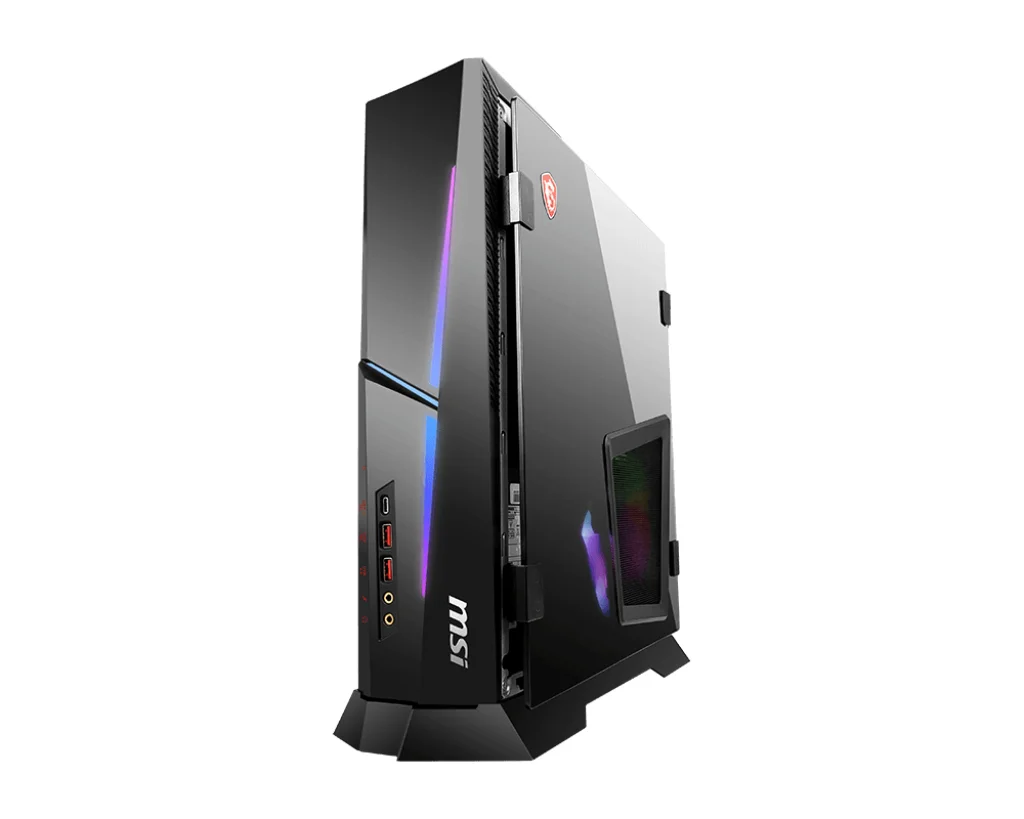

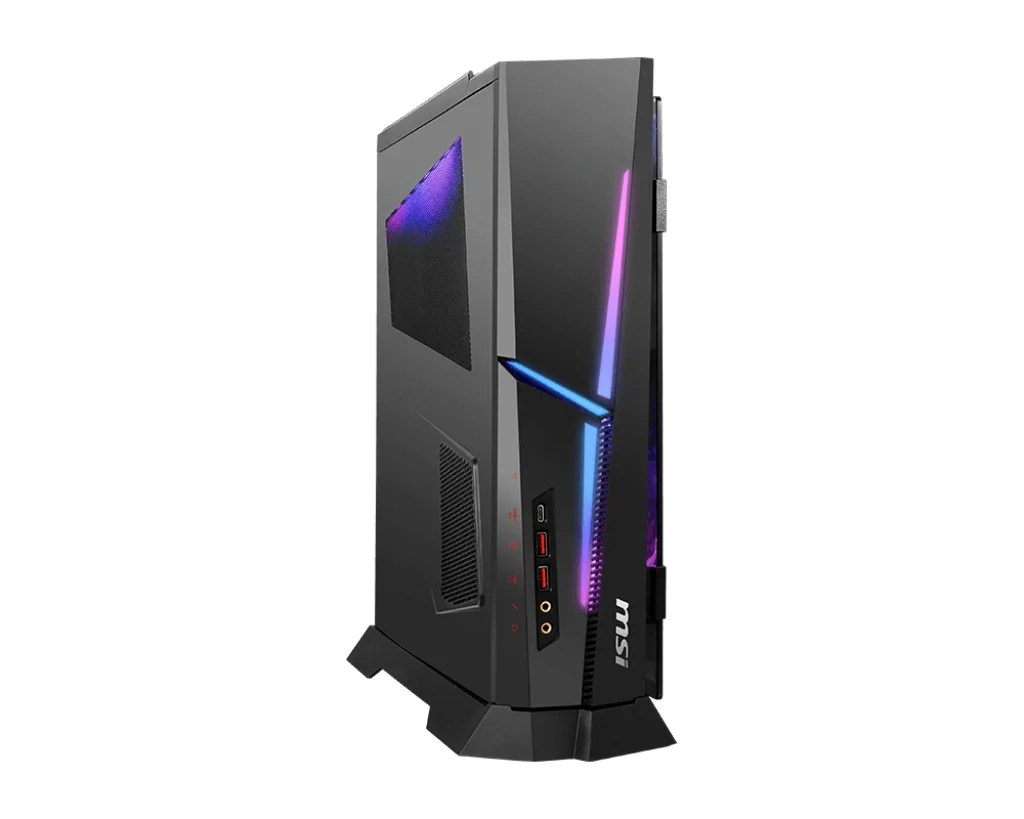

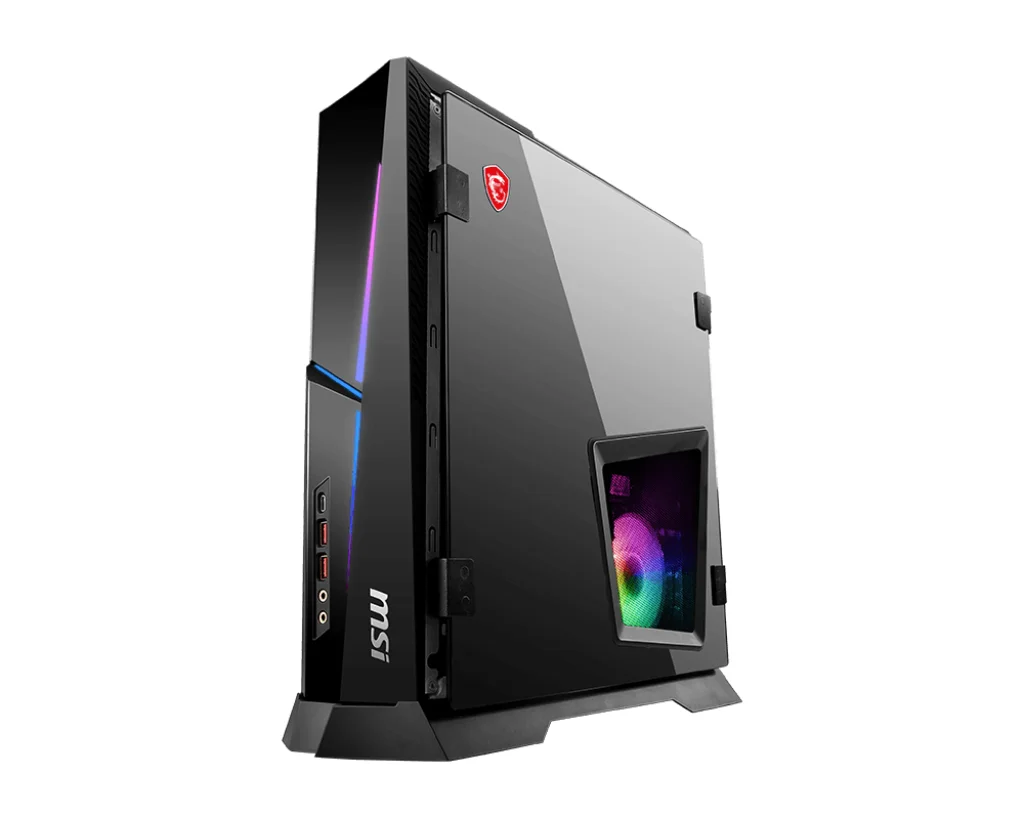

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 5

Processor generation

Intel Core Ultra (Series 2)

Processor model

225F

Processor cores

10

Processor threads

10

Processor boost frequency

4.9 GHz

Performance cores

6

Efficient cores

4

Performance-core Max Turbo Frequency

4.9 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Performance-core base frequency

3.3 GHz

Efficient-core base frequency

2.7 GHz

Processor cache

20 MB

Processor cache type

Smart Cache

Number of processors installed

1

Processor base power

65 W

Maximum turbo power

121 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Ja

Windows Studio effects support

Ja

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

19 TOPs

NPU performance up to

13 TOPs

Memory

Internal memory

16 GB

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

2 x 8 GB

Memory slots

4x DIMM

Memory clock speed

5600 MHz

Storage

Total storage capacity

1000 GB

Optical drive type

Nej

Storage media

SSD

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Graphics

Discrete graphics card

Ja

On-board graphics card

Nej

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA GeForce RTX 5060 Ti

Discrete graphics card memory

8 GB

Discrete graphics memory type

GDDR7

On-board graphics card model

Not available

Performance

Product type

PC

Market positioning

Gaming

Motherboard chipset

Intel B860

Audio output channels

7.1 channels

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Bluetooth

Ja

Bluetooth version

5.3

Ports & interfaces

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Thunderbolt 3 ports quantity

0

HDMI ports quantity

0

Combo headphone/mic port

Ja

Headphone outputs

1

Microphone in

Ja

S/PDIF out port

Ja

DC-in jack

Ja

Power

Power supply

500 W

80 PLUS certification

80 PLUS Gold

Design

Chassis type

Desktop

Volume

10.36 L

Placement supported

Vertical

Cable lock slot

Ja

Cable lock slot type

Kensington

Product colour

Black

Software

Operating system installed

Windows 11 Home

Display

Display included

Nej

Audio

Audio chip

Realtek ALC897

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

396.57 mm

Depth

137.06 mm

Height

410.39 mm

Weight

5530 g

Packaging data

Package width

561 mm

Package depth

306 mm

Package height

511 mm

Package weight

9780 g
