HPE ProLiant DL360 Gen12

Produkt

Tillverkare

HPE

Produktfamilj / -serie

ProLiant DL

Produktnamn

ProLiant DL360 Gen12

Lanseringsdatum

15.12.2025

Tillverkarens länk

https://www.hpe.com/

Produktkoder

Tillverkarens produktkoder

• P89226-425

GTIN- / EAN-koder

• 0190017836331
• 4549821663293

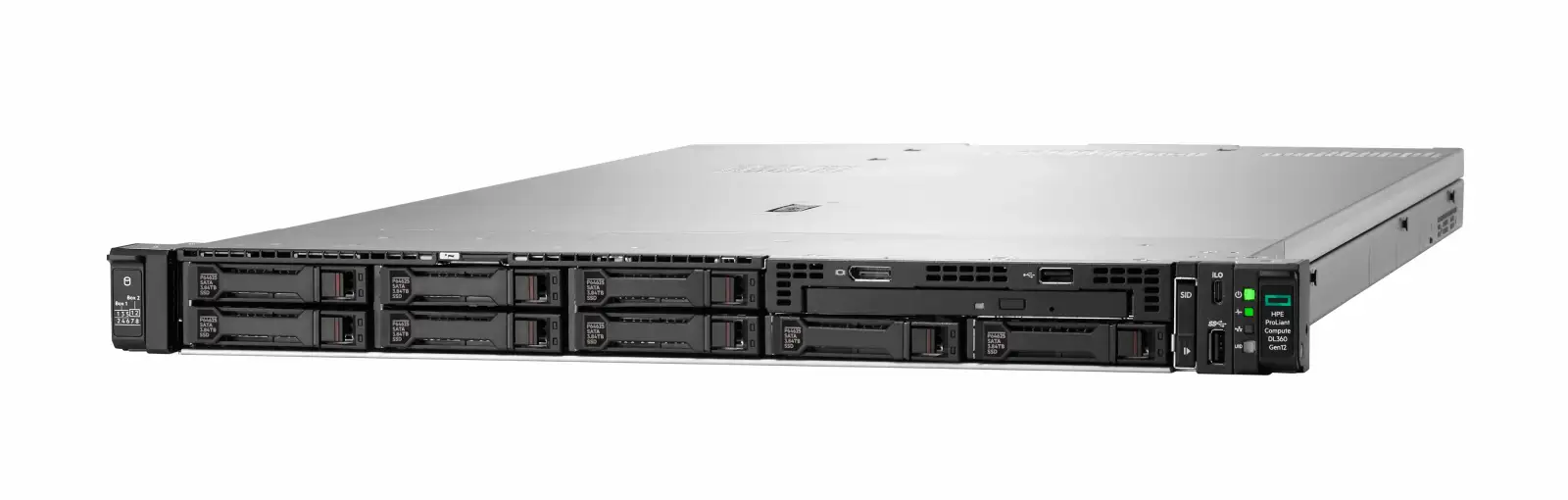

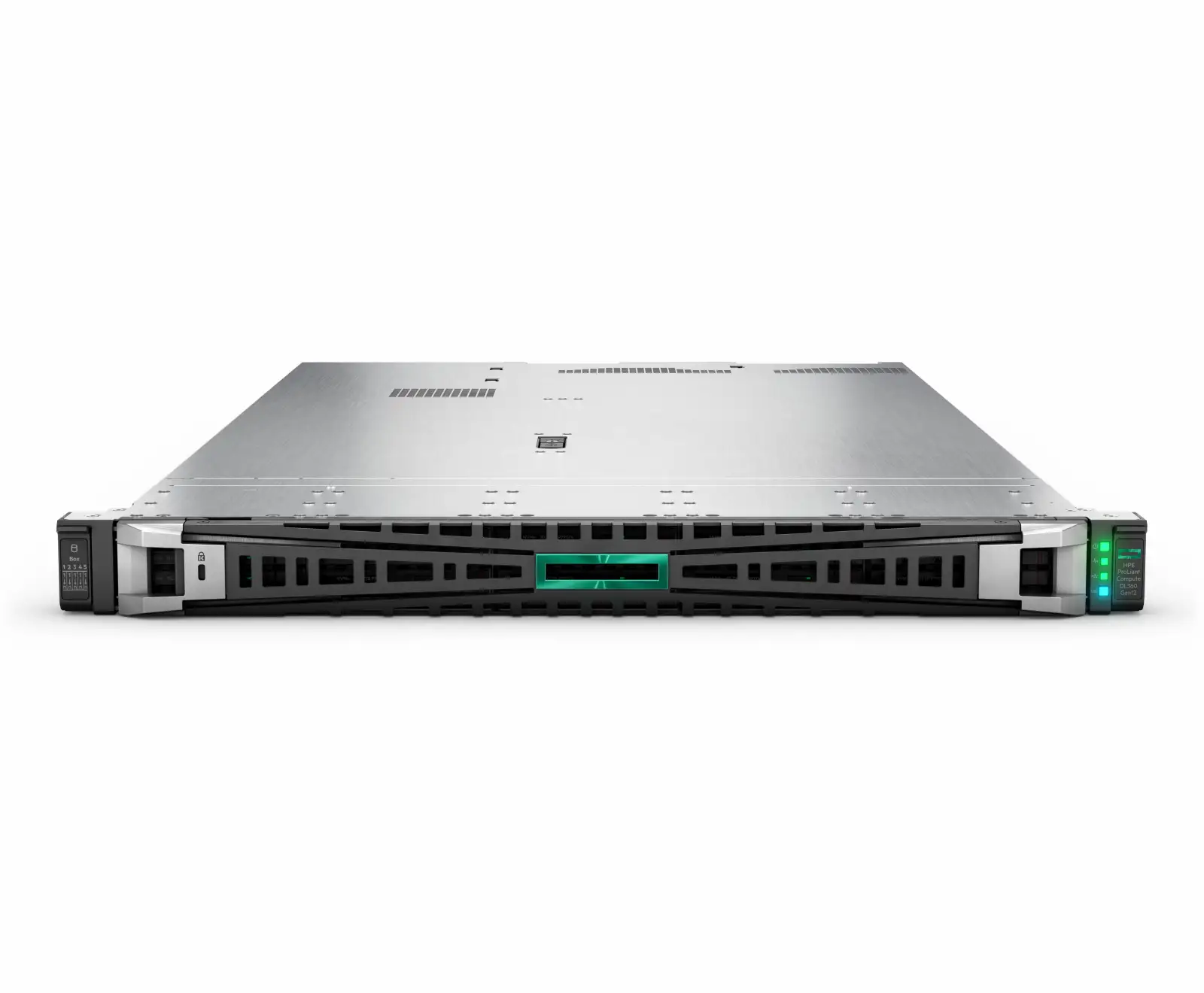

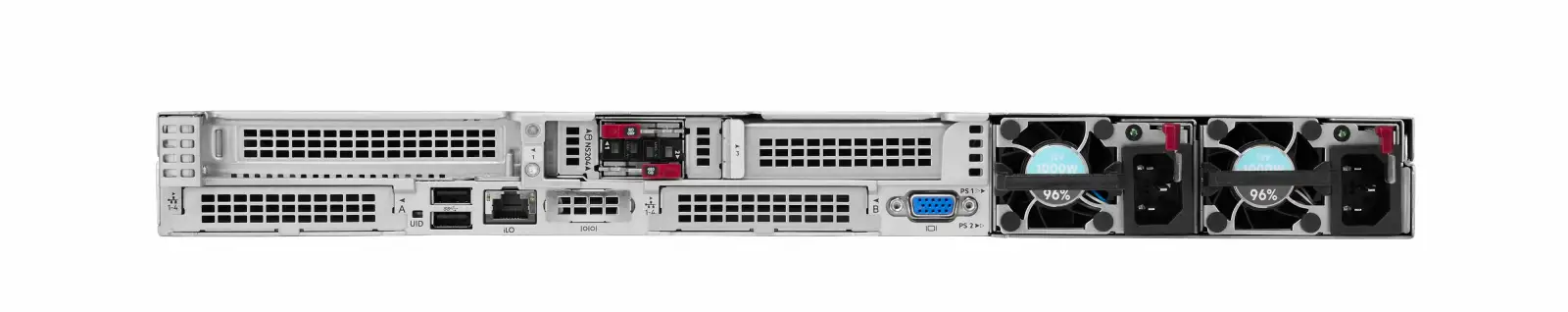

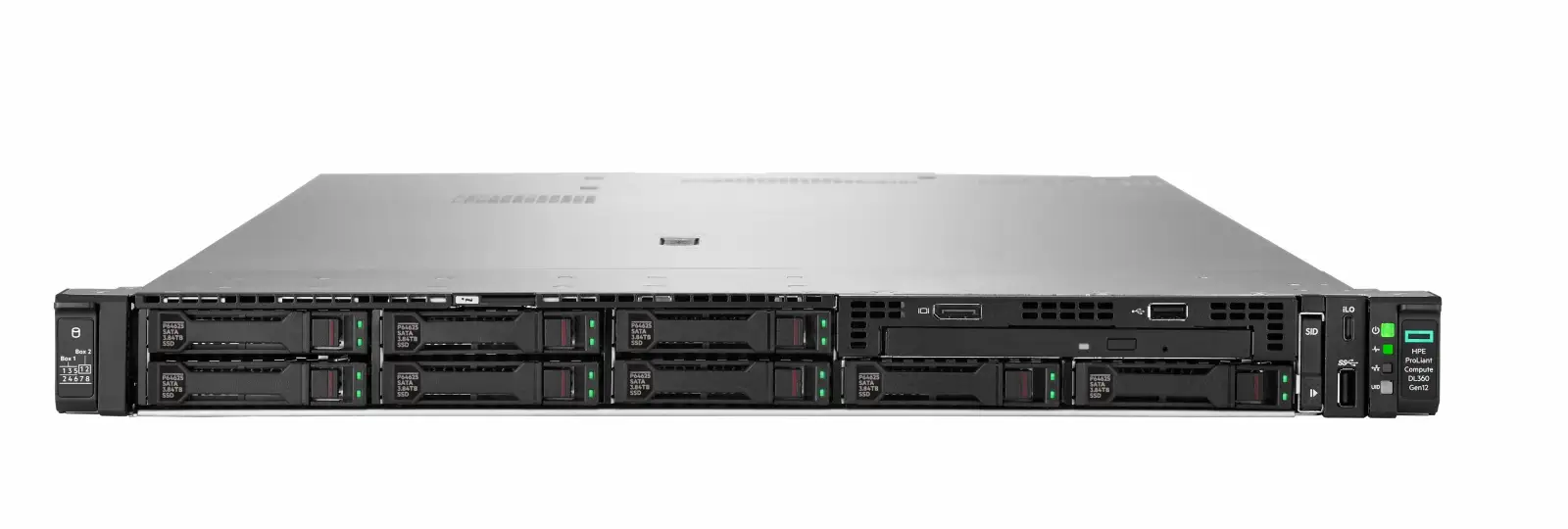

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel® Xeon®

Processor model

6515P

Processor frequency

2.4 GHz

Processor boost frequency

3.8 GHz

Processor cores

16

Processor cache

72 MB

Number of processors installed

1

Processor cache type

L3

Memory

Internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory slots

32x DIMM

Memory clock speed

6400 MHz

Memory layout (slots x size)

2 x 32 GB

Maximum internal memory

8000 GB

Storage

Total storage capacity

960 GB

Number of SSDs installed

2

SSD capacity

480 GB

SSD interface

SATA III

Supported SSD sizes

2.5"

Number of SSDs supported

8

RAID support

Ja

Supported RAID controllers

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

Optical drive type

Nej

Graphics

On-board graphics card

Nej

On-board graphics card model

Not available

Network

LAN controller

Broadcom BCM57416

Ethernet LAN

Ja

Ethernet interface type

10 Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

VGA (D-Sub) ports quantity

1

Number of management ports

1 pc(s)

Expansion slots

Maximum 3 PCIe Gen5 slots (x16 lanes/each) & Maximum 2 OCP3.0 slots (x16 lanes/each)

Design

Chassis type

Rack (1U)

Cooling type

Active

Rack mounting

Ja

Performance

Management platform

Included - HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO7 Advanced, and HPE OneView Advanced. Refer to the iLO 7 User Guide

Software

Operating system installed

Nej

Power

Redundant power supply (RPS) support

Ja

Power supply type

2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Power supply

1000 W

Number of main power supplies

2

Weight & dimensions

Width

753.1 mm

Depth

434.6 mm

Height

42.9 mm

Other features

Security features

UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs.

Number of processors supported

1

Standard fans

5x Standard Fans

Storage drive type

2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
