ASUS TUF Gaming 850W Gold

Produkt

Tillverkare

ASUS

Produktnamn

TUF Gaming 850W Gold

Tillverkarens länk

https://www.asus.com/Motherboards-Components/Power-Supply-Unit..

Produktkoder

Tillverkarens produktkoder

• 90YE00S2-B0NA00

GTIN- / EAN-koder

• 0195553786577
• 4711081786573

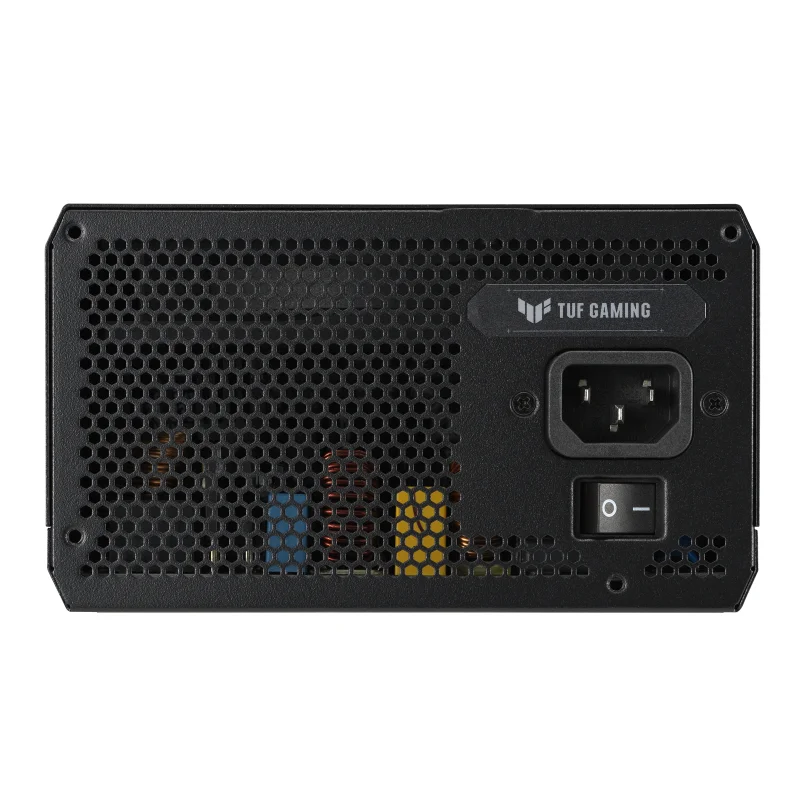

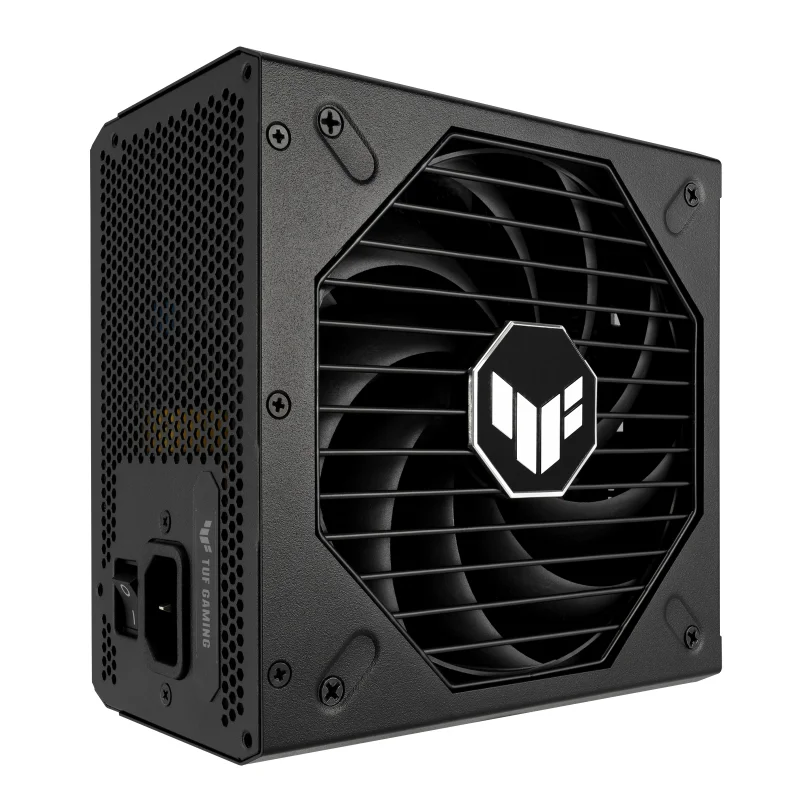

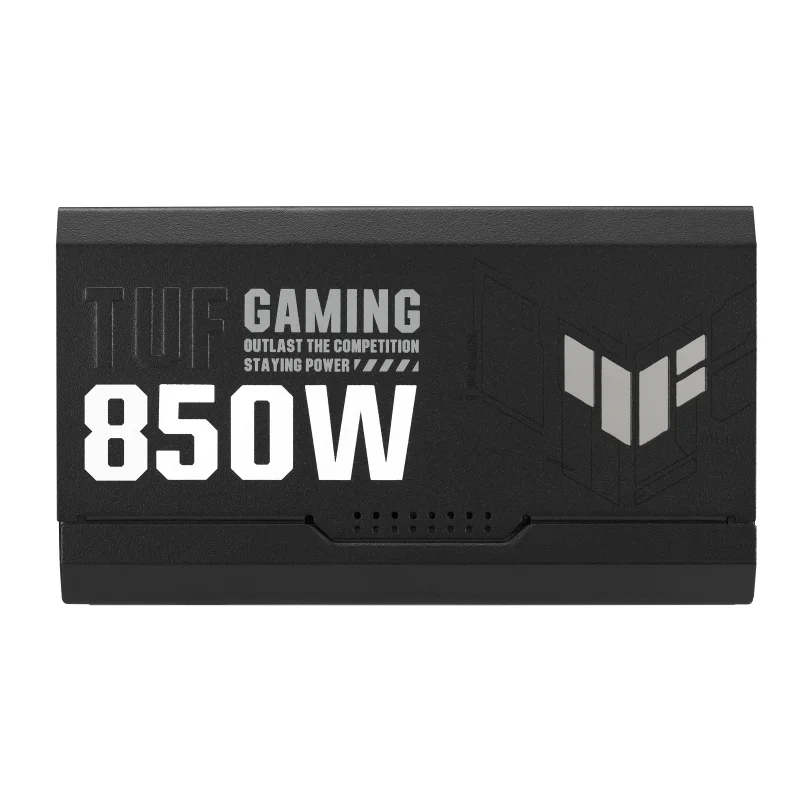

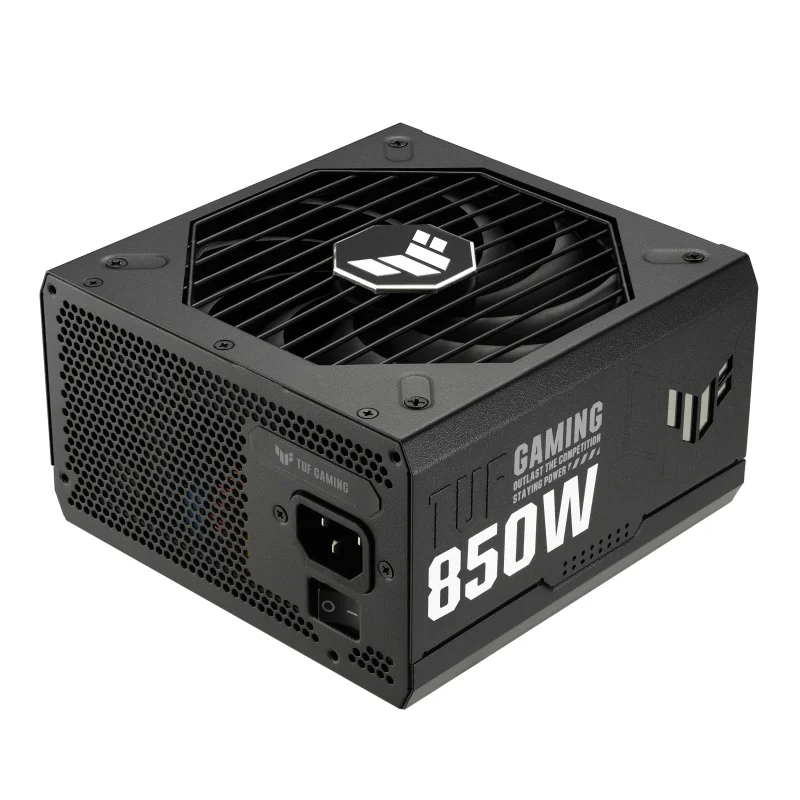

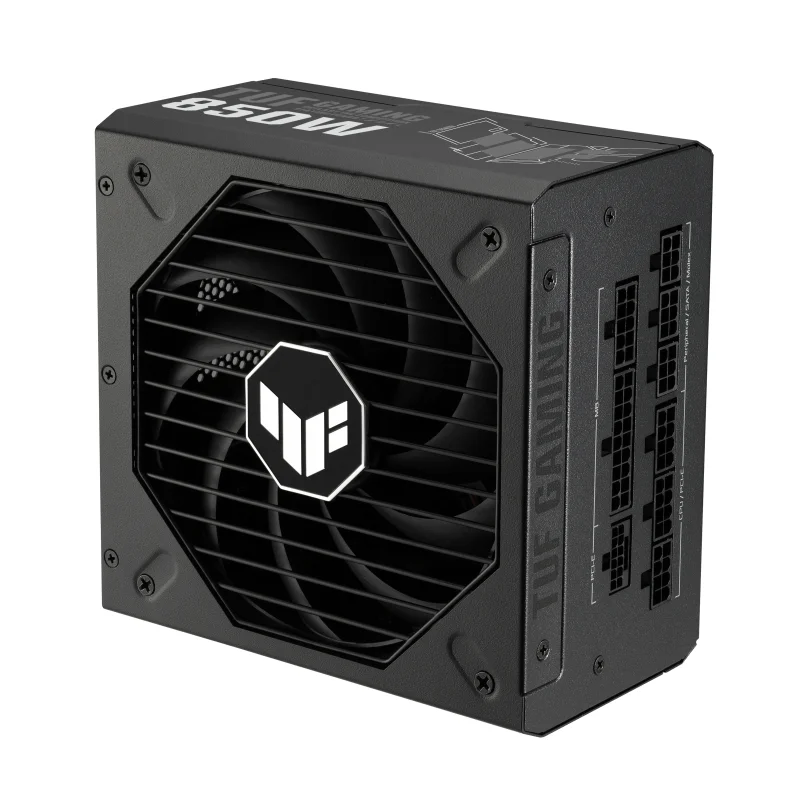

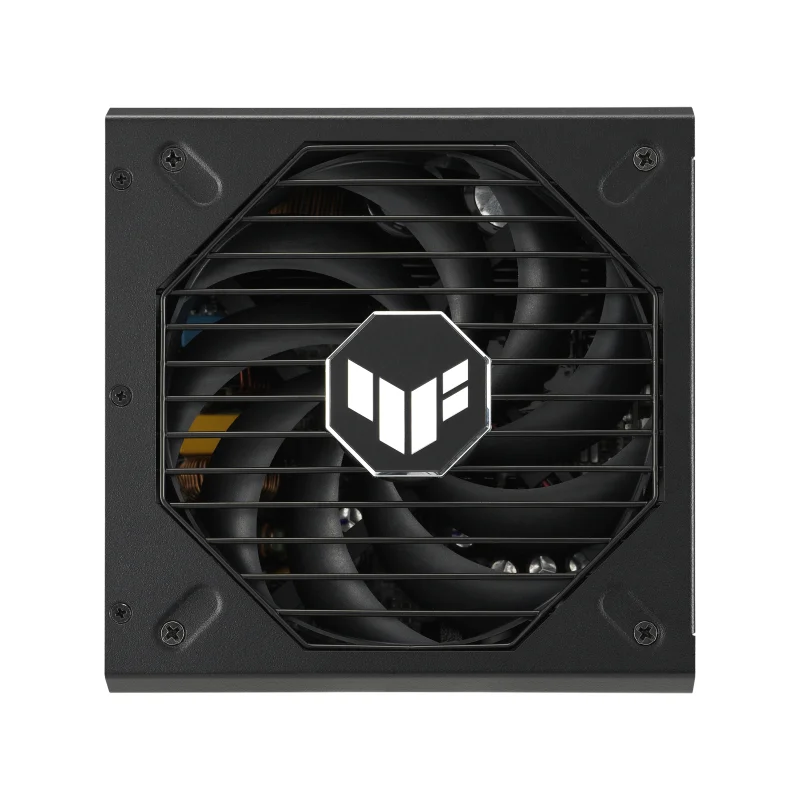

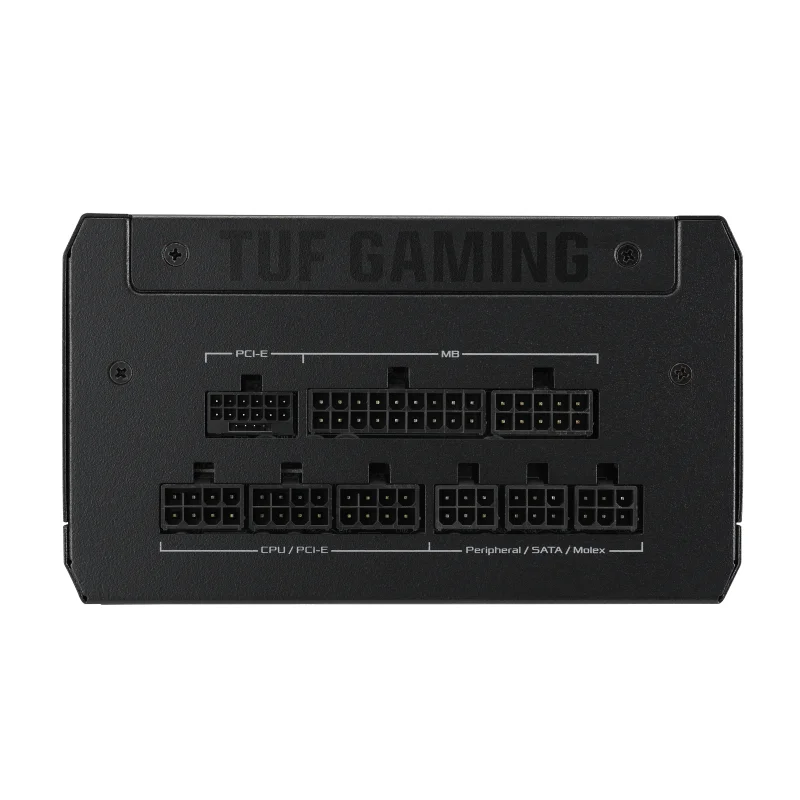

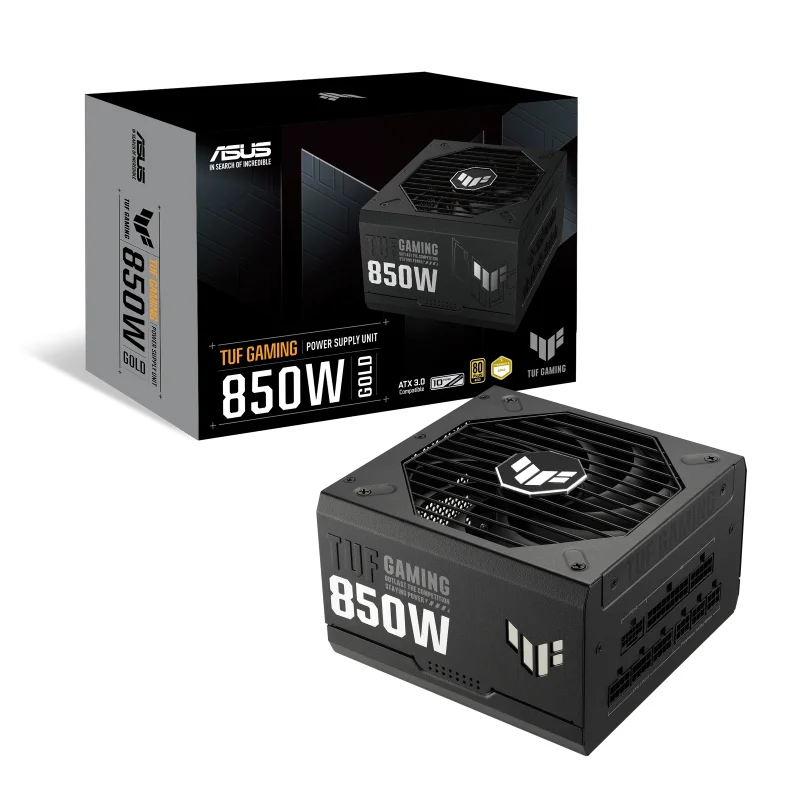

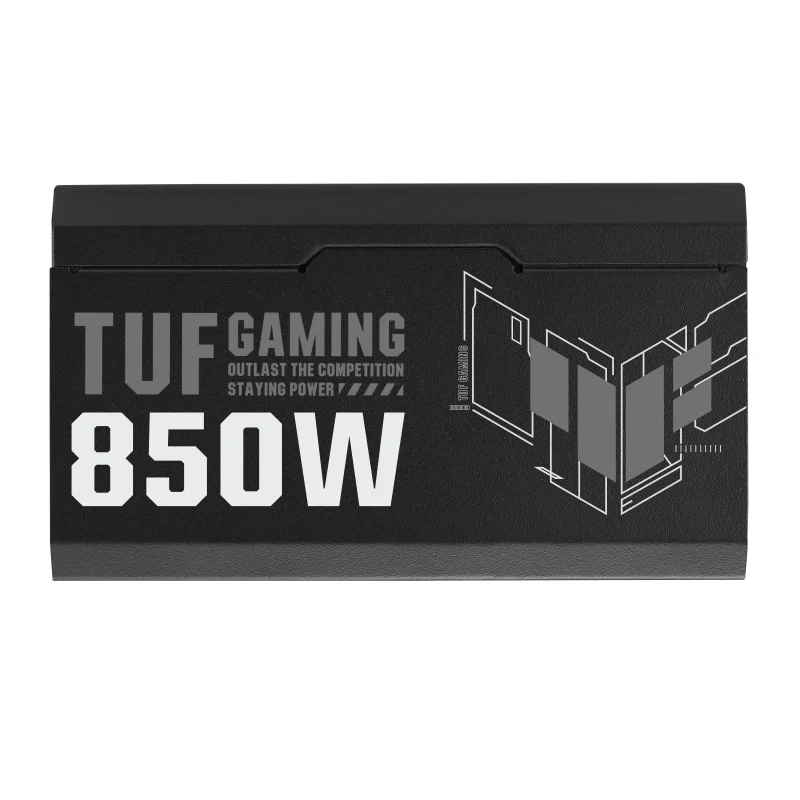

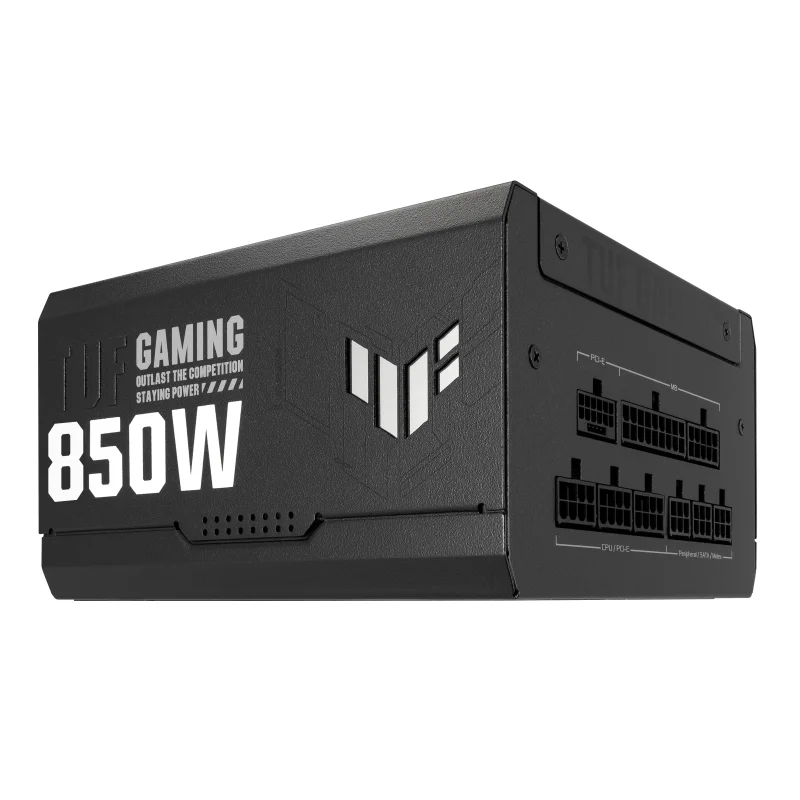

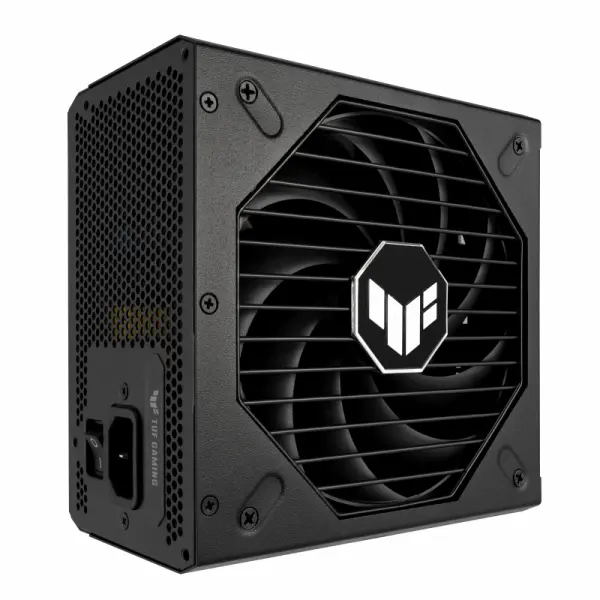

Produktbilder

Power

Total power

850 W

AC input voltage

100 - 240 V

Combined power (+3.3V)

130 W

Combined power (+12V)

850 W

Combined power (+5V)

130 W

Combined power (-12V)

9.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V)

70.8 A

Max output current (+5V)

25 A

Max output current (-12V)

0.8 A

Max output current (+5Vsb)

3 A

Efficiency

92 %

Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector

24-pin ATX

Motherboard power cable length

610 mm

Number of SATA power connectors

5

SATA power cable length

120,400 mm

Peripheral (Molex) power connectors (4-pin)

4

Peripheral (Molex) power cable length

150,400 mm

PCI Express power connectors (8-pin)

3

PCI Express power connectors (16-pin)

1

PCI Express power cable length

675 mm

CPU power connector (4+4 pin)

Ja

CPU power cable length

650 mm

PCI Express connector

Ja

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Design

Product colour

Black

Cooling type

Active

Fan diameter

135 mm

Number of fans

1 fan(s)

Illumination

Nej

Packaging content

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates

RoHS

Weight & dimensions

Width

150 mm

Depth

150 mm

Height

86 mm

Weight

2380 g

Packaging data

Package width

310 mm

Package depth

200 mm

Package height

108 mm

Package weight

3067 g

Package type

Box
