be quiet! Pure Power 12 M

Produkt

Tillverkare

be quiet!

Produktnamn

Pure Power 12 M

Tillverkarens länk

https://www.bequiet.com/en/powersupply/4069

Produktkoder

Tillverkarens produktkoder

• BN342

GTIN- / EAN-koder

• 4260052189474

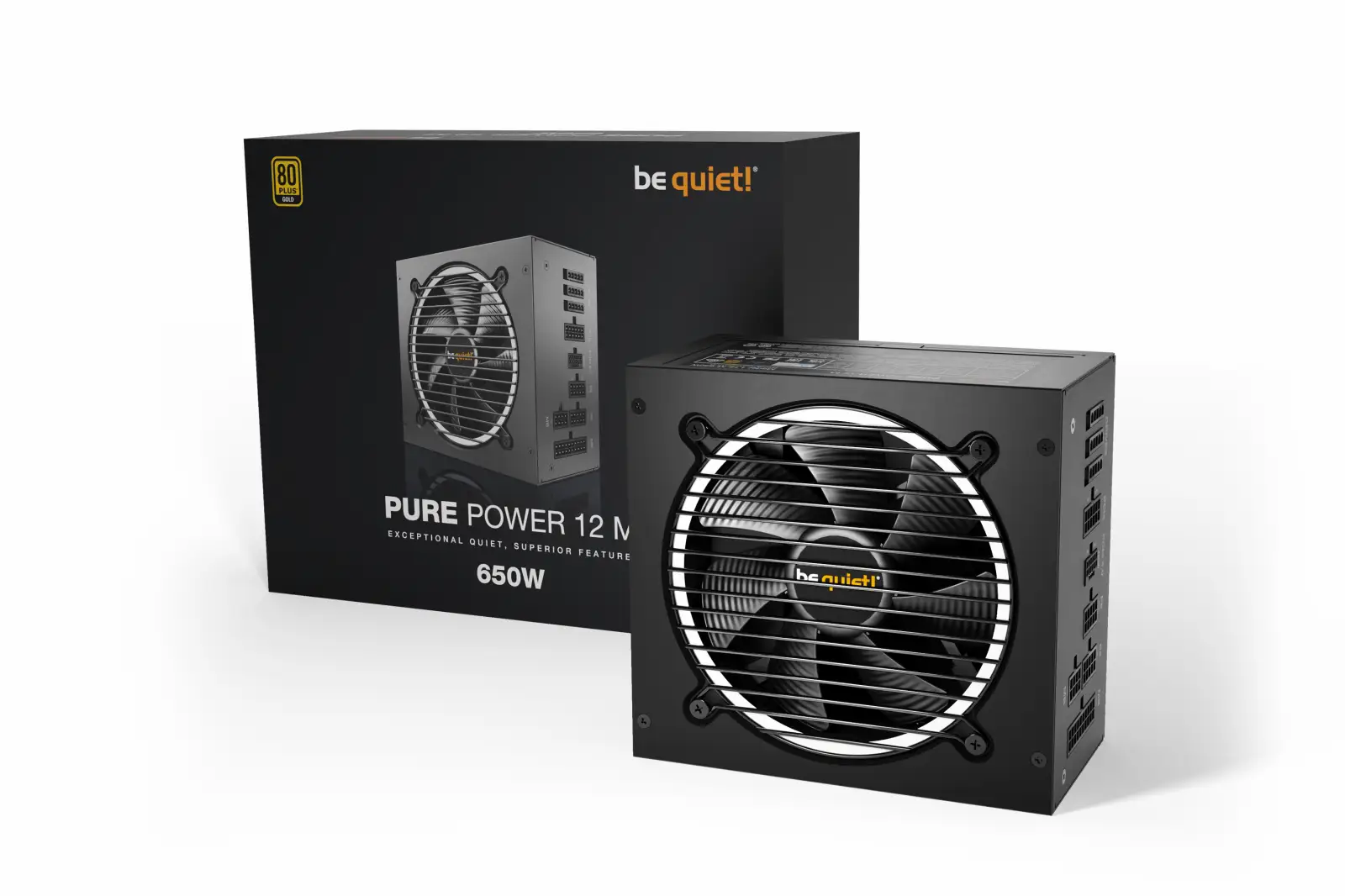

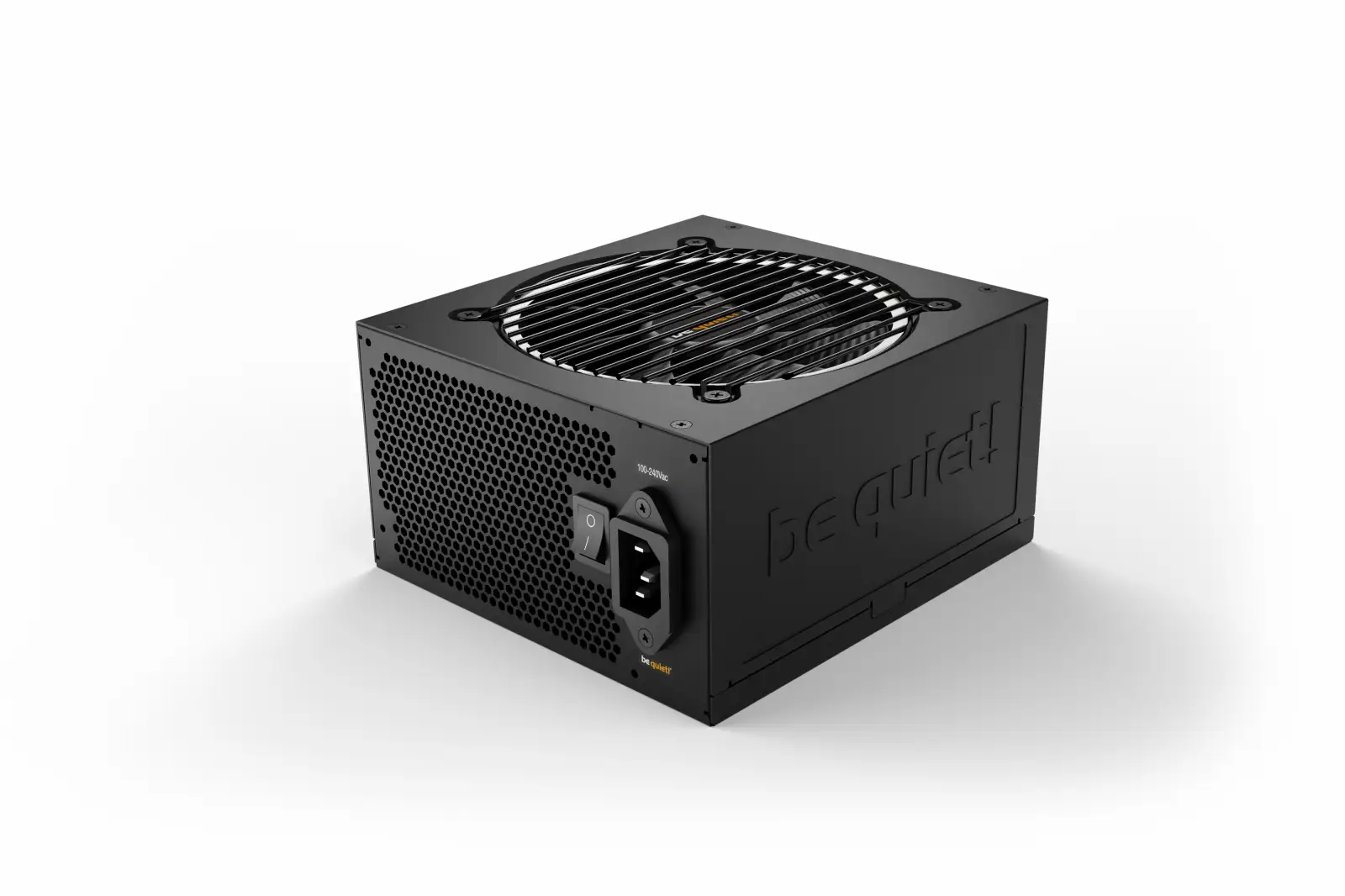

Produktbilder

Power

Total power

650 W

Peak power

720 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

10/5 A

Power factor

0.98

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

650 W

Combined power (+5V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

20 A

Max output current (+12V1)

32 A

Max output current (+12V2)

28 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Efficiency

92.7 %

Power Good signal delay range

100 - 150 ms

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

550 mm

Number of SATA power connectors

5

Number of PATA power connectors

2

SATA power cable length

500,650,800,950 mm

Peripheral (Molex) power connectors (4-pin)

1

Peripheral (Molex) power cable length

550 mm

EPS power connector (4+4 pin)

Ja

PCI Express power connectors (6+2 pin)

2

CPU P4 connector (4-pin)

1

ATX power connector (20+4 pin)

Ja

PCI Express connector

Ja

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

EPS version

2.92

Noise level

19.9 dB

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

Fan location

Top

Illumination

Nej

On/off switch

Ja

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Packaging content

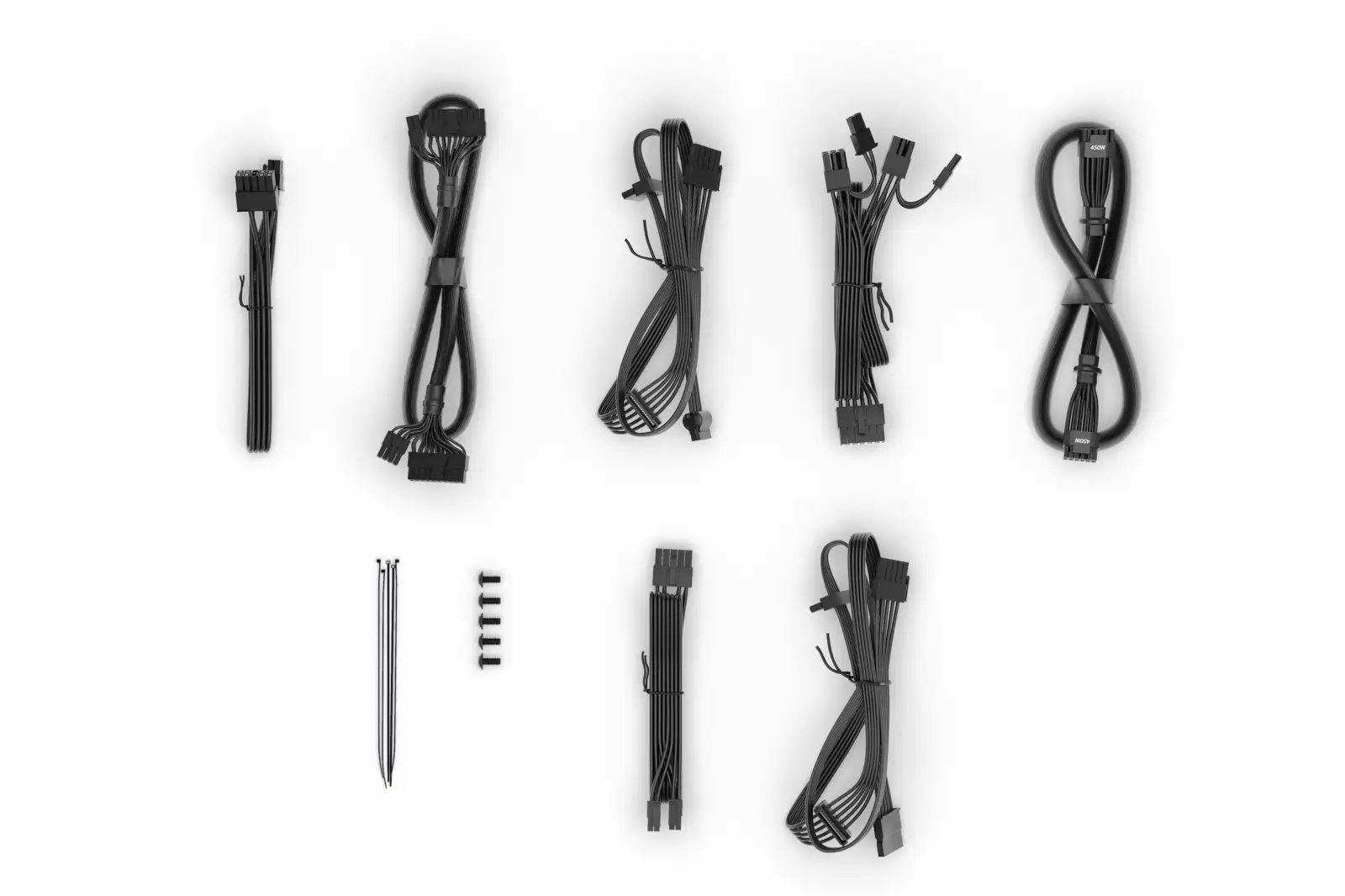

Cables included

PATA, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates

RoHS

Weight & dimensions

Width

160 mm

Depth

150 mm

Height

86 mm

Packaging data

Package type

Box

Technical details

Sustainability certificates

ENERGY STAR, ErP

Sustainability compliance

Ja

Logistics data

Warranty period

10 year(s)

Other features

Screws included

Ja

Number of screws

5

Cable ties included

Ja

Noise level (silent mode, <30%)

8.1 dB

Noise level (quiet mode, 50%)

9.1 dB

Noise level (full-load mode, 100%)

19.9 dB
