Ubiquiti U7 Pro Outdoor

Produkt

Tillverkare

Ubiquiti

Produktnamn

U7 Pro Outdoor

Tillverkarens länk

https://eu.store.ui.com/eu/en/products/u7-pro-outdoor

Produktkoder

Tillverkarens produktkoder

• U7-PRO-OUTDOOR

GTIN- / EAN-koder

• 0810084698730

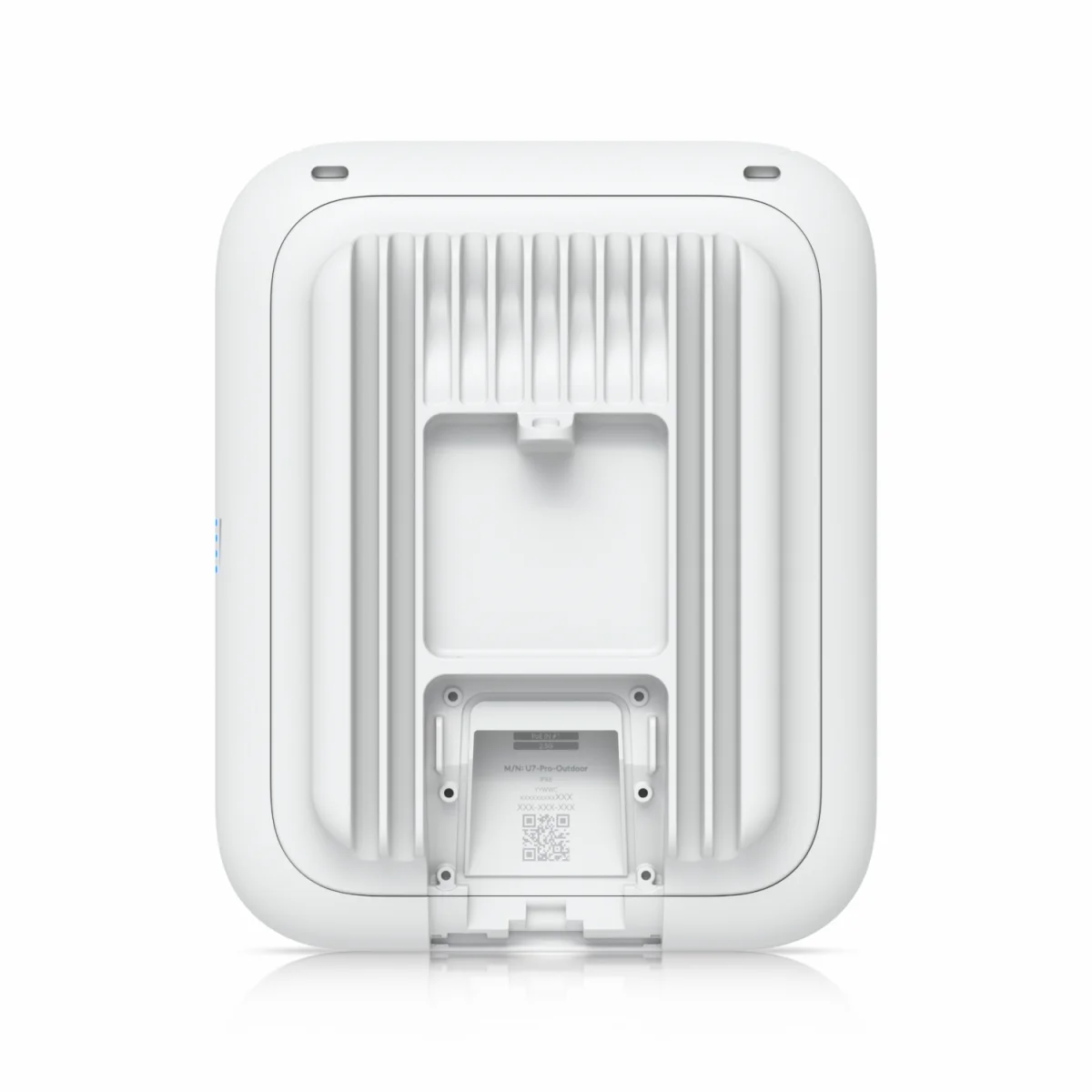

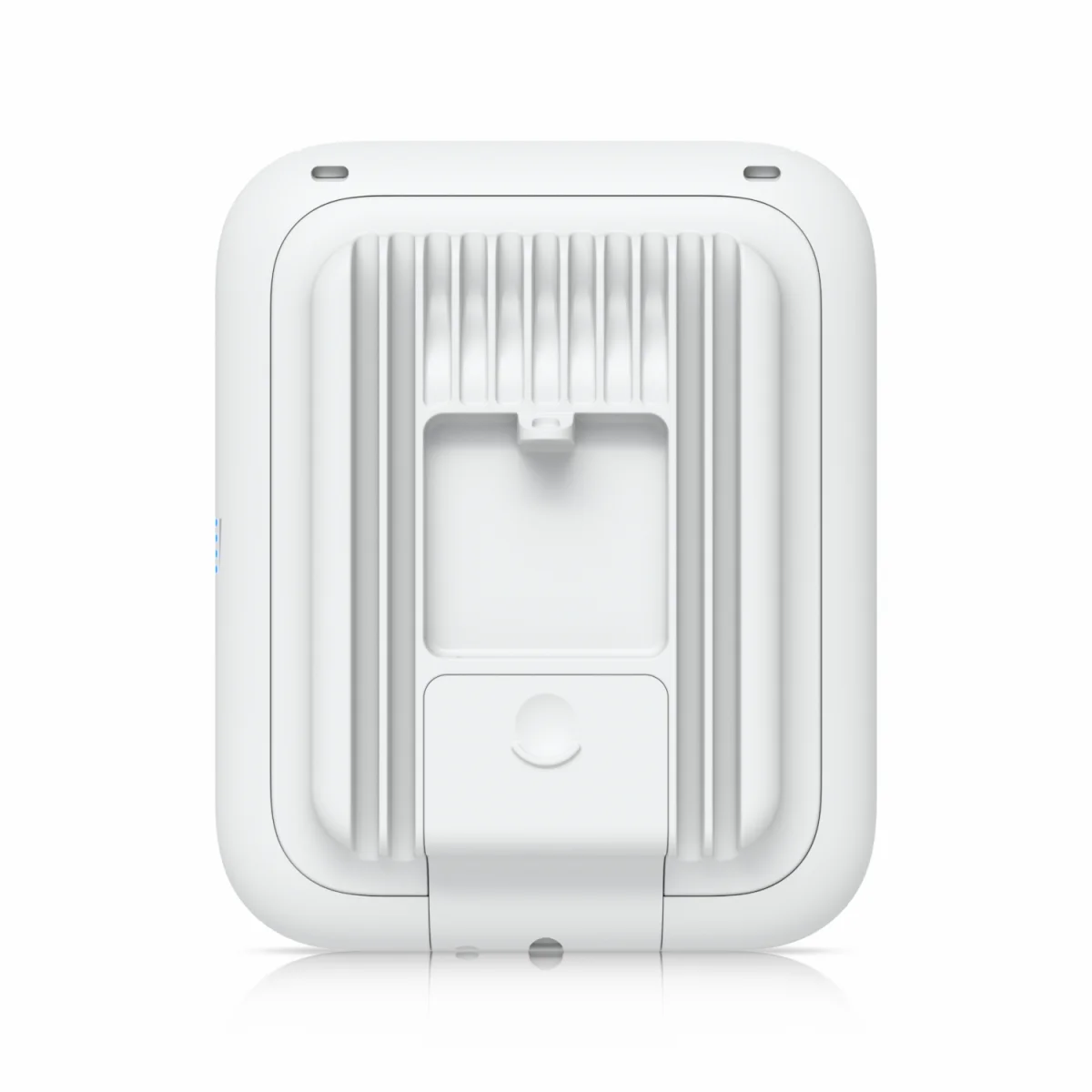

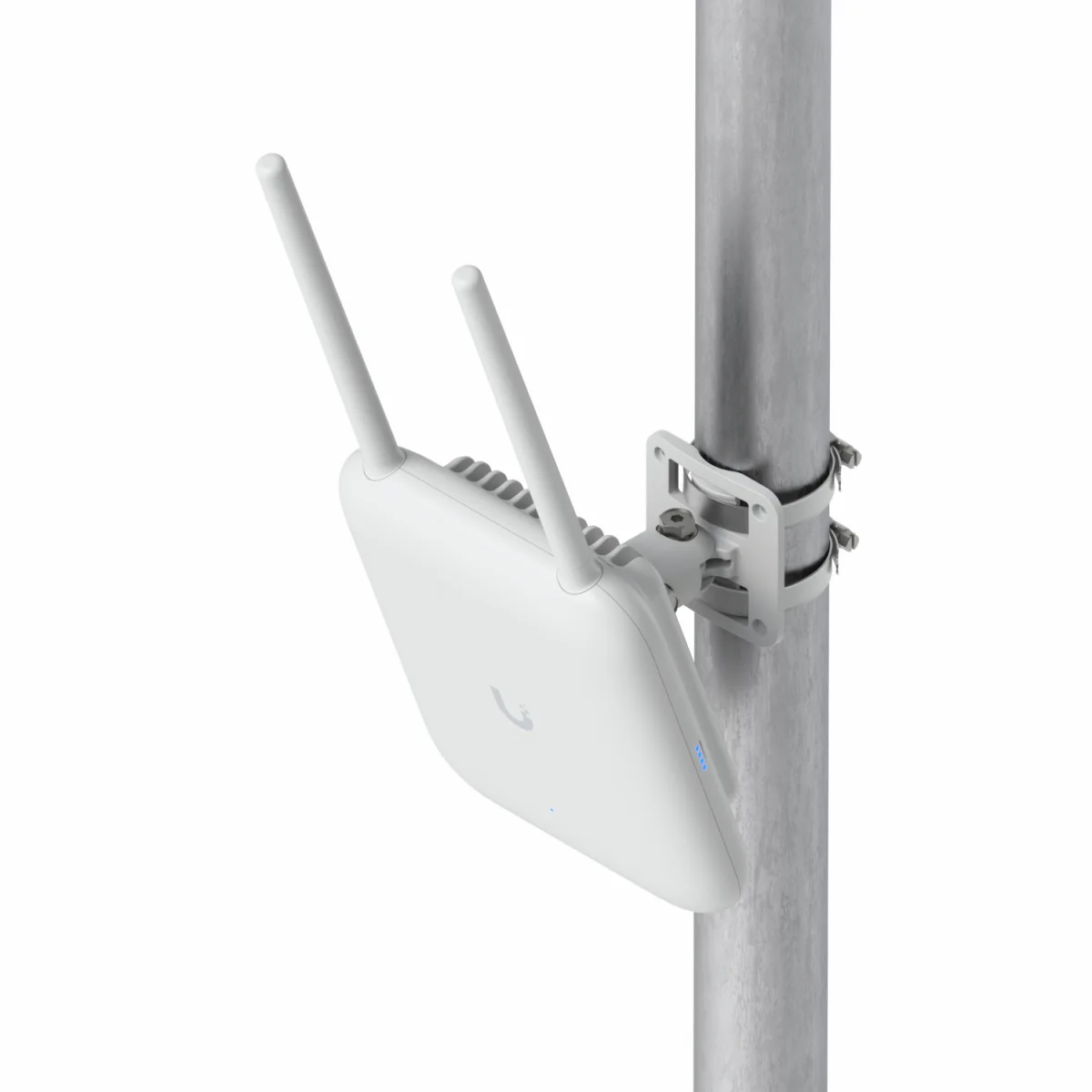

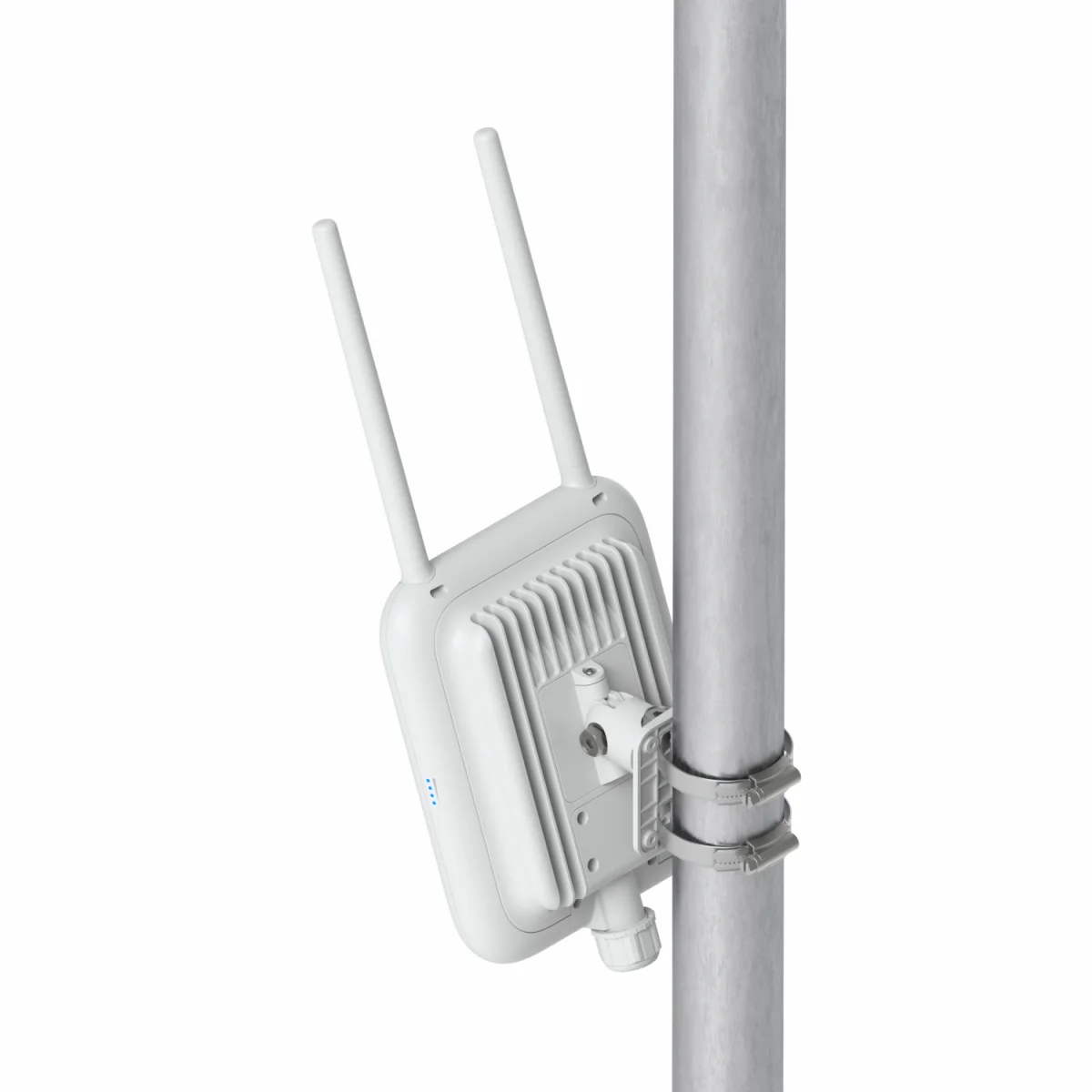

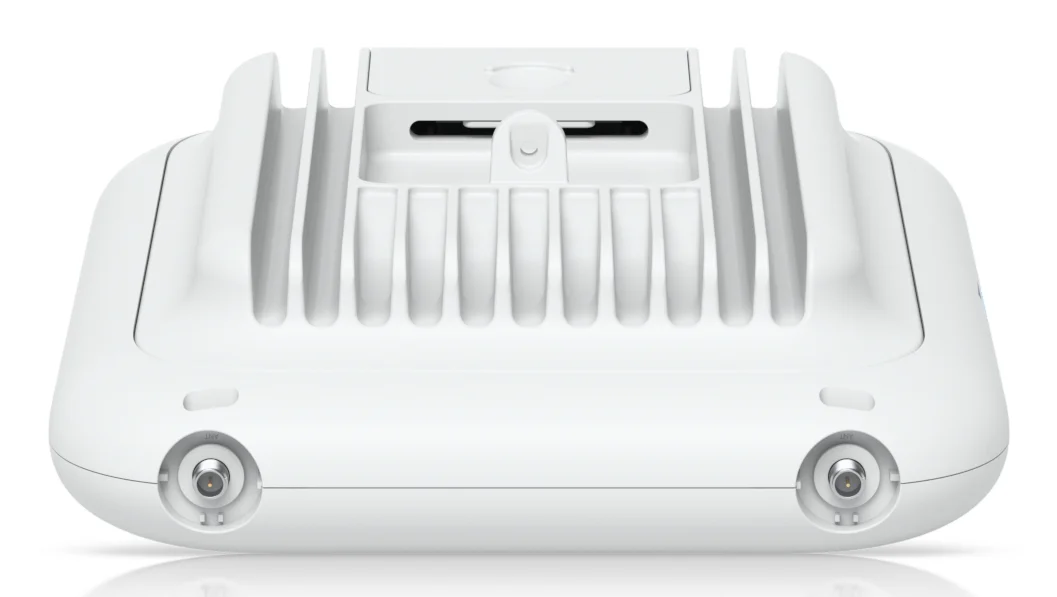

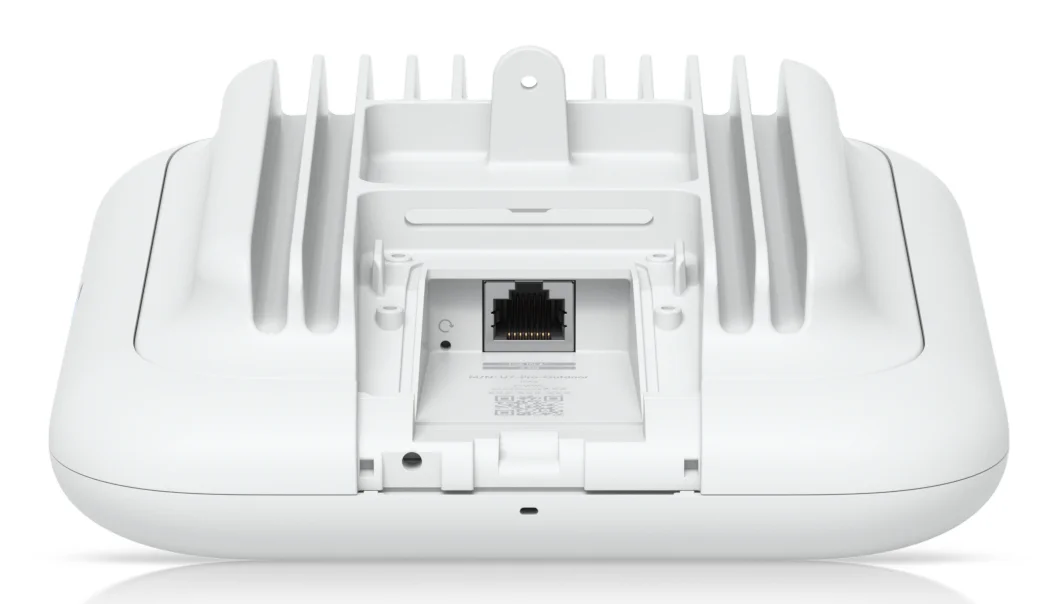

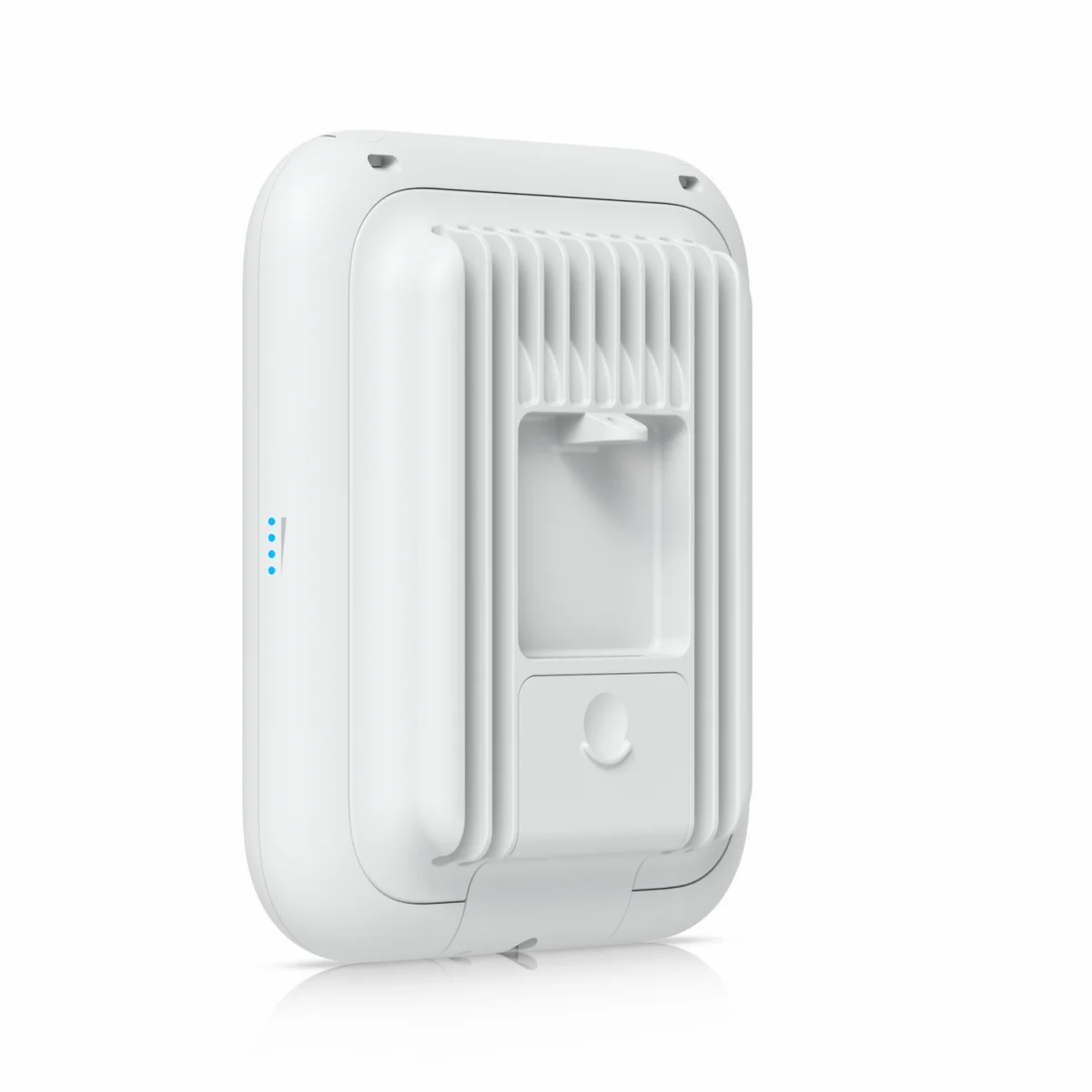

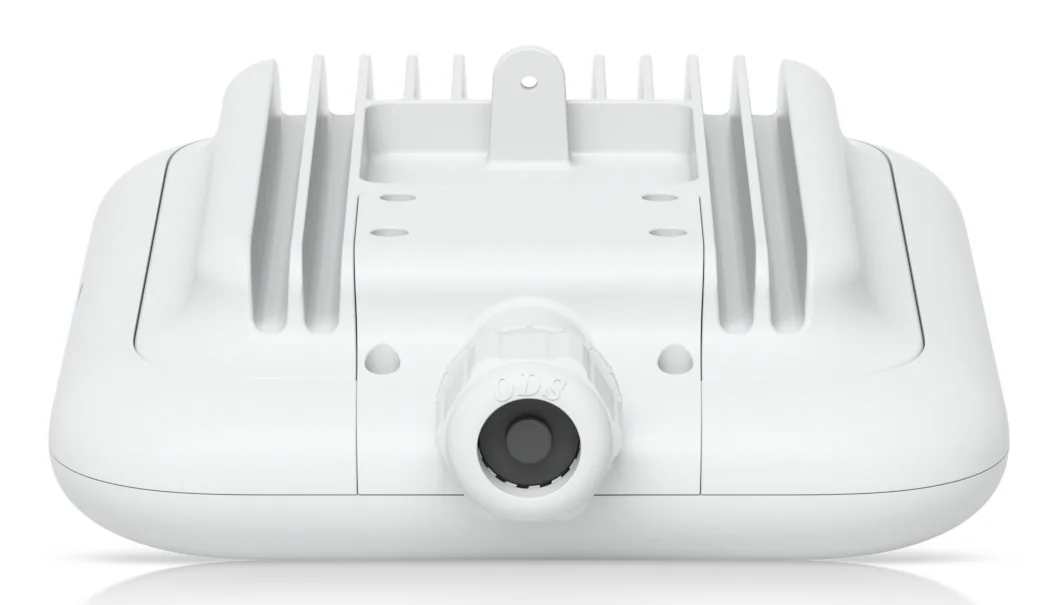

Produktbilder

Features

2.4 GHz

Ja

5 GHz

Ja

Maximum data transfer rate

8600 Mbit/s

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

8600 Mbit/s

Ethernet LAN data rates

1000,2500 Mbit/s

Throughput data rate

5765 Mbit/s

Frequency band

2.4 - 5 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at

MIMO

Ja

MIMO type

Multi User MIMO

Spatial streams

6

VLAN support

Ja

Rate limiting

Ja

Quality of Service (QoS) support

Ja

Security

Security algorithms

PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE)

Ja

DC voltage range

44 - 57 V

Power consumption (max)

21 W

Design

Placement

Ceiling, Pole, Wall

Product colour

White

Housing material

Aluminium, Polycarbonate (PC)

International Protection (IP) code

IP67

Reset button

Ja

LED indicators

Ja

Antenna

Antenna type

Internal & external

Antenna direction type

Omni-directional

Antenna features

Detachable antenna

Antennas quantity

3

Antenna gain level (max)

11 dBi

Antenna connector type

RP-SMA

Number of connectors

2

Certificates

Compliance certificates

CE

Weight & dimensions

Width

170 mm

Depth

66.5 mm

Height

208 mm

Weight

1200 g

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Ja

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 60 °C
