ASUS ExpertBook P5 G2 PM5606CKA-PL0871X

Produkt

Tillverkare

ASUS

Produktfamilj / -serie

ExpertBook P5 G2

Produktnamn

PM5606CKA-PL0871X

Tillverkarens länk

https://www.asus.com/laptops/for-work/expertbook/asus-expertbo..

Produktkoder

Tillverkarens produktkoder

• 90NX0981-M00ZR0

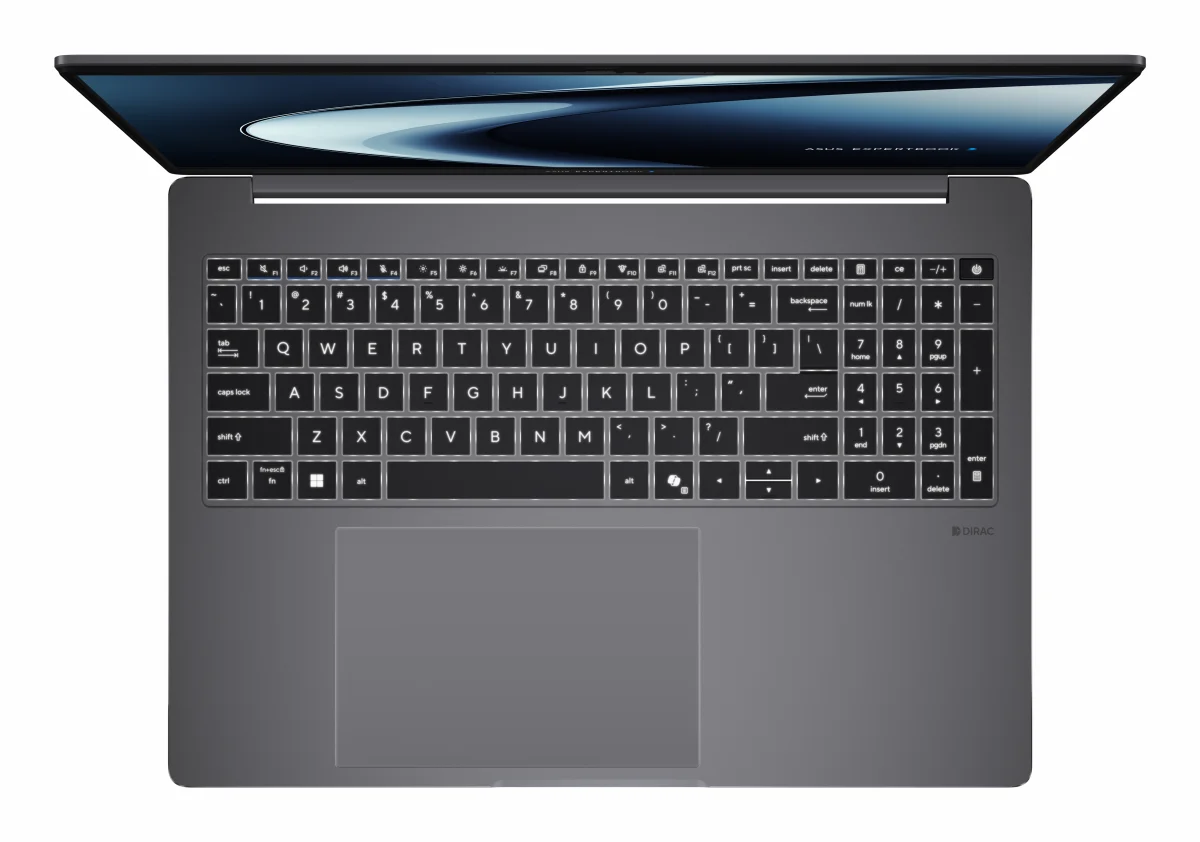

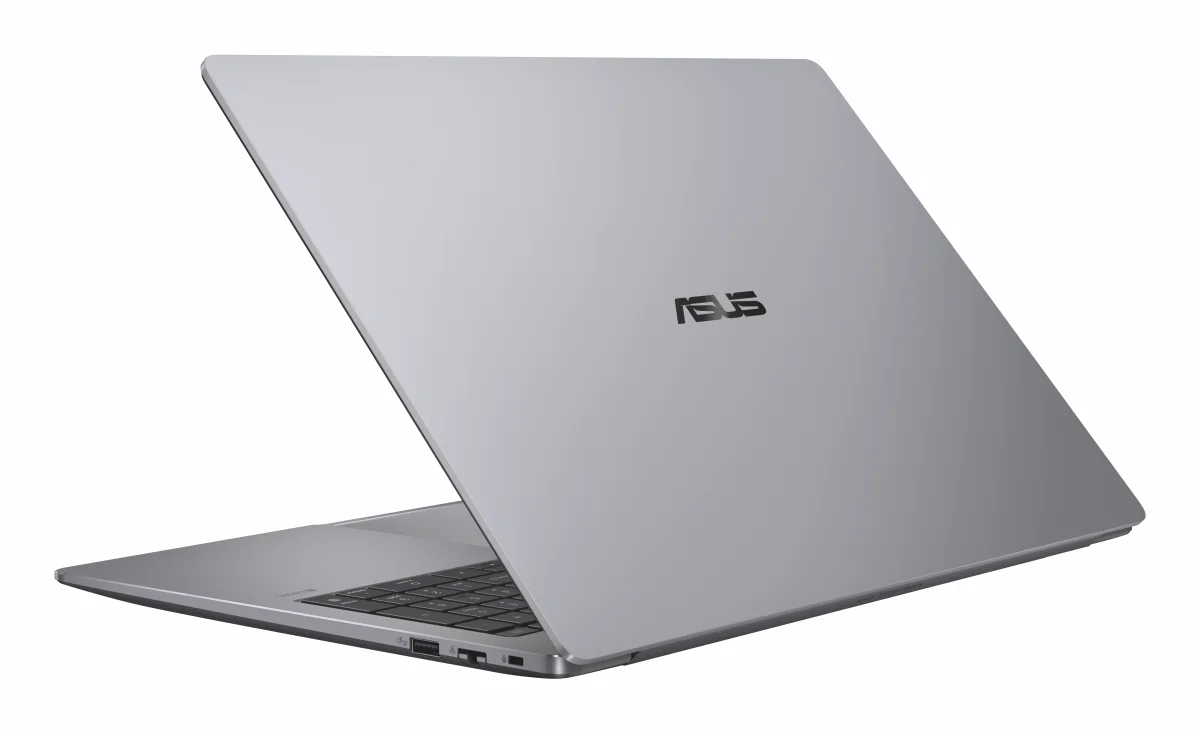

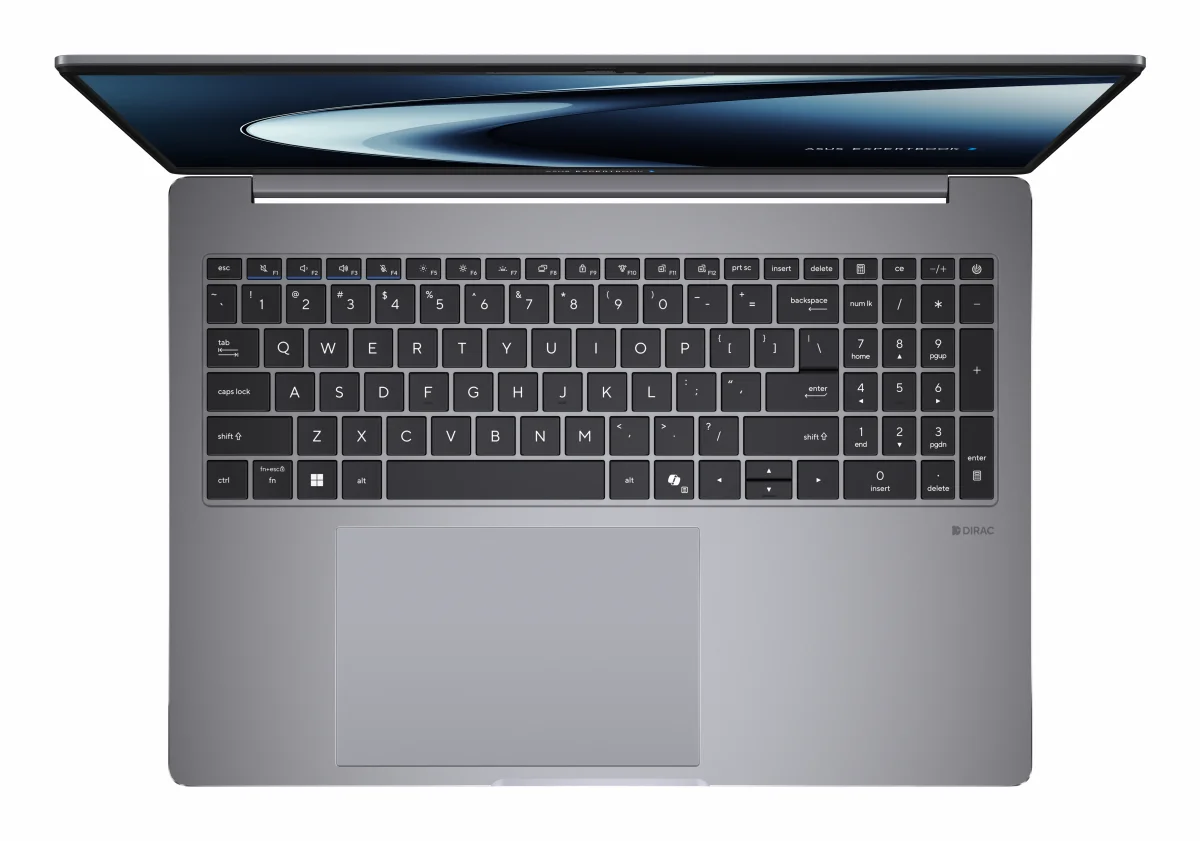

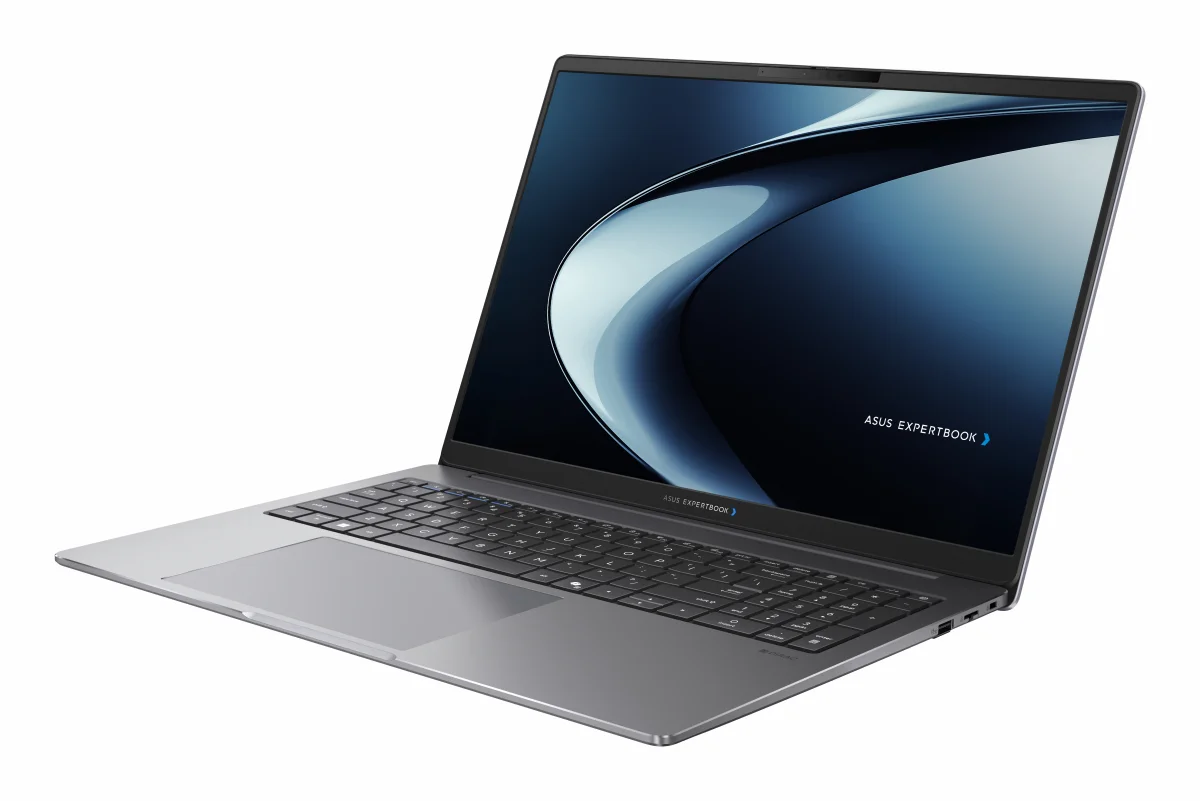

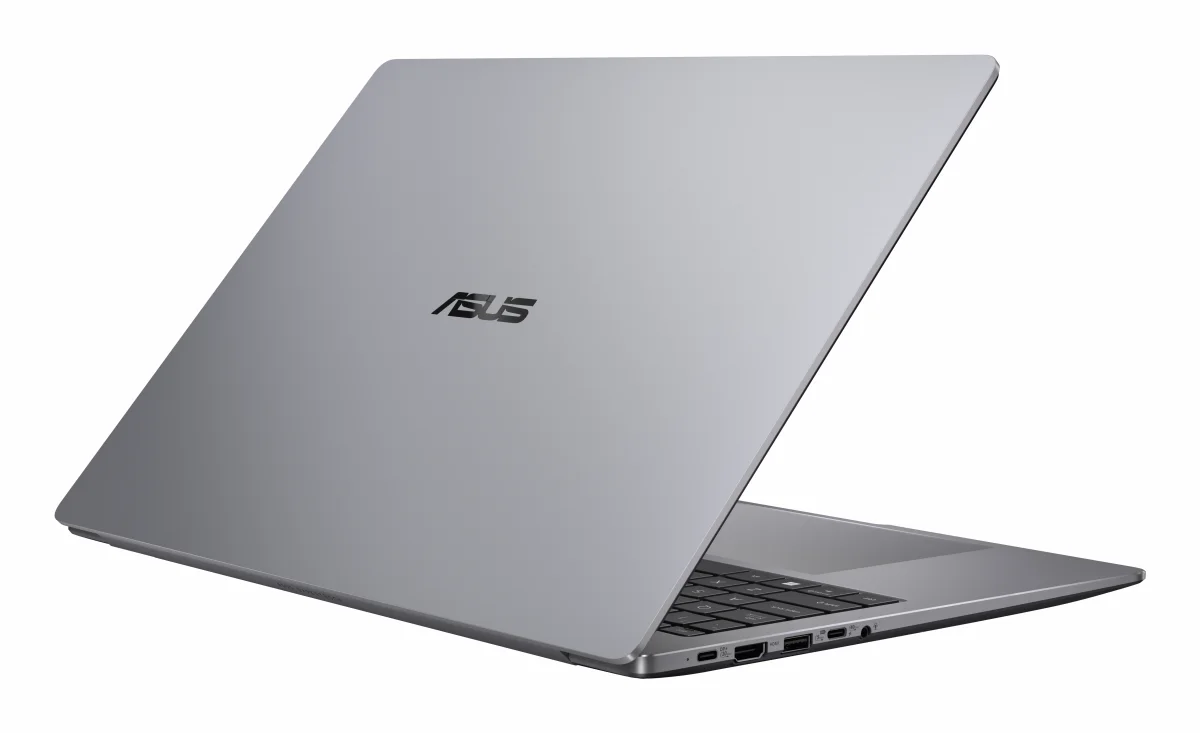

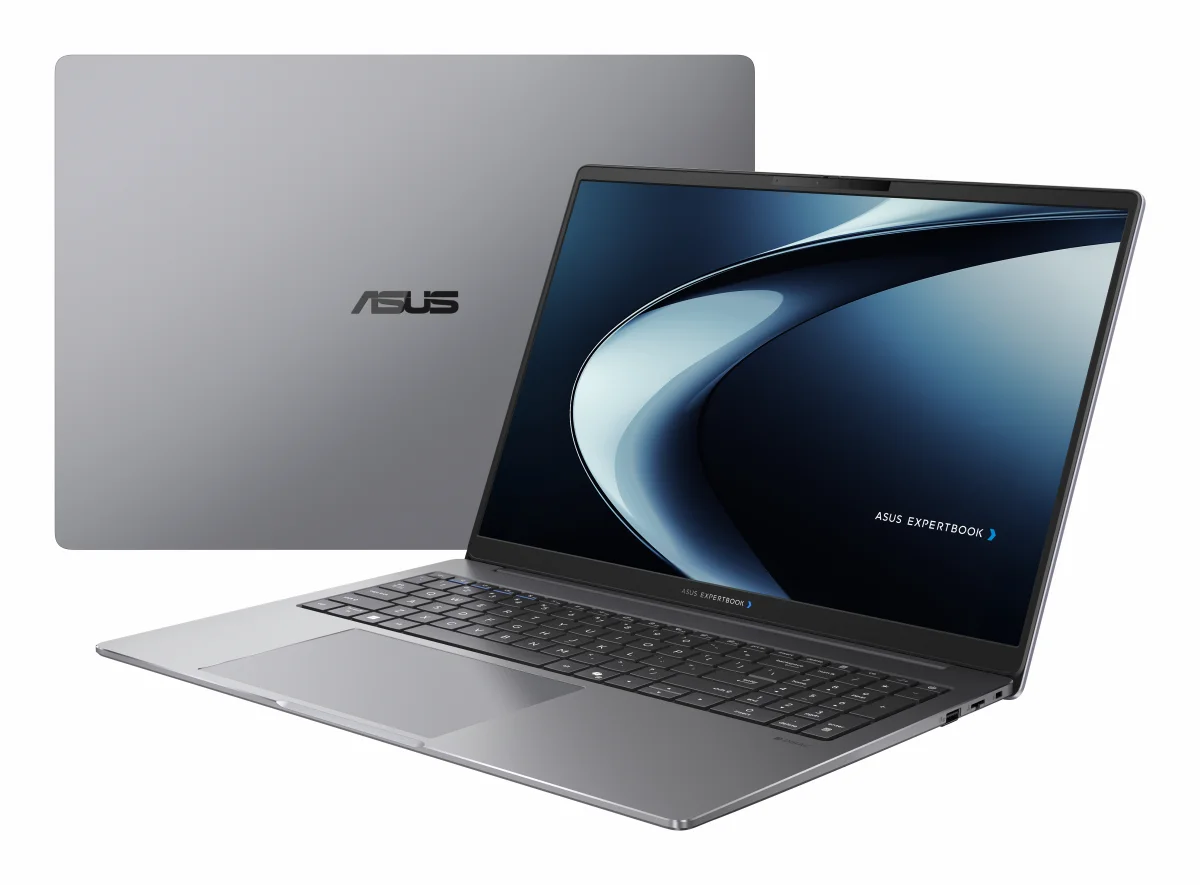

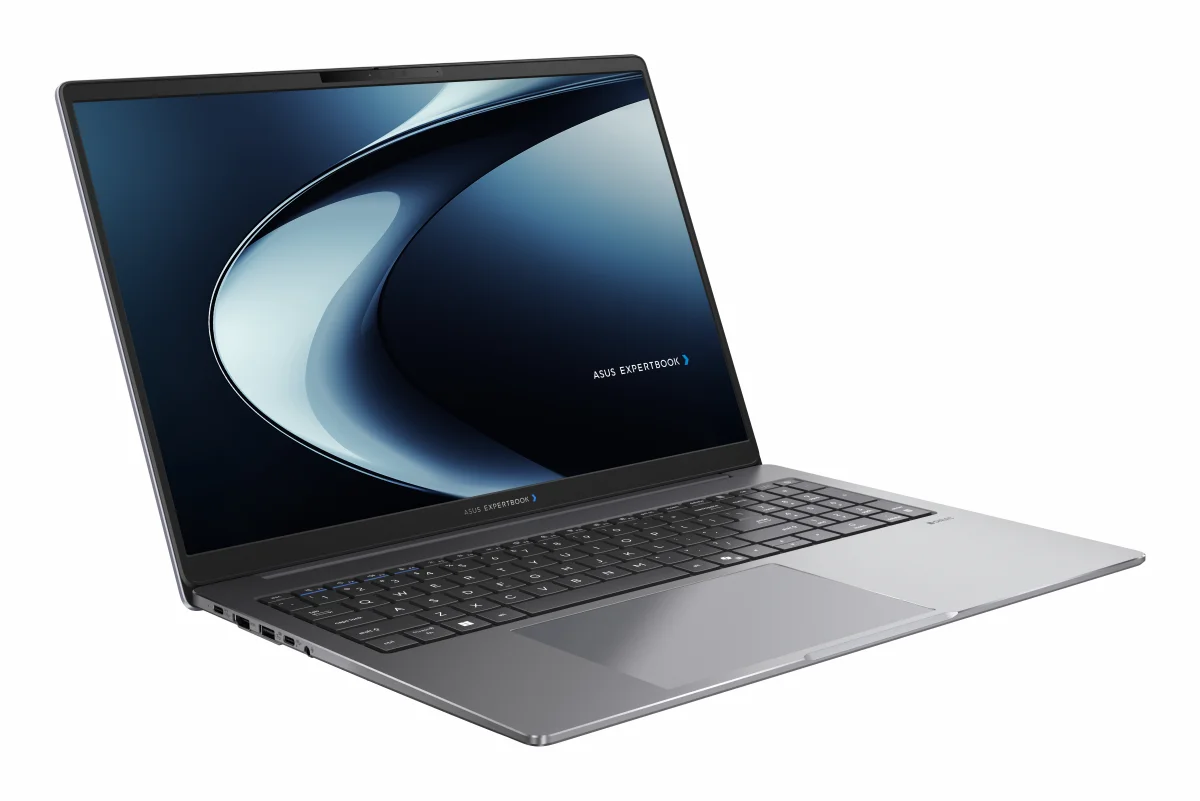

Produktbilder

Design

Product type

Laptop

Product colour

Grey

Colour name

Misty Grey

Form factor

Clamshell

Housing material

Aluminium

Display back cover material

Aluminium

Market positioning

Work

Display

Display diagonal

16 "

Display resolution

2560 x 1600 pixels

Touchscreen

Nej

HD type

WQXGA

LED backlight

Ja

Native aspect ratio

16:10

Anti-glare screen

Ja

Display brightness

400 cd/m²

RGB colour space

sRGB

Colour gamut

100 %

Maximum refresh rate

144 Hz

Contrast ratio (typical)

1500:1

Processor

Processor manufacturer

AMD

Processor family

AMD Ryzen™ AI 5

Processor generation

AMD Ryzen AI 300 Series

Processor model

330

Processor cores

4

Processor threads

8

Processor boost frequency

4.5 GHz

Processor frequency

2 GHz

Processor cache type

L2 & L3

L3 cache

8 MB

L2 cache

4 MB

Neural processor unit (NPU)

Neural processor unit (NPU)

AMD Ryzen AI

Total processor performance up to

56 TOPs

NPU performance up to

50 TOPs

Memory

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

Memory form factor

SO-DIMM

Memory slots

2x SO-DIMM

Maximum internal memory

64 GB

Storage

Total storage capacity

512 GB

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Optical drive type

Nej

Graphics

On-board graphics card

Ja

Discrete graphics card

Nej

Discrete graphics card model

Not available

On-board GPU manufacturer

AMD

On-board graphics card family

AMD Radeon

On-board graphics card model

AMD Radeon 820M

On-board graphics card 4K support

Ja

On-board graphics card 8K support

Ja

AMD FreeSync

Ja

Audio

Built-in microphone

Ja

Camera

Front camera

Ja

Front camera HD type

Full HD

Infrared (IR) camera

Ja

Privacy camera

Ja

Privacy type

Privacy shutter

Network

Mobile network connection

Ja

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Antenna type

2x2

Ethernet LAN

Ja

Ethernet LAN data rates

1000 Mbit/s

Bluetooth

Ja

Bluetooth version

5.4

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Combo headphone/mic port

Ja

Keyboard

Pointing device

Touchpad

Numeric keypad

Ja

Keyboard backlit

Ja

Keyboard layout

QWERTY

Keyboard language

English

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Trial software

1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 1 year

Battery

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

4

Battery capacity

70 Wh

Power

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output current

3.25 A

AC adapter output voltage

20 V

USB Type-C charging port

Ja

USB Type-C required charging power (min)

55 W

USB Type-C required charging power (max)

65 W

USB Power Delivery (USB PD)

Ja

Security

Cable lock slot

Ja

Cable lock slot type

Kensington

Fingerprint reader

Ja

Windows Hello

Ja

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Sustainability

Sustainability certificates

Forest Stewardship Council (FSC) Recycled, TCO

Weight & dimensions

Weight

1870 g

Width

358.4 mm

Depth

253.5 mm

Height (front)

17.9 mm

Height (rear)

18 mm

Packaging content

AC adapter included

Ja
