ASUS Vivobook S14 OLED S5406SA-QD077W

Produkt

Tillverkare

ASUS

Produktfamilj / -serie

Vivobook S14 OLED

Produktnamn

S5406SA-QD077W

Lanseringsdatum

06.09.2024

Tillverkarens länk

https://www.asus.com/laptops/for-home/vivobook/asus-vivobook-s..

Produktkoder

Tillverkarens produktkoder

• S5406SA-QD077W

GTIN- / EAN-koder

• 4711636533072

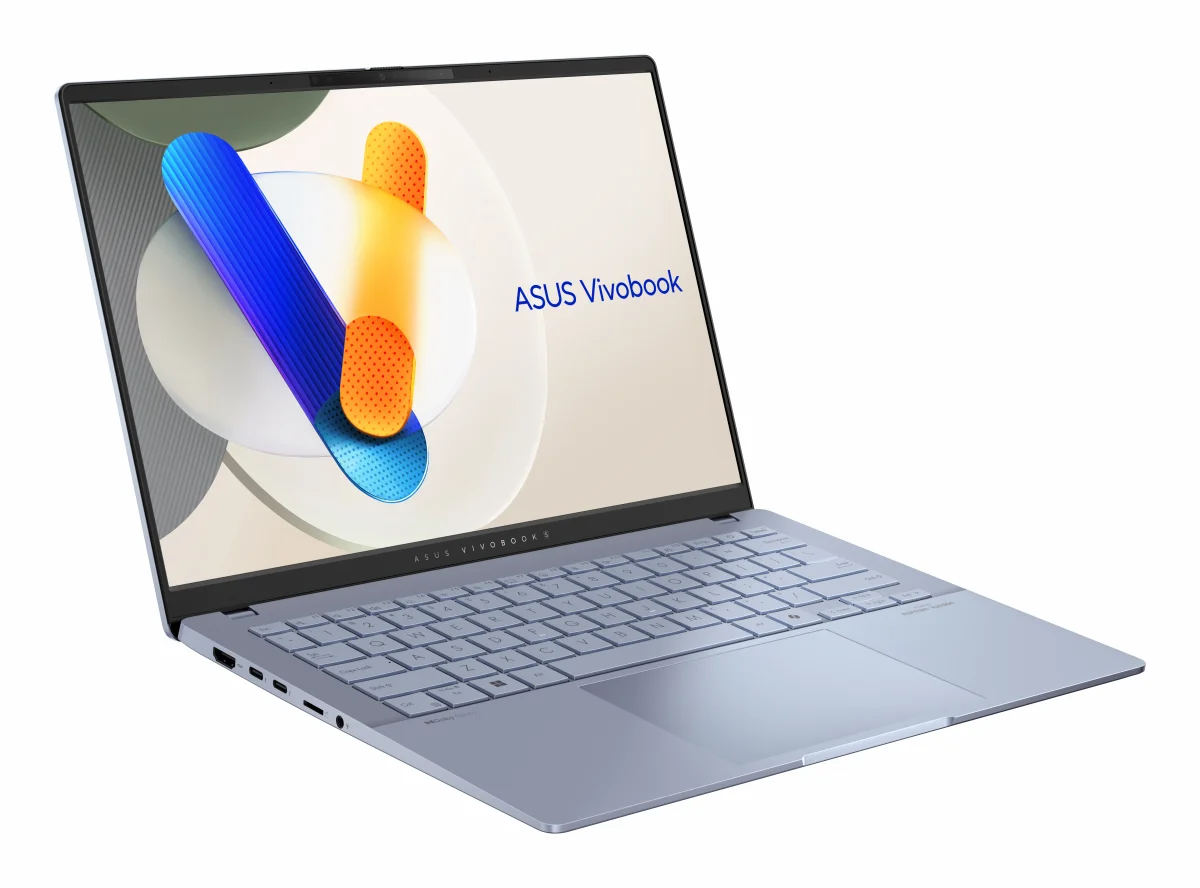

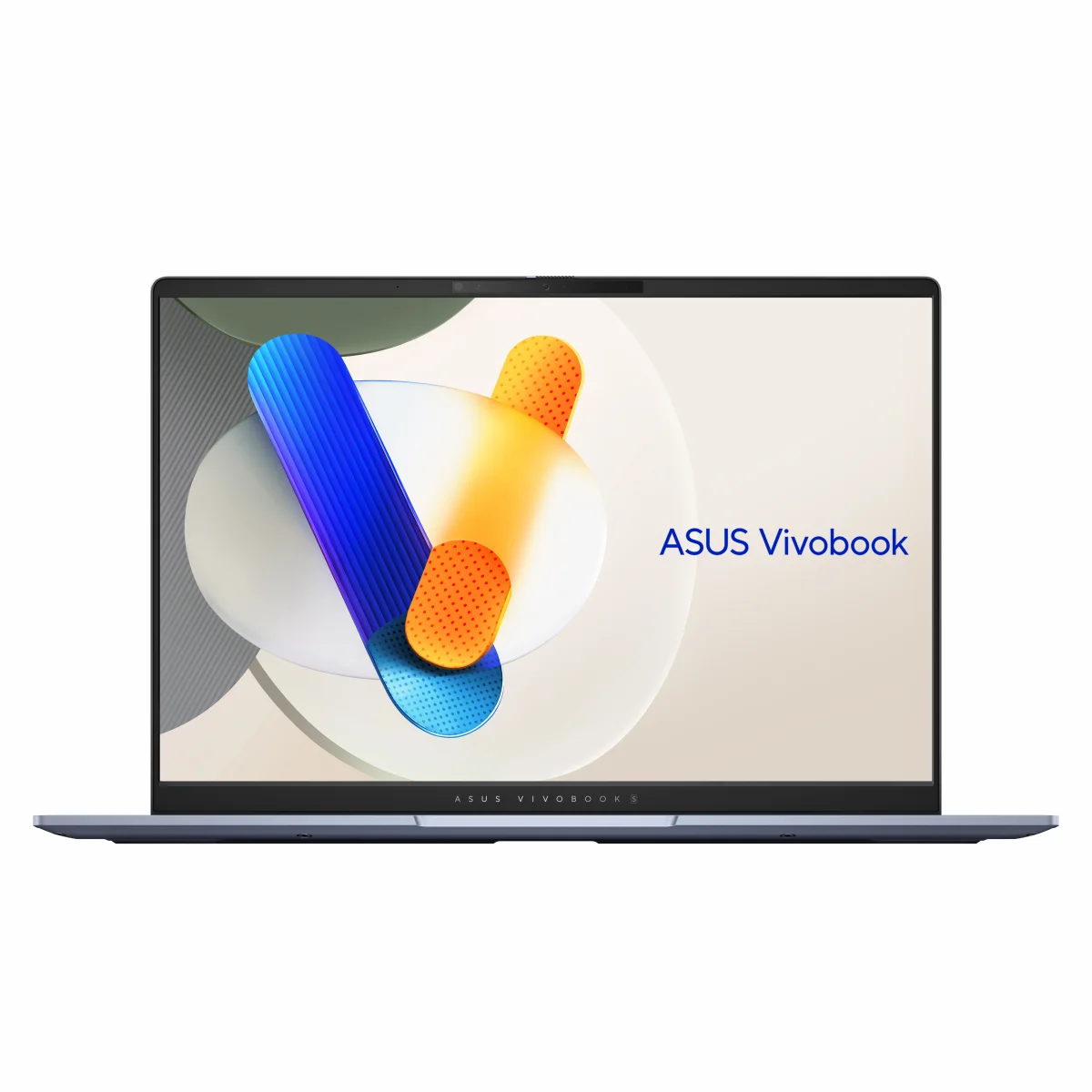

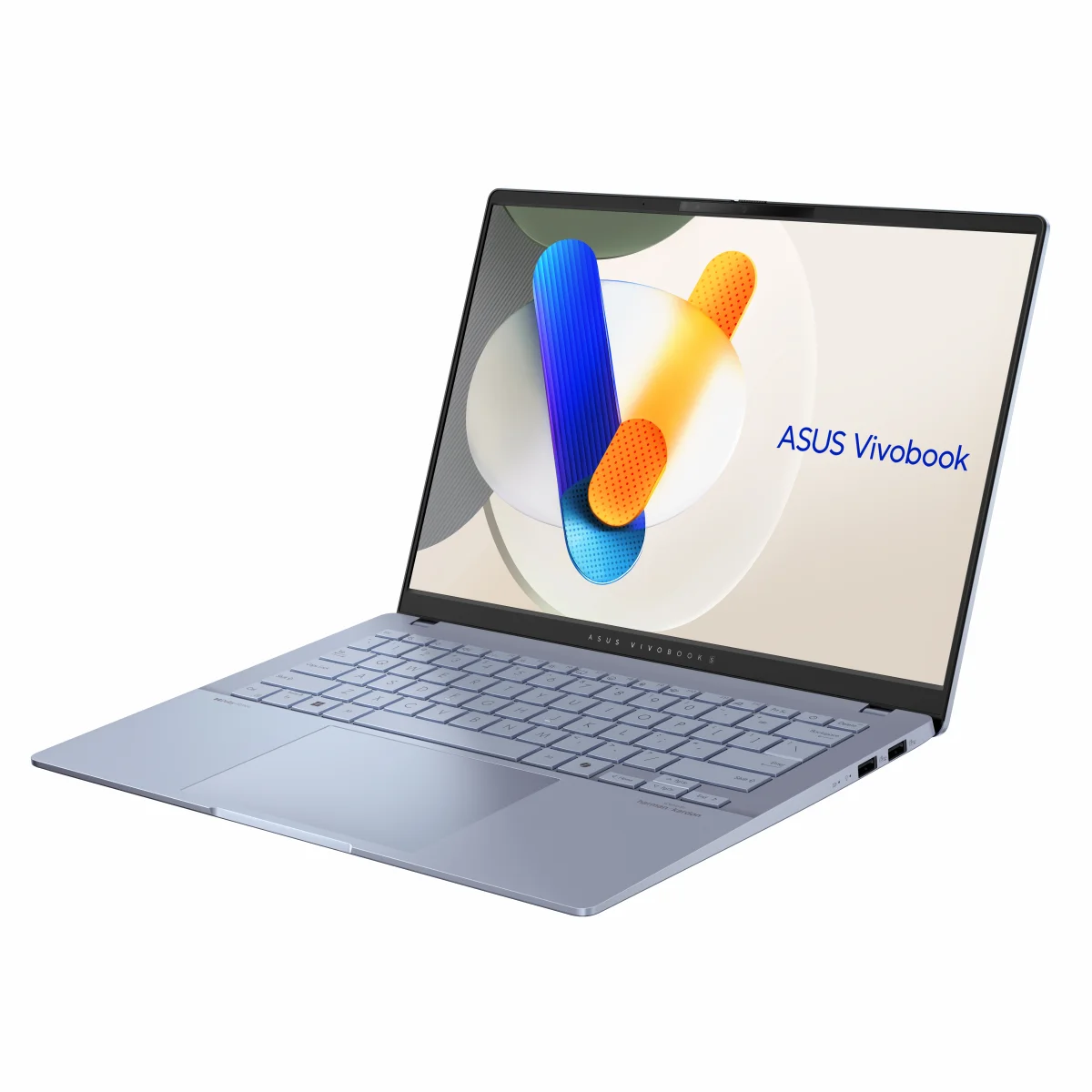

Produktbilder

Design

Product type

Laptop

Product colour

Blue

Colour name

Mist Blue

Form factor

Clamshell

Housing material

Aluminium

Market positioning

Home

Introduction year

2024

Display

Display diagonal

14 "

Display resolution

1920 x 1200 pixels

Touchscreen

Nej

HD type

WUXGA

Panel type

OLED

Display number of colours

1.073 billion colours

Native aspect ratio

16:10

Display surface

Gloss

Display brightness

400 cd/m²

Maximum display brightness (HDR)

600 cd/m²

RGB colour space

DCI-P3

Colour gamut

100 %

Maximum refresh rate

60 Hz

Contrast ratio (typical)

1000000:1

High Dynamic Range (HDR) supported

Ja

High Dynamic Range (HDR) technology

HDR True Black 600

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor generation

Intel Core Ultra (Series 2)

Processor model

258V

Processor cores

8

Processor threads

8

Processor boost frequency

4.8 GHz

Performance cores

4

Low Power Efficient-cores

4

Performance-core Max Turbo Frequency

4.8 GHz

Low Power Efficient-core Max Turbo Frequency

3.7 GHz

Performance-core base frequency

2.2 GHz

Low Power Efficient-core Base Frequency

2.2 MHz

Processor cache

12 MB

Processor cache type

Smart Cache

Processor base power

17 W

Maximum turbo power

37 W

Neural processor unit (NPU)

Copilot+ PC

Ja

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Ja

Windows Studio effects support

Ja

AI datatype support on NPU

Int8

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, WebNN, Windows ML

Total processor performance up to

115 TOPs

NPU performance up to

47 TOPs

Memory

Internal memory

32 GB

Internal memory type

LPDDR5x-SDRAM

Memory form factor

On-board

Maximum internal memory

32 GB

Storage

Total storage capacity

1000 GB

Storage media

SSD

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

Optical drive type

Nej

Card reader integrated

Ja

Compatible memory cards

MicroSD (TransFlash)

Graphics

On-board graphics card

Ja

Discrete graphics card

Nej

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc Graphics 140V

Audio

Audio system

Smart Amp

Speakers manufacturer

Harman Kardon

Built-in microphone

Ja

Camera

Front camera

Ja

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Infrared (IR) camera

Ja

Privacy camera

Ja

Privacy type

Privacy shutter

Network

Mobile network connection

Nej

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Antenna type

2x2

Ethernet LAN

Nej

Bluetooth

Ja

Bluetooth version

5.4

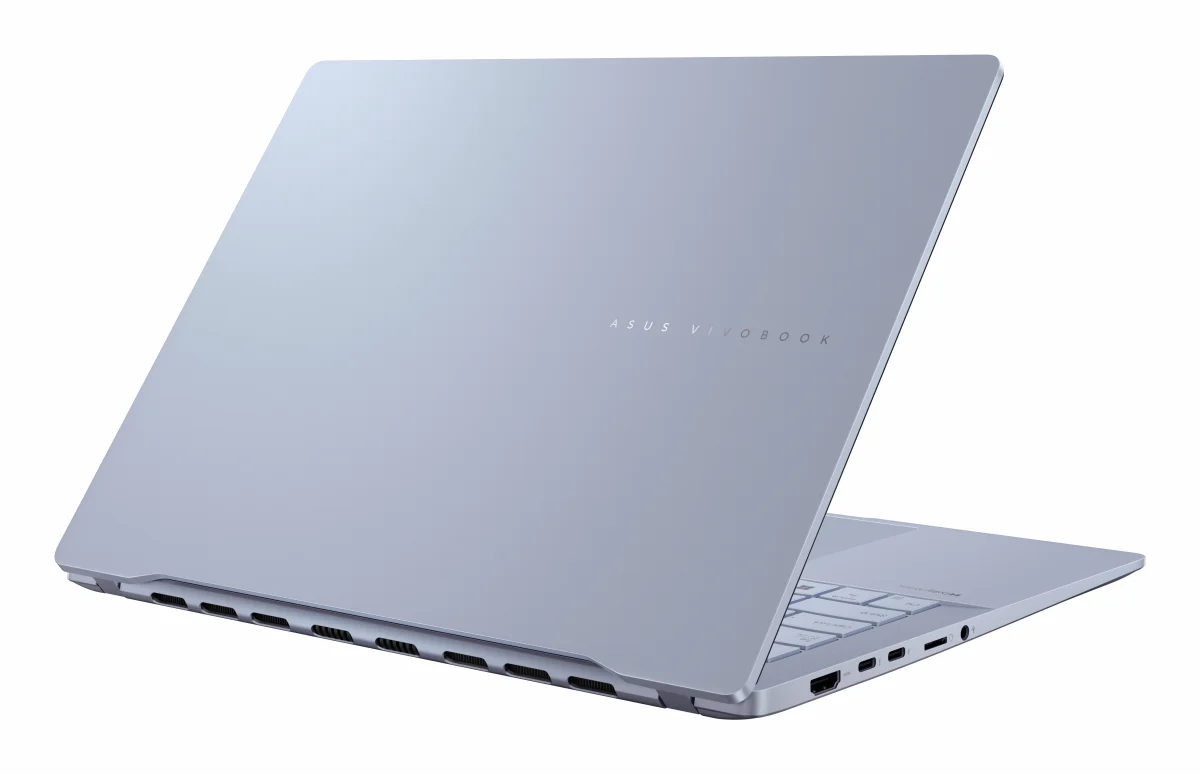

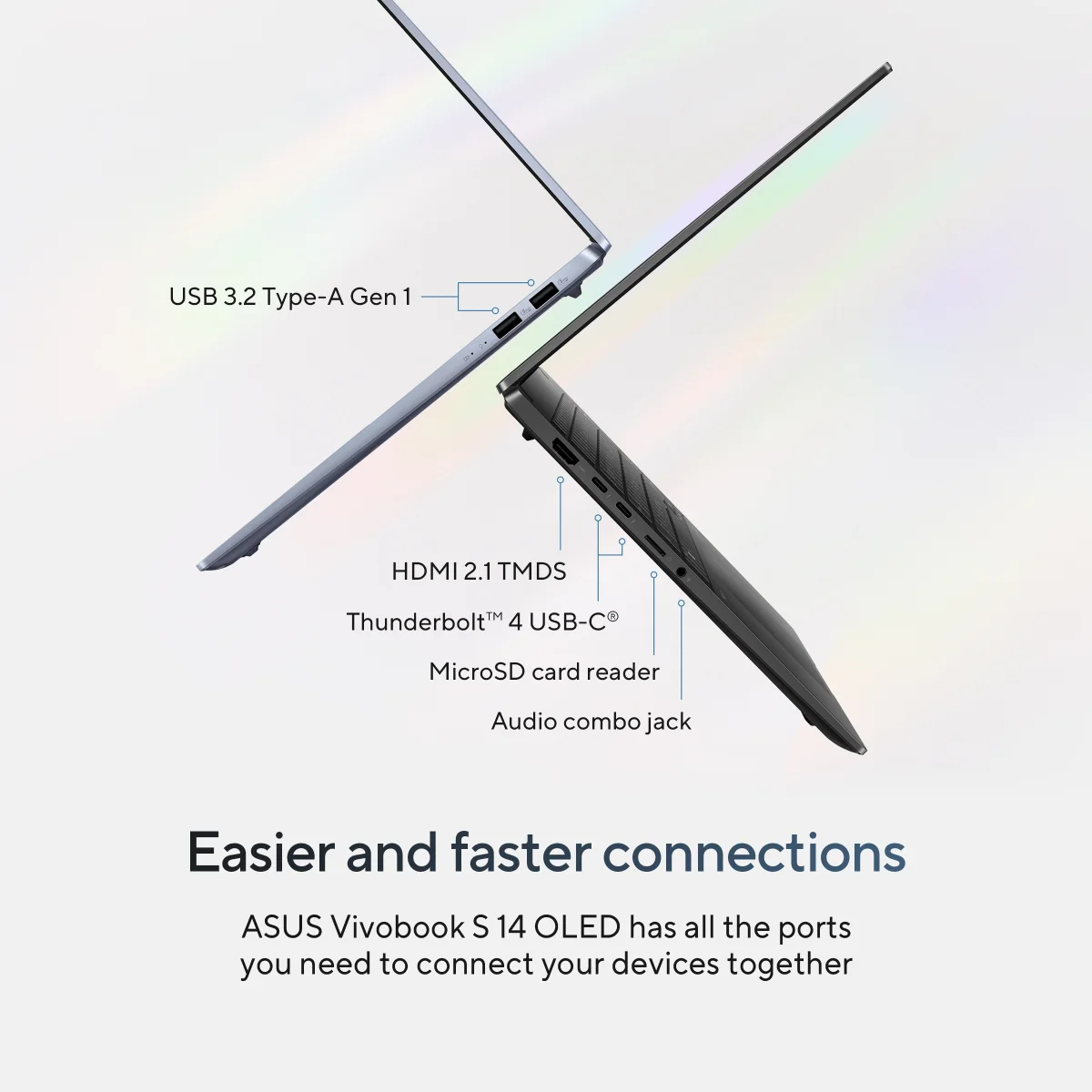

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

2

Intel® Thunderbolt 4

Ja

Combo headphone/mic port

Ja

USB Type-C DisplayPort Alternate Mode

Ja

Performance

Repairability index

8.4

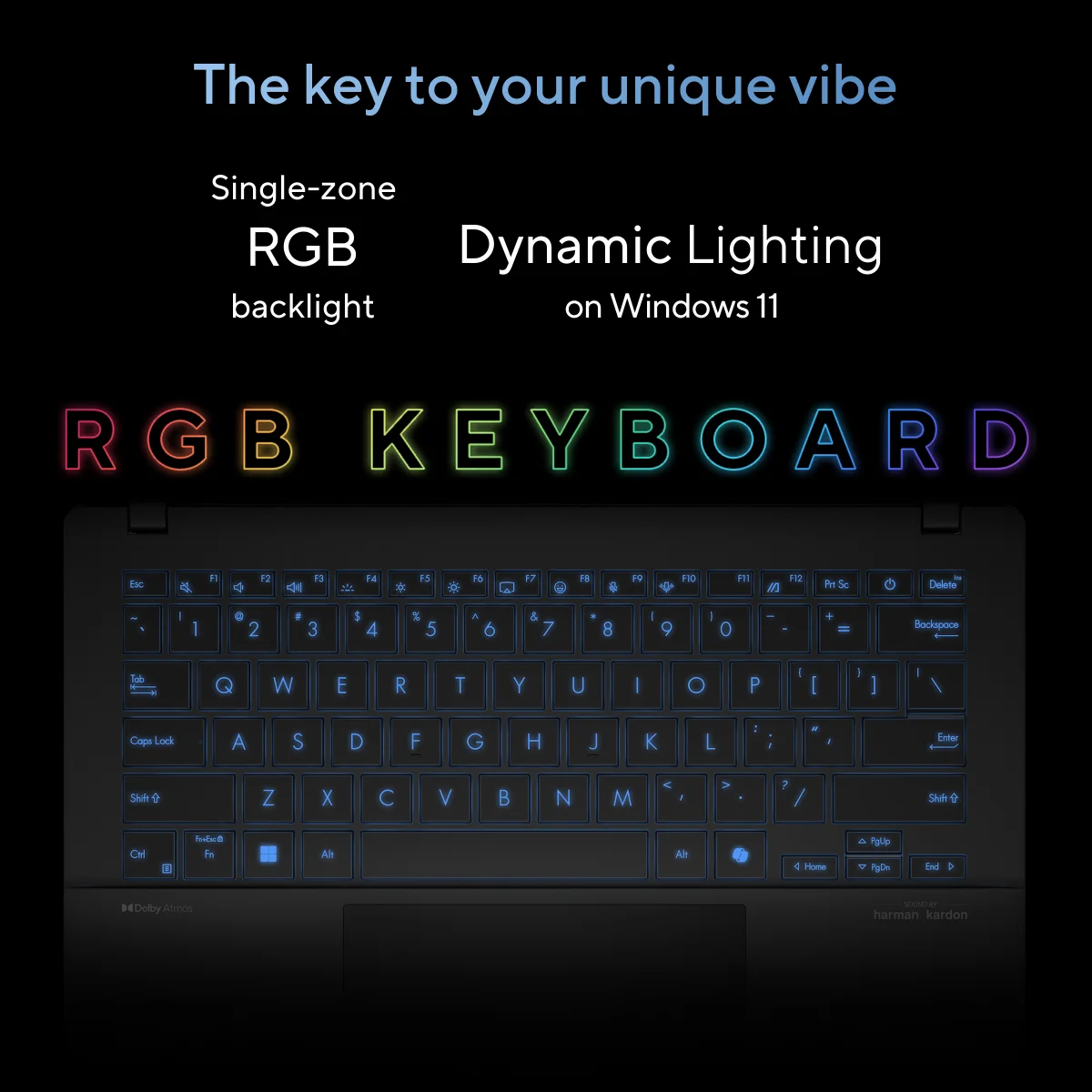

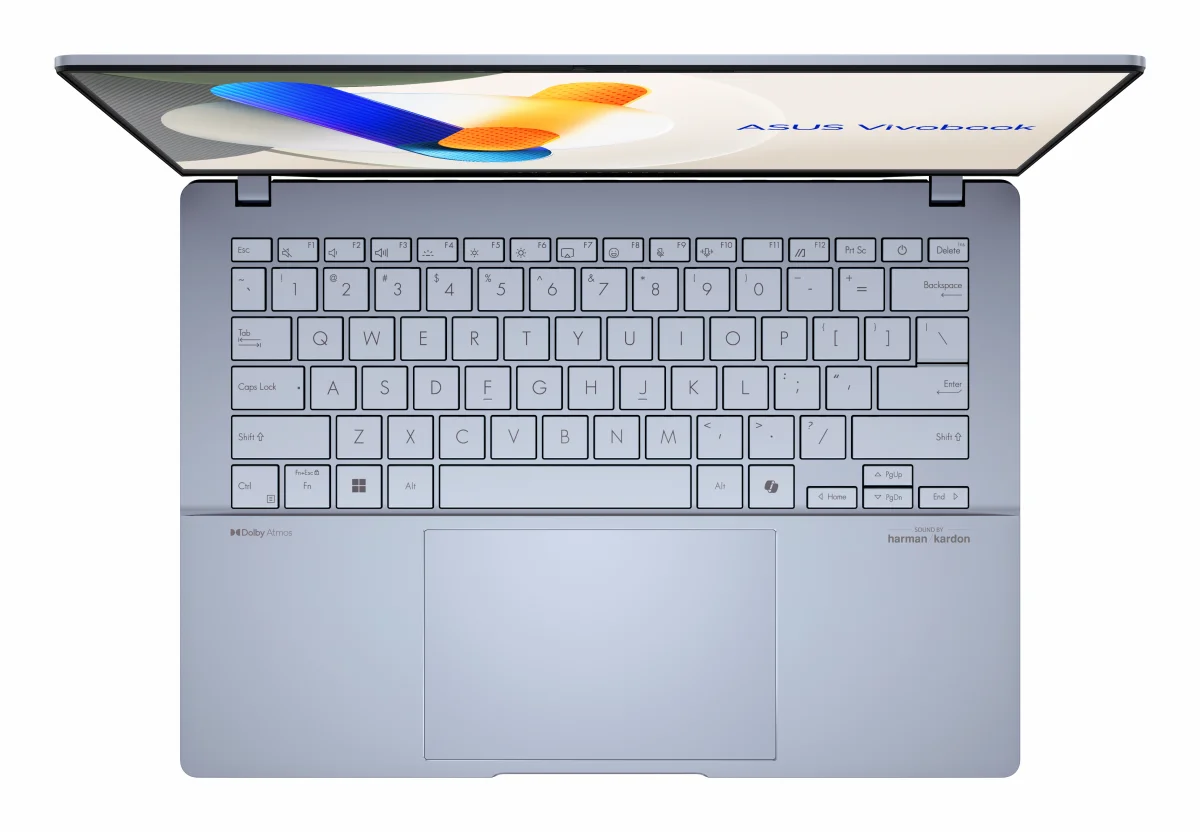

Keyboard

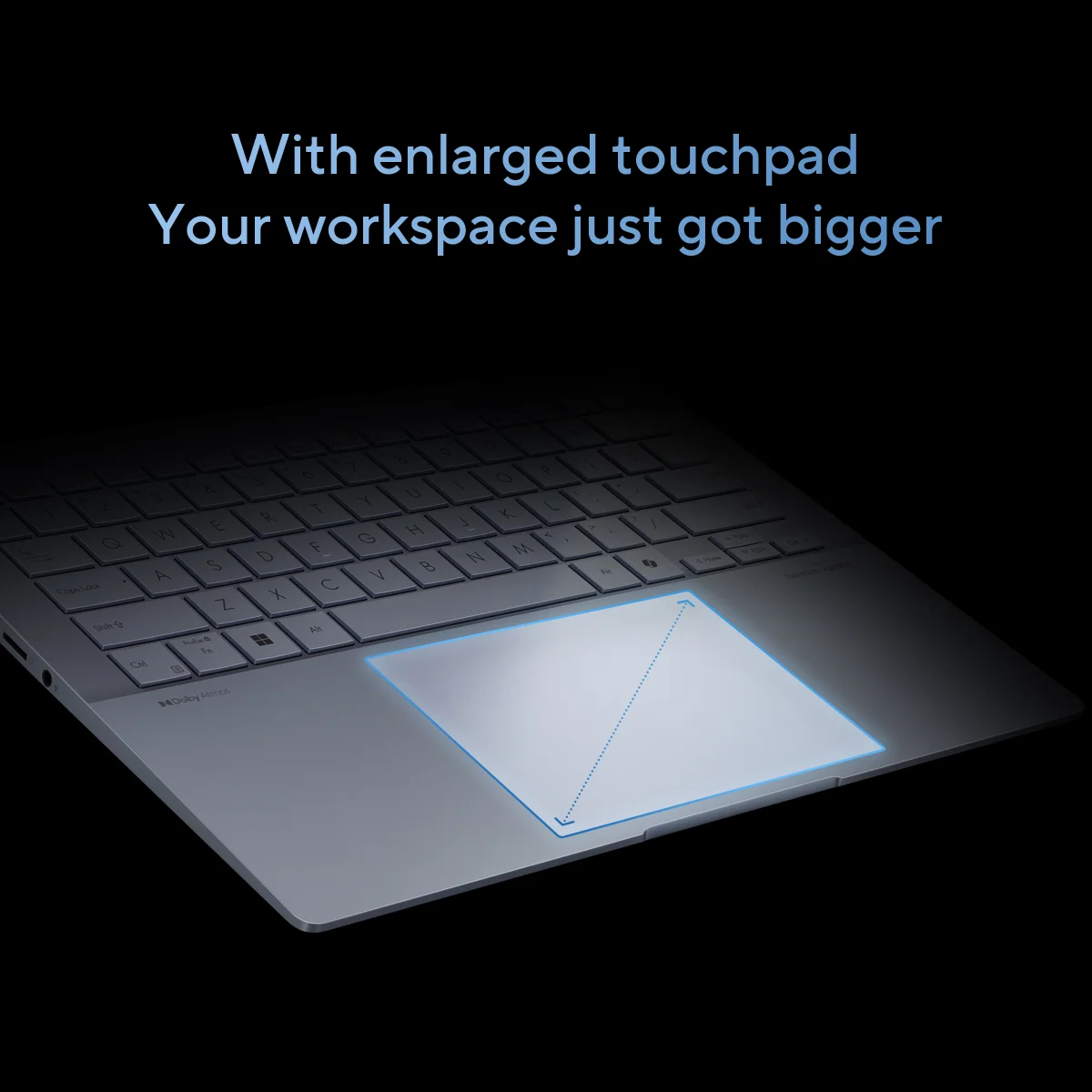

Pointing device

Touchpad

Numeric keypad

Nej

Keyboard backlit

Ja

Keyboard backlit colour

RGB

Keyboard backlit zone

1-zone RGB

Keyboard layout

AZERTY

Keyboard language

Belgian

Copilot key

Ja

Software

Operating system installed

Windows 11 Home

Operating system architecture

64-bit

Microsoft Copilot

Ja

Trial software

1-month trial for new Microsoft 365 customers

Battery

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

4

Battery capacity

75 Wh

Power

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output current

3.25 A

AC adapter output voltage

20 V

USB Type-C charging port

Ja

USB Power Delivery (USB PD)

Ja

Security

Face recognition

Ja

Windows Hello

Ja

Trusted Platform Module (TPM)

Ja

Password protection

Ja

Password protection type

BIOS, User

Certificates

Compliance certificates

REACH

Sustainability

Sustainability certificates

ENERGY STAR

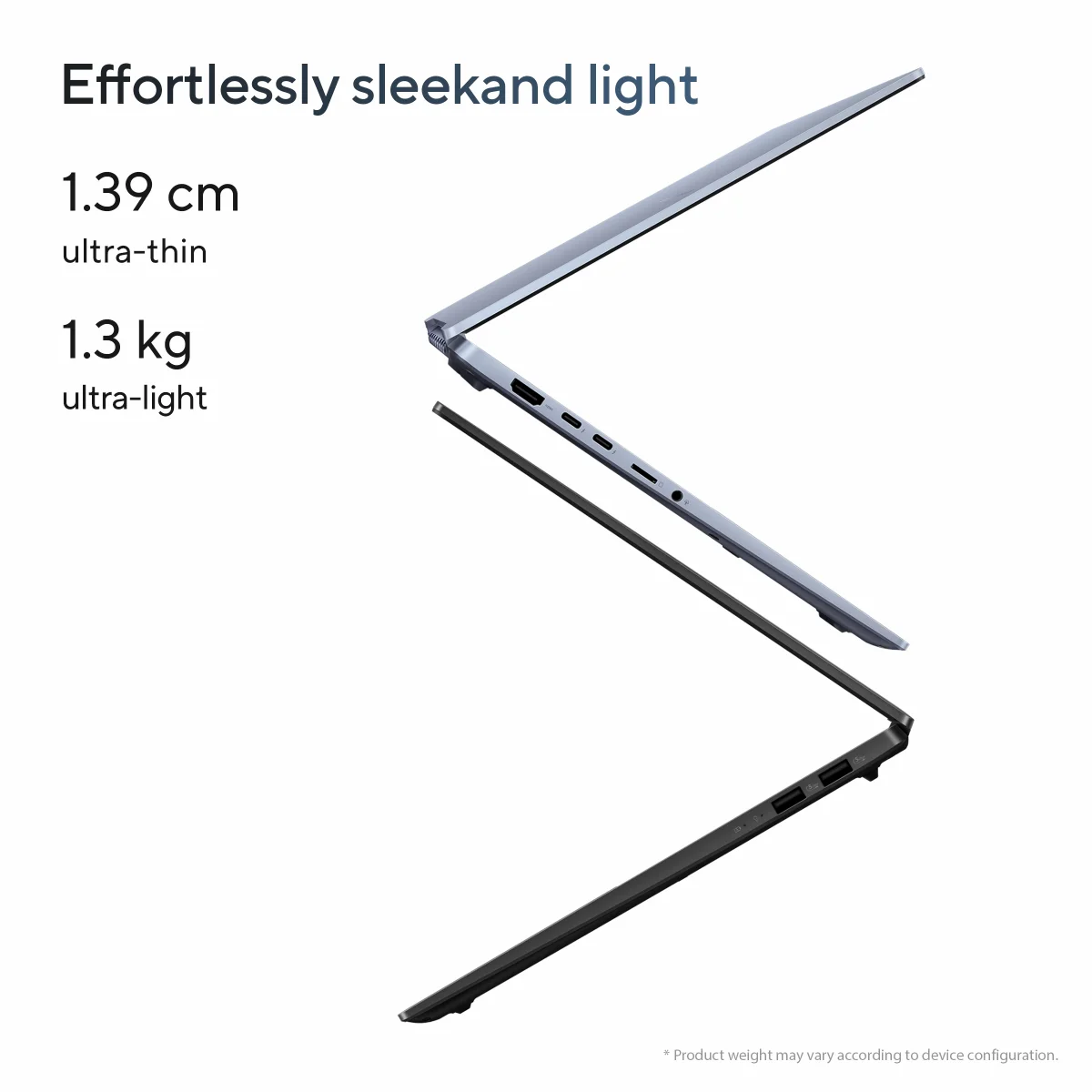

Weight & dimensions

Weight

1300 g

Width

310.5 mm

Depth

221.9 mm

Height (front)

13.9 mm

Height (rear)

15.9 mm
