GIGABYTE R113-C10-AA02

Produkt

Tillverkare

GIGABYTE

Produktnamn

R113-C10-AA02

Tillverkarens länk

https://www.gigabyte.com/Enterprise/Rack-Server/R113-C10-AA02..

Produktkoder

Tillverkarens produktkoder

• 6NR113C10MR000AC02

GTIN- / EAN-koder

• 4719331874377

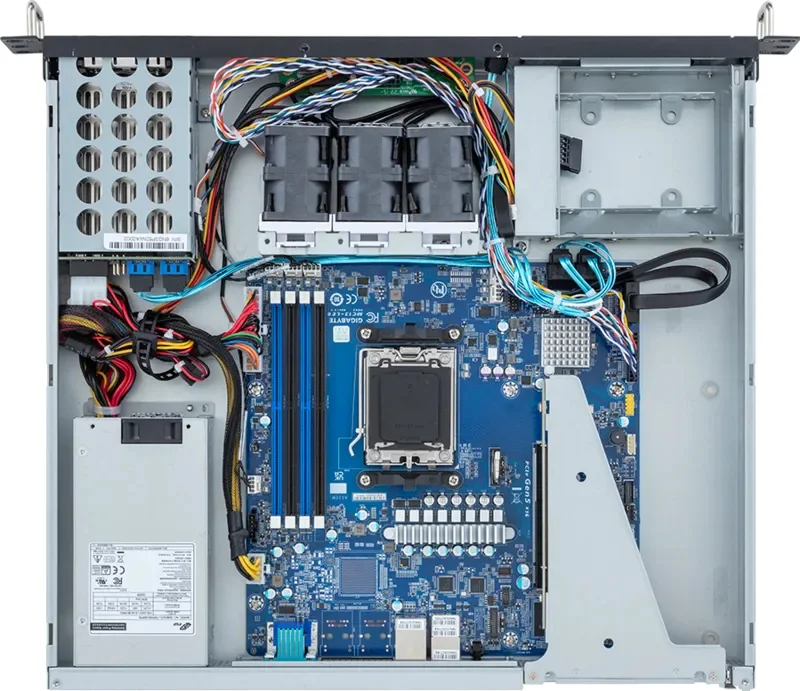

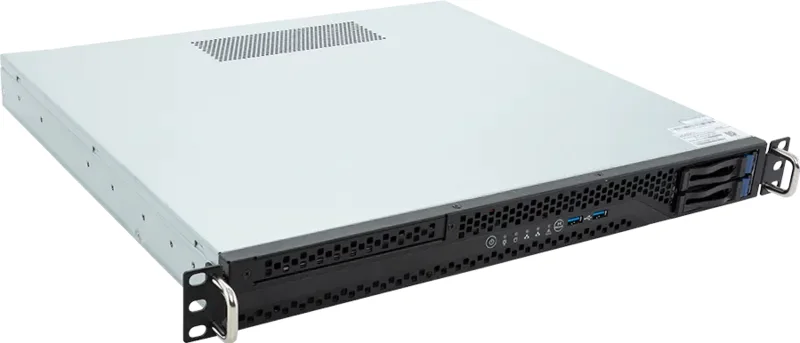

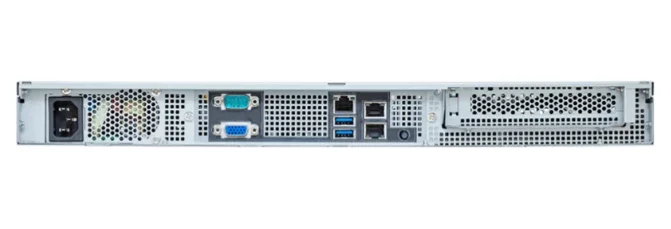

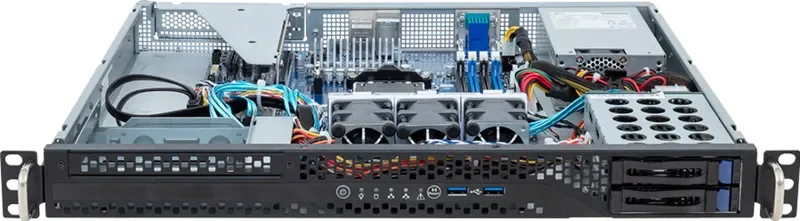

Produktbilder

Processor

Built-in processor

Nej

Motherboard chipset

AMD B650E

Processor socket

Socket AM5

Number of processors supported

1

Compatible processor series

AMD EPYC™ 4005 Series, AMD Ryzen 9000 Series

Memory

Number of DIMM slots

4

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

ECC

Ja

Non-ECC

Ja

Storage

Number of storage drives supported

5

Hot-swap HDD bays

Ja

Number of 2.5" bays

4

Storage drive sizes supported

2.5,M.2 "

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

Serial ATA, PCI Express 5.0

RAID levels

0, 1, 10

SSD form factor

M.2

Graphics

On-board graphics card model

Aspeed AST2600

Network

Ethernet LAN

Ja

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

LAN controller

Intel® I210-AT

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ethernet LAN (RJ-45) ports

2

VGA (D-Sub) ports quantity

1

COM ports quantity

1

Expansion slots

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

1

Features

Trusted Platform Module (TPM)

Ja

Compatible operating systems

Ubuntu 22.04 Ubuntu 24.04; Windows Server 2022; Windows Server 2025; Windows 10 21H2; Windows 11

Design

Chassis type

Rack (1U)

Product colour

Black, Steel

LED indicators

LAN, HDD, SSD, Status

On/off switch

Ja

Reset button

Ja

Cooling type

Active

Heat sink included

Ja

Number of fans

3 fan(s)

Fan diameter

40 mm

Power

Power supply

400 W

Number of main power supplies

1

Redundant power supply (RPS) support

Ja

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

3 - 6 A

DC output current (+5 V)

16 A

DC output current (+12 V)

33 A

80 PLUS certification

80 PLUS Gold

Operational conditions

Operating temperature (T-T)

10 - 30 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

8 - 80 %

Storage relative humidity (H-H)

20 - 95 %

Weight & dimensions

Width

430 mm

Depth

393.2 mm

Height

43.5 mm

Weight

6250 g

Packaging data

Packaging content

1 x R113-C10-AA02; 1 x CPU heatsink

Package width

599 mm

Package depth

535 mm

Package height

161 mm

Package weight

11250 g
