Shuttle DH810S

Produkt

Tillverkare

Shuttle

Produktnamn

DH810S

Tillverkarens länk

https://www.shuttle.eu/en/products/slim/dh810s

Produktkoder

Tillverkarens produktkoder

• DH810S

GTIN- / EAN-koder

• 0887993009247

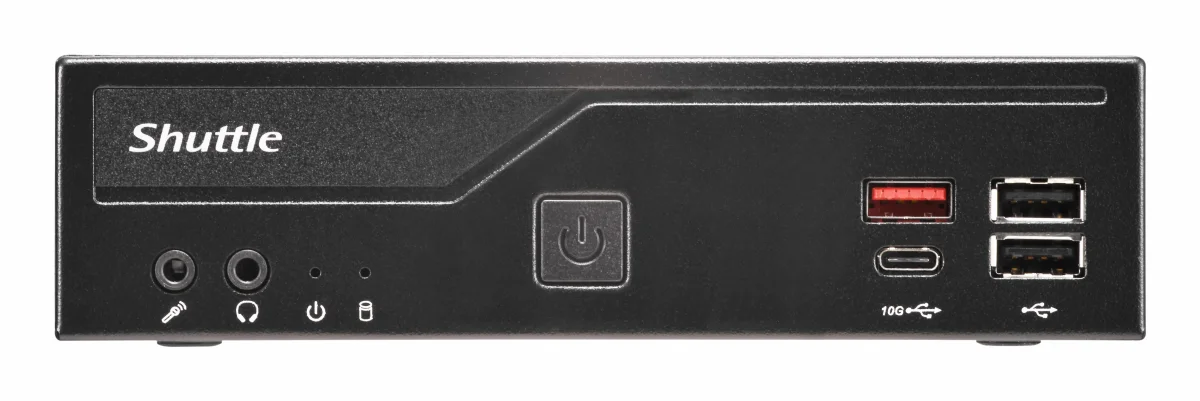

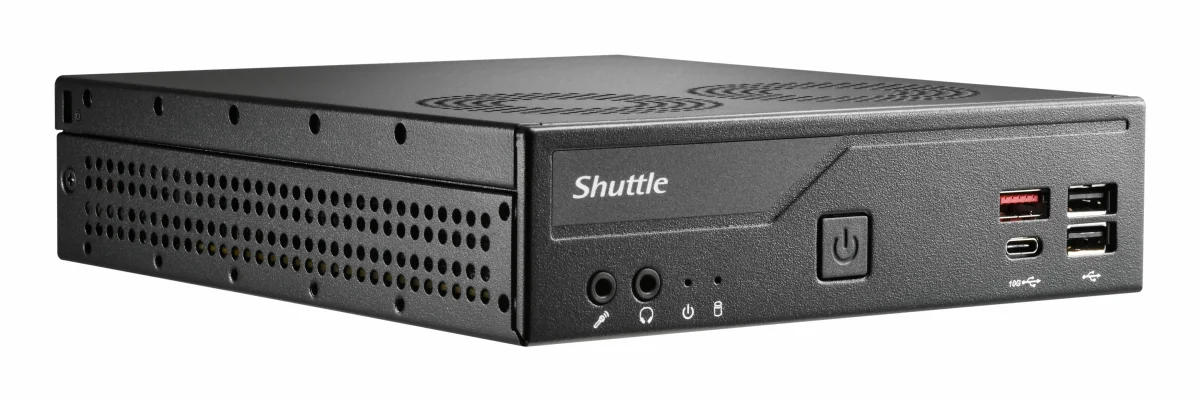

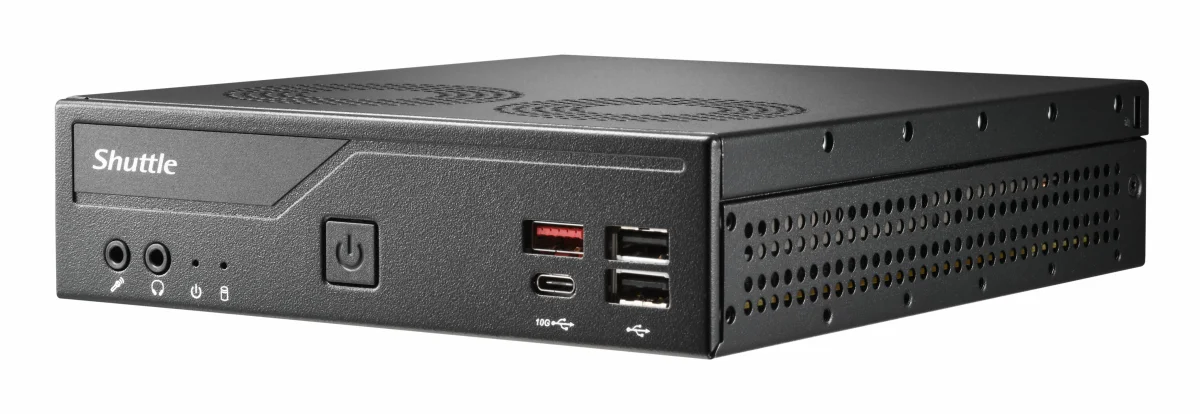

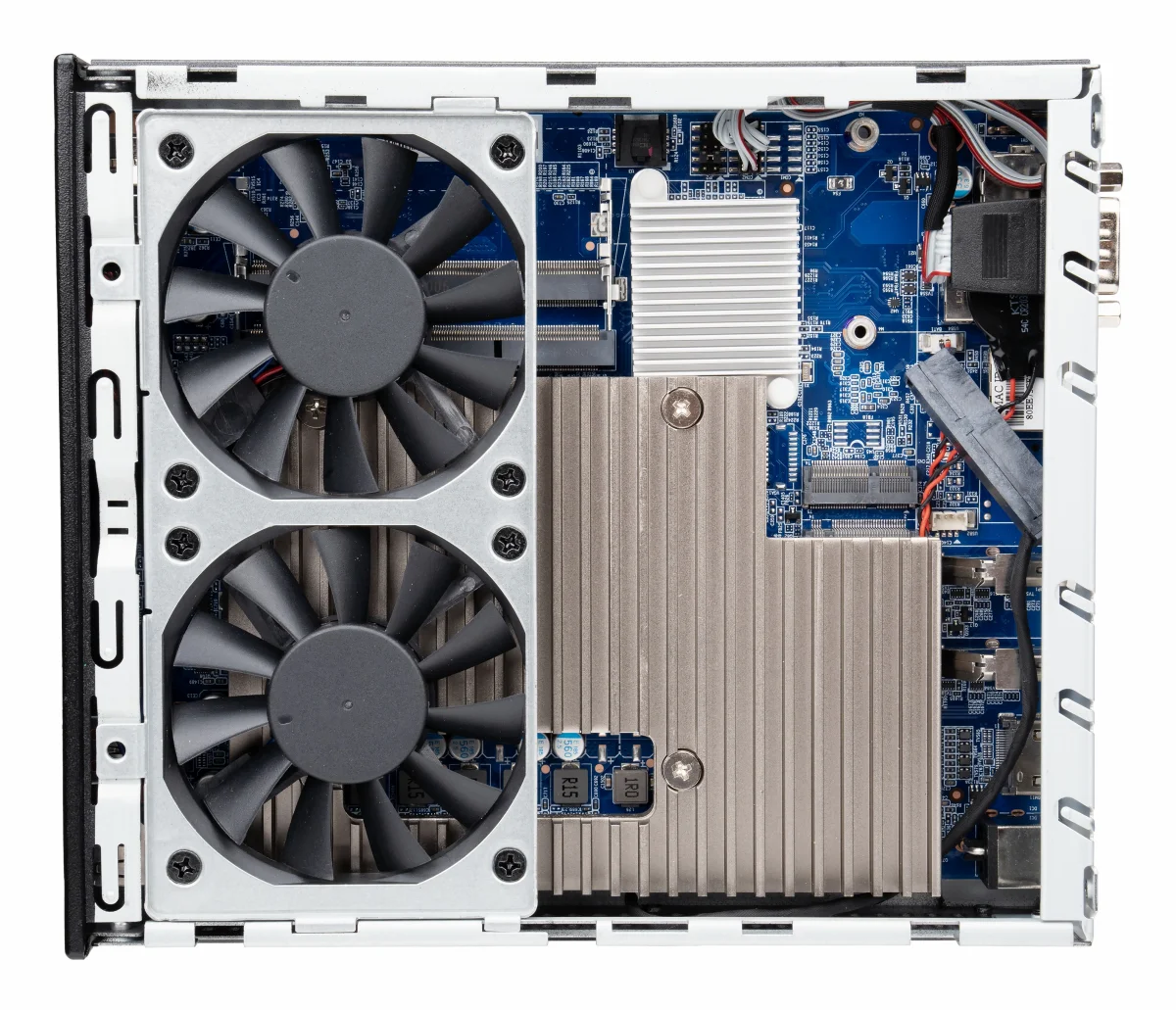

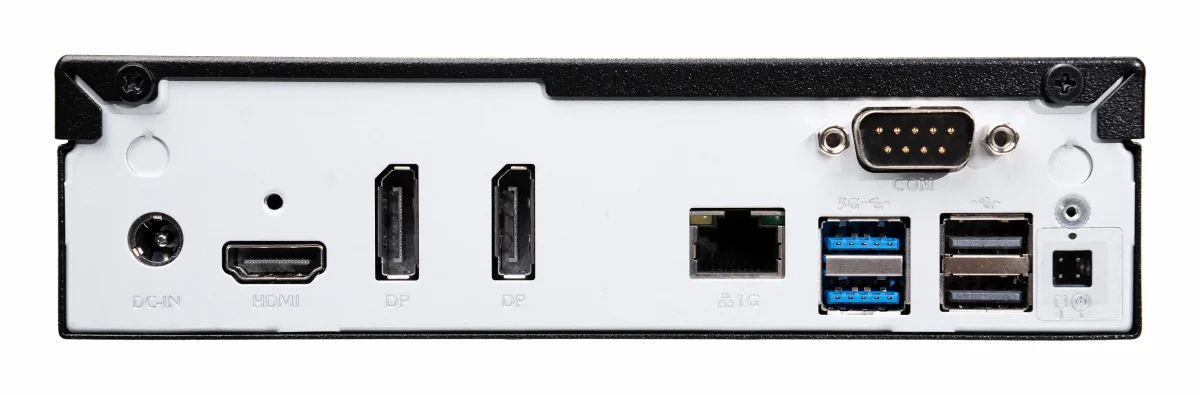

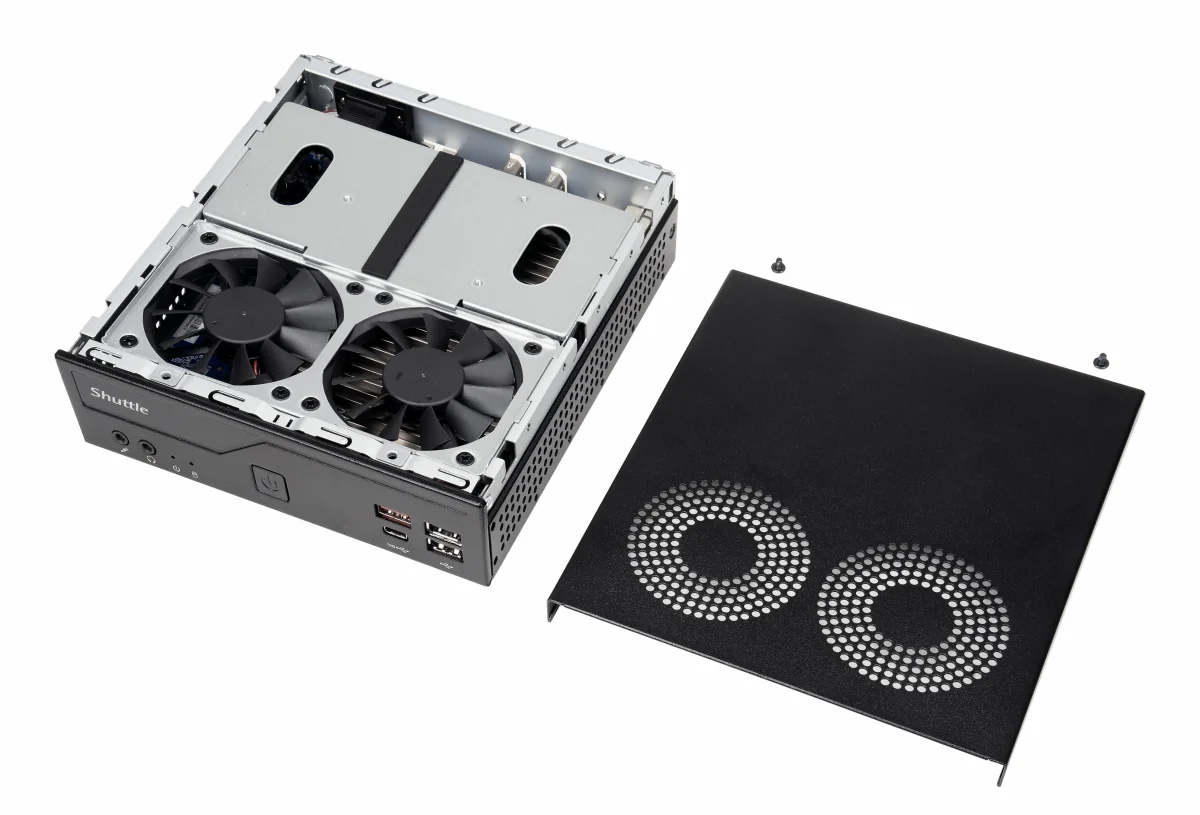

Produktbilder

Processor

Built-in processor

Nej

Memory

Internal memory installed

Nej

Memory slots type

SO-DIMM

Number of memory slots

2

Maximum internal memory

96 GB

Supported memory clock speeds

5600 MHz

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Memory voltage

1.1 V

ECC

Nej

Non-ECC

Ja

Storage

Storage drives installed

Nej

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5 "

SSD form factor

M.2

Storage drive interface

M.2, PCI Express, Serial ATA

NVMe

Ja

Number of storage drives supported

2

Graphics

On-board graphics card

Ja

Performance

Motherboard chipset

Intel H810

Processor socket

LGA 1851 (Socket V1)

Number of processors supported

1

BIOS type

EFI AMI

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Audio output channels

2.0 channels

Audio chip

Realtek ALC888S

Audio

Built-in speaker(s)

Nej

Network

Ethernet LAN

Ja

Wi-Fi

Nej

LAN controller

Intel® I219

Ports & interfaces

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

2

DisplayPort version

1.4a

Microphone in

Ja

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

Serial ports quantity

1

DC-in jack

Ja

Design

Chassis type

1.35L sized PC

Product colour

Black

Cooling type

Active

LED indicators

HDD, Power

Housing material

Metal

Cable lock slot

Ja

Cable lock slot type

Kensington

VESA mounting

Ja

Product type

Mini PC barebone

Technical details

Compliance certificates

BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI

Logistics data

Harmonized System (HS) code

84733080

Software

Windows operating systems supported

Windows 11

Linux operating systems supported

Ja

Sustainability

Sustainability certificates

ENERGY STAR, ErP

Power

Power supply type

External AC adapter

Power supply

120 W

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

6.32 A

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Weight & dimensions

Width

165 mm

Depth

190 mm

Height

43 mm

Weight

1300 g

Package weight

2100 g

Packaging content

Power cord included

Ja

AC adapter included

Ja

Quick start guide

Ja

Drivers included

Ja
