Thermalright TR-TG 750S

Produkt

Tillverkare

Thermalright

Produktnamn

TR-TG 750S

Tillverkarens länk

https://www.thermalright.com/product/tg-750s/

Produktkoder

Tillverkarens produktkoder

• TR-TG 750S

GTIN- / EAN-koder

• 0814256016605

Produktbilder

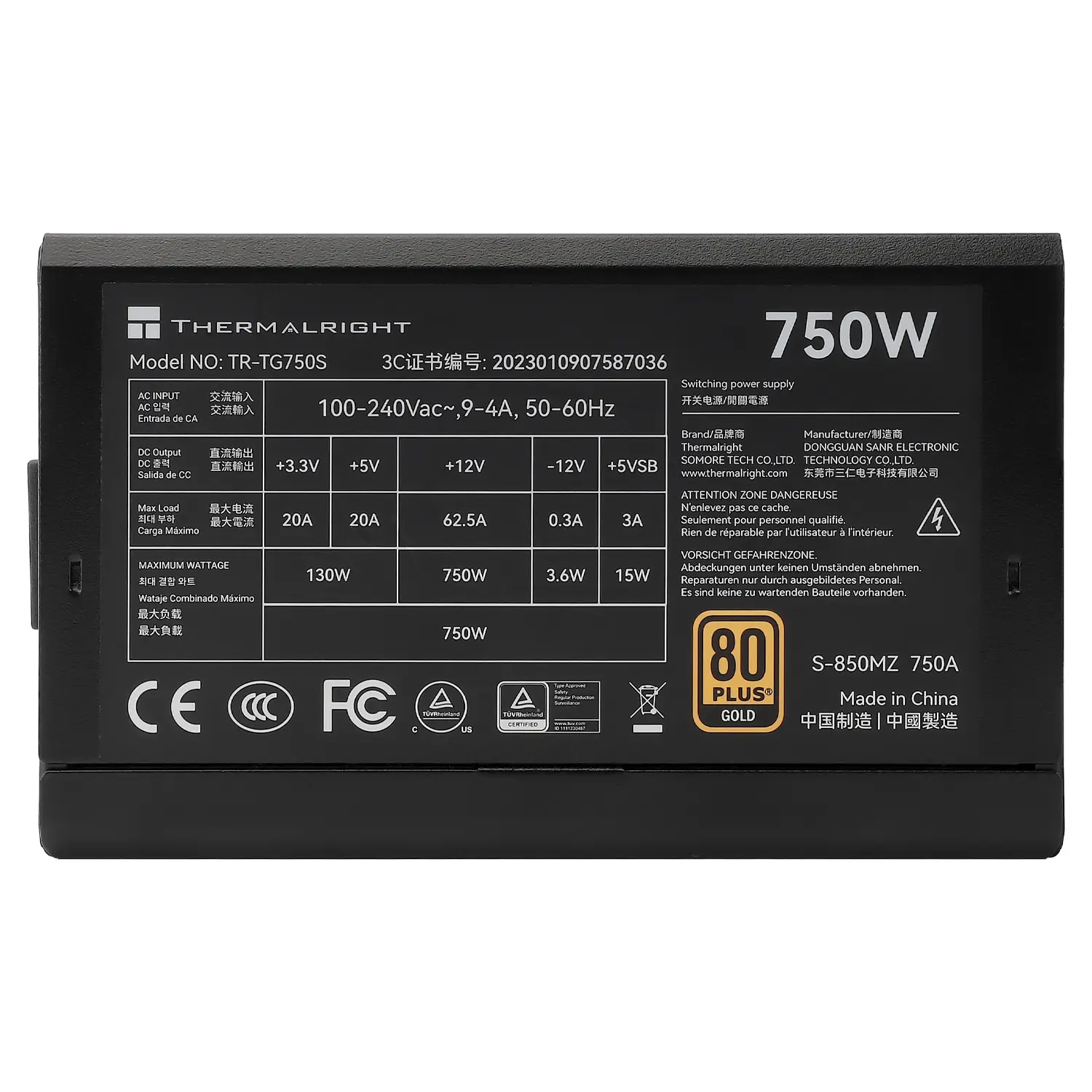

Power

Total power

750 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

7 - 3.5 A

Combined power (+3.3V)

130 W

Combined power (+12V)

750 W

Combined power (+5V)

130 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

20 A

Max output current (+12V)

62.5 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

550 mm

SATA power cable length

450,600,750,900 mm

Number of SATA power cables

1

PCI Express power connectors (6+2 pin)

2

PCI Express power connectors (12+4 pin)

1

PCI Express power connectors (12+4 pin) cable length

600 mm

PCI Express power cable length

650 mm

CPU P4 connector (4-pin)

1

CPU power connector (4+4 pin)

Ja

CPU power cable length

750 mm

PCI Express connector

Ja

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.0

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Semi-passive

Fan diameter

120 mm

Number of fans

1 fan(s)

On/off switch

Ja

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Packaging content

Cables included

CPU, PATA, PCIe, SATA

Weight & dimensions

Width

140 mm

Depth

150 mm

Height

86 mm

Packaging data

Package type

Box
