TP-Link Omada EAP225-Outdoor

Produkt

Tillverkare

TP-Link

Produktfamilj / -serie

Omada

Produktnamn

EAP225-Outdoor

Tillverkarens länk

https://www.tp-link.com/uk/business-networking/outdoor-ap/eap2..

Produktkoder

Tillverkarens produktkoder

• EAP225-OUTDOOR

GTIN- / EAN-koder

• 0845973083571
• 6935364083571

Produktbilder

Features

2.4 GHz

Ja

5 GHz

Ja

6 GHz

Nej

Maximum data transfer rate

1200 Mbit/s

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Maximum data transfer rate (5 GHz)

867 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.4 - 5 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u

MIMO

Ja

MIMO type

Multi User MIMO

Wi-Fi Multimedia (WMM)/(WME)

Ja

VLAN support

Ja

Virtual LAN features

VLAN mapping

Rate limiting

Ja

Band steering

Ja

Airtime Fairness (ATF)

Ja

Quality of Service (QoS) support

Ja

BeamForming

Ja

Transmitting power (CE)

27 dBm

Transmitting power (FCC)

22 dBm

Security

Security algorithms

802.1x RADIUS

MAC address filtering

Ja

Service Set Identifier (SSID) features

Multiple SSIDs

Number of SSID supported

16

Access Control List (ACL)

Ja

Management features

Web-based management

Ja

Syslog

Ja

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

0

Power

Power over Ethernet (PoE)

Ja

Power over Ethernet (PoE) type supported

Passive PoE

Output voltage

24 V

Power consumption (typical)

10.5 W

Design

Placement

Pole, Wall

Product colour

White

International Protection (IP) code

IP65

Reset button

Ja

Antenna

Antenna type

External

Antenna direction type

Omni-directional

Antenna features

Detachable antenna

Antennas quantity

2

Antenna gain level (max)

4 dBi

Performance

Compatible operating systems

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Width

215 mm

Depth

46 mm

Height

27 mm

Packaging data

Package width

140 mm

Package depth

270 mm

Package height

100 mm

Package weight

640 g

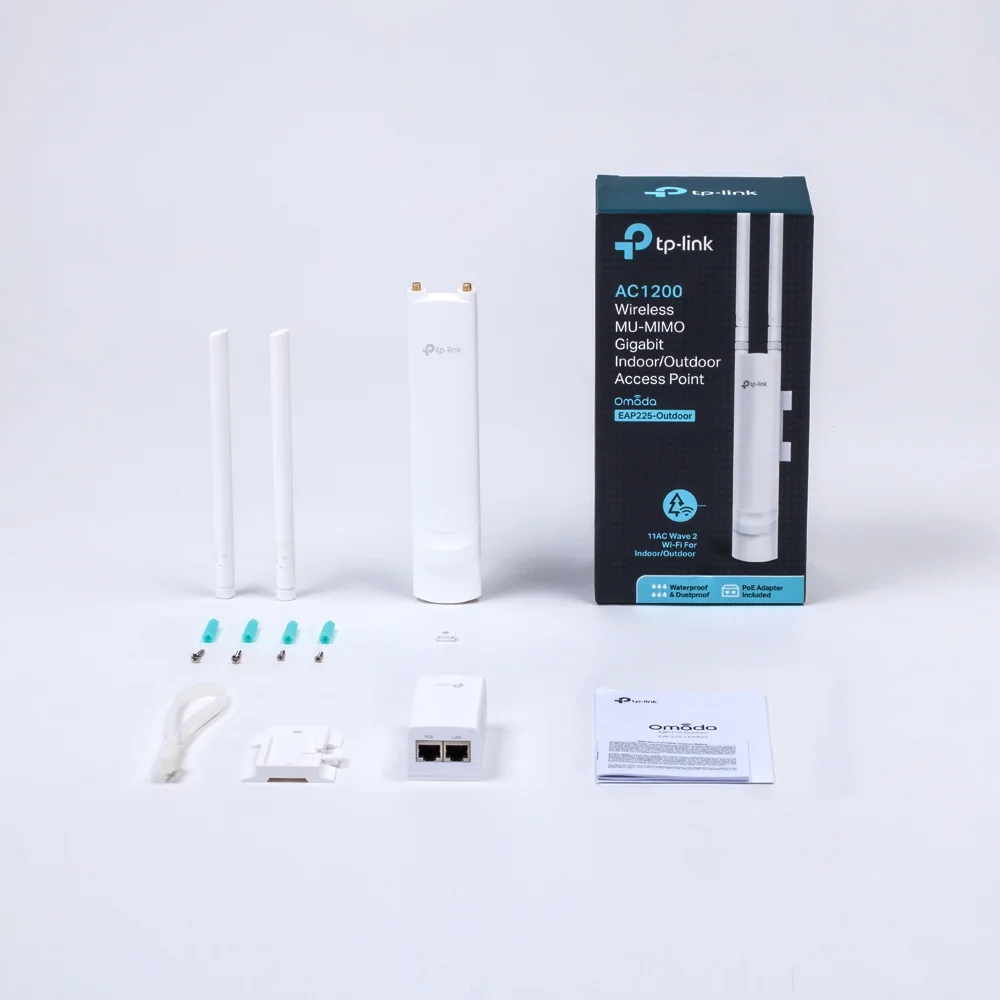

Packaging content

Quantity per pack

1 pc(s)

AC adapter included

Ja

Mounting kit

Ja

Quick start guide

Ja

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-30 - 70 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90 %

Sustainability

Sustainability compliance

Ja

Logistics data

Harmonized System (HS) code

85176990
