be quiet! Pure Power 13 M 1200W

Produkt

Tillverkare

be quiet!

Produktnamn

Pure Power 13 M | 1200W

Tillverkarens länk

https://www.bequiet.com/en/download/products

Produktkoder

Tillverkarens produktkoder

• BP029EU

GTIN- / EAN-koder

• 4260052193655

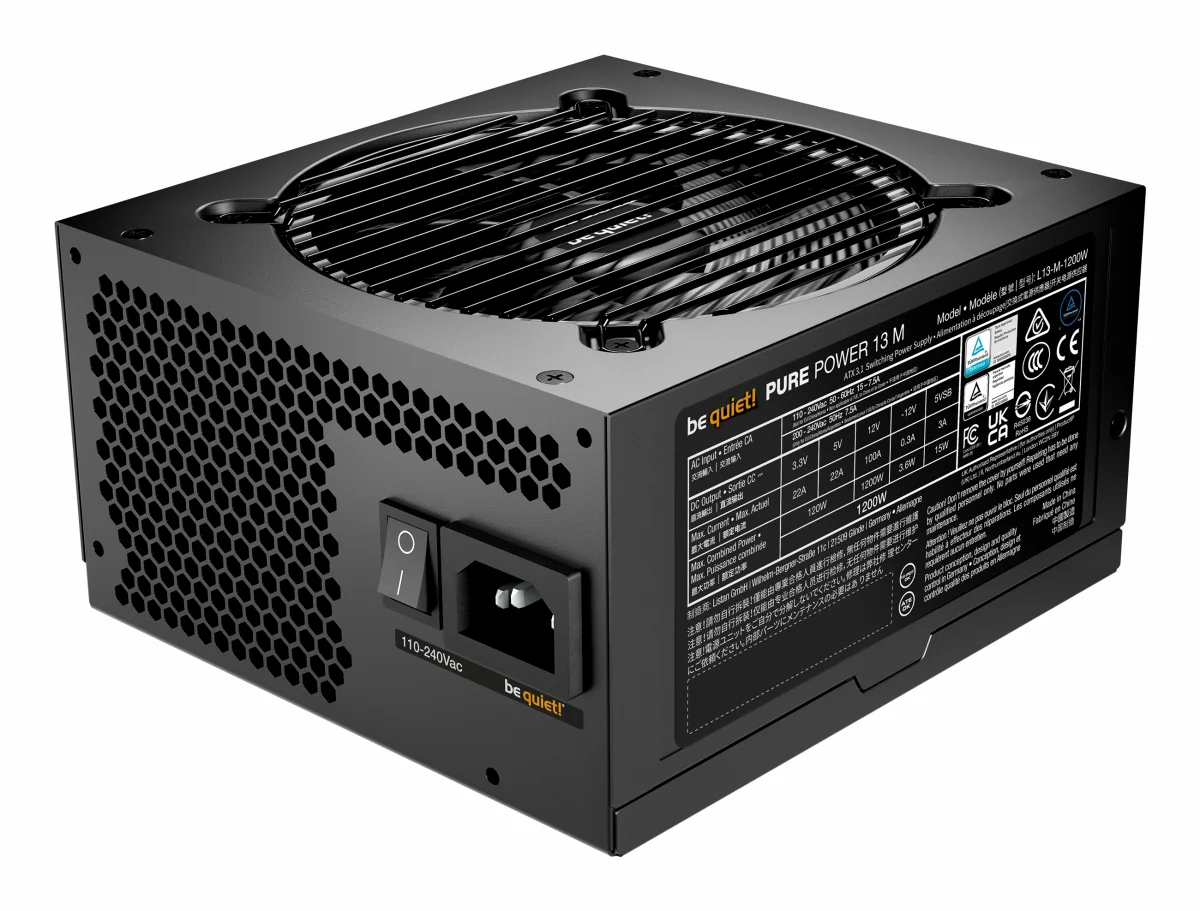

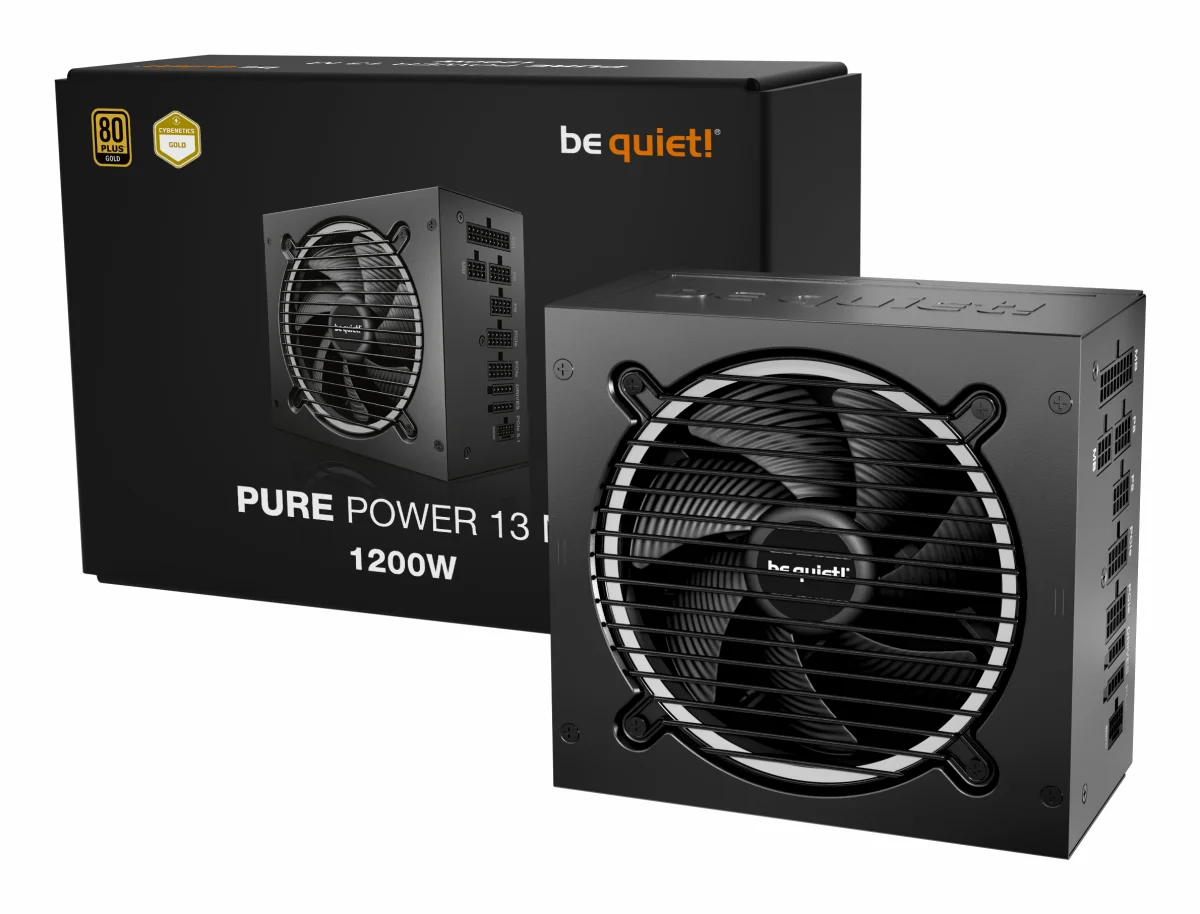

Produktbilder

Power

Total power

1200 W

Peak power

1250 W

AC input voltage

110 - 240 V

AC input frequency

50/60 Hz

Maximum input current (@110V)

15 A

Maximum input current (@220V)

7.5 A

Power factor

0.97

Power Factor Correction (PFC) type

Active

Number of +12V rail(s)

1

Combined power (+3.3V)

120 W

Combined power (+12V)

1200 W

Combined power (+5V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

22 A

Max output current (+12V)

100 A

Max output current (+5V)

22 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Hold time

19.11 ms

Efficiency

90.8 %

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

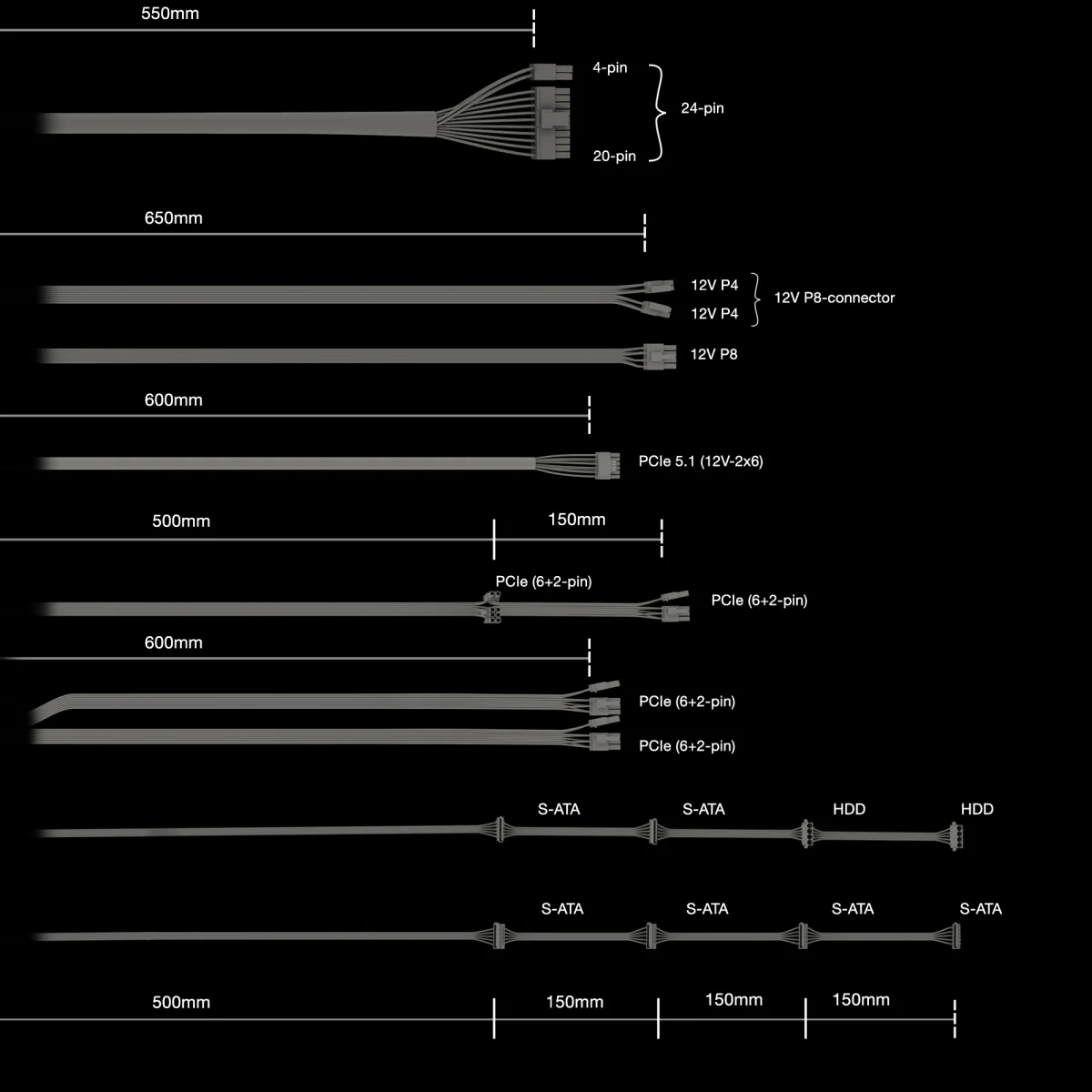

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

550 mm

Number of SATA power connectors

6

SATA power cable length

500,650,800,950 mm

Number of SATA power cables

2

Peripheral (Molex) power connectors (4-pin)

2

Peripheral (Molex) power cable length

800,950 mm

EPS power connector (8-pin)

Ja

PCI Express power connectors (6+2 pin)

4

PCI Express power connectors (12-pin)

1

PCI Express power cable length

600 mm

CPU P4 connector (4-pin)

2

CPU power connector (4+4 pin)

Ja

CPU power cable length

650 mm

PCI Express connector

Ja

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

EPS version

2.92

Noise level

32.3 dB

Bearing technology

Rifle

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

Fan speed

0 - 2700 RPM

Illumination

Nej

On/off switch

Ja

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 95 %

Packaging content

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance

Ja

Compliance certificates

BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

Weight & dimensions

Width

150 mm

Depth

160 mm

Height

86 mm

Weight

2690 g

Packaging data

Manual

Ja

Manual languages

German, English, Spanish, French, Polish, Russian, Ukrainian

Package width

220 mm

Package depth

284 mm

Package height

100 mm

Package weight

3140 g

Package type

Box

Technical details

Sustainability certificates

ENERGY STAR, ErP

Logistics data

Shipping (inner) case length

590 mm

Shipping (inner) case width

320 mm

Shipping (inner) case height

245 mm

Products per shipping (inner) case

6 pc(s)

Shipping (inner) case gross weight

20840 g

Other features

Screws included

Ja

Cable ties included

Ja
