TP-Link TL-SG108-M2

Produkt

Tillverkare

TP-Link

Produktnamn

TL-SG108-M2

Tillverkarens länk

https://www.tp-link.com/uk/home-networking/soho-switch/tl-sg10..

Produktkoder

Tillverkarens produktkoder

• TL-SG108-M2

GTIN- / EAN-koder

• 6935364052904

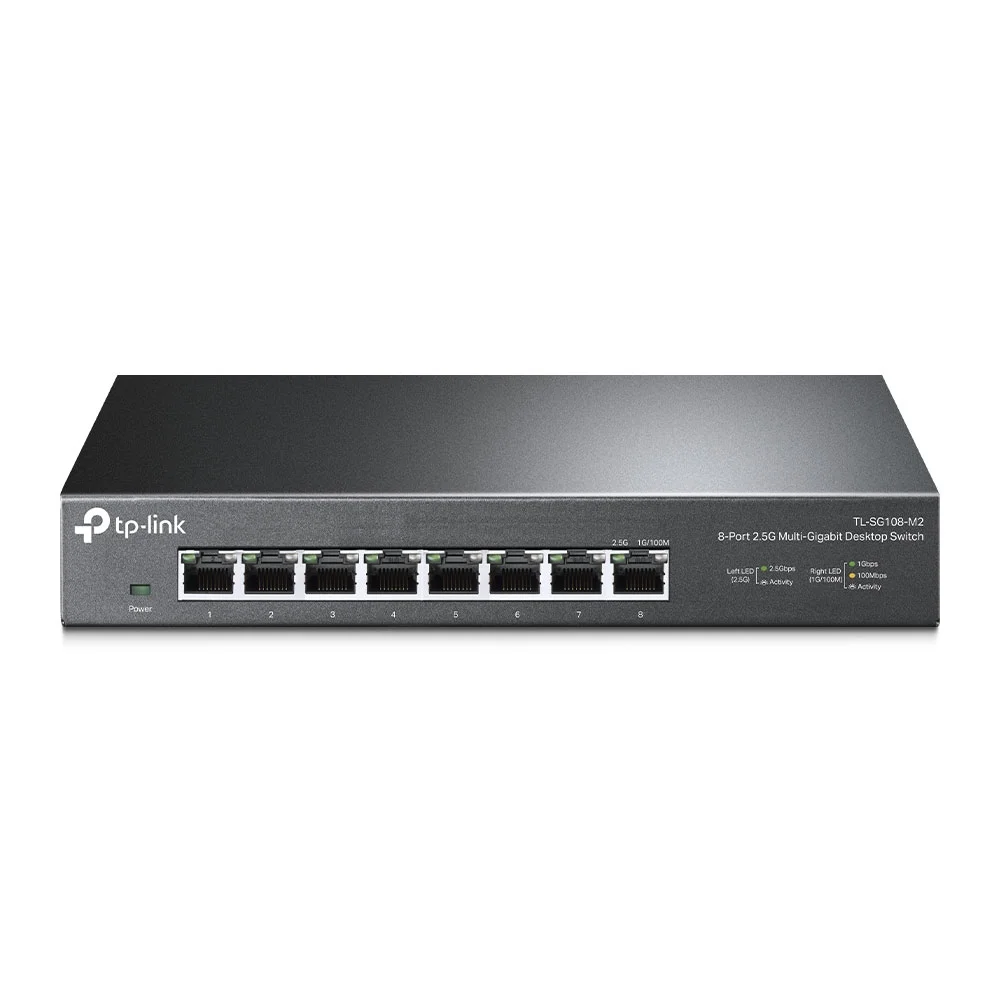

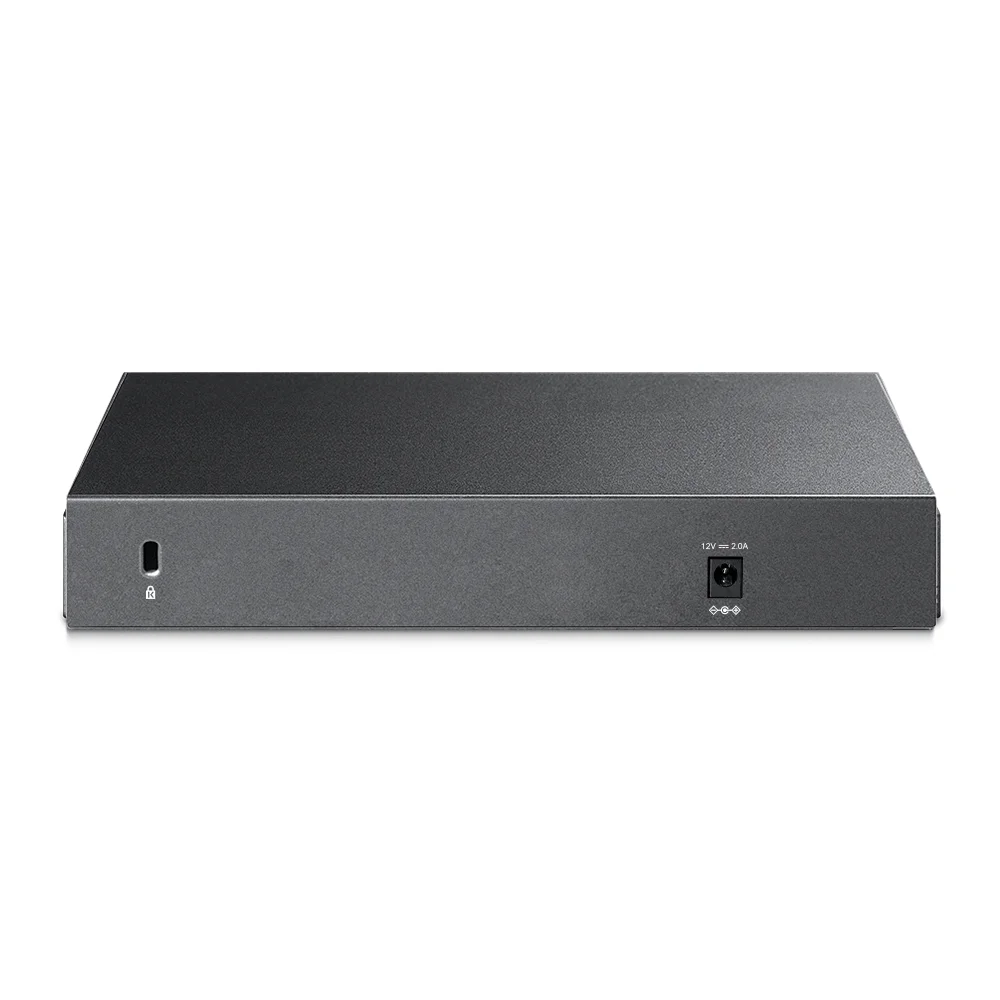

Produktbilder

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Ja

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

2.5G Ethernet (copper) ports quantity

8

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x

10G support

Nej

Flow control support

Ja

Auto MDI/MDI-X

Ja

Auto-negotiation

Ja

Data transmission

MAC address table

16000 entries

Switching capacity

40 Gbit/s

Forwarding rate

29.8 Mpps

Store-and-forward

Ja

Jumbo frames support

Ja

Jumbo frames

10000

Packet buffer memory

1.5 MB

Design

Rack mounting

Nej

Product colour

Black

LED indicators

Ja

Wall mountable

Ja

Performance

Fanless

Ja

Power

Power source

DC

Power supply included

Ja

Input current

1.5 A

Input voltage

12 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Nej

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Heat dissipation

53.4 BTU/h

Weight & dimensions

Width

226 mm

Depth

131 mm

Height

35 mm

Packaging content

Cables included

AC, LAN (RJ-45)

Packaging data

Package width

240 mm

Package depth

315 mm

Package height

70 mm

Package weight

1350 g

Logistics data

Harmonized System (HS) code

85176990
