HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D

Produkt

Tillverkare

HPE

Produktnamn

Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D

Lanseringsdatum

06.11.2023

Tillverkarens länk

https://www.hpe.com/

Produktkoder

Tillverkarens produktkoder

• S1U76A

GTIN- / EAN-koder

• 0190017676296

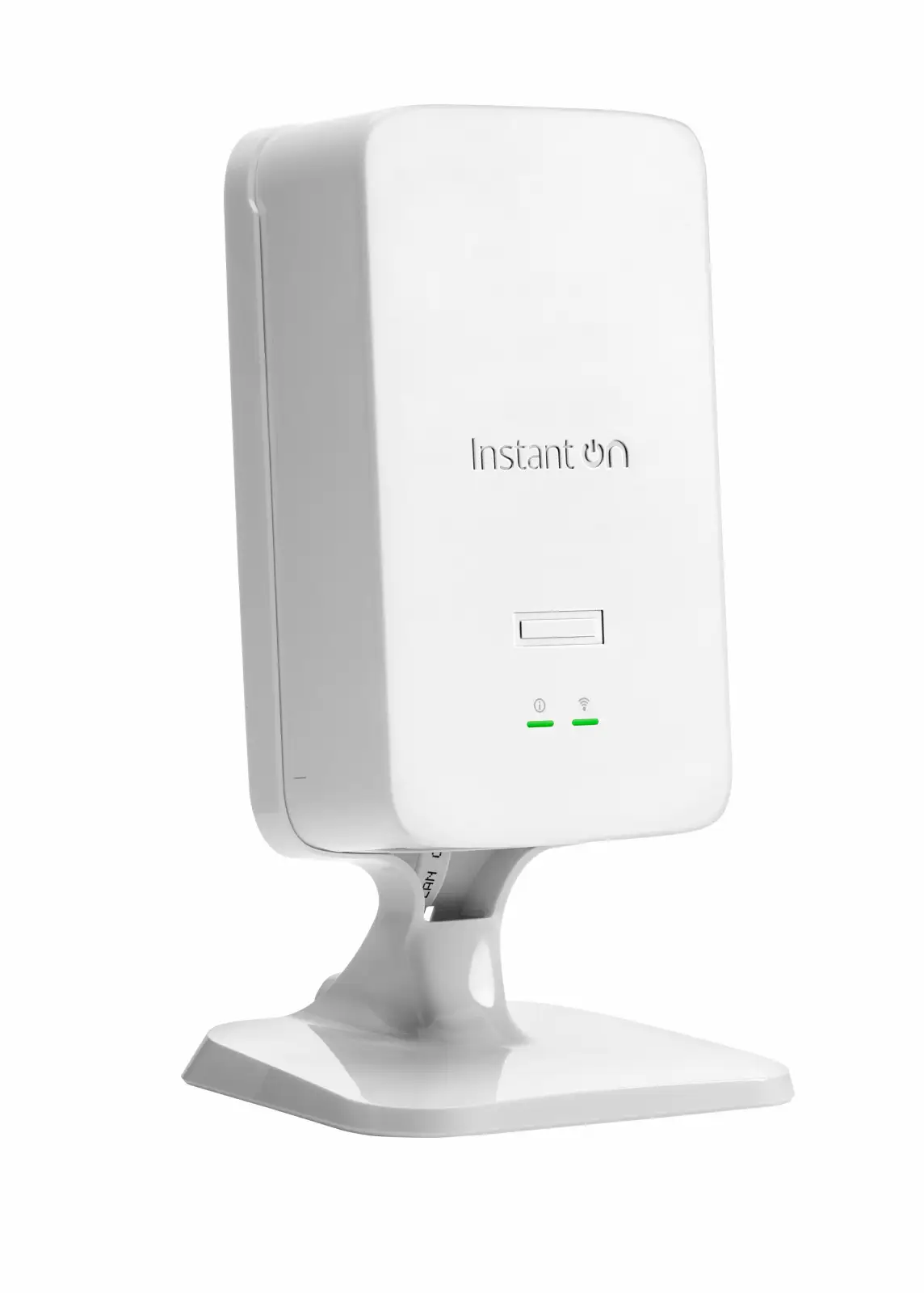

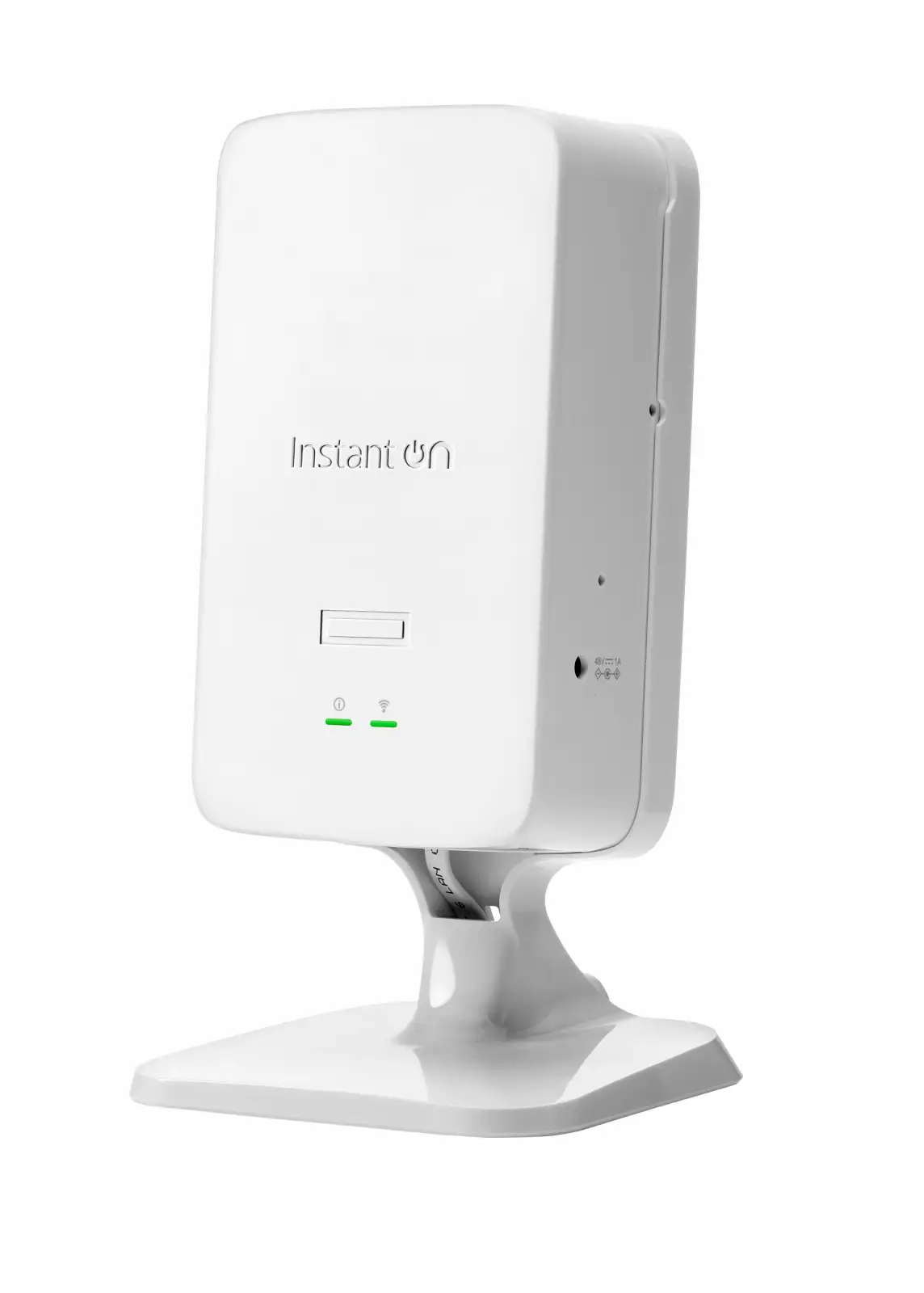

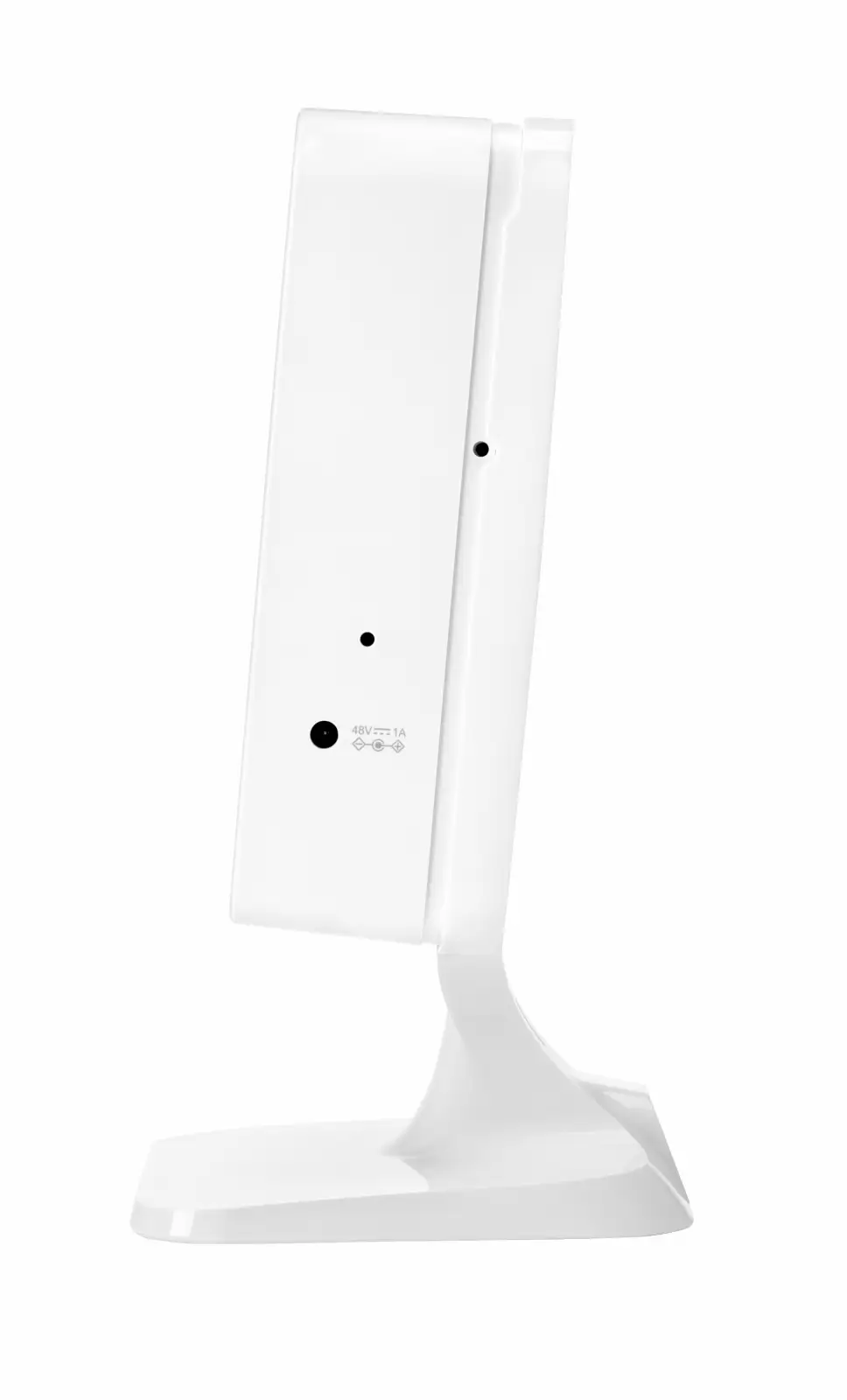

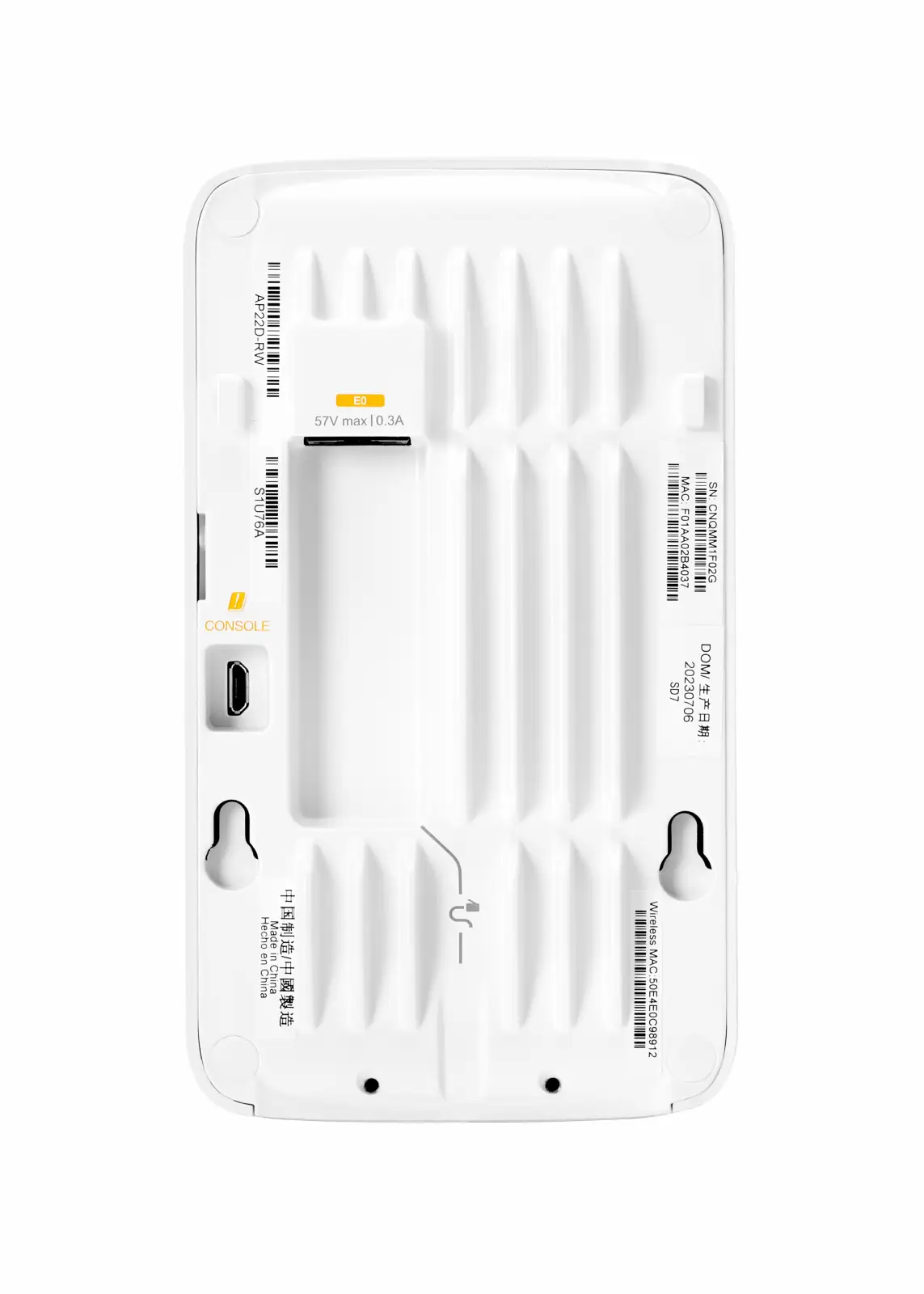

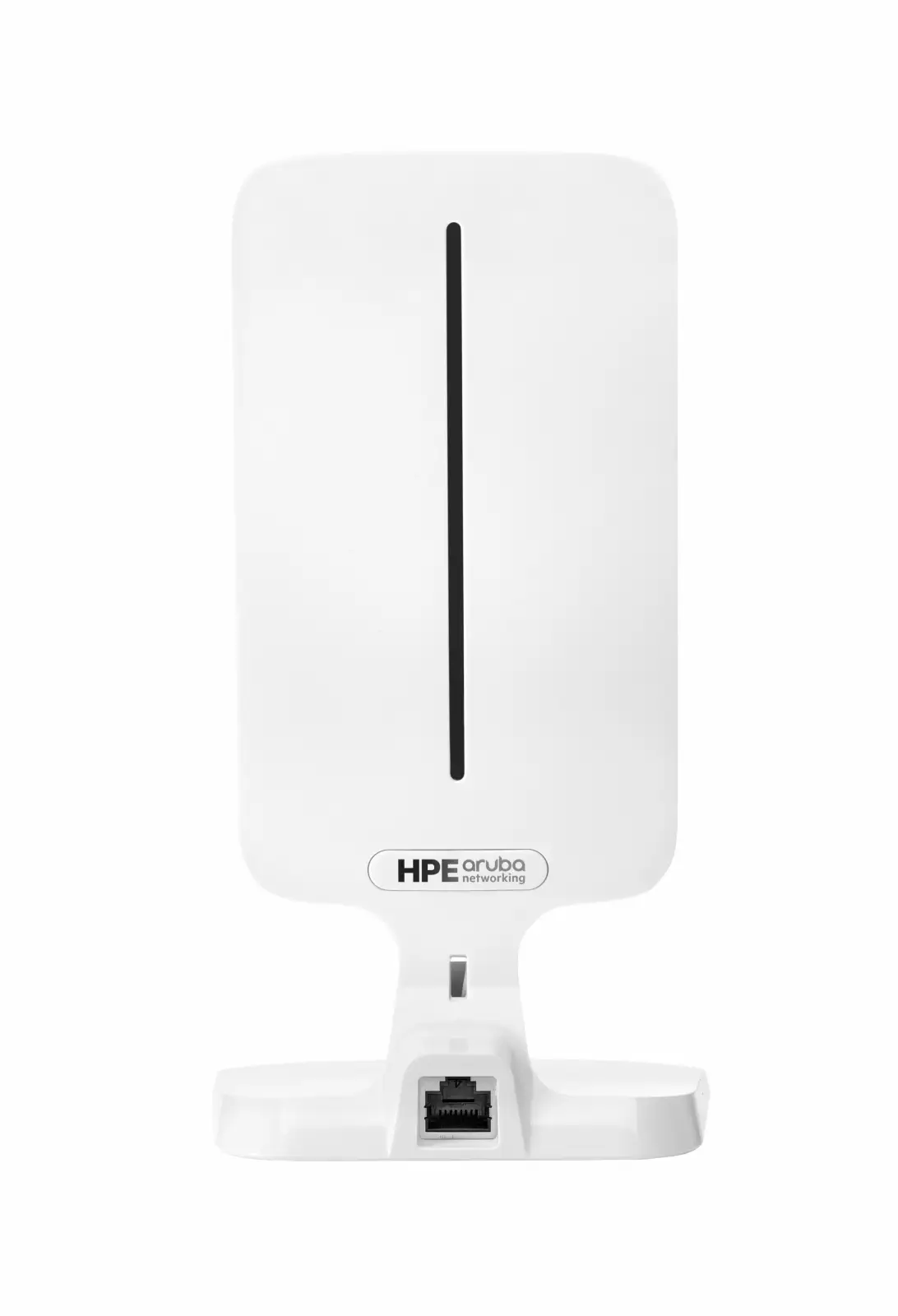

Produktbilder

Features

2.4 GHz

Ja

5 GHz

Ja

6 GHz

Nej

Maximum data transfer rate

1200 Mbit/s

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

Maximum data transfer rate (5 GHz)

1200 Mbit/s

Ethernet LAN data rates

1000,2500 Mbit/s

Networking standards

IEEE 802.11ax

Cabling technology

10/100/1000Base-T(X)

Number of users

75 user(s)

MIMO

Ja

MIMO type

Multi User MIMO

Security

Security algorithms

OWE, WPA2, WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports

5

USB 2.0 ports quantity

1

DC-in jack

Ja

Power

Power over Ethernet (PoE)

Ja

DC voltage range

48 V

Power consumption (typical)

50 W

Power consumption (max)

51 W

Design

Placement

Desk, Wall

Product colour

White

Cable lock slot

Ja

Cable lock slot type

Kensington

Reset button

Ja

Antenna

Antenna type

Internal

Antenna direction type

Semi-directional

Antennas quantity

2

Antenna gain level (max)

5.4 dBi

Certificates

Certification

Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Weight & dimensions

Width

86 mm

Depth

47 mm

Height

150 mm

Weight

360 g

Other features

Mounting

Gang wall box-mount kit or Desk-mount kit

I/O ports

1x 2.5 GbE Base-T PoE Class 4/6 uplink 2x 1 GbE Base-T PoE Class 3 downlink 2x 1 GbE Base-T downlink DC power connector LED status indicators Reset/LED control button Kensington security slot

Operational conditions

Operating temperature (T-T)

0 - 40 °C
