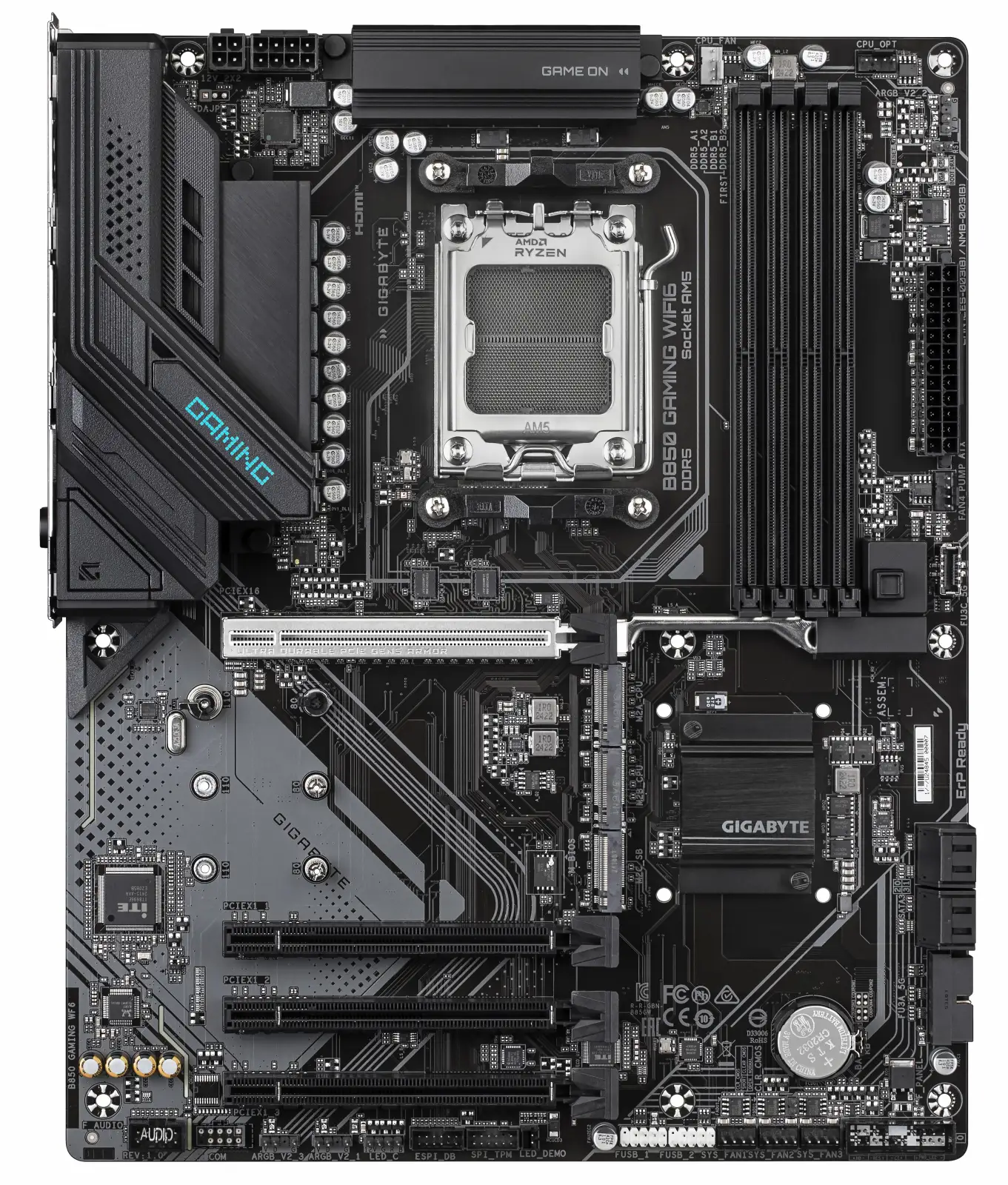

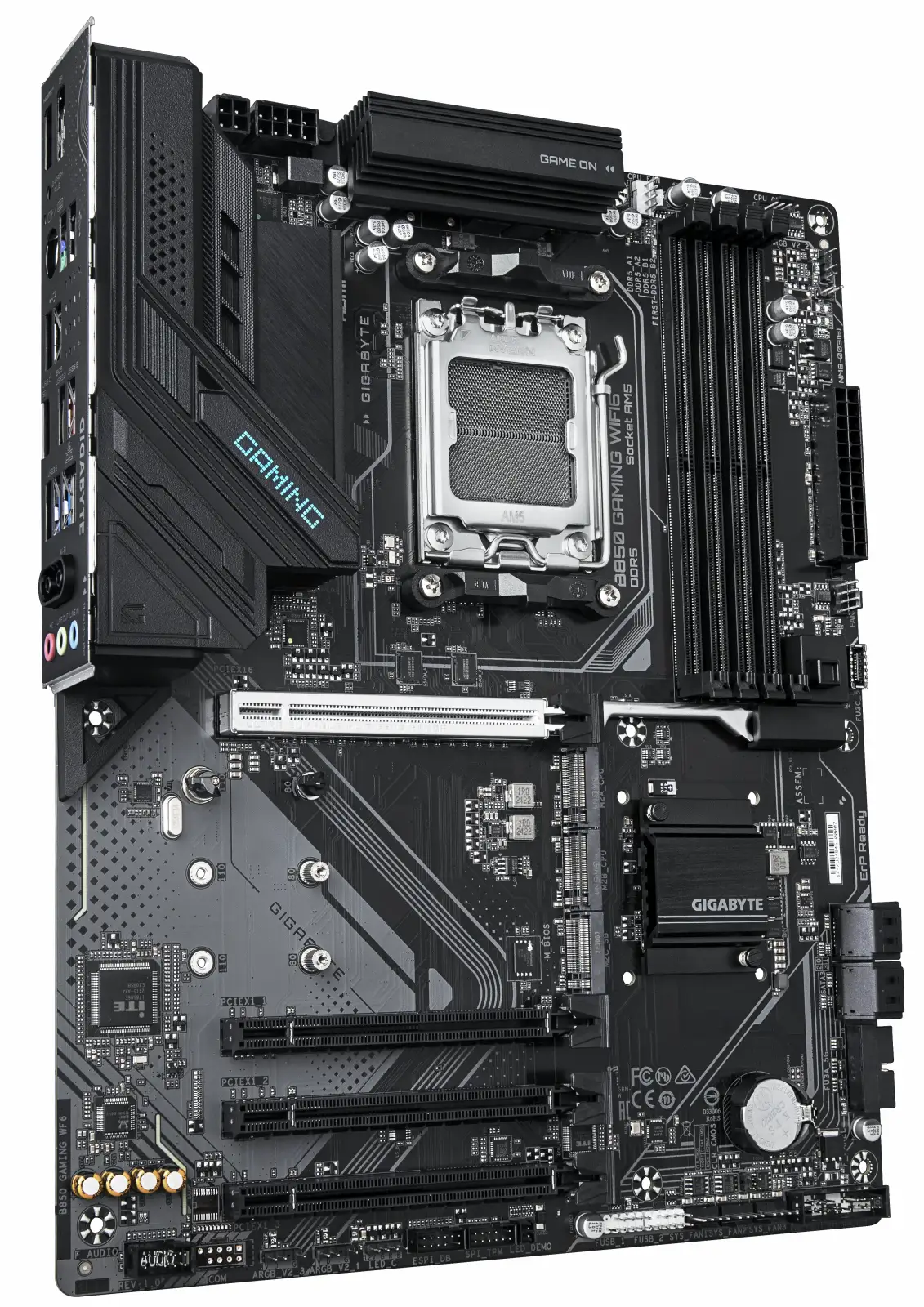

GIGABYTE B850 GAMING WIFI6

Produkt

Tillverkare

GIGABYTE

Produktnamn

B850 GAMING WIFI6

Lanseringsdatum

06.01.2025

Tillverkarens länk

https://www.gigabyte.com/

Produktkoder

Tillverkarens produktkoder

• B850 GAMING WF6

GTIN- / EAN-koder

• 4719331866631

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz

Supported memory clock speed (max)

8200 MHz

Maximum internal memory

256 GB

Unbuffered memory

Ja

Maximum internal memory per slot

64 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Ja

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

HDCP

Ja

DirectX version

12.0

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Total number of SATA connectors

4

Front panel audio connector

Ja

Front panel connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of CPU fan connectors

2

Number of chassis fan connectors

3

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Ja

Number of EPS power connectors (8-pin)

1

TPM connector

Ja

Serial port headers

1

12V power connector

Ja

Number of water pump connectors

2

RGB LED pin header

Ja

Number of RGB LED pin headers

4

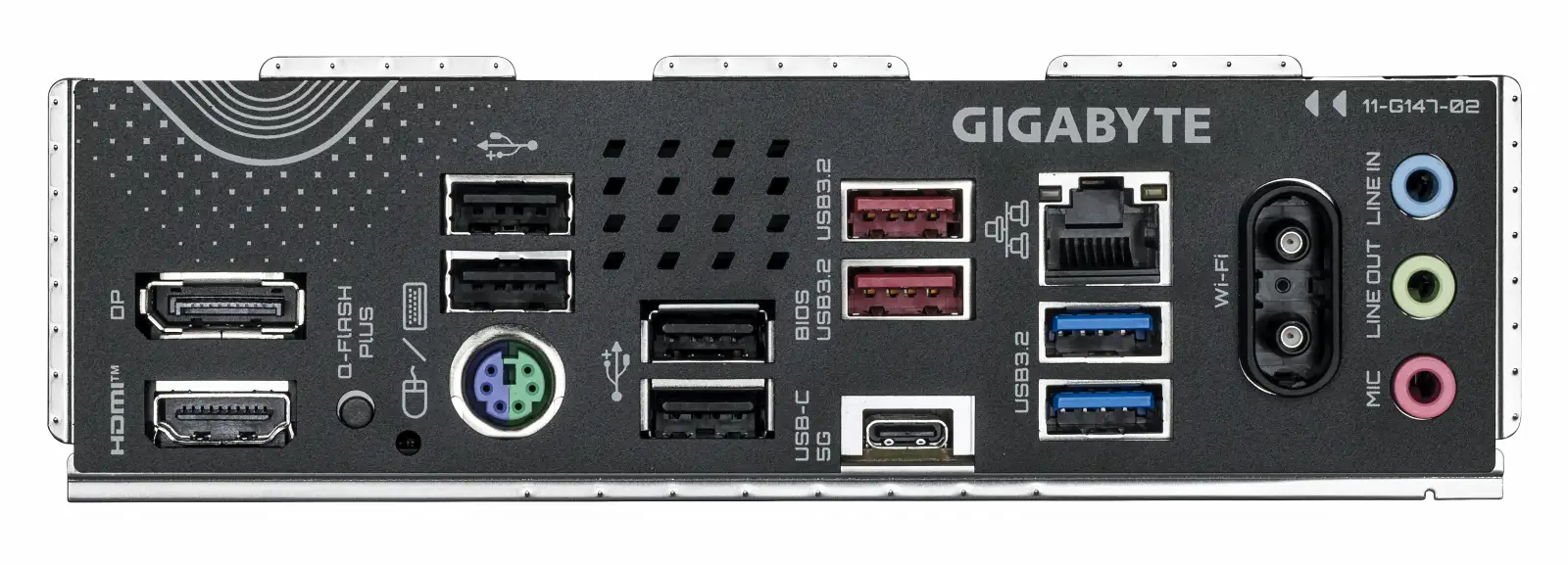

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

Headphone outputs

1

Microphone in

Ja

WiFi-AP antenna jack

2

Network

Ethernet LAN

Ja

Ethernet interface type

Gigabit Ethernet

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN controller model

Realtek RTL8111H

Bluetooth

Ja

Bluetooth version

5.3

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Product colour

Brown

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots

3

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Ja

Clear CMOS button

Ja

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1758 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

35 mm

Packaging content

Batteries included

Ja

Antenna included

Ja

Screws included

Ja

Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software

Other features

Weight

1510 g

Technical details

Warranty period

3 year(s)
