Shuttle Nano PC NT10H9

Produkt

Tillverkare

Shuttle

Produktnamn

Nano PC NT10H9

Tillverkarens länk

https://www.shuttle.eu/en/products/nano/nt10h9

Produktkoder

Tillverkarens produktkoder

• NT10H9

GTIN- / EAN-koder

• 0887993007687

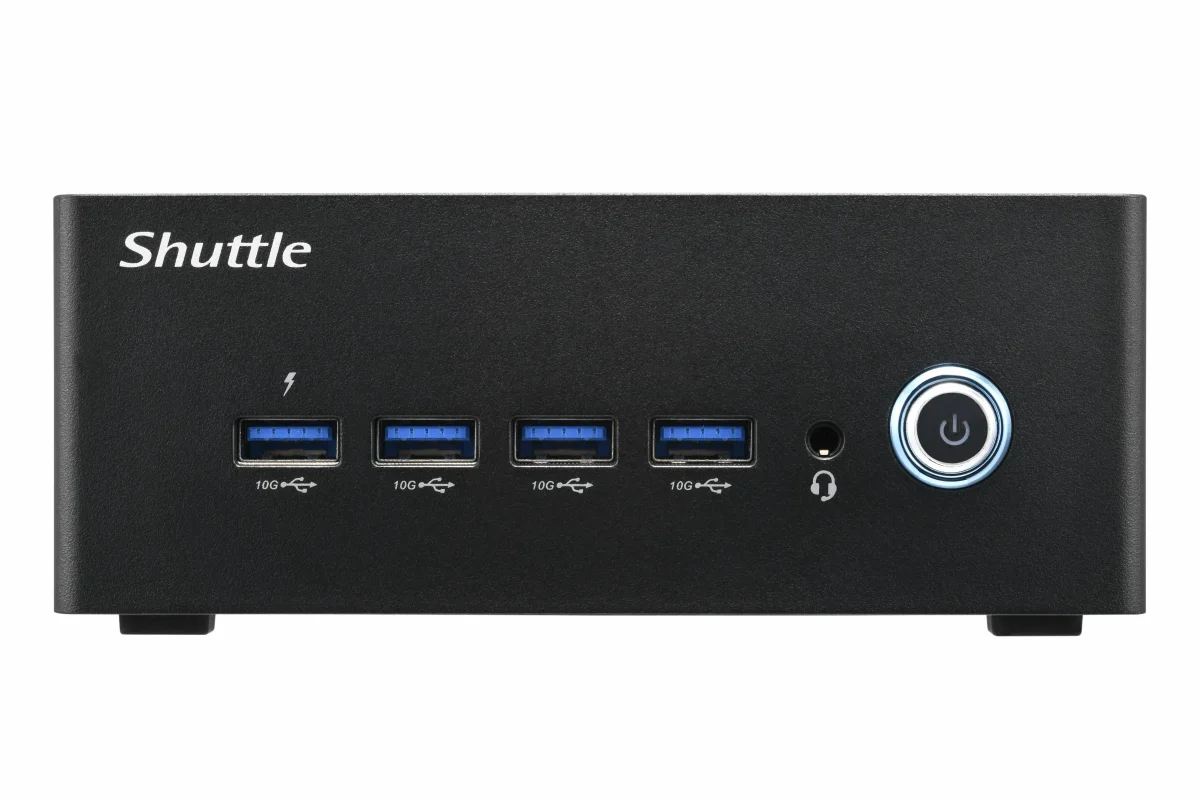

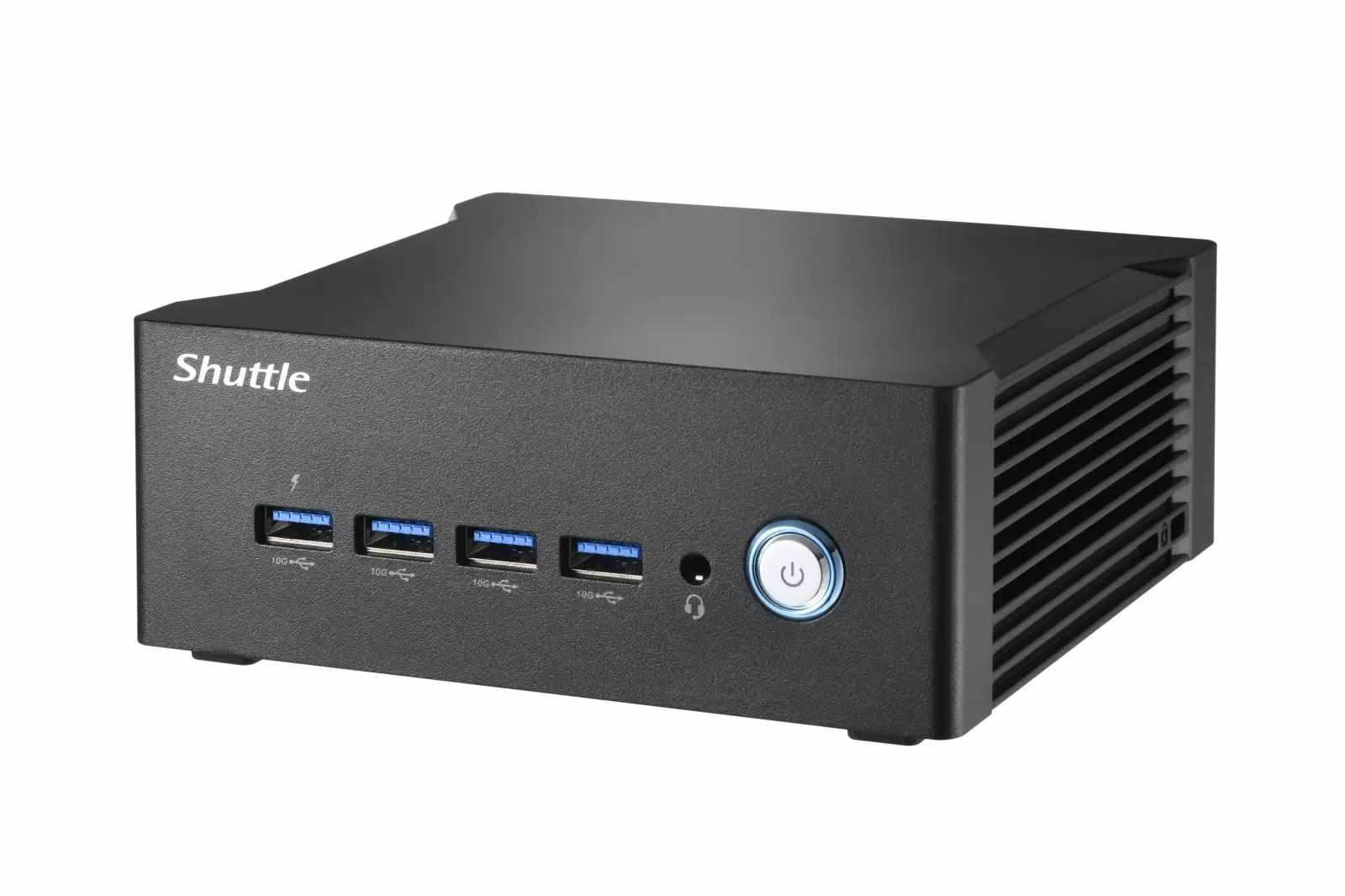

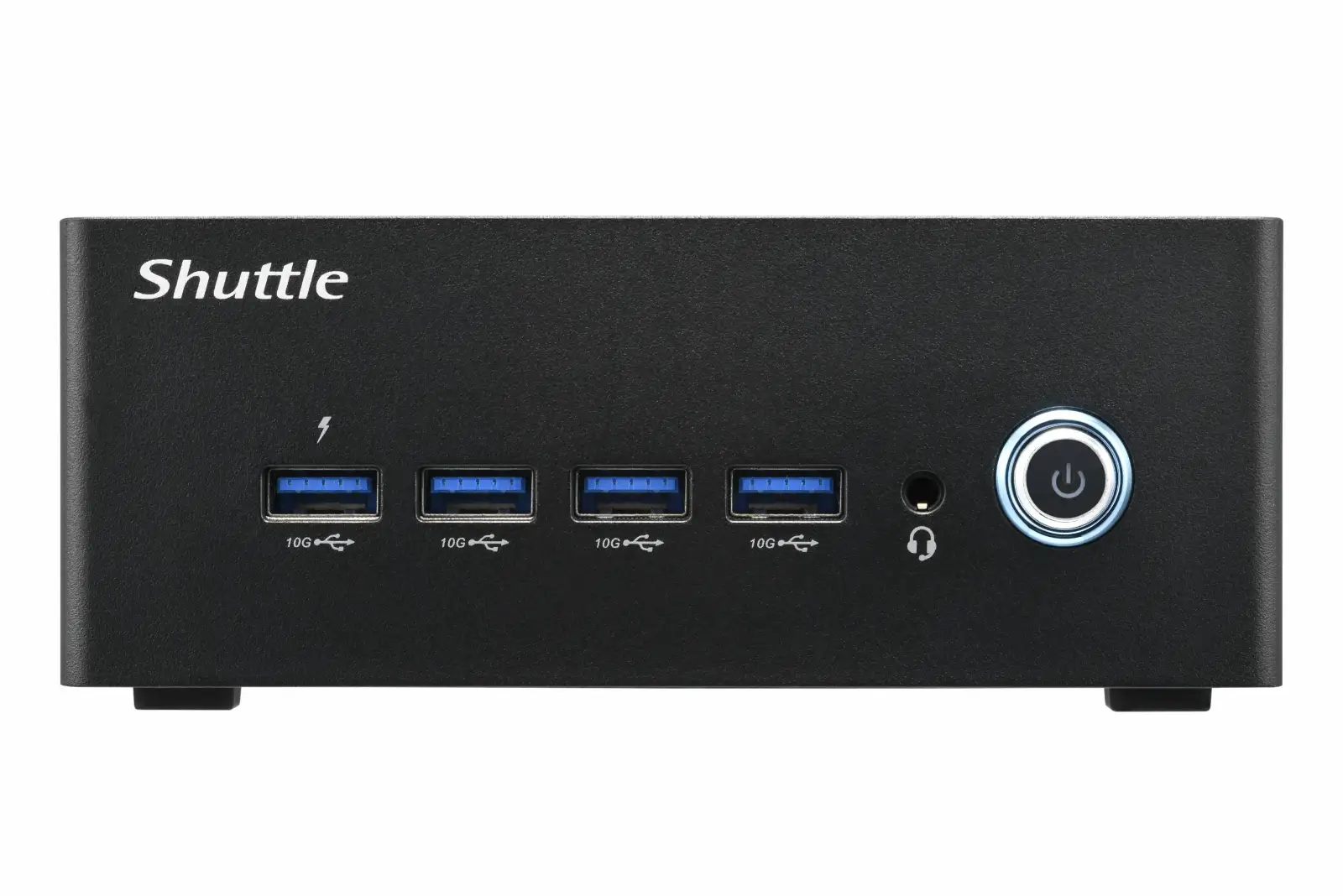

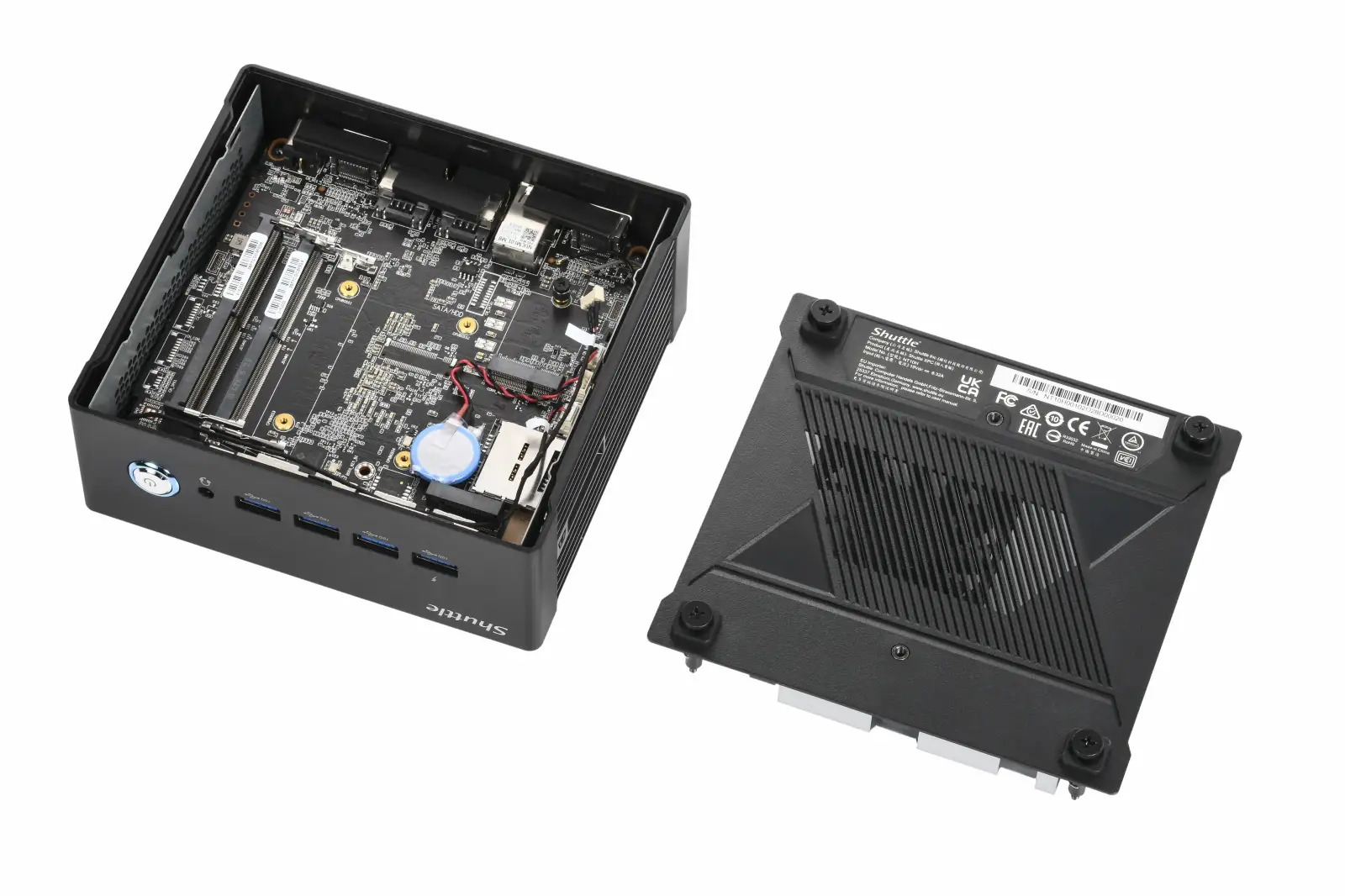

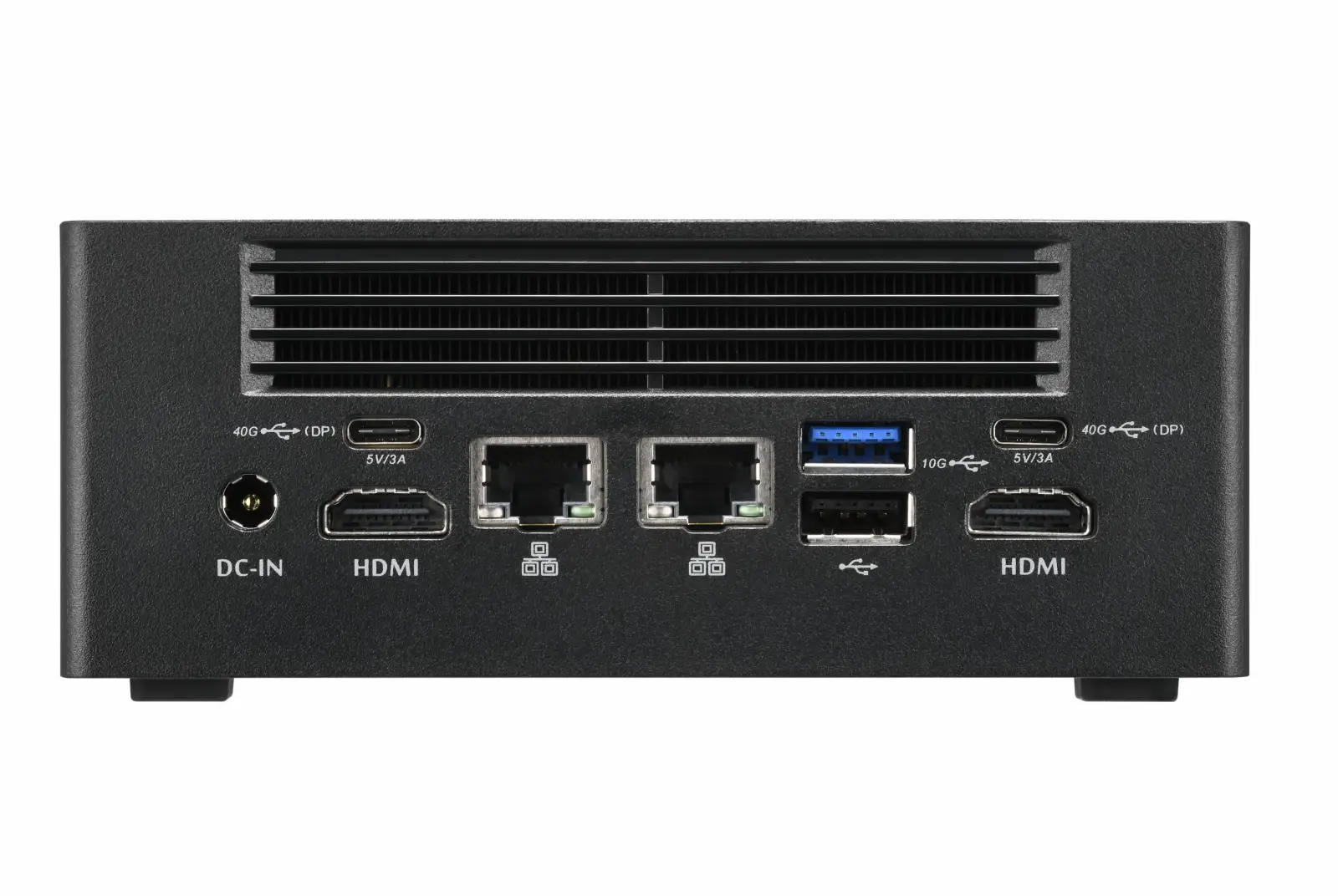

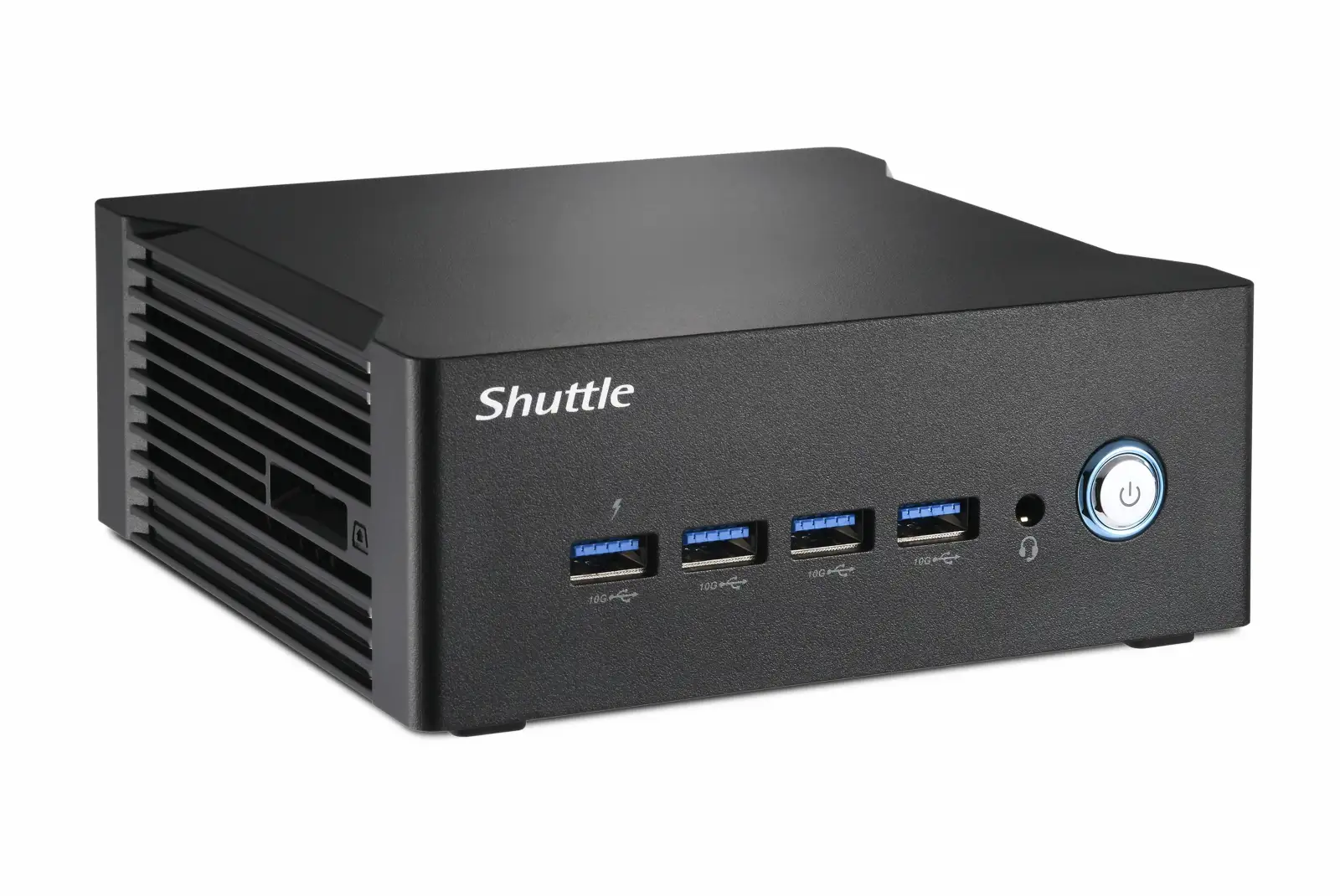

Produktbilder

Processor

Built-in processor

Ja

Processor manufacturer

Intel

Processor family

Intel Core Ultra 9

Processor generation

Intel® Core™ Ultra (Series 1)

Processor model

185H

Processor cores

16

Processor threads

22

Processor boost frequency

5.1 GHz

Performance cores

6

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

5.1 GHz

Efficient-core Max Turbo Frequency

3.8 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

2.3 GHz

Efficient-core base frequency

1.8 GHz

Low Power Efficient-core Base Frequency

1000 MHz

Processor cache

24 MB

Memory

Internal memory installed

Nej

Memory slots type

SO-DIMM

Number of memory slots

2

Maximum internal memory

64 GB

Supported memory clock speeds

5600 MHz

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Memory voltage

1.1 V

ECC

Nej

Non-ECC

Ja

Storage

Storage drives installed

Nej

Supported storage drive types

SSD

Storage drive sizes supported

M.2 "

SSD form factor

M.2

Storage drive interface

PCI Express

NVMe

Ja

Card reader integrated

Ja

Compatible memory cards

SD

Graphics

On-board graphics card

Ja

Graphics card family

Intel

On-board graphics card model

Intel Arc Graphics

Maximum resolution

3840 x 2160 pixels

Number of displays supported

4

Performance

Motherboard chipset

Intel SoC

BIOS type

UEFI AMI

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Audio chip

Realtek ALC269

Audio

Built-in speaker(s)

Nej

Network

Ethernet LAN

Ja

Wi-Fi

Nej

LAN controller

Intel I226-V

Ports & interfaces

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB4 Gen 2x2 ports quantity

2

HDMI ports quantity

2

HDMI version

2.0

VGA (D-Sub) ports quantity

0

Combo headphone/mic port

Ja

Ethernet LAN (RJ-45) ports

2

DC-in jack

Ja

Design

Chassis type

1L sized PC

Product colour

Black

Cooling type

Active

On/off switch

Ja

Housing material

Plastic

Cable lock slot

Ja

Cable lock slot type

Kensington

VESA mounting

Ja

Panel mounting interface

75 x 75,100 x 100 mm

Product type

Mini PC barebone

Technical details

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus

Logistics data

Harmonized System (HS) code

84733080

Software

Windows operating systems supported

Windows 11 x64

Linux operating systems supported

Ja

Sustainability

Sustainability certificates

ENERGY STAR, ErP

Power

Power supply type

External AC adapter

Power supply

120 W

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

6.32 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Weight & dimensions

Width

132 mm

Depth

143 mm

Height

55 mm

Weight

800 g

Package weight

1700 g

Packaging content

Power cord included

Ja

AC adapter included

Ja

Quick start guide

Ja
