MSI Cubi Z AI 8M-004BEU

Produkt

Tillverkare

MSI

Produktfamilj / -serie

Cubi

Produktnamn

Cubi Z AI 8M-004BEU

Tillverkarens länk

https://www.msi.com/Business-Productivity-PC/Cubi-Z-AI-8MX

Produktkoder

Tillverkarens produktkoder

• CUBI Z AI 8M-004BEU

GTIN- / EAN-koder

• 4711377371070

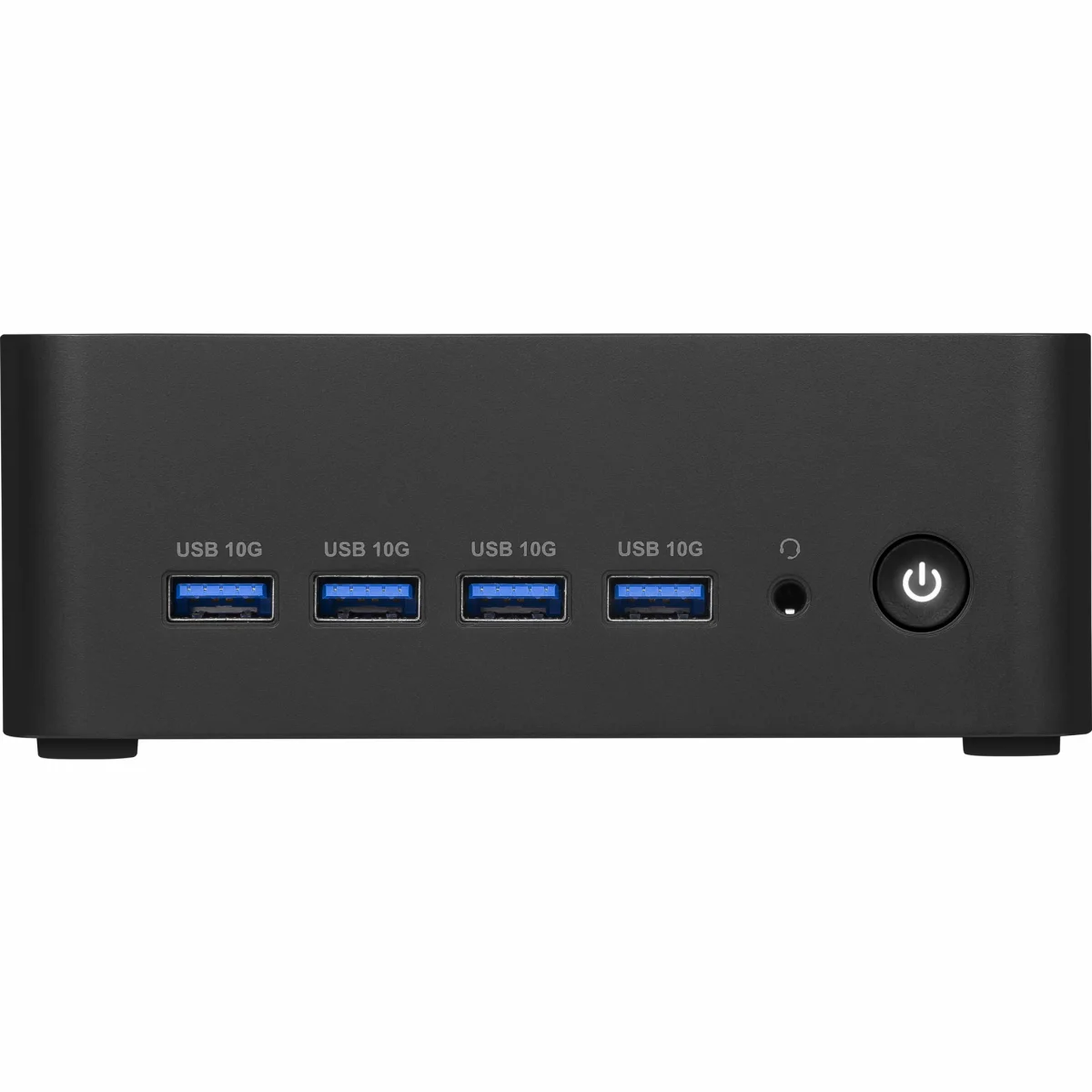

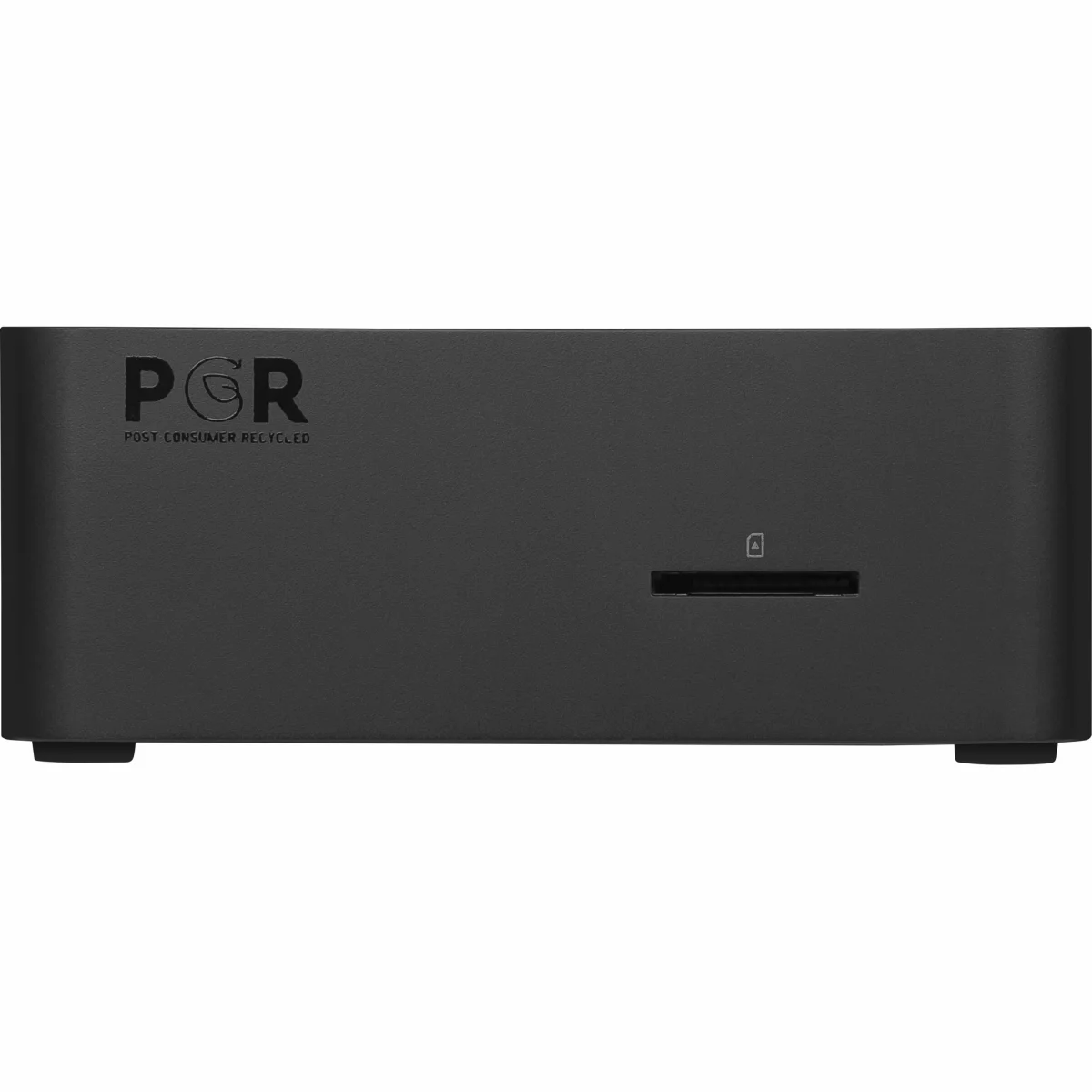

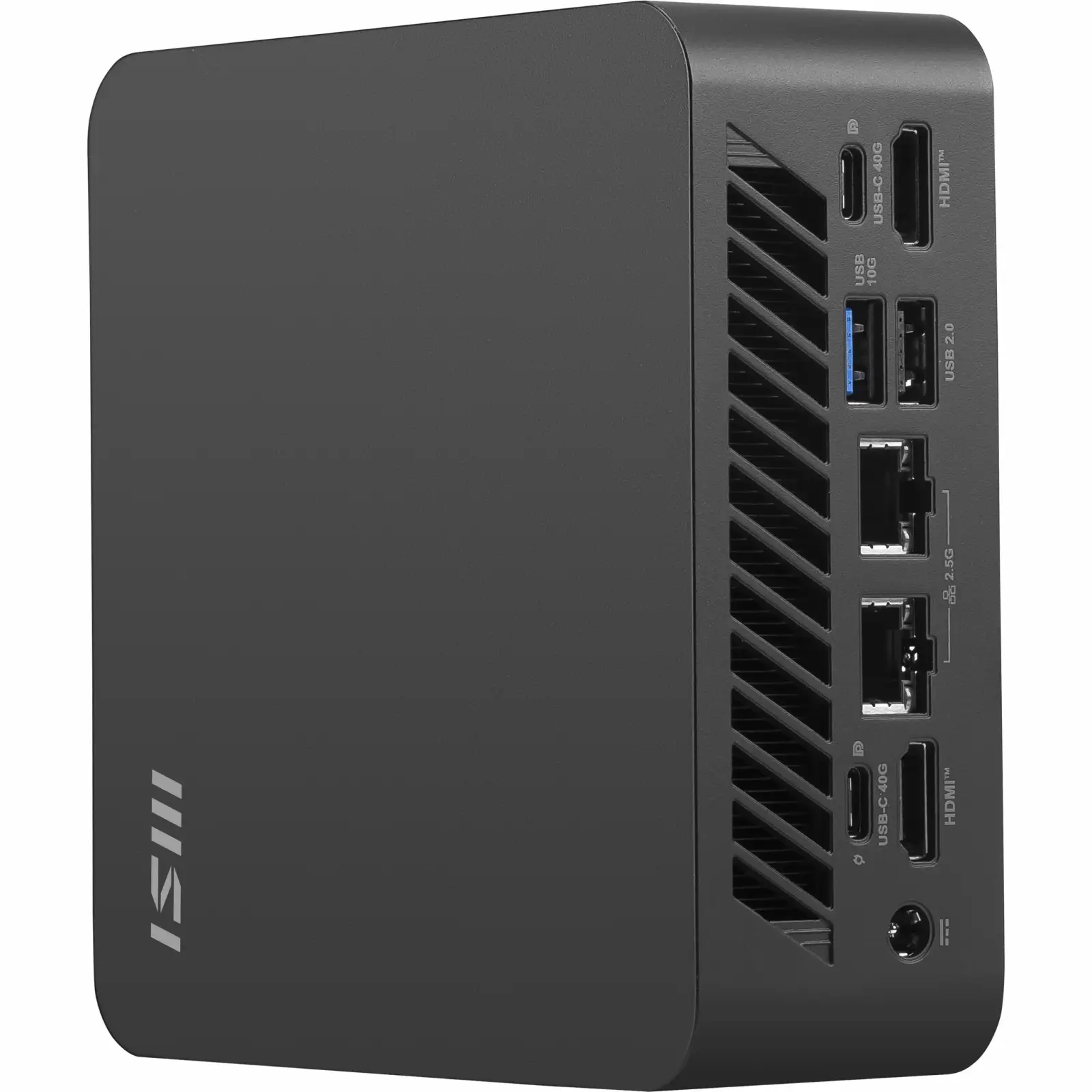

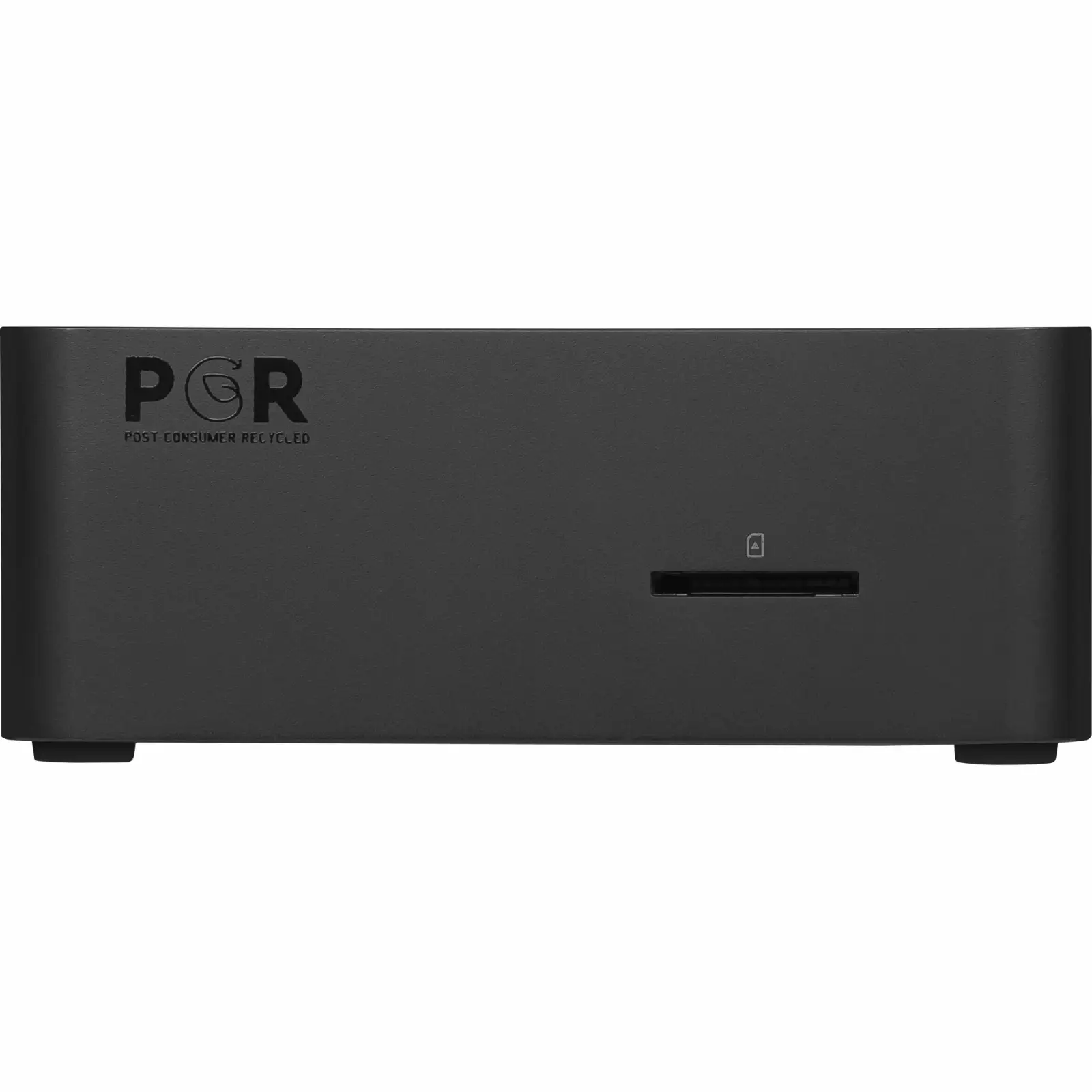

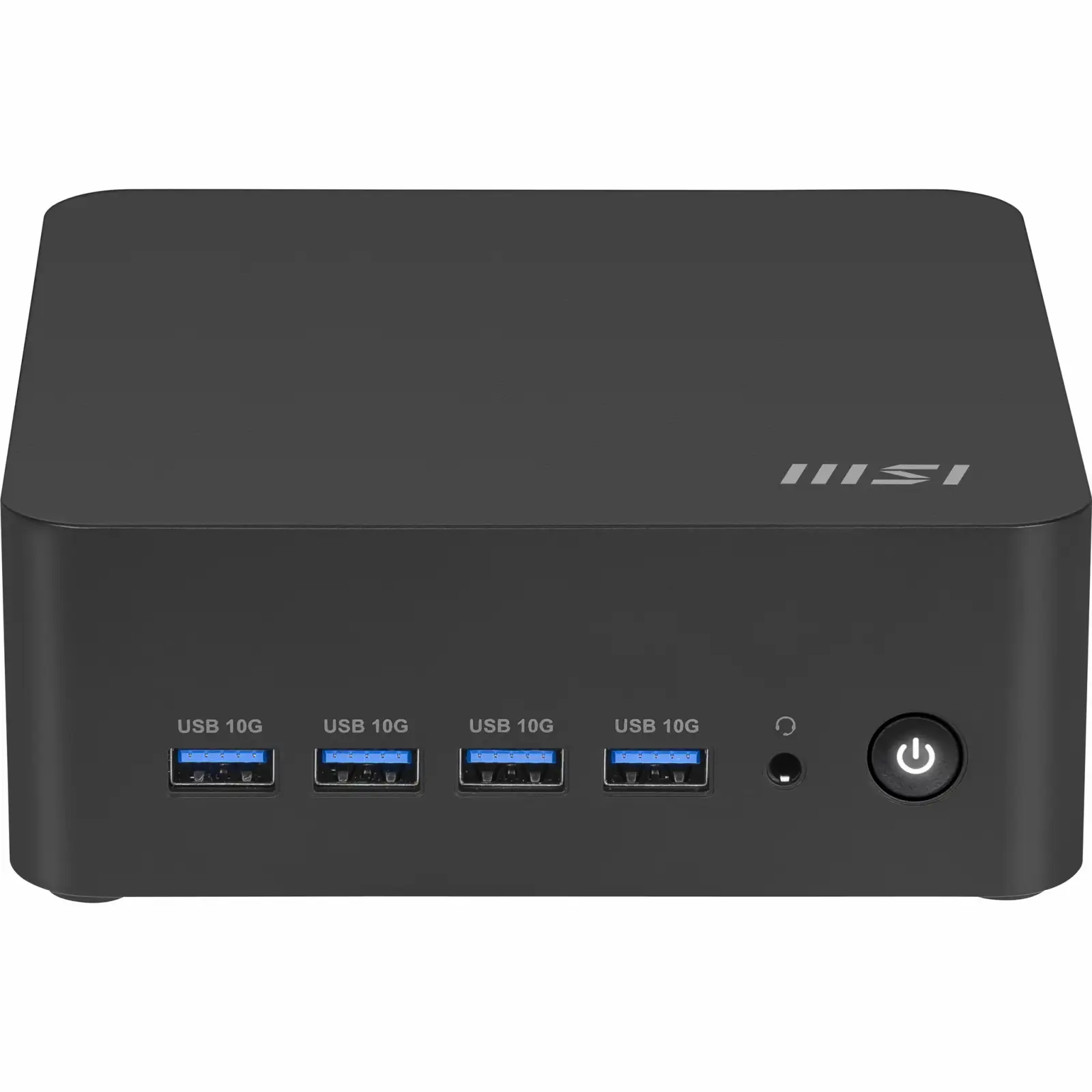

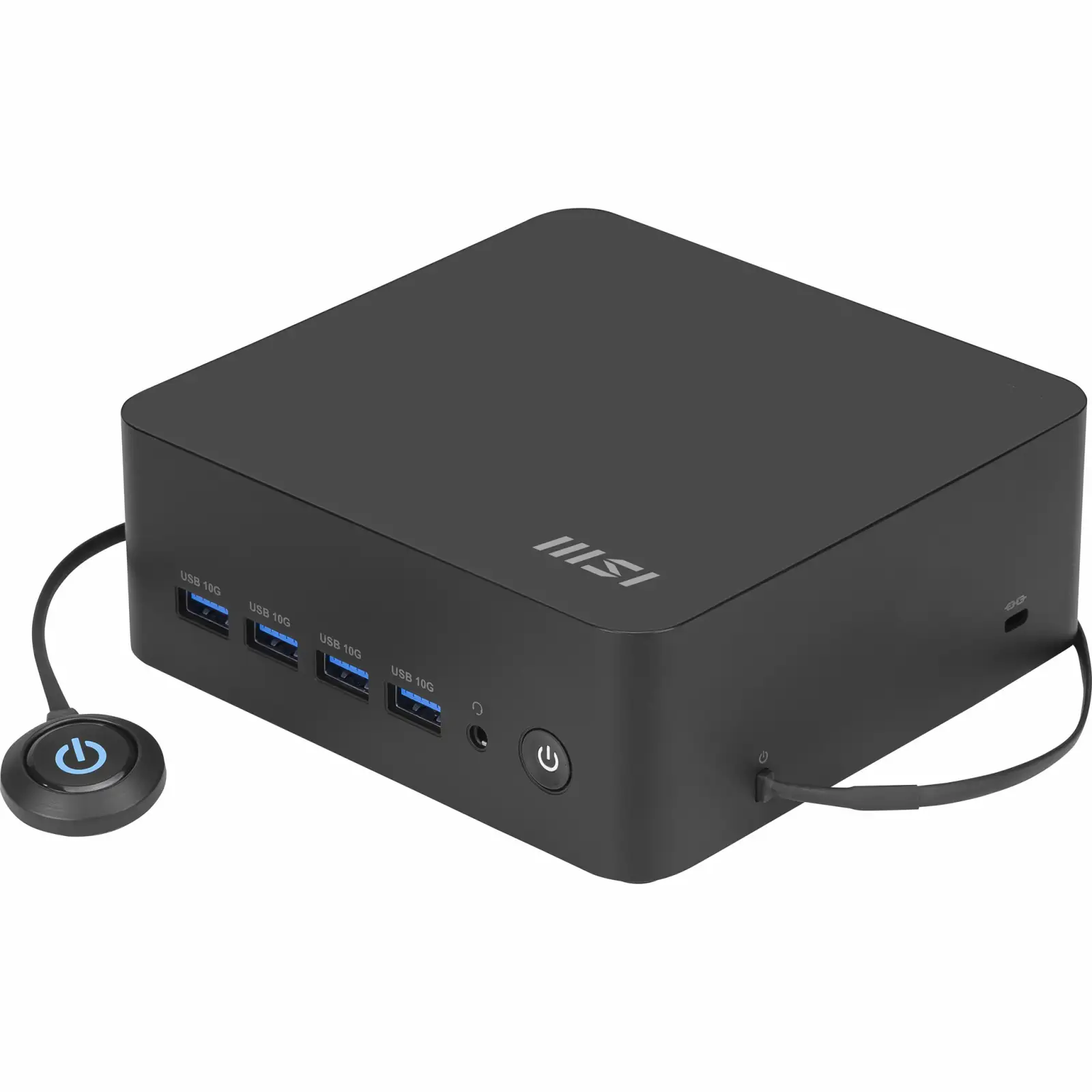

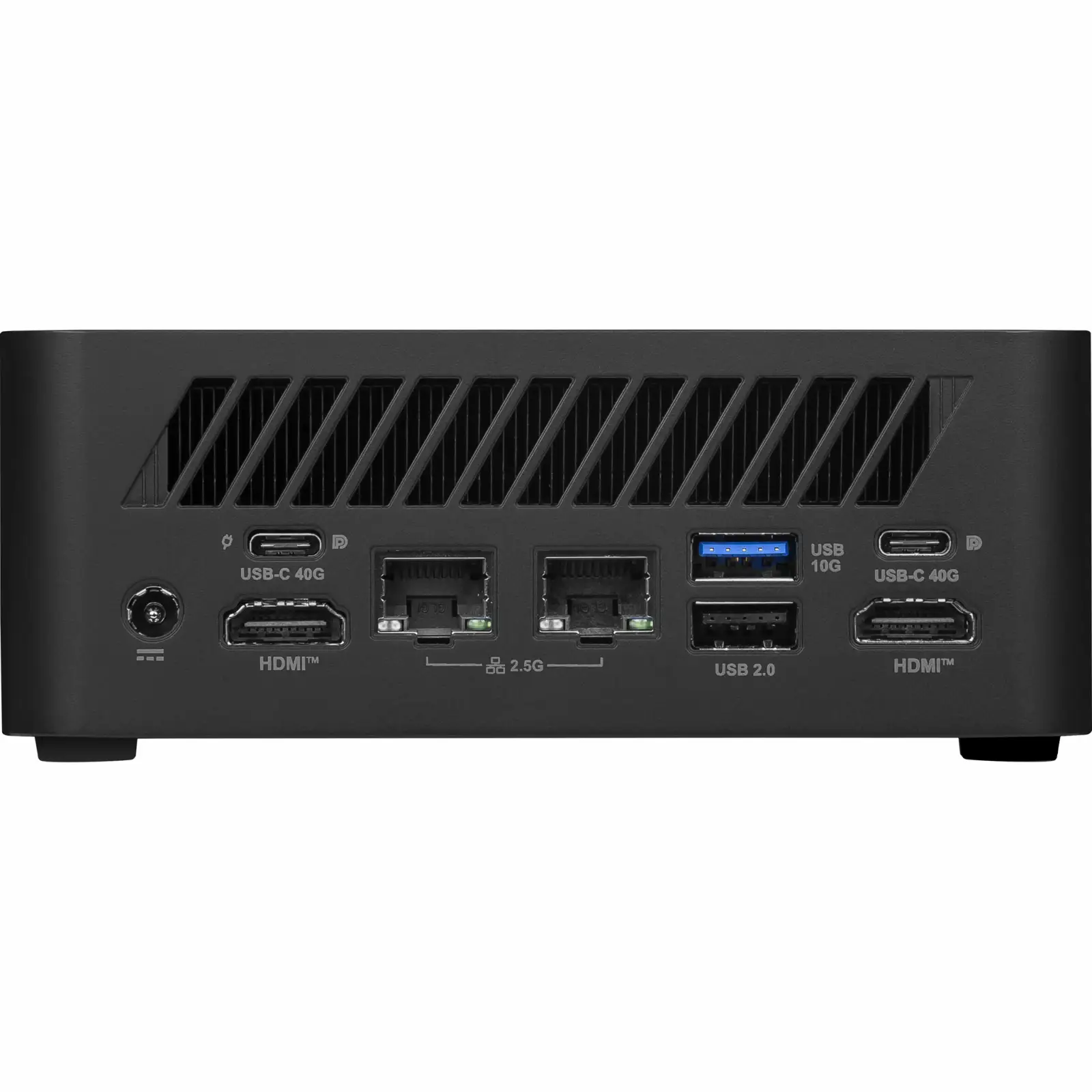

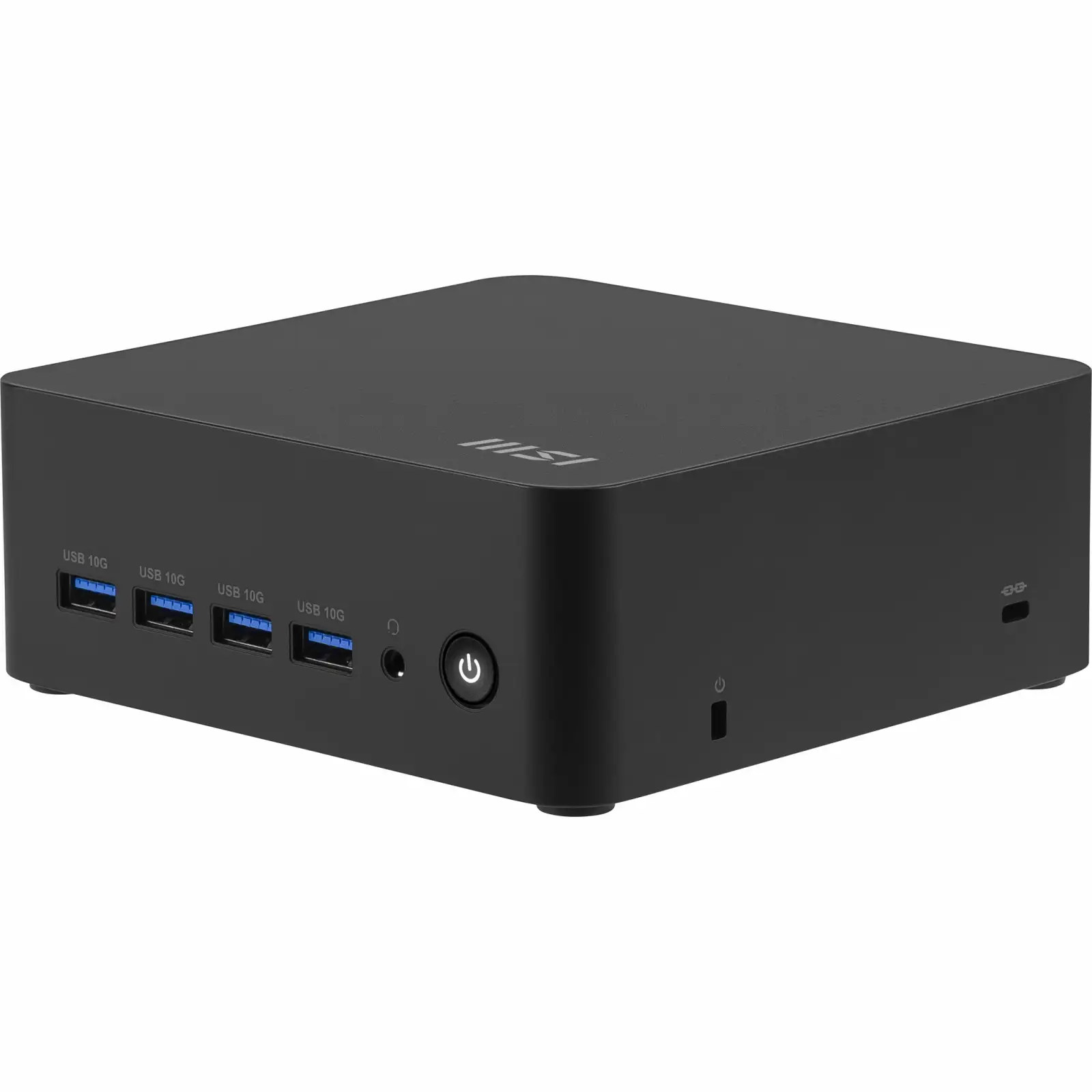

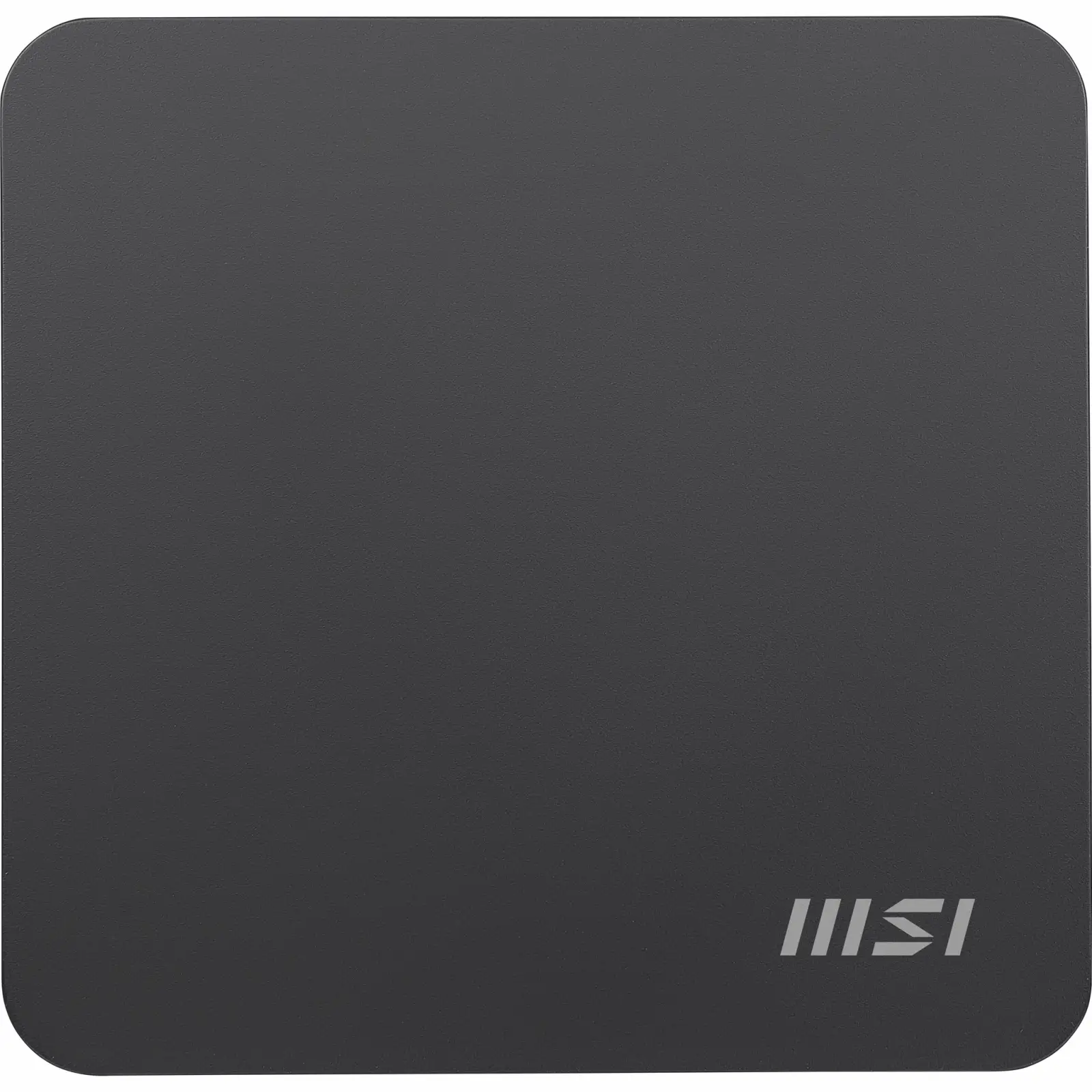

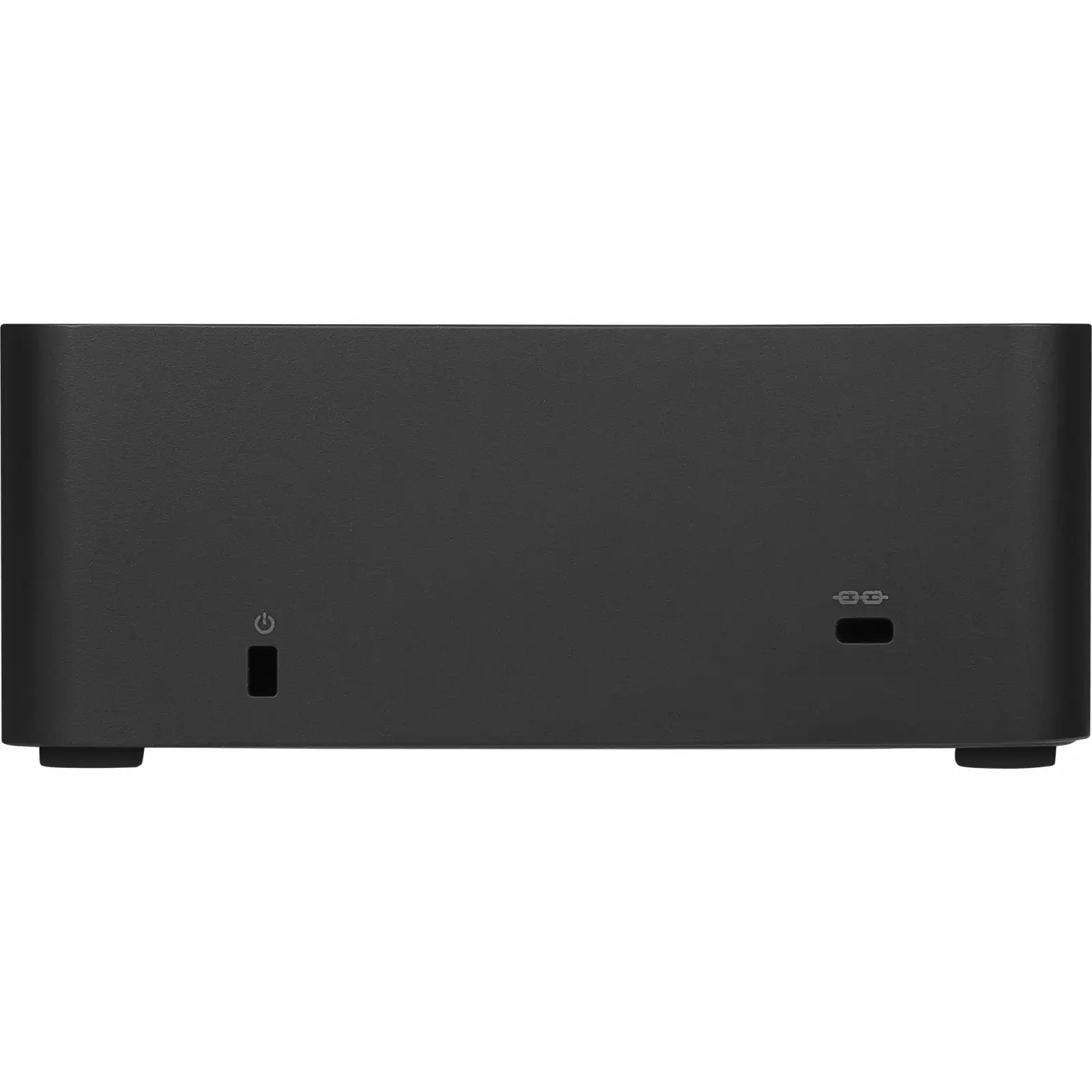

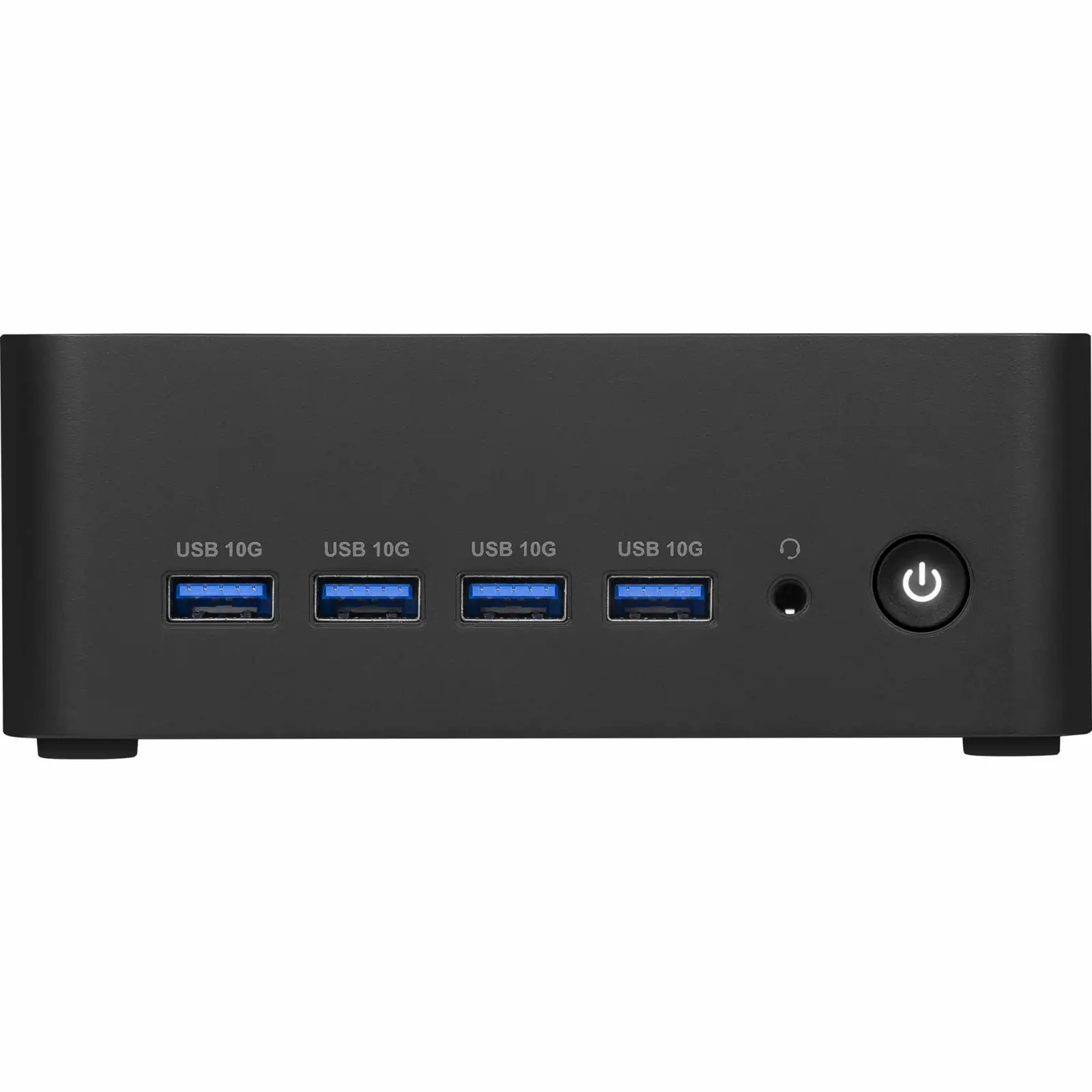

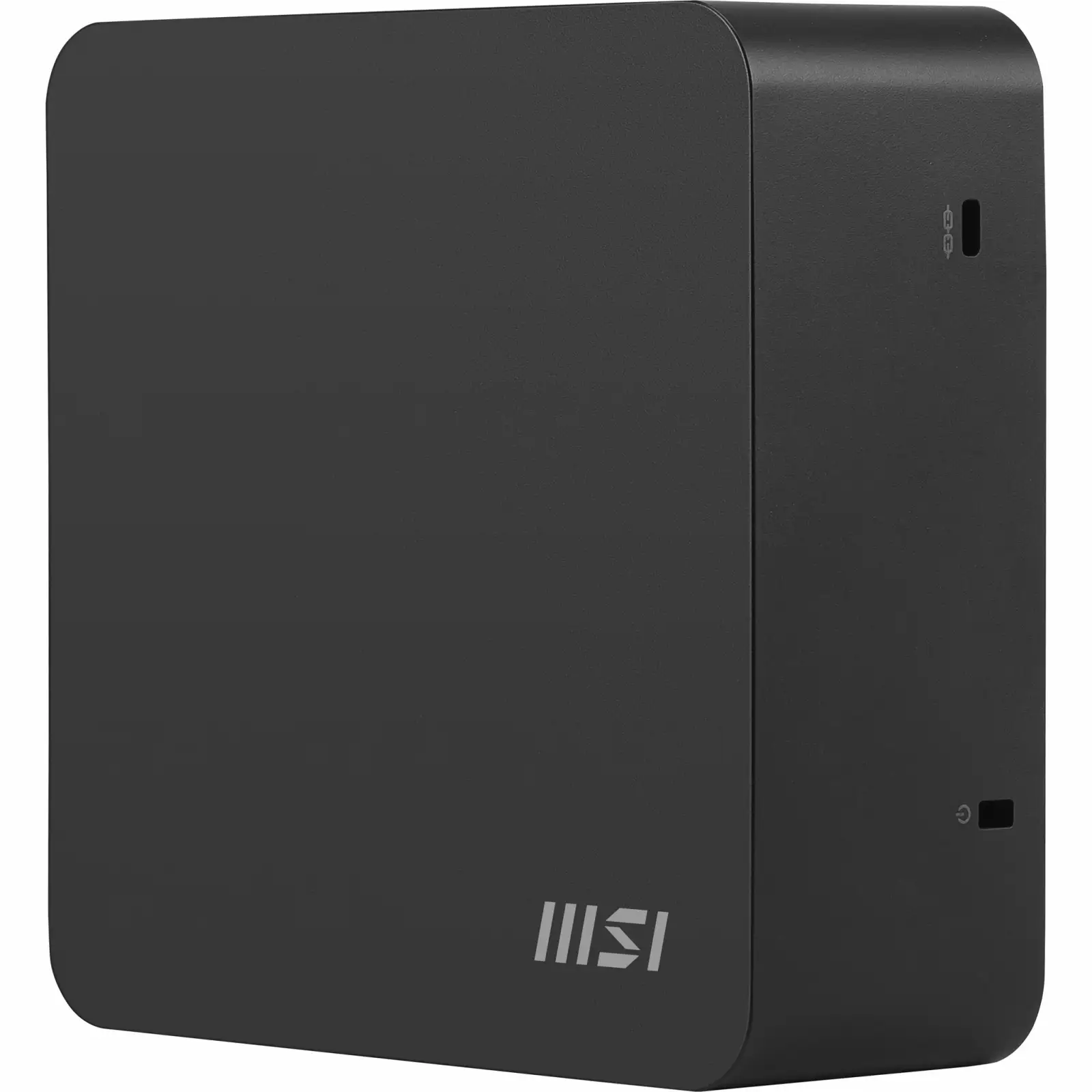

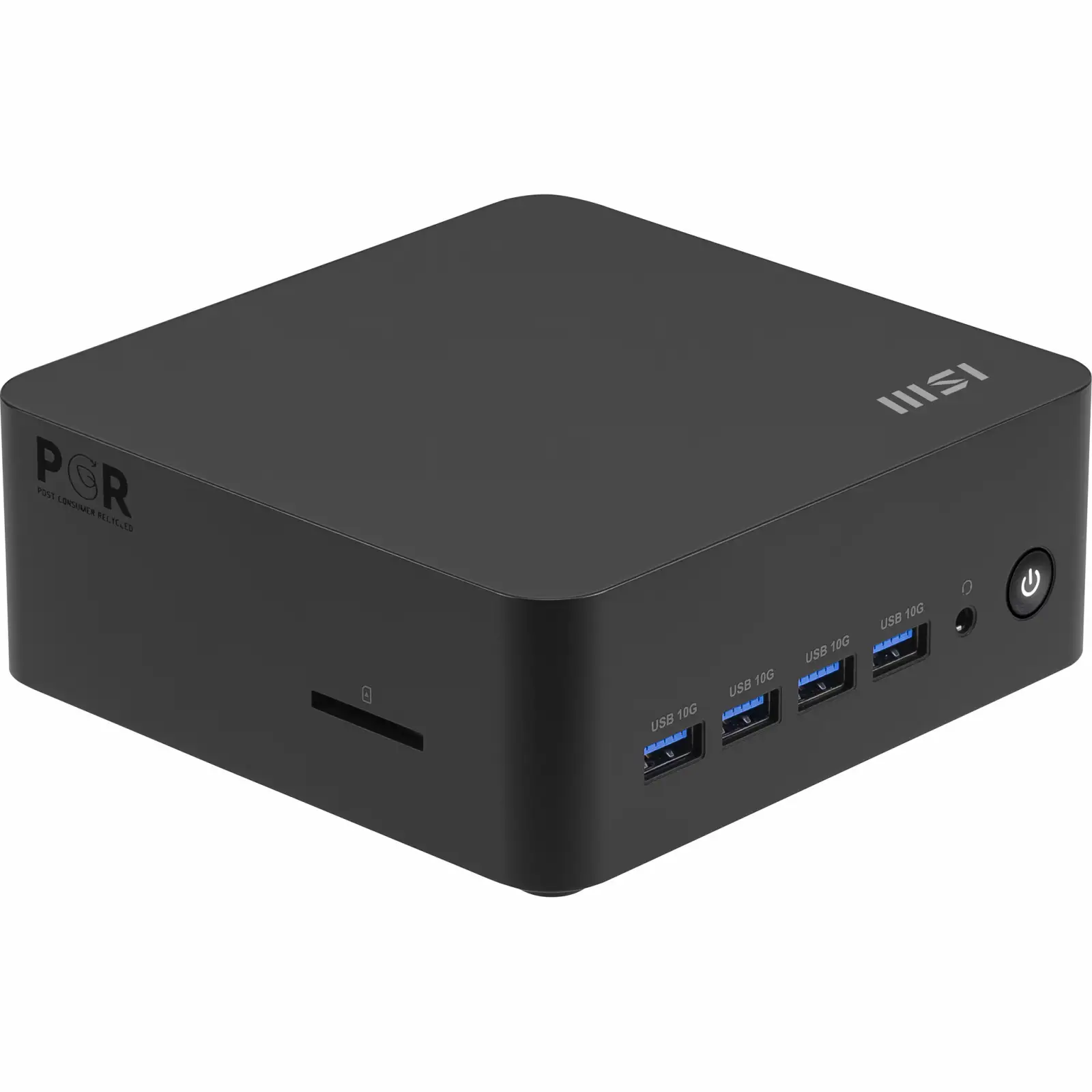

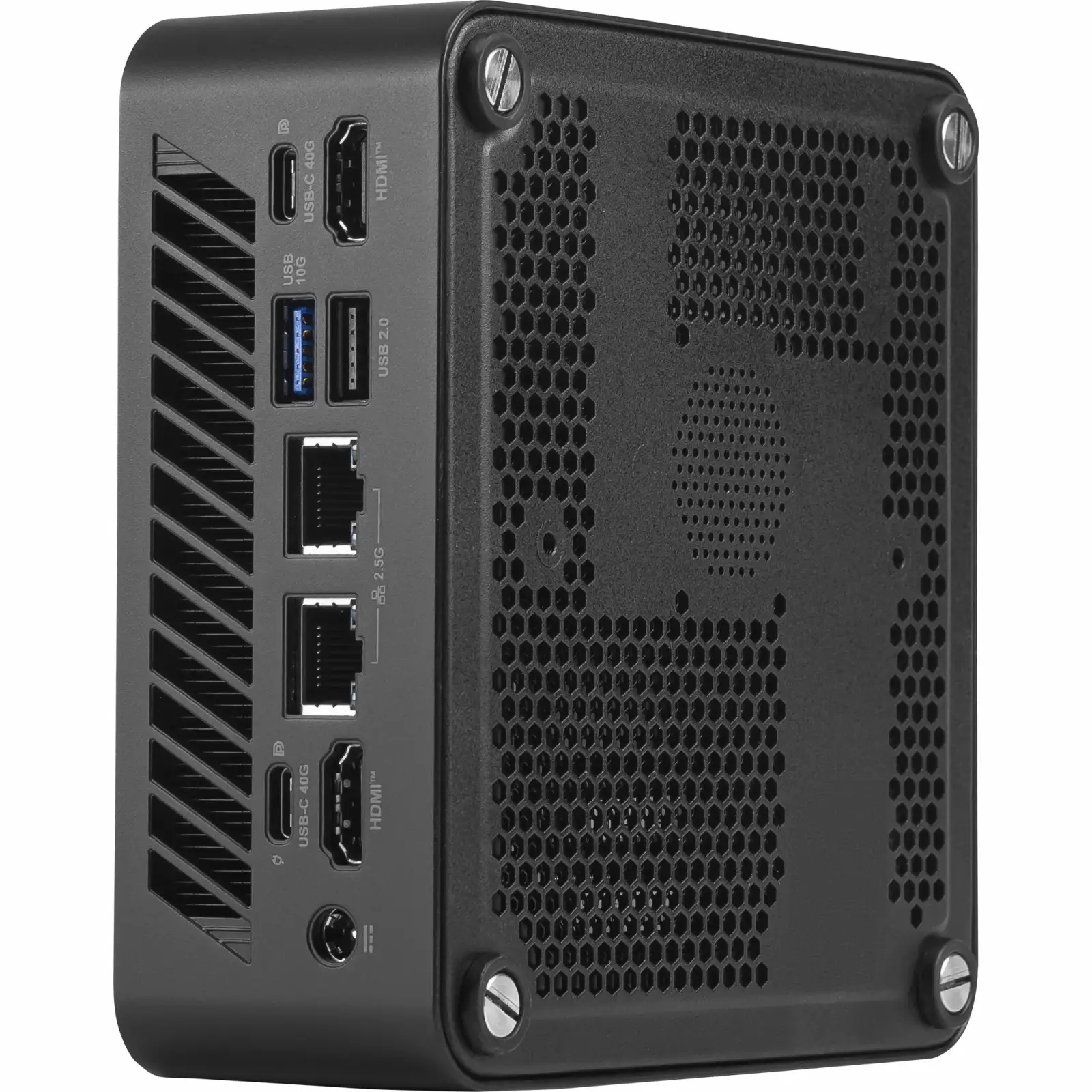

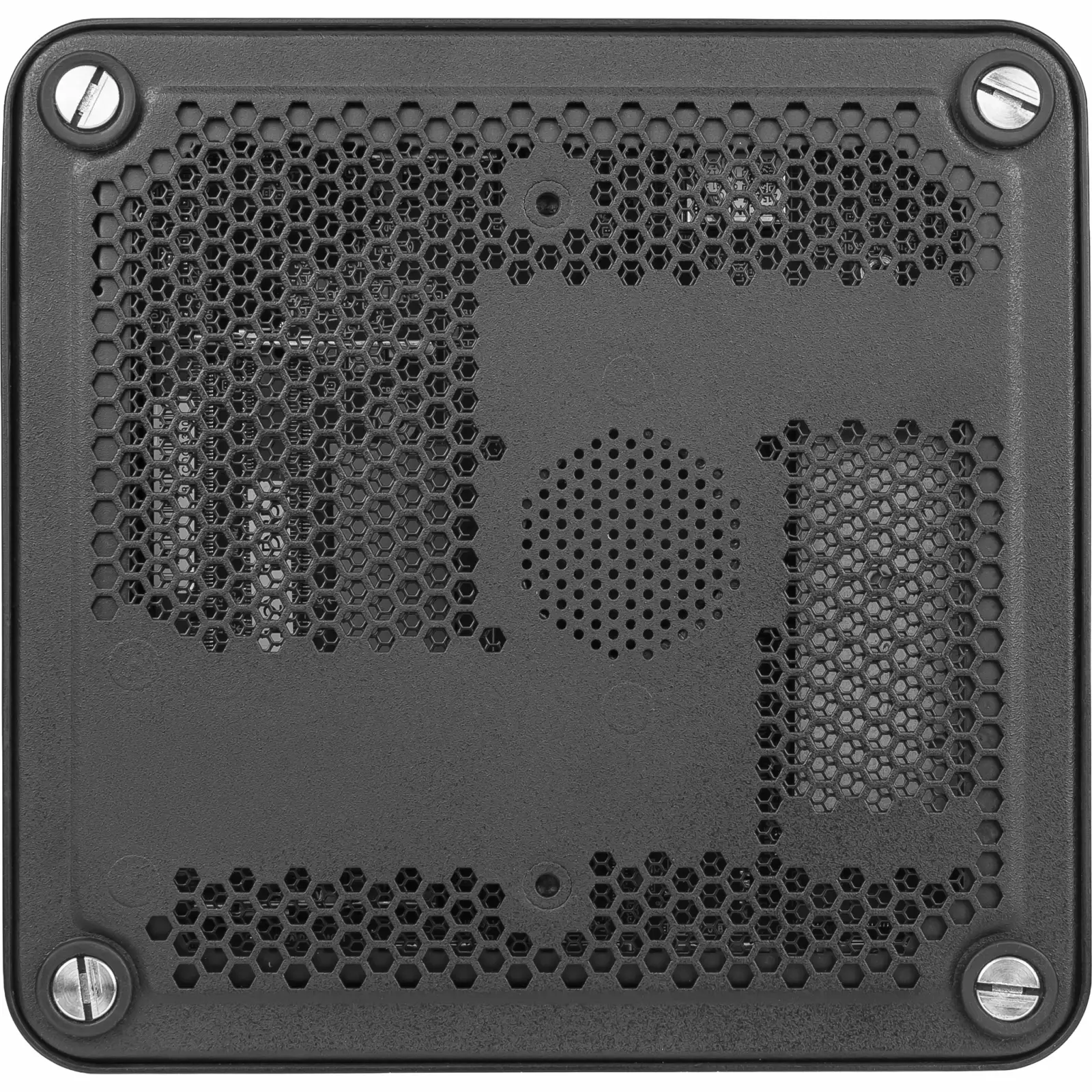

Produktbilder

Processor

Built-in processor

Ja

Processor manufacturer

AMD

Processor family

AMD Ryzen™ 9

Processor generation

AMD Ryzen 9000 Series

Processor model

8945HS

Processor cores

8

Processor boost frequency

5.2 GHz

Processor frequency

4.1 GHz

Processor cache type

L2 & L3

L2 cache

8 MB

L3 cache

16 MB

Memory

Internal memory installed

Nej

Memory slots type

SO-DIMM

Number of memory slots

2

Maximum internal memory

64 GB

Internal memory

0 GB

Memory channels

Dual-channel

ECC

Nej

Non-ECC

Nej

Storage

Storage drives installed

Nej

Supported storage drive types

HDD & SSD

Storage drive sizes supported

M.2 "

NVMe

Ja

Card reader integrated

Ja

Compatible memory cards

Not supported

Graphics

On-board graphics card

Ja

Graphics card family

AMD

On-board graphics card model

AMD Radeon 780M

Discrete graphics card model

Not available

Performance

Motherboard chipset

AMD SoC

Number of processors supported

1

Optical drive type

Nej

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Audio output channels

2.0 channels

Audio

Built-in speaker(s)

Ja

Network

Ethernet LAN

Ja

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller model

AMD RZ616

LAN controller

Realtek RTL8125B

Bluetooth

Ja

Bluetooth version

5.4

Ports & interfaces

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB4 Gen 2x2 ports quantity

2

HDMI ports quantity

2

HDMI version

2.1

VGA (D-Sub) ports quantity

0

DVI port

Nej

Microphone in

Nej

Combo headphone/mic port

Ja

Ethernet LAN (RJ-45) ports

1

S/PDIF out port

Nej

Thunderbolt 3 ports quantity

0

DC-in jack

Ja

Design

Chassis type

Cube

Product colour

Black

Cooling type

Active

Cable lock slot

Ja

Cable lock slot type

Kensington

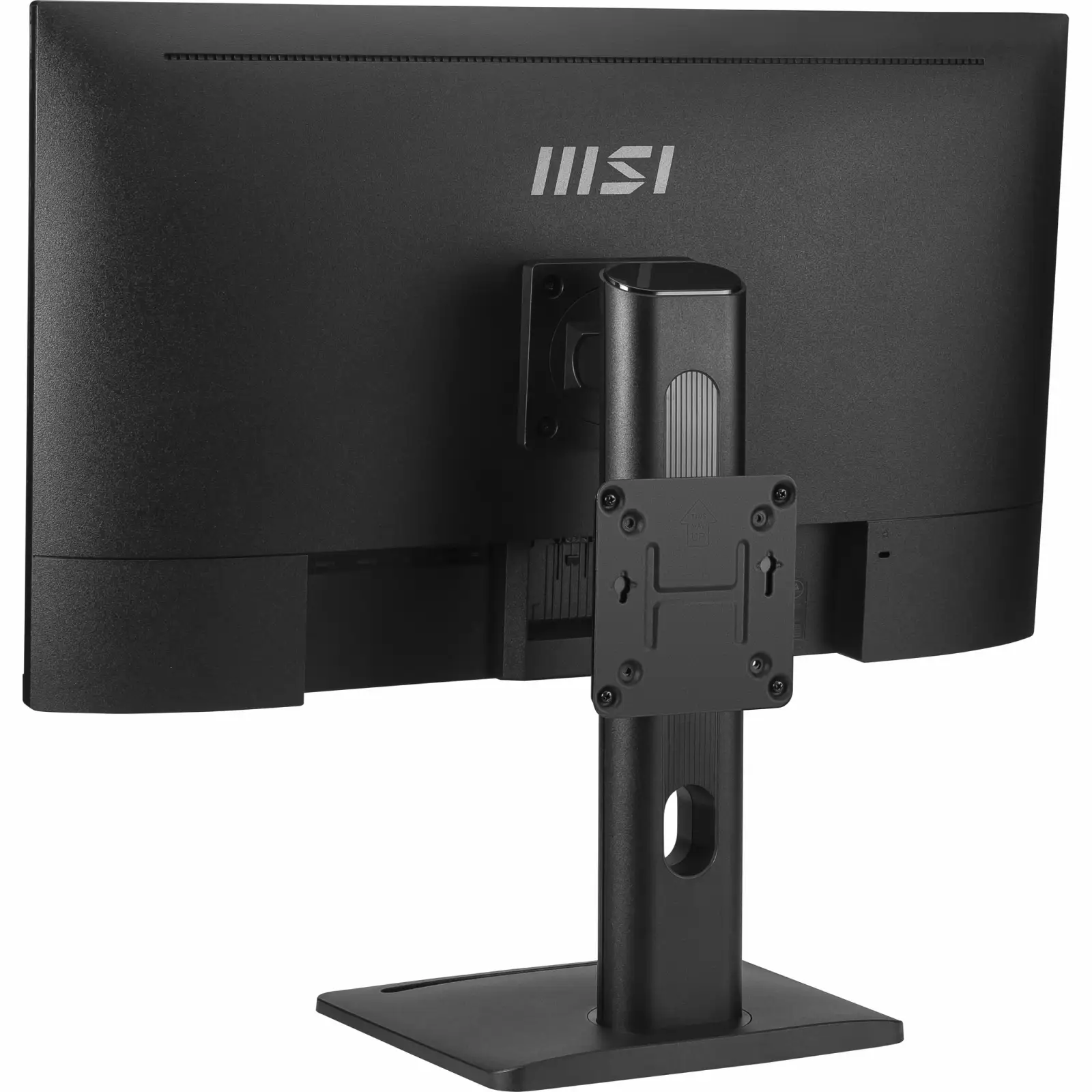

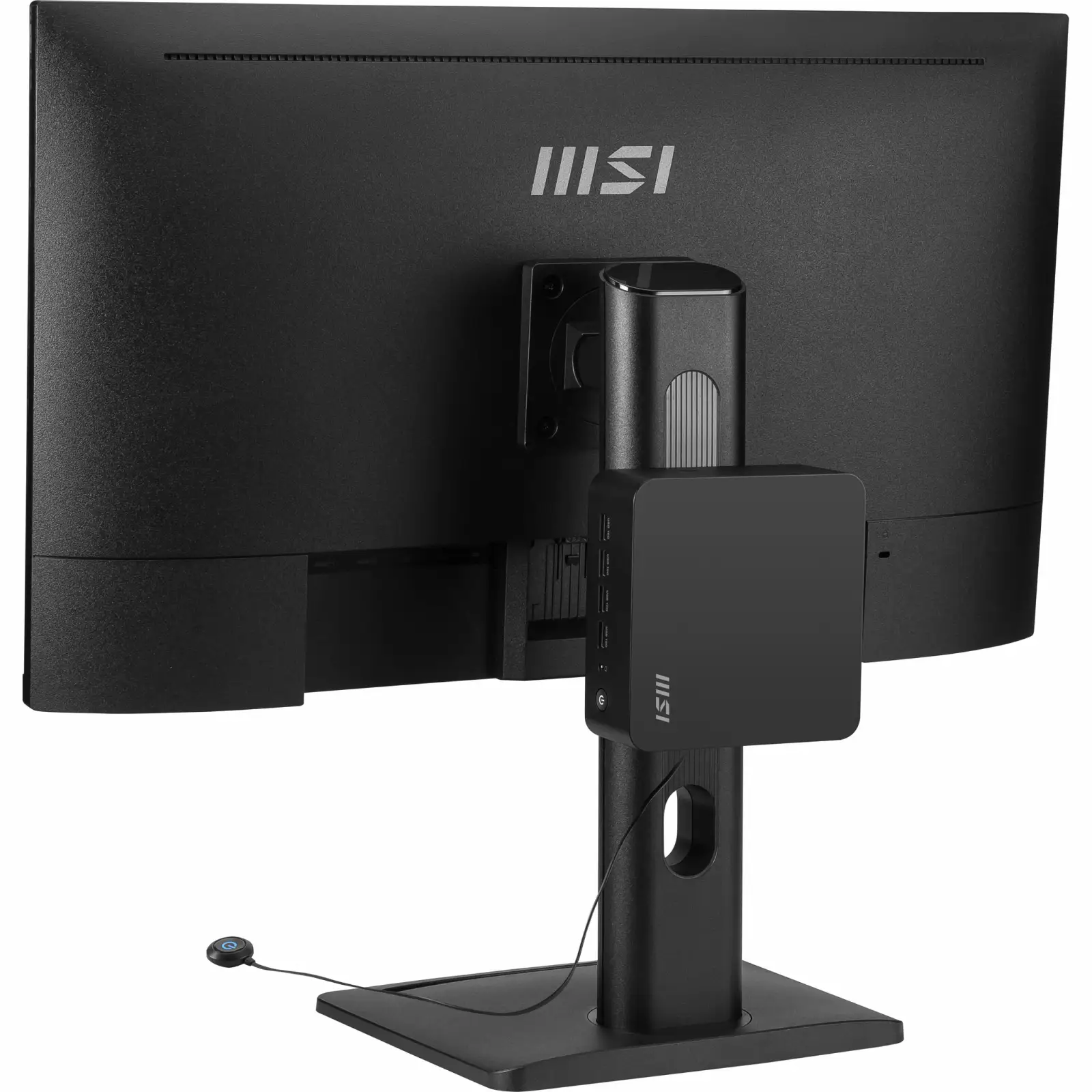

VESA mounting

Ja

Panel mounting interface

100 x 100 mm

Product type

Mini PC barebone

Market positioning

Business

Technical details

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS, UL

Software

Operating system installed

Nej

Power

Power supply type

External AC adapter

Power supply

120 W

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

136 mm

Depth

132 mm

Height

50.1 mm

Weight

790 g

Package width

469 mm

Package depth

221 mm

Package height

517 mm

Package weight

2000 g

Packaging content

Display included

Nej

Mouse included

Nej

Keyboard included

Nej

Other features

Warranty period

3 year(s)
