HPE ProLiant DL380 Gen11

Produkt

Tillverkare

HPE

Produktfamilj / -serie

ProLiant DL

Produktnamn

ProLiant DL380 Gen11

Lanseringsdatum

02.09.2025

Tillverkarens länk

https://www.hpe.com/

Produktkoder

Tillverkarens produktkoder

• P86703-425

GTIN- / EAN-koder

• 0190017819716

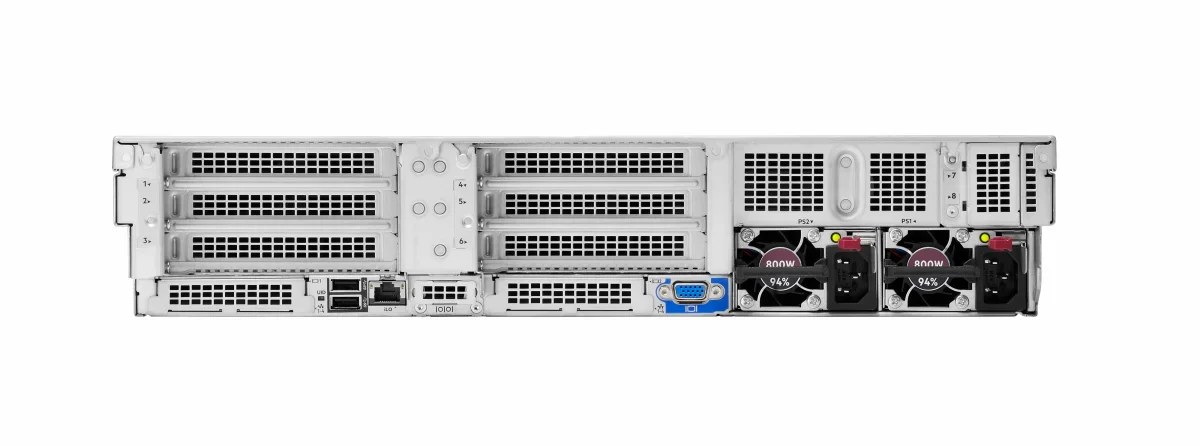

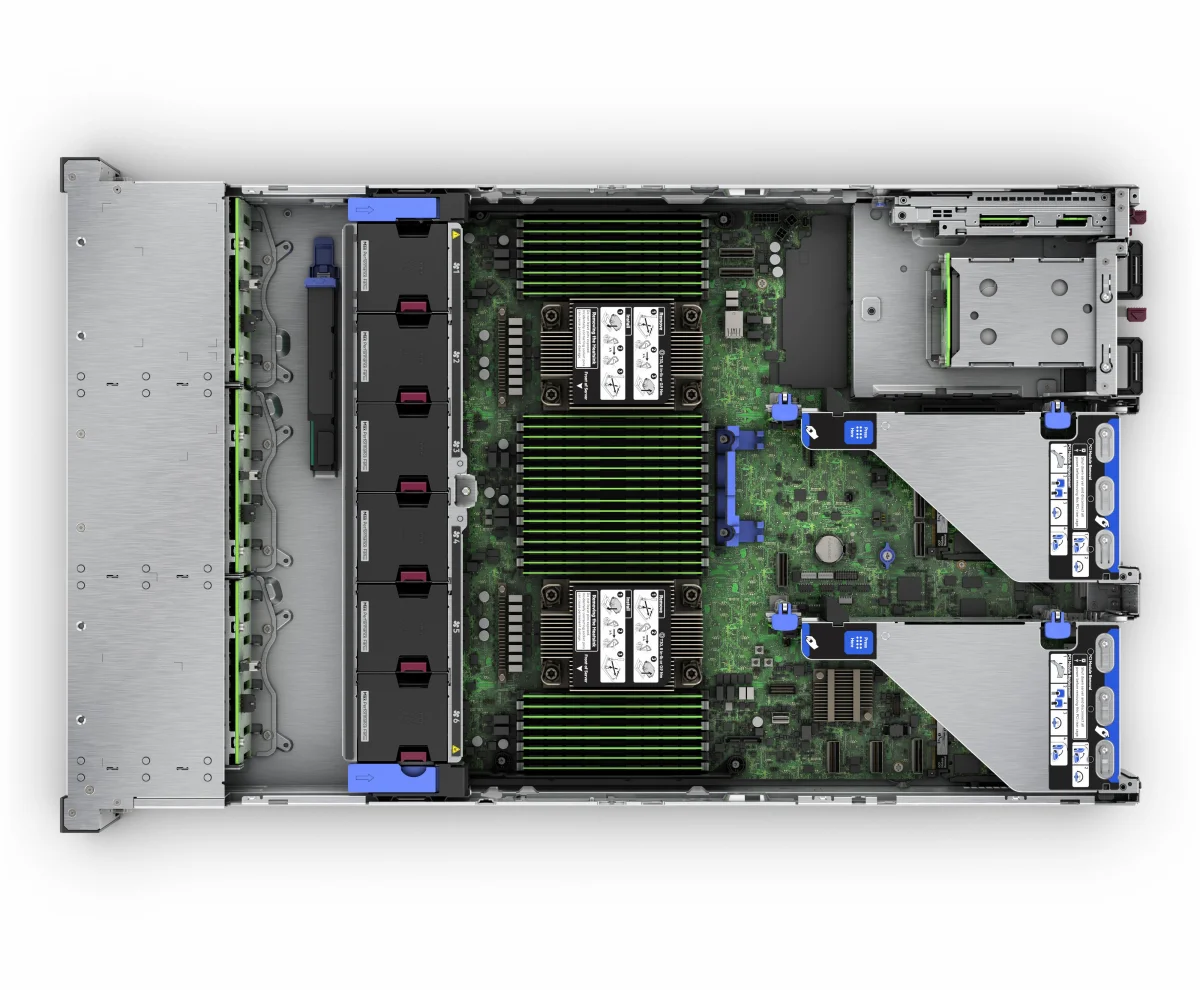

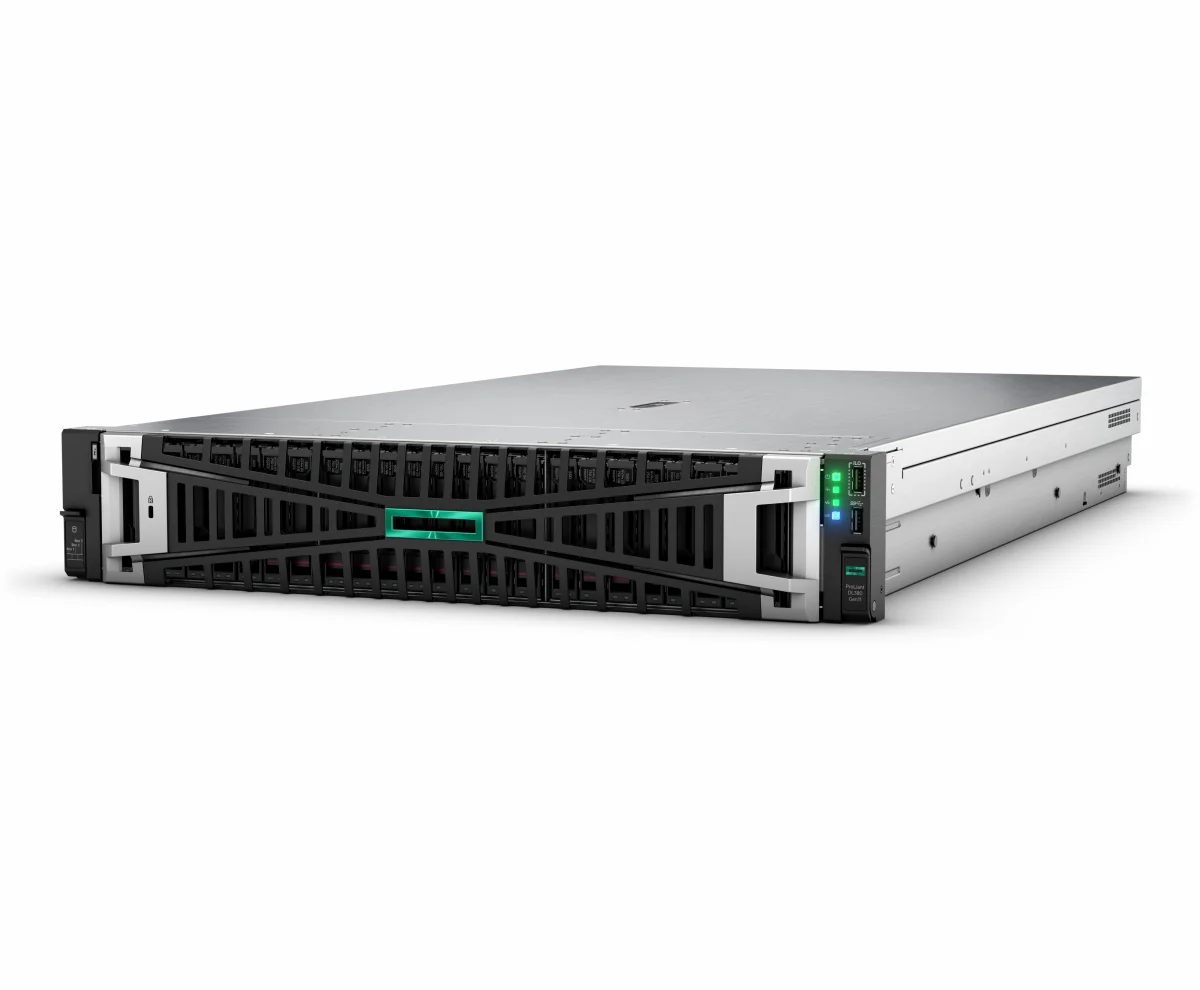

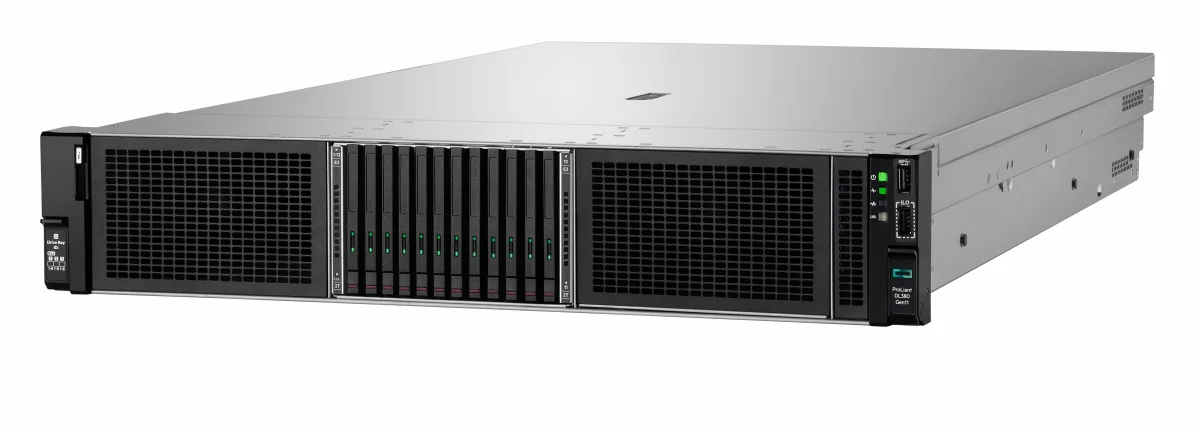

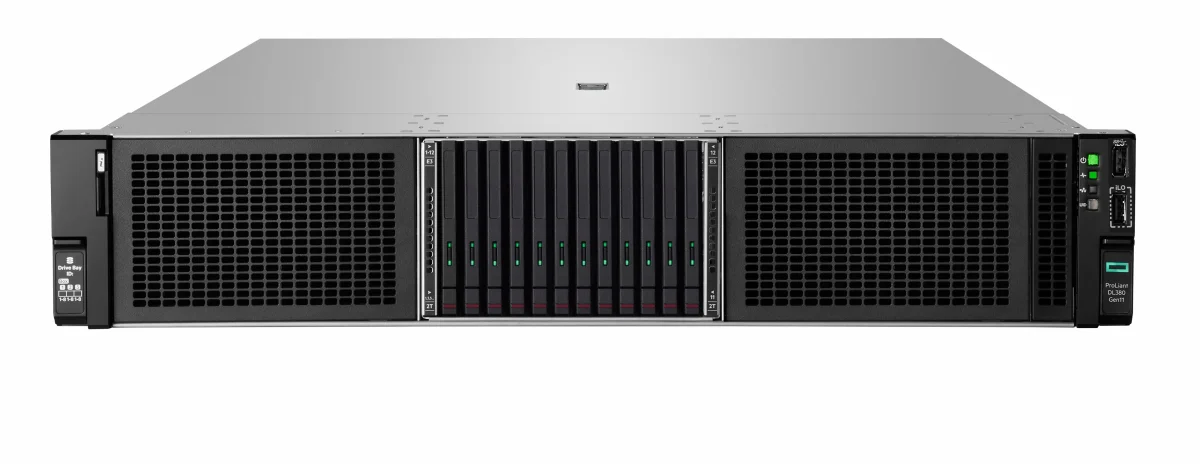

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Xeon Silver

Processor generation

Intel Xeon Scalable 5th Gen

Processor model

4510

Processor frequency

2.4 GHz

Processor boost frequency

4.1 GHz

Processor cores

12

Processor cache

30 MB

Number of processors installed

1

Processor cache type

L3

Memory

Internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory slots

32x DIMM

Memory clock speed

5600 MHz

Memory layout (slots x size)

2 x 32 GB

Maximum internal memory

8000 GB

Storage

Total storage capacity

7680 GB

Number of SSDs installed

1

SSD capacity

7680 GB

SSD interface

PCI Express 4.0

NVMe

Ja

RAID support

Ja

Supported RAID controllers

Embedded SATA controller (AHCI or Intel SATA Hybrid RAID controller)

Optical drive type

Nej

Graphics

On-board graphics card

Nej

On-board graphics card model

Not available

Network

LAN controller

Broadcom BCM5719

Ethernet LAN

Ja

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

VGA (D-Sub) ports quantity

1

Expansion slots

Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs

Design

Chassis type

Rack (2U)

Product colour

Black

Rack mounting

Ja

Performance

Management platform

HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management Refer to the iLO 6 User Guide

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Software

Operating system installed

Nej

Power

Redundant power supply (RPS) support

Ja

Power supply type

2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Power supply

1000 W

Number of main power supplies

2

Weight & dimensions

Width

727 mm

Depth

448 mm

Height

87.5 mm

Other features

Security features

HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs.

Number of processors supported

1

Standard fans

6x High Performance Fan

Storage drive type

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD
