ASUS ROG Crosshair VIII Impact

Produkt

Tillverkare

ASUS

Produktnamn

ROG Crosshair VIII Impact

Tillverkarens länk

https://www.asus.com/Motherboards/ROG-Crosshair-VIII-Impact/ov..

Produktkoder

Tillverkarens produktkoder

• 90MB11Q0-M0EAY0
• ROG CROSSHAIR VIII IMPACT

GTIN- / EAN-koder

• 4718017372558

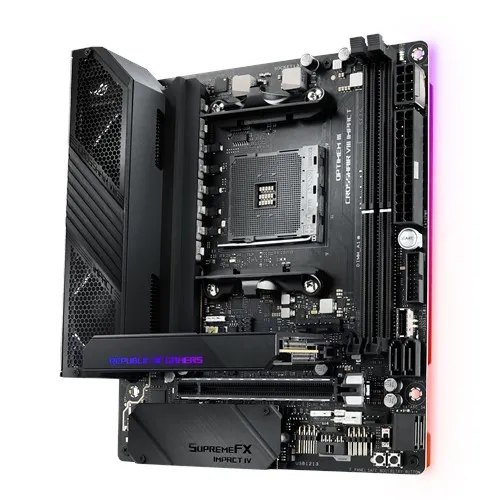

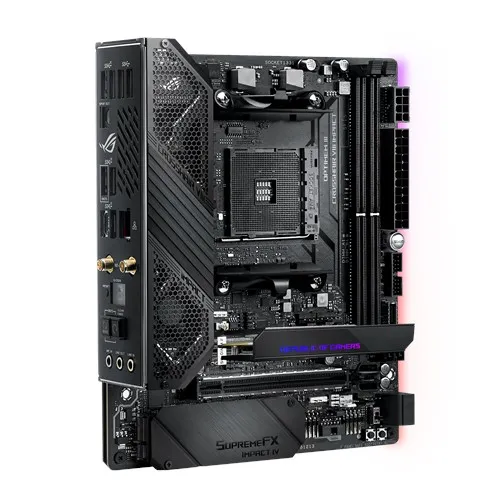

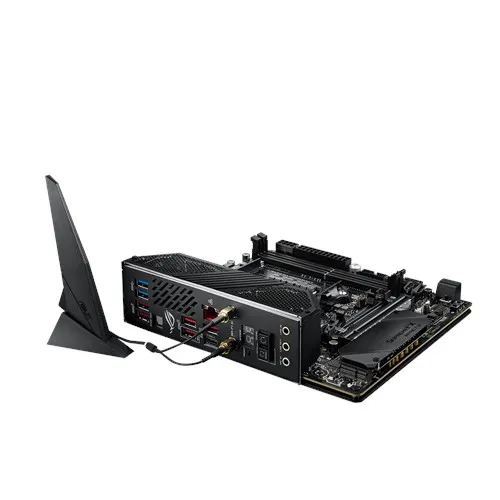

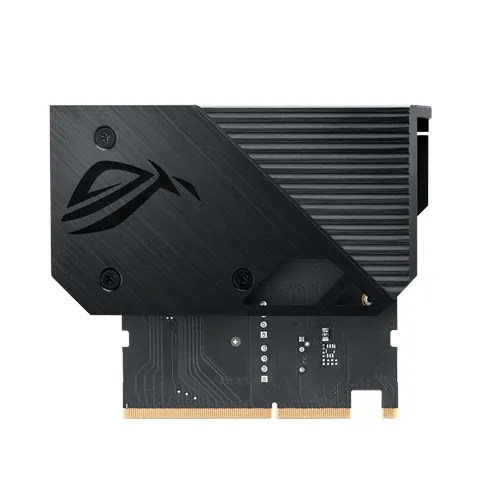

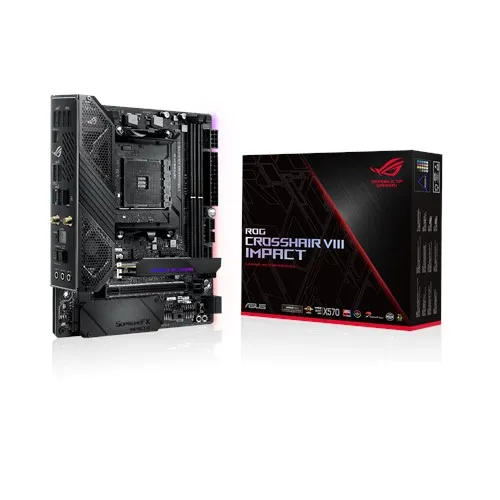

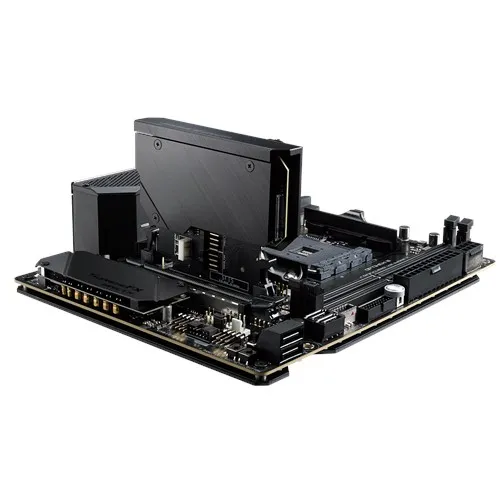

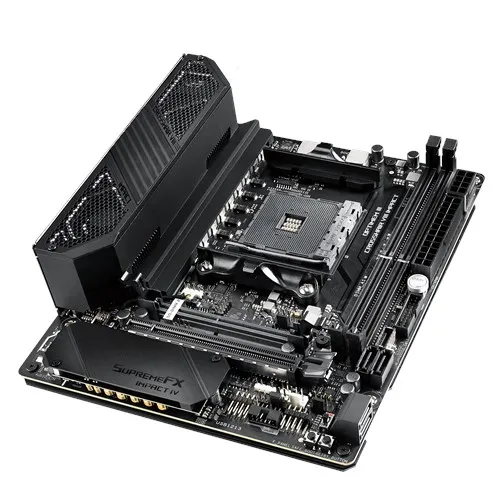

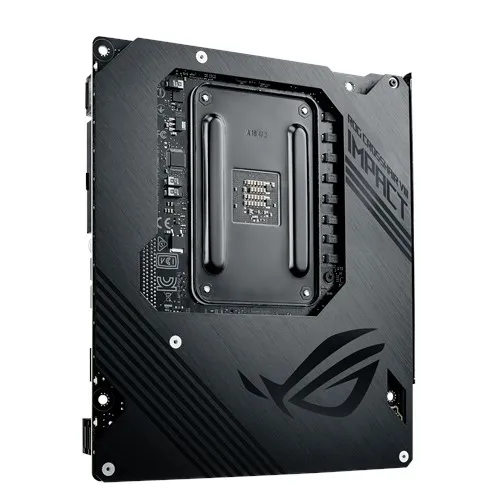

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Supported processor sockets

Socket AM4

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

Supported memory clock speeds

2133,2400,2666,2800,2933,3000,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800 MHz

Maximum internal memory

64 GB

Supported memory module capacities

4GB, 8GB, 16GB, 32GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

SATA III

Number of HDDs supported

4

RAID levels

0, 1, 10

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Audio connector

Ja

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

Power fan connector

Ja

CPU fan connector

Ja

EPS power connector (8-pin)

Ja

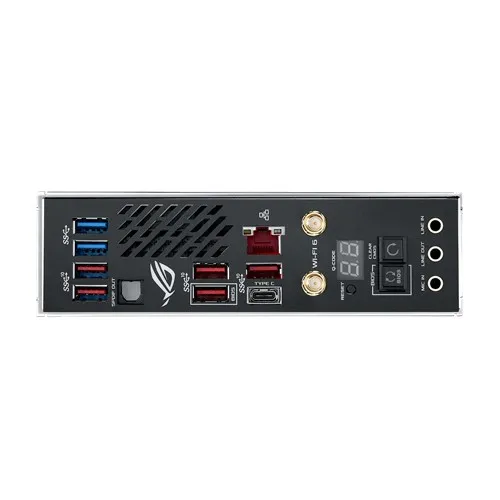

Rear panel I/O ports

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

8

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

eSATA ports quantity

0

PS/2 ports quantity

0

Firewire (IEEE 1394) ports

0

VGA (D-Sub) ports quantity

0

HDMI ports quantity

0

DVI-D ports quantity

0

Headphone outputs

1

Microphone in

Ja

Network

Ethernet LAN

Ja

Ethernet interface type

10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

LAN controller

Intel® I211-AT

Wi-Fi

Ja

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Bluetooth

Ja

Bluetooth version

5.0

Features

Component for

Mini PC

Motherboard form factor

Mini DTX

Motherboard chipset family

AMD

Motherboard chipset

AMD X570

Audio chip

SupremeFX S1220A

Audio output channels

8.0 channels

Cooling type

Passive

Power source type

ATX

Number of mounting holes

4

Windows operating systems supported

Windows 10

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

6.2

Clear CMOS jumper

Ja

System Management BIOS (SMBIOS) version

3.2

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

203 mm

Depth

170 mm

Height

82 mm

Packaging content

Drivers included

Ja

Other features

HDD size

2.5/3.5 "

Weight

850 g

Quick installation guide

Ja

BIOS switch button

Ja
