TP-Link EAP720

Produkt

Tillverkare

TP-Link

Produktnamn

EAP720

Tillverkarens länk

https://www.omadanetworks.com/us/business-networking/omada-wif..

Produktkoder

Tillverkarens produktkoder

• EAP720

GTIN- / EAN-koder

• 1210002608732

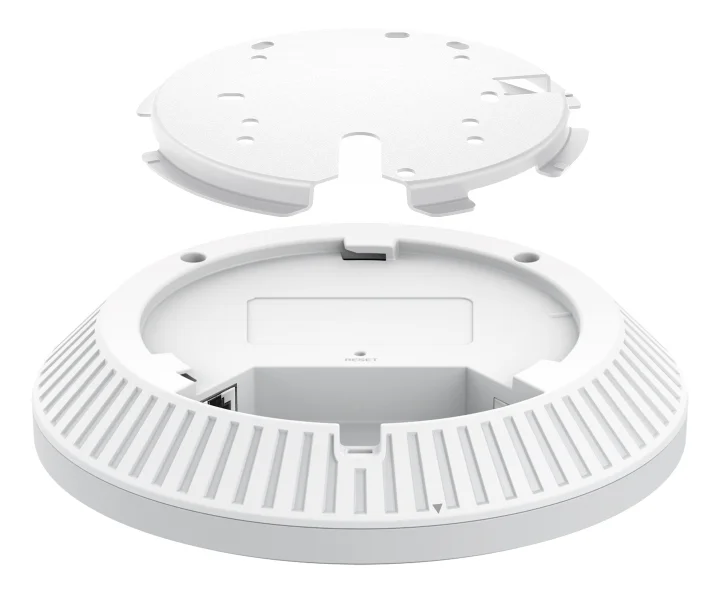

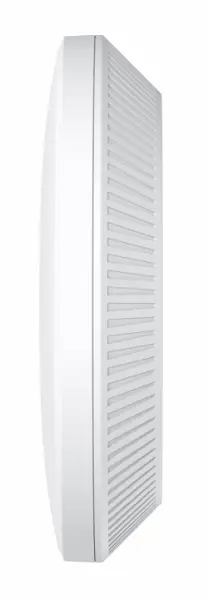

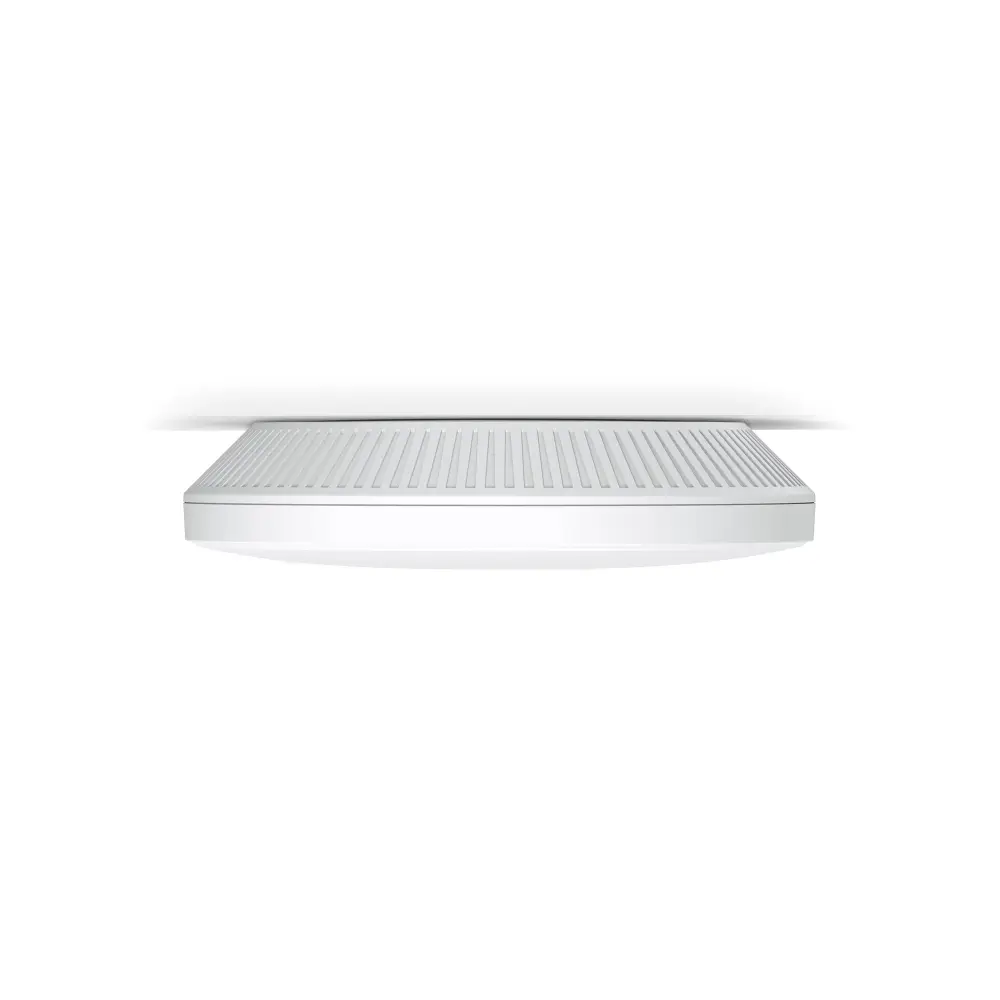

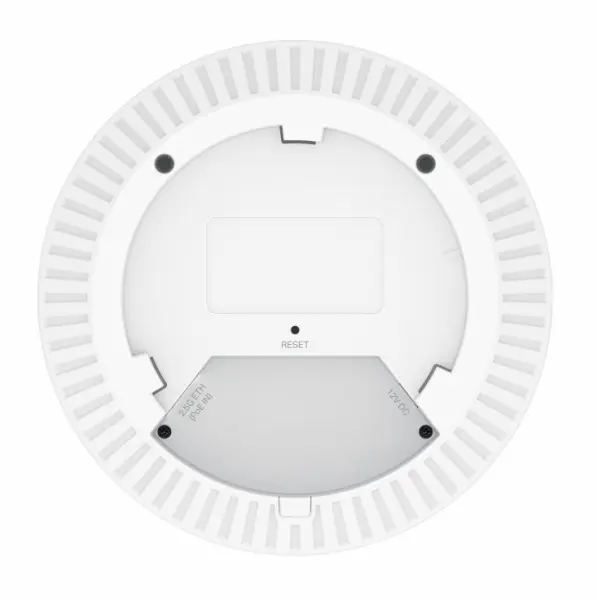

Produktbilder

Features

2.4 GHz

Ja

5 GHz

Ja

6 GHz

Nej

Maximum data transfer rate

4324 Mbit/s

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

4324 Mbit/s

Ethernet LAN data rates

2500 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x

Coverage area

140 m²

Channel bandwidth

240 MHz

Spread spectrum method

OFDMA

Wi-Fi Multimedia (WMM)/(WME)

Ja

VLAN support

Ja

Rate limiting

Ja

Airtime Fairness (ATF)

Ja

Quality of Service (QoS) support

Ja

BeamForming

Ja

Maximum Tx power (2.4 GHz)

25 dBmW

Maximum Tx power (5 GHz)

25 dBmW

Security

Security algorithms

EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal

MAC address filtering

Ja

Guest access

Ja

Schedule access

Ja

Remote Authentication Dial-In User Service (RADIUS)

Ja

Access Control List (ACL)

Ja

Protocols

DHCP client

Ja

Supported network protocols

IPv4/IPv6

Management features

Web-based management

Ja

Syslog

Ja

Access point management

Wi-Fi schedule

Cloud-managed

Ja

Firmware upgradeable

Ja

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

DC-in jack

Ja

Power

Power over Ethernet (PoE)

Ja

Power over Ethernet (PoE) type supported

PoE+

DC voltage range

12 V

Input current

1.5 A

Power consumption (max)

17.83 W

Design

Placement

Ceiling, Wall

Product colour

White

Reset button

Ja

LED indicators

Ja

Antenna

Antenna type

Internal

Performance

Flash memory

128 MB

Internal memory

4096 MB

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS

Weight & dimensions

Width

160 mm

Depth

160 mm

Height

36.7 mm

Weight

410 g

Packaging data

Package width

245 mm

Package depth

228 mm

Package height

65 mm

Package weight

792 g

Packaging content

AC adapter included

Ja

Mounting kit

Ja

Quick start guide

Ja

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90 %
