ASUS Zenbook 14 OLED UX3405CA-PZ092X

Produkt

Tillverkare

ASUS

Produktfamilj / -serie

Zenbook 14 OLED

Produktnamn

UX3405CA-PZ092X

Tillverkarens länk

https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-14..

Produktkoder

Tillverkarens produktkoder

• 90NB14W4-M00F40

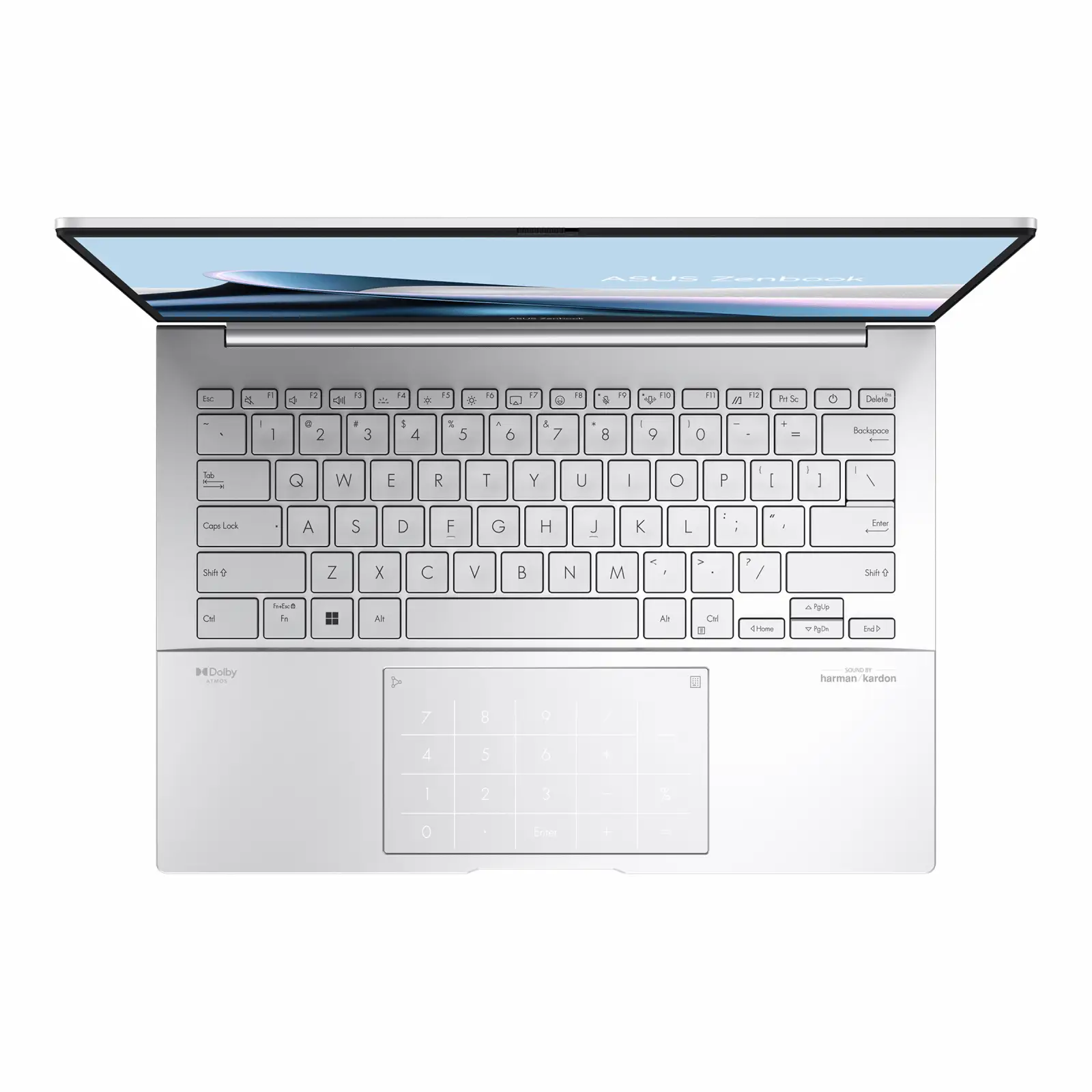

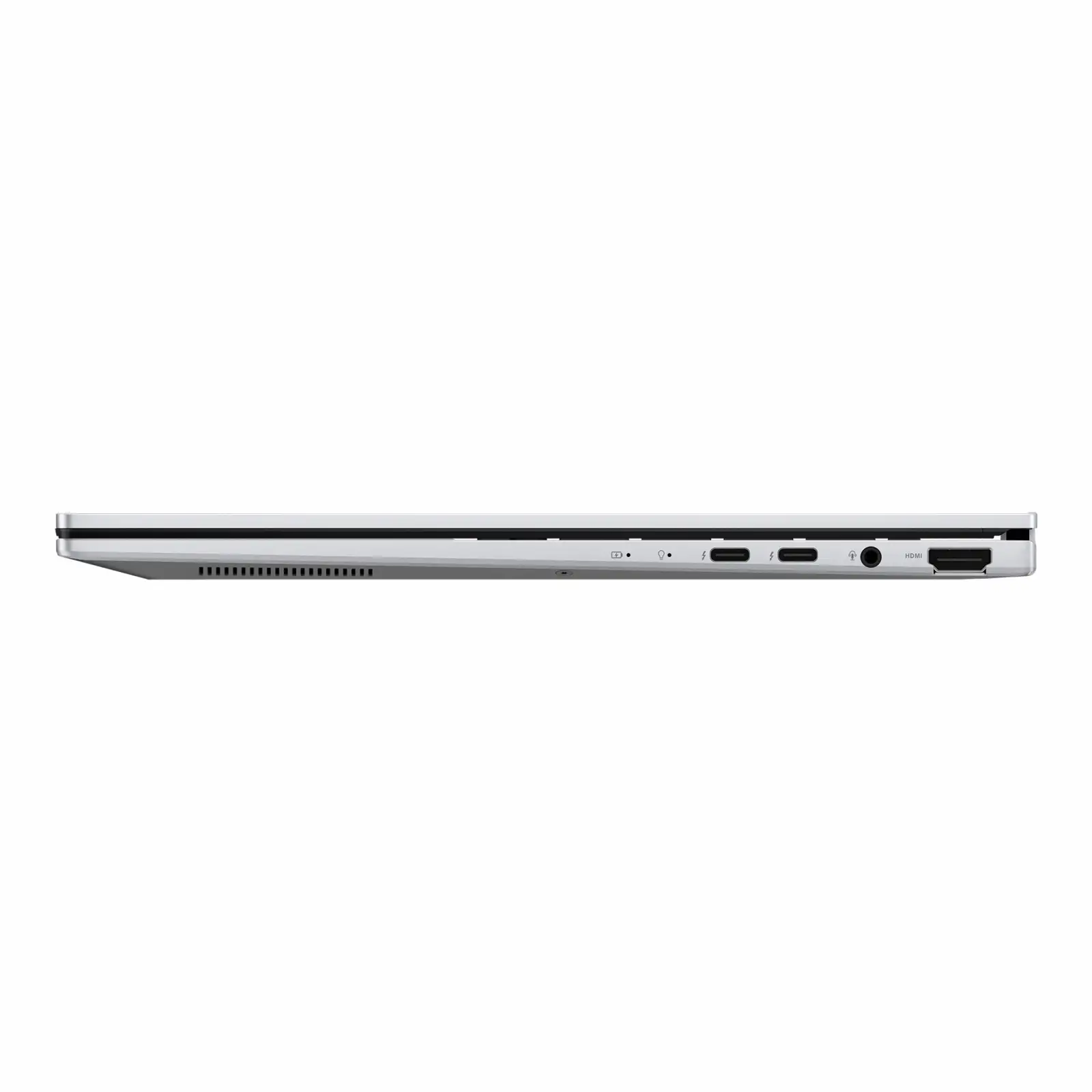

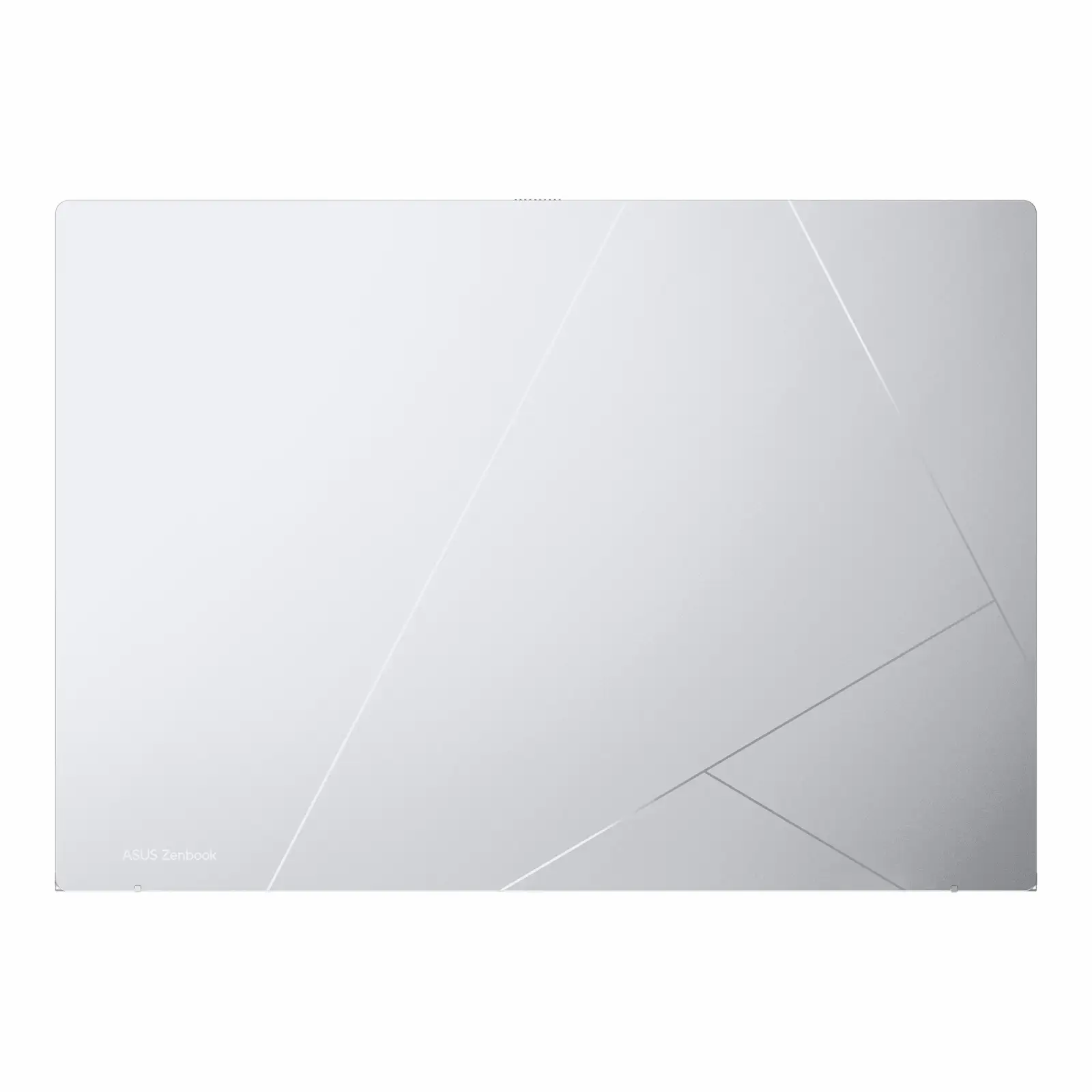

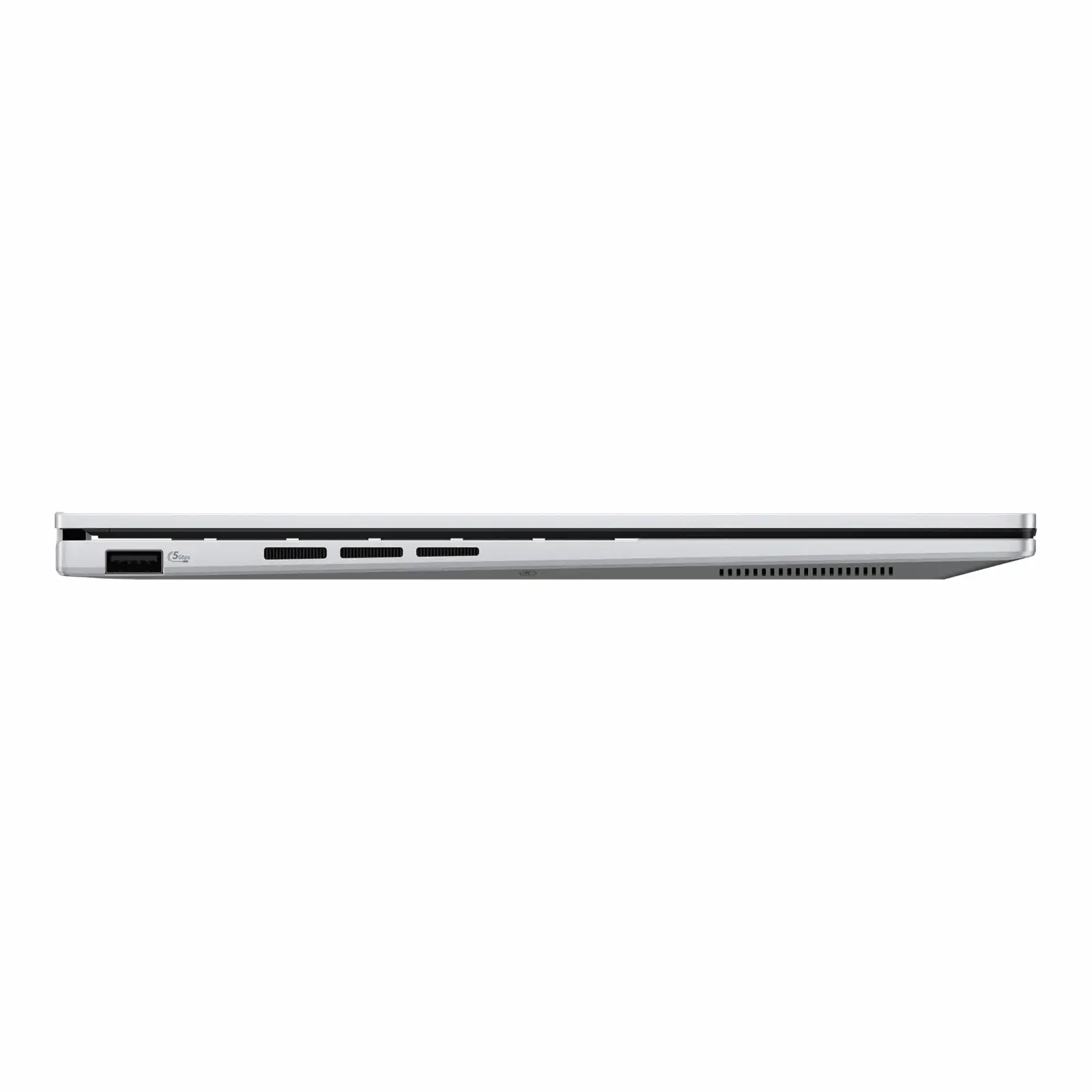

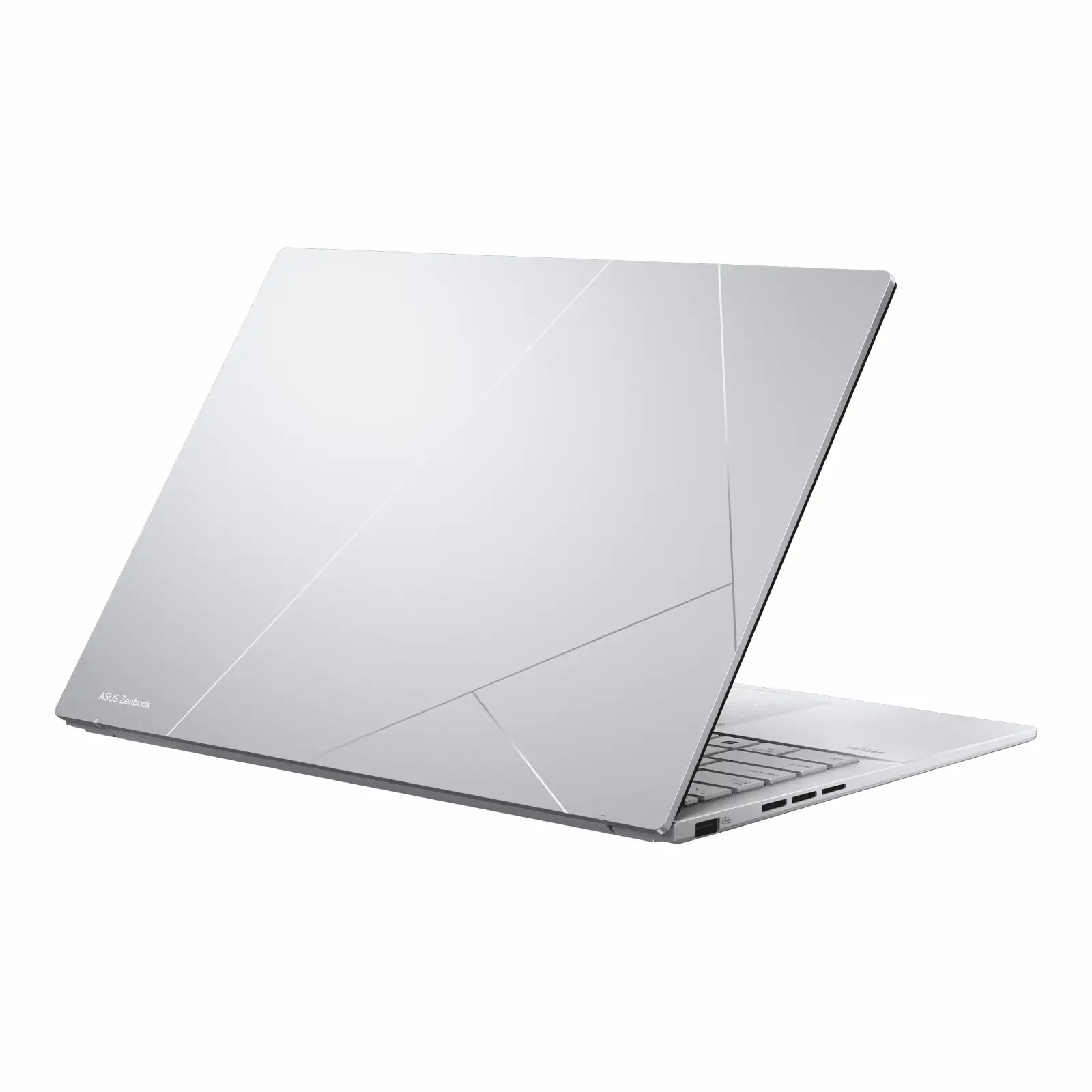

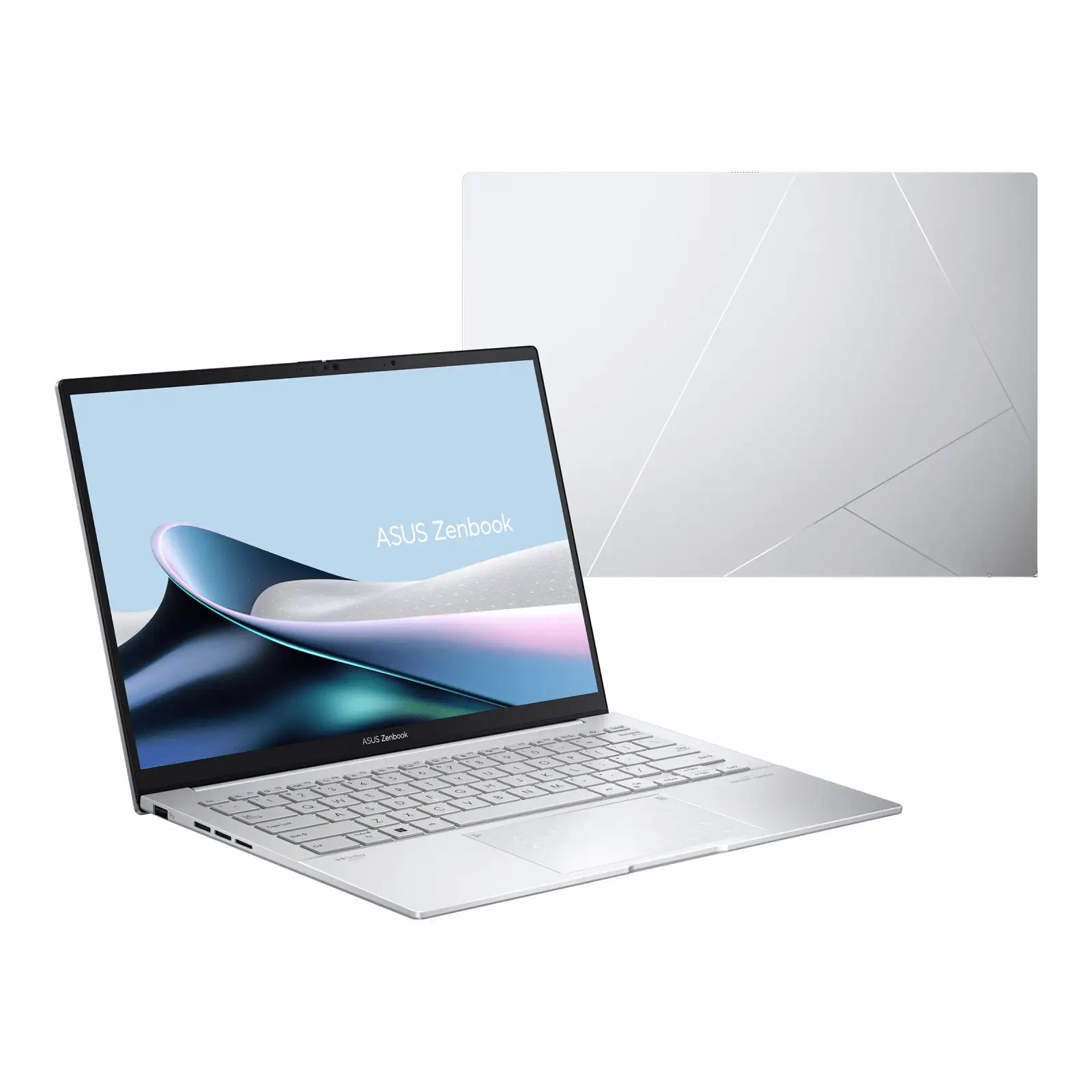

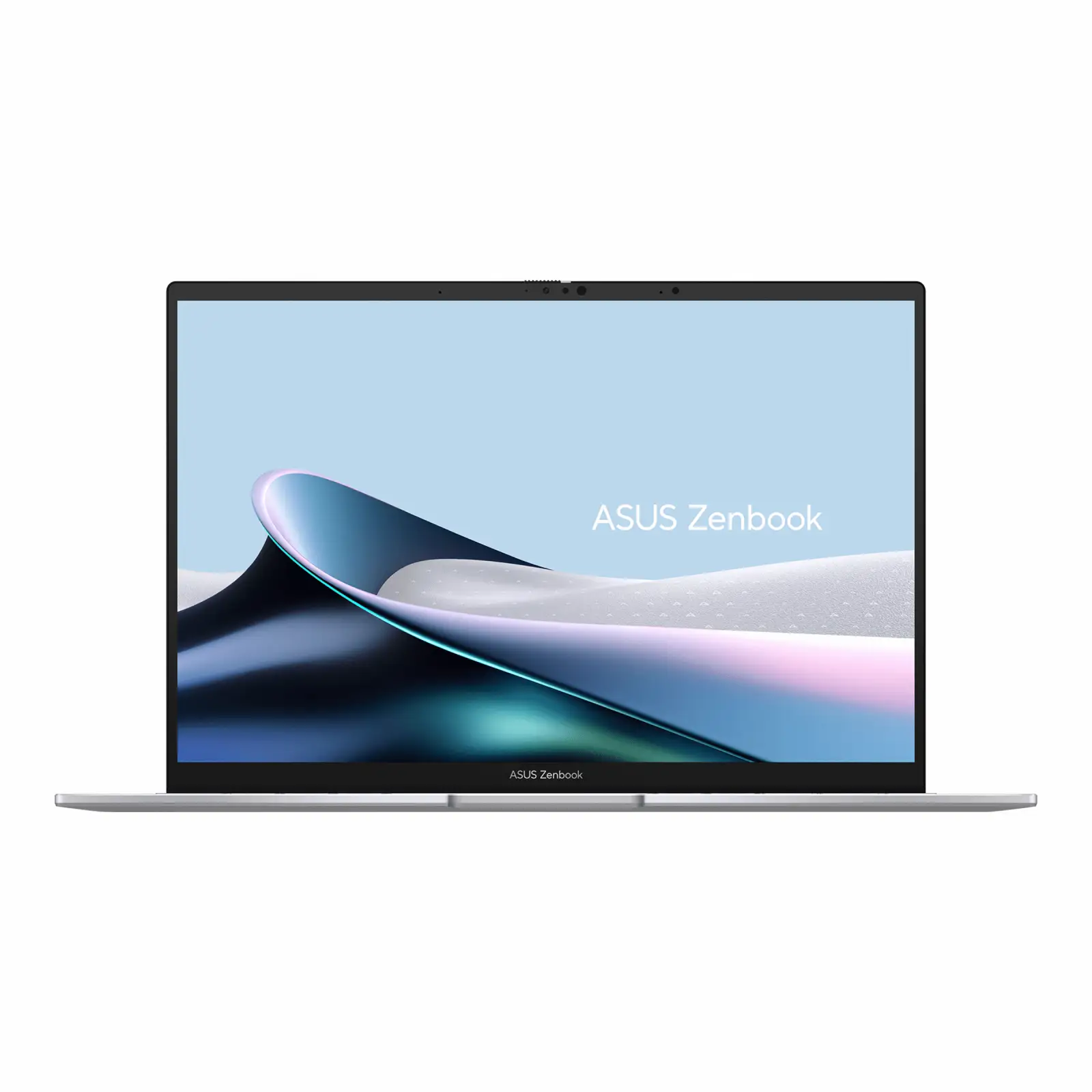

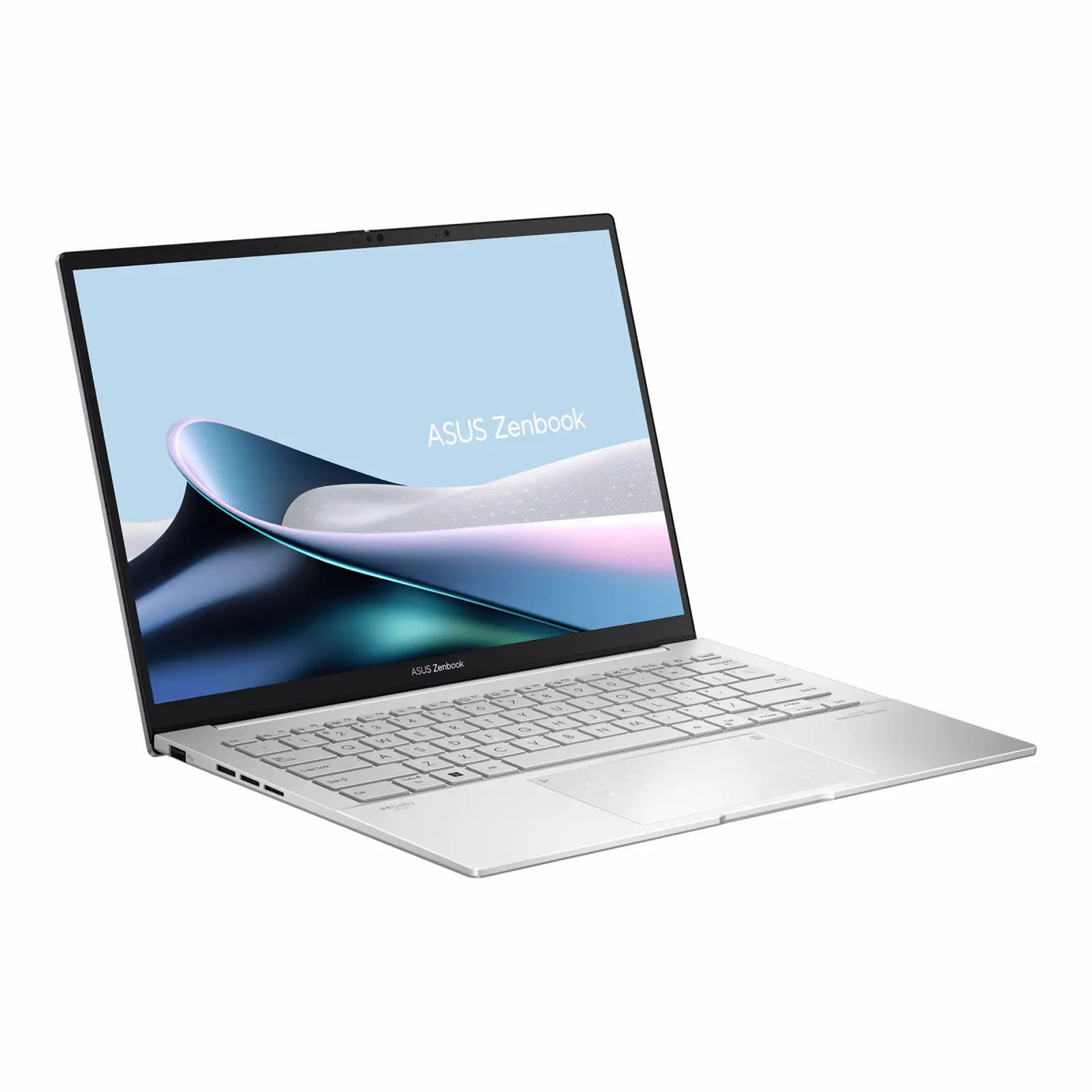

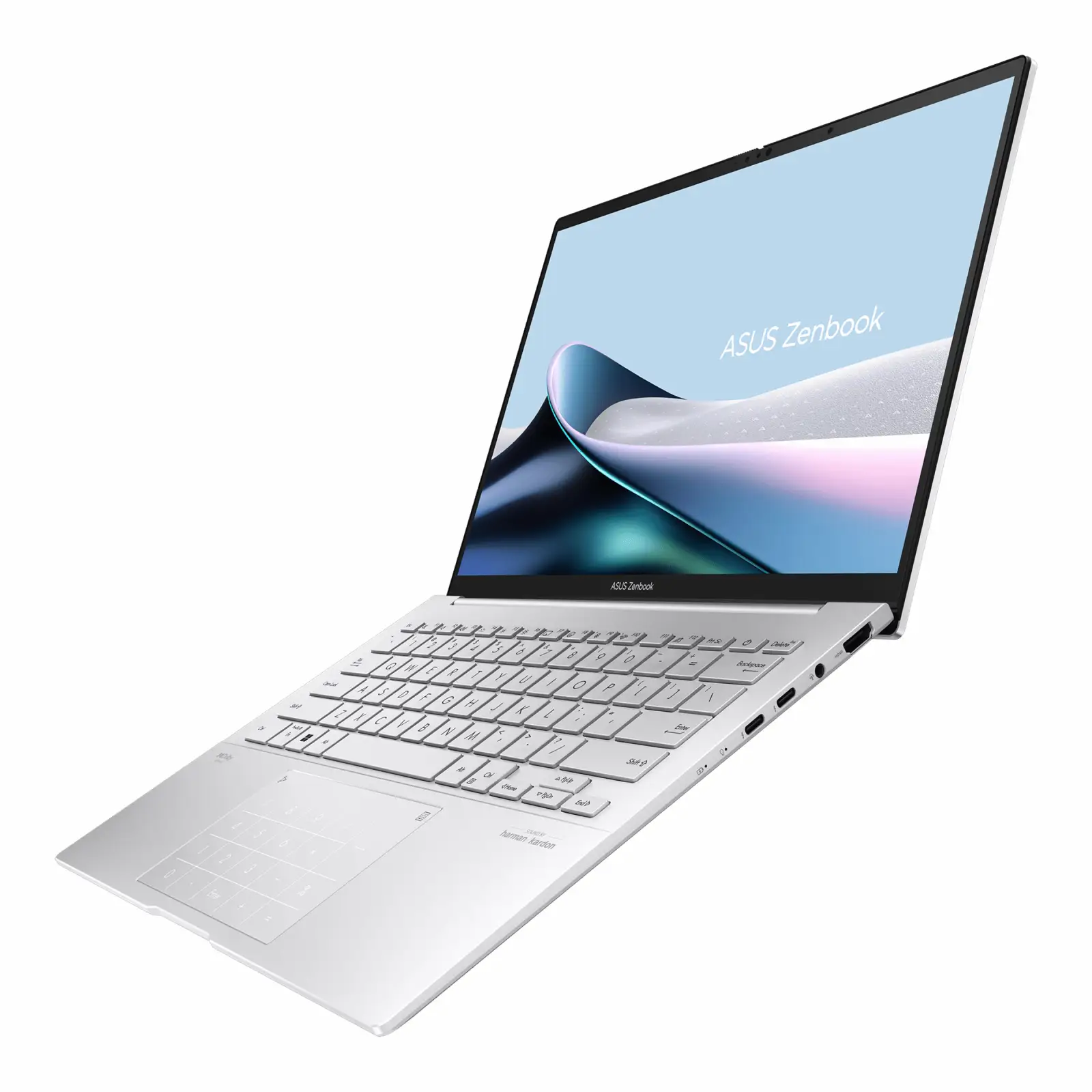

Produktbilder

Design

Product type

Laptop

Product colour

Silver

Colour name

Foggy Silver

Form factor

Clamshell

Market positioning

Home

Display

Display diagonal

14 "

Display resolution

2880 x 1800 pixels

Touchscreen

Ja

HD type

3K

Panel type

OLED

Display number of colours

1.07 billion colours

Native aspect ratio

16:10

Display surface

Gloss

Display brightness

400 cd/m²

Maximum display brightness (HDR)

500 cd/m²

RGB colour space

DCI-P3

Colour gamut

100 %

Display response rise/fall

0.2 ms

Maximum refresh rate

120 Hz

Contrast ratio (typical)

1000000:1

High Dynamic Range (HDR) supported

Ja

High Dynamic Range (HDR) technology

HDR True Black 500

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 9

Processor generation

Intel Core Ultra (Series 2)

Processor model

285H

Processor cores

16

Processor threads

16

Processor boost frequency

5.4 GHz

Performance cores

6

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

5.4 GHz

Efficient-core Max Turbo Frequency

4.5 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

2.9 GHz

Efficient-core base frequency

2.7 GHz

Low Power Efficient-core Base Frequency

1000 MHz

Processor cache

24 MB

Processor base power

45 W

Maximum turbo power

115 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Ja

Windows Studio effects support

Ja

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

99 TOPs

NPU performance up to

13 TOPs

GPU performance up to

77 TOPs

Memory

Internal memory

32 GB

Internal memory type

LPDDR5x-SDRAM

Memory form factor

On-board

Maximum internal memory

32 GB

Memory channels

Dual-channel

Storage

Total storage capacity

1000 GB

Storage media

SSD

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Optical drive type

Nej

Graphics

On-board graphics card

Ja

Discrete graphics card

Nej

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc 140T

Audio

Audio system

Smart Amp

Built-in microphone

Ja

Camera

Front camera

Ja

Front camera HD type

Full HD

Infrared (IR) camera

Ja

Privacy camera

Ja

Privacy type

Privacy shutter

Network

Mobile network connection

Nej

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Antenna type

2x2

Bluetooth

Ja

Bluetooth version

5.4

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

2

Intel® Thunderbolt 4

Ja

Combo headphone/mic port

Ja

USB Type-C DisplayPort Alternate Mode

Ja

Keyboard

Pointing device

NumberPad

Numeric keypad

Nej

Keyboard backlit

Ja

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Trial software

1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial

Bundled software

3-Month GoPro Premium+ Subscription1-Month Membership of Adobe Creative Cloud All Apps, Individual.The redemption duration from September 15, 2021 to August 31, 2026.

Battery

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

4

Battery capacity

75 Wh

Power

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output current

3.25 A

AC adapter output voltage

20 V

USB Type-C charging port

Ja

USB Type-C required charging power (min)

45 W

USB Type-C required charging power (max)

65 W

USB Power Delivery (USB PD)

Ja

Security

Windows Hello

Ja

Trusted Platform Module (TPM)

Ja

Certificates

Compliance certificates

REACH

Sustainability

Sustainability certificates

EPEAT Gold, ENERGY STAR

Weight & dimensions

Weight

1280 g

Width

312.4 mm

Depth

220.1 mm

Height

14.9 mm

Packaging content

AC adapter included

Ja
