ASUS ROG STRIX X670E-F GAMING WIFI

Produkt

Tillverkare

ASUS

Produktnamn

ROG STRIX X670E-F GAMING WIFI

Tillverkarens länk

https://rog.asus.com/motherboards/rog-strix/rog-strix-x670e-f..

Produktkoder

Tillverkarens produktkoder

• 90MB1BA0-M0EAY0

GTIN- / EAN-koder

• 4711081891147

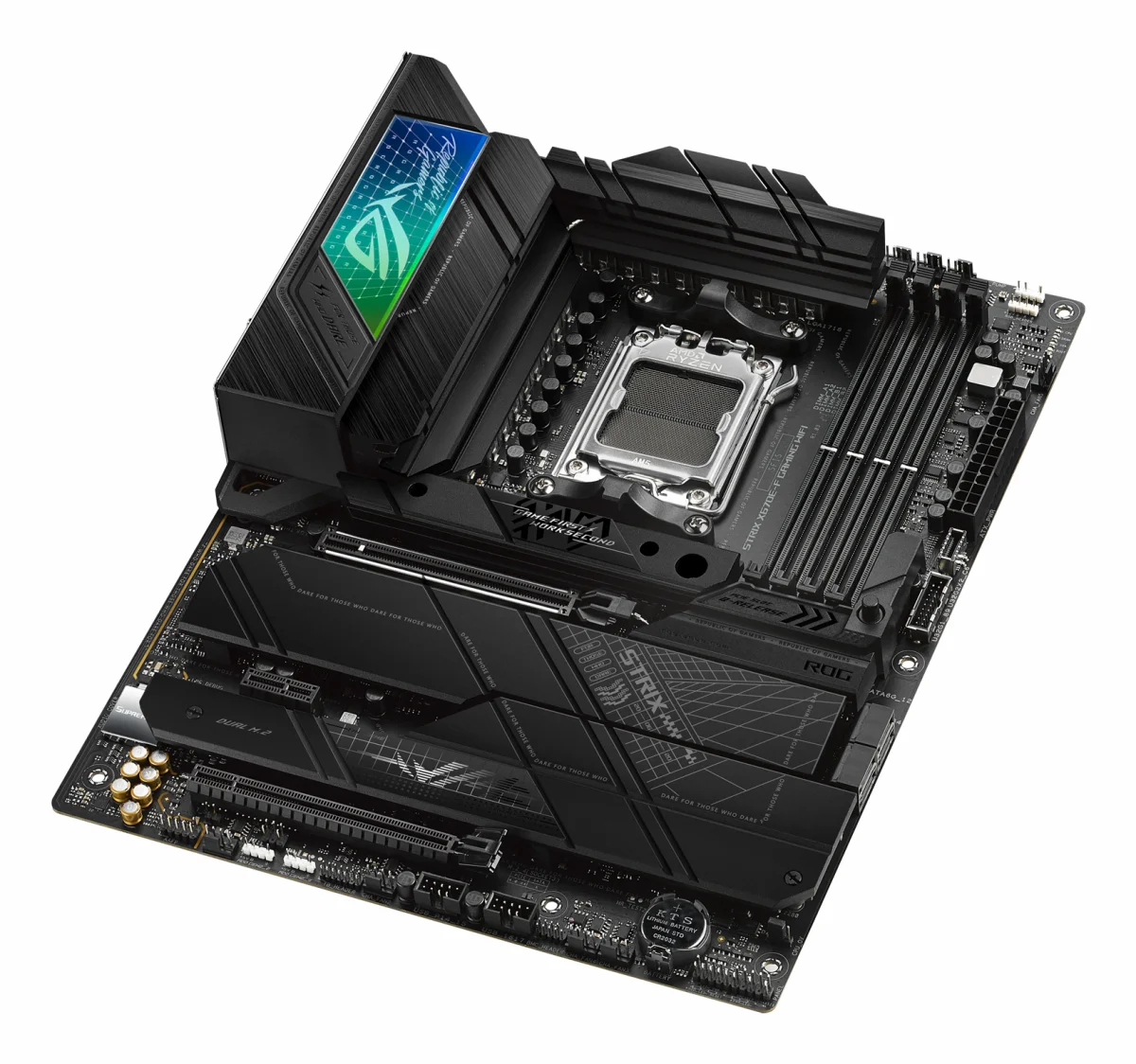

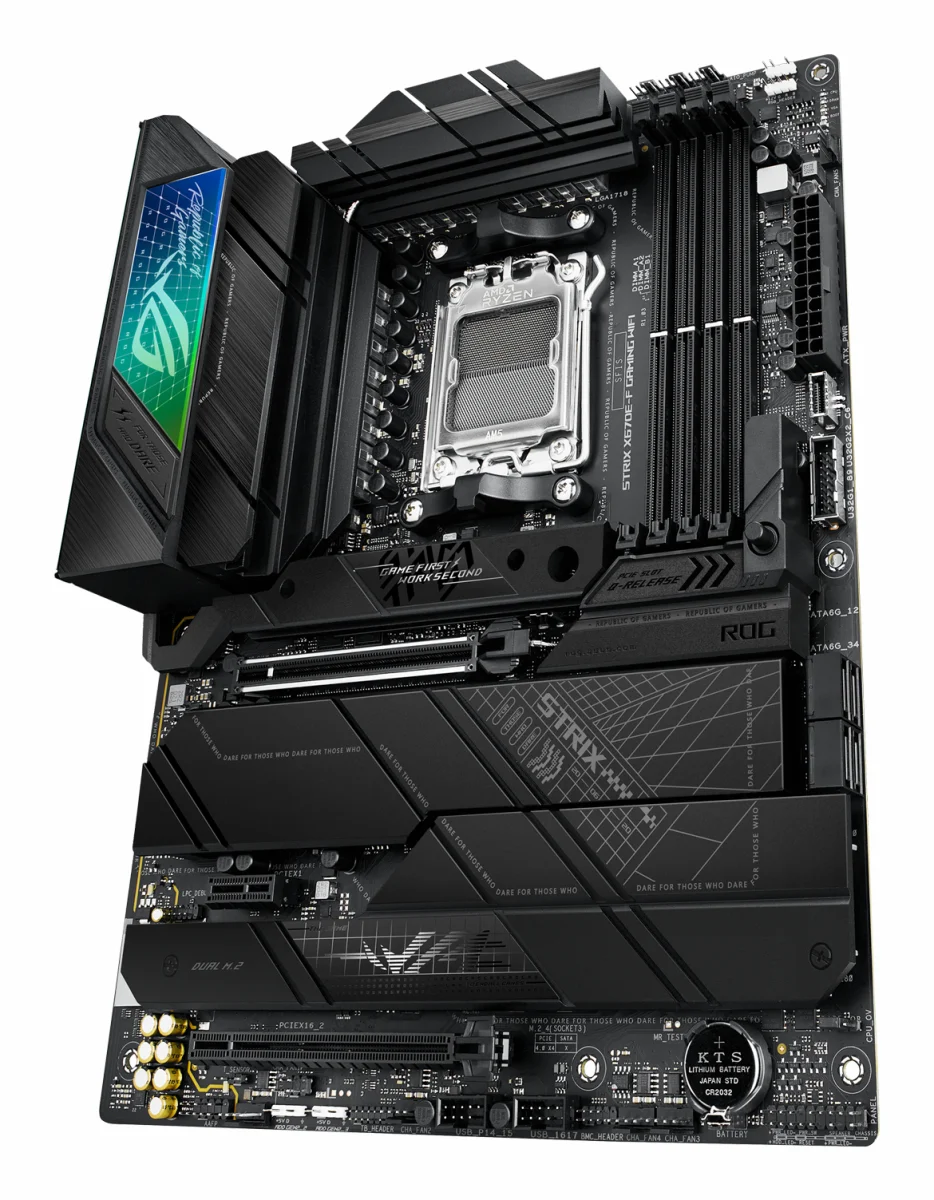

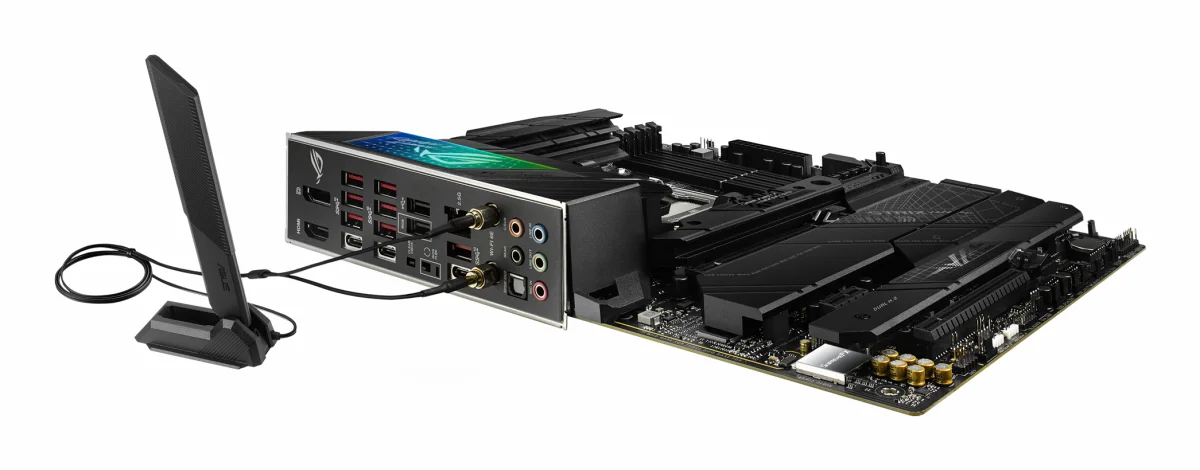

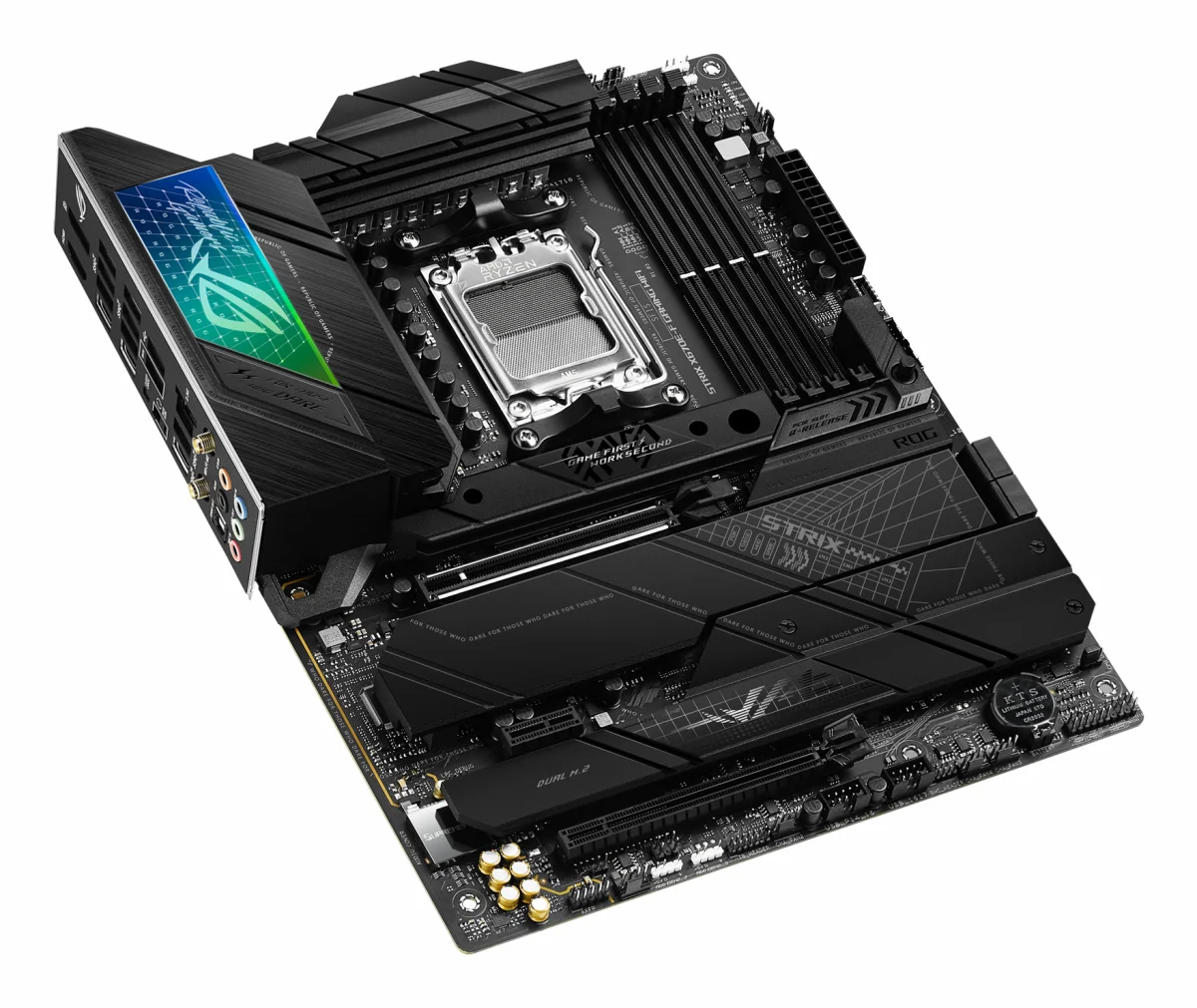

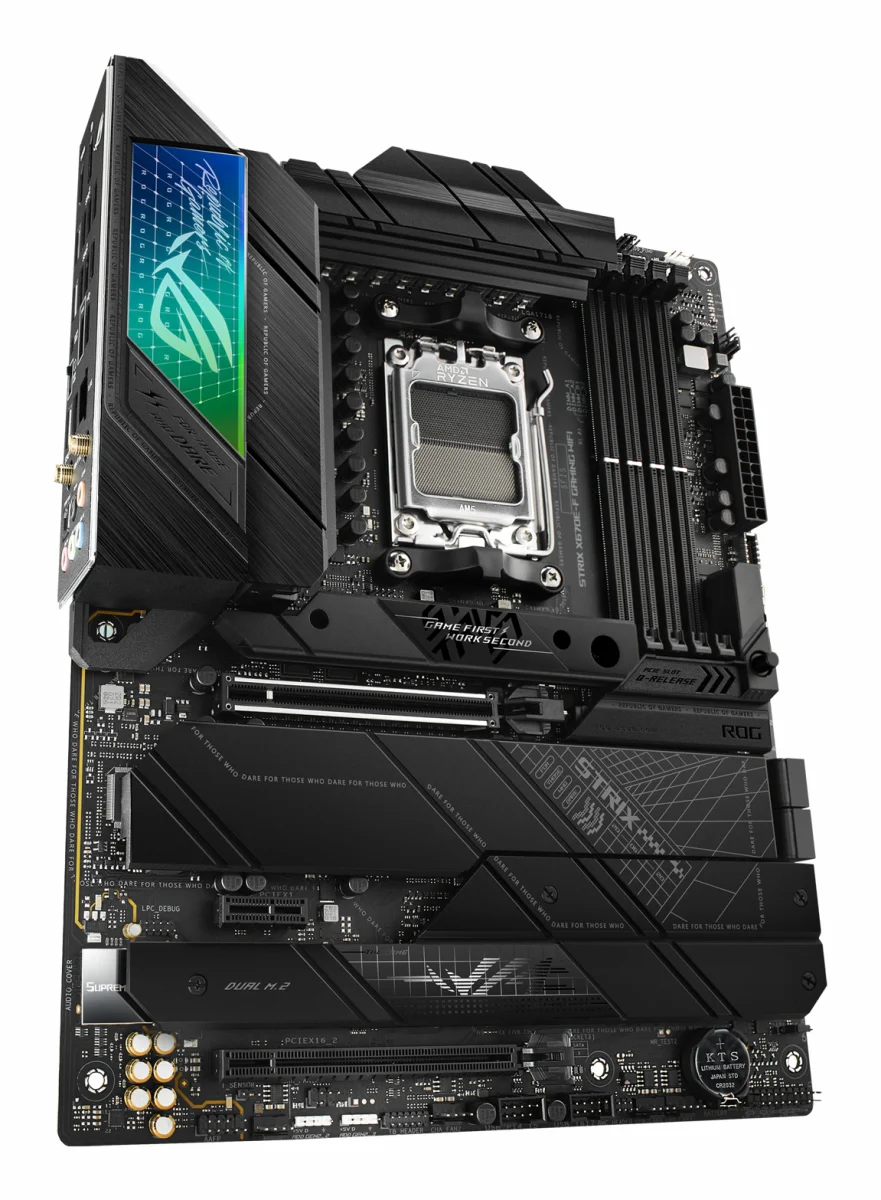

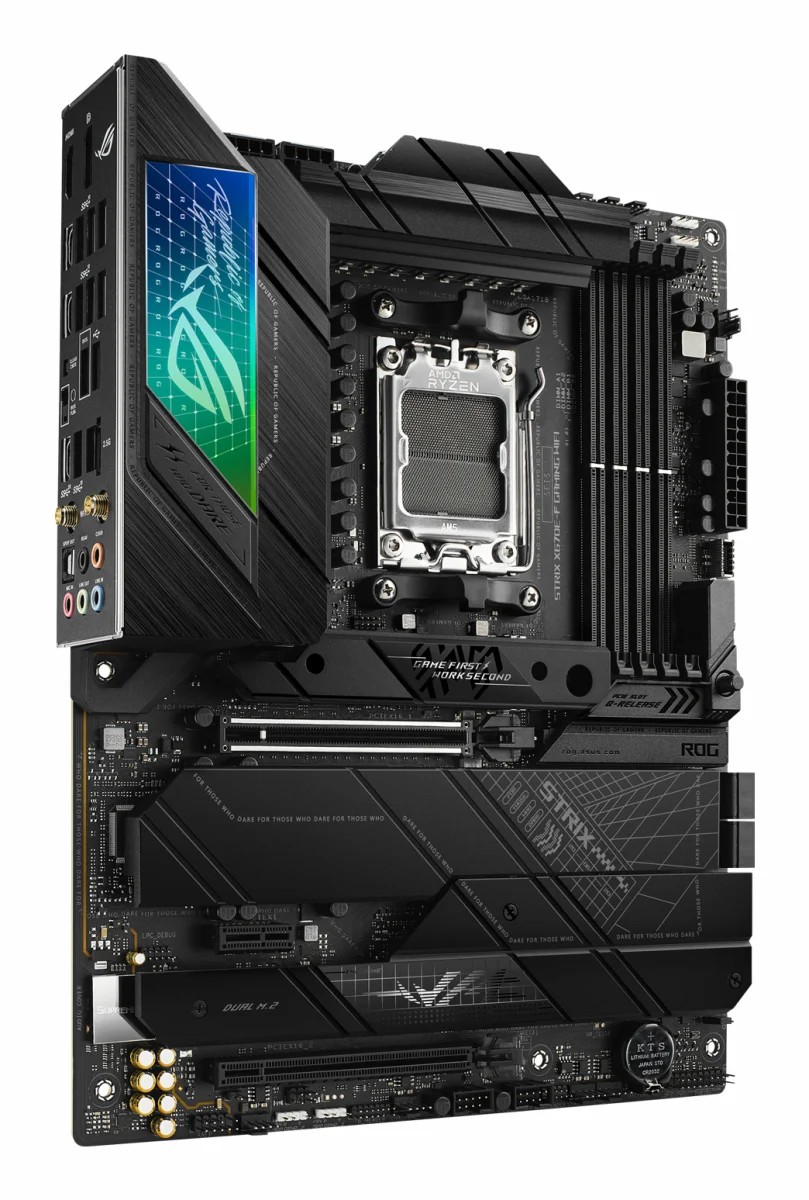

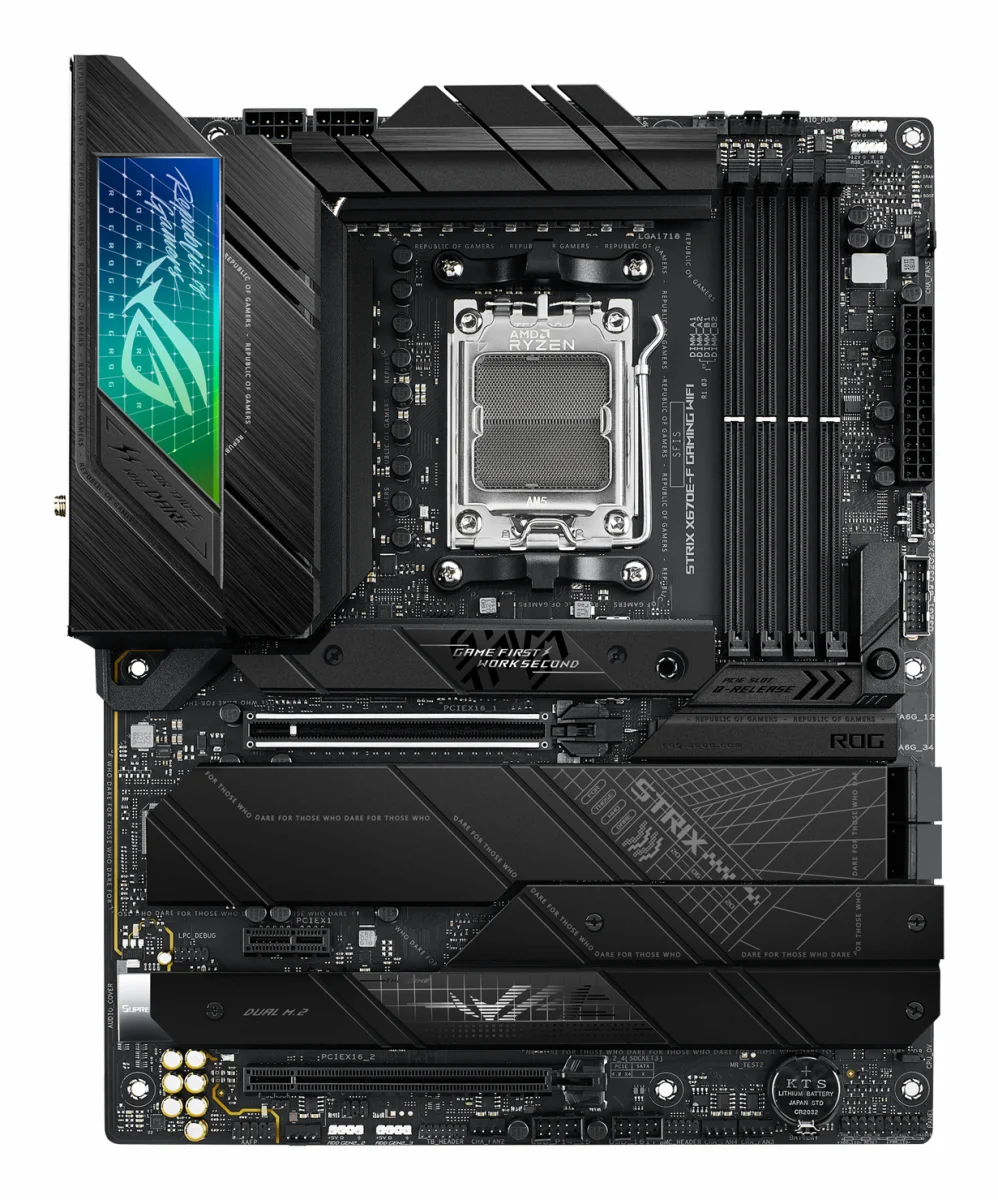

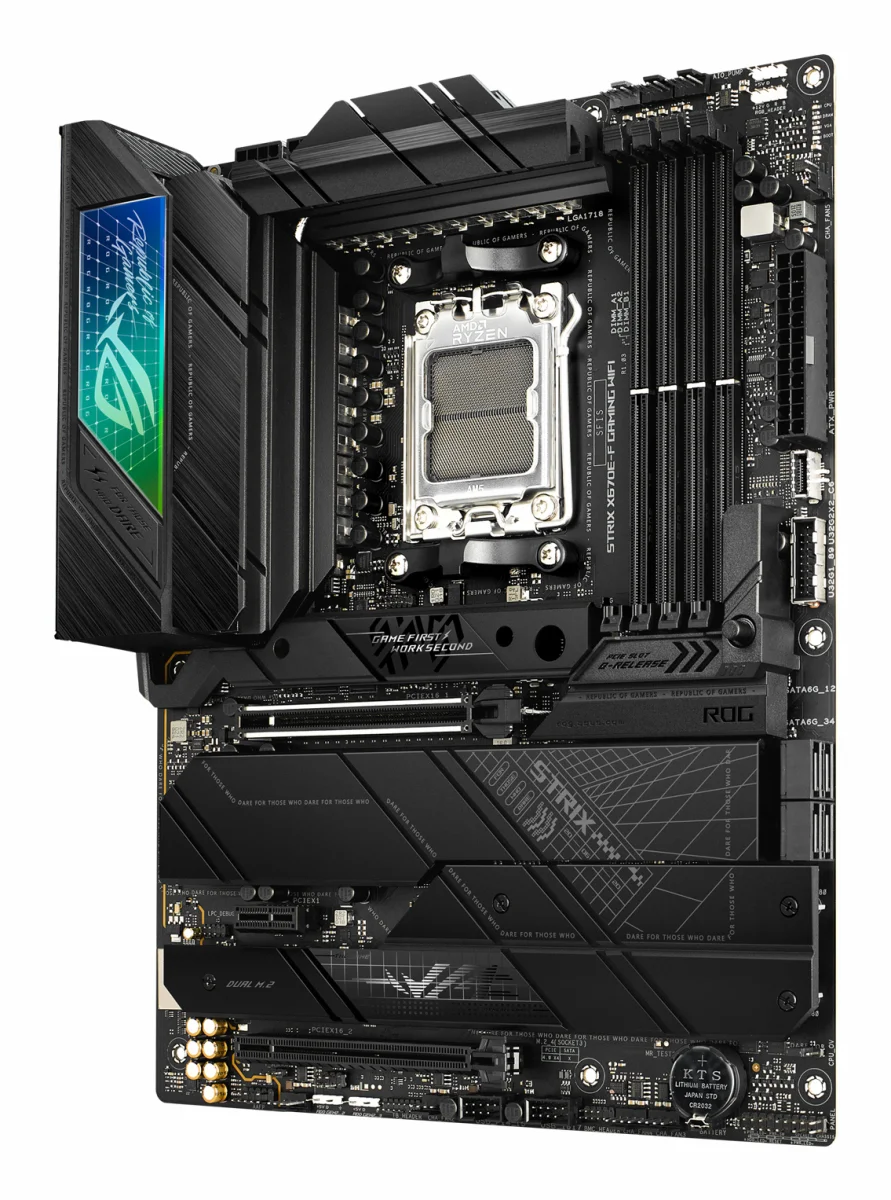

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Ja

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of chassis fan connectors

5

Thunderbolt headers

1

12V power connector

Ja

RGB LED pin header

Ja

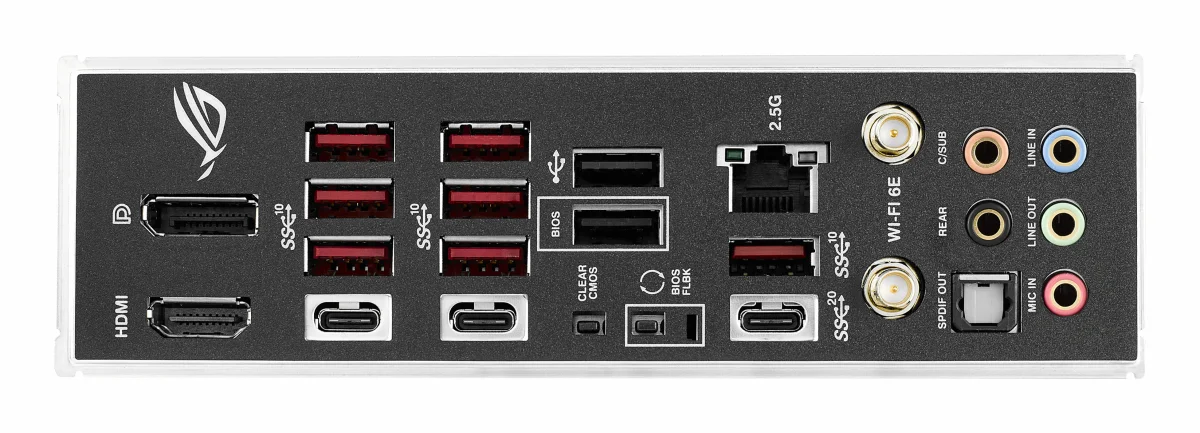

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line-in

Ja

Microphone in

Ja

S/PDIF out port

Ja

Digital audio optical out

1

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

Bluetooth

Ja

Bluetooth version

5.2

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Audio chip

Realtek ALC4080

Audio output channels

7.1 channels

Cooling type

Active

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Ja

Packaging data

Package width

338 mm

Package depth

273 mm

Package height

680 mm

Package weight

2550 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Packaging content

Cables included

SATA
