Seasonic CORE GC-650 ATX 3.1

Produkt

Tillverkare

Seasonic

Produktnamn

CORE GC-650 ATX 3.1

Tillverkarens länk

https://seasonic.com/core-gc-atx-3-1/

Produktkoder

Tillverkarens produktkoder

• SRP-CGC651-A5A32SF

GTIN- / EAN-koder

• 4711173879091

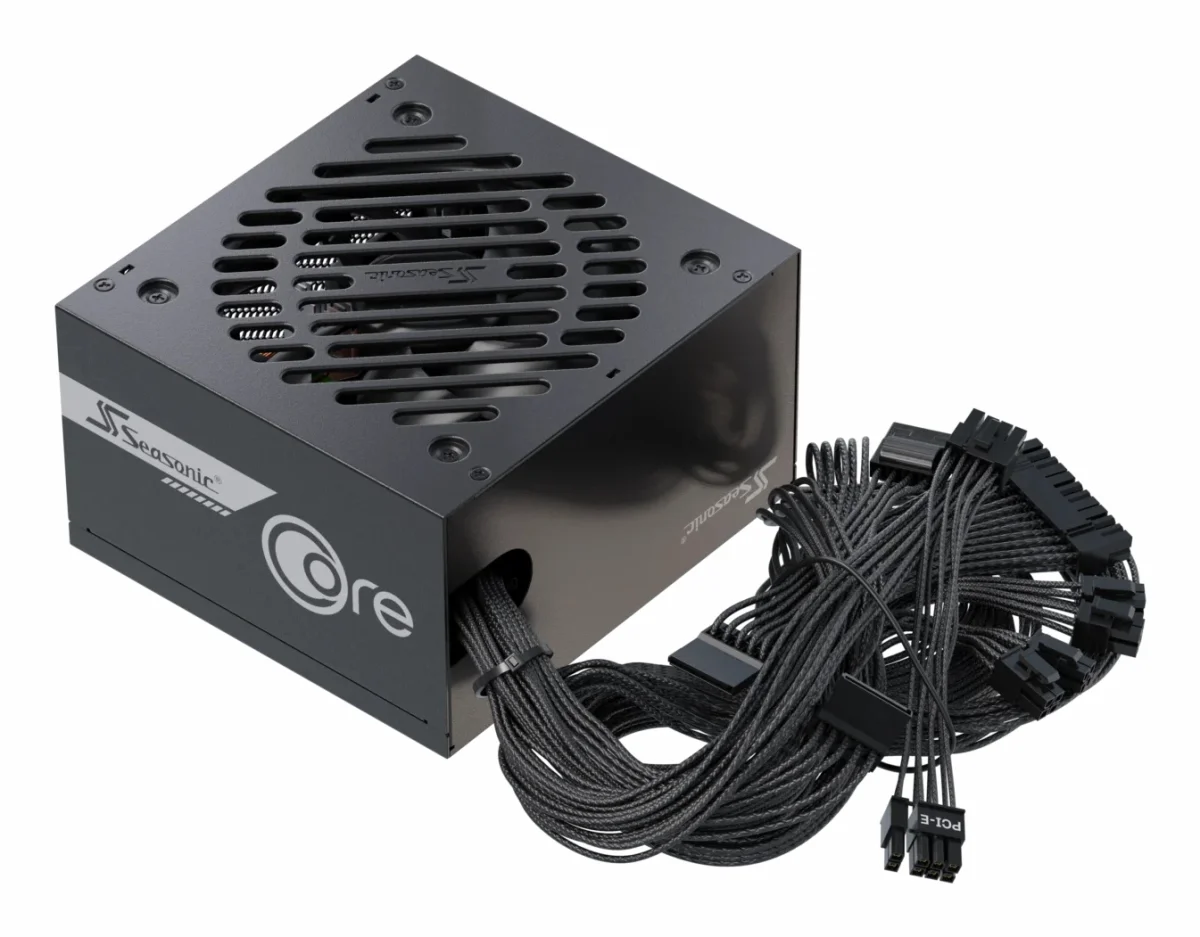

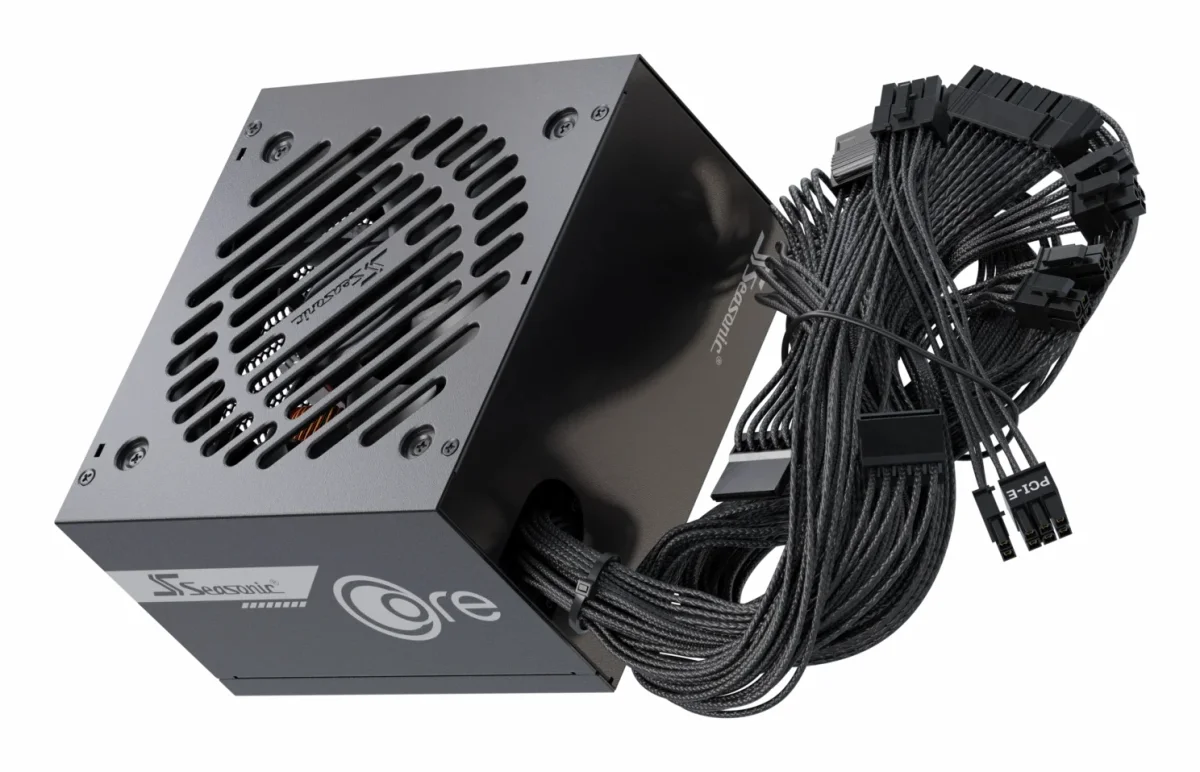

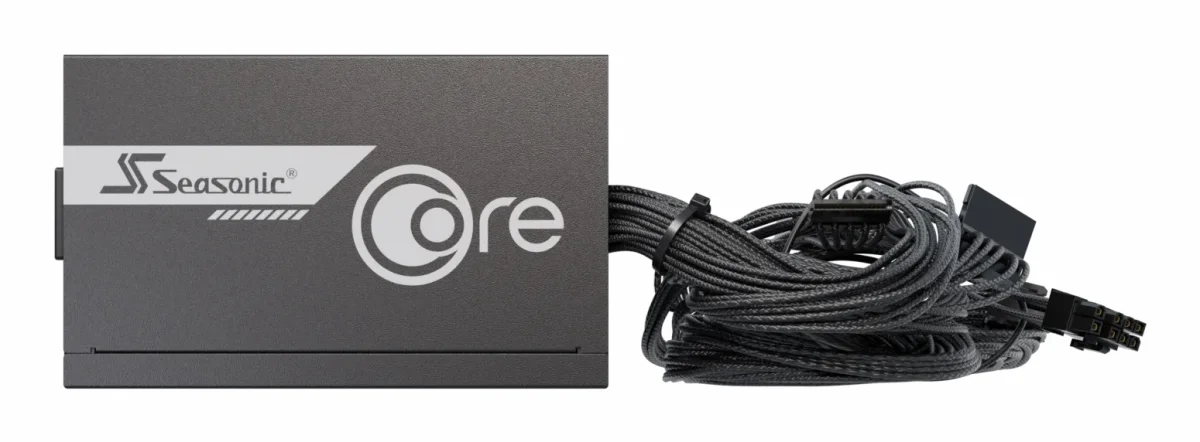

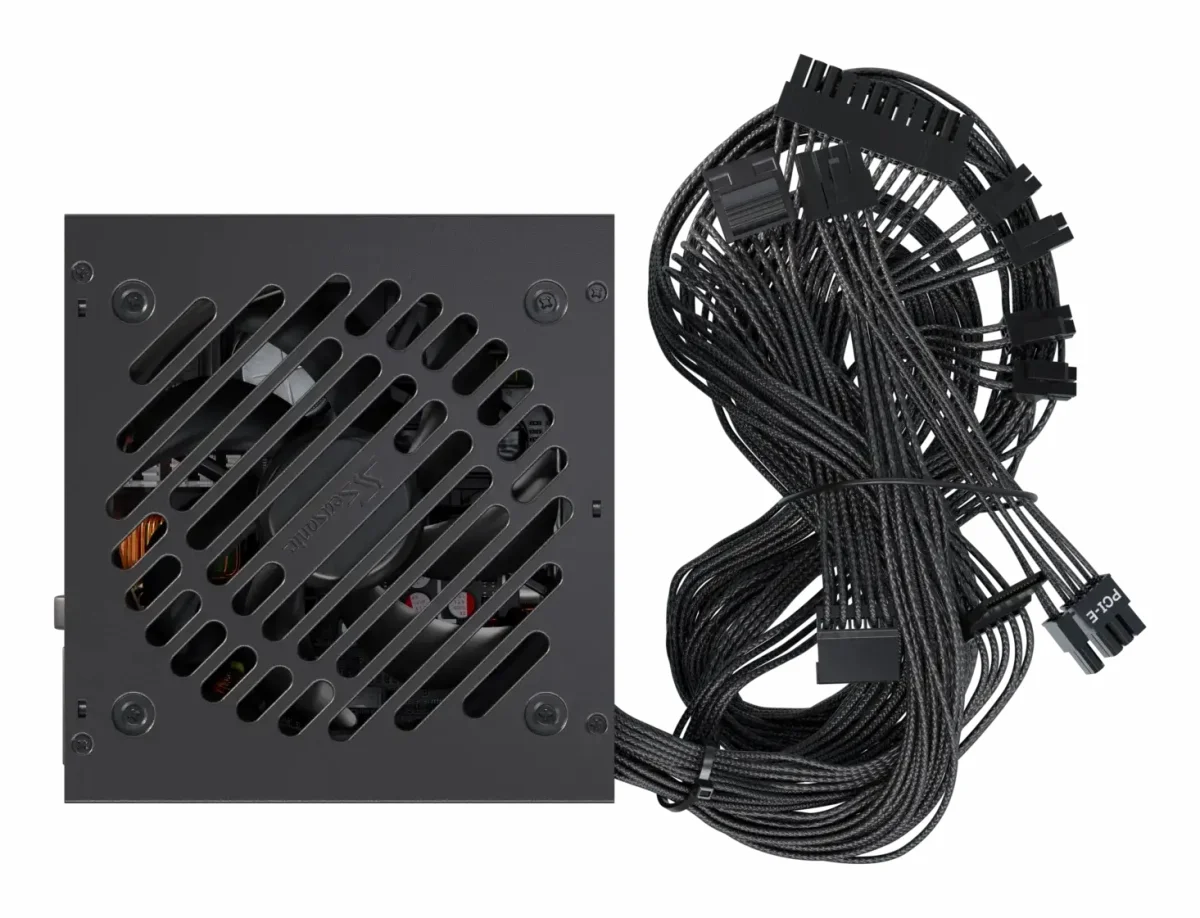

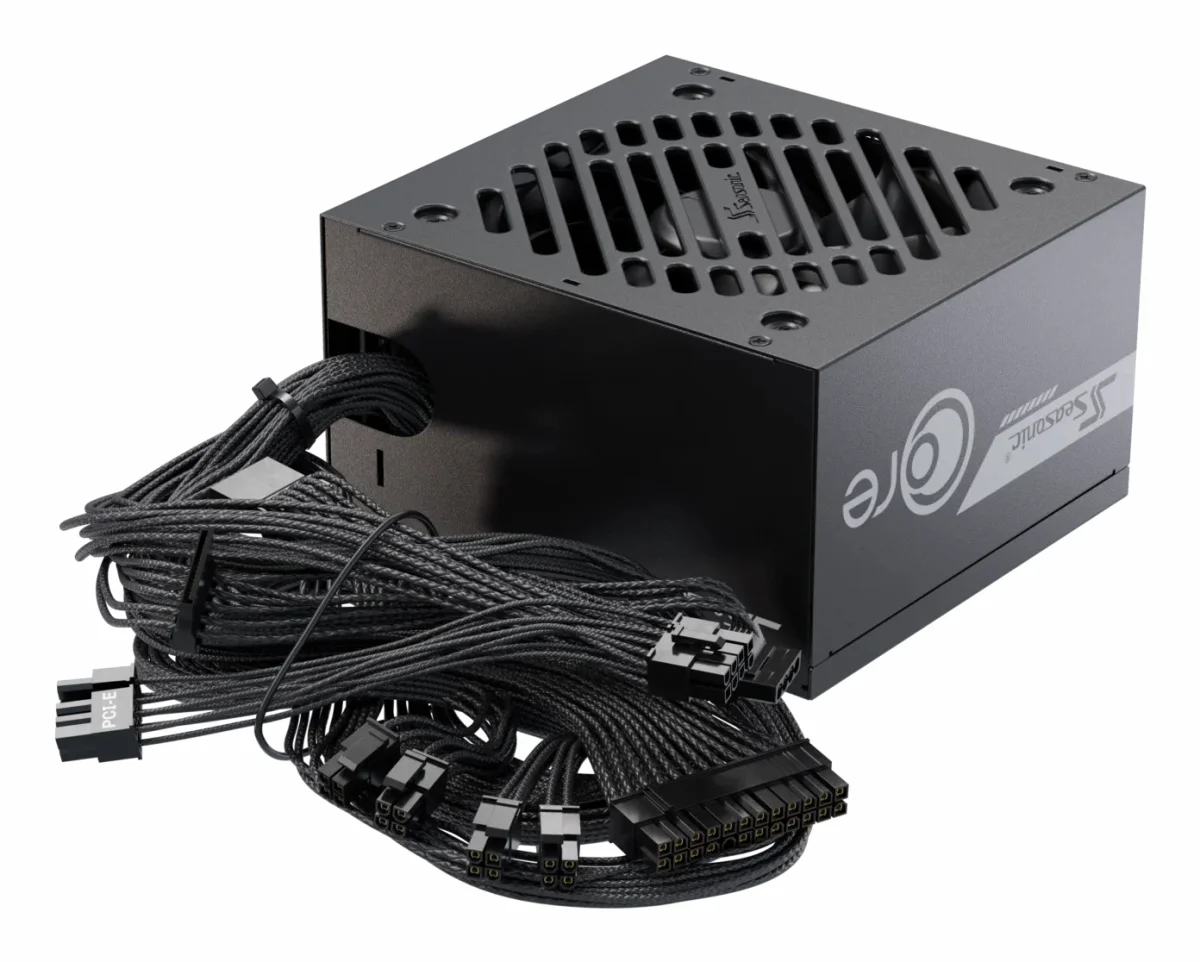

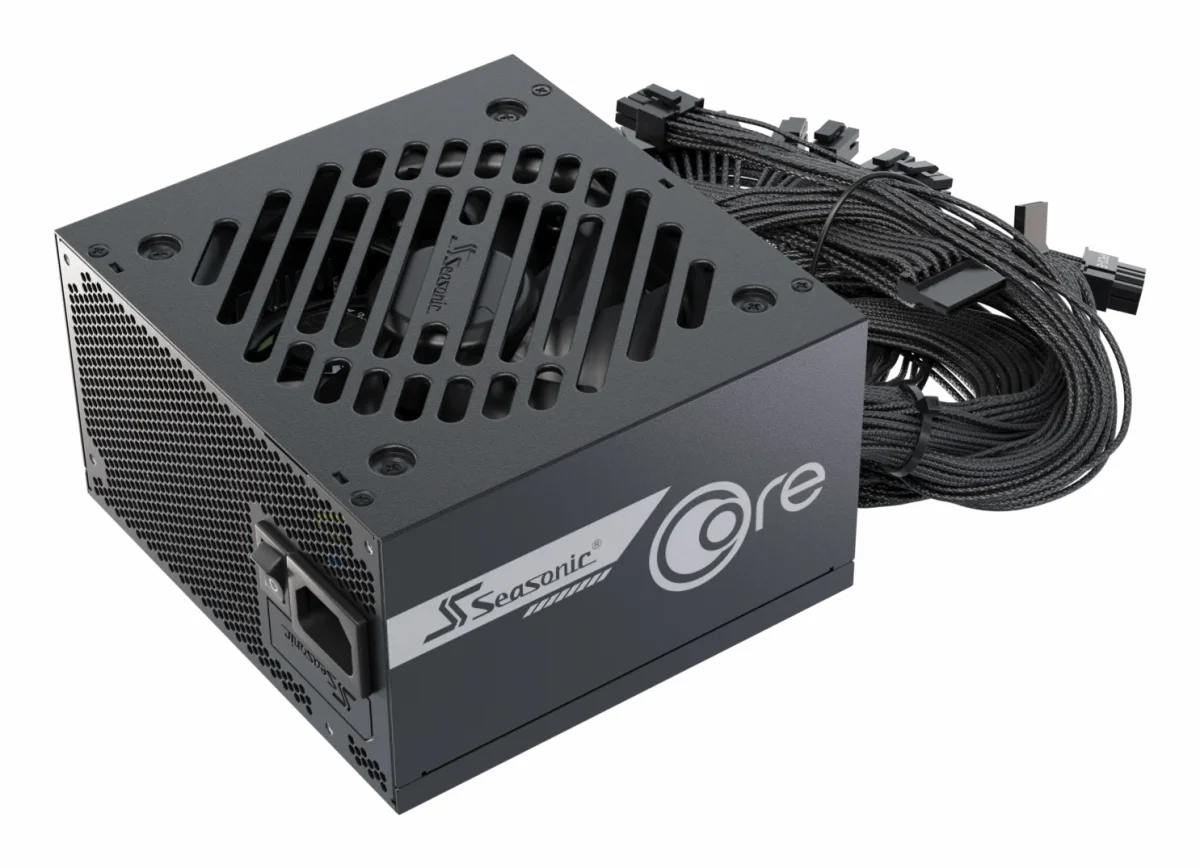

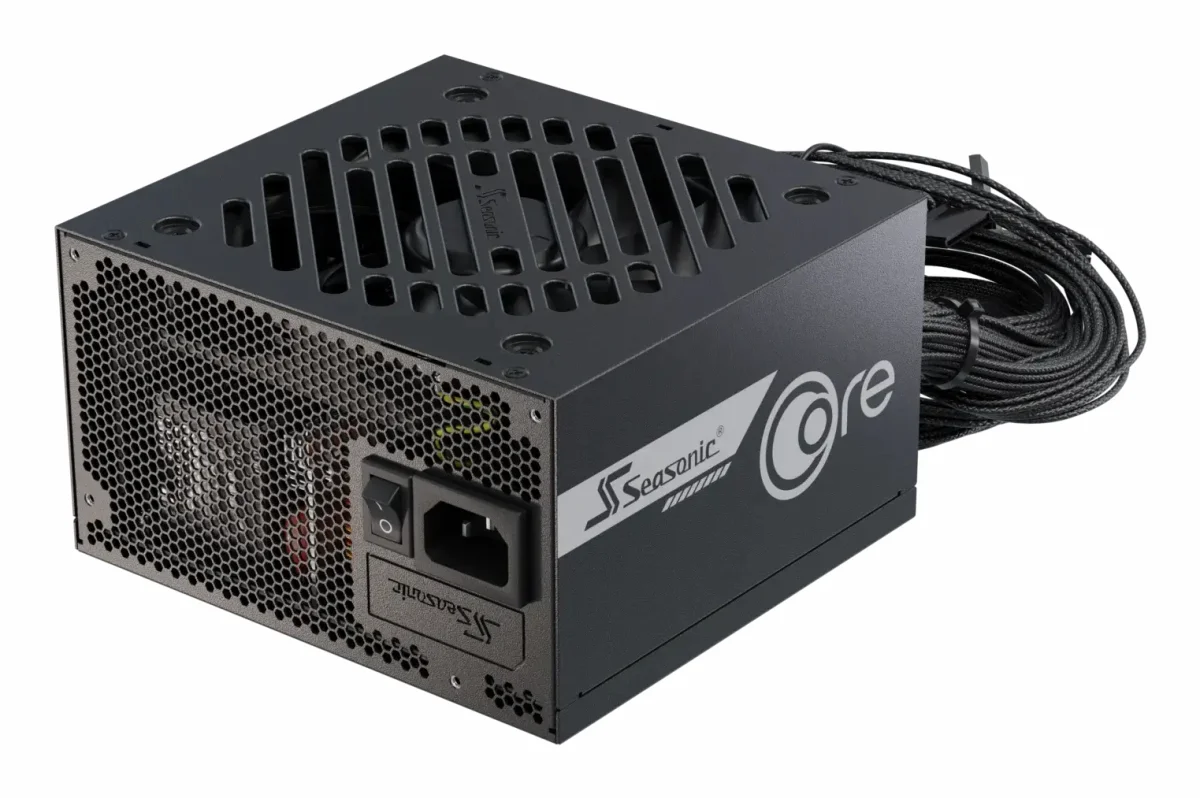

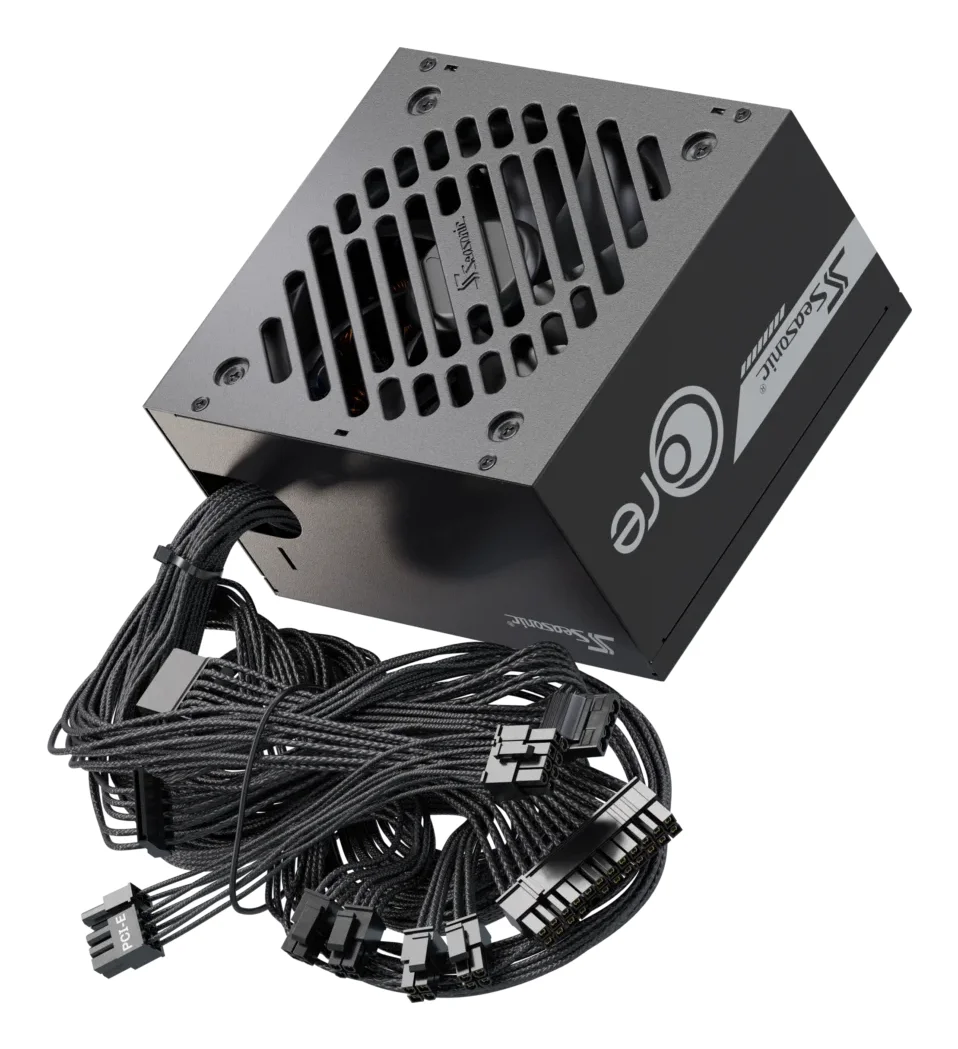

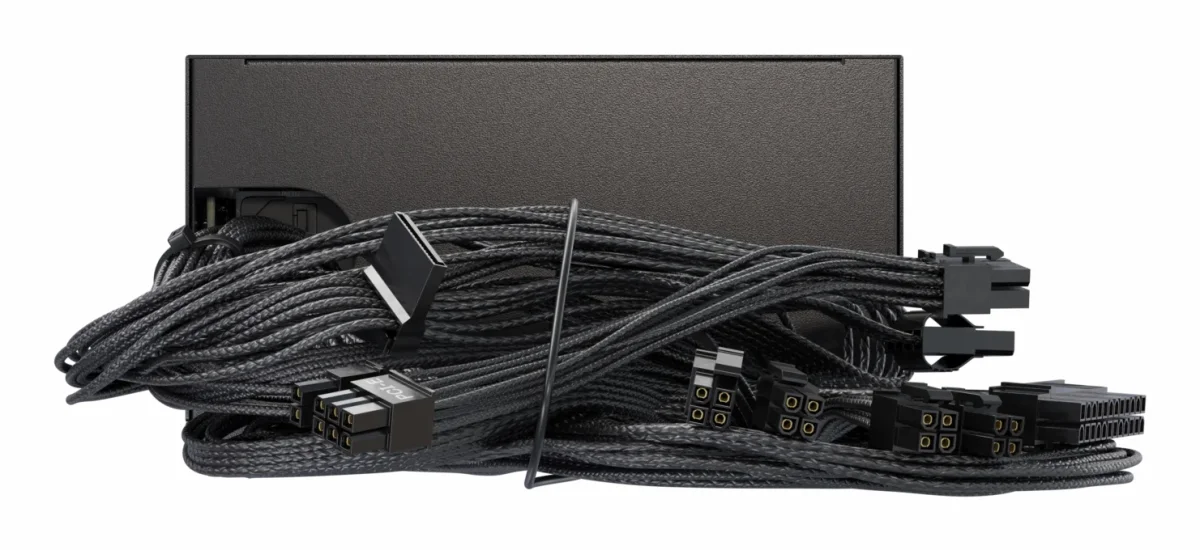

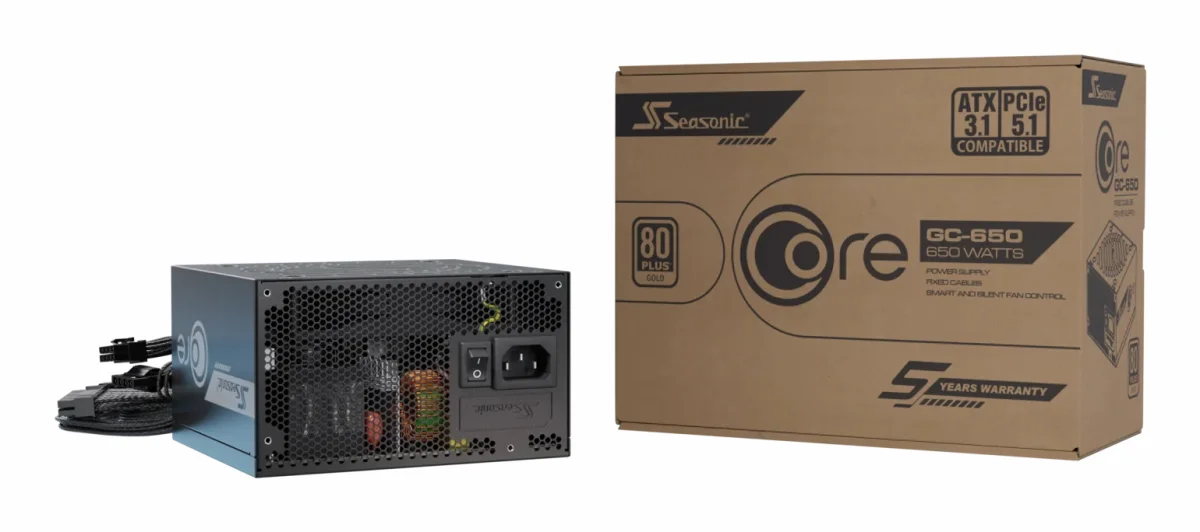

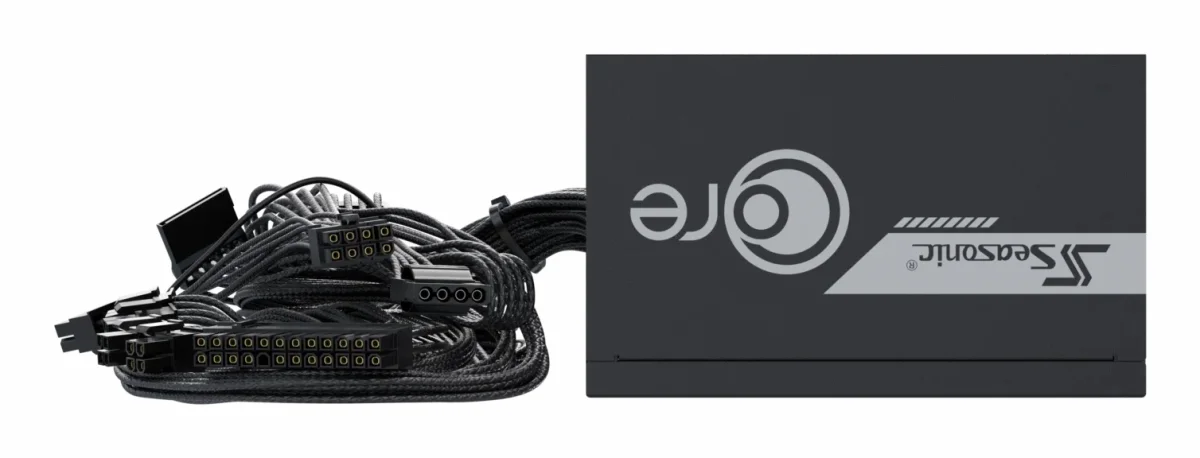

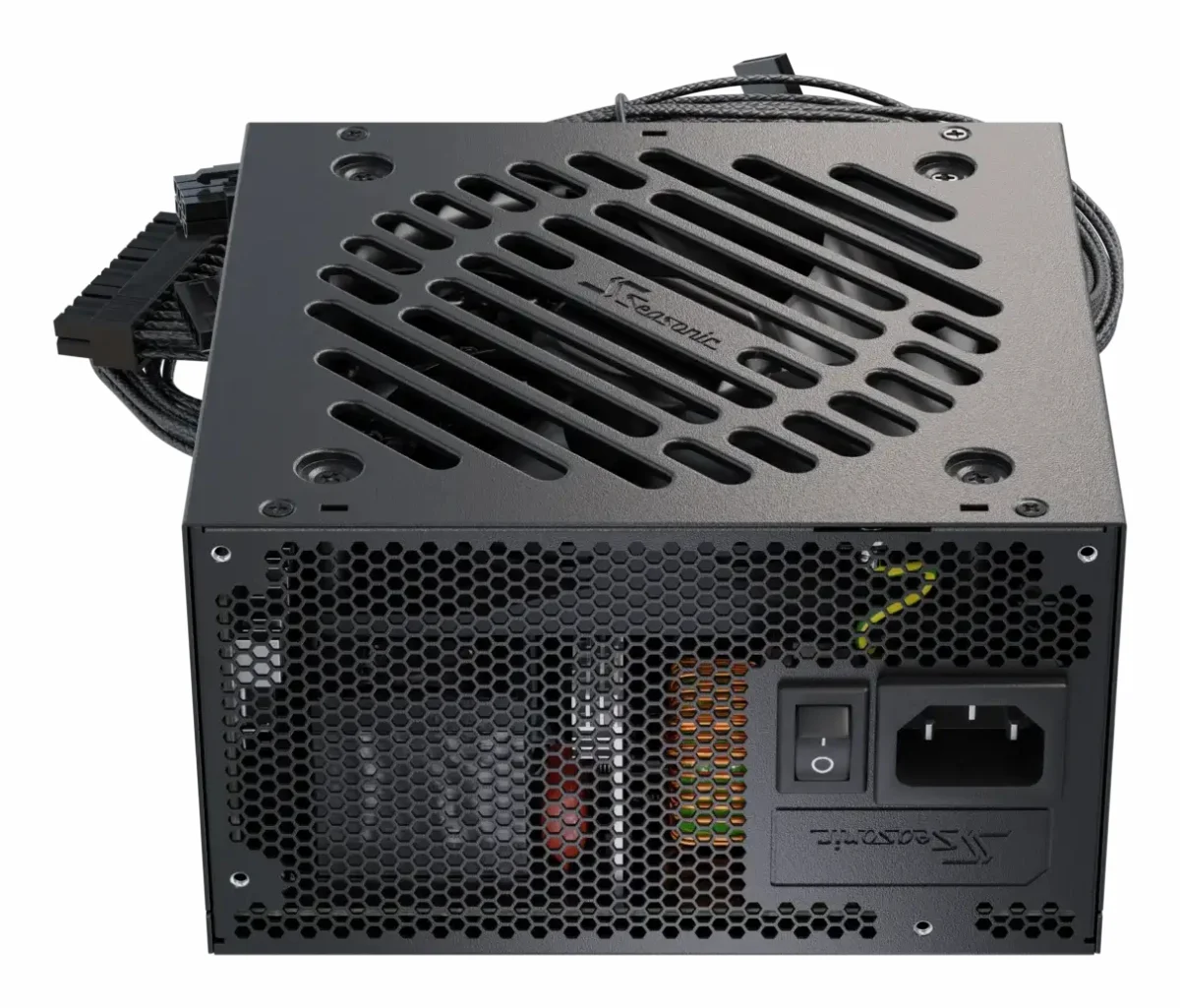

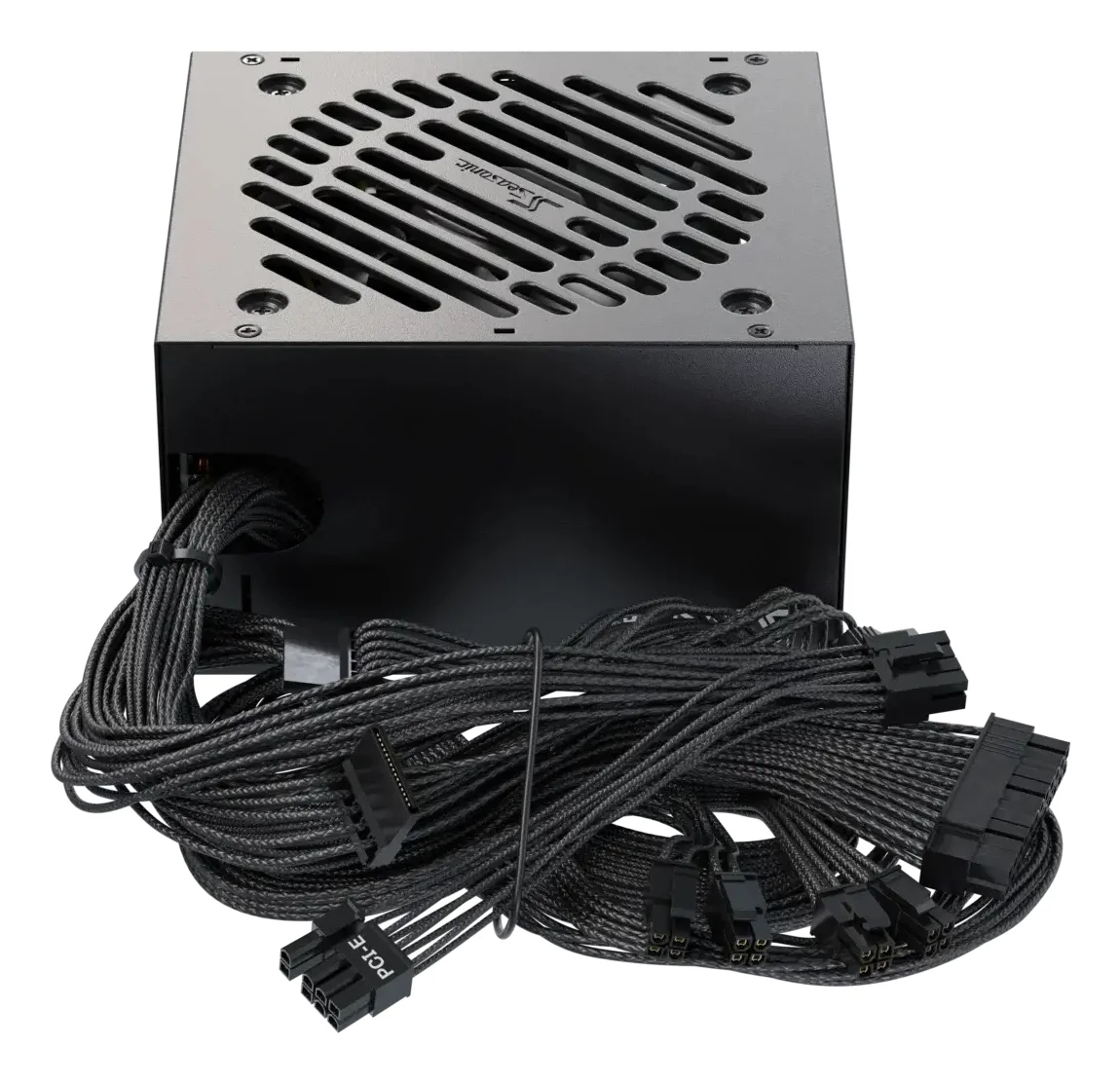

Produktbilder

Power

Total power

650 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

9 - 4.5 A

Combined power (+3.3V)

100 W

Combined power (+12V)

648 W

Combined power (+5V)

100 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+12V)

54 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Power protection features

Over current, Over power, Under voltage, Over voltage, Short circuit, Overheating

Ports & interfaces

Motherboard power connector

24-pin ATX

Motherboard power cable length

550 mm

Number of SATA power connectors

2

SATA power cable length

600 mm

Peripheral (Molex) power connectors (4-pin)

1

Peripheral (Molex) power cable length

600 mm

PCI Express power connectors (8-pin)

2

PCI Express power cable length

550 mm

CPU power connector (4+4 pin)

Ja

CPU power cable length

600 mm

ATX power connector (20+4 pin)

Ja

Cabling type

Non-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Bearing technology

Ball bearing

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

On/off switch

Ja

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

15 - 65 %

Certificates

Compliance certificates

RoHS, REACH, WEEE, CE, CB, CCC, cTUVus, BSMI, EAC, UKCA

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

86 mm

Packaging data

Package type

Box

Technical details

Sustainability certificates

ENERGY STAR, ErP
