Funktioner
- Strömförsörjningsenhet formfaktor
- ATX
- Total effekt
- 1300 W
- 80 plus-certifiering
- 80 PLUS Platinum
Recensioner
Recensera produktLägsta pris på 30 dagar
2 999 kr
-16,67 %
Priset är nu 500 kr lägre.
PrishistorikInformation
Produkt
- Tillverkare
- Cooler Master
- Produktnamn
- V Platinum 1300 V2
- Tillverkarens länk
- https://www.coolermaster.com/en-global/products/v-platinum-130..
Produktkoder
- Tillverkarens produktkoder
- MPZ-D002-AFAP-BEU
- GTIN- / EAN-koder
- 4719512140819

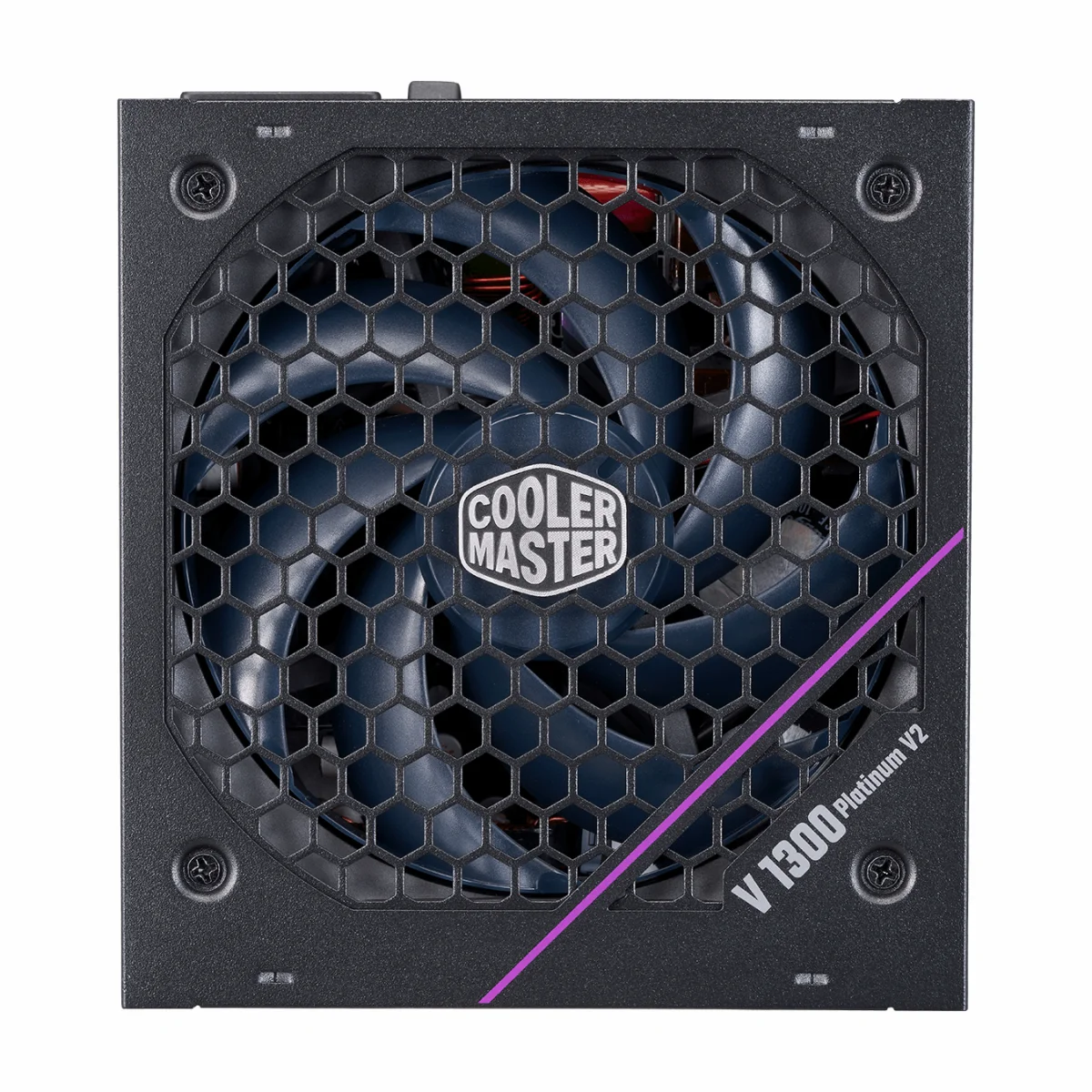

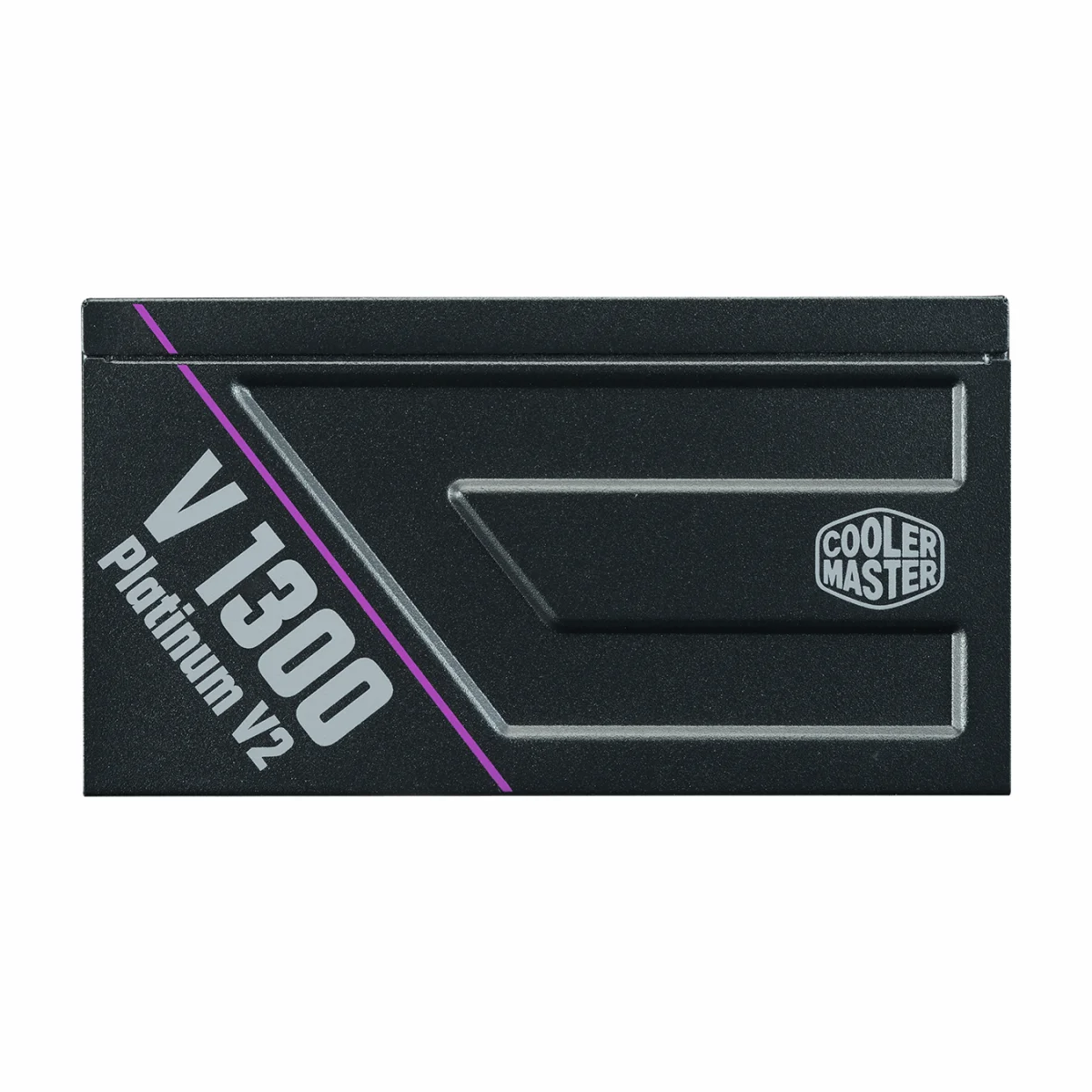

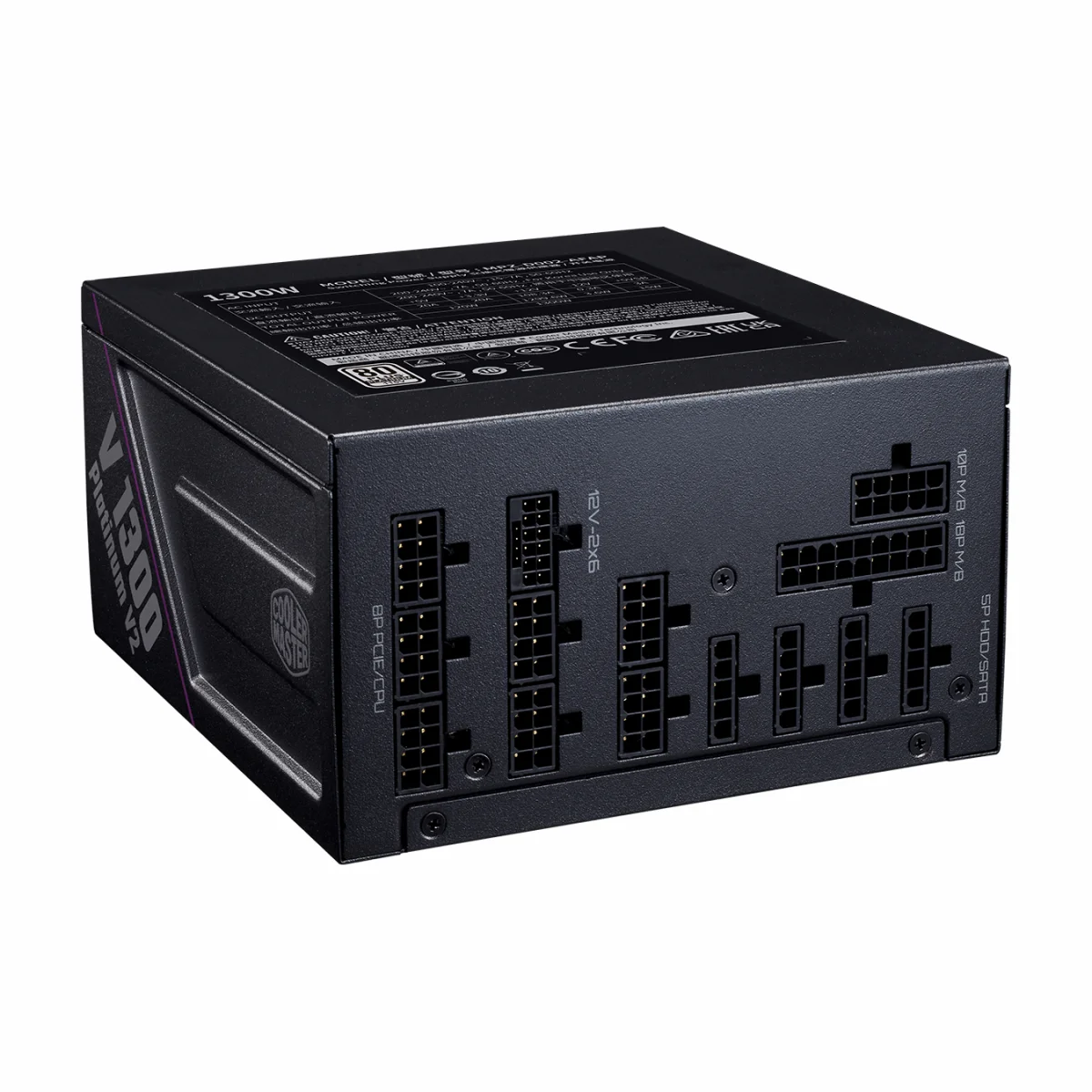

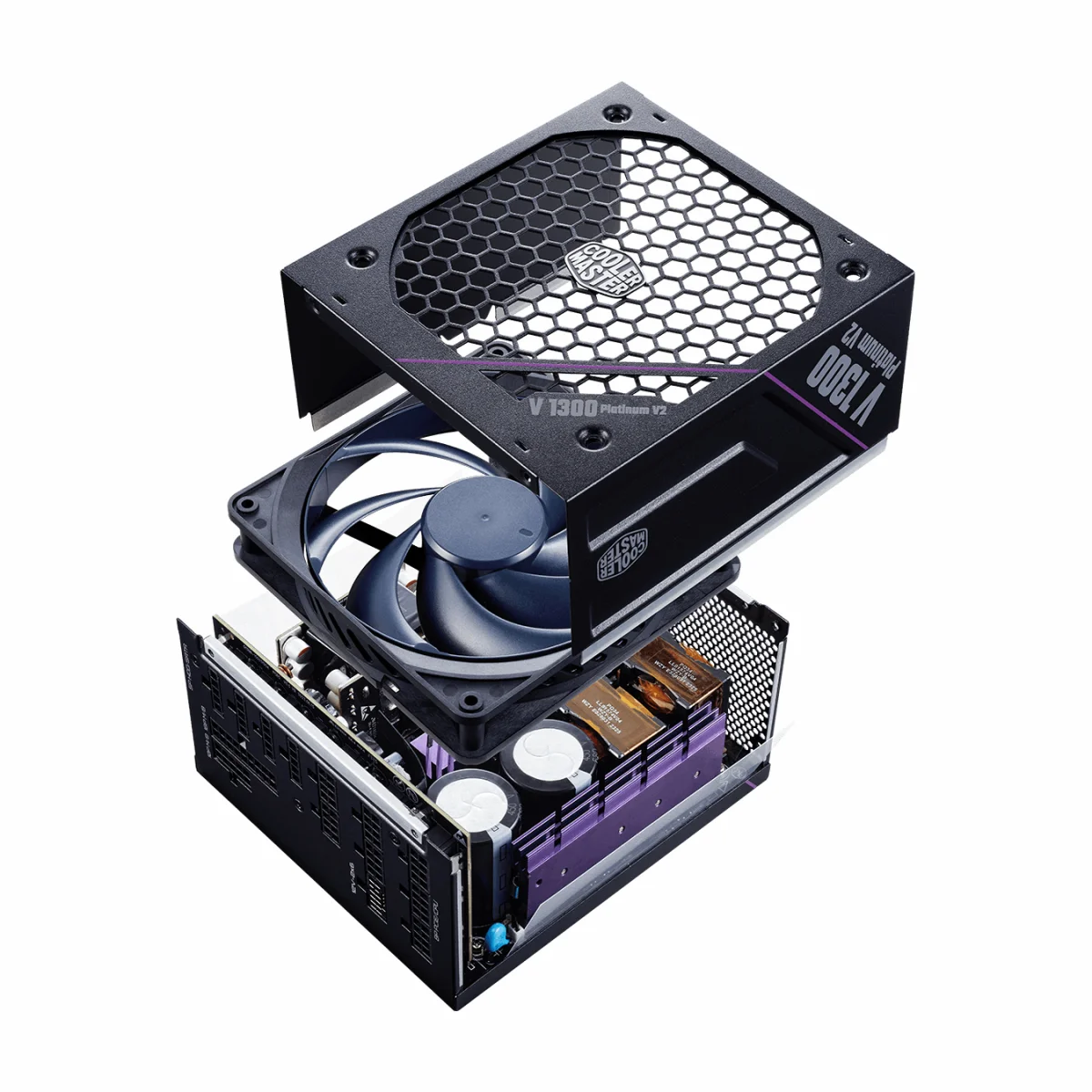

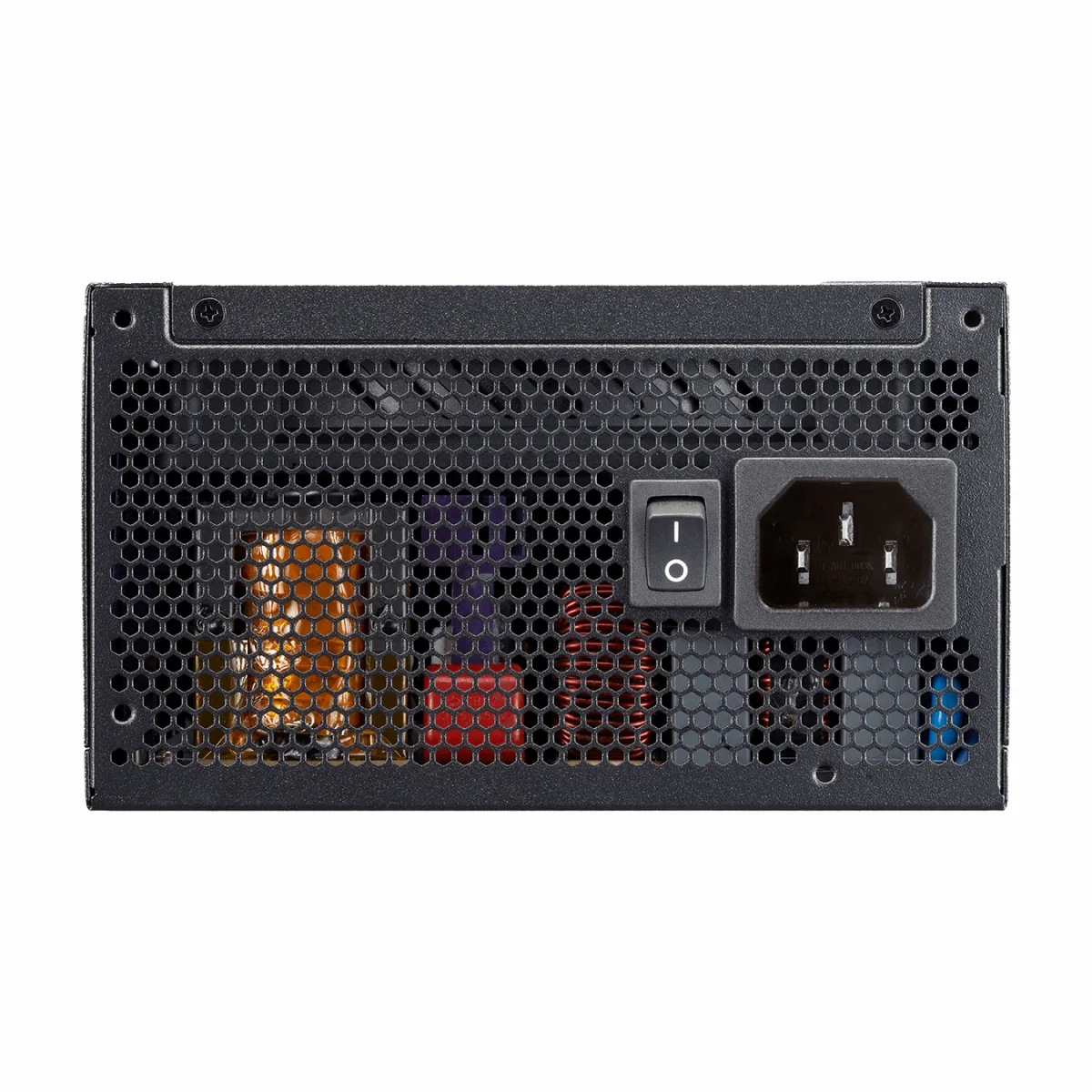

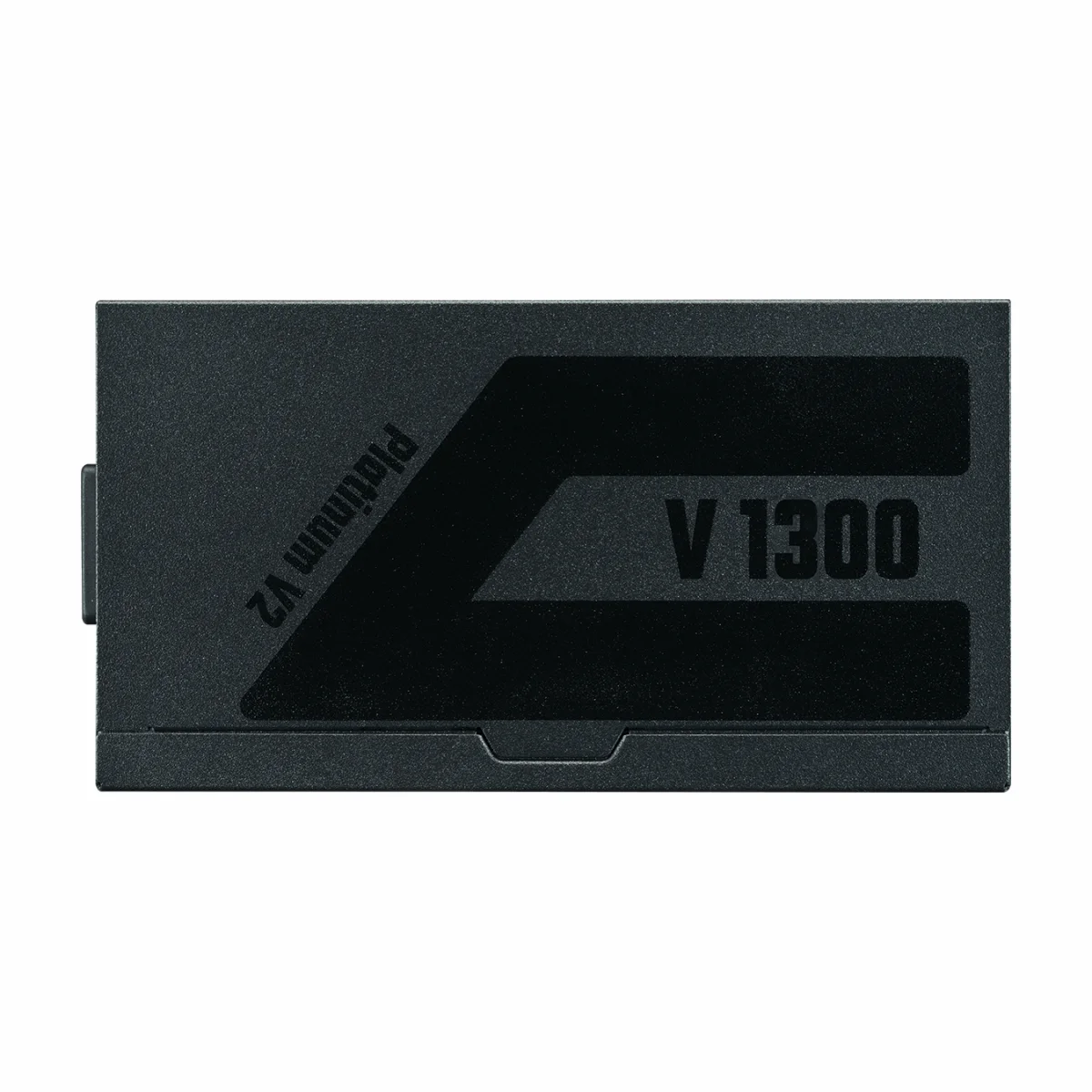

Produktbilder
Power
- Total power
- 1300 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 7 - 15 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 120 W
- Combined power (+12V)
- 1299.6 W
- Combined power (+5V)
- 120 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 108.3 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Hold time
- 16 ms
- Efficiency
- 92 %
- Power Good signal delay range
- 100 - 150 ms
- Power protection features
- Over power, Over voltage, Overheating, Over current, Short circuit, Under voltage, Surge & inrush protection (SIP)

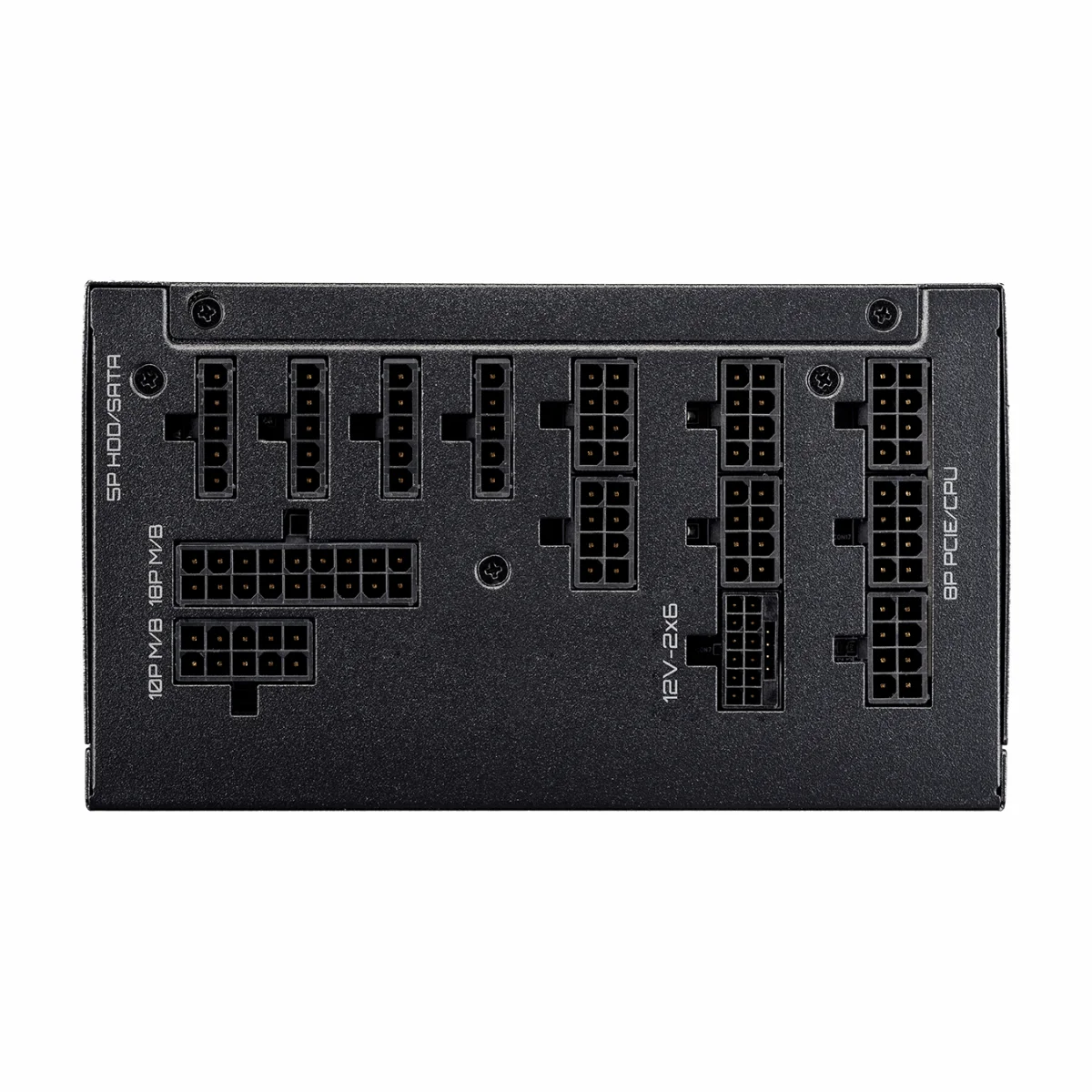

Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 650 mm
- Number of SATA power connectors
- 4
- SATA power cable length
- 500,620,740,860 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 500,620,740,860 mm
- EPS power connector (8-pin)
- Ja
- EPS power connector (4+4 pin)
- Ja
- PCI Express power connectors (6+2 pin)
- 5

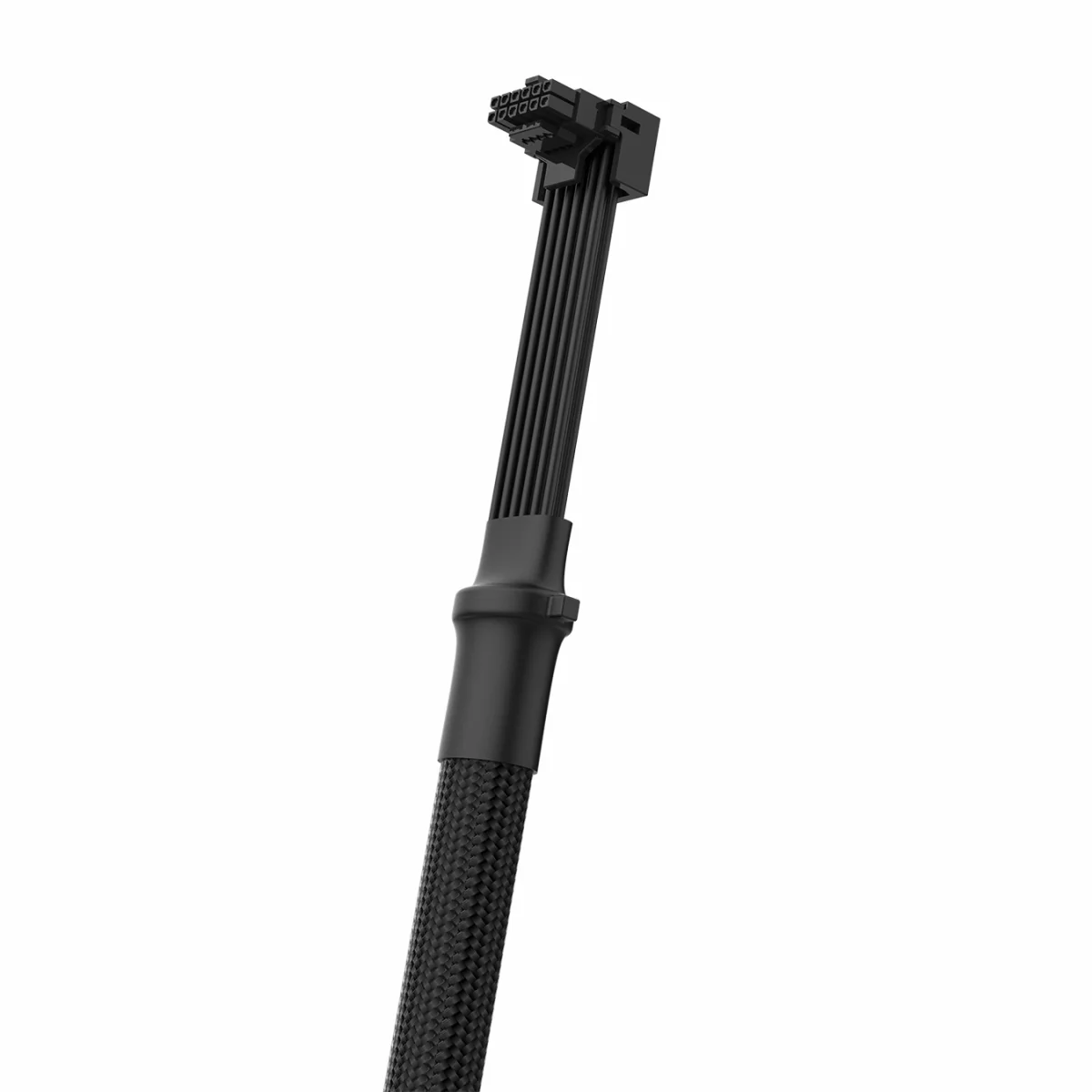

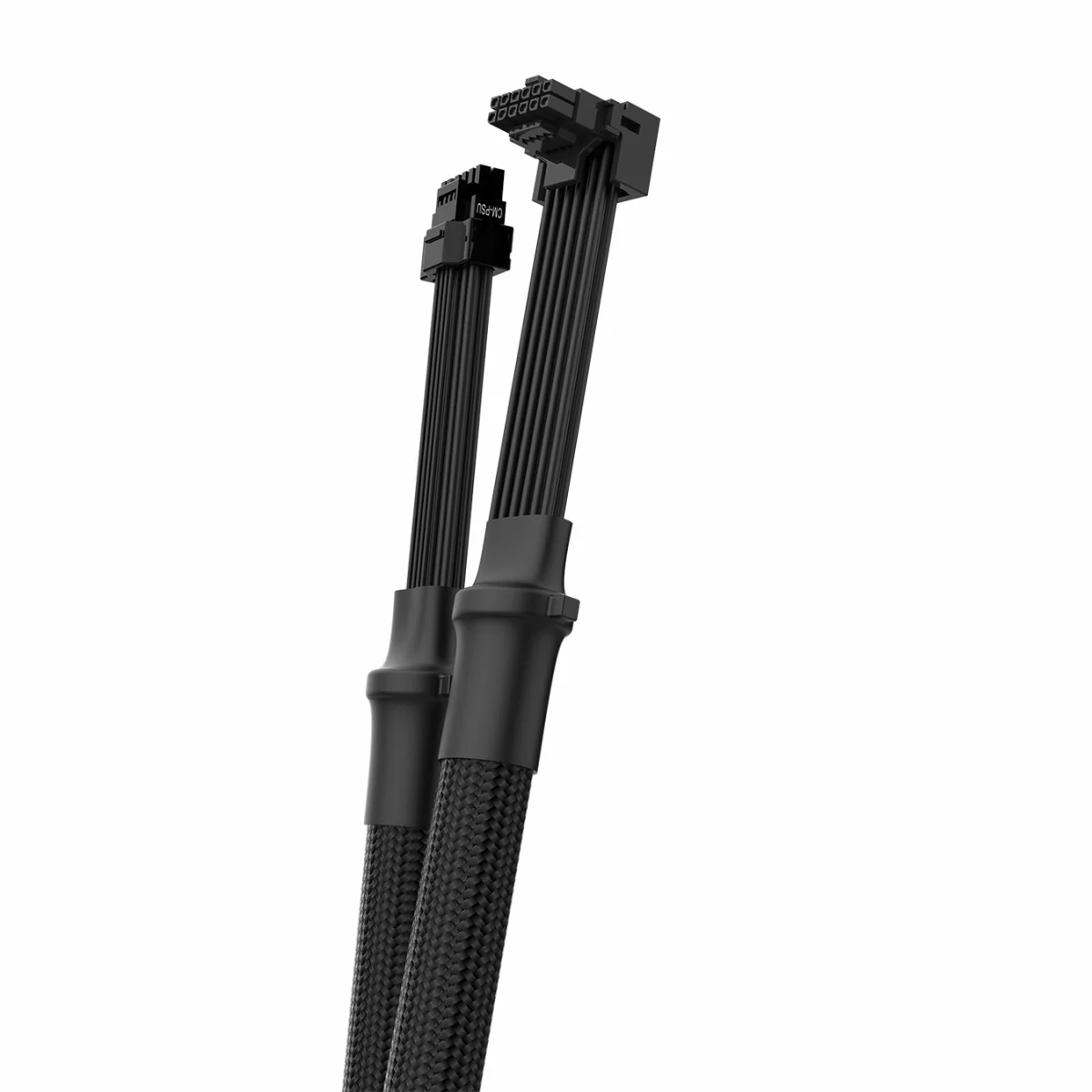

- PCI Express power connectors (12+4 pin)
- 1
- PCI Express power connectors (12+4 pin) cable length
- 650 mm
- PCI Express power cable length
- 550 mm
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Platinum
- ATX version
- 3.1
- Mean time between failures (MTBF)
- 100000 h
- Compatible products
- ErP 2014 Lot 3
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 135 mm
- Number of fans
- 1 fan(s)
- Fan speed
- 0 - 2400 RPM
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
Certificates
- Compliance certificates
- UKCA, cTUVus, RoHS, CE, Federal Communications Commission (FCC), BSMI, CCC, EAC, RCM, BIS, KC
Weight & dimensions
- Width
- 150 mm
- Depth
- 160 mm
- Height
- 86 mm
- Weight
- 3660 g
Packaging data
- Package width
- 195 mm
- Package depth
- 320 mm
- Package height
- 125 mm
- Package weight
- 4050 g
Logistics data
- Master (outer) cases per pallet
- 24 pc(s)
- Master (outer) case width
- 335 mm
- Master (outer) case length
- 520 mm
- Master (outer) case height
- 231 mm
- Products per master (outer) case
- 4 pc(s)
Other features
- EPS cable length
- 650 mm
