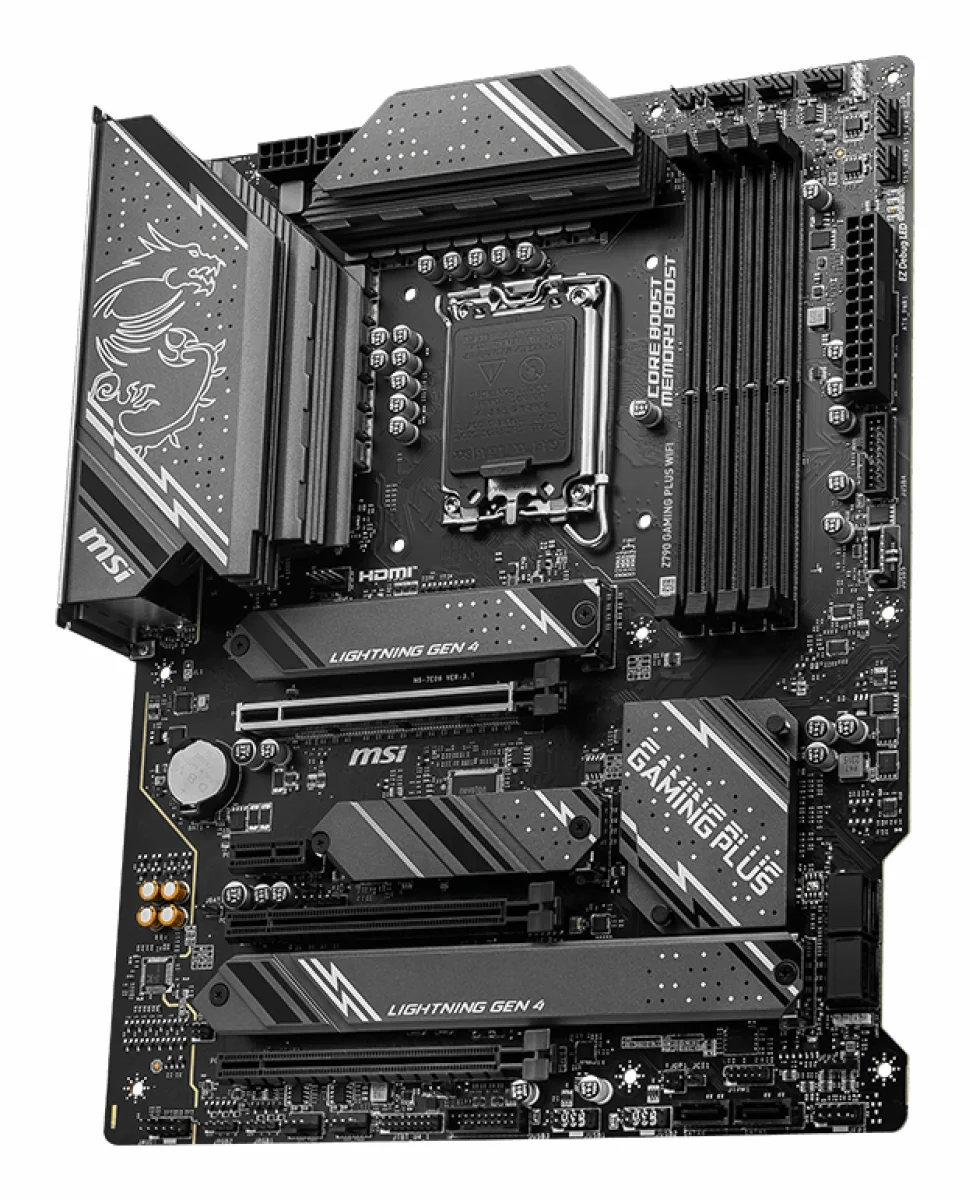

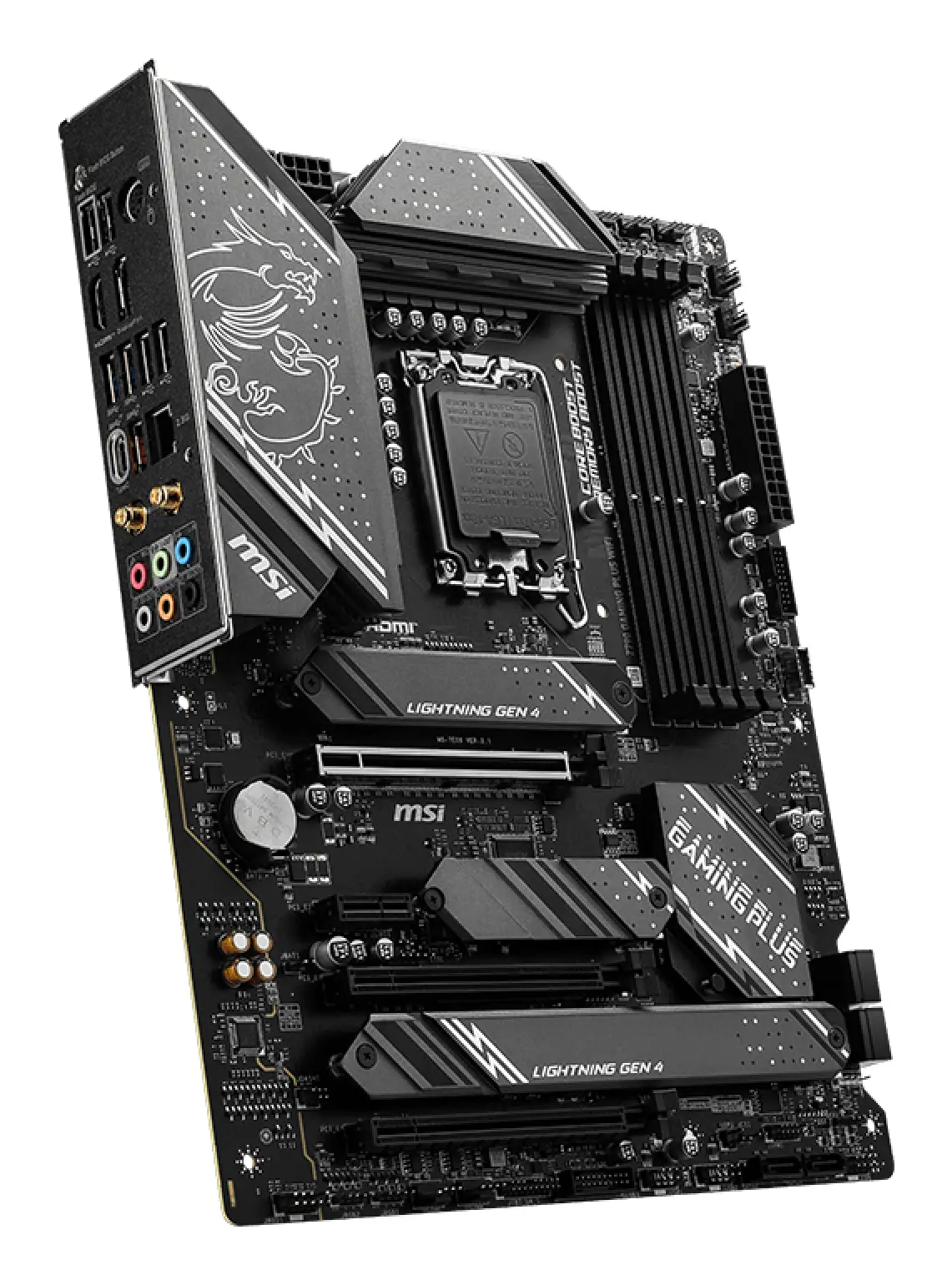

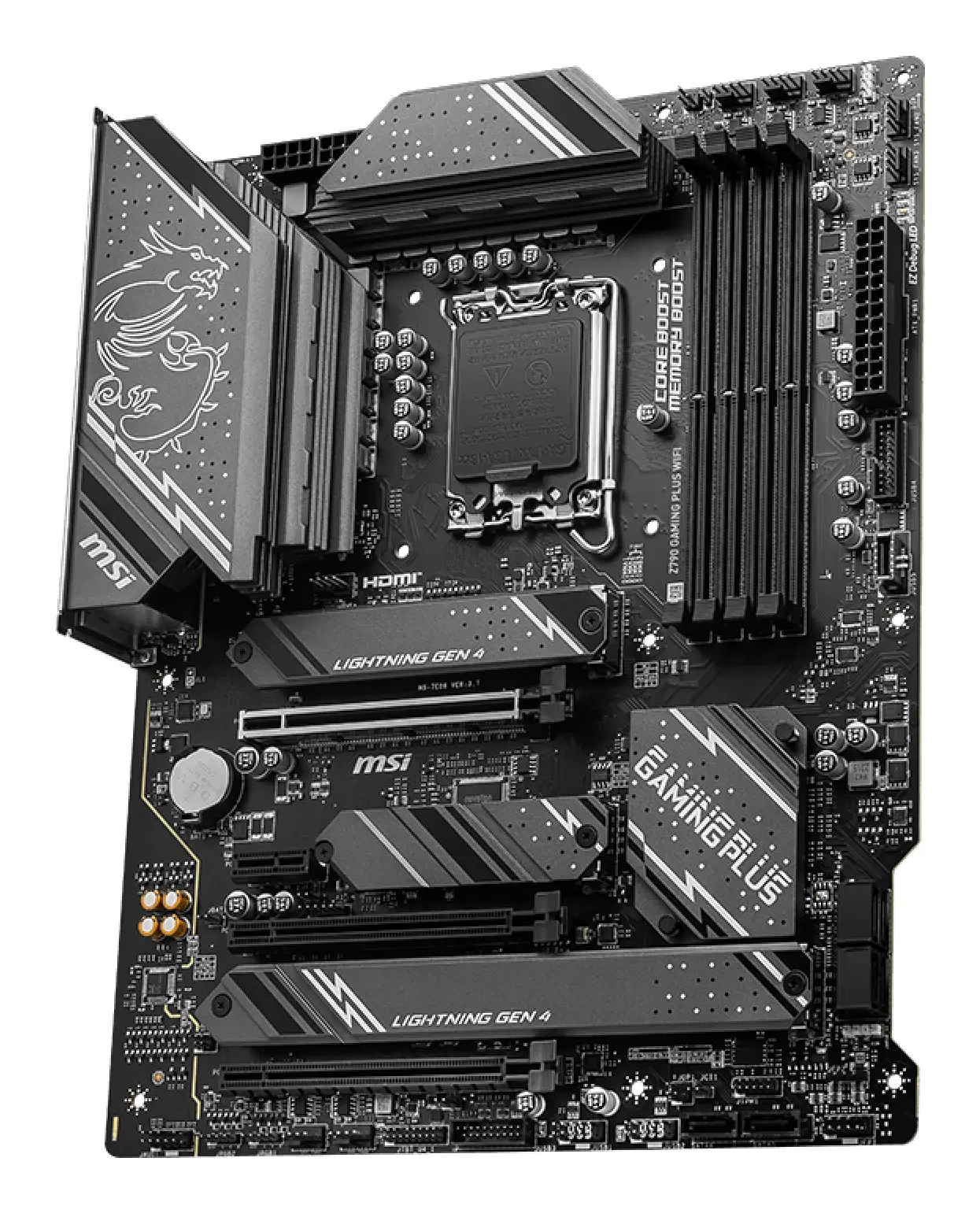

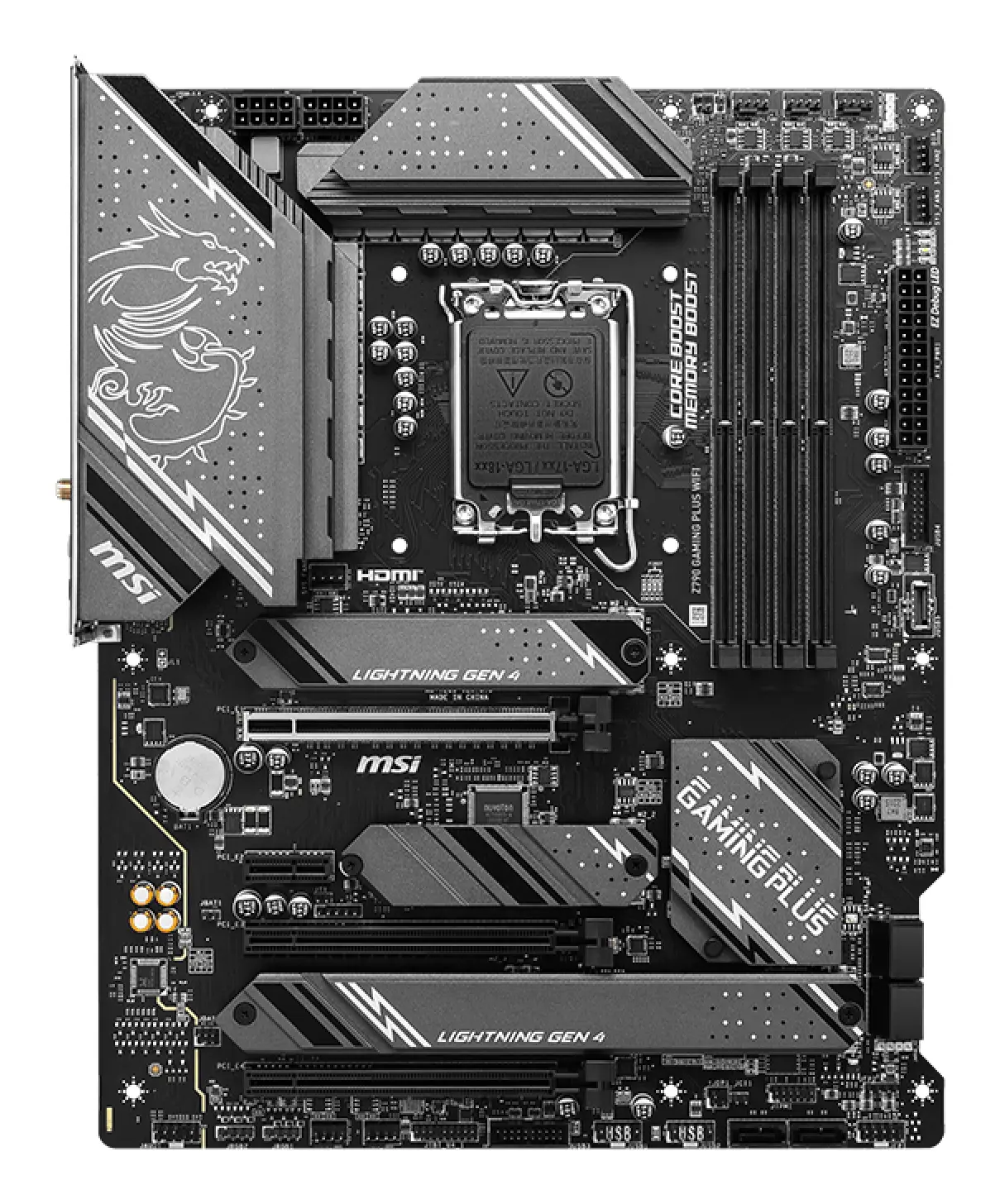

MSI Z790 GAMING PLUS WIFI

Produkt

Tillverkare

MSI

Produktnamn

Z790 GAMING PLUS WIFI

Tillverkarens länk

https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI

Produktkoder

Tillverkarens produktkoder

• 7E06-026R
• Z790 GAMING PLUS WIFI

GTIN- / EAN-koder

• 4711377134712

Produktbilder

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

ECC сompatibility

Non-ECC

Supported memory clock speeds

7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz

Supported memory clock speed (max)

7200 MHz

Maximum internal memory

192 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express

RAID support

Ja

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Nej

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

6

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Ja

Front panel connector

Ja

TPM connector

Ja

RGB LED pin header

Ja

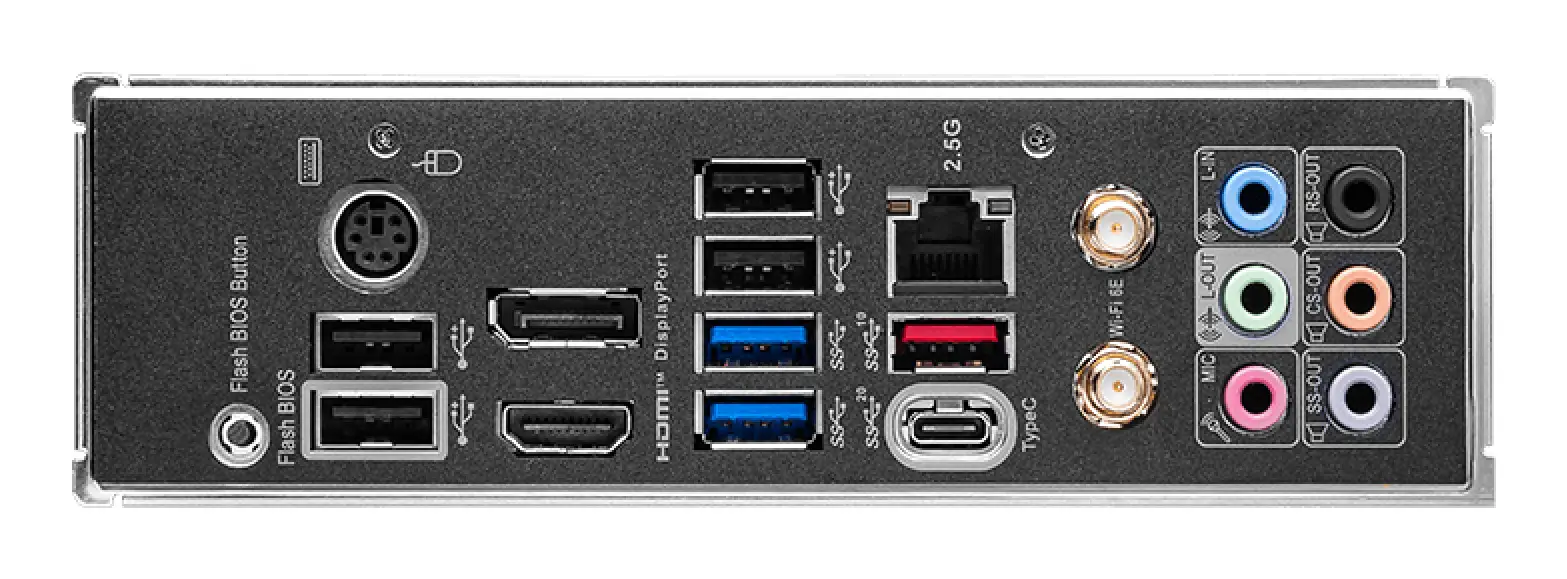

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

S/PDIF out port

Ja

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)

Bluetooth

Ja

Bluetooth version

5.3

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Product colour

Black

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI slots

4

Number of M.2 (M) slots

4

Weight & dimensions

Width

243.84 mm

Depth

304.8 mm

Packaging content

Cables included

SATA
