Synology RackStation RS3618xs

Produkt

Tillverkare

Synology

Produktfamilj / -serie

RackStation

Produktnamn

RS3618xs

Tillverkarens länk

https://www.synology.com/sv-se/products/RS3618xs

Produktkoder

Tillverkarens produktkoder

• RS3618XS

GTIN- / EAN-koder

• 0846504003051
• 4711174723058

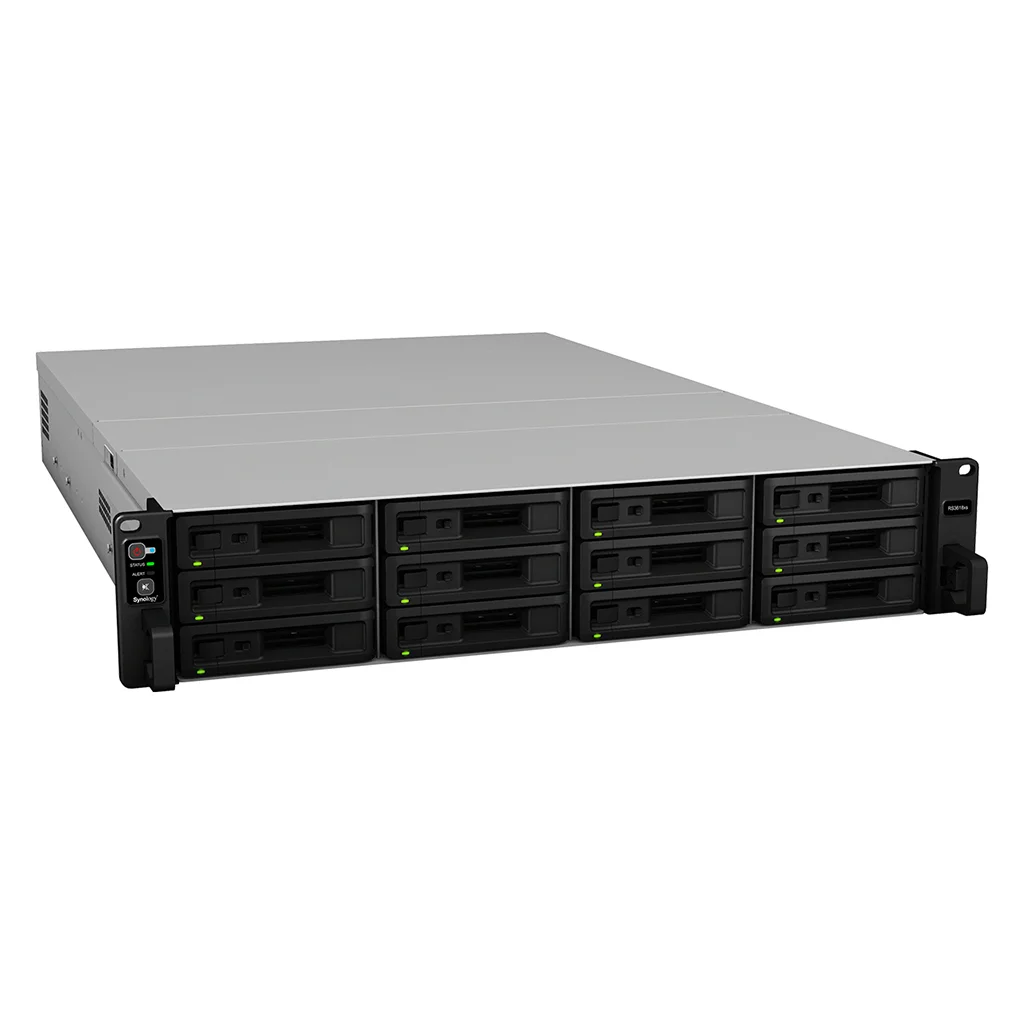

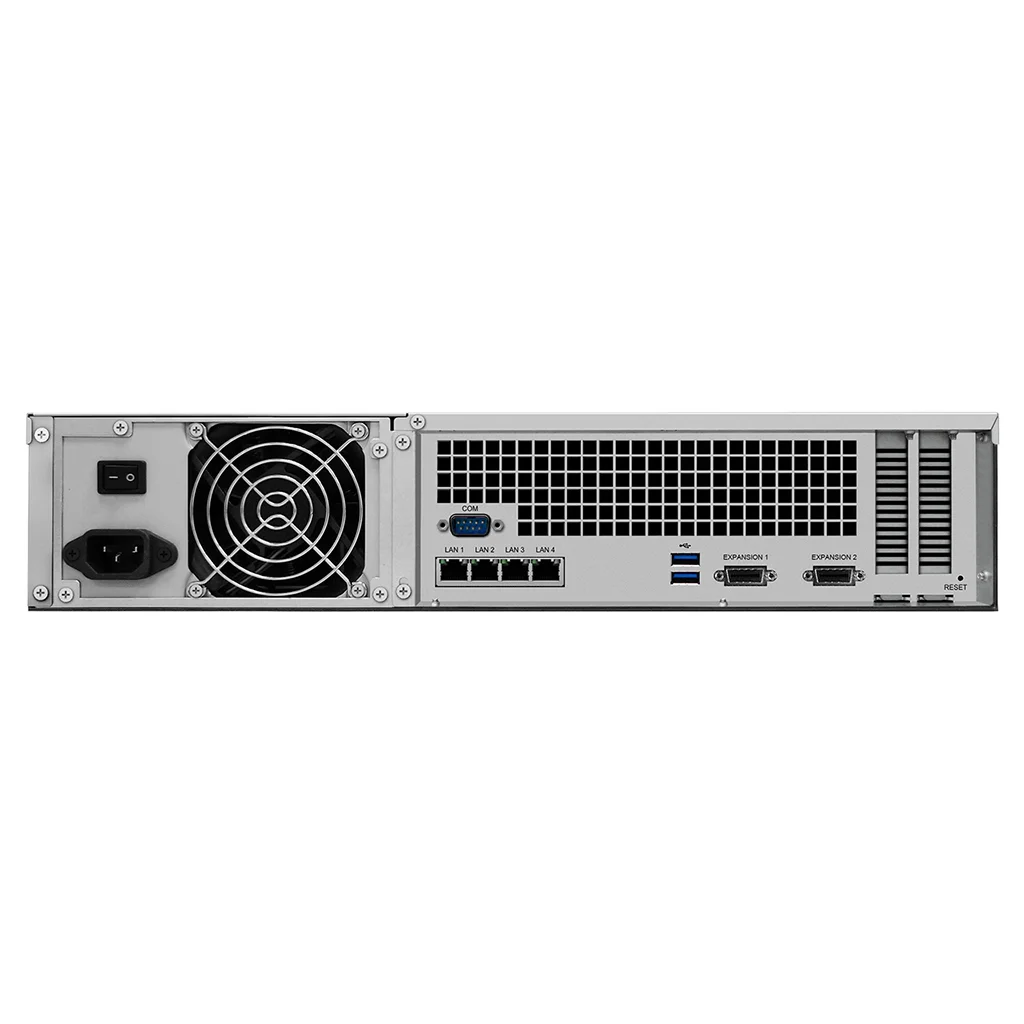

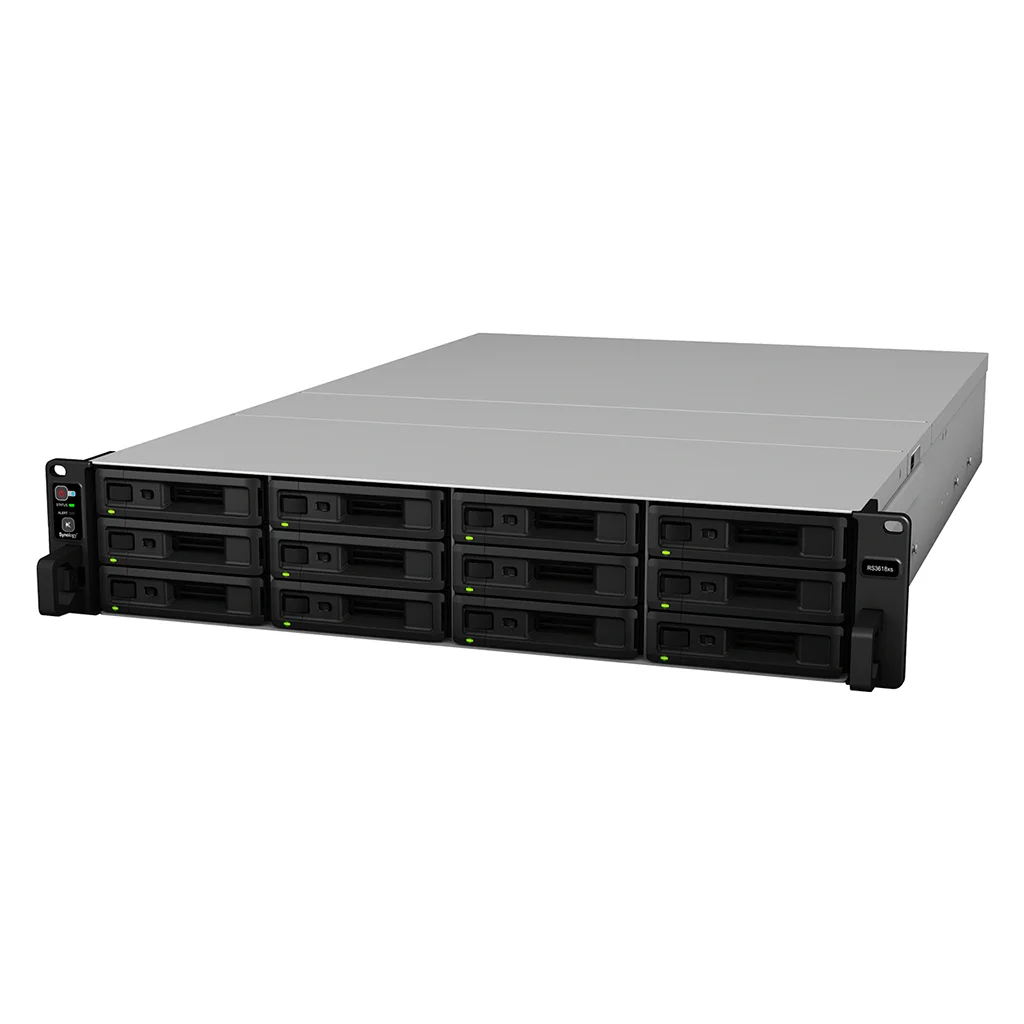

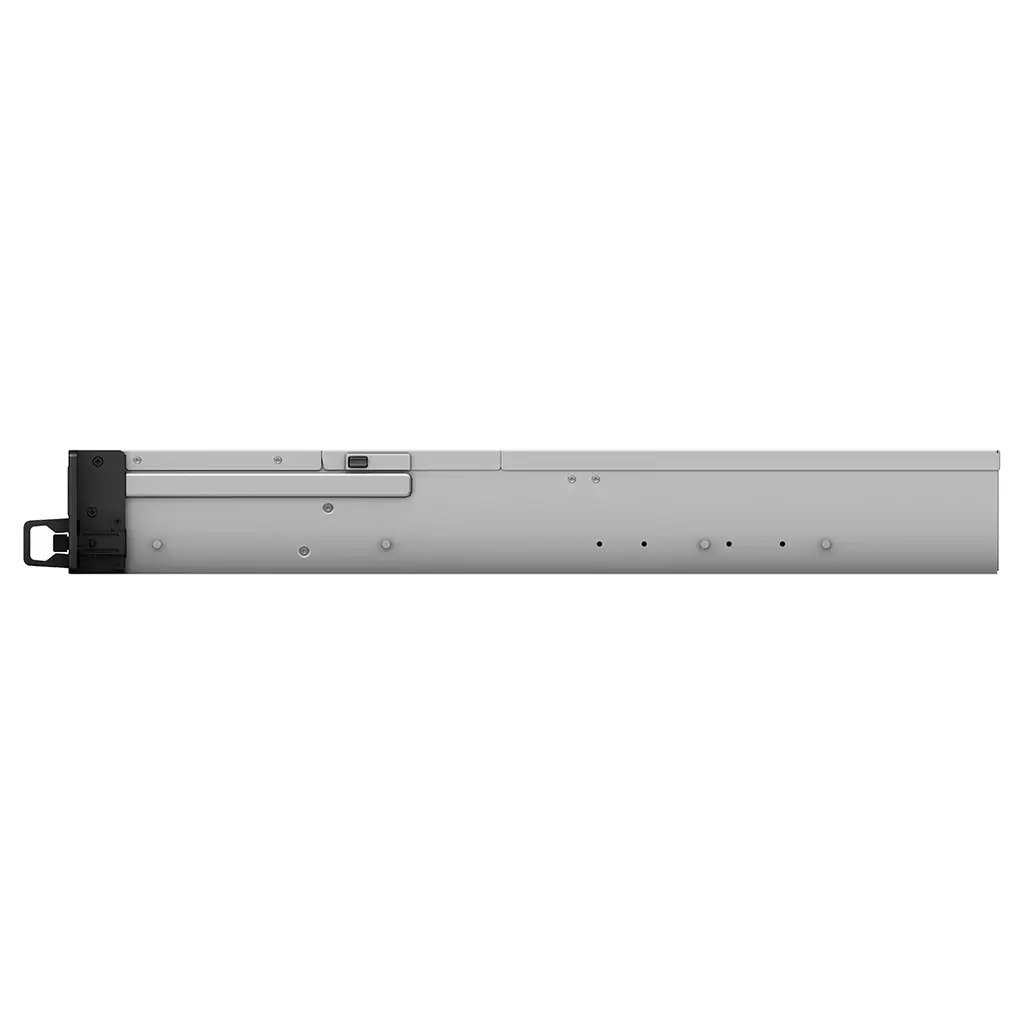

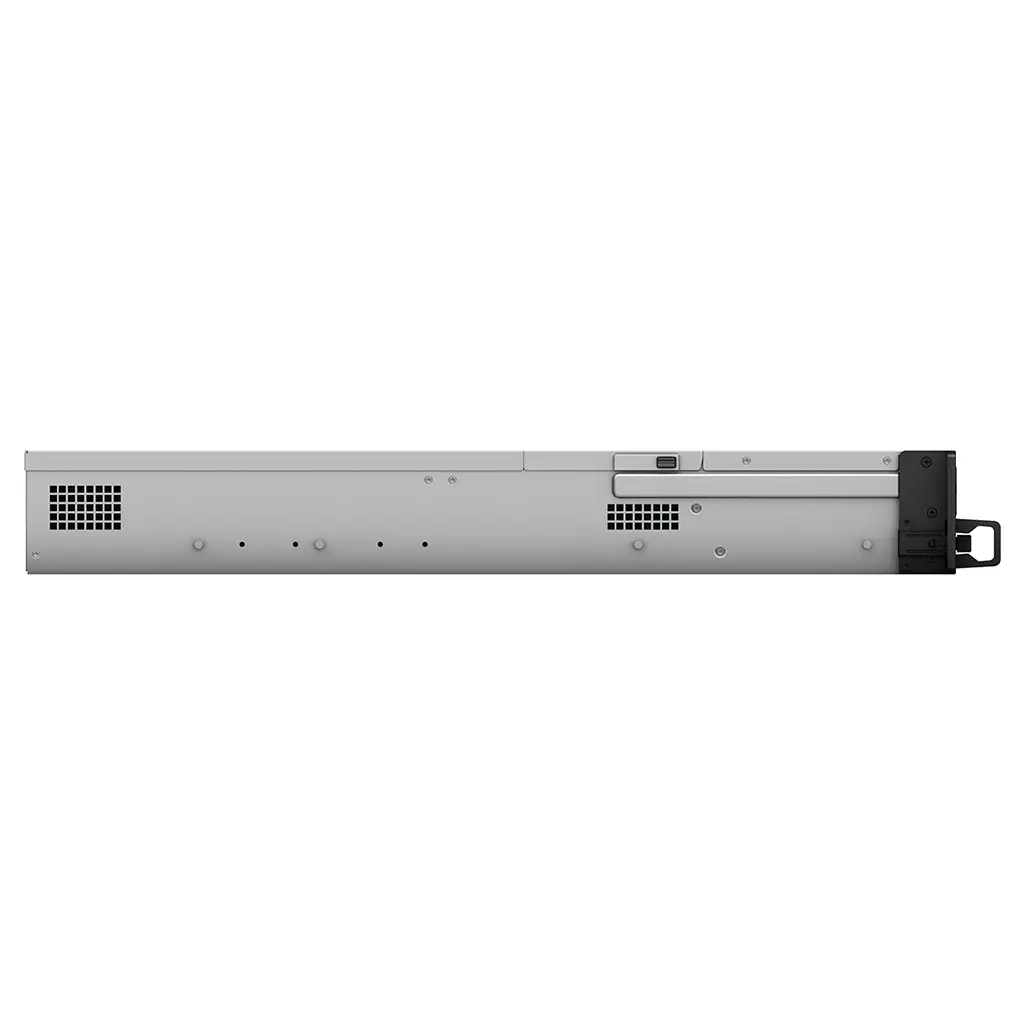

Produktbilder

Storage

Storage drives installed

Nej

Total installed storage capacity

0 TB

Number of storage drives installed

0

Number of storage drives supported

12

Installed storage drive type

Nej

Supported storage drive types

HDD & SSD

Storage drive capacity

0 GB

Supported storage drive interfaces

Serial ATA, Serial ATA II, Serial ATA III

Storage drive sizes supported

2.5,3.5 "

Maximum supported storage capacity

144 TB

RAID support

Ja

RAID levels

0, 1, 5, 6, 10, F1, JBOD

Hot-swap drive bays

Ja

Supported file systems

BTRFS, Fat, HFS+, NTFS, ext3, ext4

Processor

Processor manufacturer

Intel

Processor family

Intel® Xeon® D

Processor model

D-1521

Processor frequency

2.4 GHz

Processor boost frequency

2.7 GHz

Processor cores

4

Processor threads

8

Processor cache

6 MB

CPU configuration (max)

1

ECC supported by processor

Ja

PCI Express configurations

1x16, 1x4, 1x8

PCI Express slots version

2.0, 3.0

Processor code

SR2DF

Processor codename

Broadwell

Processor lithography

14 nm

Processor operating modes

64-bit

Processor package size

37.5 x 37.5 mm

Processor series

Intel Xeon D-1500

Processor socket

BGA 1667

Scalability

1S

Stepping

V2

Thermal Design Power (TDP)

45 W

Maximum internal memory supported by processor

128 GB

Conflict-Free processor

Ja

Memory

Internal memory

8 GB

Internal memory type

DDR4

Memory clock speed

2133 MHz

Maximum RAM supported

64 GB

Memory slots

4

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Nej

iSCSI support

Ja

Wake-on-LAN ready

Ja

Supported network protocols

CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)

Link aggregation

Ja

Ports & interfaces

Ethernet LAN (RJ-45) ports

4

USB port

Ja

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Fiber ports quantity

0

PCI Express x8 (Gen 3.x) slots

2

Design

Chassis type

Rack (2U)

Cooling type

Active

Product colour

Black

Number of fans

4 fan(s)

Fan diameter

80 mm

LED indicators

HDD, Power

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Ja

Backup features

Cloud, iSCSI LUN

Multilingual support

Ja

Number of users

16000 user(s)

Noise level

50.2 dB

Web-based management

Ja

Security algorithms

HTTPS, SSH, SSL/TLS

Access Control List (ACL)

Ja

Reset button

Ja

On/off switch

Ja

Browser supported

Chrome, Firefox, Internet Explorer 10, Safari

System log

Ja

Hot spare

Ja

S.M.A.R.T. support

Ja

Share folder

CIFS/AFP/FTP

Software

Operating system installed

DiskStation Manager

Windows operating systems supported

Windows 10, Windows 7

Mac compatibility

Ja

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Server operating systems supported

Windows Server 2012, Windows Server 2012 R2

Power

Power supply location

Built-in

Power supply unit (PSU) capacity

500 W

Number of power supply units

1

Power consumption (typical)

142.76 W

Power consumption (HDD standby)

55.05 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Weight & dimensions

Width

430.5 mm

Depth

692 mm

Height

88 mm

Weight

14500 g

Packaging content

Cables included

AC

Quick installation guide

Ja

Processor special features

Embedded options available

Nej

Enhanced Intel SpeedStep Technology

Ja

Execute Disable Bit

Ja

Idle States

Ja

Intel 64

Ja

Intel Enhanced Halt State

Ja

Intel Secure Key Technology version

1.00

Intel Trusted Execution Technology

Ja

Intel TSX-NI

Ja

Intel TSX-NI version

1.00

Intel Virtualization Technology (VT-x)

Ja

Intel Virtualization Technology for Directed I/O (VT-d)

Ja

Intel VT-x with Extended Page Tables (EPT)

Ja

Intel® AES New Instructions (Intel® AES-NI)

Ja

Intel® Hyper Threading Technology (Intel® HT Technology)

Ja

Intel® OS Guard

Ja

Intel® Secure Key

Ja

Intel® Turbo Boost Technology

2.0

Maximum number of PCI Express lanes

32

Thermal Monitoring Technologies

Ja

UART

Ja

Memory channels supported by processor

Dual

Memory types supported by processor

DDR3-SDRAM, DDR4-SDRAM

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

5 - 95 %

Storage temperature (T-T)

-20 - 60 °C

Operating altitude

0 - 5000 m

Logistics data

Harmonized System (HS) code

84714100

Other features

Compliance certificates

RoHS

Certification

EAC, VCCI, CCC, RCM, FCC, CE, BSMI

Processor ARK ID

91202
