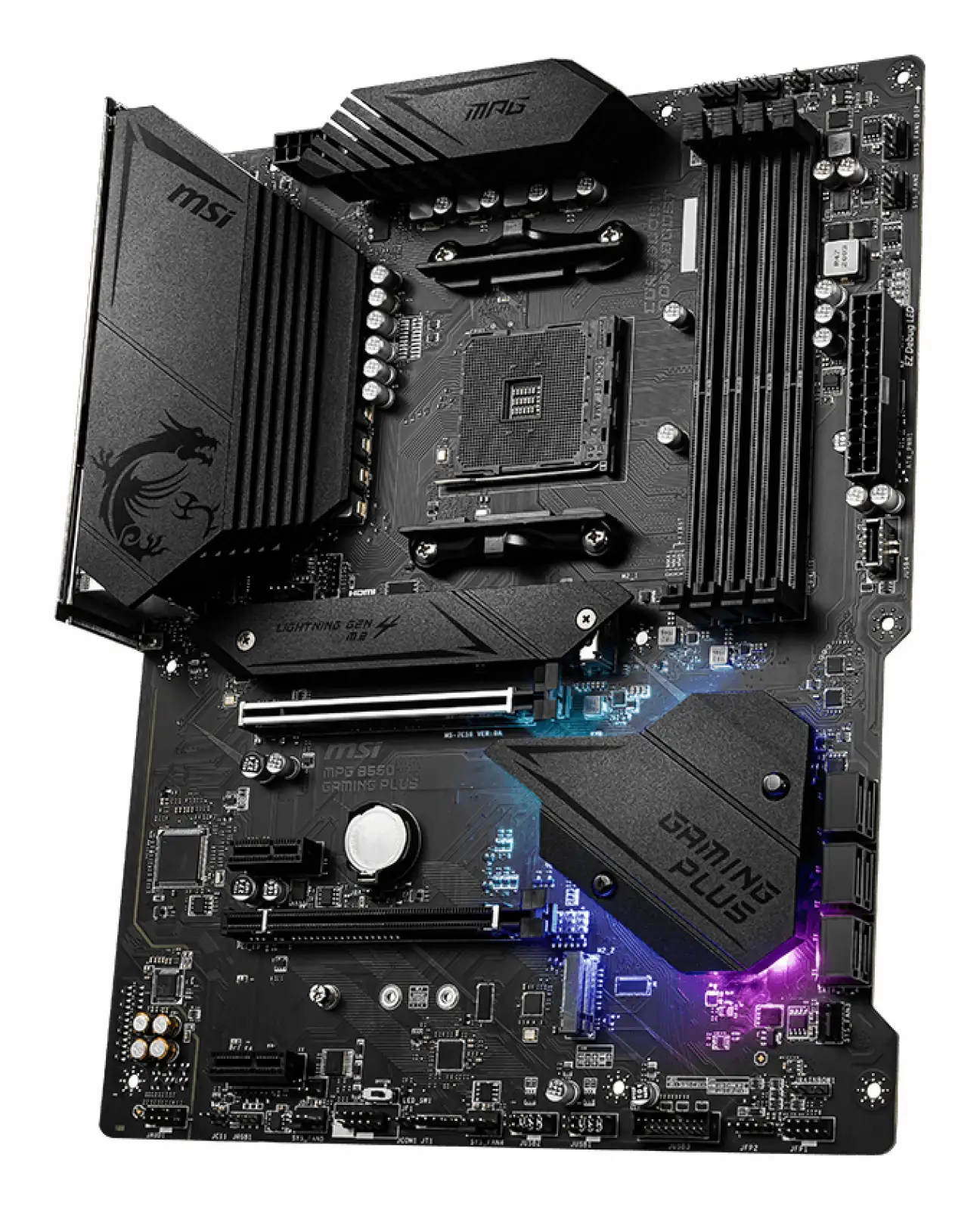

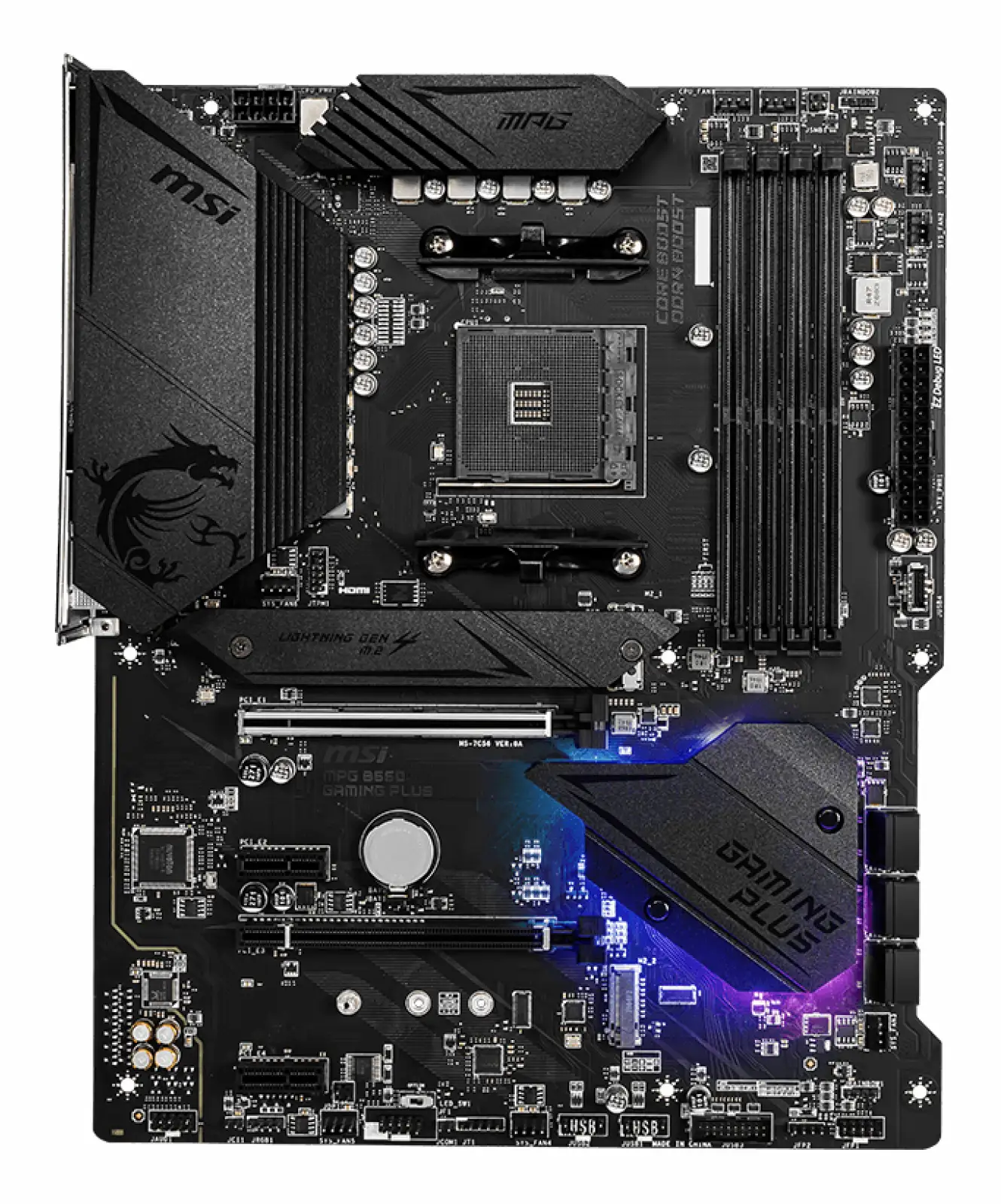

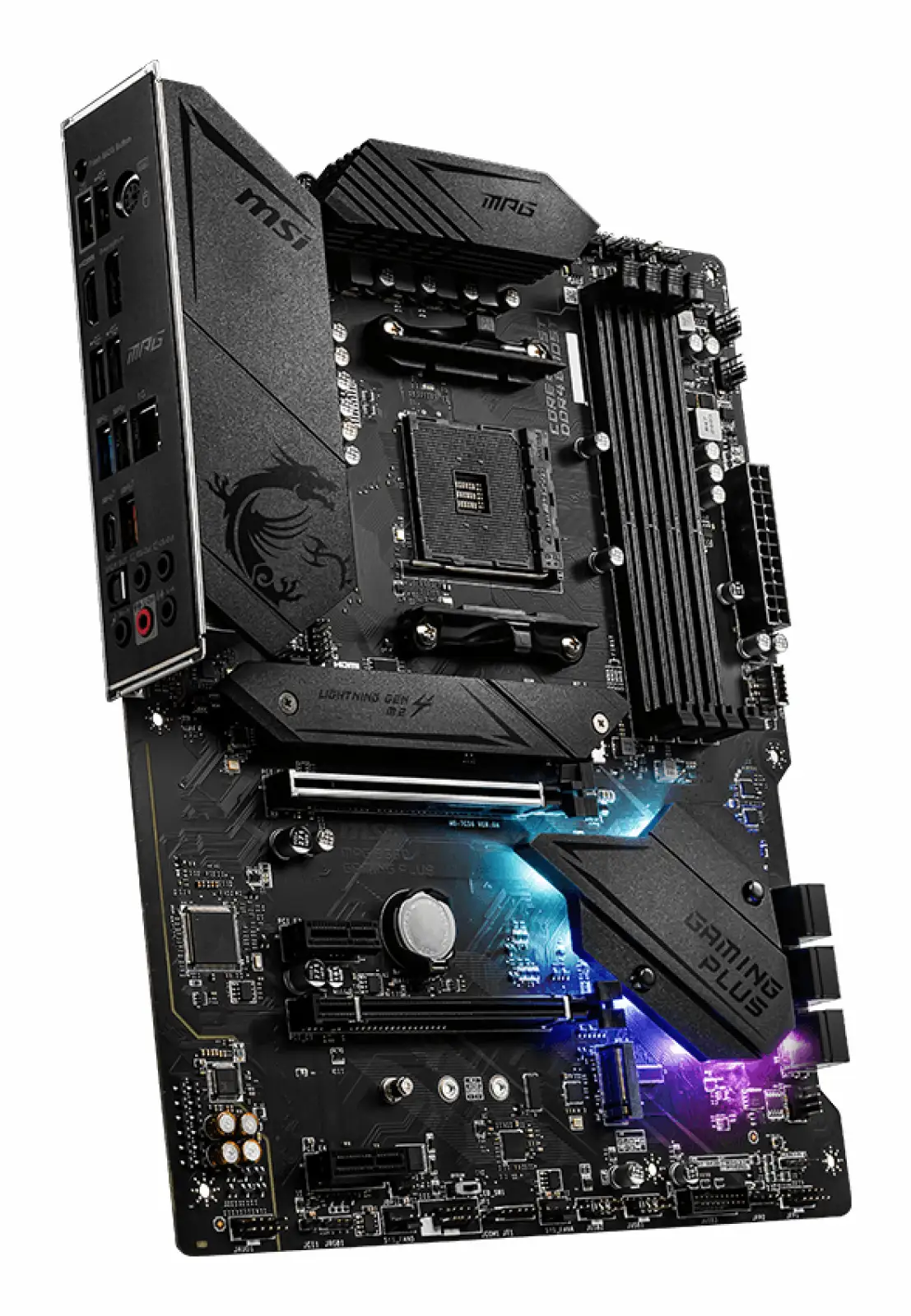

MSI MPG B550 Gaming Plus

Produkt

Tillverkare

MSI

Produktnamn

MPG B550 Gaming Plus

Tillverkarens länk

https://www.msi.com/Motherboard/MPG-B550-GAMING-PLUS

Produktkoder

Tillverkarens produktkoder

• MPG B550 GAMING PLUS

GTIN- / EAN-koder

• 4719072731885

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

SATA III

RAID support

Ja

RAID levels

0, 1, 10

Graphics

Maximum graphics card memory

16000 MB

Parallel processing technology support

2-Way CrossFireX

On-board graphics card

Nej

Maximum resolution

4096 x 2160 pixels

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

6

Number of SATA II connectors

0

Number of SATA connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of chassis fan connectors

6

Chassis intrusion connector

Ja

TPM connector

Ja

12V power connector

Ja

RGB LED pin header

Ja

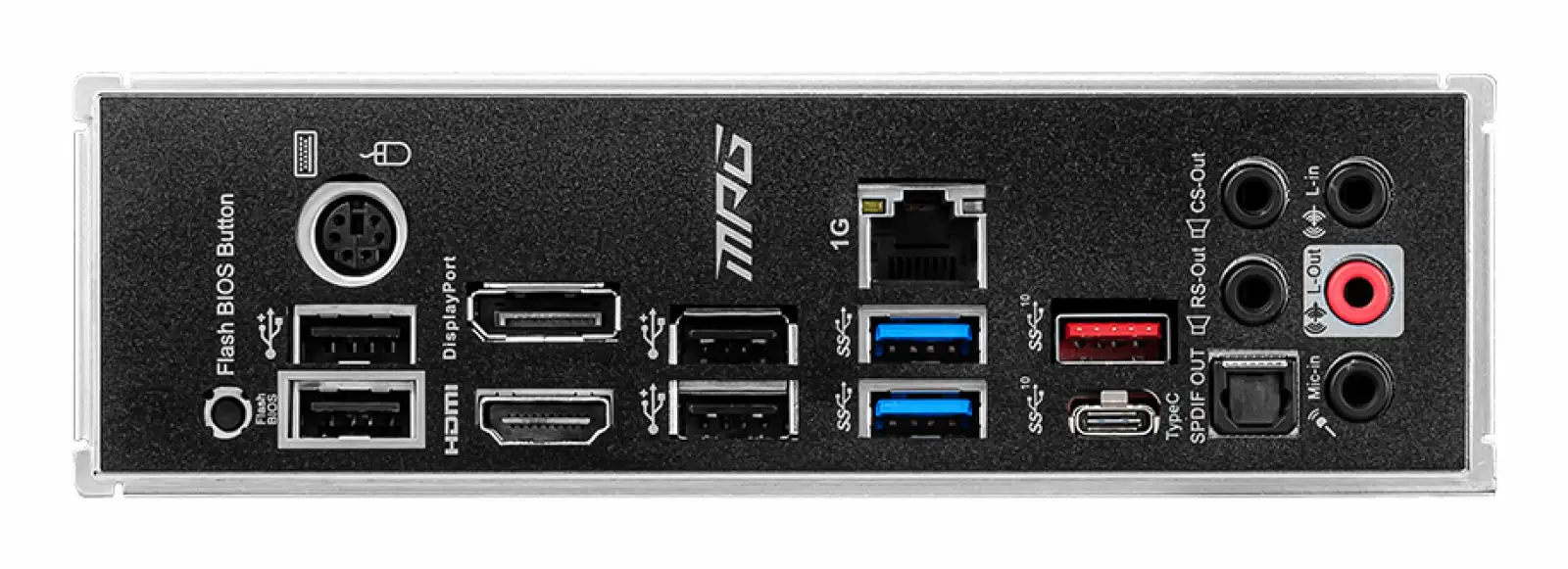

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

eSATA ports quantity

0

PS/2 ports quantity

1

Firewire (IEEE 1394) ports

0

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

S/PDIF out port

Ja

Digital audio optical out

1

Network

Ethernet LAN

Ja

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek 8111H

Wi-Fi

Nej

Top Wi-Fi standard

Not available

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B550

Audio chip

Realtek ALC892

Audio output channels

7.1 channels

Product colour

Black

PC health monitoring

CPU, Fan, Temperature

Number of mounting holes

9

Expansion slots

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

Clear CMOS jumper

Ja

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

65 mm

Packaging content

Cables included

SATA

Drivers included

Ja

Other features

mSATA ports quantity

0

Weight

1000 g
