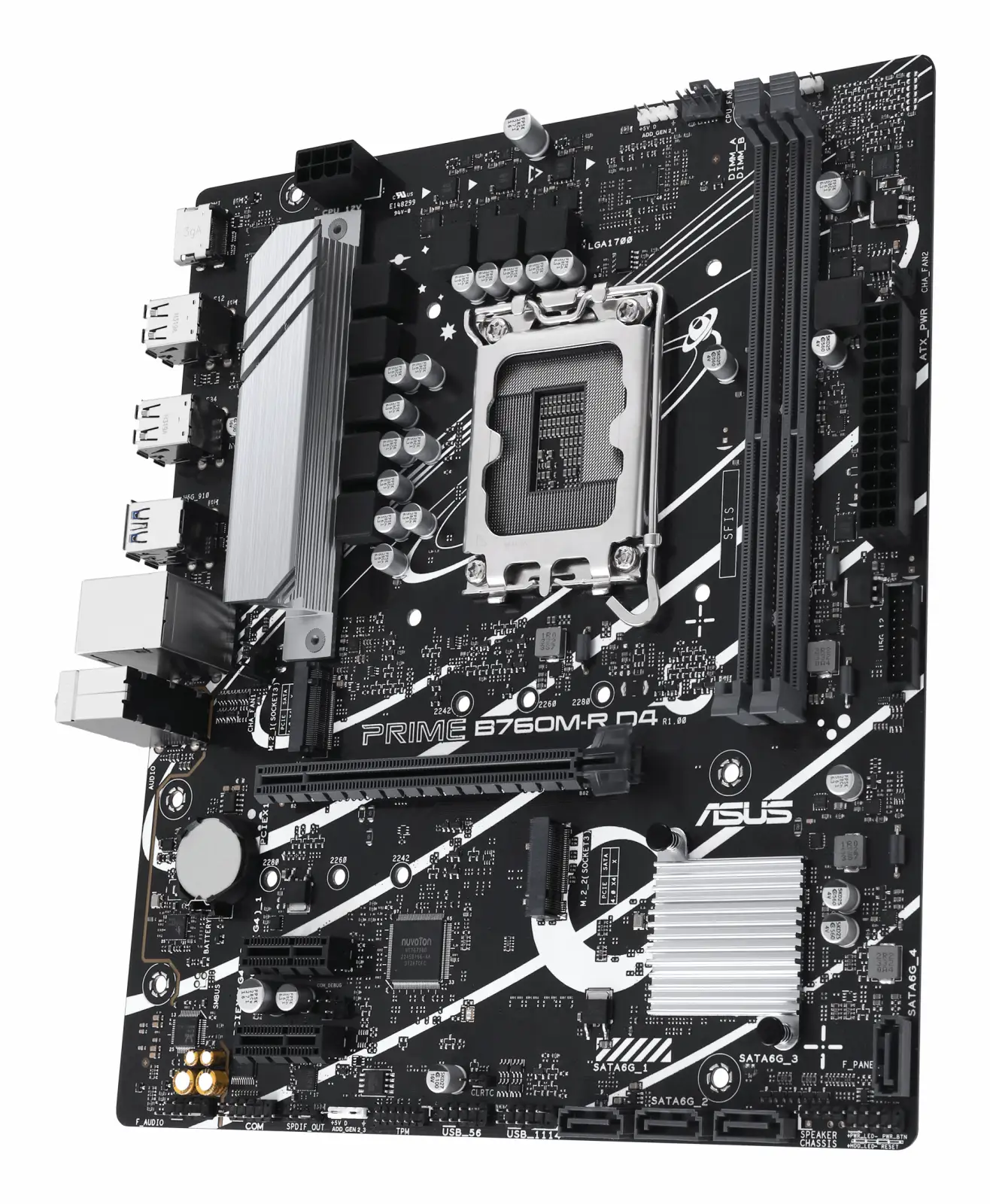

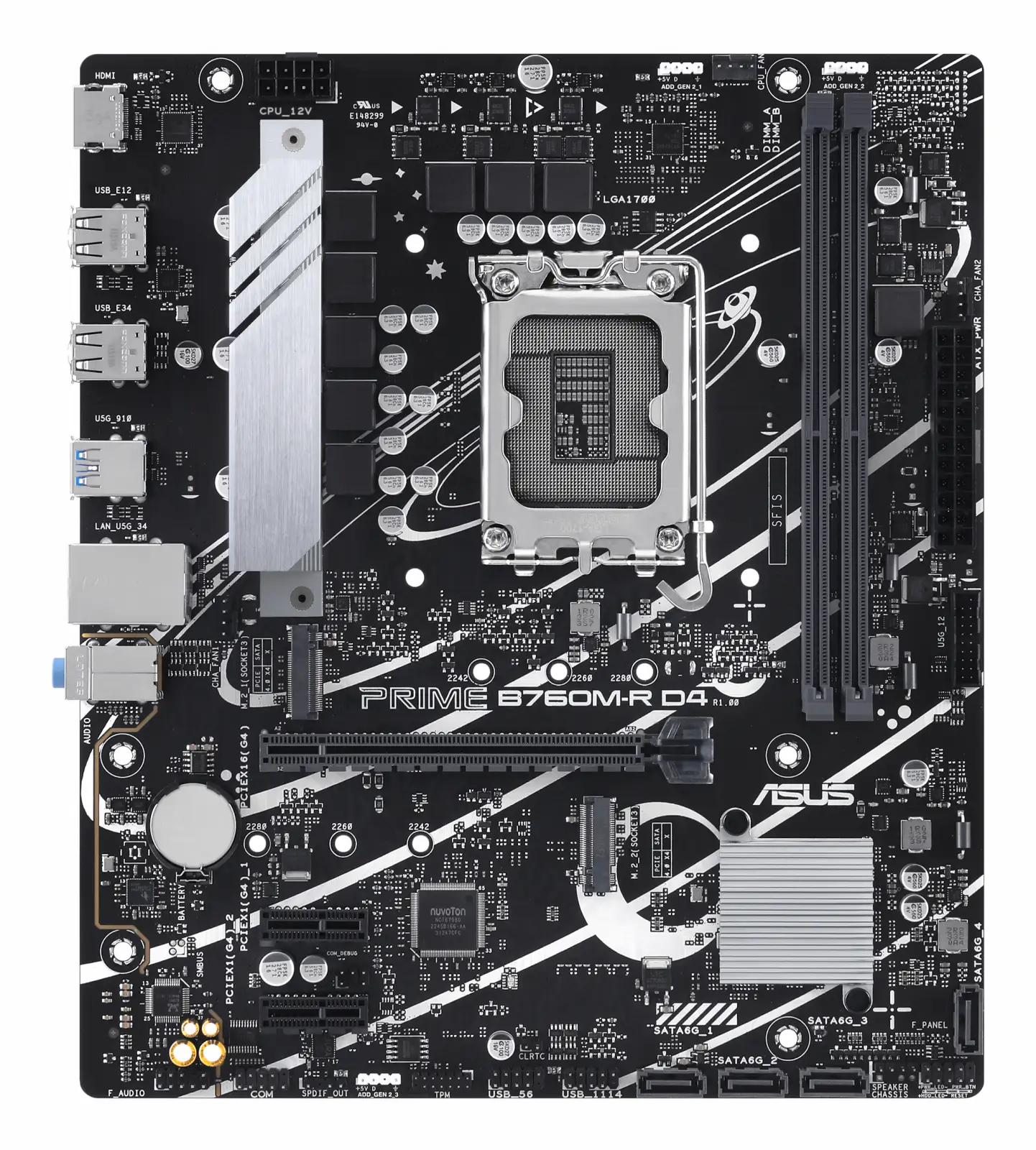

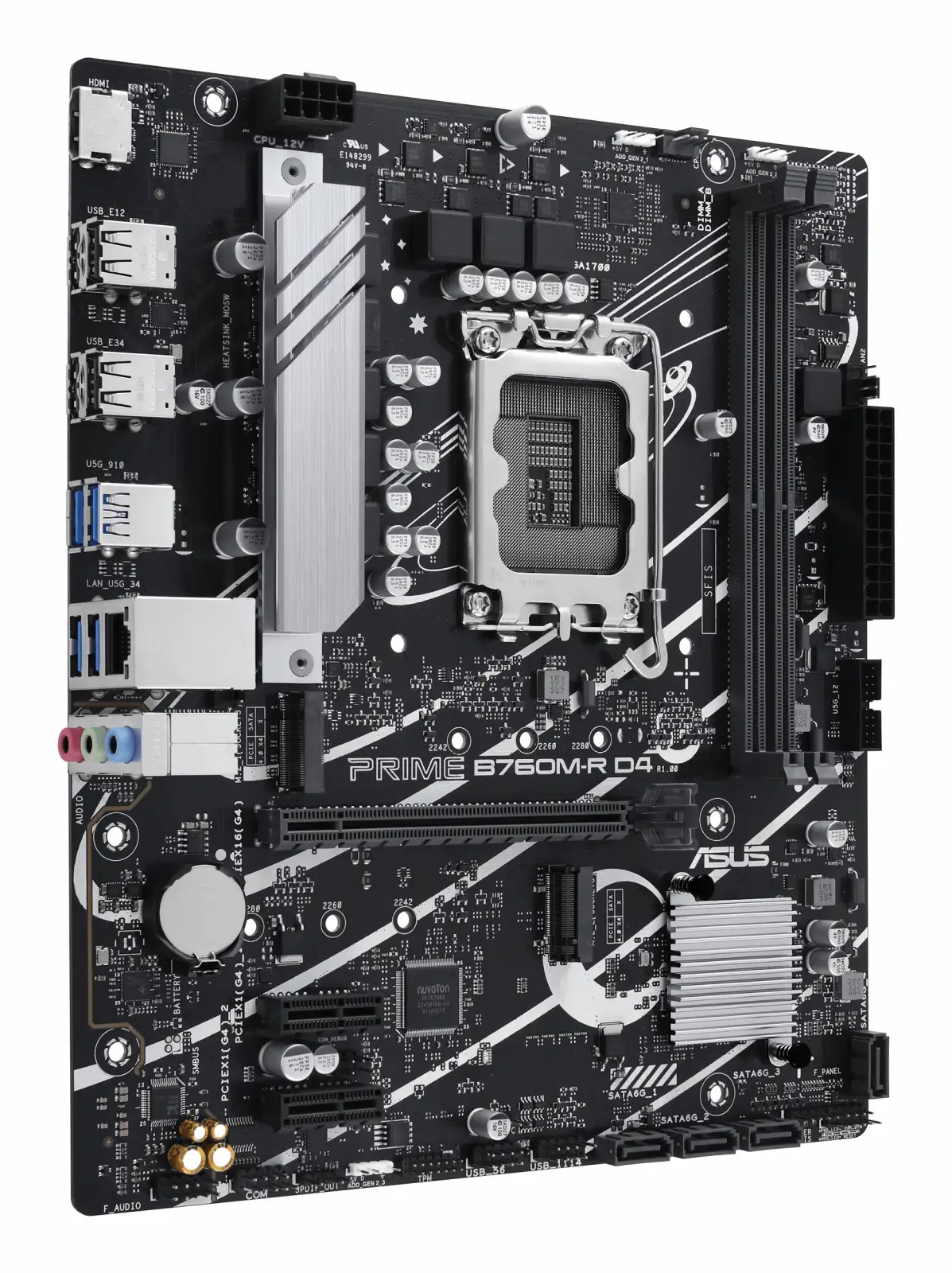

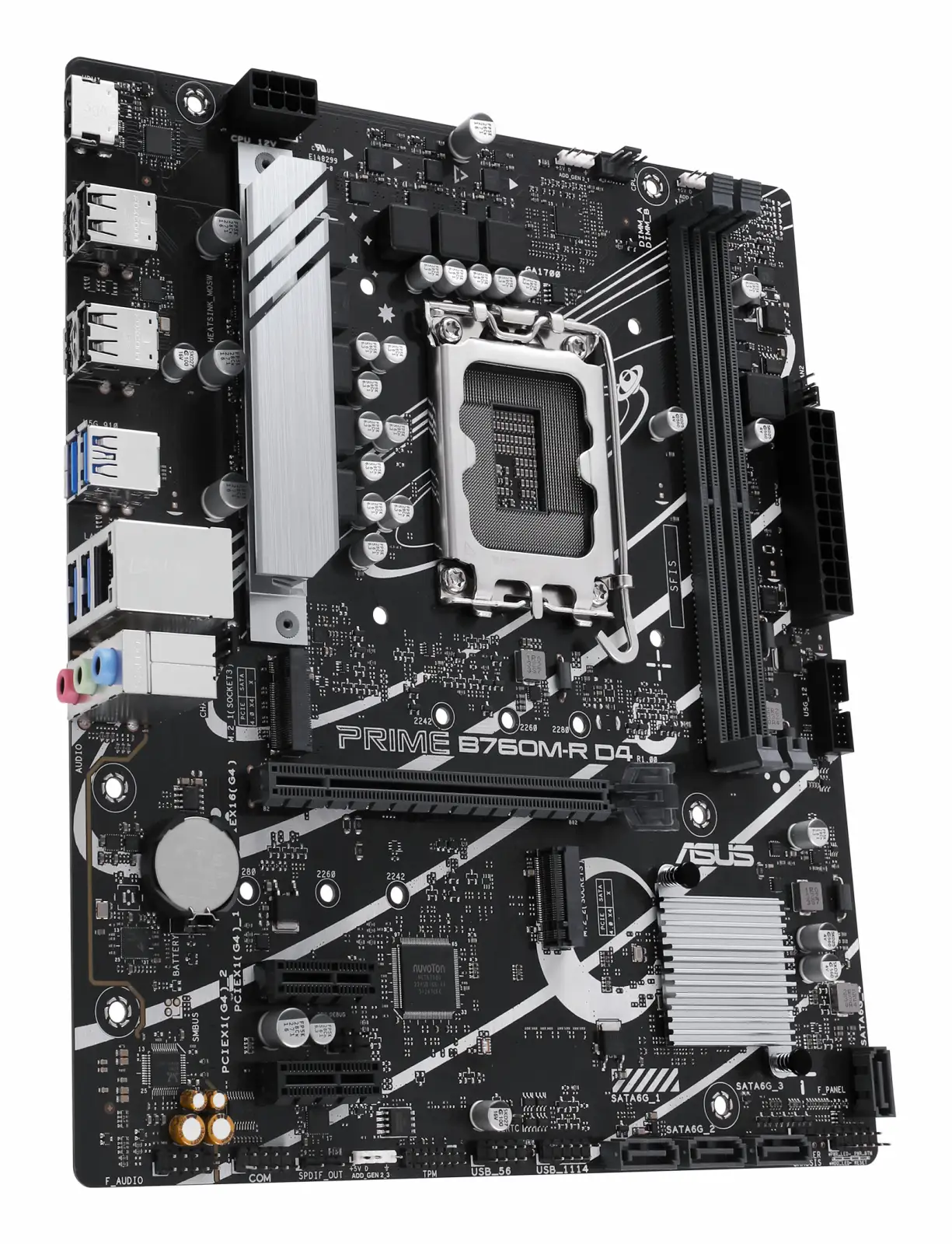

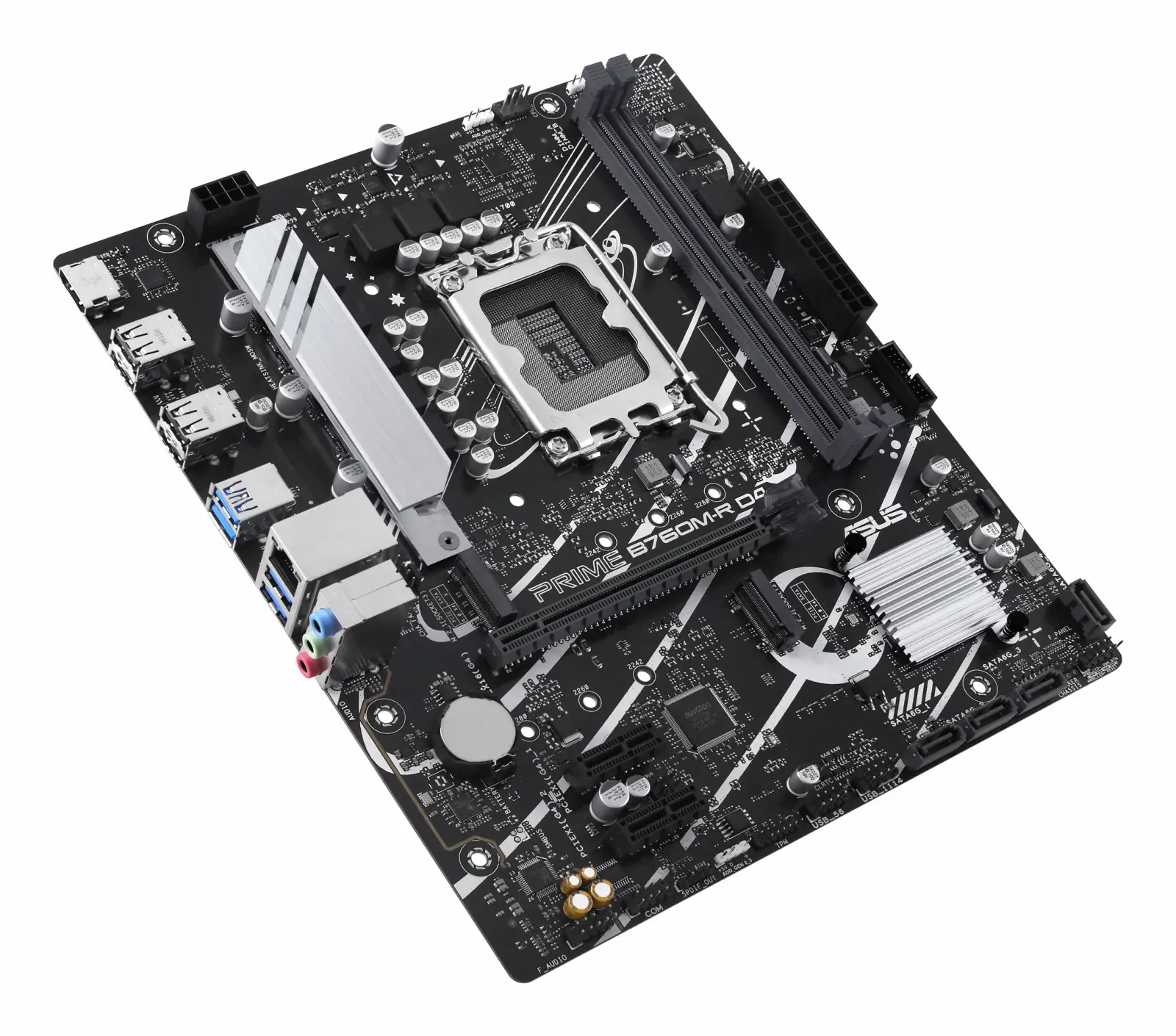

ASUS PRIME B760M-R D4

Produkt

Tillverkare

ASUS

Produktnamn

PRIME B760M-R D4

Tillverkarens länk

https://www.asus.com/motherboards-components/motherboards/prim..

Produktkoder

Tillverkarens produktkoder

• 90MB1HA0-M0EAY0

GTIN- / EAN-koder

• 4711387423769

Produktbilder

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz

Supported memory clock speed (max)

5333 MHz

Maximum internal memory

64 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

6

RAID support

Ja

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of chassis fan connectors

2

EPS power connector (8-pin)

Ja

Number of COM connectors

1

TPM connector

Ja

12V power connector

Ja

RGB LED pin header

Ja

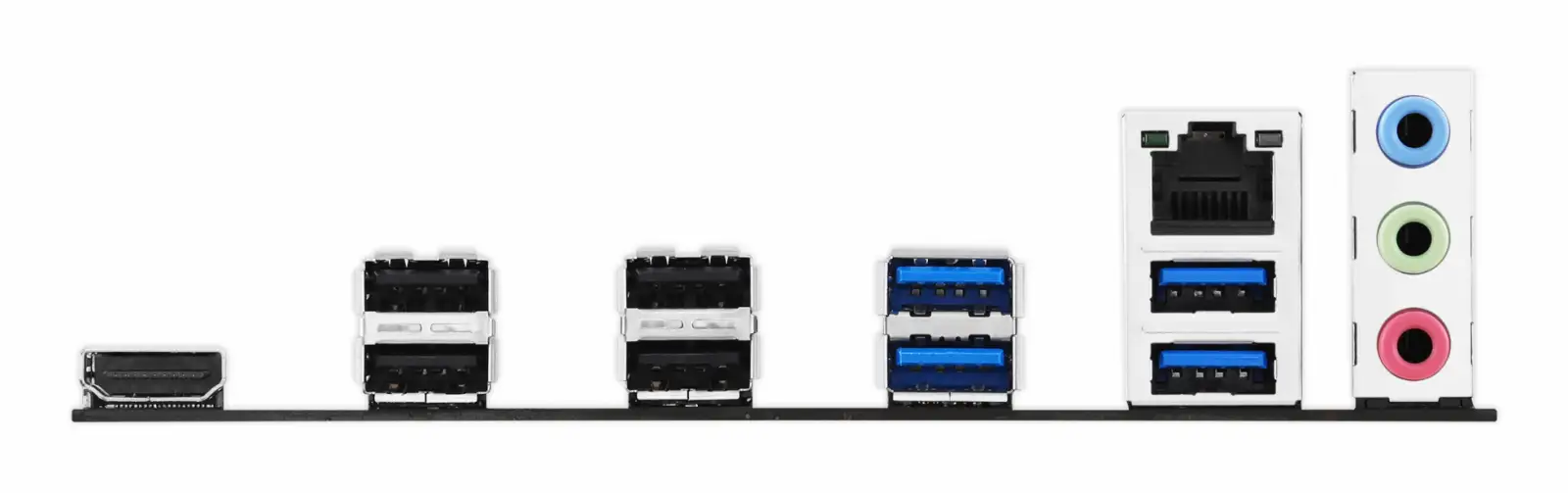

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Headphone outputs

1

Line-in

Ja

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Nej

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Audio output channels

7.1 channels

Product colour

Black

Cooling type

Passive

Power source type

ATX

Windows operating systems supported

Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Packaging data

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

903 g

Weight & dimensions

Width

244 mm

Depth

211 mm

Packaging content

Cables included

SATA
