ASUS PRIME H610M-D

Produkt

Tillverkare

ASUS

Produktnamn

PRIME H610M-D

Tillverkarens länk

https://www.asus.com/motherboards-components/motherboards/prim..

Produktkoder

Tillverkarens produktkoder

• 90MB1G80-M0EAY0

GTIN- / EAN-koder

• 4711387339893

Produktbilder

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4800,5000,5200,5400,5600 MHz

Supported memory clock speed (max)

5600 MHz

Maximum internal memory

96 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

5

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF out connector

Ja

Audio connector

Ja

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of chassis fan connectors

2

EPS power connector (8-pin)

Ja

TPM connector

Ja

12V power connector

Ja

RGB LED pin header

Ja

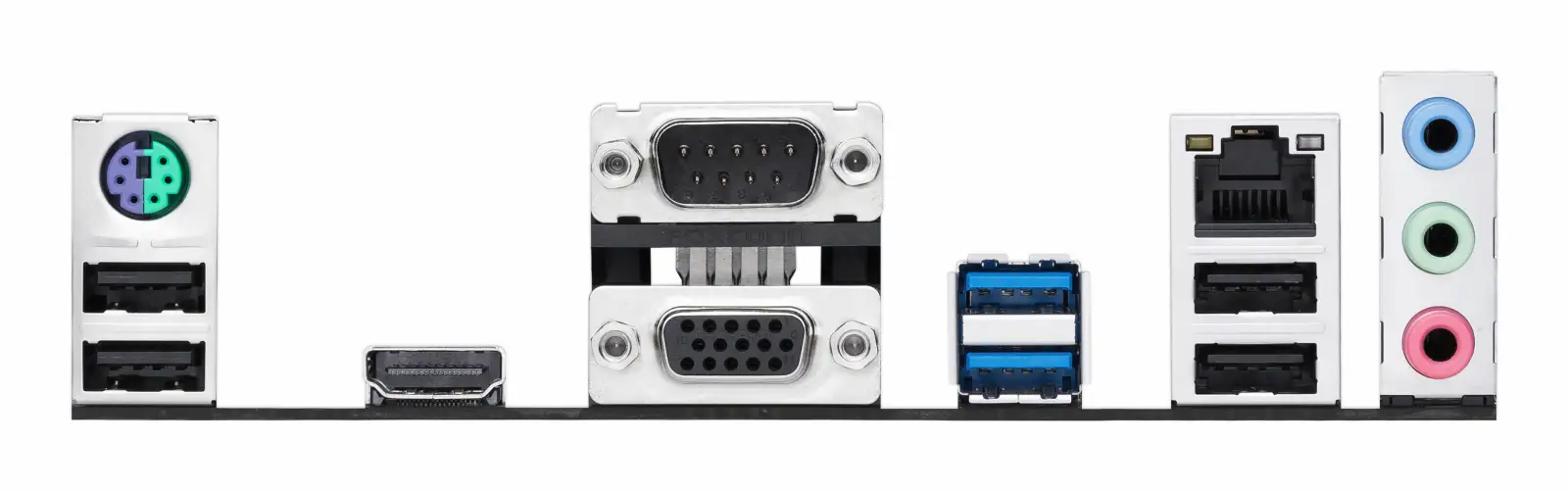

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

DVI-D ports quantity

0

Headphone outputs

1

Microphone in

Ja

COM ports quantity

1

Network

Ethernet LAN

Ja

Ethernet interface type

Gigabit Ethernet

Wi-Fi

Nej

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Weight & dimensions

Width

234 mm

Depth

203 mm

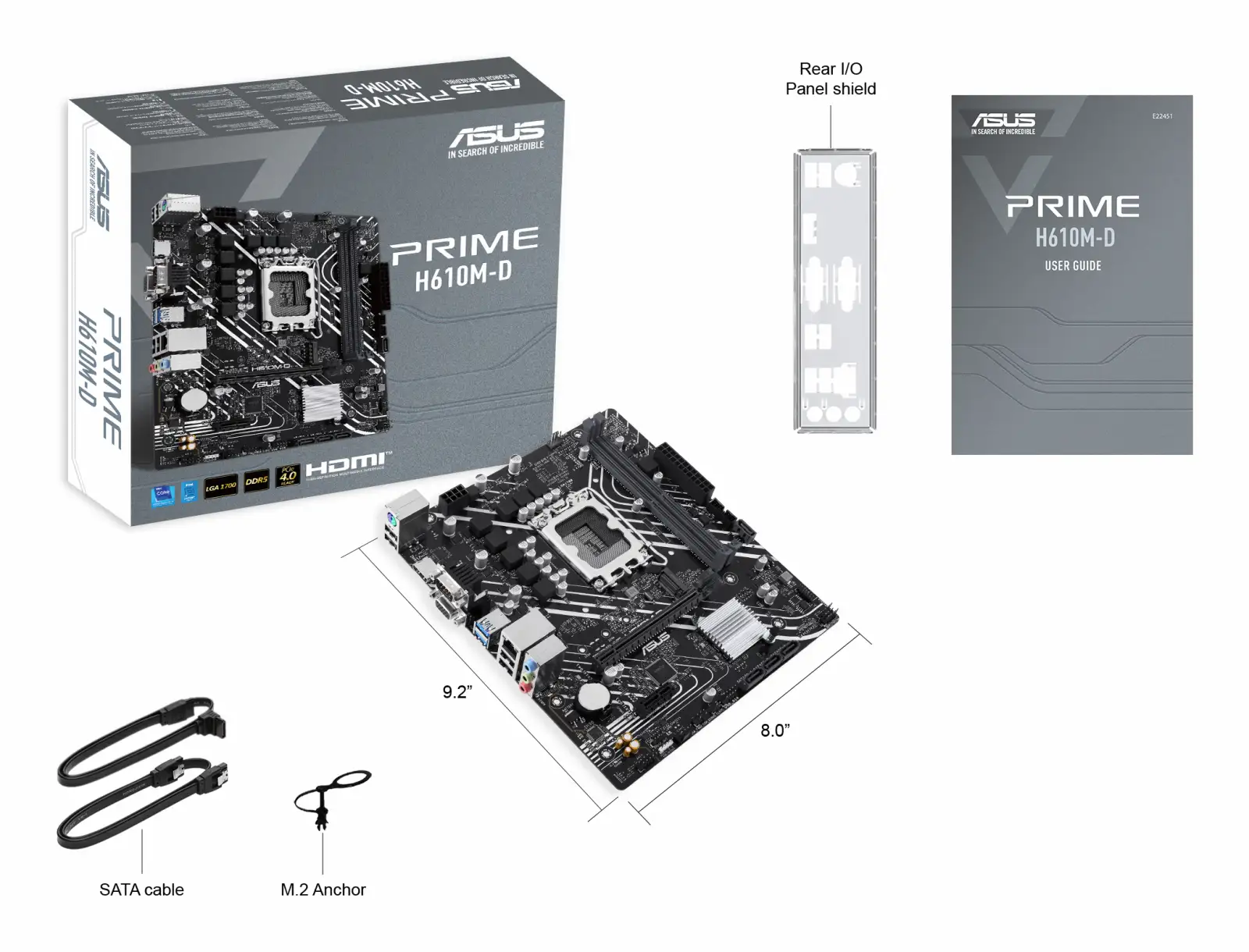

Packaging content

Cables included

SATA
