Synology RackStation RS2423RP+

Produkt

Tillverkare

Synology

Produktfamilj / -serie

RackStation

Produktnamn

RS2423RP+

Tillverkarens länk

https://www.synology.com/en-global/products/RS2423RP+#specs

Produktkoder

Tillverkarens produktkoder

• RS2423RP+

GTIN- / EAN-koder

• 0846504004904
• 4711174724901

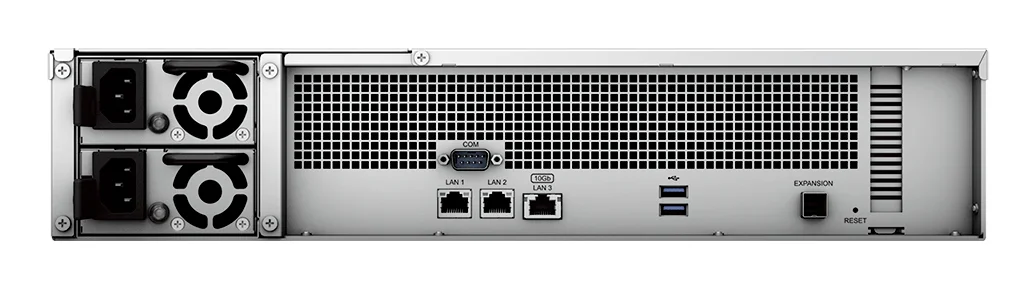

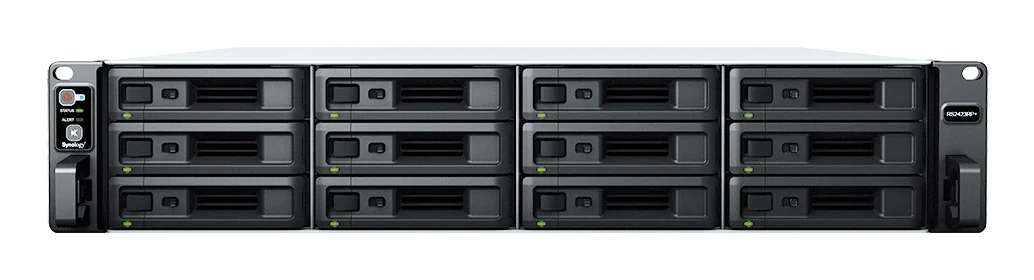

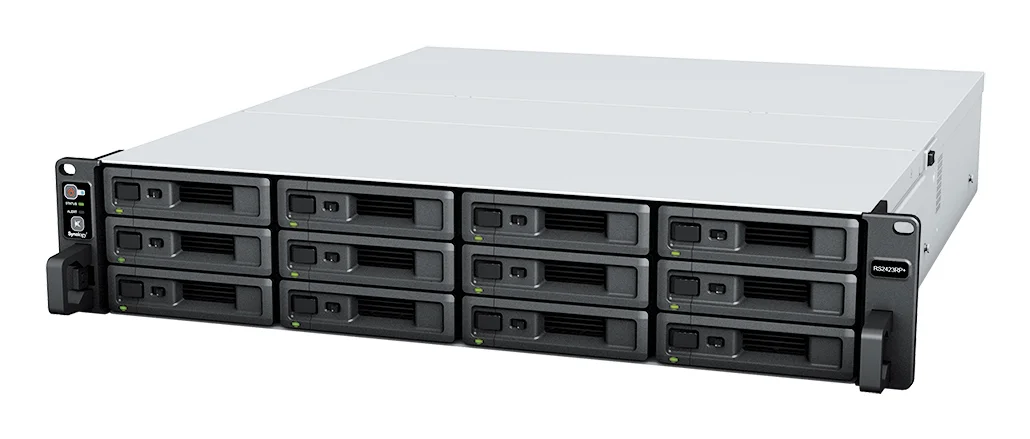

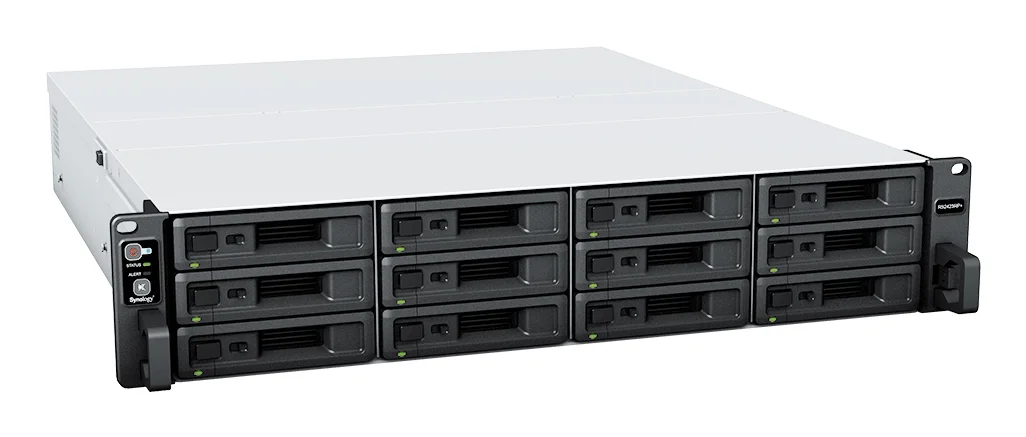

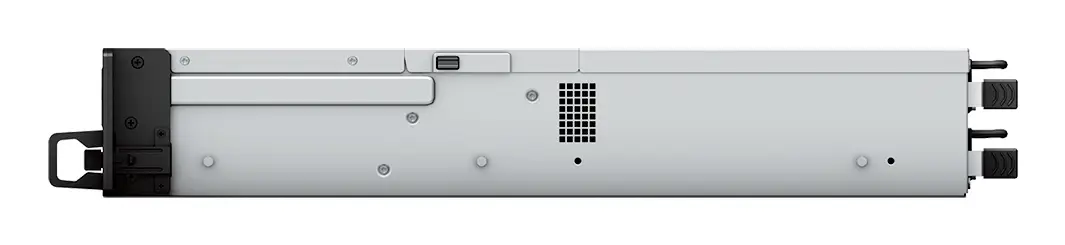

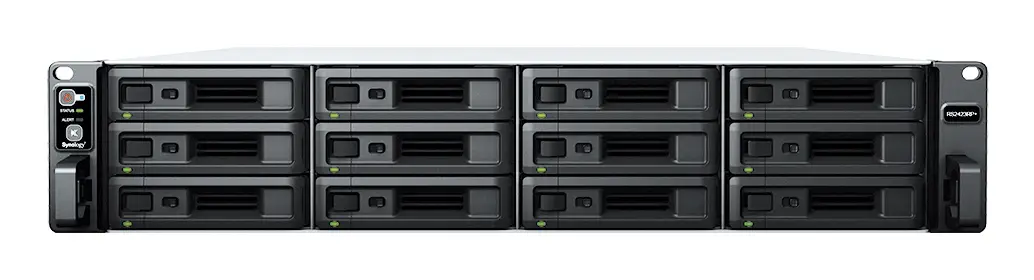

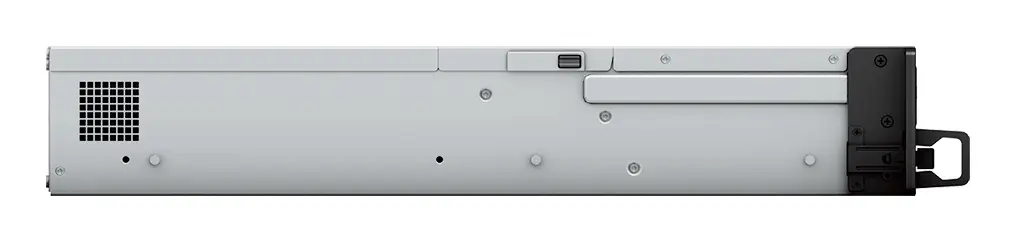

Produktbilder

Storage

Storage drives installed

Nej

Total installed storage capacity

0 TB

Number of storage drives installed

0

Number of storage drives supported

12

Installed storage drive type

Nej

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

Serial ATA

Storage drive sizes supported

2.5,3.5 "

RAID support

Ja

RAID levels

0, 1, 5, 6, 10, JBOD

Online RAID migration

Ja

Online RAID expansion

Ja

Hot-swap drive bays

Ja

Supported file systems

BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Processor

Processor manufacturer

AMD

Processor family

Ryzen Embedded

Processor generation

AMD Ryzen Embedded V1000 Series

Processor model

V1780B

Processor frequency

3.35 GHz

Processor boost frequency

3.6 GHz

Processor cores

4

Number of processors supported

1

Memory

Internal memory

8 GB

Internal memory type

DDR4

Maximum RAM supported

32 GB

Memory slots

2

Memory form factor

UDIMM

ECC

Ja

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000,10000 Mbit/s

Ethernet LAN data rate supported (max)

10000 Mbit/s

Copper ethernet cabling technology

10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T

iSCSI support

Ja

Wake-on-LAN ready

Ja

Link aggregation

Ja

Ports & interfaces

Ethernet LAN (RJ-45) ports

3

USB port

Ja

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

PCI Express x8 (Gen 3.x) slots

1

Design

Chassis type

Rack (2U)

Cooling type

Active

Product colour

Black, Grey

Number of fans

3 fan(s)

Fan diameter

60 mm

LED indicators

Ja

Built-in display

Nej

Built-in speaker(s)

Nej

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Ja

Backup features

Cloud, iSCSI LUN

Multilingual support

Ja

Noise level

56.2 dB

Card reader integrated

Nej

Snapshot

Ja

Management protocols

SNMP

Security algorithms

AES

Access Control List (ACL)

Ja

On/off switch

Ja

Built-in FTP server

Ja

Browser supported

Google Chrome Firefox Microsoft Edge Safari

System log

Ja

Software

Operating system installed

DiskStation Manager

Operating system version

7.1.1

Power

Power supply location

Built-in

Power supply unit (PSU) capacity

350 W

Redundant power supply (RPS) support

Ja

Power consumption (typical)

114.86 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Weight & dimensions

Width

482 mm

Depth

578 mm

Height

88 mm

Weight

11900 g

Packaging content

External power adapter

Nej

Cables included

AC

Power cables quantity

2

Rack mount kit

Ja

Sustainability

Sustainability compliance

Ja

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Operating relative humidity (H-H)

5 - 95 %

Storage temperature (T-T)

-20 - 60 °C

Other features

Compliance certificates

CE, RoHS

Certification

FCC BSMI VCCI RCM UKCA EAC CCC KC UL
