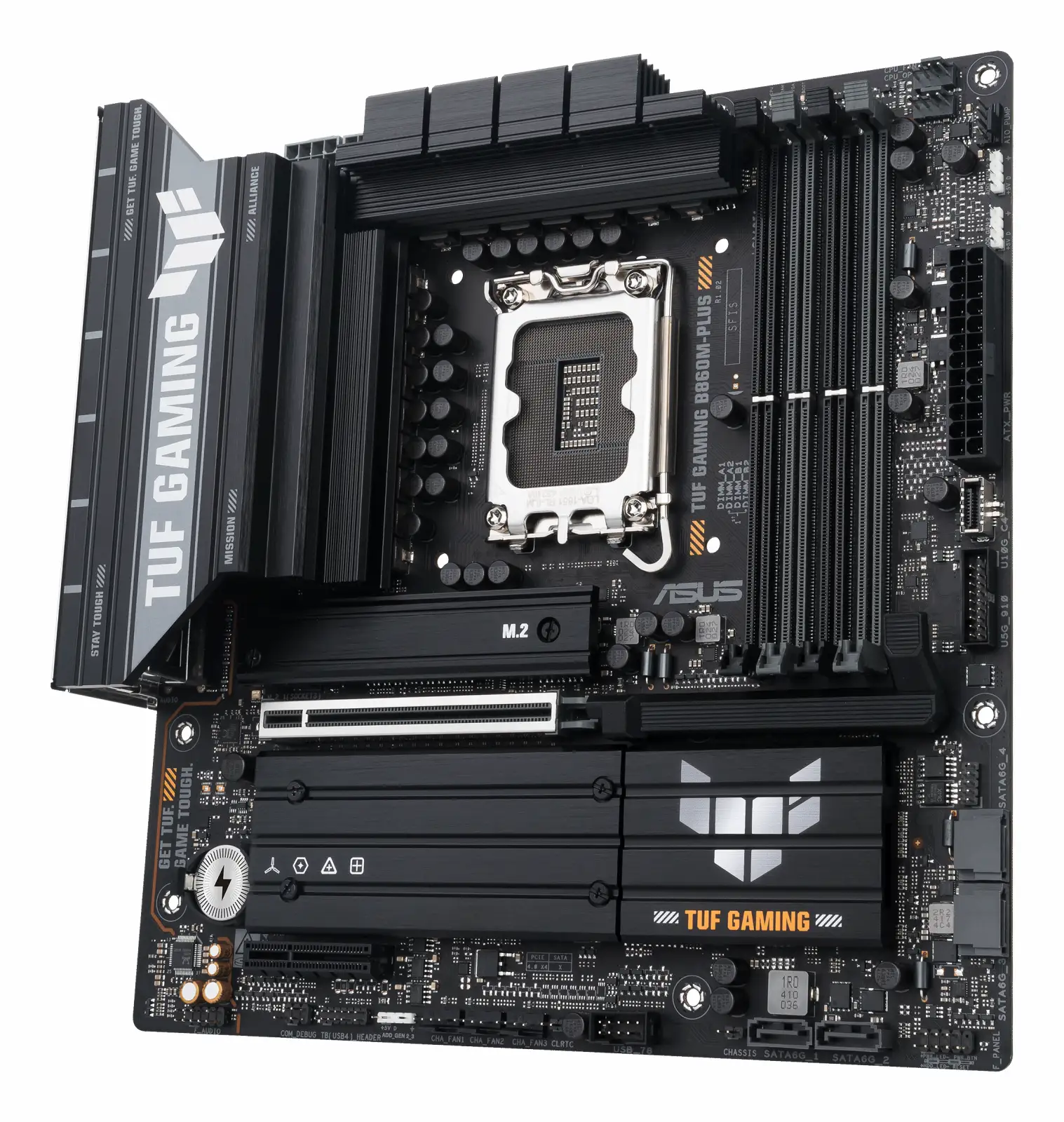

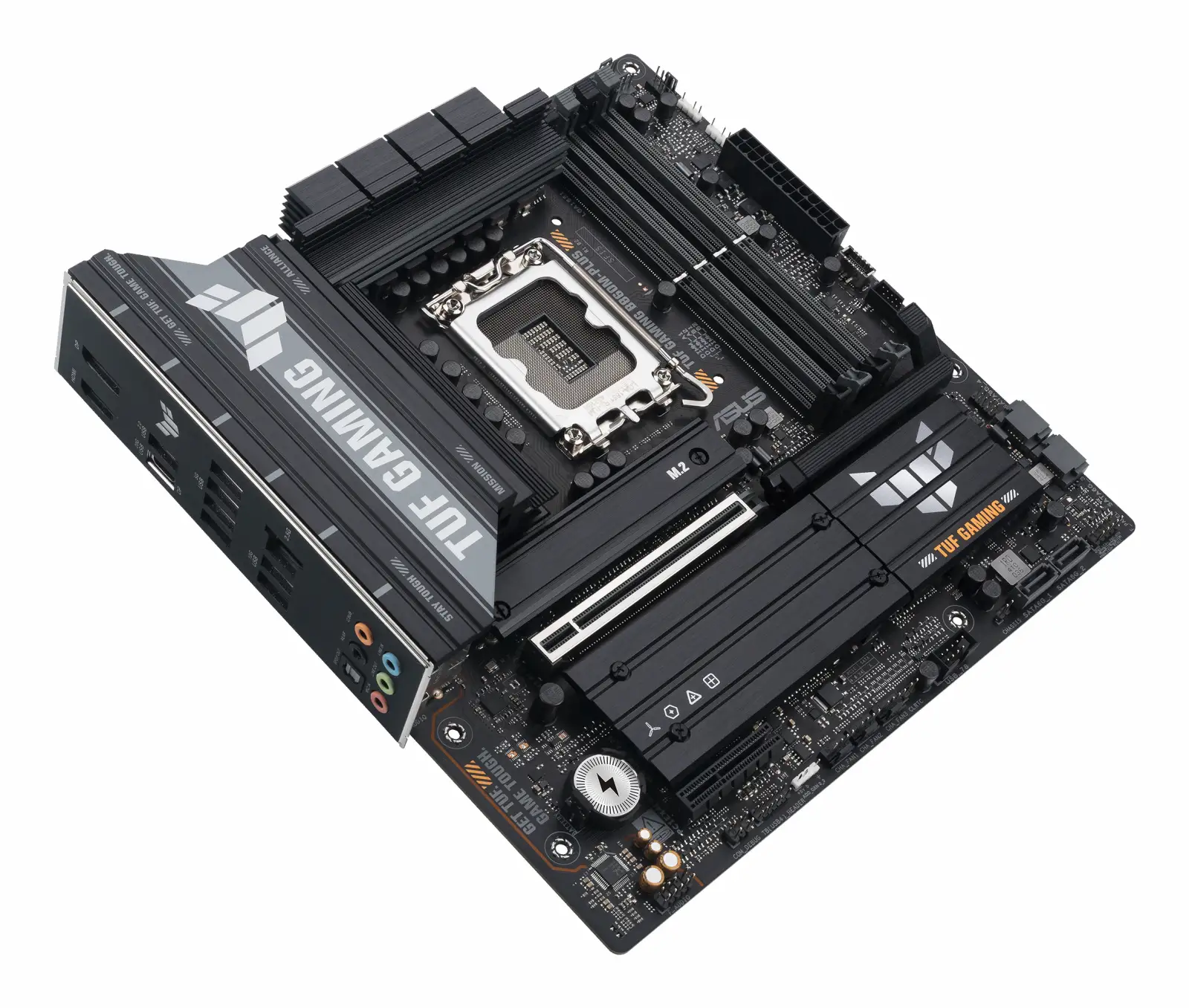

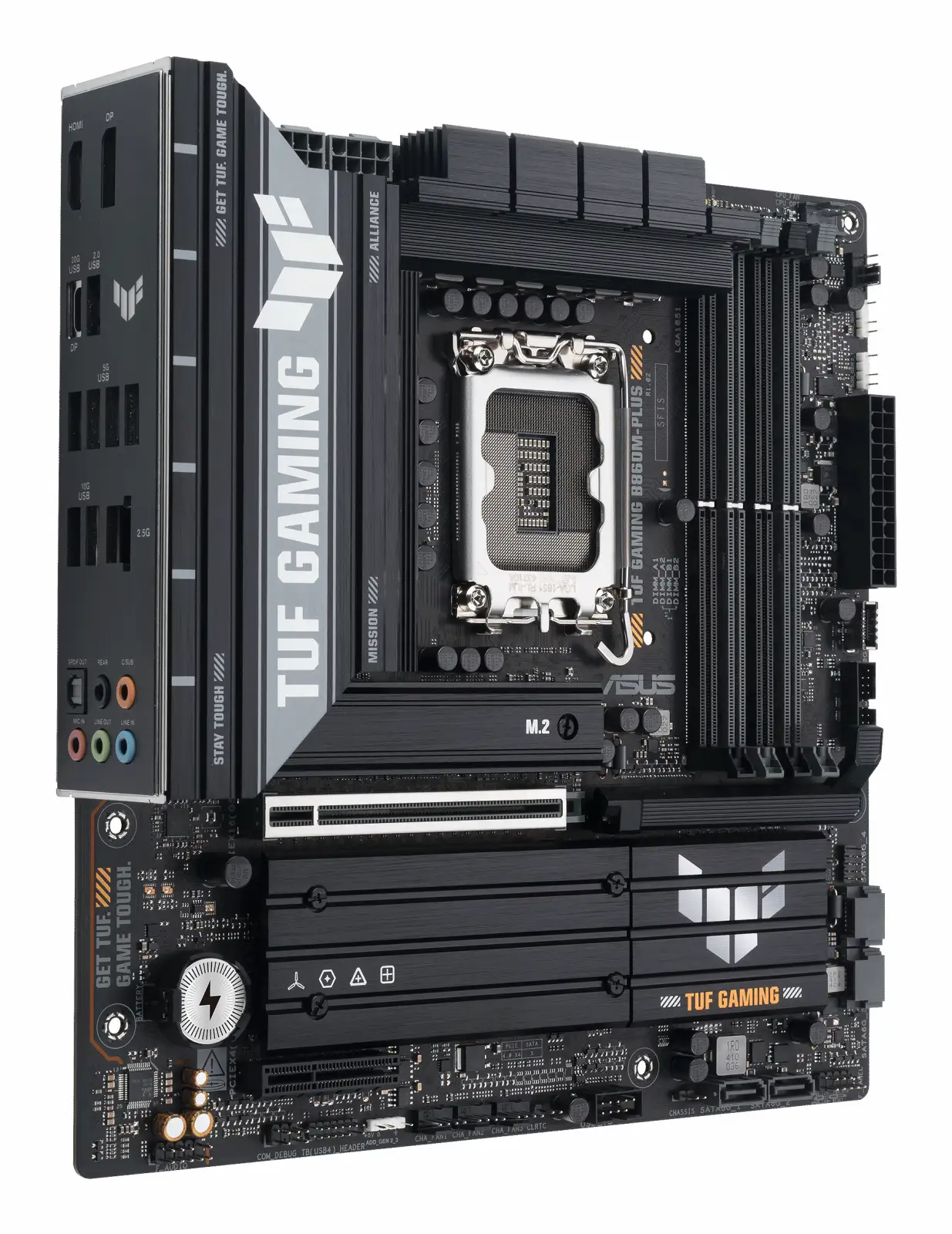

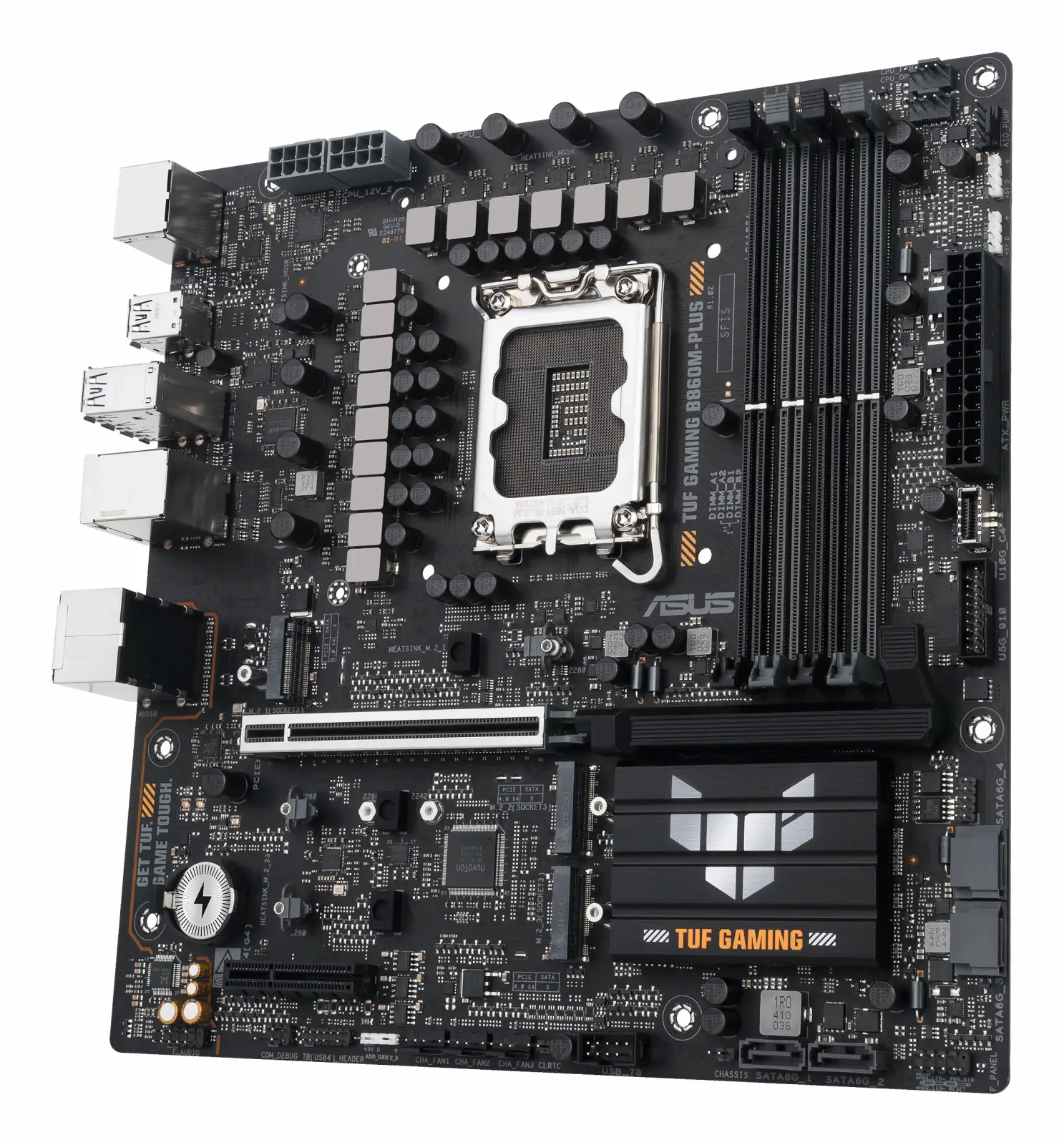

ASUS TUF GAMING B860M-PLUS

Produkt

Tillverkare

ASUS

Produktnamn

TUF GAMING B860M-PLUS

Tillverkarens länk

https://www.asus.com/motherboards-components/motherboards/tuf..

Produktkoder

Tillverkarens produktkoder

• 90MB1JW0-M0EAY0

GTIN- / EAN-koder

• 4711387785126

Produktbilder

Processor

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Ja

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Ja

Front panel connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of chassis fan connectors

3

Chassis intrusion connector

Ja

Thunderbolt headers

1

12V power connector

Ja

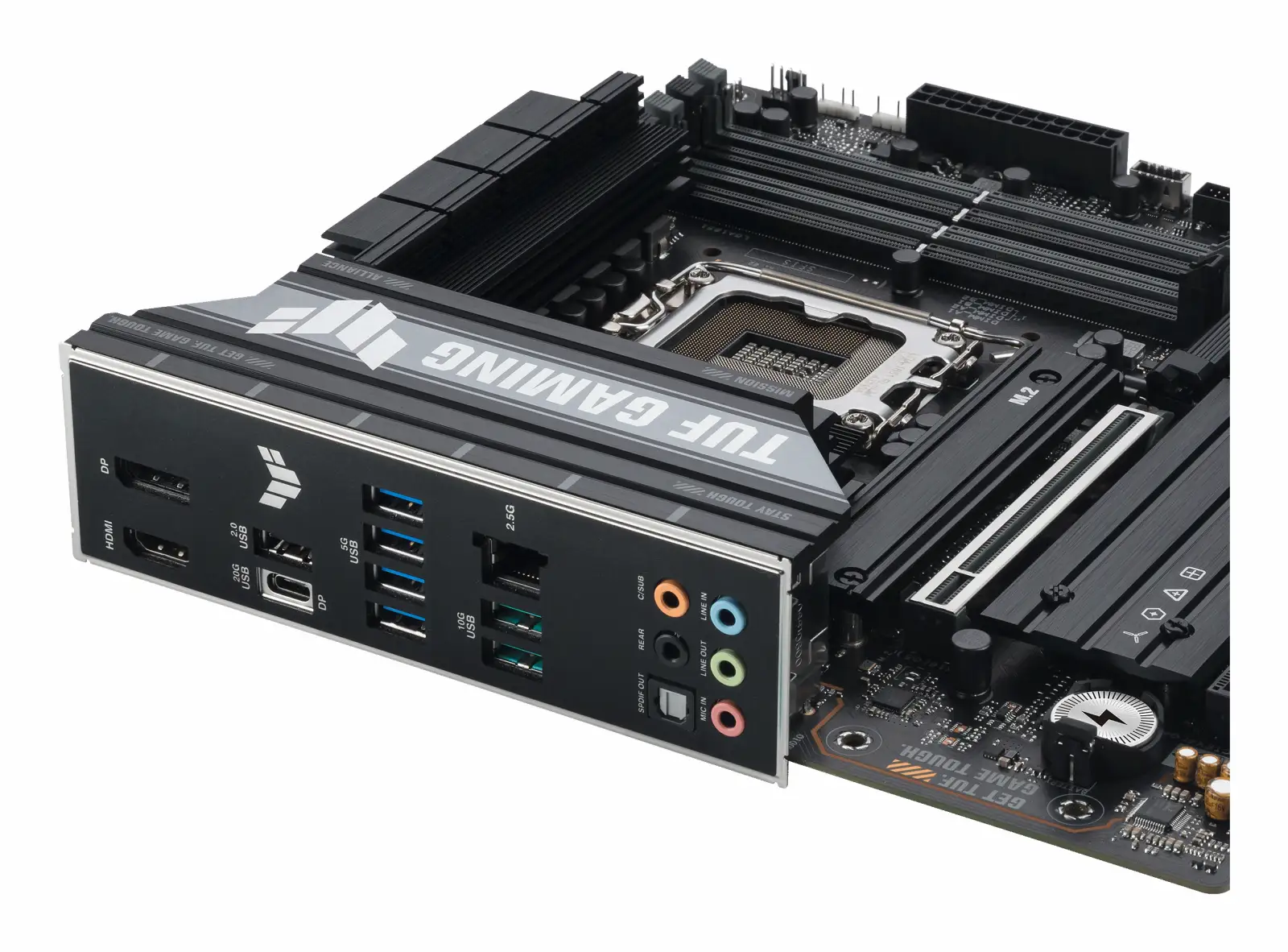

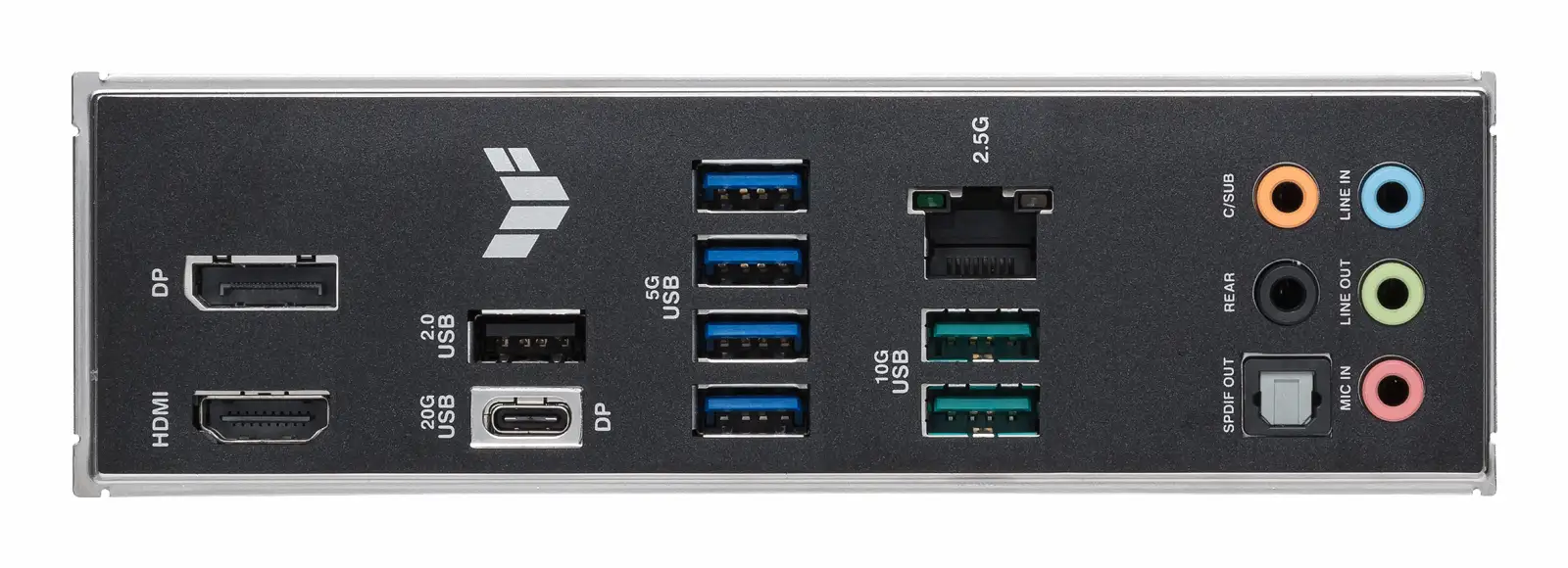

Rear panel I/O ports

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

S/PDIF out port

Ja

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Nej

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Packaging data

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

Package weight

1652 g

Weight & dimensions

Width

244 mm

Depth

244 mm

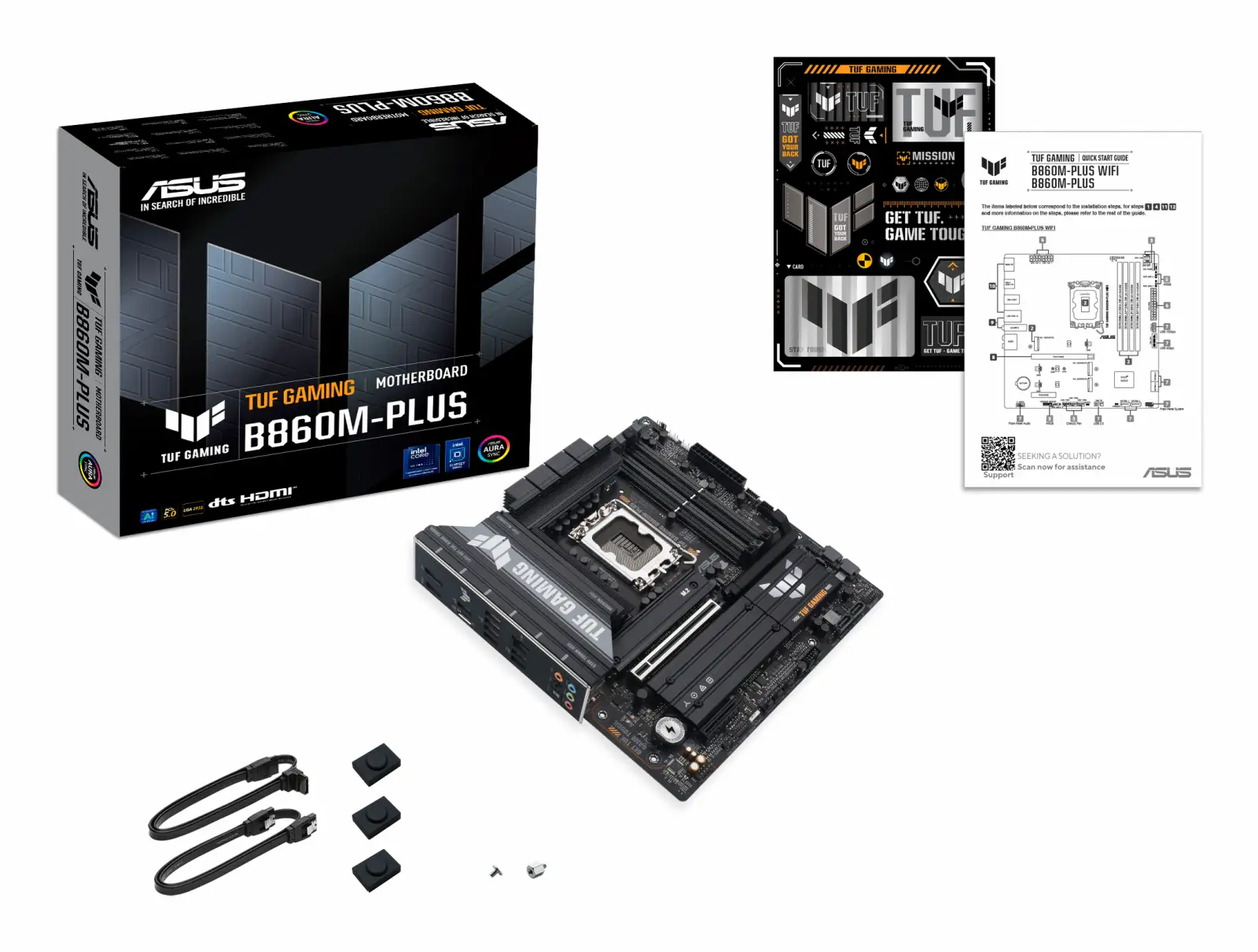

Packaging content

Cables included

SATA

Screws included

Ja
