ASUS ROG STRIX B860-G GAMING WIFI

Produkt

Tillverkare

ASUS

Produktnamn

ROG STRIX B860-G GAMING WIFI

Tillverkarens länk

https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-g-g..

Produktkoder

Tillverkarens produktkoder

• 90MB1JF0-M0EAY0

GTIN- / EAN-koder

• 4711387806838

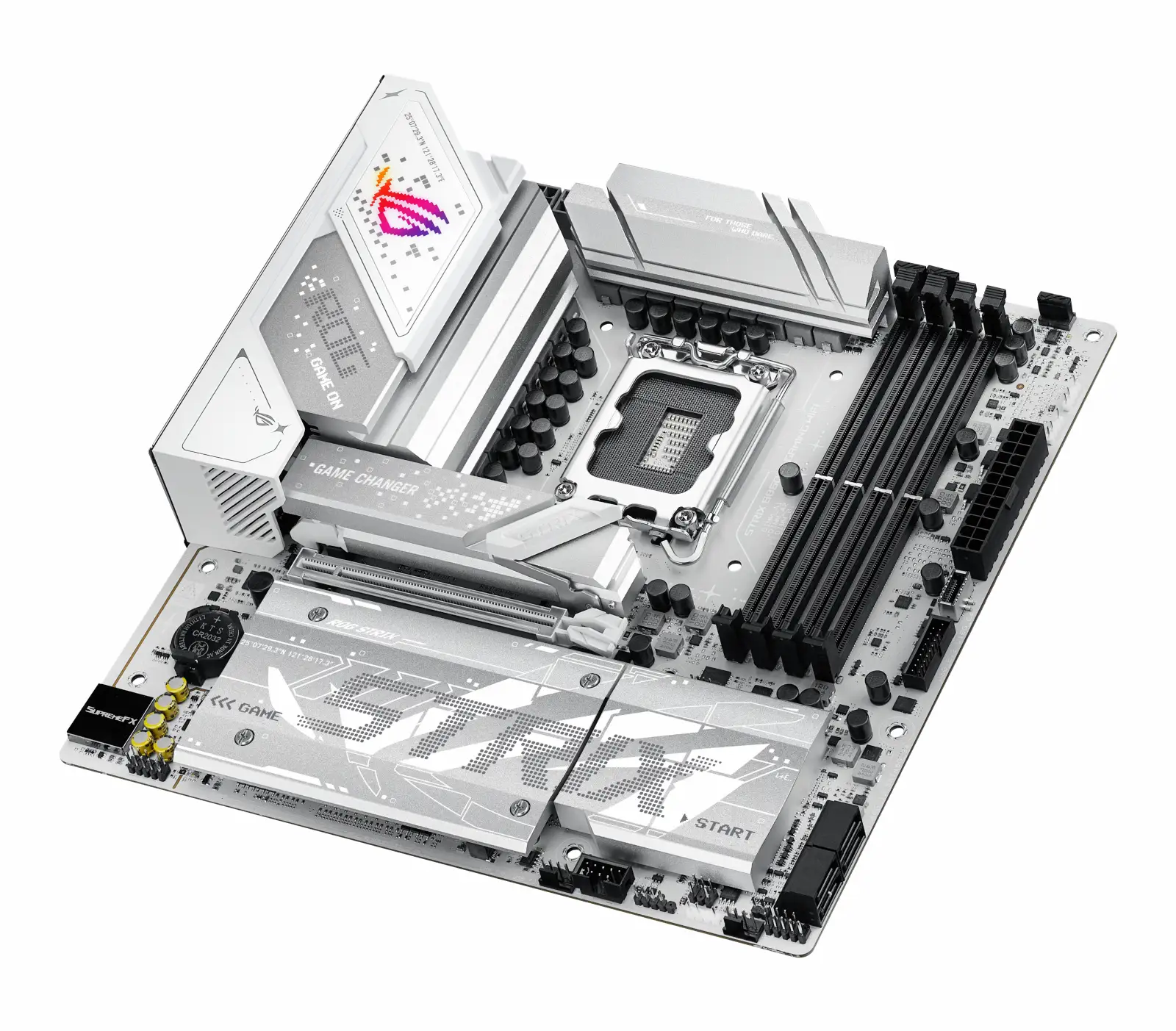

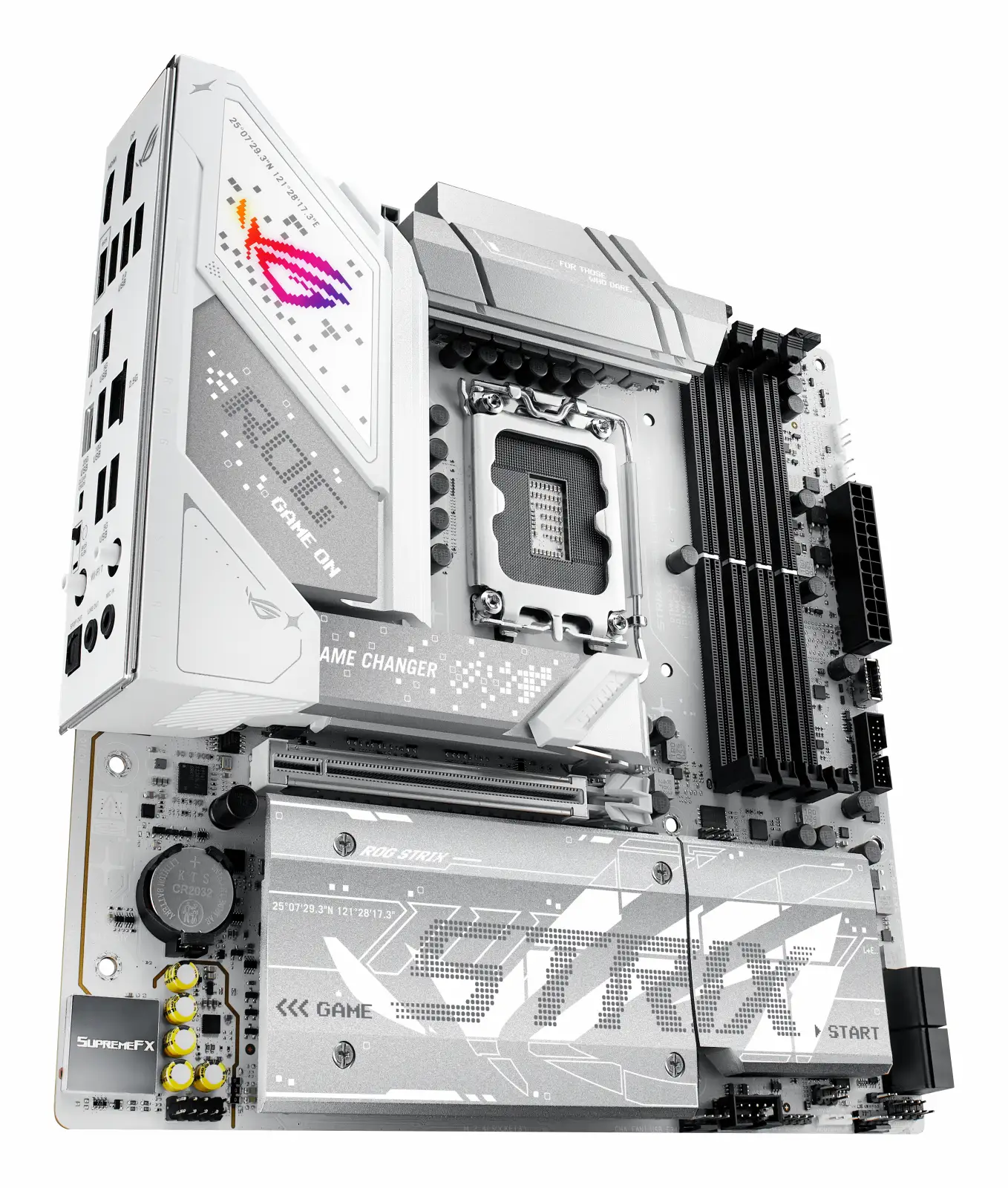

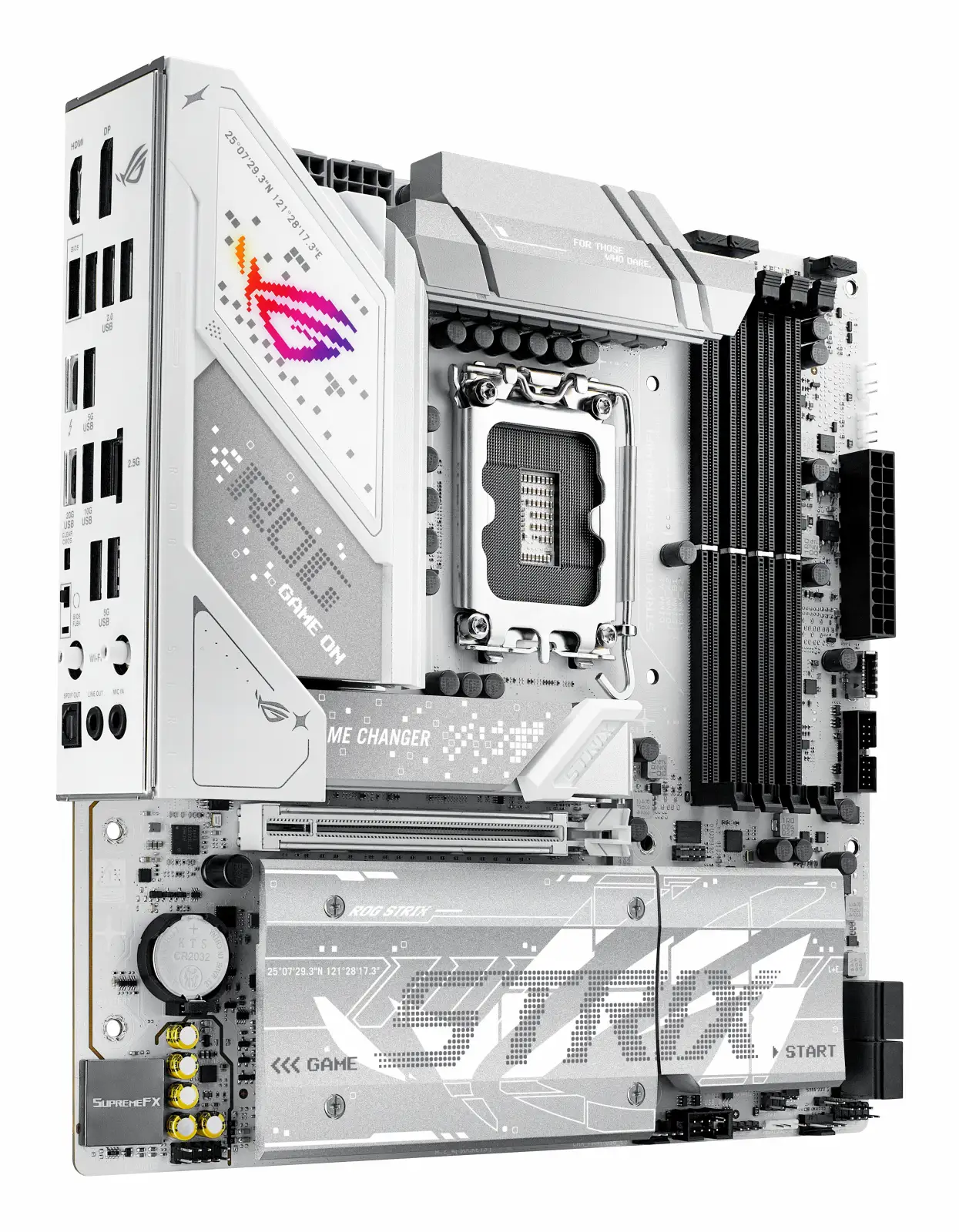

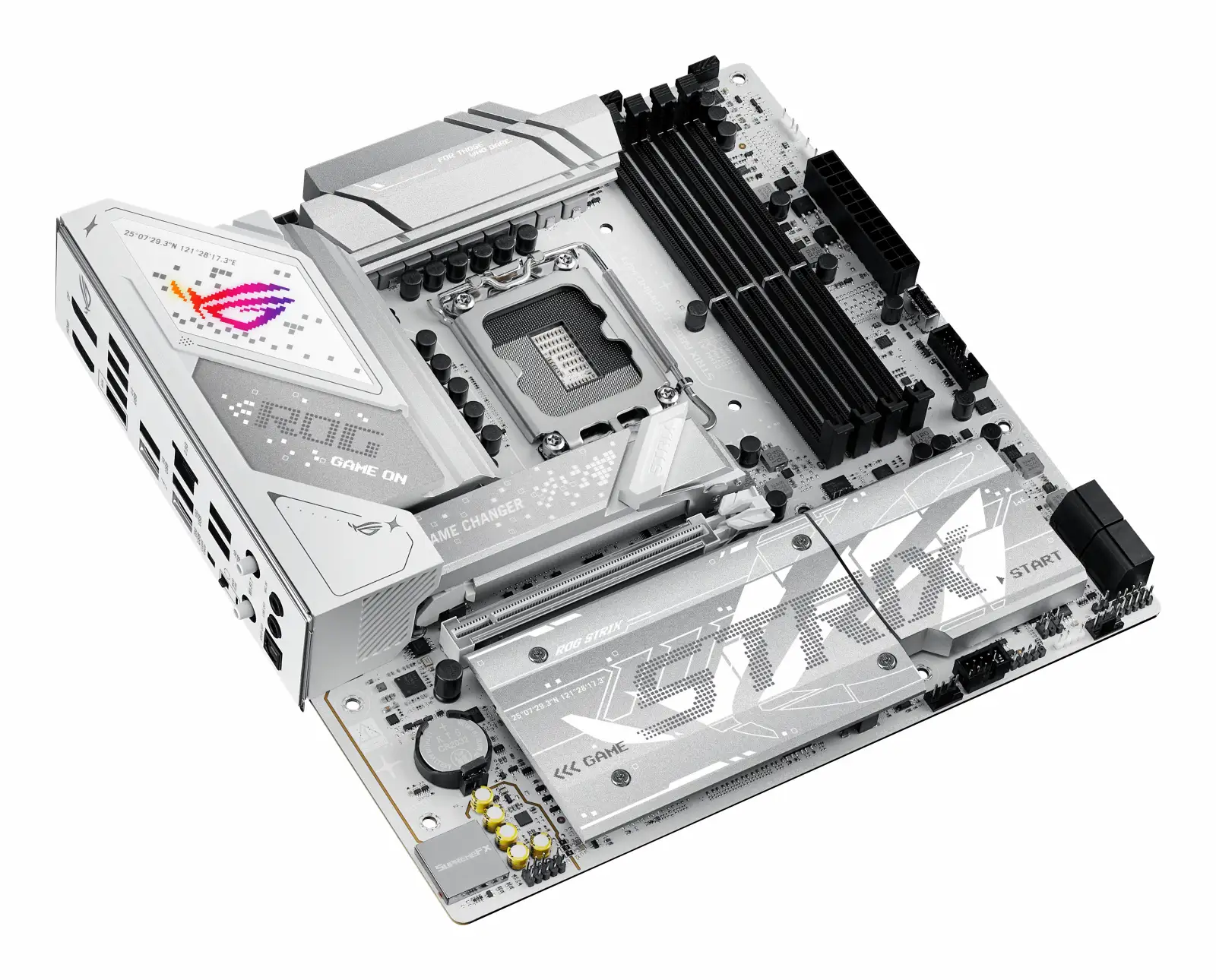

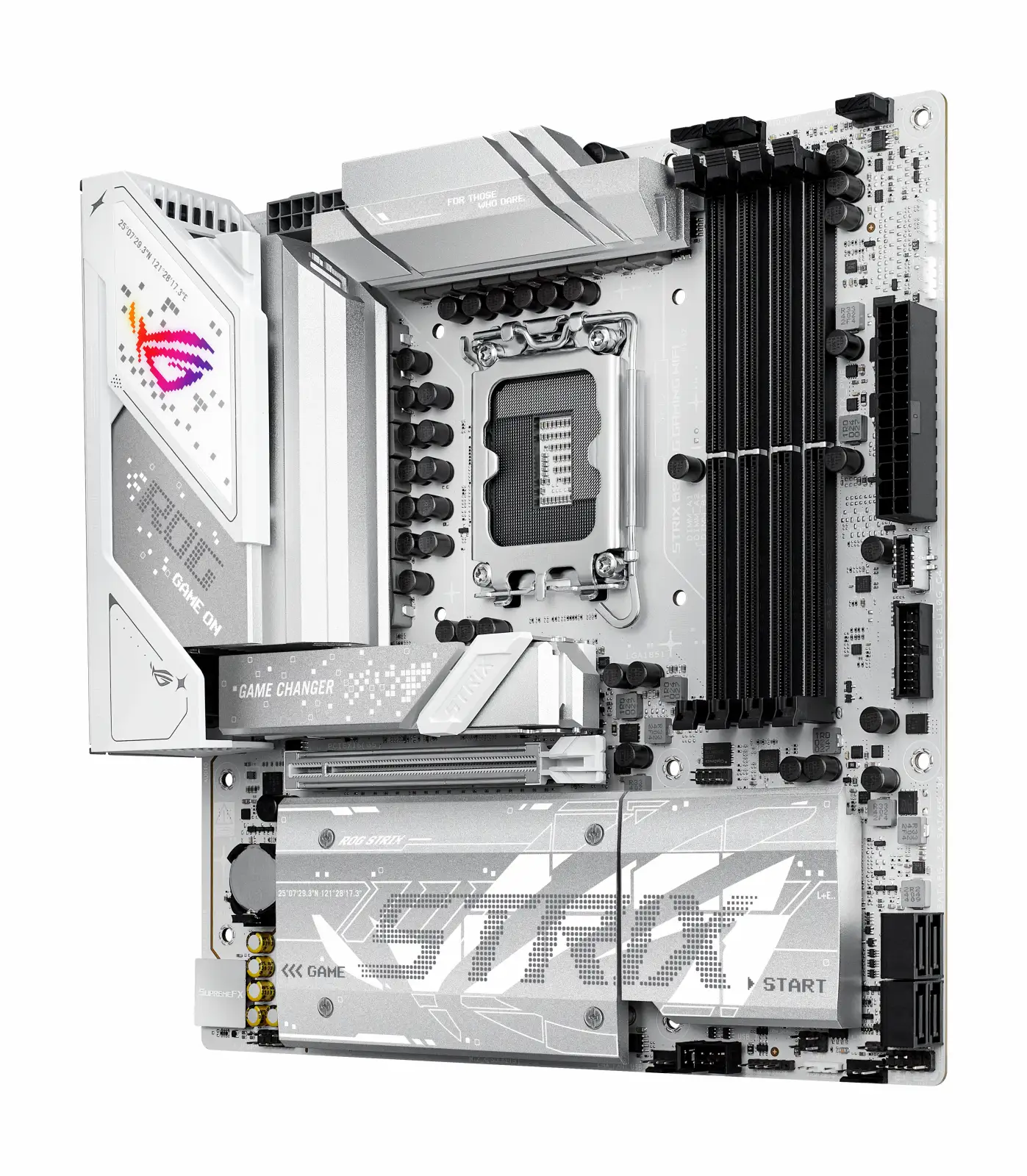

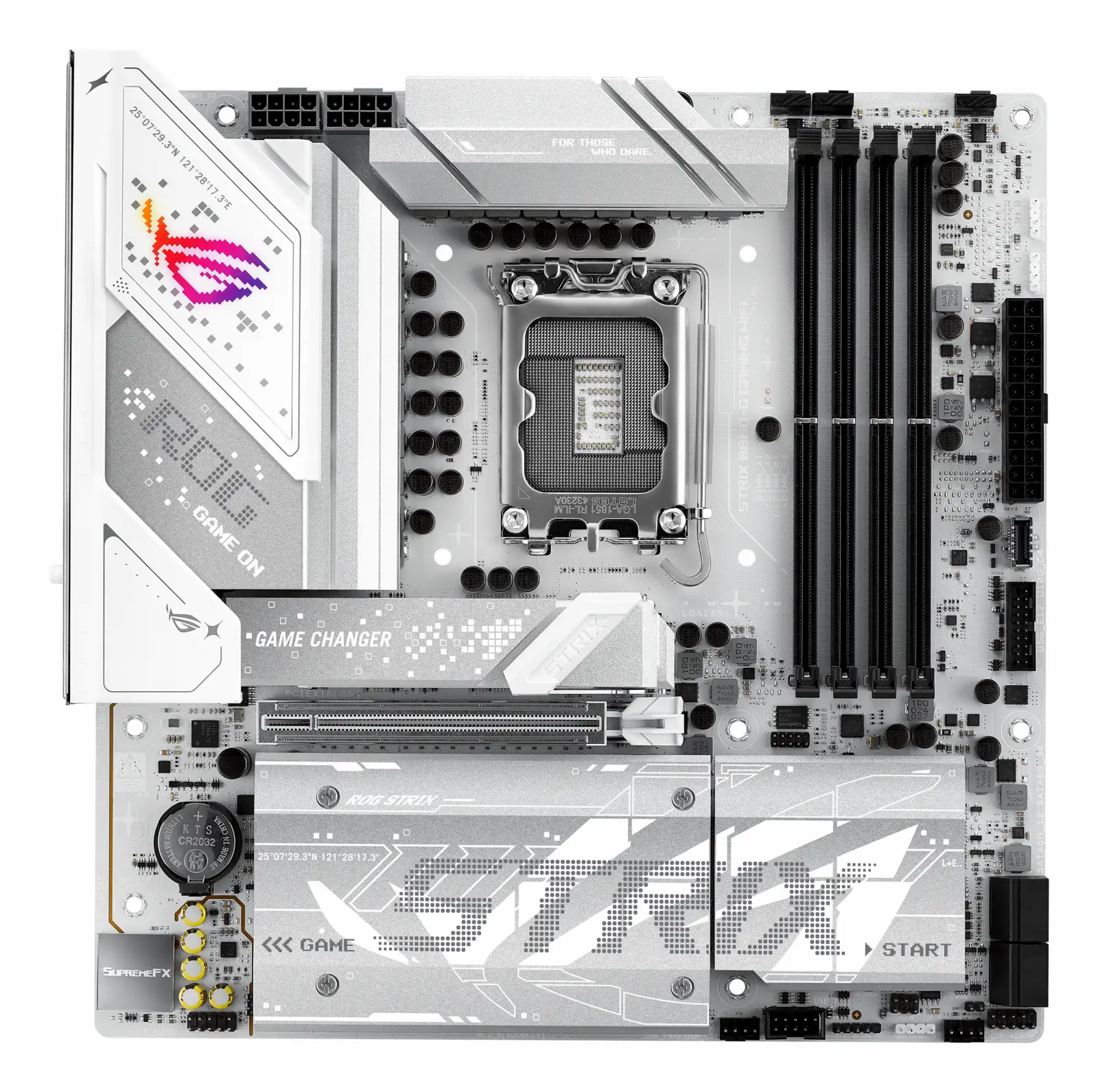

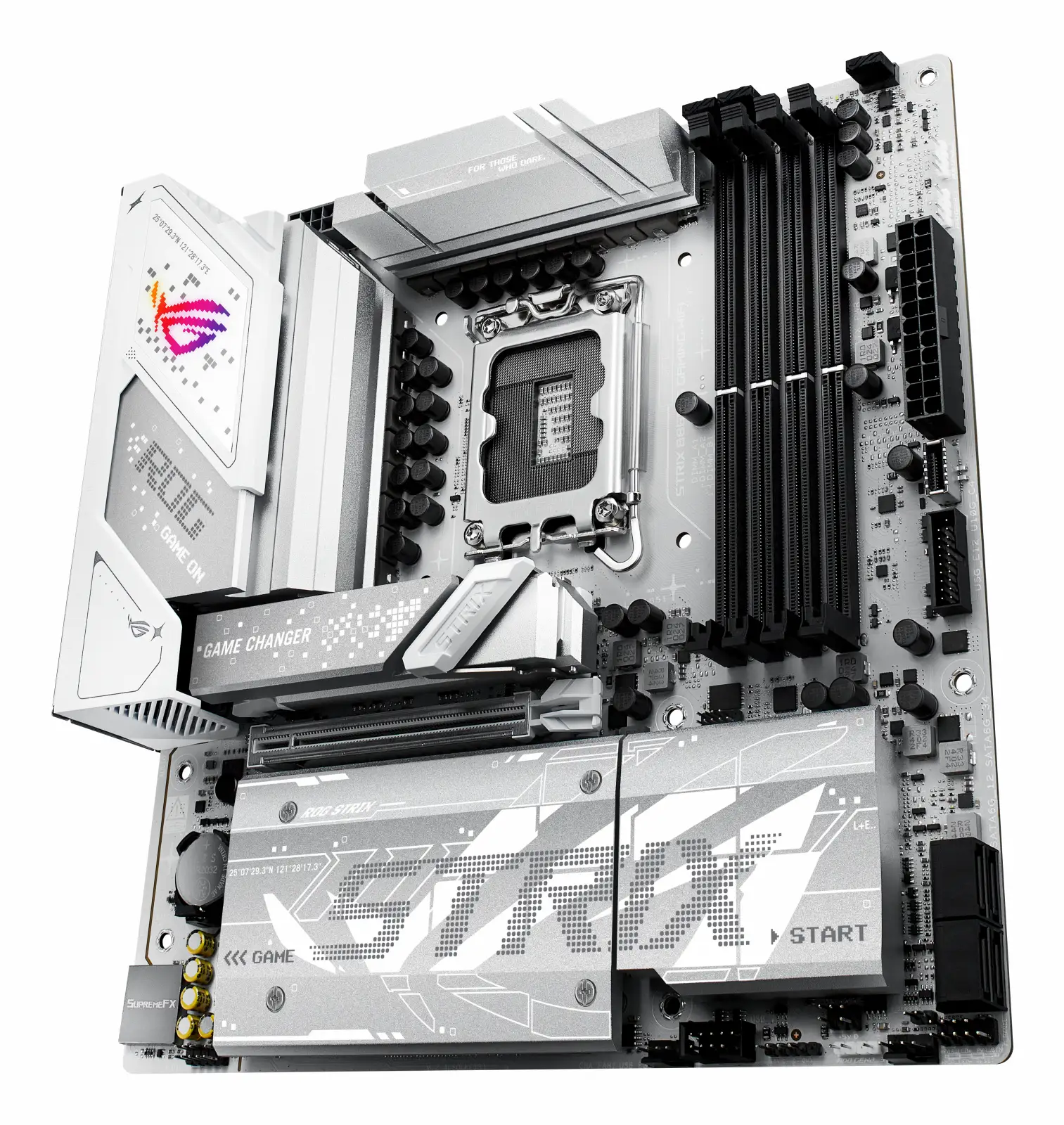

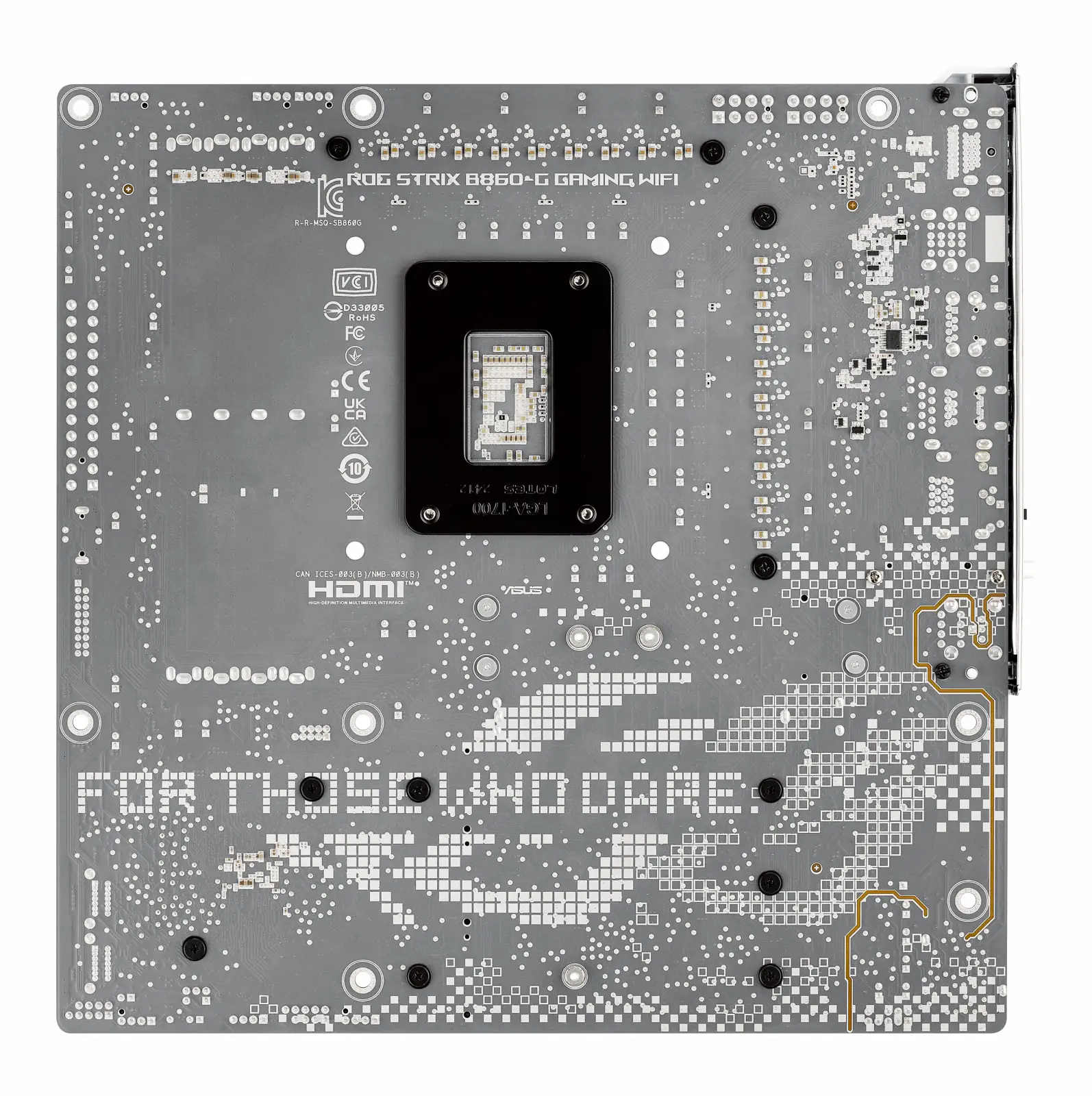

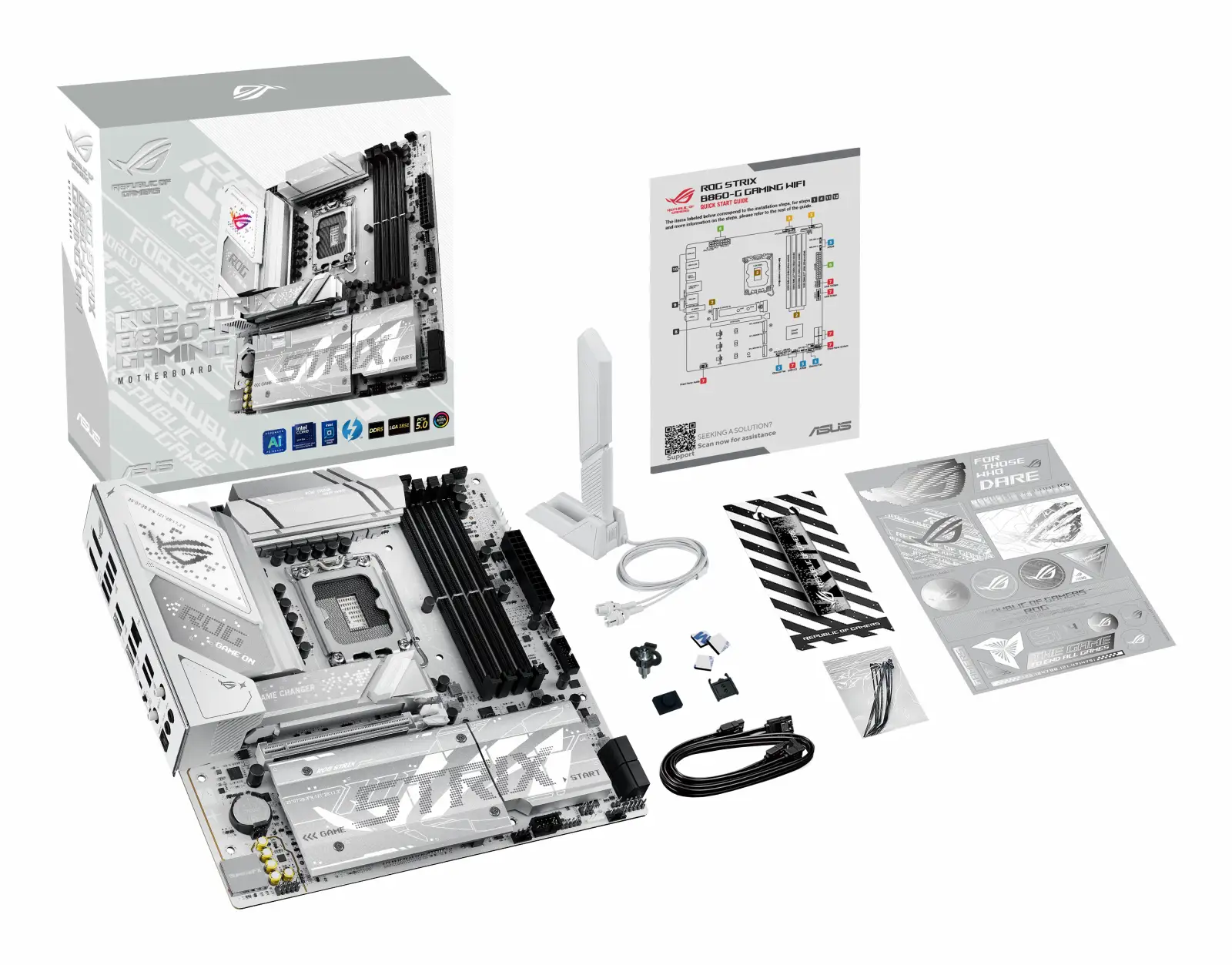

Produktbilder

Processor

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

9066 MHz

Maximum internal memory

256 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

8

RAID support

Ja

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of CPU fan connectors

1

Number of chassis fan connectors

2

EPS power connector (8-pin)

Ja

12V power connector

Ja

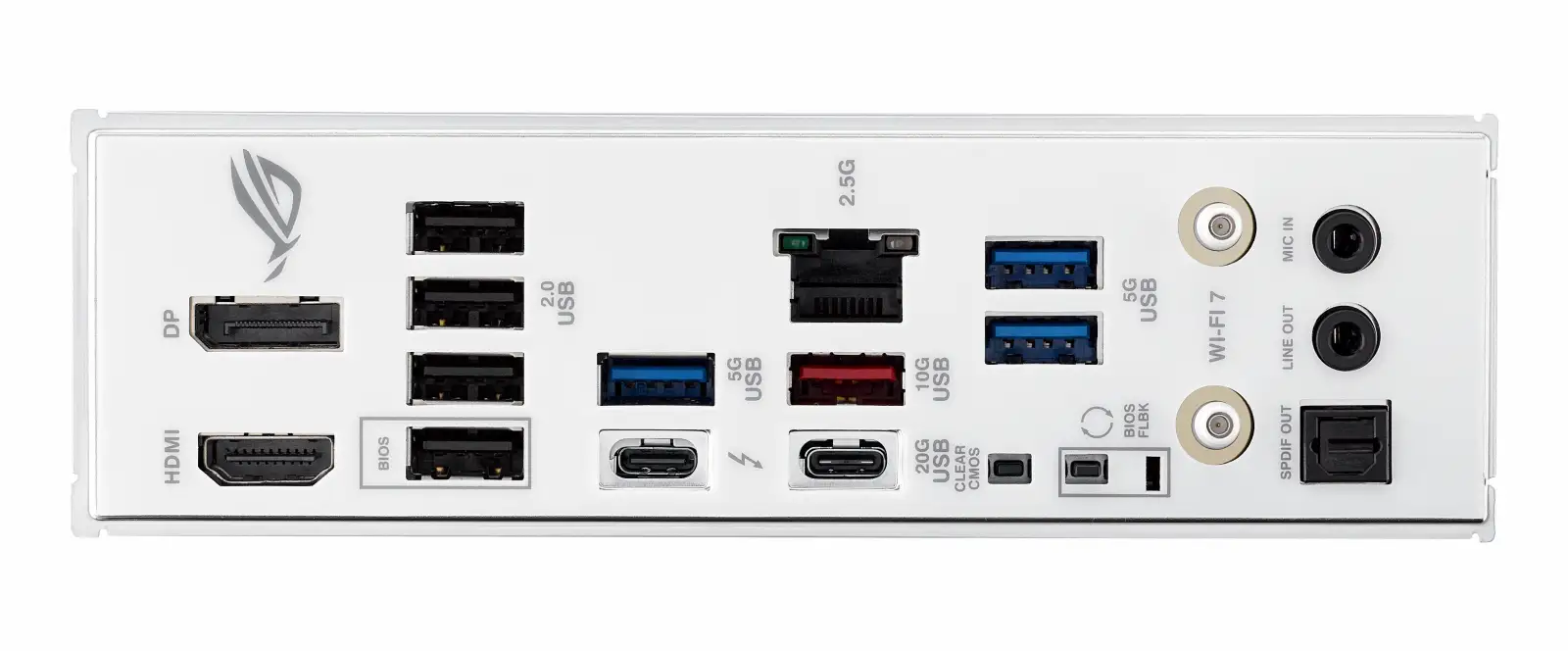

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Microphone in

Ja

S/PDIF out port

Ja

Thunderbolt ports quantity

1

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth

Ja

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Audio chip

Realtek ALC1220P

Audio output channels

7.1 channels

Product colour

White

Windows operating systems supported

Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Ja

Packaging data

Package width

285 mm

Package depth

274 mm

Package height

72.5 mm

Package weight

2120 g

Weight & dimensions

Width

244 mm

Depth

244 mm

Height

50 mm

Other features

Weight

1226 g
