ASUS X870 MAX GAMING WIFI7 W

Produkt

Tillverkare

ASUS

Produktnamn

X870 MAX GAMING WIFI7 W

Tillverkarens länk

https://www.asus.com/motherboards-components/motherboards/othe..

Produktkoder

Tillverkarens produktkoder

• 90MB1LZ0-M0EAY0

GTIN- / EAN-koder

• 4711636007856

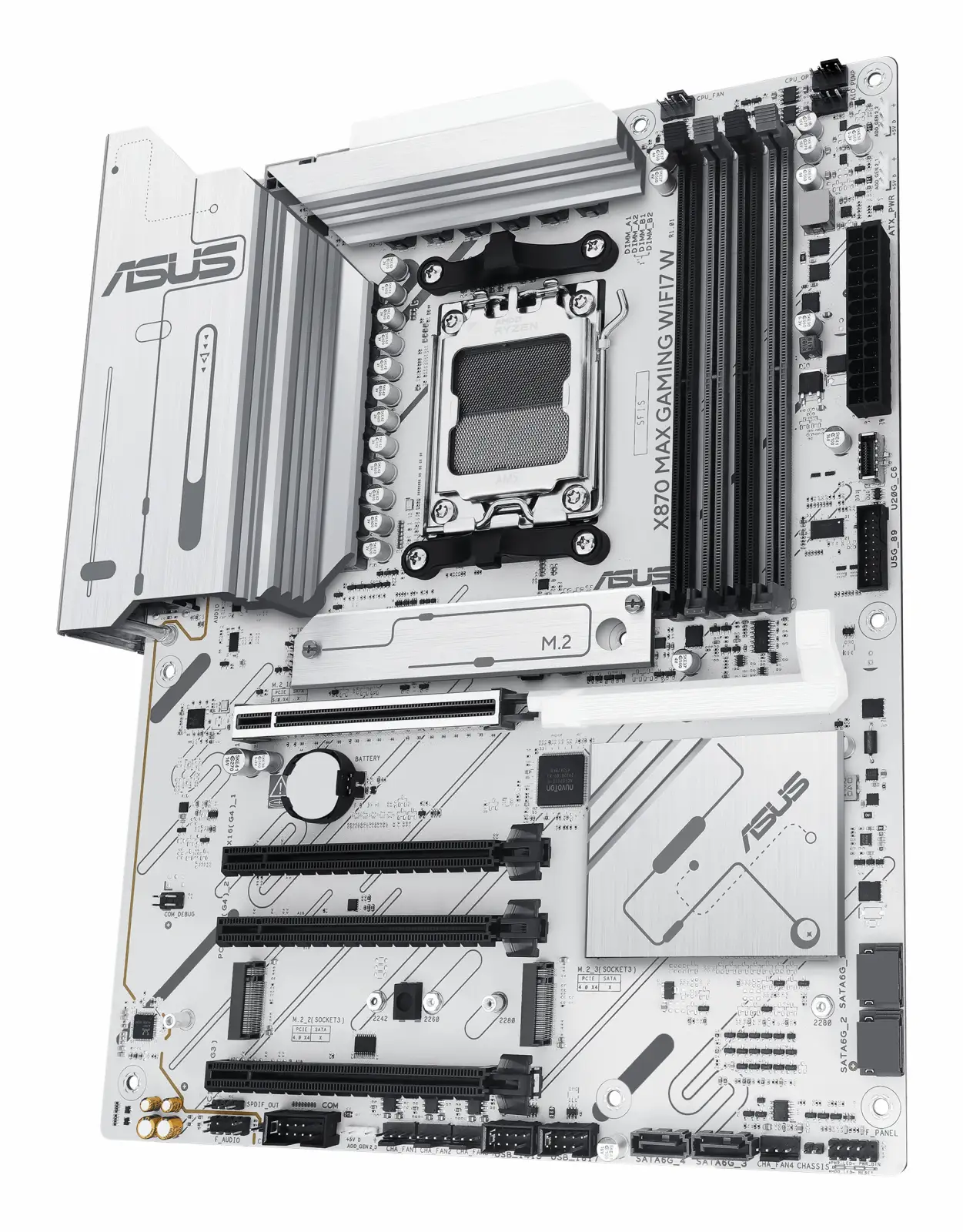

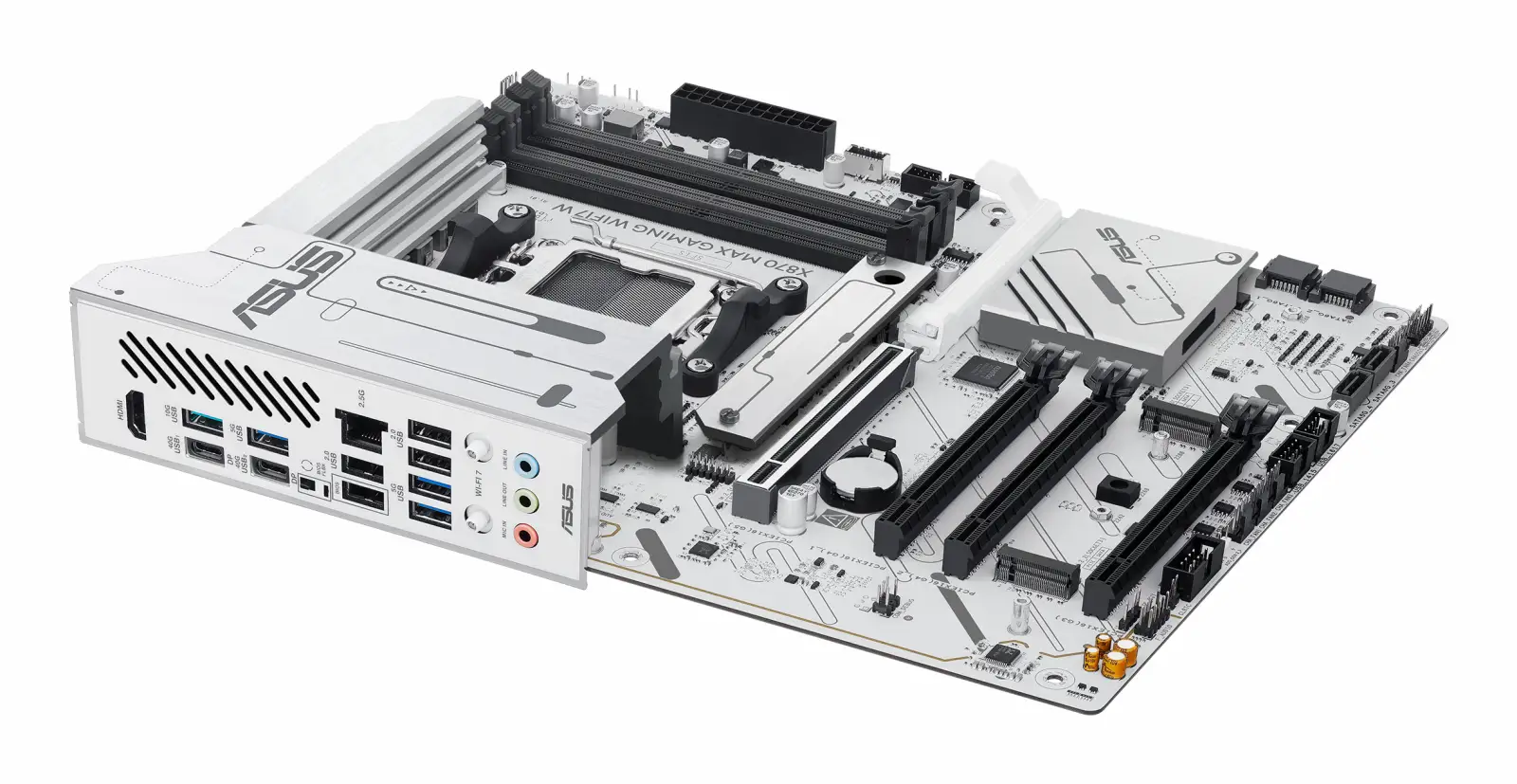

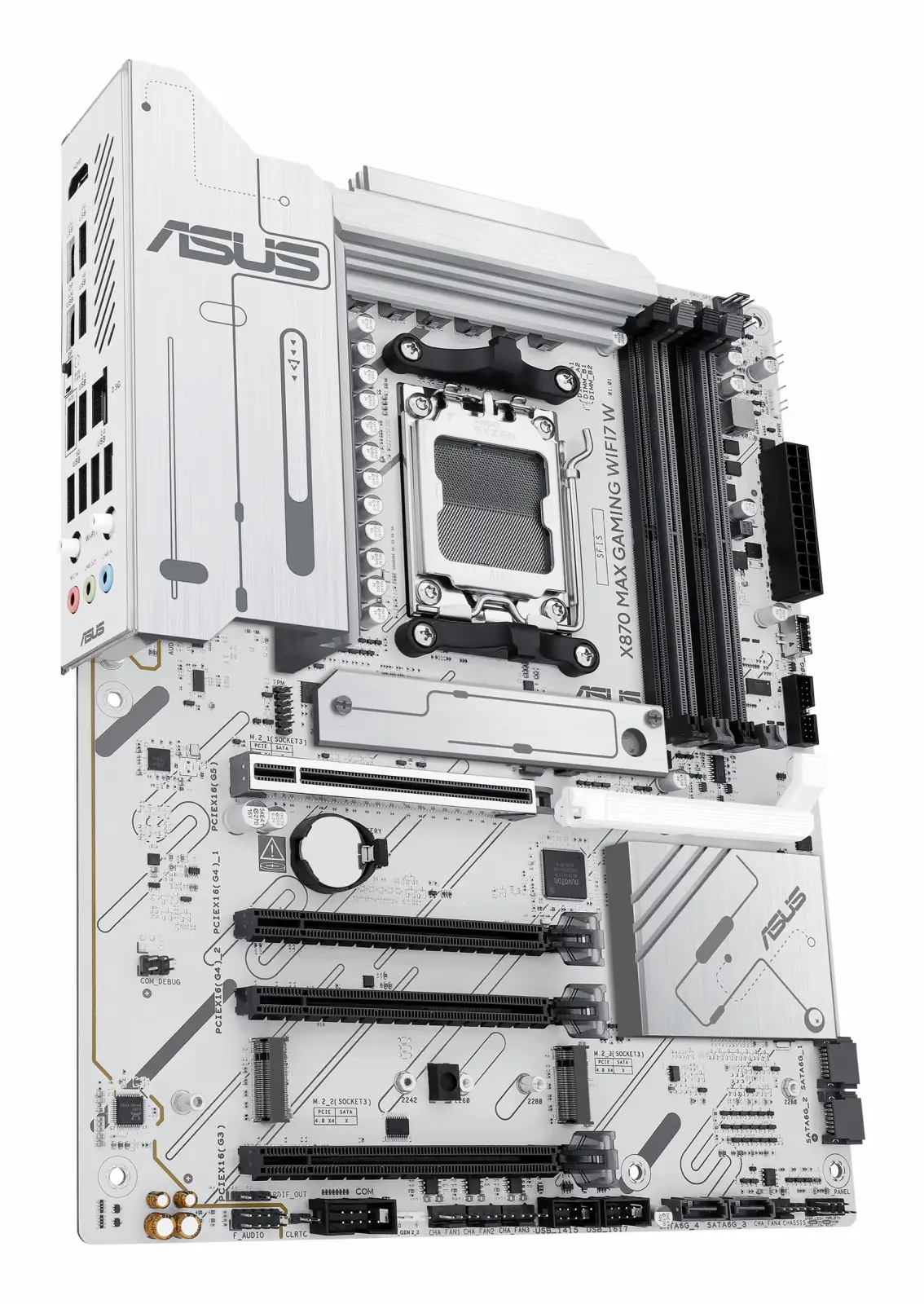

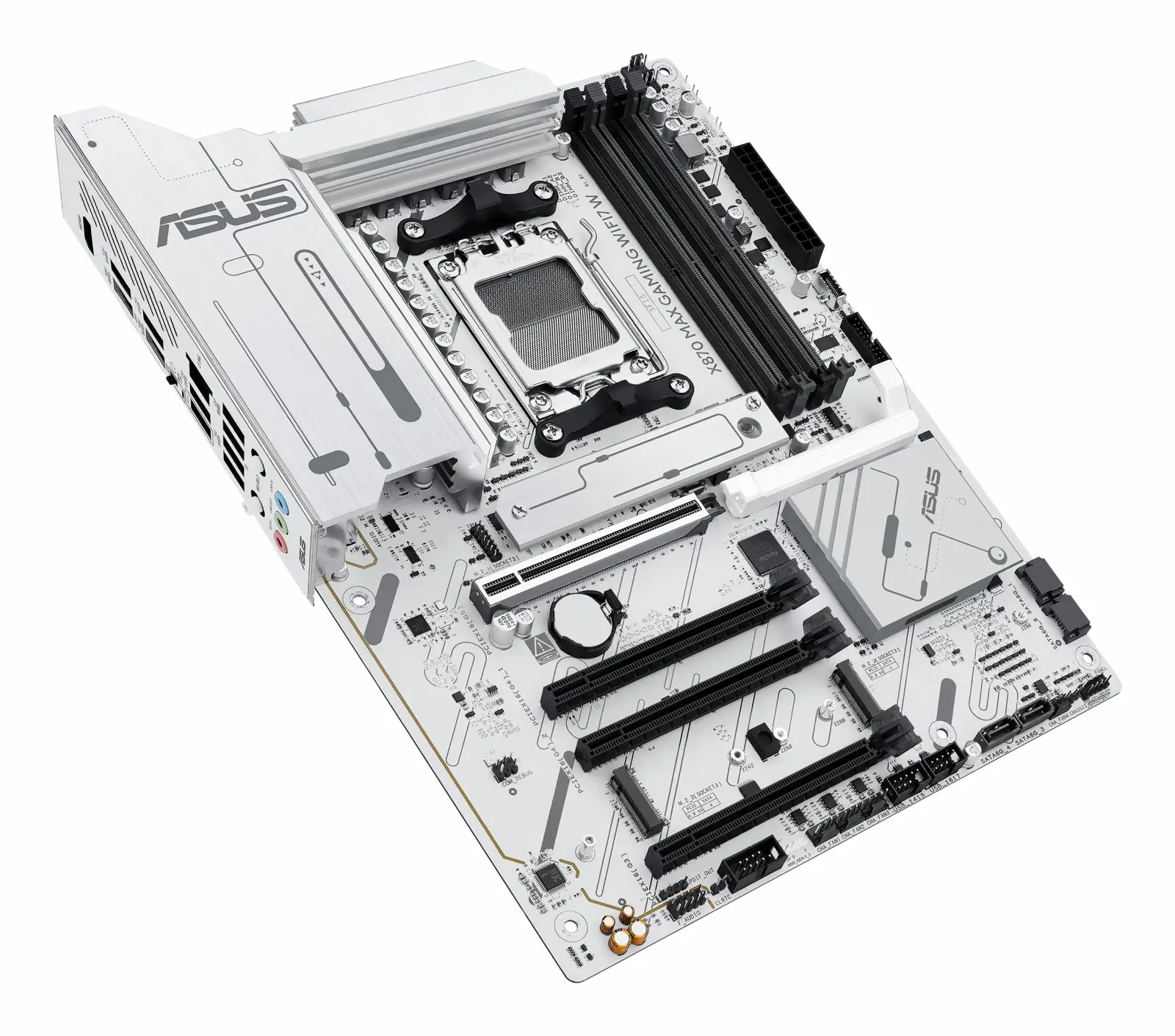

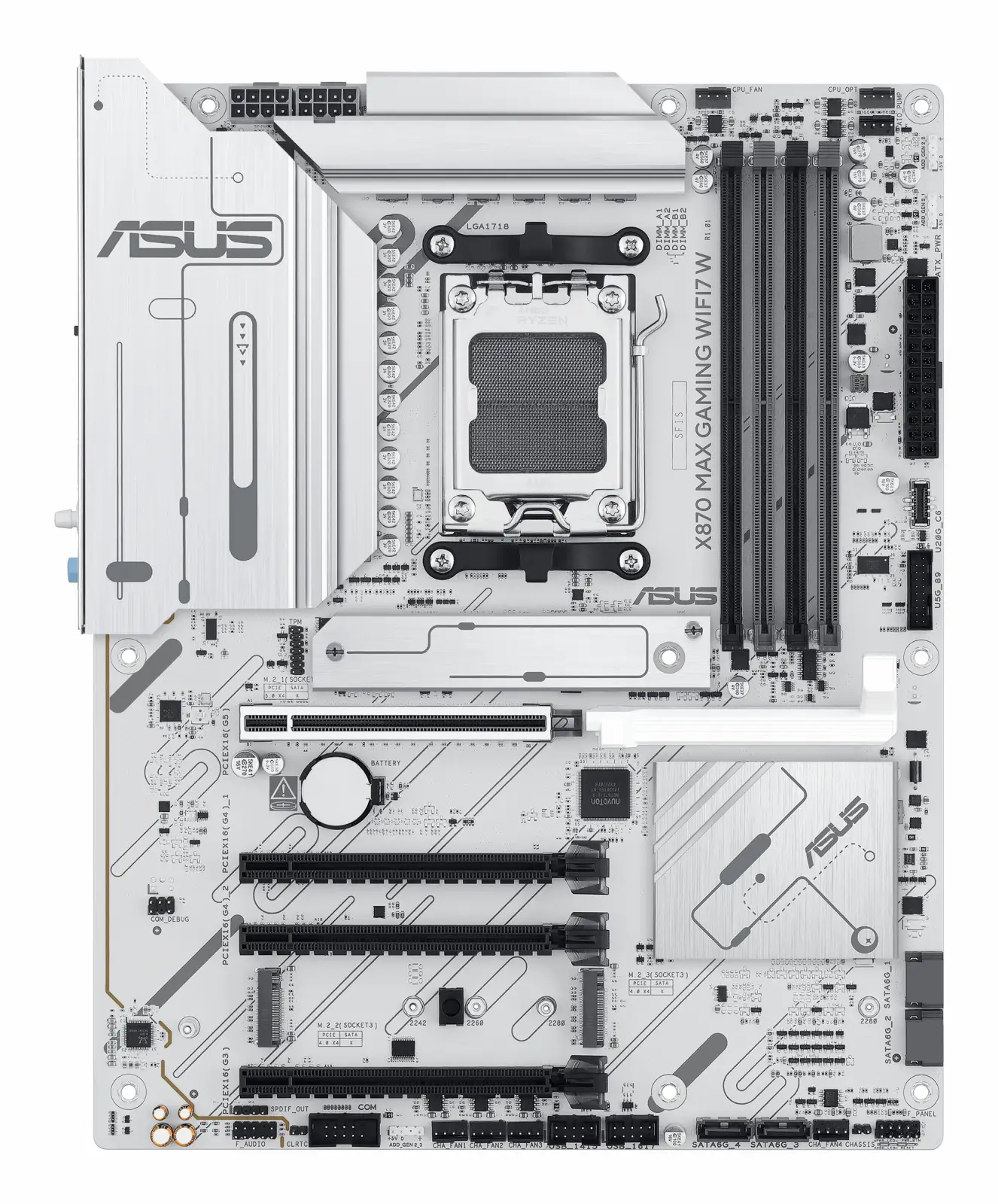

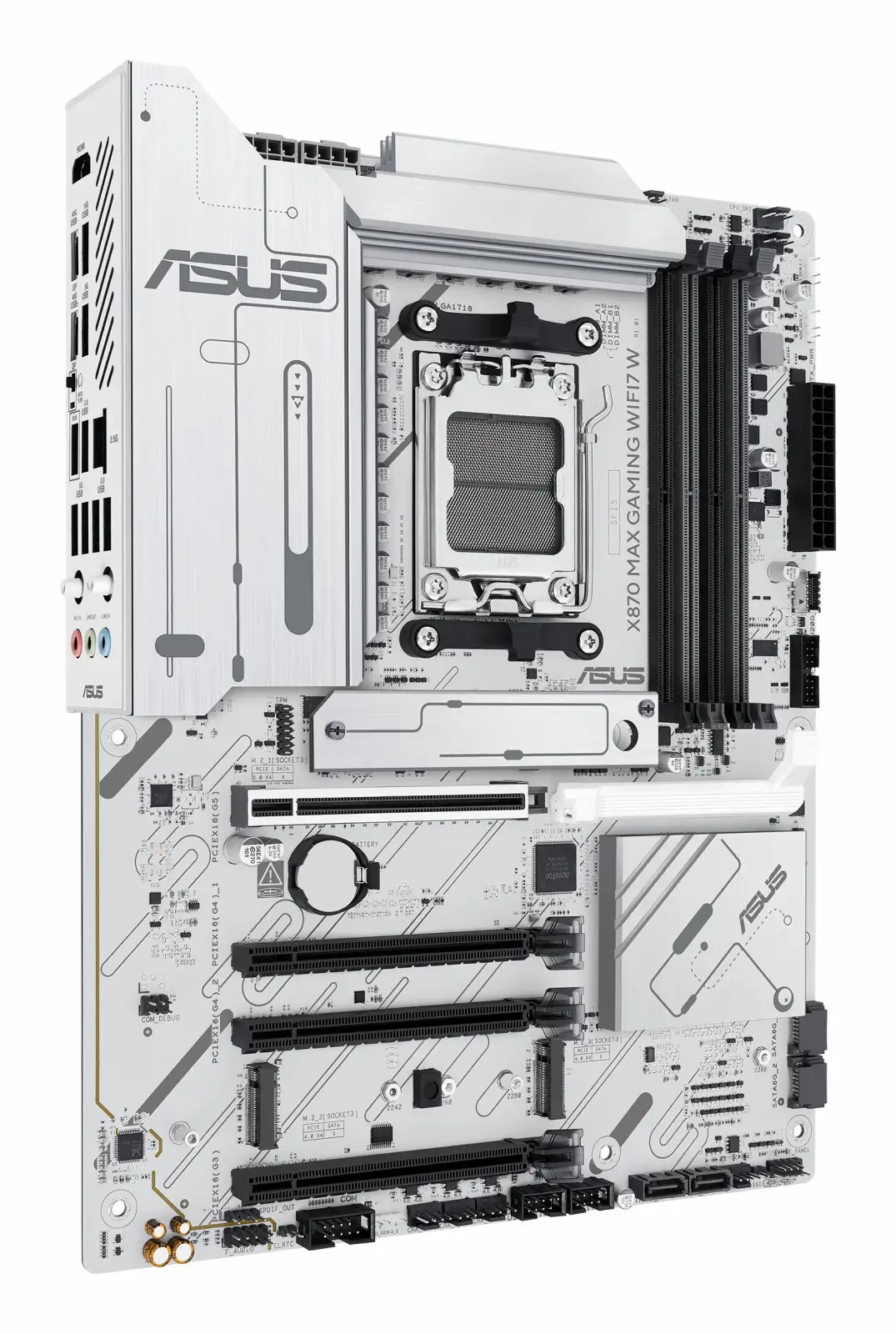

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speed (max)

8000 MHz

Maximum internal memory

256 GB

Unbuffered memory

Ja

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

7

RAID support

Ja

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Maximum resolution

3840 x 2160 pixels

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2x2 connectors

1

Number of SATA III connectors

4

S/PDIF out connector

Ja

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Chassis intrusion connector

Ja

EPS power connector (8-pin)

Ja

Number of EPS power connectors (8-pin)

2

Number of COM connectors

1

TPM connector

Ja

12V power connector

Ja

Number of water pump connectors

1

RGB LED pin header

Ja

Number of RGB LED pin headers

3

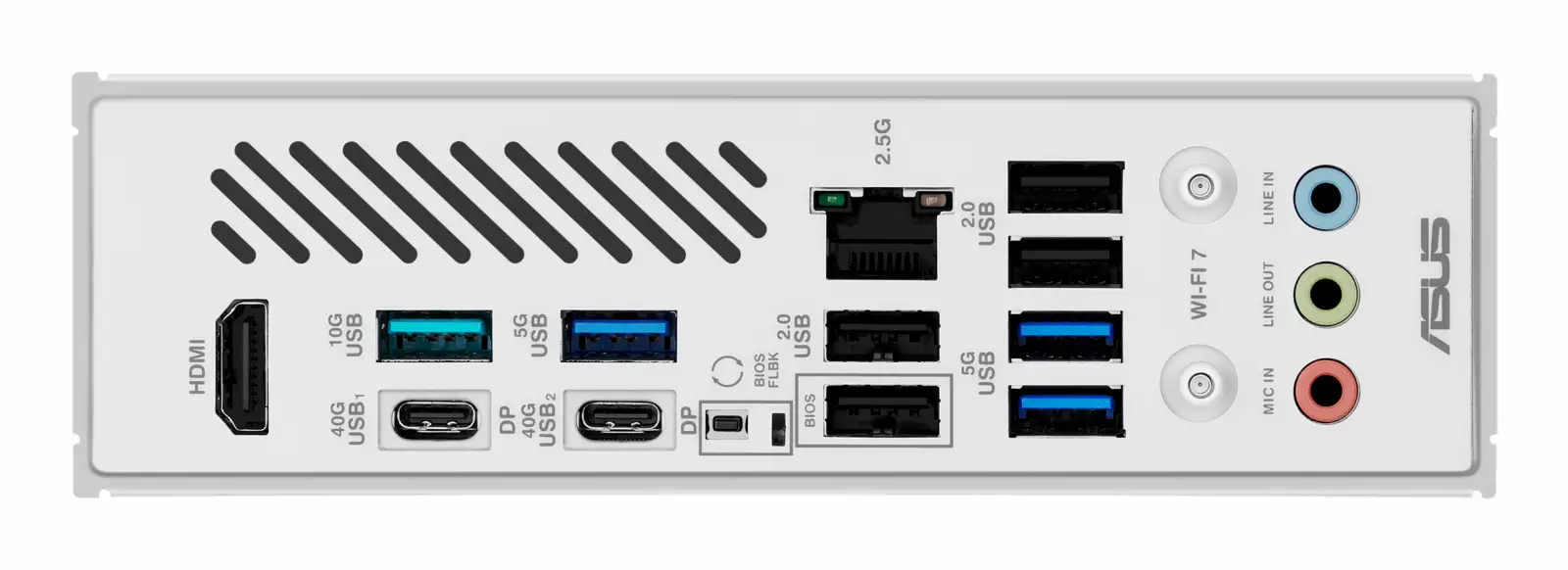

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Headphone outputs

3

Microphone in

Ja

WiFi-AP antenna jack

2

USB connector type

USB Type-A, USB Type-C

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

Wake-on-LAN ready

Ja

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth

Ja

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Audio output channels

7.1 channels

Product colour

White

Windows operating systems supported

Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Ja

Weight & dimensions

Width

305 mm

Depth

244 mm

Packaging content

Cables included

SATA

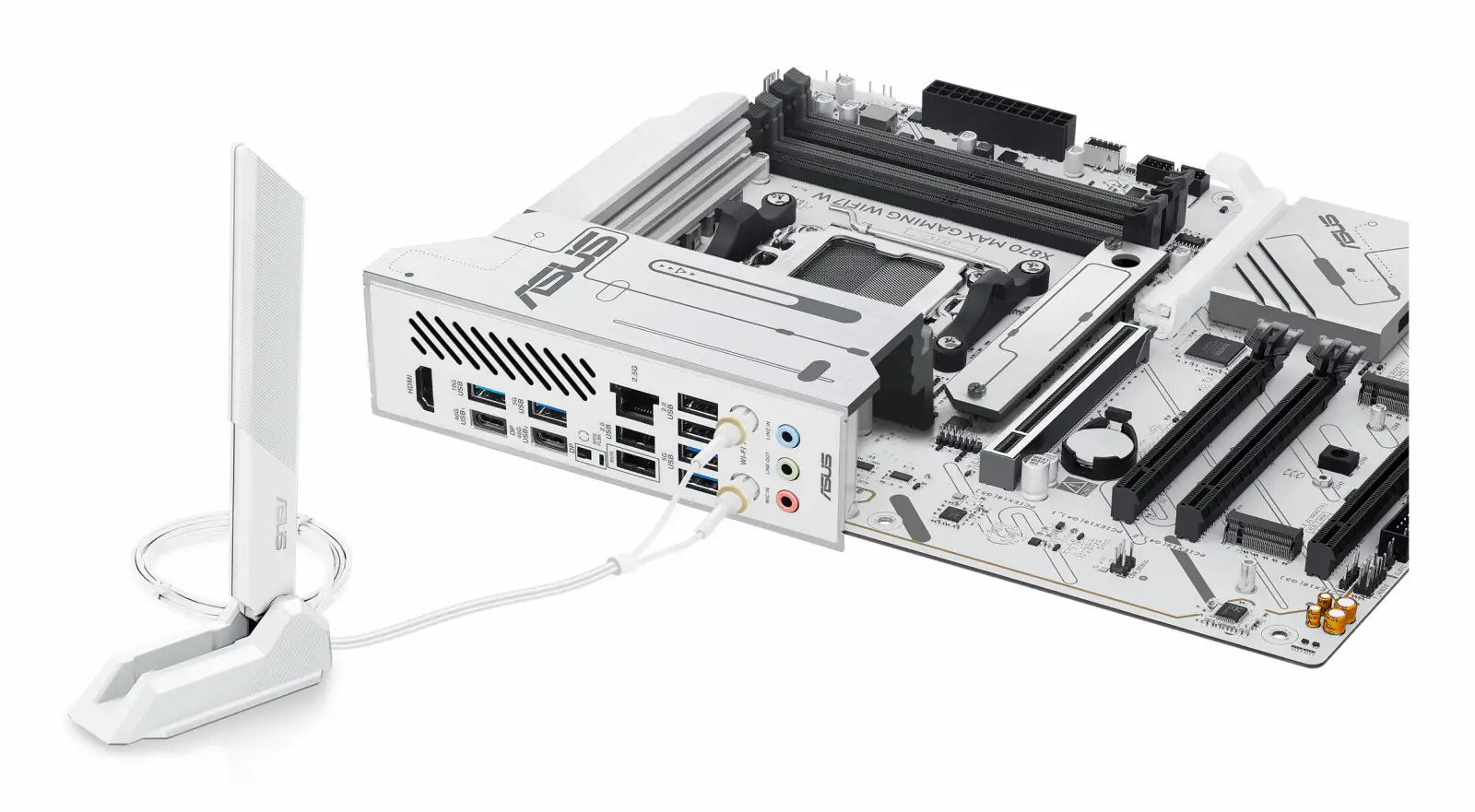

Antenna included

Ja

Screws included

Ja
