Funktioner
- Strömförsörjningsenhet formfaktor
- ATX
- Total effekt
- 850 W
- 80 plus-certifiering
- 80 PLUS Gold
Recensioner
Recensera produktLägsta pris på 30 dagar
899 kr
+21,13 %
Priset är nu 190 kr högre.
PrishistorikInformation
Produkt
- Tillverkare
- GIGABYTE
- Produktnamn
- UD850GM PG5 V2
- Tillverkarens länk
- https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-rev-20#kf
Produktkoder
- Tillverkarens produktkoder
- GP-UD850GM PG5 V2
- GP-UD850GM PG5 V2 EU
- GTIN- / EAN-koder
- 4719331555993

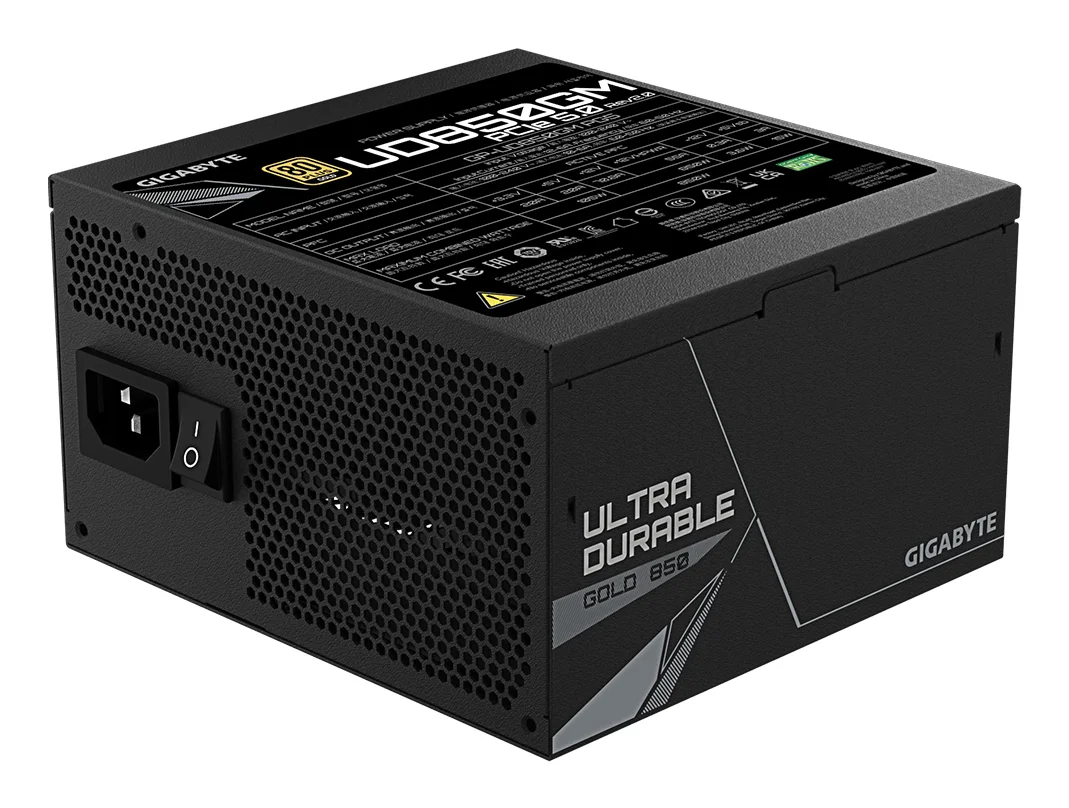

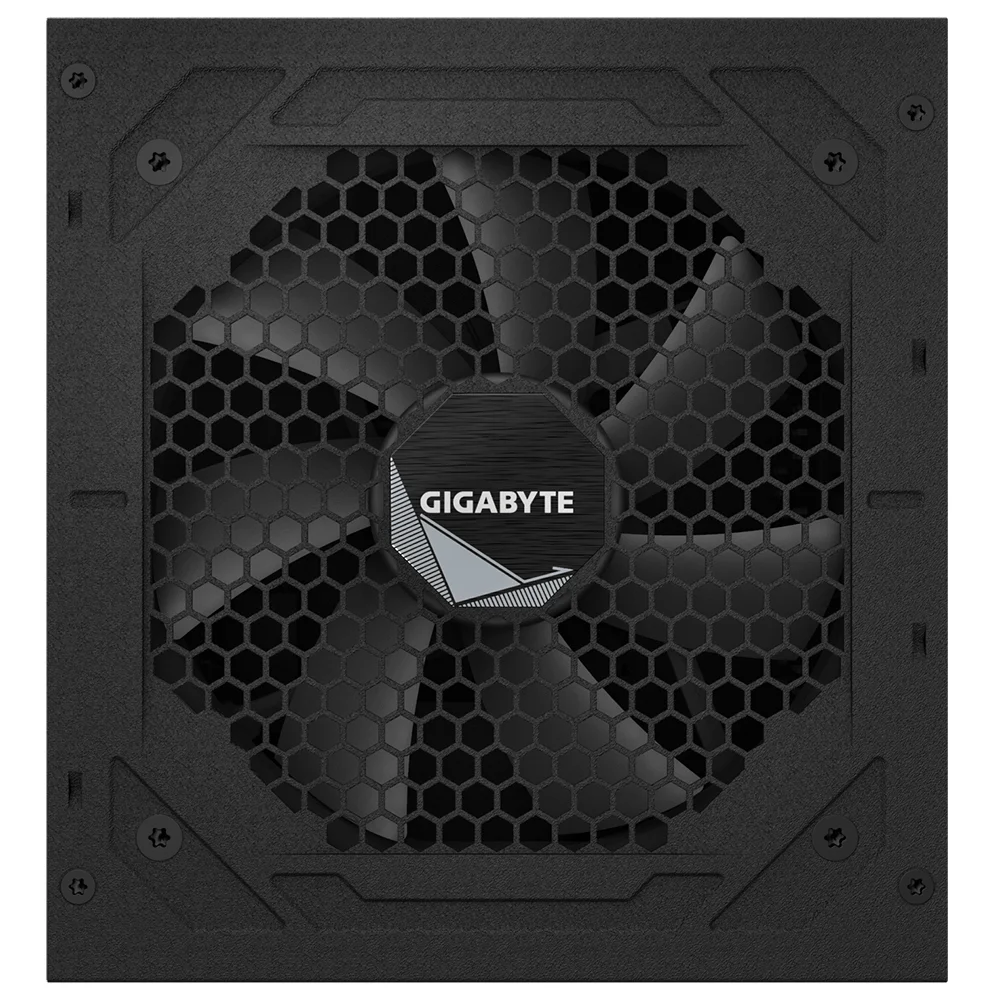

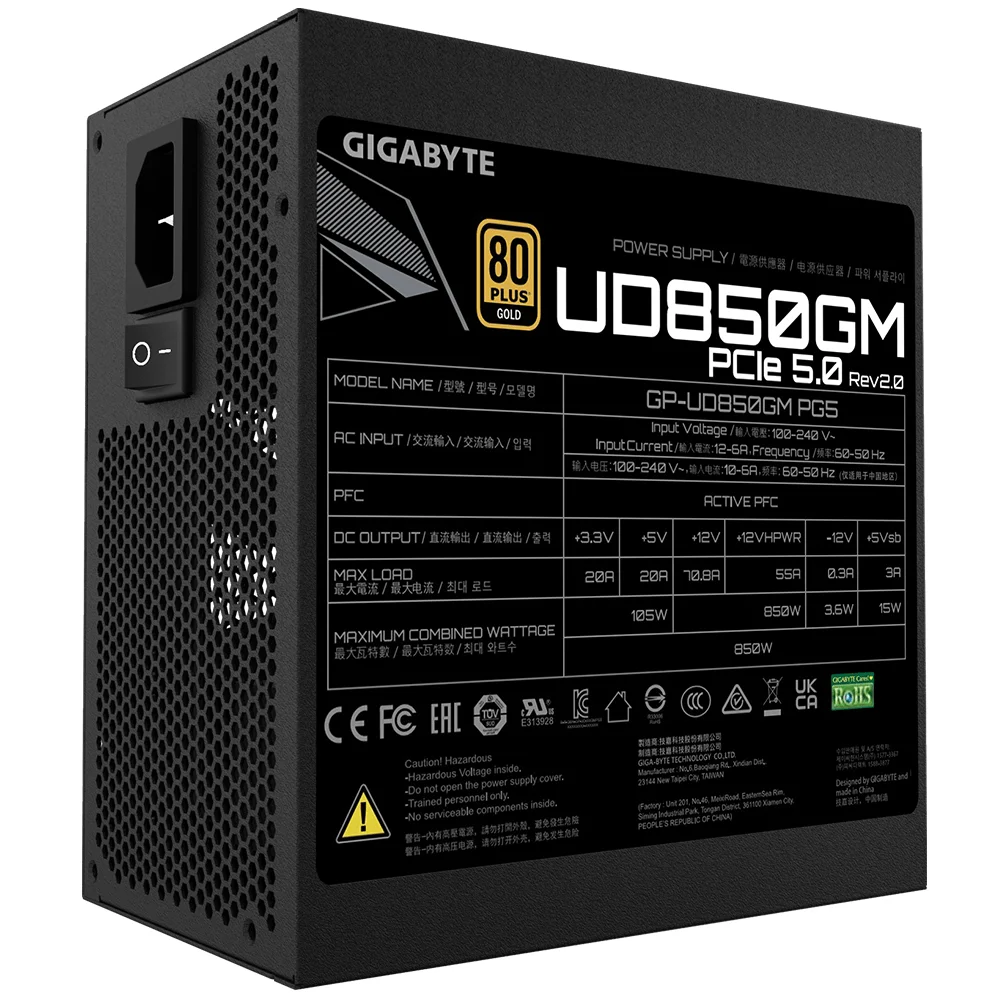

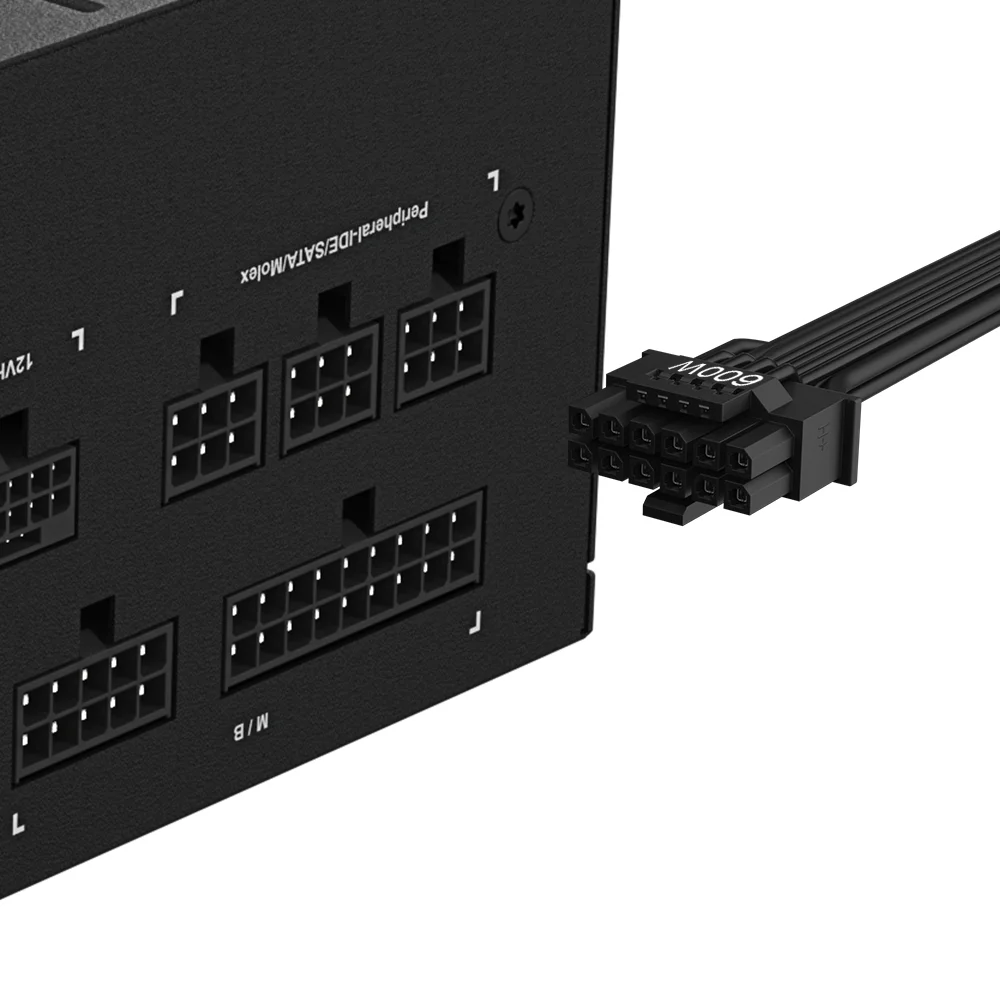

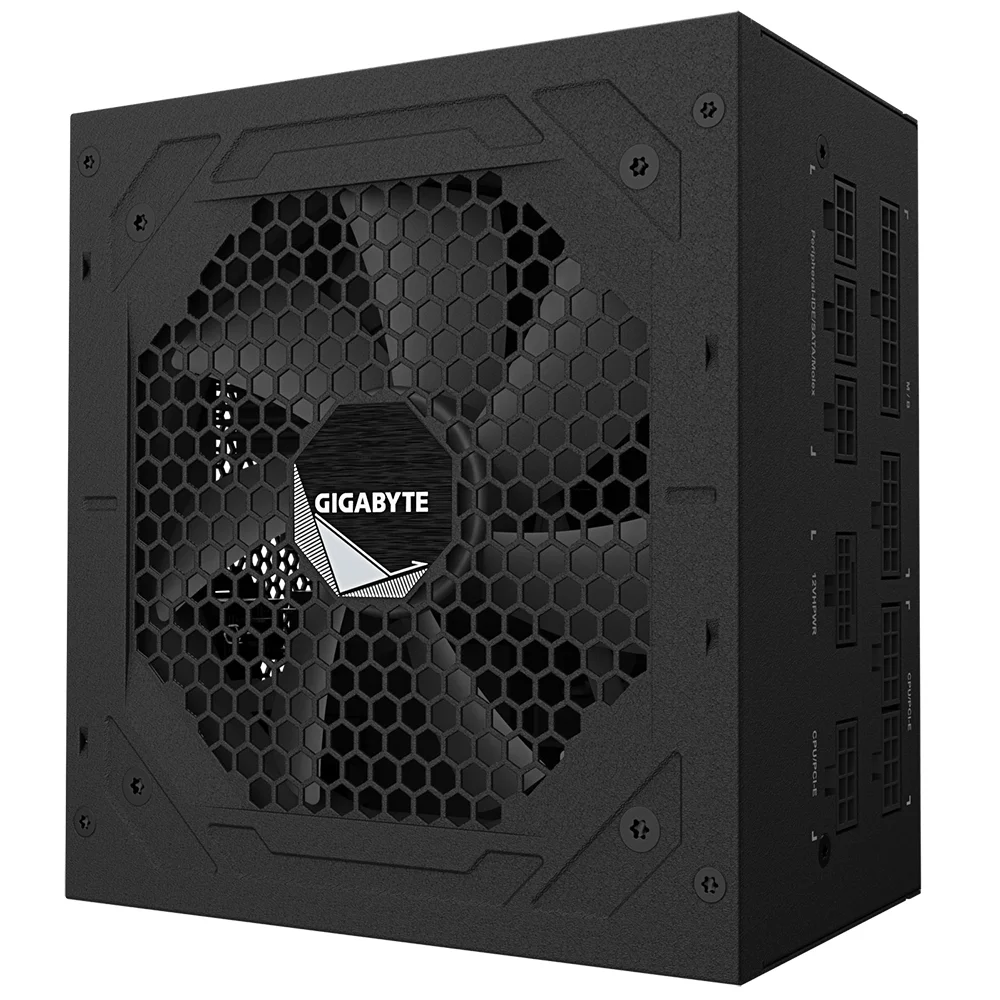

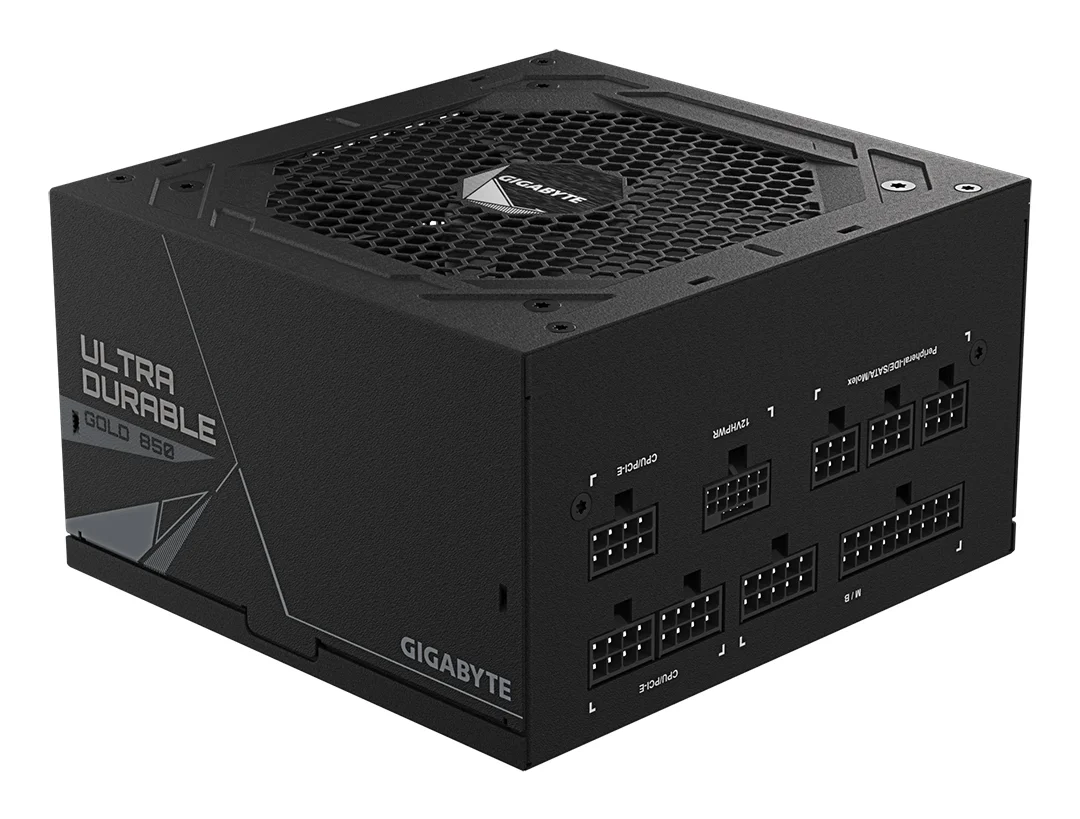

Produktbilder
Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 12 - 6 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 105 W
- Combined power (+12V)
- 850 W
- Combined power (+5V)
- 105 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 70.8 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Hold time
- 16 ms
- Efficiency
- 90 %
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

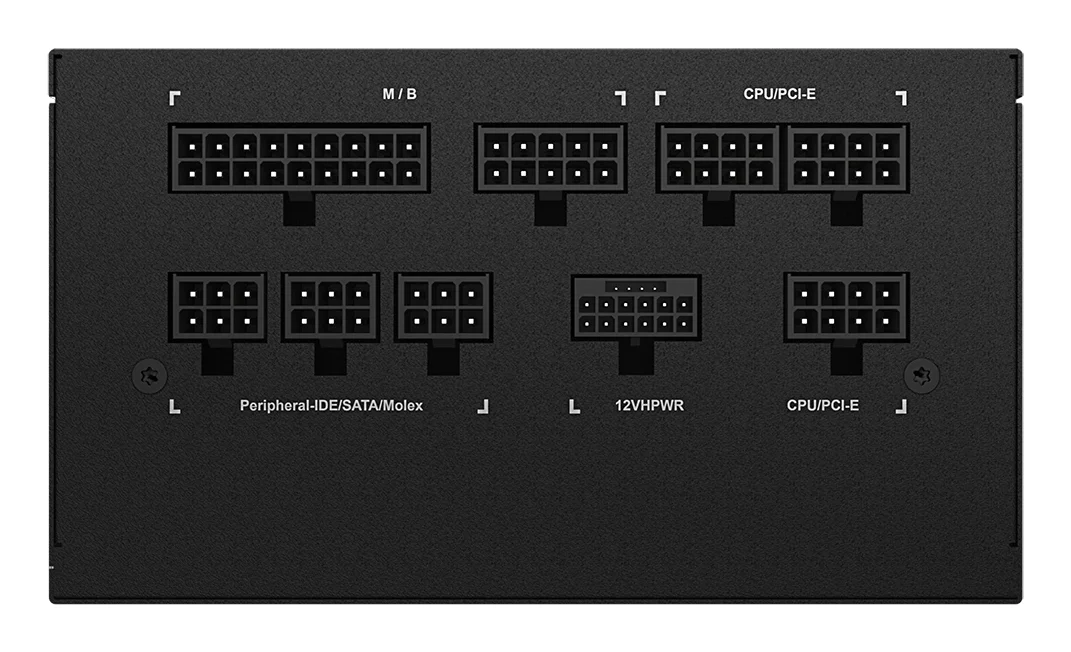

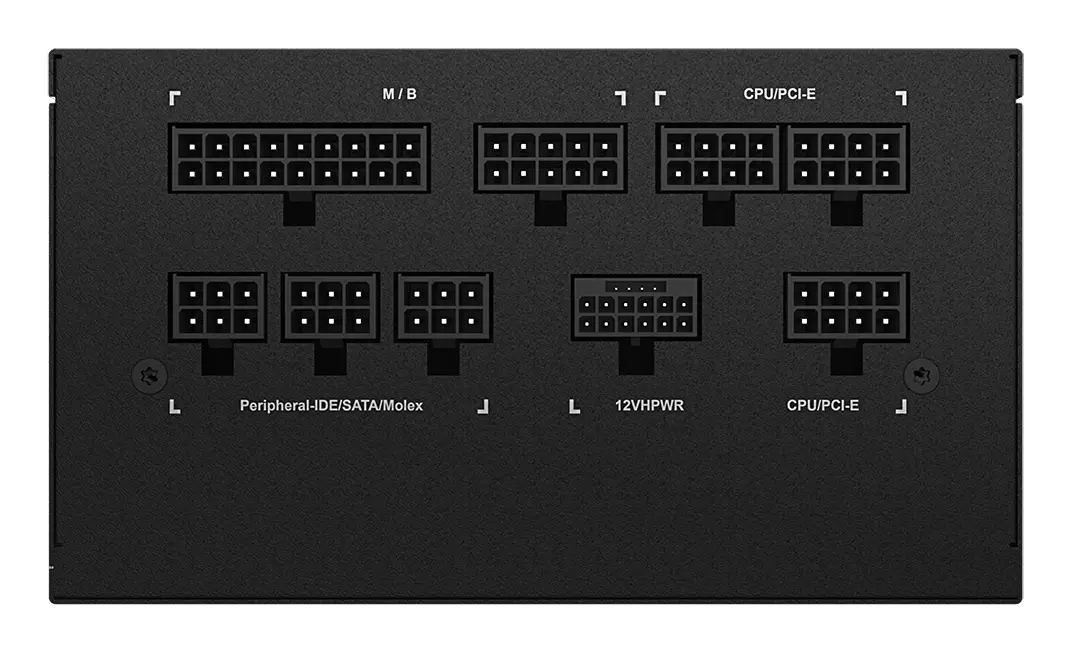

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 610 mm
- Number of SATA power connectors
- 8
- SATA power cable length
- 150,600 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- Peripheral (Molex) power cable length
- 150,500 mm
- PCI Express power connectors (6+2 pin)
- 4
- PCI Express power connectors (16-pin)
- 1
- PCI Express power cable length
- 700 mm
- CPU power connector (4+4 pin)
- Ja
- CPU power cable length
- 600 mm
- Floppy drive power connector
- 1
- PCI Express connector
- Ja
- Number of EPS connectors
- 2
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- Bearing technology
- HYB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Ja
Weight & dimensions
- Width
- 150 mm
- Depth
- 140 mm
- Height
- 86 mm
- Weight
- 2400 g
Packaging data
- Package width
- 618 mm
- Package depth
- 269 mm
- Package height
- 211 mm
- Package weight
- 2560 g
- Package type
- Box
Logistics data
- Warranty period
- 10 year(s)
