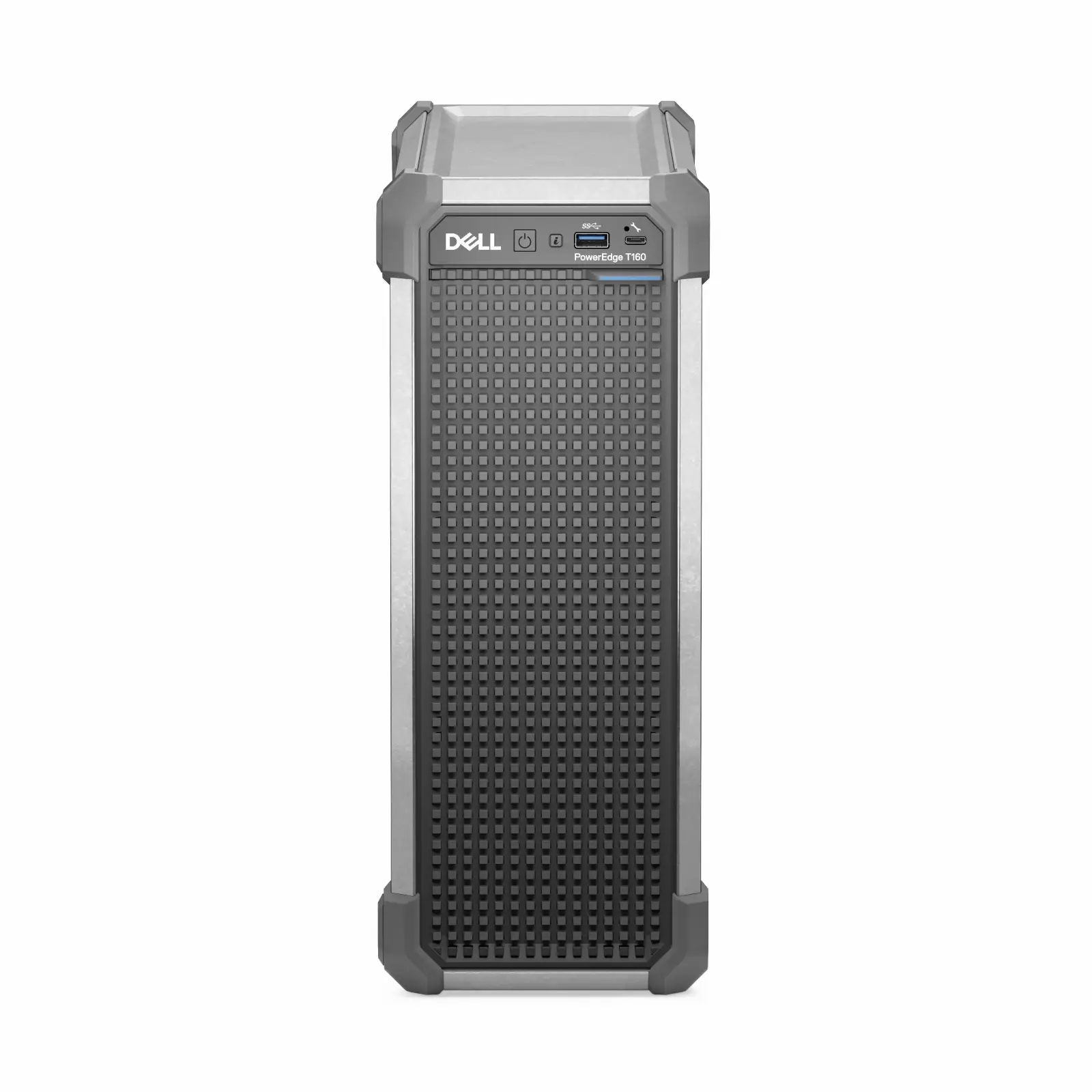

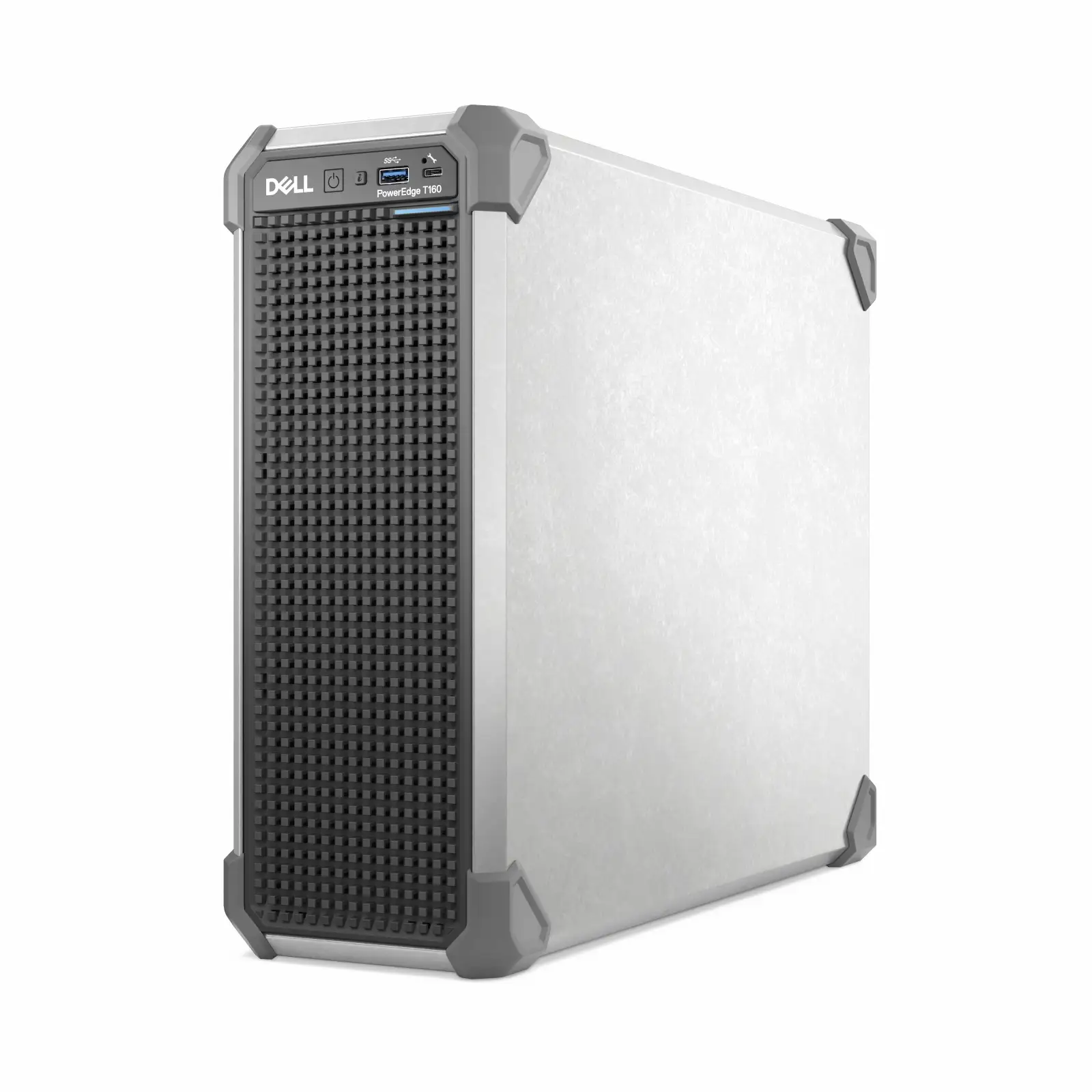

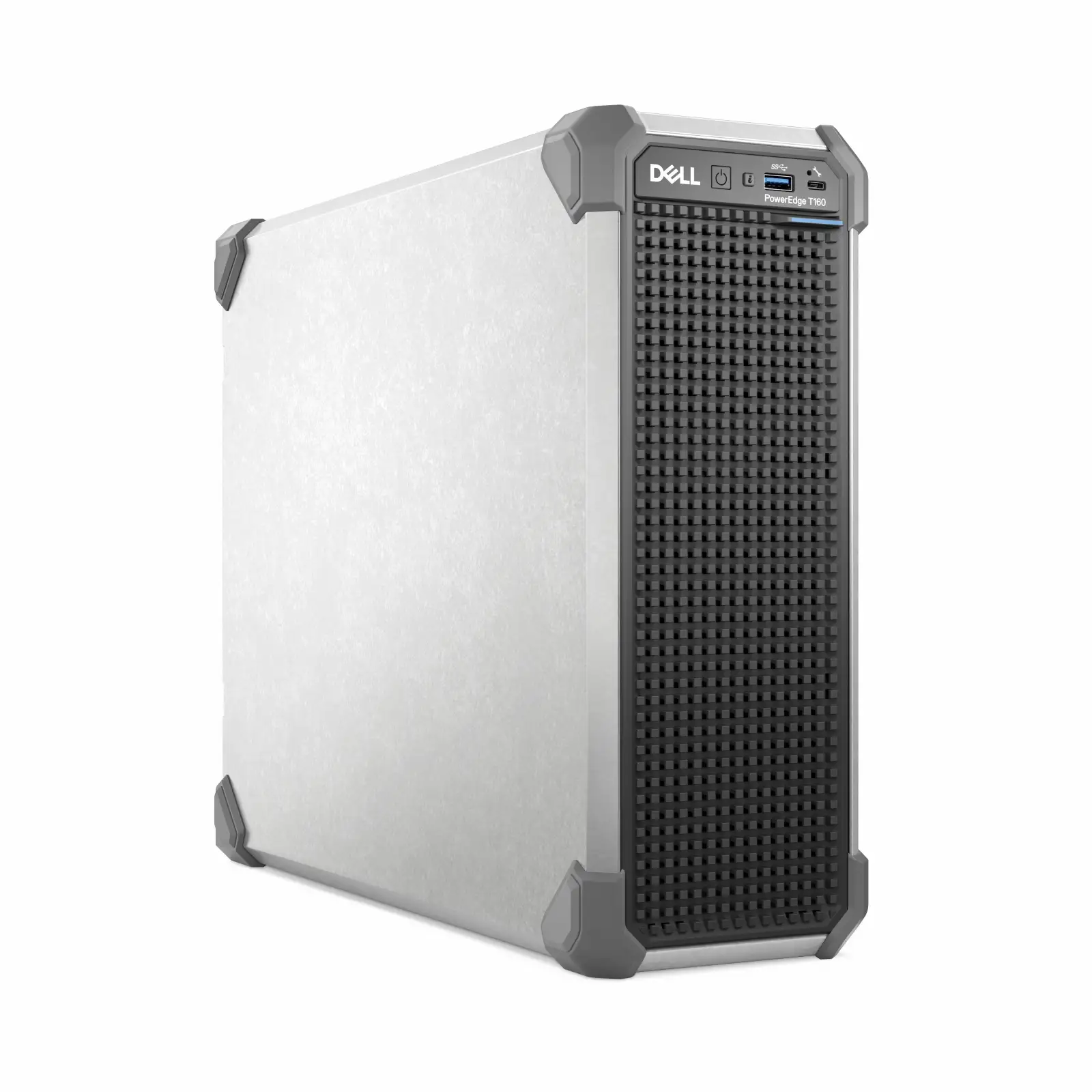

DELL PowerEdge T160

Produkt

Tillverkare

DELL

Produktfamilj / -serie

PowerEdge

Produktnamn

T160

Tillverkarens länk

https://www.dell.com/sv-se/shop/servrar-lagring-och-n%C3%A4tve..

Produktkoder

Tillverkarens produktkoder

• WYKPV

GTIN- / EAN-koder

• 5397184970140

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Xeon 6

Processor model

6325P

Processor frequency

3.5 GHz

Processor boost frequency

5.2 GHz

Performance cores

4

Processor cache

12 MB

Number of processors installed

1

Thermal Design Power (TDP)

55 W

System bus rate

16 GT/s

Processor threads

8

Memory types supported by processor

DDR5-SDRAM

Memory clock speeds supported by processor

4800 MHz

Memory

Internal memory

32 GB

Internal memory type

DDR5-SDRAM

Buffered memory type

Unregistered (unbuffered)

Memory slots

4x DIMM

ECC

Ja

Memory layout (slots x size)

1 x 32 GB

Memory data transfer rate

5600 MT/s

Maximum internal memory

128 GB

Storage

Total storage capacity

480 GB

Number of SSDs installed

1

SSD capacity

480 GB

SSD interface

SATA III

SSD size

2.5"

Supported SSD sizes

2.5"

Number of SSDs supported

2

RAID support

Nej

Supported RAID controllers

PERC H355 Adapter LP

Optical drive type

Nej

Drive writes per day (DWPD)

1

Storage drive adapter included

Ja

Storage drive adapter type

2.5" - 3.5"

Network

LAN controller

Broadcom 5720

Ethernet LAN

Ja

Cabling technology

10/100/1000Base-T(X)

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

VGA (D-Sub) ports quantity

1

Serial ports quantity

1

Design

Chassis type

Tower (3U)

Product colour

Black

Performance

Remote administration

iDRAC9, Enterprise 16G

Software

Operating system installed

Nej

Compatible operating systems

Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Power

Redundant power supply (RPS) support

Nej

Power supply

300 W

Number of main power supplies

1

Operational conditions

Storage temperature (T-T)

-40 - 65 °C

Storage relative humidity (H-H)

5 - 95 %

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12000 m

Carbon footprint

Total carbon footprint (kg of CO2e)

1182

Total carbon emissions, standard deviation (kg of CO2e)

924

Carbon emissions, manufacturing (kg of CO2e)

319.14

Carbon emissions, logistics (kg of CO2e)

130.02

Carbon emissions, energy usage (kg of CO2e)

709.2

Carbon emissions, end-of-life (kg of CO2e)

23.64

PAIA version

Not available

Weight & dimensions

Width

132.52 mm

Height

332.5 mm

Packaging content

Packaging content

European Power Cord 220V

Other features

Data transfer rate

6 Gbit/s

Bytes per sector

512e

Target workload

Read Intensive (RI)
