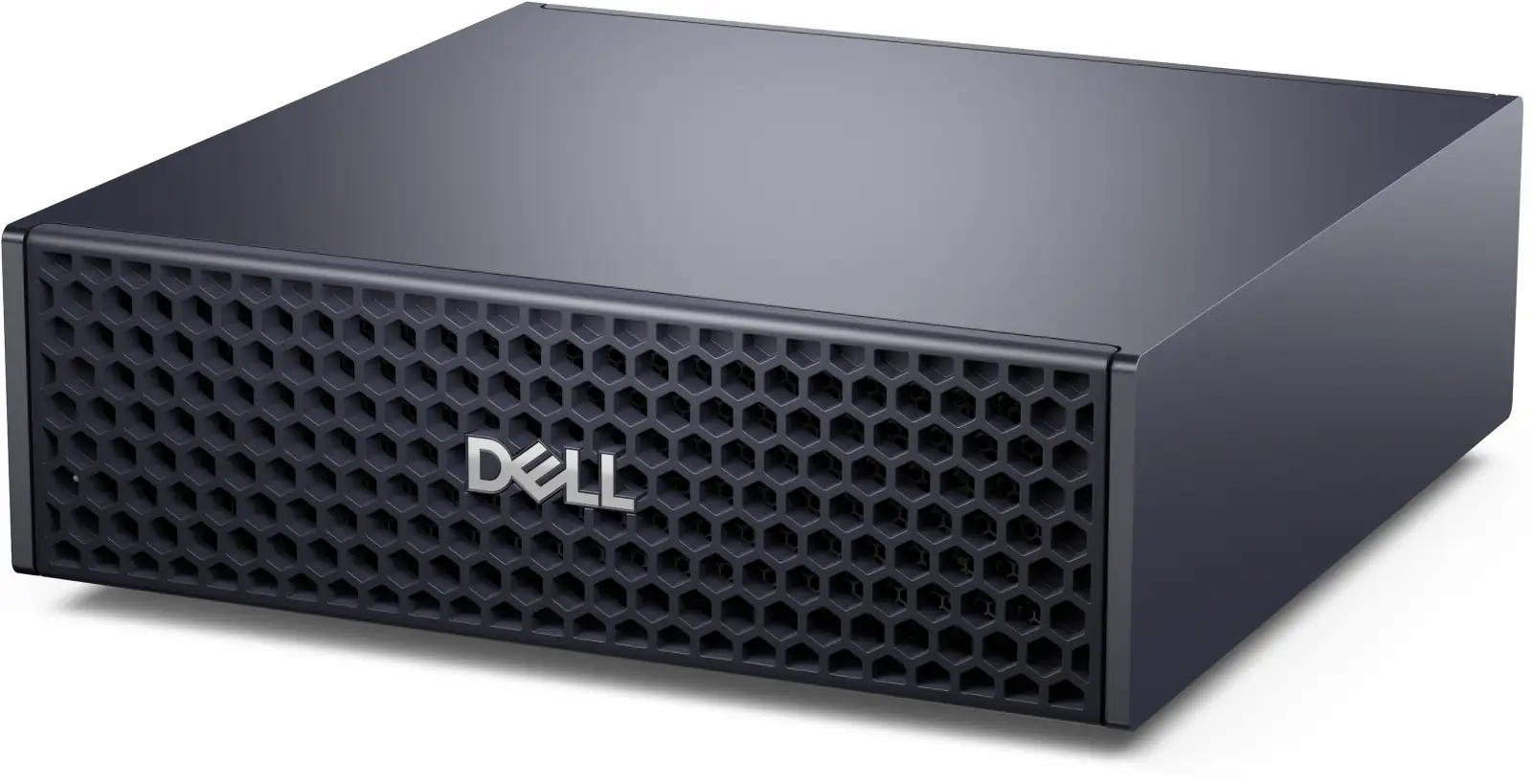

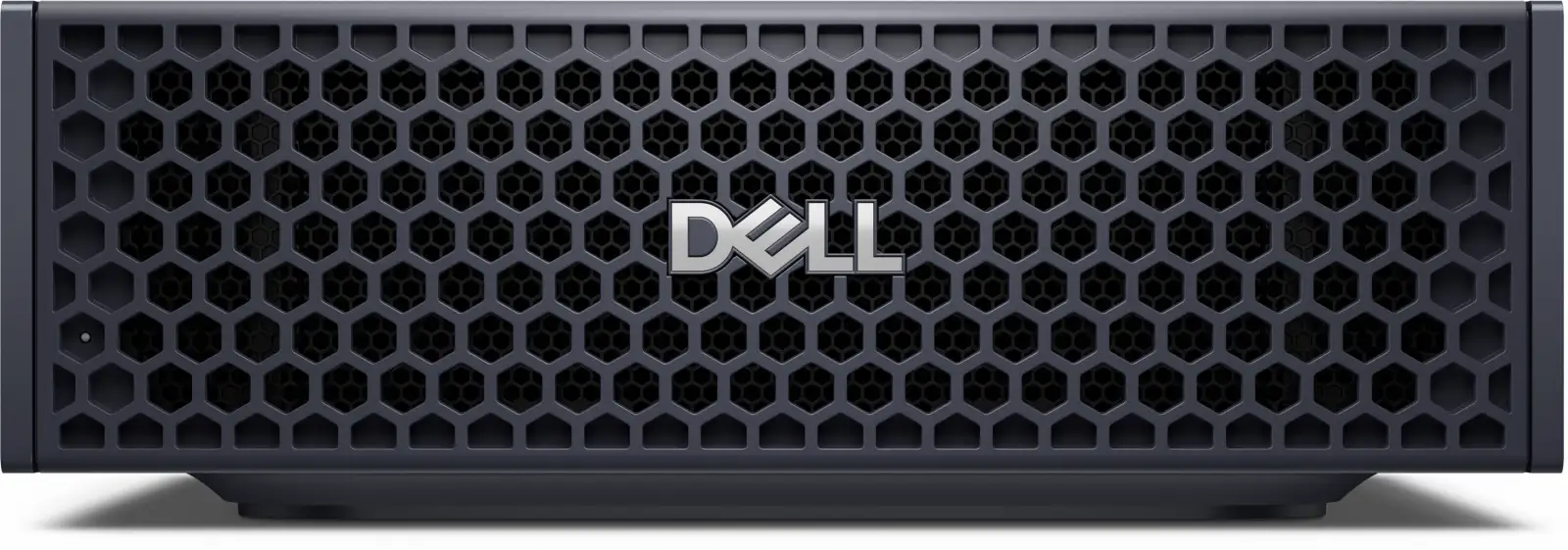

DELL Pro Max GB10 FCM1253

Produkt

Tillverkare

DELL

Produktfamilj / -serie

Pro Max

Produktnamn

GB10 FCM1253

Tillverkarens länk

https://www.dell.com/sv-se/shop/

Produktkoder

Tillverkarens produktkoder

• 7MFXX

GTIN- / EAN-koder

• 5397184987094

Produktbilder

Processor

Processor manufacturer

Nvidia

Processor model

GB10

Processor cores

20

Processor cache

16 MB

Neural processor unit (NPU)

NPU performance up to

13 TOPs

Memory

Internal memory

128 GB

Maximum internal memory

128 GB

Internal memory type

LPDDR5x-SDRAM

Memory data transfer rate

8533 MT/s

Storage

Total storage capacity

4000 GB

Optical drive type

Nej

Storage media

SSD

Number of storage drives installed

1

Total SSDs capacity

4000 GB

Number of SSDs installed

1

SSD capacity

4000 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

Graphics

Discrete graphics card

Nej

On-board graphics card

Ja

Discrete graphics card model

Not available

On-board GPU manufacturer

NVIDIA

On-board graphics card model

NVIDIA Blackwell

Performance

Product type

Mini PC

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000,10000 Mbit/s

LAN controller

NVIDIA ConnectX-7, Realtek RTL8127-CG

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller manufacturer

AzureWare

WLAN controller model

AzureWave AW-EM637

Bluetooth

Ja

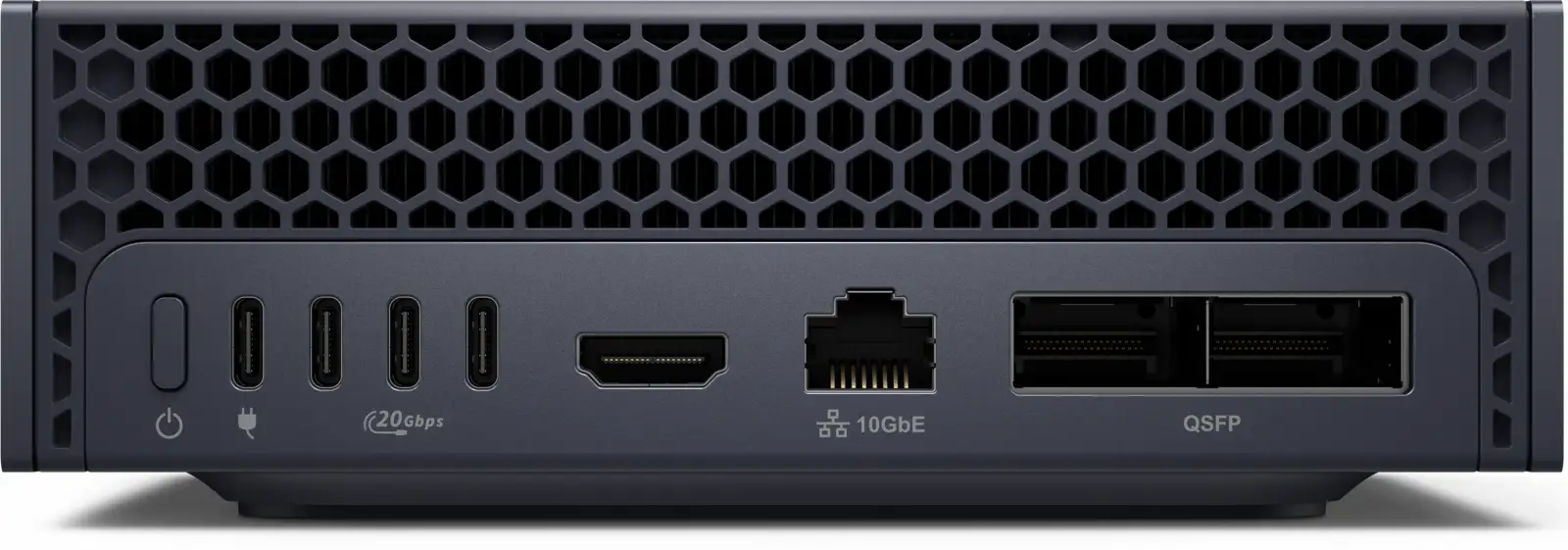

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

3

USB Type-C DisplayPort Alternate Mode

Ja

Thunderbolt 3 ports quantity

0

HDMI ports quantity

1

HDMI version

2.1a

Ethernet LAN (RJ-45) ports

1

Power

Power supply

280 W

Power supply input voltage

100 - 240 V

Design

Product colour

Black

Software

Operating system installed

DGX OS

Display

Display included

Nej

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

0 - 95 %

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Operating shock

110 G

Non-operating shock

160 G

Weight & dimensions

Width

150 mm

Depth

150 mm

Height

51 mm

Weight

1340 g

Packaging content

Box contents

E5 Power Cord 1M for Europe

Sustainability

Doesn't contain

PVC/BFR

Carbon footprint

Total carbon footprint (kg of CO2e)

427

Total carbon emissions, standard deviation (kg of CO2e)

110

Carbon emissions, manufacturing (kg of CO2e)

258.76

Carbon emissions, logistics (kg of CO2e)

61.49

Carbon emissions, energy usage (kg of CO2e)

99.06

Carbon emissions, end-of-life (kg of CO2e)

7.69

PAIA version

PAIA 1.5.1, 2025
