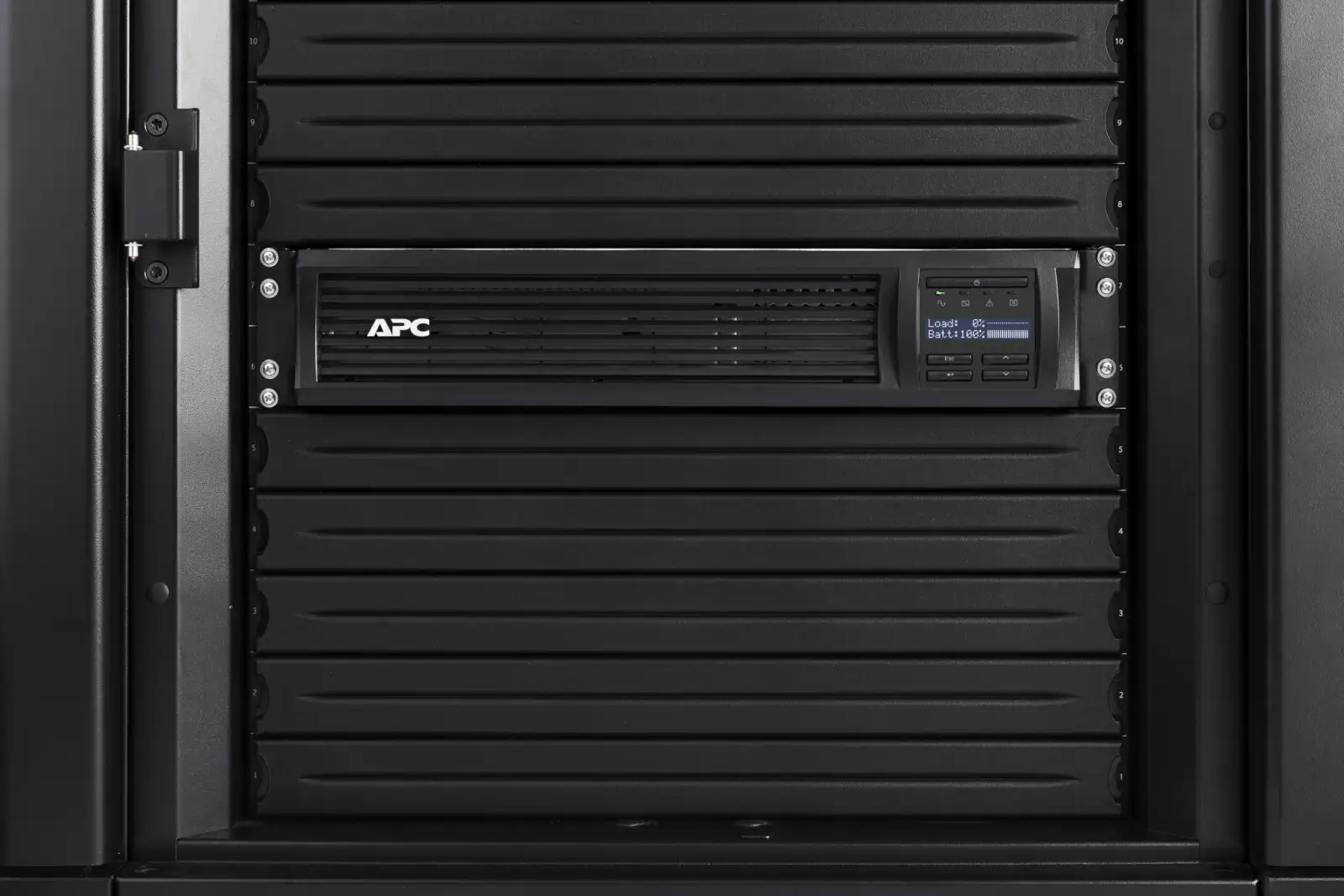

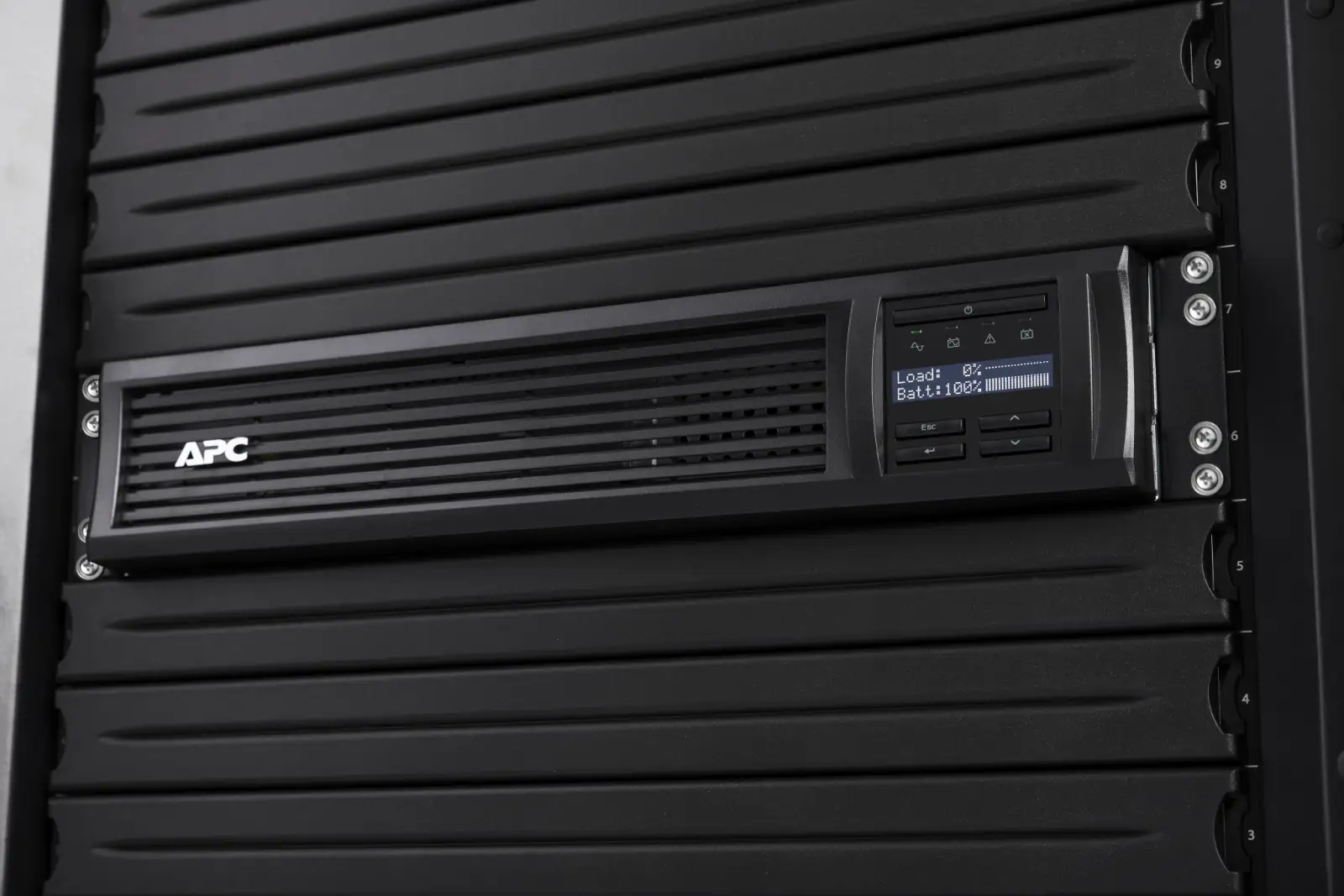

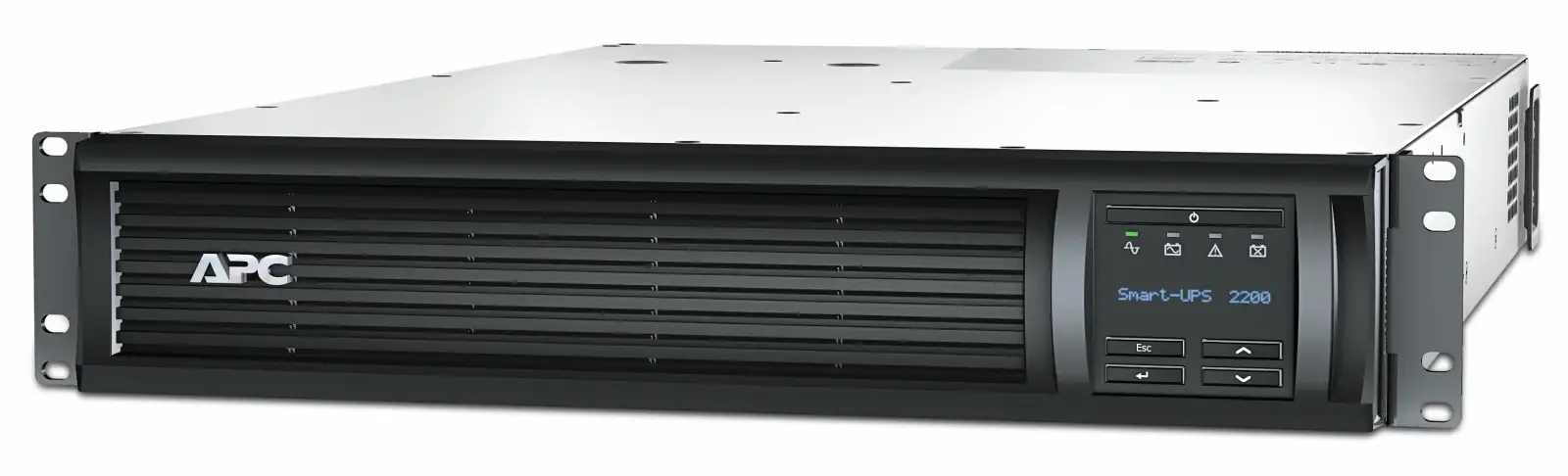

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect
Lägg till inköpslista Ta bort från inköpslistan
Funktioner
- UPS-topologi
- Linjeinteraktiv
- Uteffekt kapacitet (VA)
- 2,2 kVA
- Uteffekt
- 1980 W
- Formfaktor
- Rackmonterad
- Produktens färg
- Svart, Metallisk
Recensioner
Recensera produktLägsta pris på 30 dagar
22 139 kr
0 %
Priset är nu 1 kr lägre.
PrishistorikInformation
Produkt
- Tillverkare
- APC
- Produktnamn
- Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect
- Tillverkarens länk
- https://www.apc.com/shop/sk/en/products/APC-Smart-UPS-Line-Int..
Produktkoder
- Tillverkarens produktkoder
- SMT2200RMI2UC
- GTIN- / EAN-koder
- 0731304337324
Produktbilder
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2.2 kVA
- Output power
- 1980 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Surge energy rating
- 375 J
- Response time
- 6 ms
- Output voltage Total Harmonic Distortion (THD)
- 5 %
- Noise level
- 55 dB
- Power protection features
- Over voltage
- Audible alarm(s)
- Ja
- Audible alarm modes
- Alarm when on battery, Low battery alarm

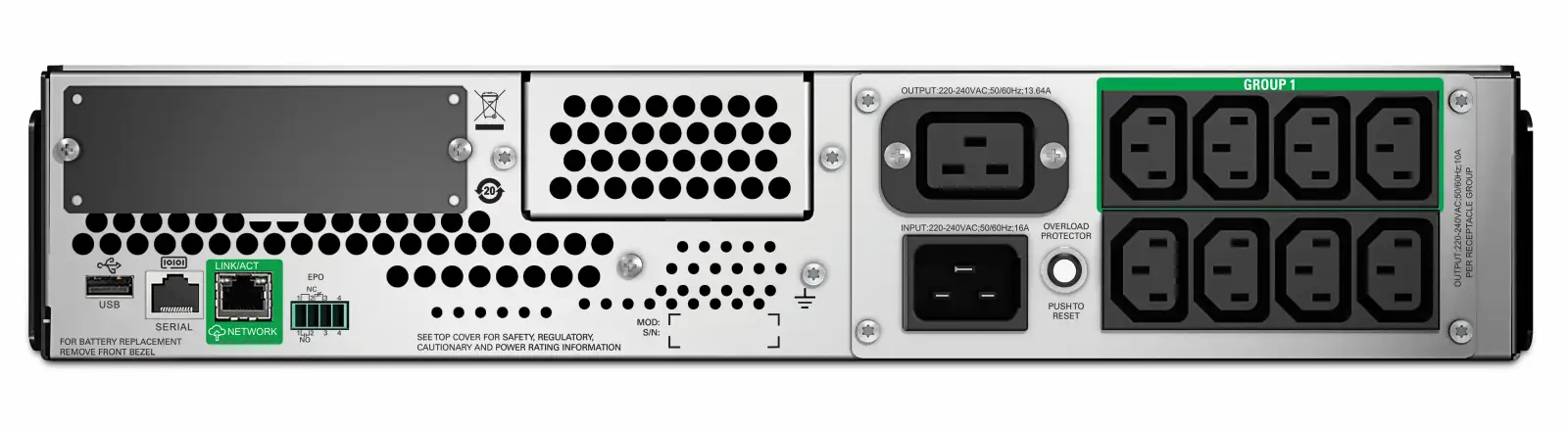

Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- AC outlets quantity
- 9 AC outlet(s)
- Number of output IEC jumpers
- 3

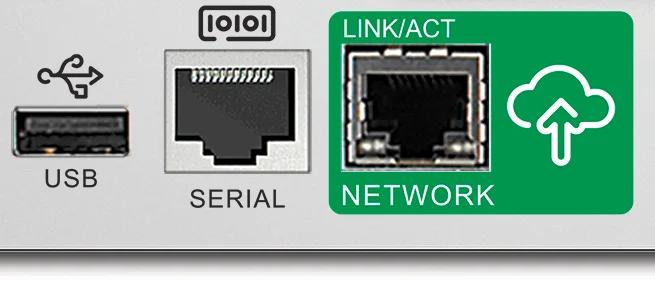

- USB port
- Ja
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-A
- Serial interface
- Ja
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- SmartSlot
- Ja

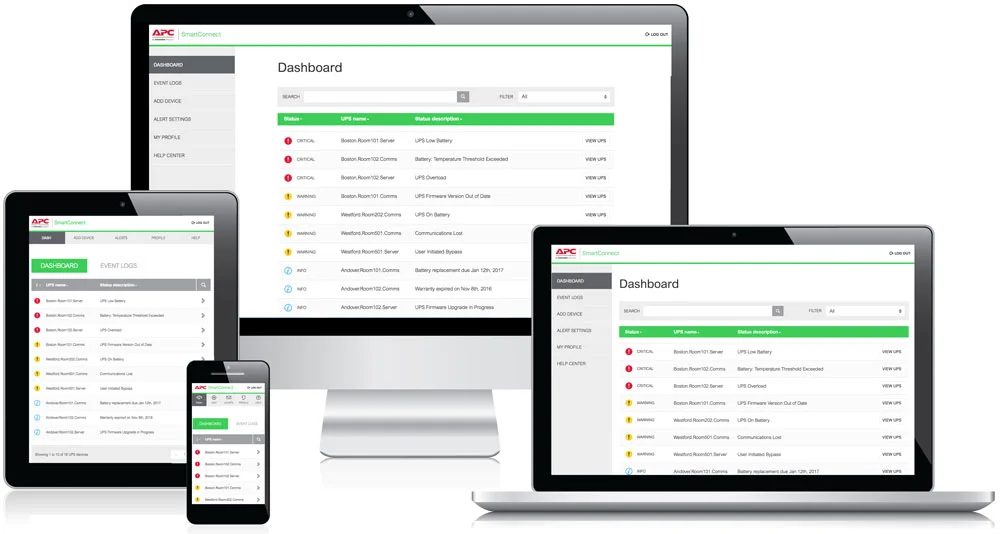

- SmartConnect port
- Ja
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Replacement battery cartridge
- RBC43
Design
- Form factor
- Rackmount
- Product colour
- Black, Metallic
- Rack capacity
- 2U
- Cable length
- 2 m

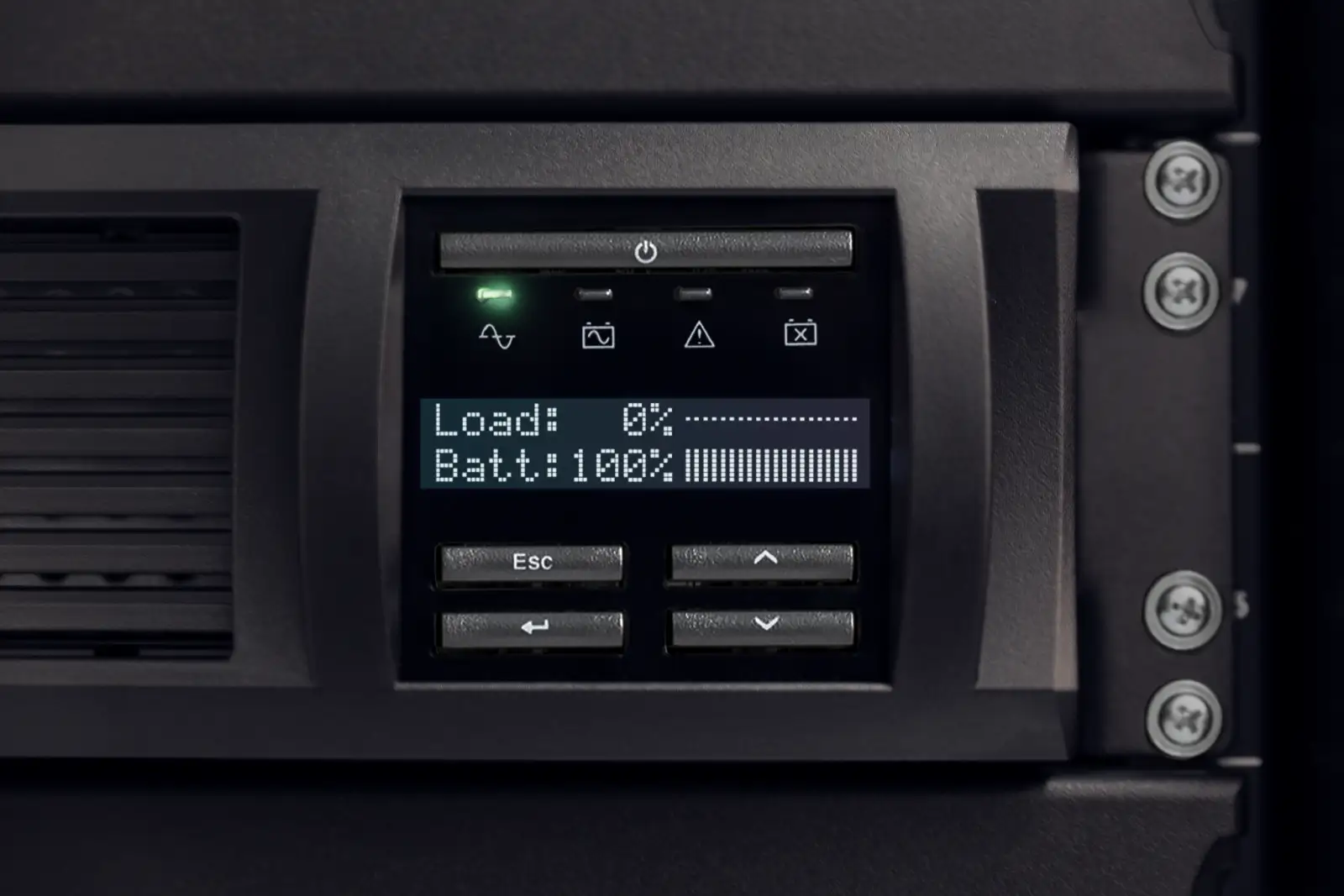

- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity (H-H)
- 0 - 95 %
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Packaging content
- Rack mount kit
- Ja
- Cables included
- RS-232, USB cable
- Management card included
- Nej
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 42310 g
Packaging data
- Software CD
- Ja
- Package width
- 600 mm
- Package depth
- 980 mm
- Package height
- 254 mm
- Package weight
- 49730 g
Logistics data
- Products per pallet
- 8 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 3416.11
