Elo Touch Solutions I-Series 3.0

Produkt

Tillverkare

Elo Touch Solutions

Produktfamilj / -serie

I-Series

Produktnamn

I-Series 3.0

Tillverkarens länk

https://www.elotouch.com/touchscreen-computers-24-inch-i-serie..

Produktkoder

Tillverkarens produktkoder

• E432375

GTIN- / EAN-koder

• 0843173163956

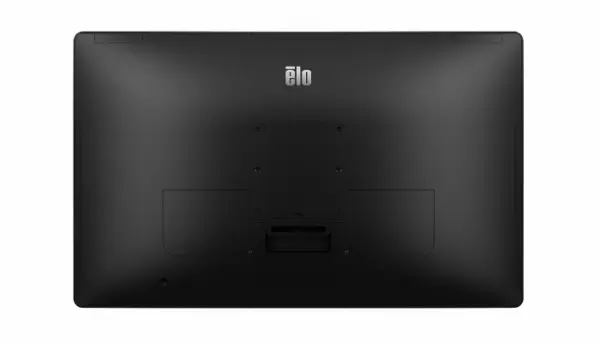

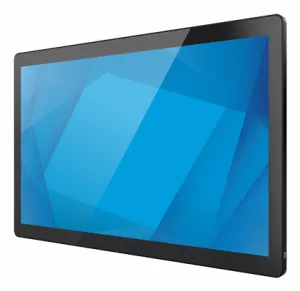

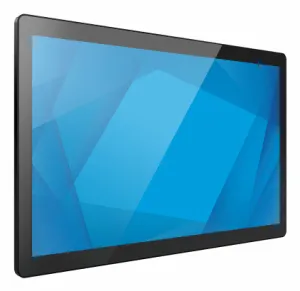

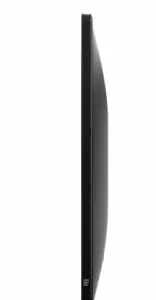

Produktbilder

Display

Display diagonal

23.8 "

Display resolution

1920 x 1080 pixels

Touchscreen

Ja

HD type

Full HD

LED backlight

Ja

Touch technology

Multi-touch

Native aspect ratio

16:9

Display brightness

250 cd/m²

Panel type

TFT

Response time

16 ms

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Screen shape

Flat

Processor

Processor manufacturer

Intel

Processor family

Intel® Celeron®

Processor model

7305L

Processor cores

5

Processor threads

5

Processor boost frequency

1.1 GHz

Processor frequency

1.1 GHz

Performance cores

1

Efficient cores

4

Performance-core Max Turbo Frequency

1.1 GHz

Efficient-core Max Turbo Frequency

1.1 GHz

Processor cache

8 MB

Processor cache type

Smart Cache

Processor base power

15 W

Maximum turbo power

28 W

Memory

Internal memory

8 GB

Internal memory type

DDR5-SDRAM

Maximum internal memory

32 GB

Memory slots

2

Memory slots type

SO-DIMM

Memory clock speed

4800 MHz

Memory layout (slots x size)

1 x 8 GB

Memory form factor

DIMM/SO-DIMM

Storage

Total storage capacity

256 GB

Storage media

SSD

Number of storage drives installed

1

Number of storage drives supported

1

Total SSDs capacity

256 GB

Number of SSDs installed

1

SSD capacity

256 GB

SSD interface

M.2

NVMe

Ja

SSD form factor

M.2

Optical drive type

Nej

Graphics

Discrete graphics card

Nej

Discrete graphics card model

Not available

On-board graphics card

Ja

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel® UHD Graphics

Audio

Built-in speaker(s)

Ja

Number of speakers

2

RMS rated power

4 W

Camera

Built-in camera

Nej

Network

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Ja

Bluetooth version

5.3

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

0

Headphone outputs

1

Design

Product colour

Black

Wall mountable

Ja

VESA mounting

Ja

Panel mounting interface

100 x 100 mm

Performance

Product type

All-in-One PC

Market positioning

Business

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Software

Operating system installed

Windows 11 IoT Enterprise

Operating system architecture

64-bit

Power

AC adapter power

180 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output voltage

24 V

Power consumption (standby)

5 W

Power consumption (off)

0.5 W

Weight & dimensions

Width (without stand)

571.2 mm

Depth (without stand)

39 mm

Height (without stand)

352 mm

Weight (without stand)

7100 g

Package width

697 mm

Package depth

529 mm

Package height

188 mm

Package weight

9700 g

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80 %

Storage relative humidity (H-H)

5 - 95 %

Certificates

Compliance certificates

CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI, CE, Industry Canada (IC)

Sustainability

Sustainability certificates

ENERGY STAR

Packaging content

Quick start guide

Ja

Power cord included

Ja

Other features

Mean time between failures (MTBF)

50000 h
