MSI MAG B850 TOMAHAWK MAX WIFI

Produkt

Tillverkare

MSI

Produktnamn

MAG B850 TOMAHAWK MAX WIFI

Tillverkarens länk

https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-MAX-WIFI

Produktkoder

Tillverkarens produktkoder

• MAG B850 TOMAHAWK MAX WIFI

GTIN- / EAN-koder

• 4711377290623

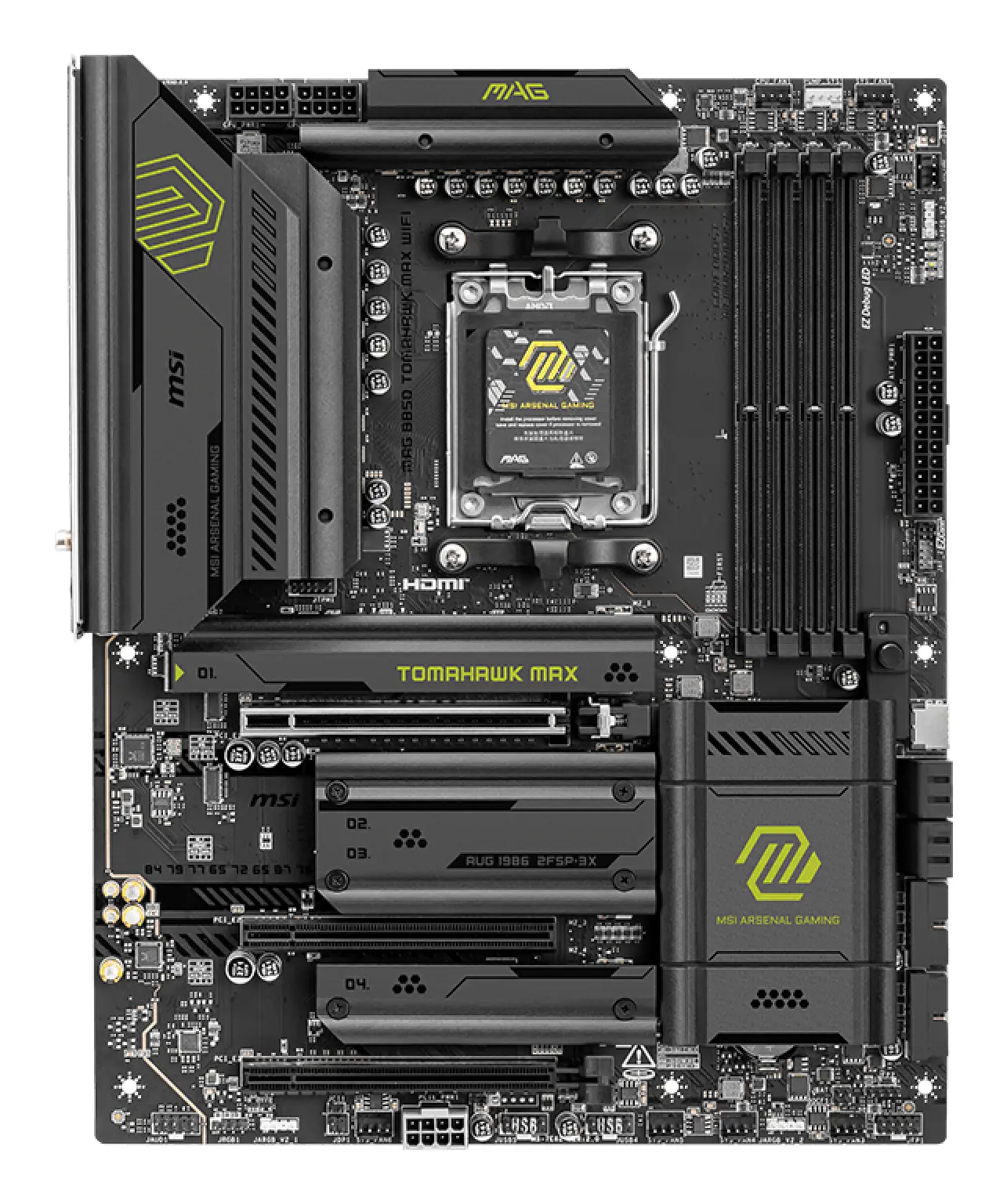

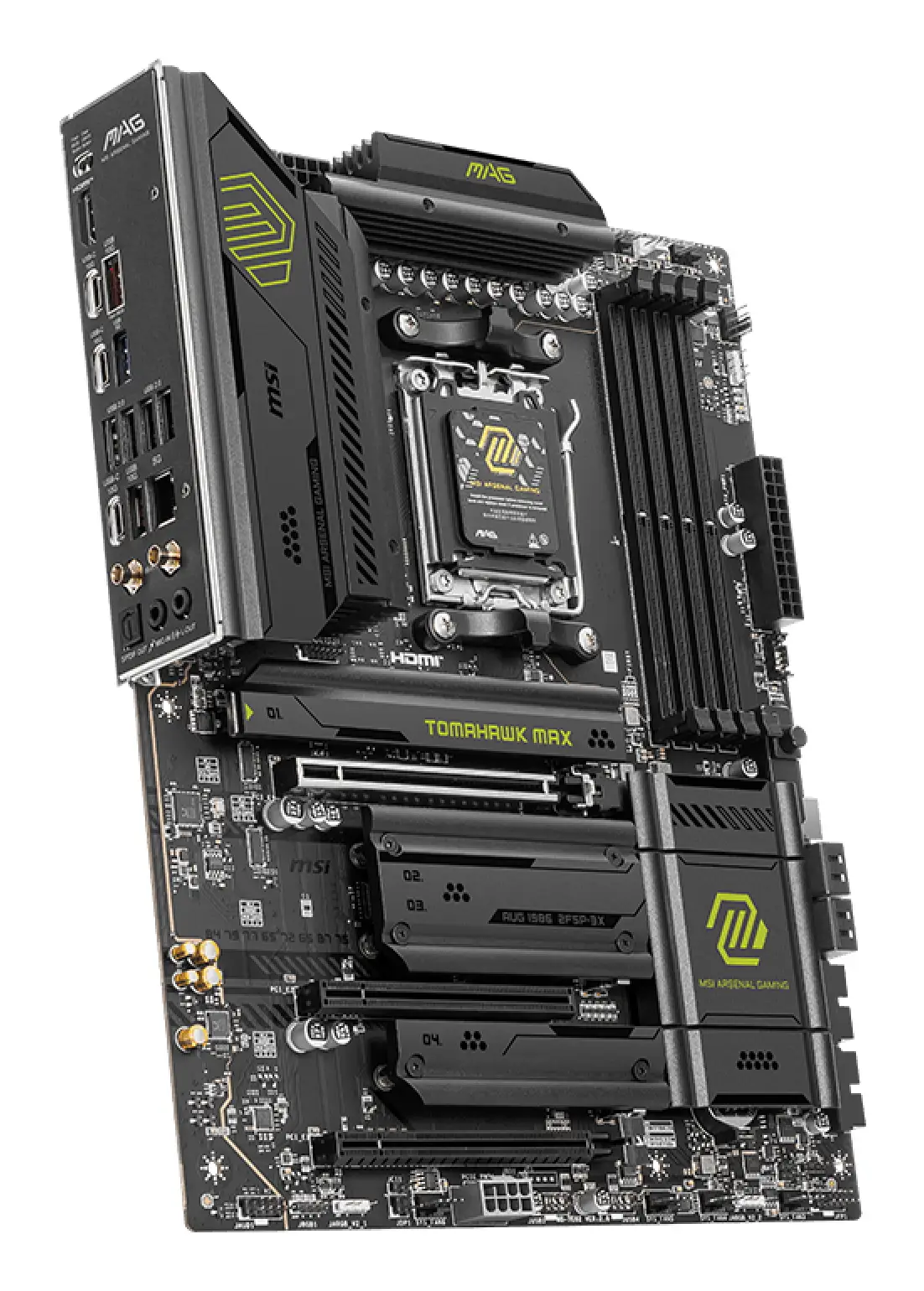

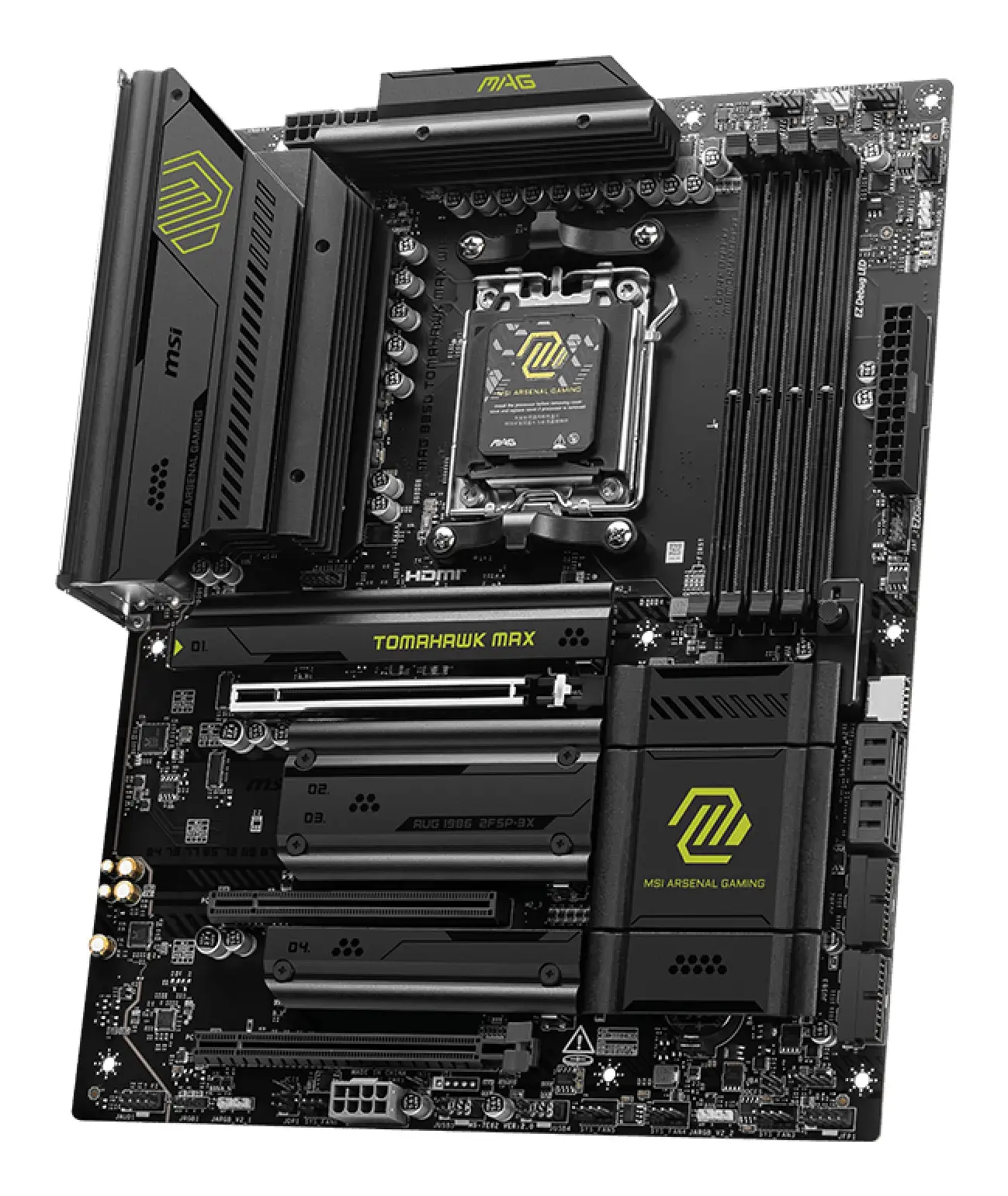

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

256 GB

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4800,5600,8400 MHz

Supported memory clock speed (max)

8400 MHz

Maximum internal memory

256 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, Micro SATA III

Number of HDDs supported

4

Number of storage drives supported

8

RAID support

Ja

RAID levels

0, 1, 10

Graphics

On-board graphics card

Nej

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Total number of SATA connectors

4

CPU fan connector

Ja

Number of CPU fan connectors

6

Number of water pump connectors

1

RGB LED pin header

Ja

Number of RGB LED pin headers

3

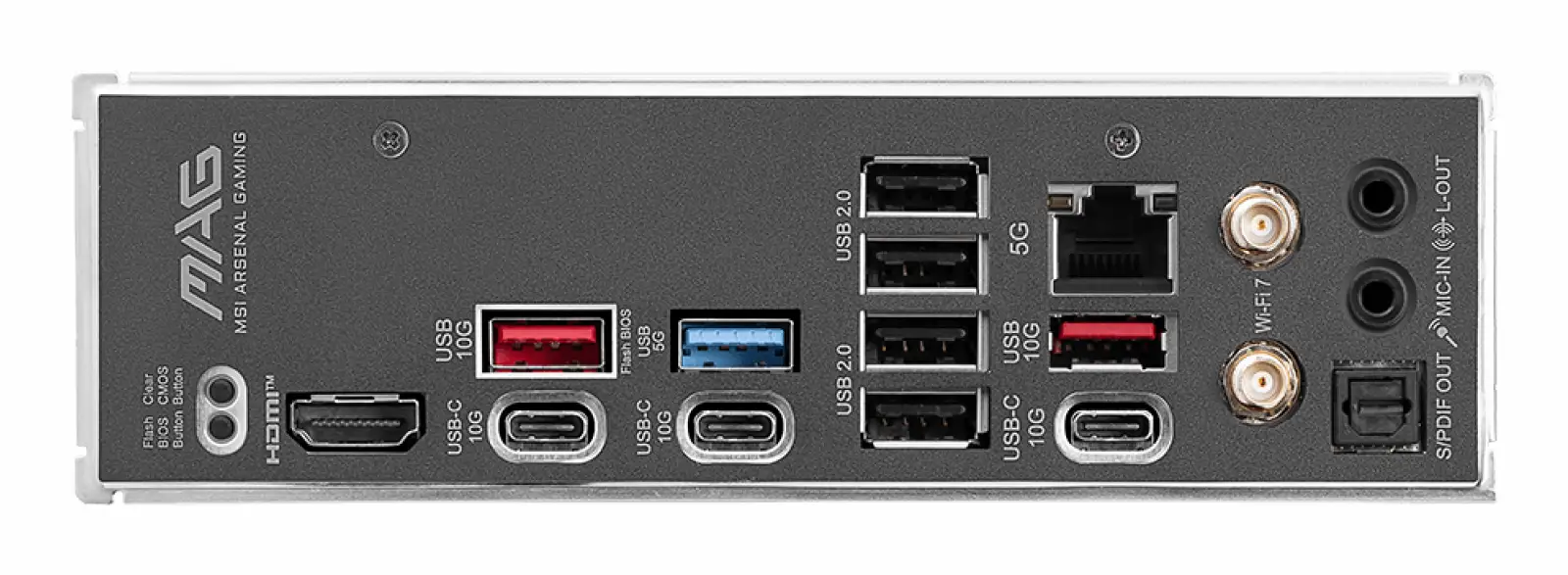

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

3

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Network

Ethernet LAN

Ja

Ethernet interface type

5 Gigabit Ethernet

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth

Ja

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio chip

Realtek ALC4080

Audio output channels

7.1 channels

Product colour

White

Windows operating systems supported

Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Weight & dimensions

Width

243.84 mm

Depth

304.8 mm

Other features

mSATA ports quantity

0
