Funktioner
- Strömförsörjningsenhet formfaktor
- ATX
- Total effekt
- 1200 W
- 80 plus-certifiering
- 80 PLUS Platinum
Recensioner
Recensera produktInformation
Produkt
- Tillverkare
- Corsair
- Produktfamilj / -serie
- HXi Series
- Produktnamn
- HX1200i
- Tillverkarens länk
- https://www.corsair.com/eu/en/p/psu/cp-9020281-eu/hx1200i-full..
Produktkoder
- Tillverkarens produktkoder
- CP-9020281-EU
- GTIN- / EAN-koder
- 0840006671589

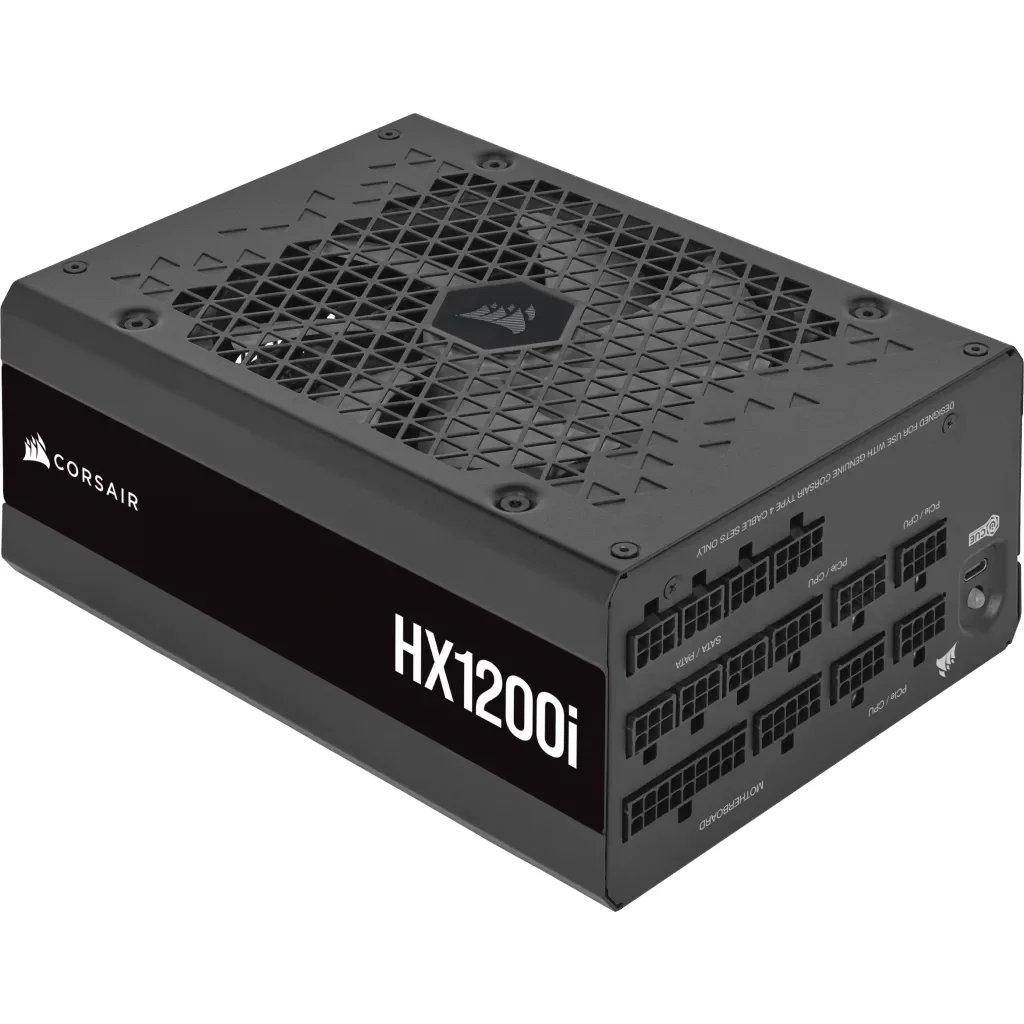

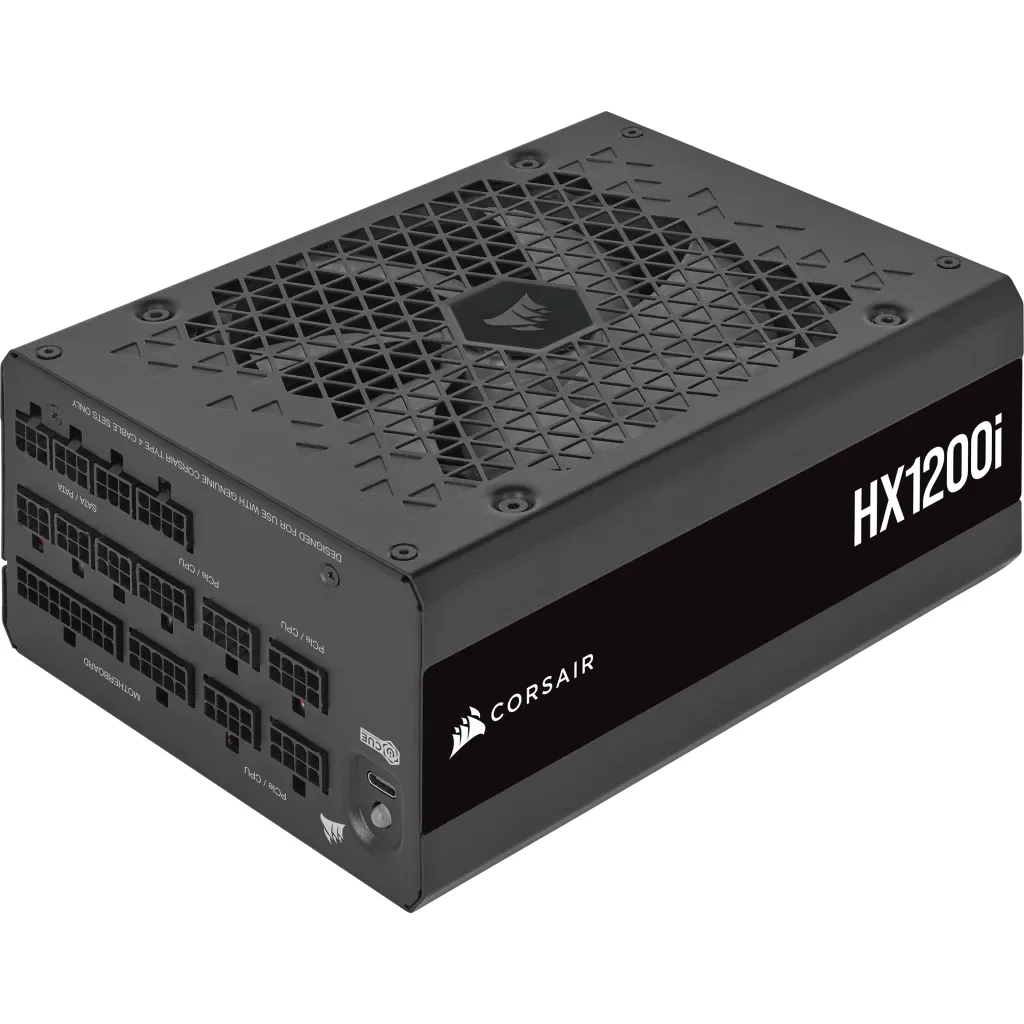

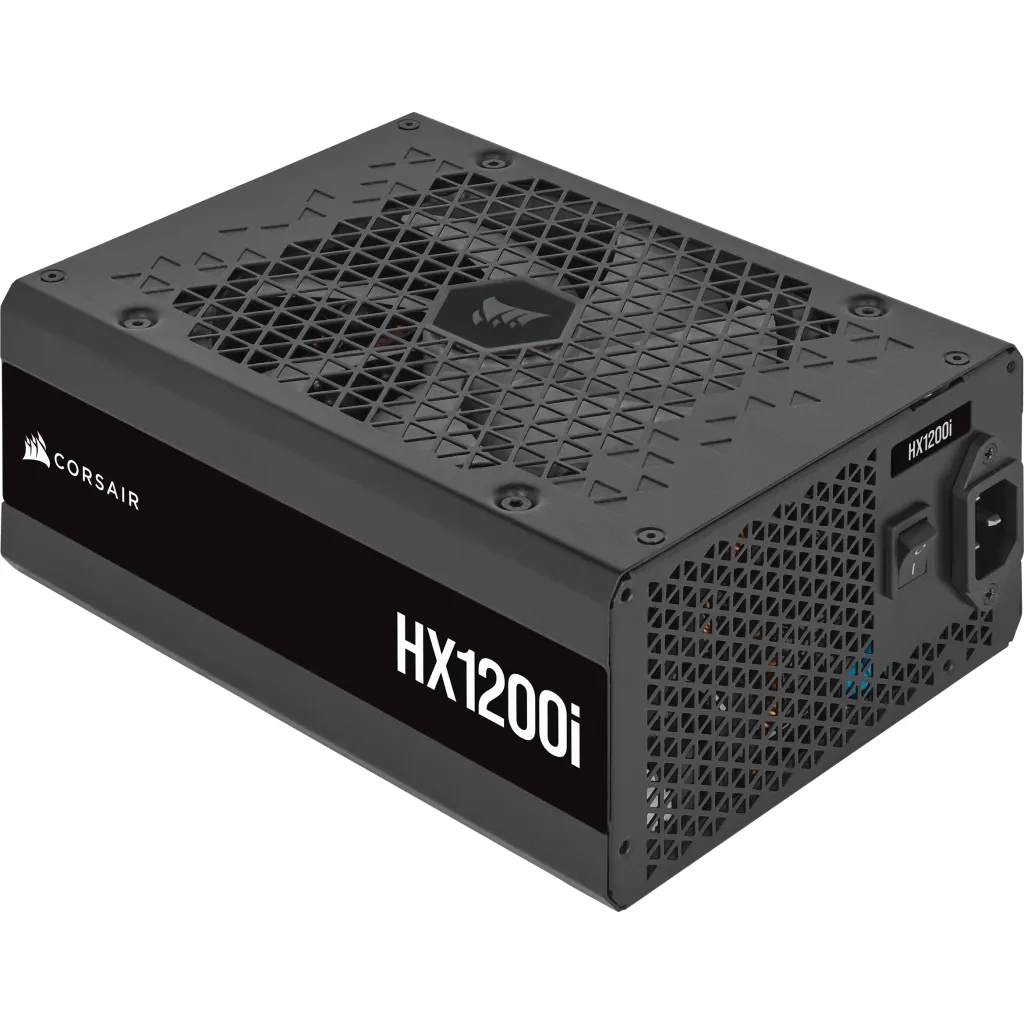

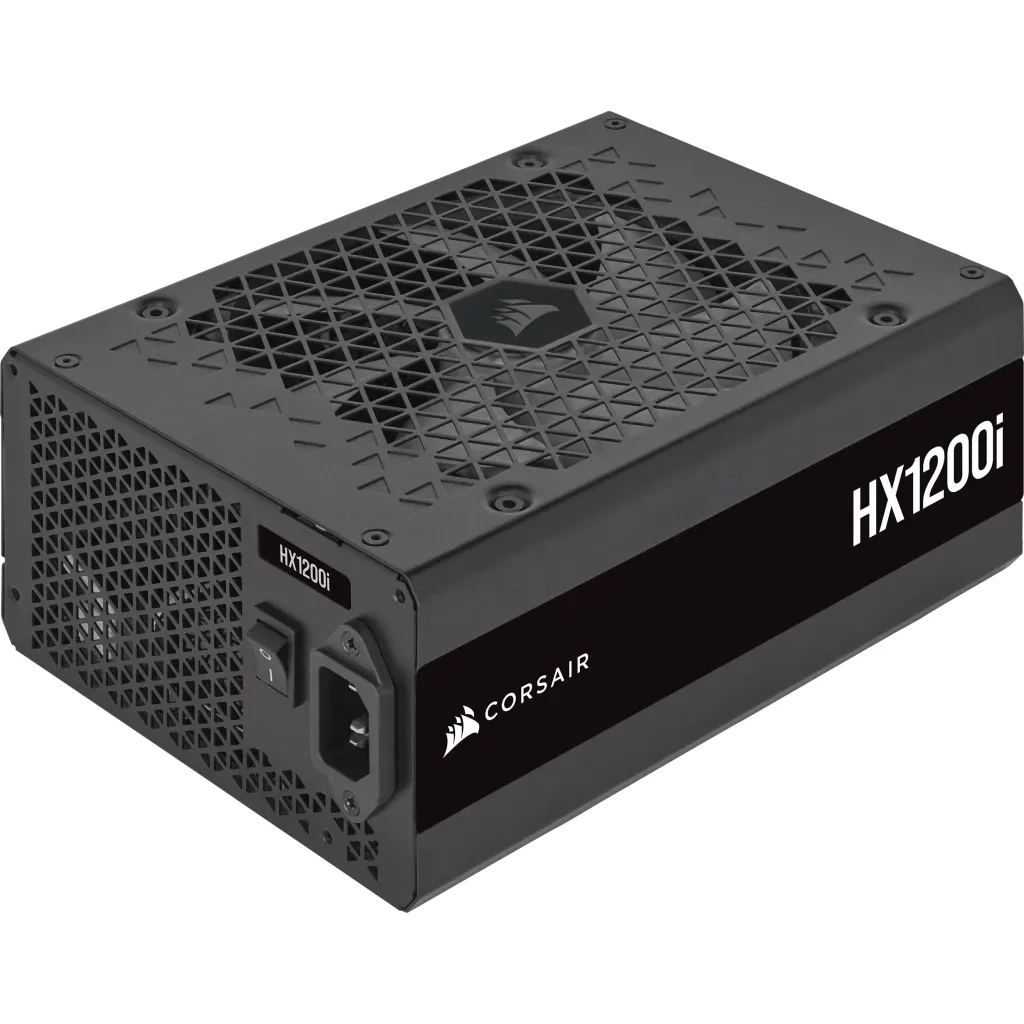

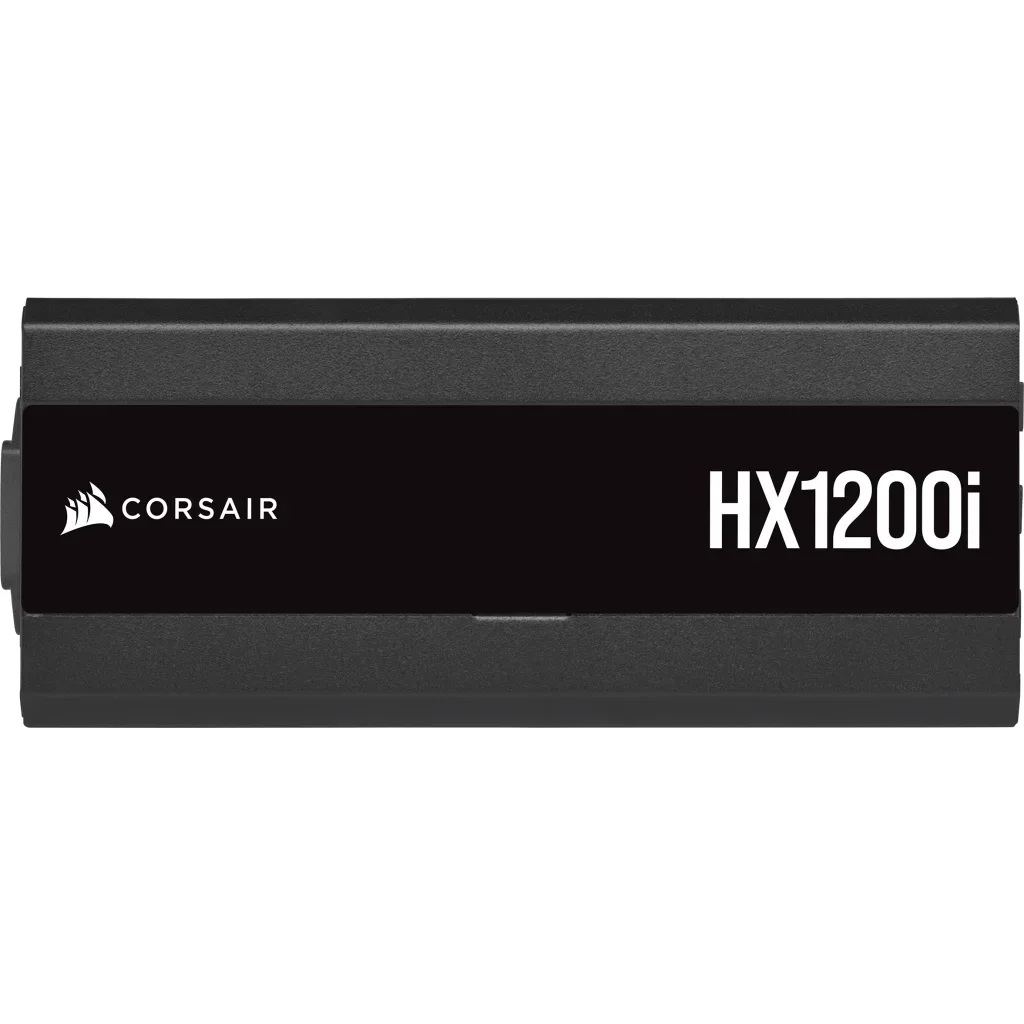

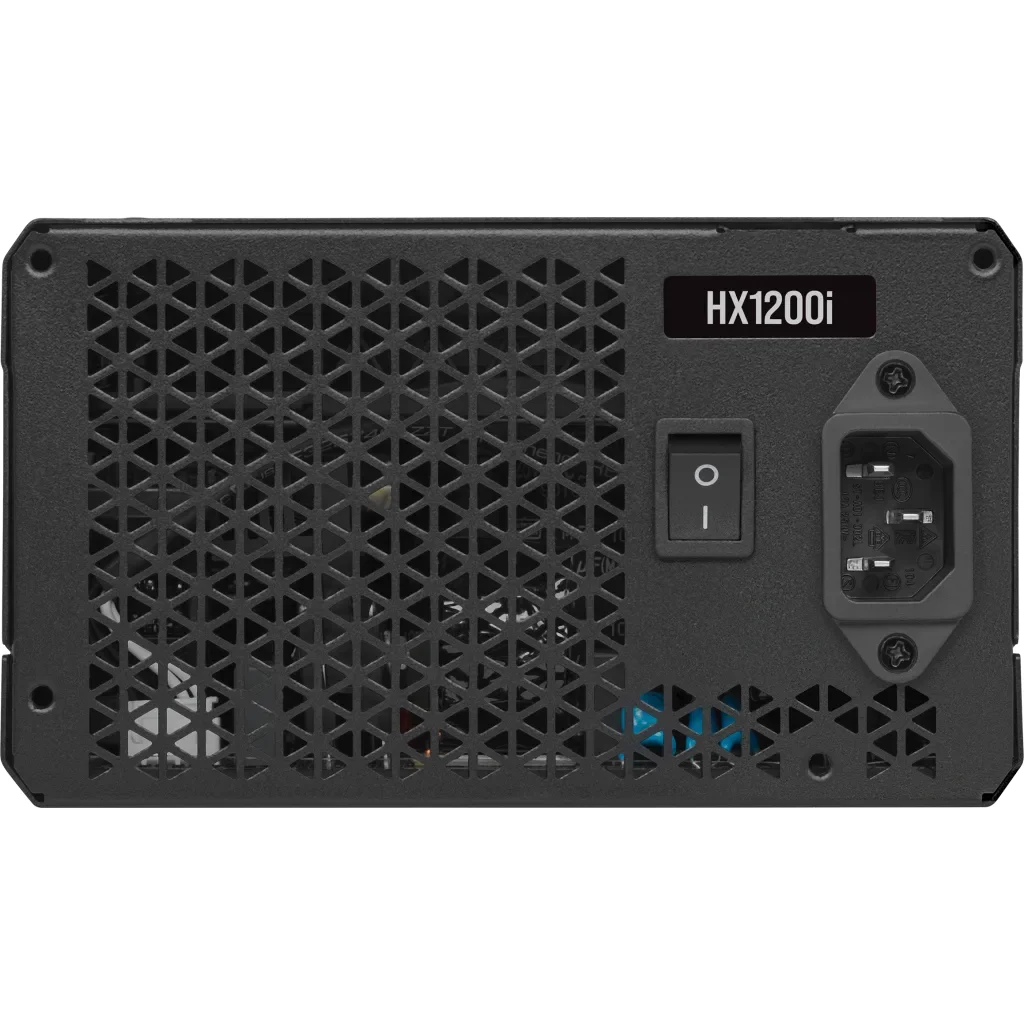

Produktbilder
Power
- Total power
- 1200 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 47 - 63 Hz
- Input current
- 15 A
- Combined power (+3.3V)
- 150 W
- Combined power (+12V)
- 1200 W
- Combined power (+5V)
- 150 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 25 A
- Max output current (+12V)
- 100 A
- Max output current (+5V)
- 25 A
- Max output current (+5Vsb)
- 3 A

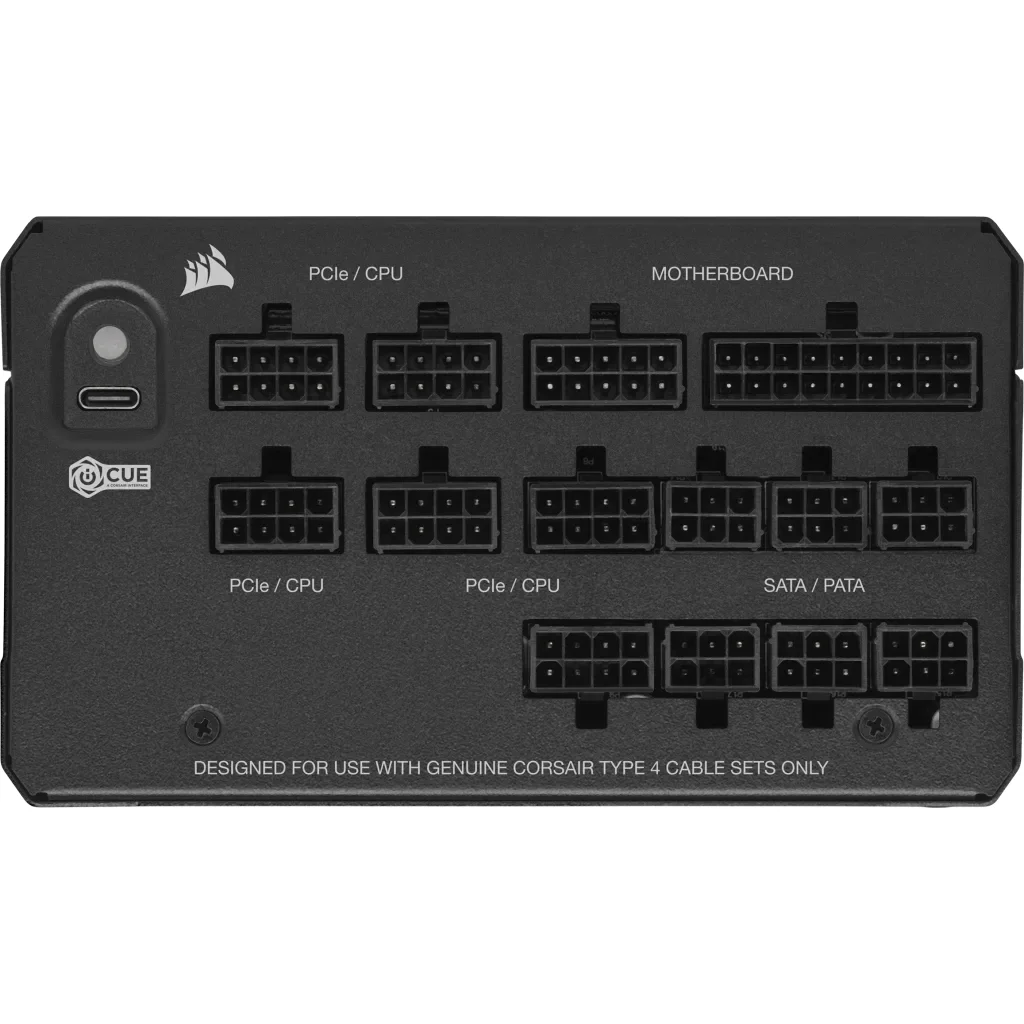

Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 610 mm
- Number of SATA power connectors
- 4
- Number of PATA power connectors
- 4
- SATA power cable length
- 800 mm
- EPS power connector (8-pin)
- Ja
- PCI Express power connectors (8-pin)
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1

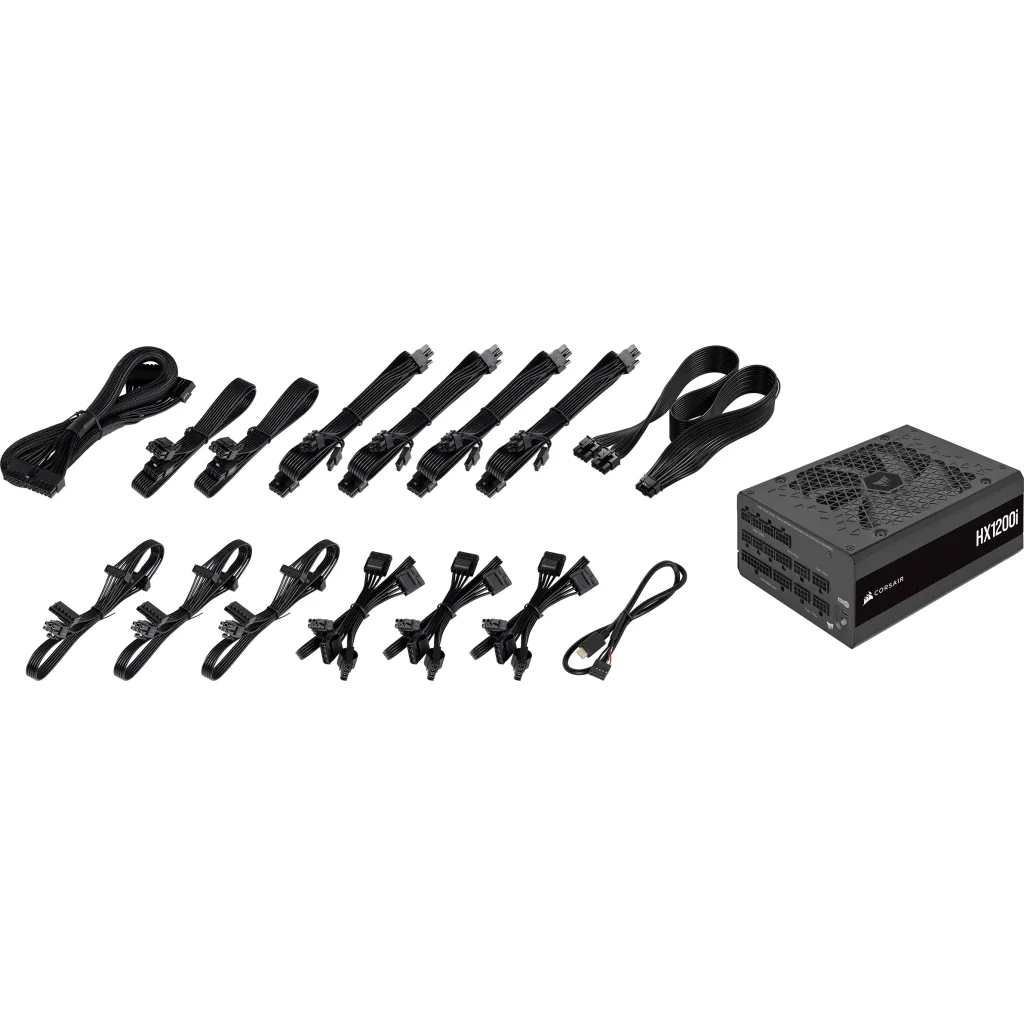

- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Platinum
- ATX version
- 3.0
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active

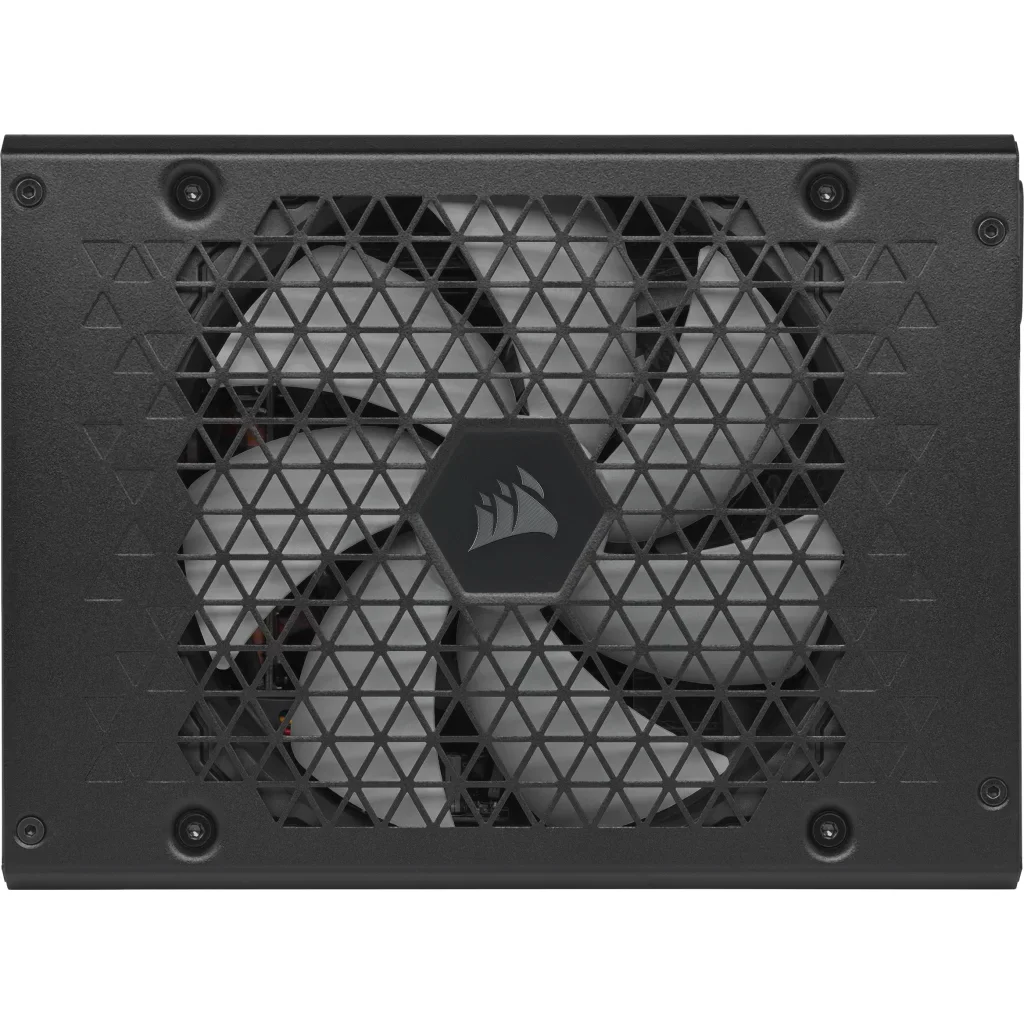

- Fan diameter
- 140 mm
- Number of fans
- 1 fan(s)
- Fan location
- Top
- On/off switch
- Ja
Weight & dimensions
- Weight
- 4400 g
Packaging data
- Package type
- Box
