Cooler Master V850 SFX Gold

Produkt

Tillverkare

Cooler Master

Produktnamn

V850 SFX Gold

Tillverkarens länk

https://www.coolermaster.com/

Produktkoder

Tillverkarens produktkoder

• MPY-8501-SFHAGV-EU

GTIN- / EAN-koder

• 4719512098738

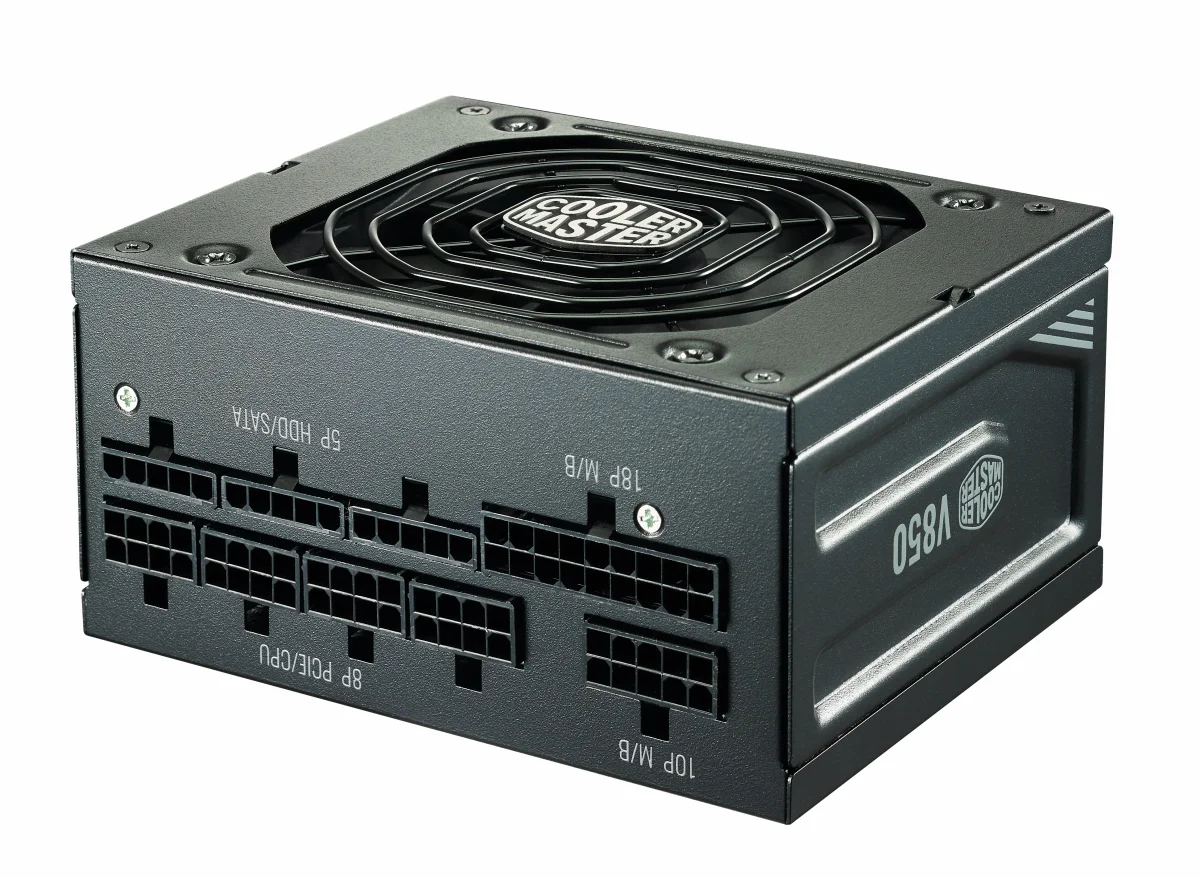

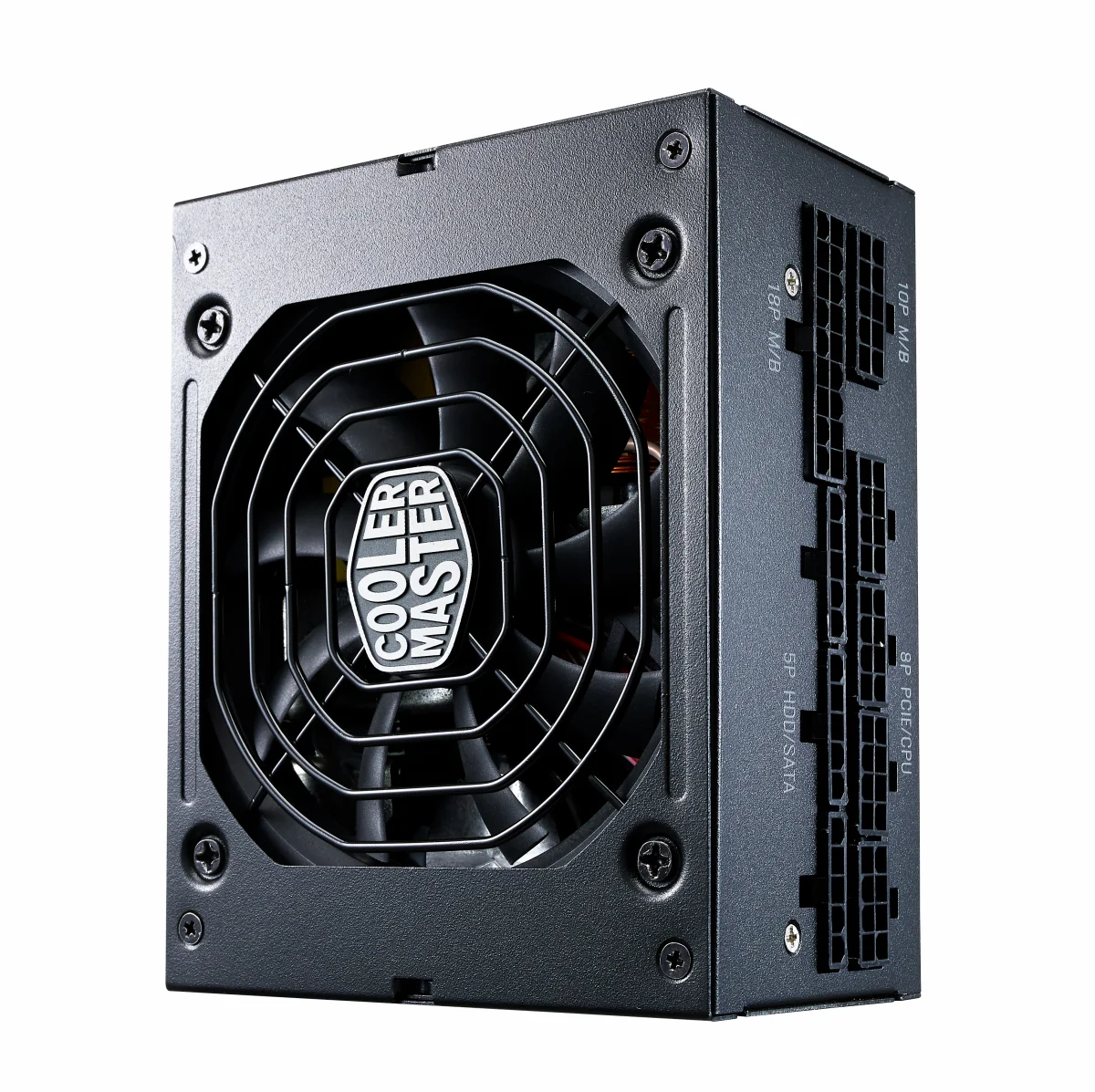

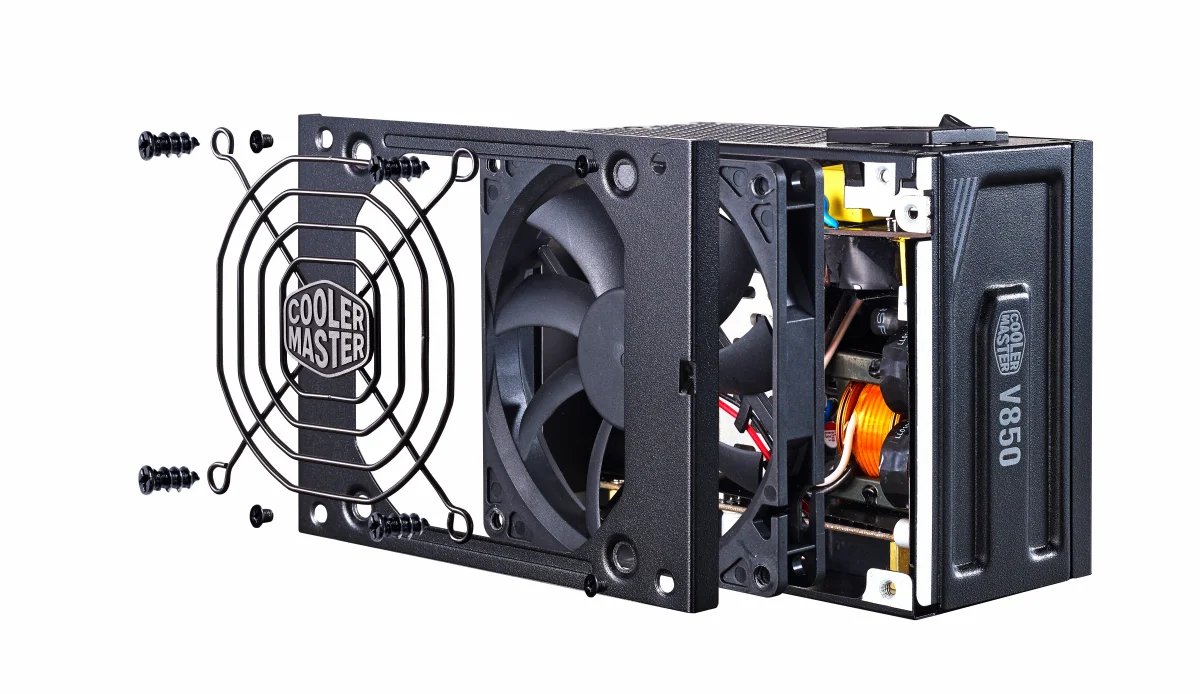

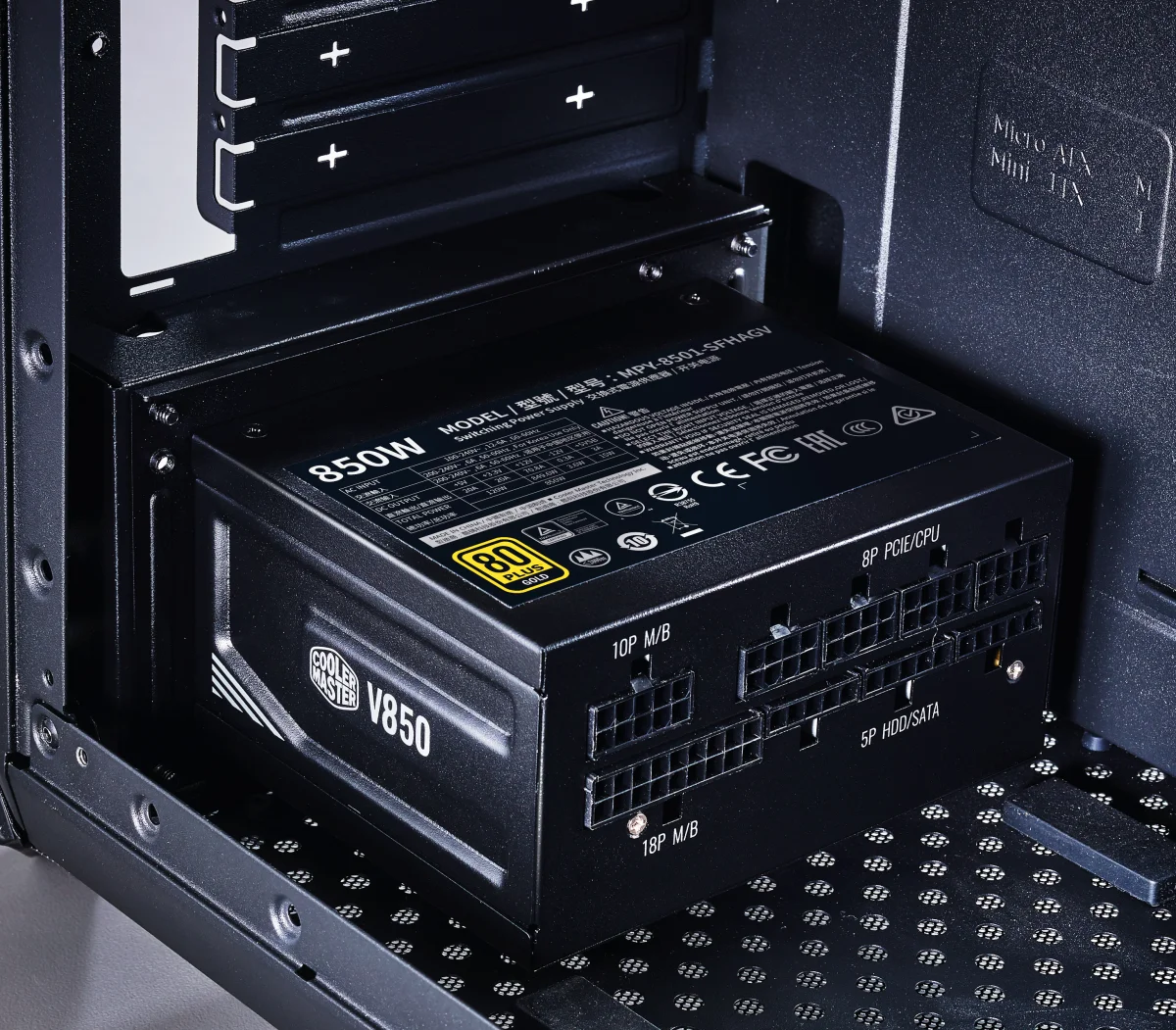

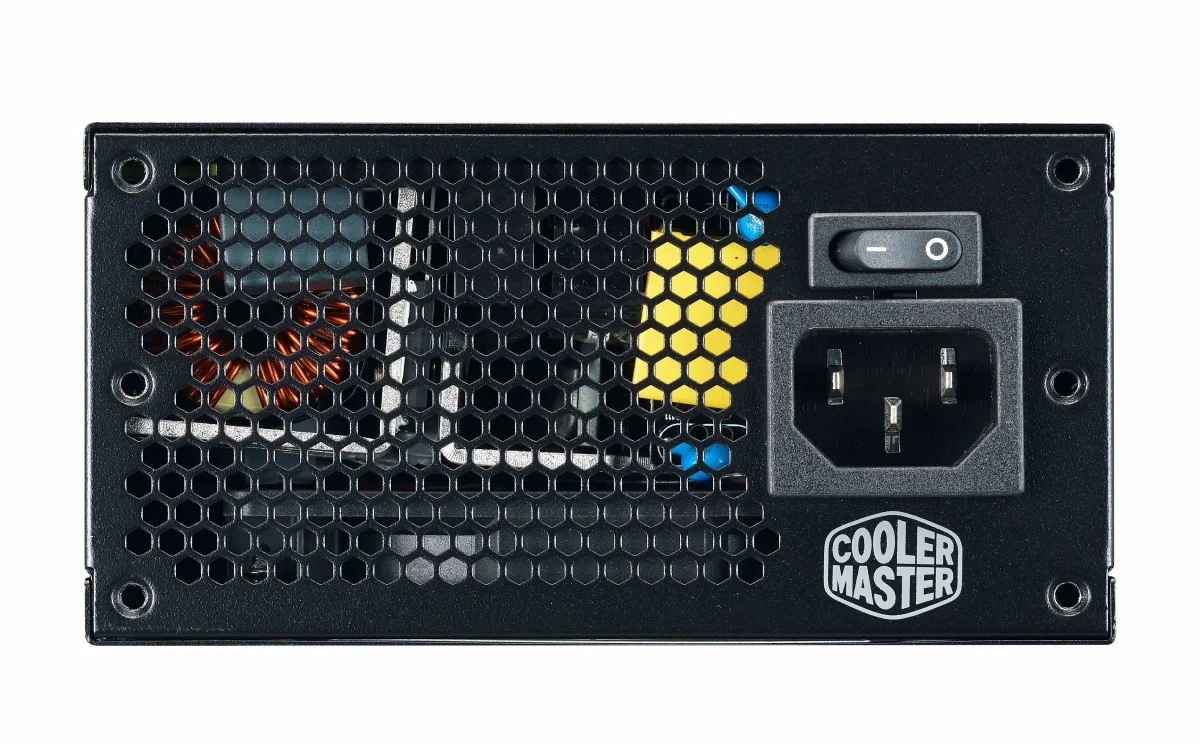

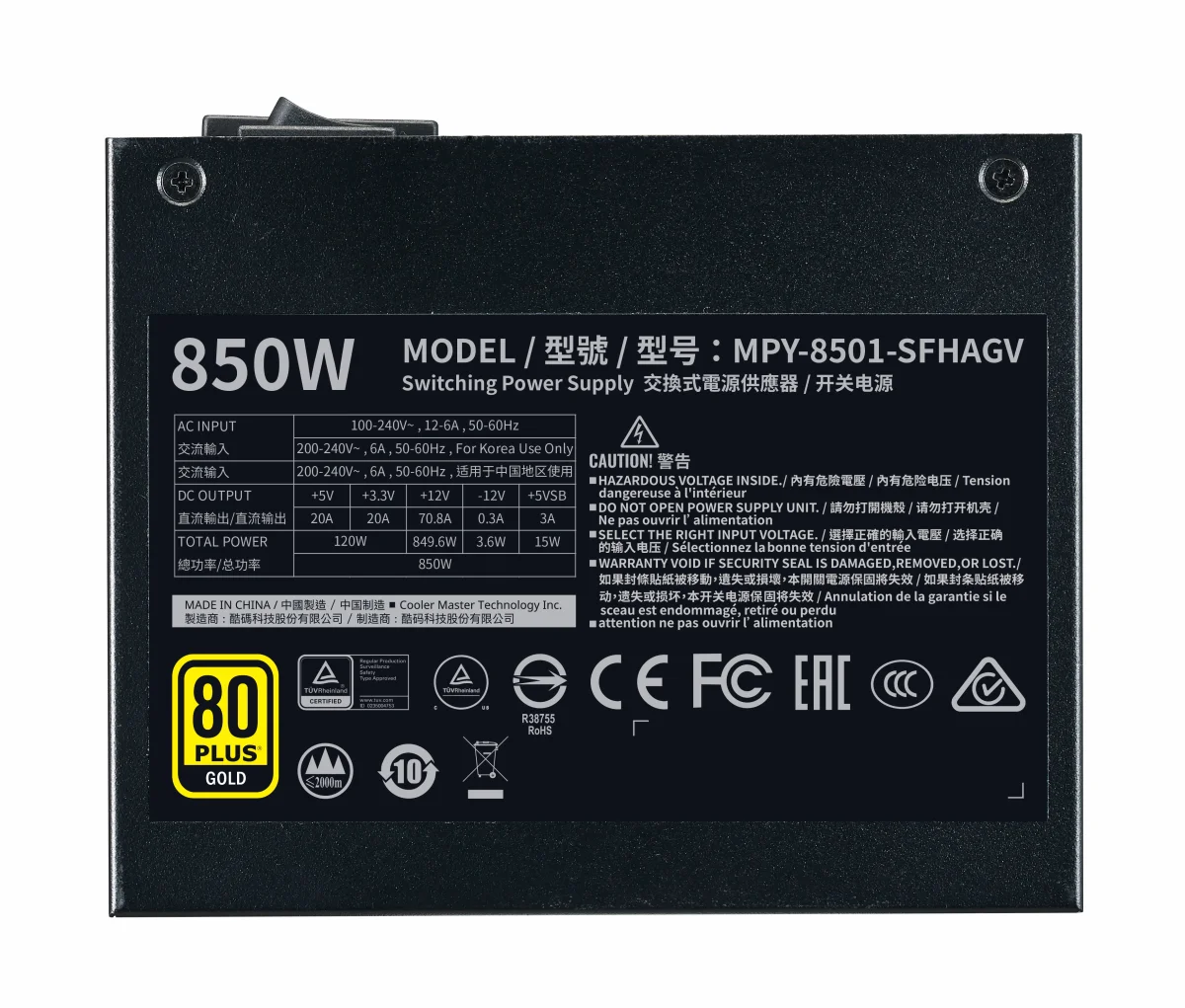

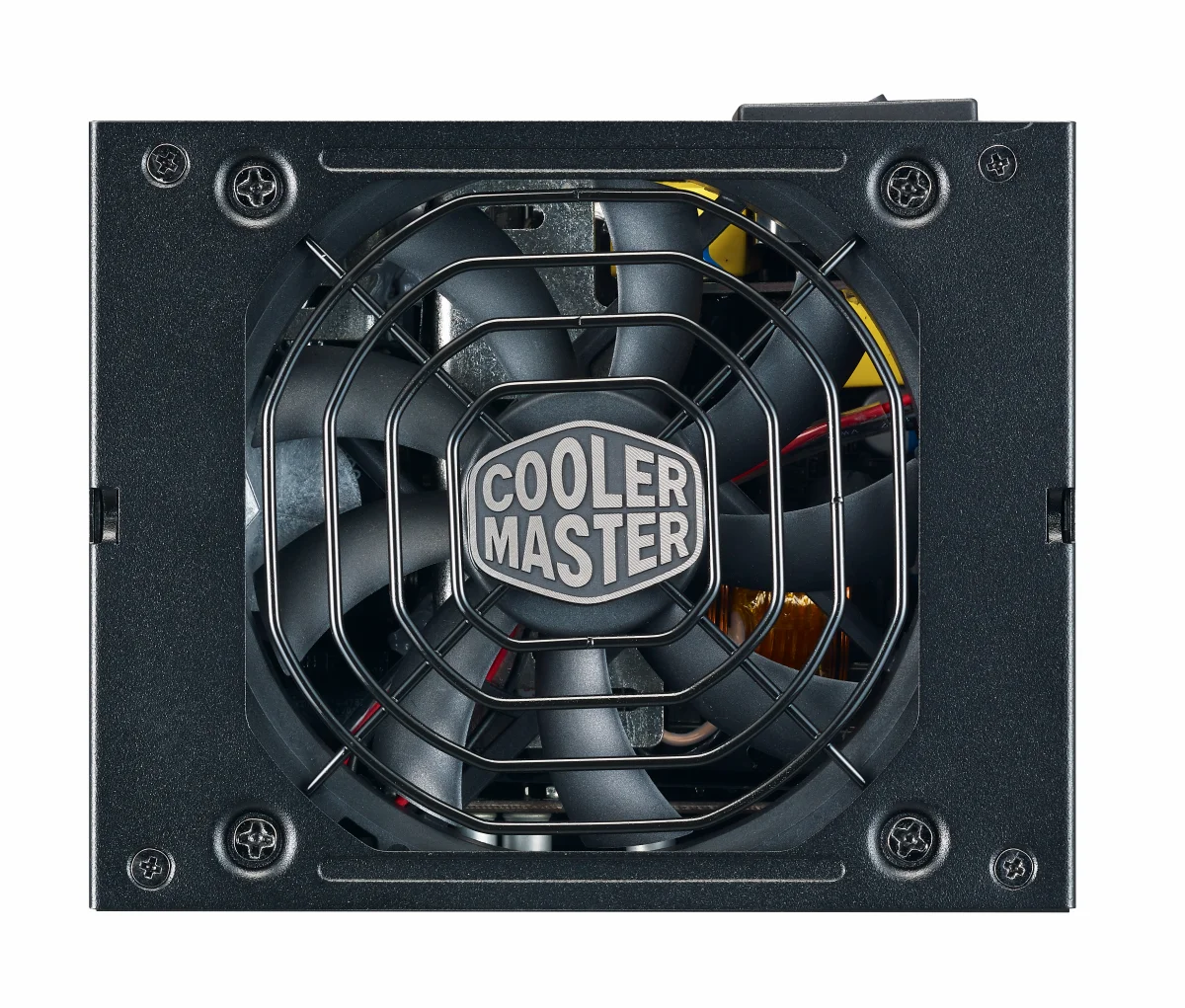

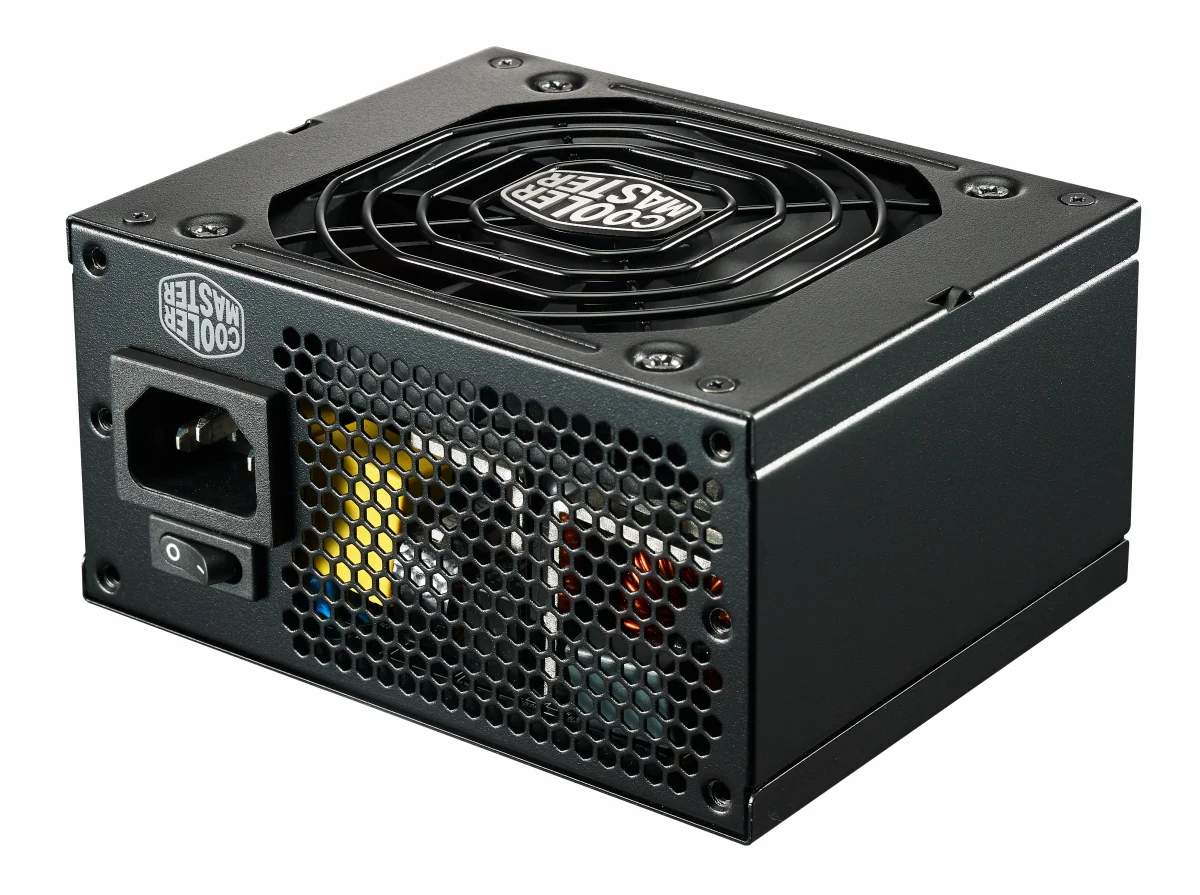

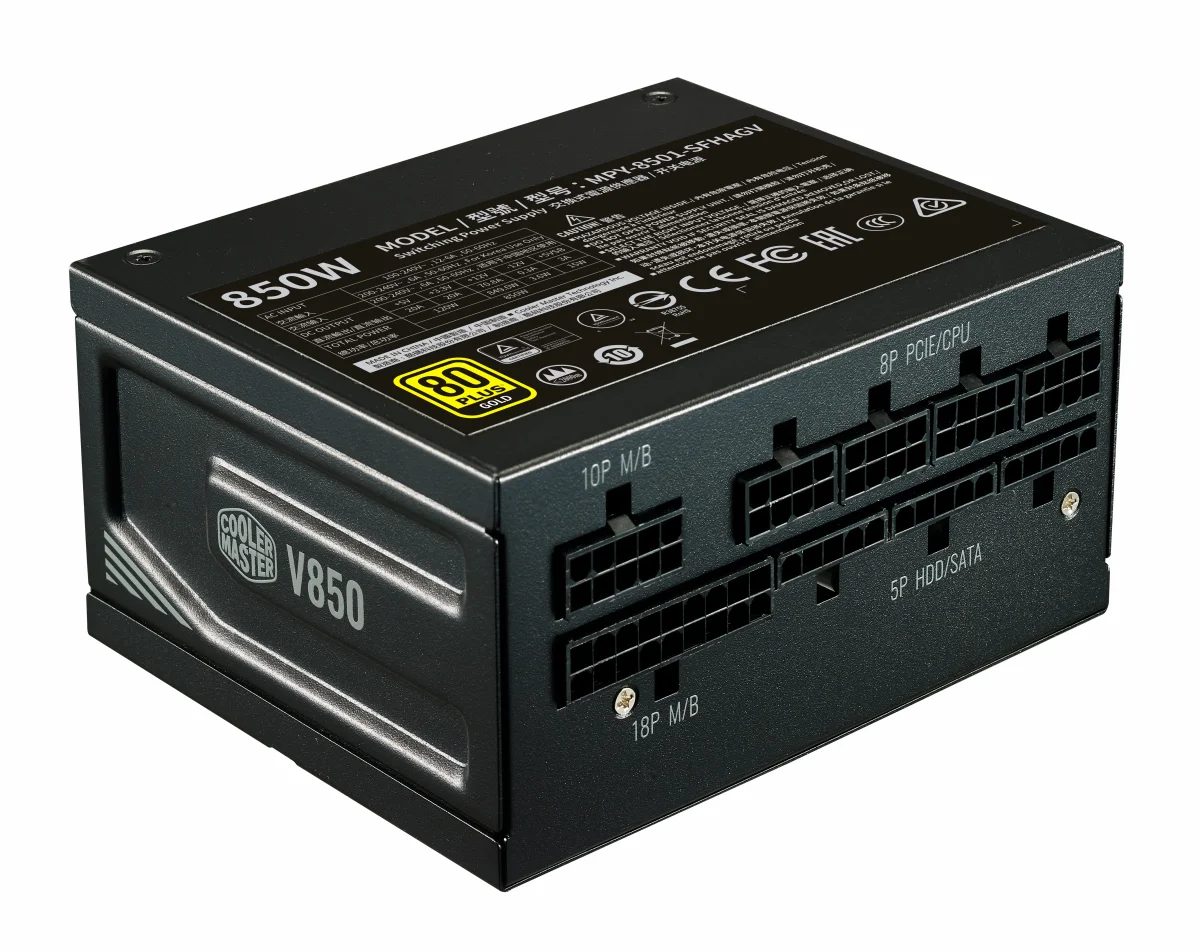

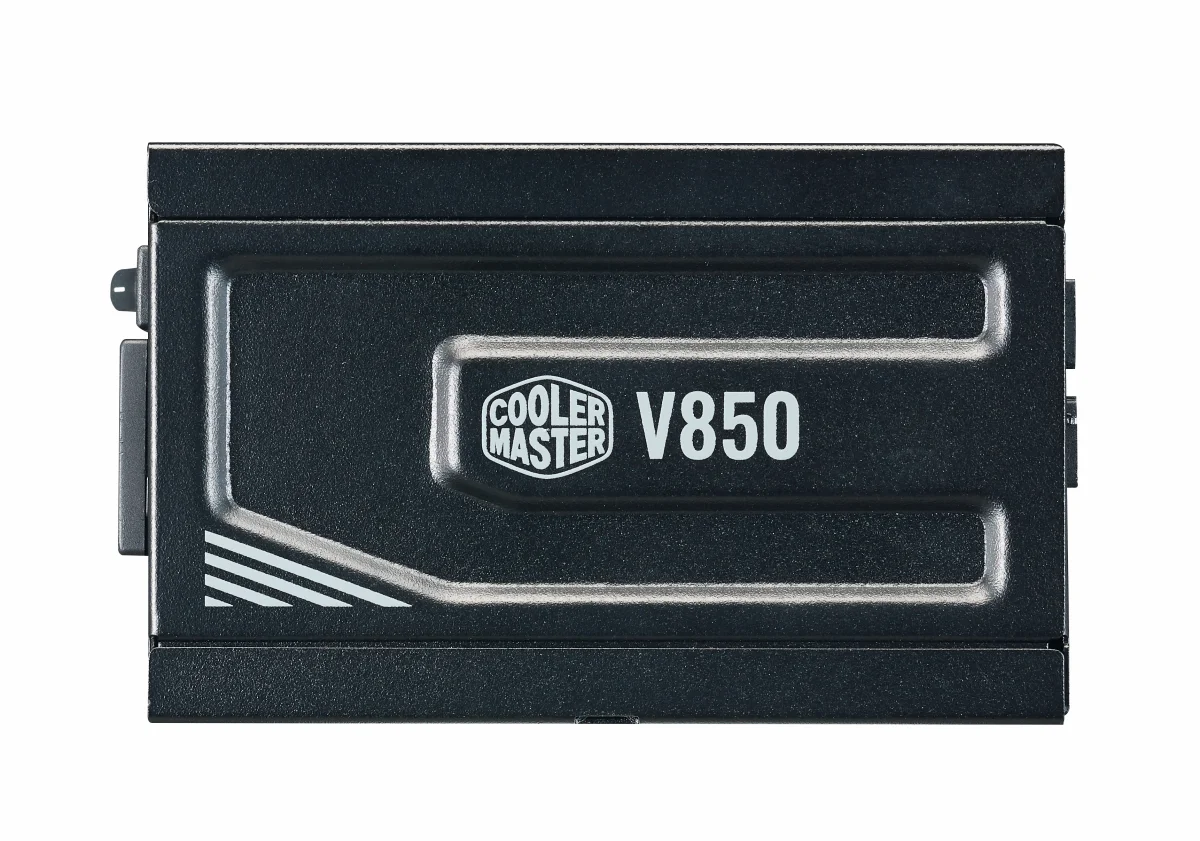

Produktbilder

Power

Total power

850 W

AC input voltage

90 - 264 V

AC input frequency

47 - 63 Hz

Input current

12 - 6 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

850 W

Combined power (+5V)

120 W

Max output current (+3.3V)

20 A

Max output current (+12V)

70.8 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Hold time

16 ms

Efficiency

90 %

Power Good signal delay range

100 - 500 ms

Power protection features

Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

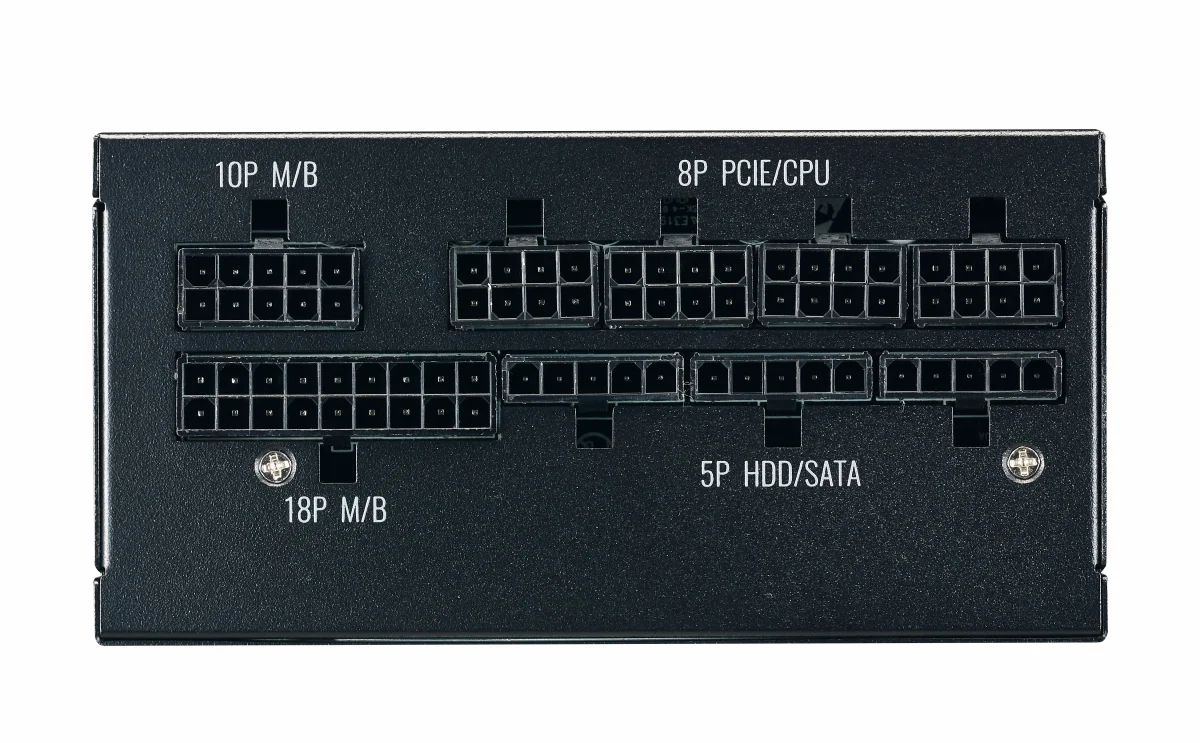

Ports & interfaces

Motherboard power connector

24-pin ATX

Number of SATA power connectors

8

Peripheral (Molex) power connectors (4-pin)

4

EPS power connector (8-pin)

Ja

EPS power connector (4+4 pin)

Ja

PCI Express power connectors (6+2 pin)

4

ATX Power connector (24-pin)

Ja

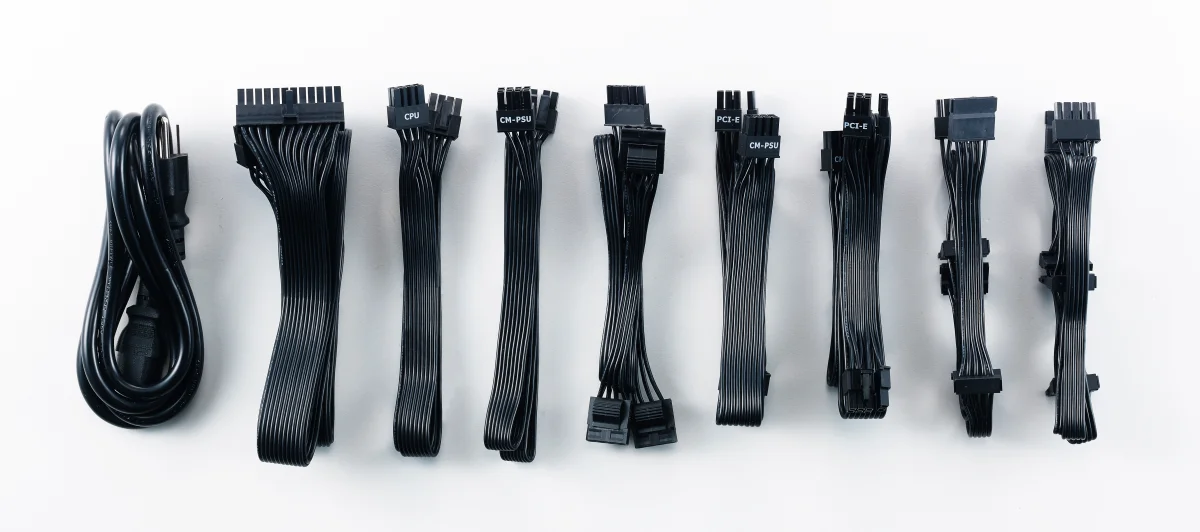

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

SFX

80 PLUS certification

80 PLUS Gold

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

92 mm

Number of fans

1 fan(s)

On/off switch

Ja

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Certificates

Certification

TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

Weight & dimensions

Width

125 mm

Depth

100 mm

Height

63.5 mm

Weight

1800 g

Packaging data

Package width

190 mm

Package depth

260 mm

Package height

100 mm

Package weight

2100 g

Package type

Box

Logistics data

Harmonized System (HS) code

84733020
