Synology DiskStation DS1823XS+

Produkt

Tillverkare

Synology

Produktfamilj / -serie

DiskStation

Produktnamn

DS1823XS+

Tillverkarens länk

https://www.synology.com/en-global/products/DS1823xs+

Produktkoder

Tillverkarens produktkoder

• DS1823XS+

GTIN- / EAN-koder

• 0846504004959
• 4711174724956

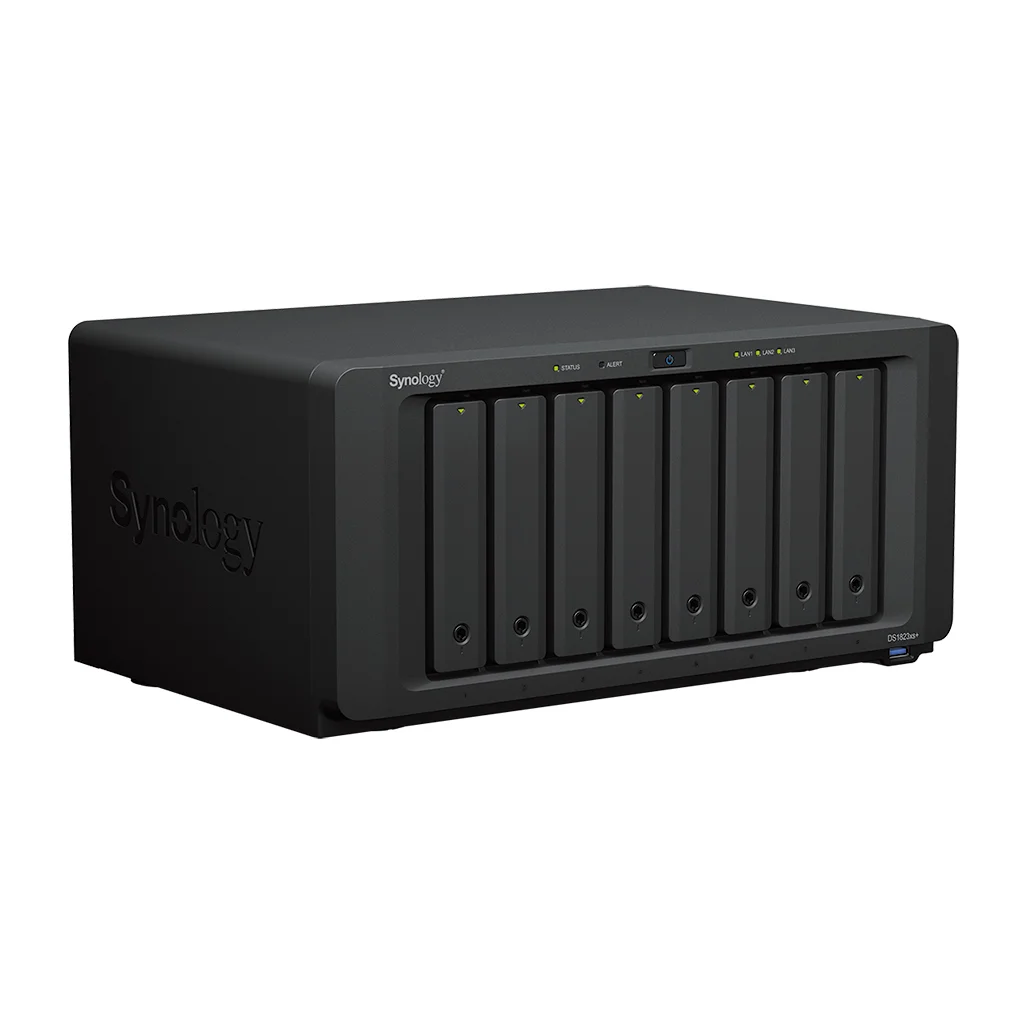

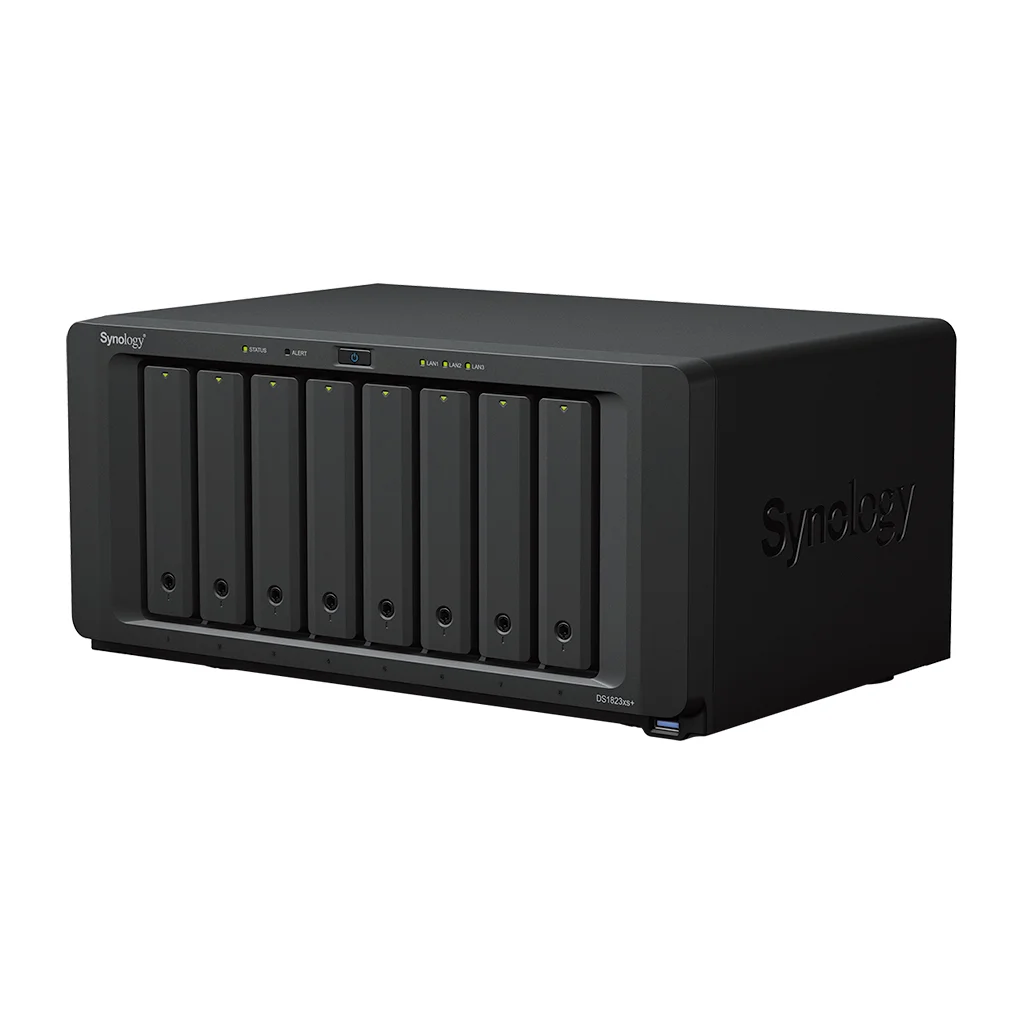

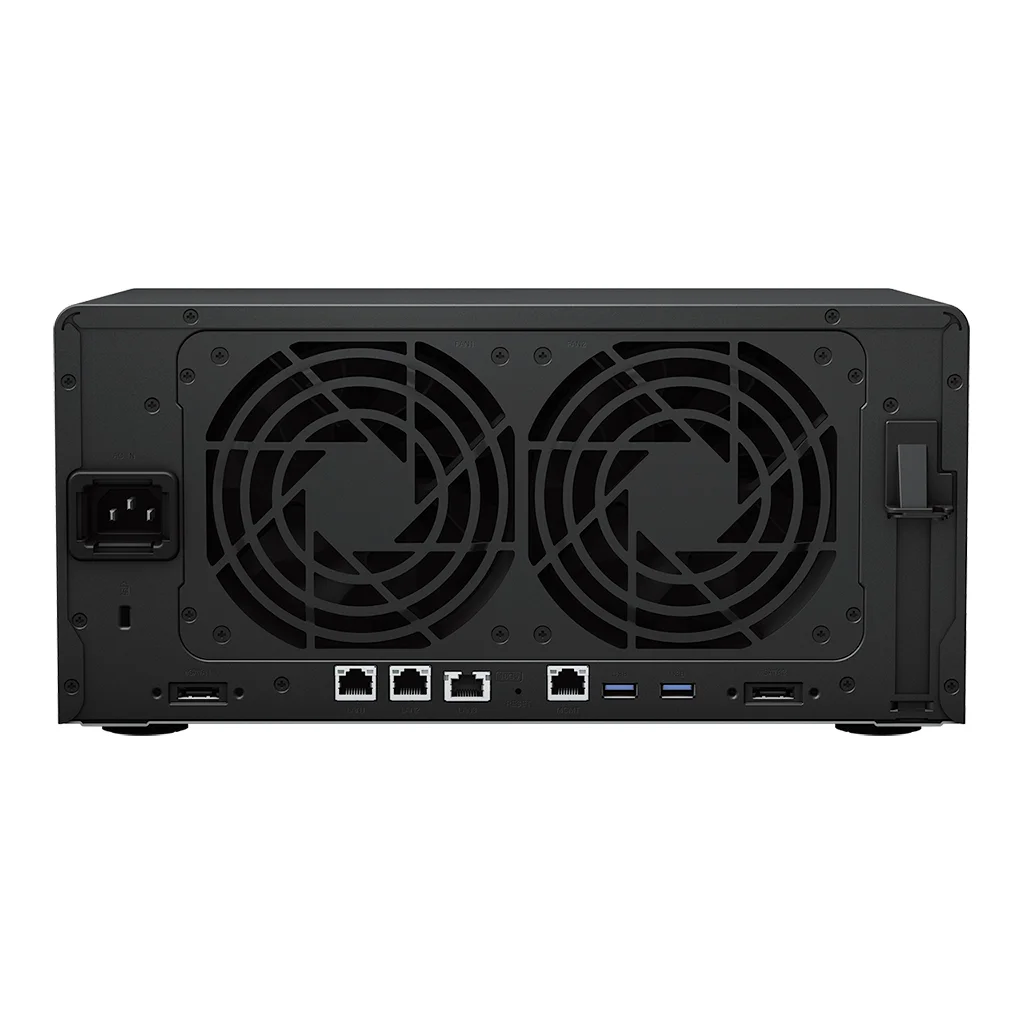

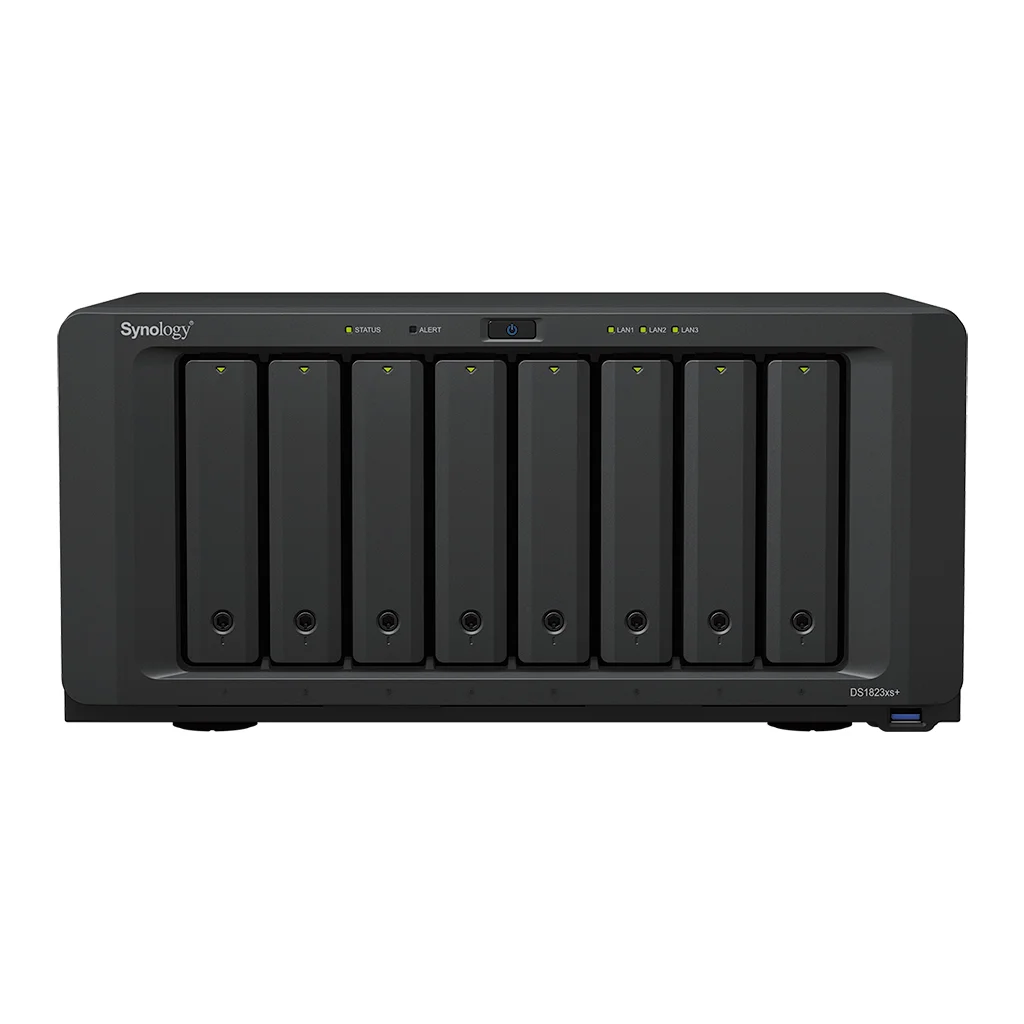

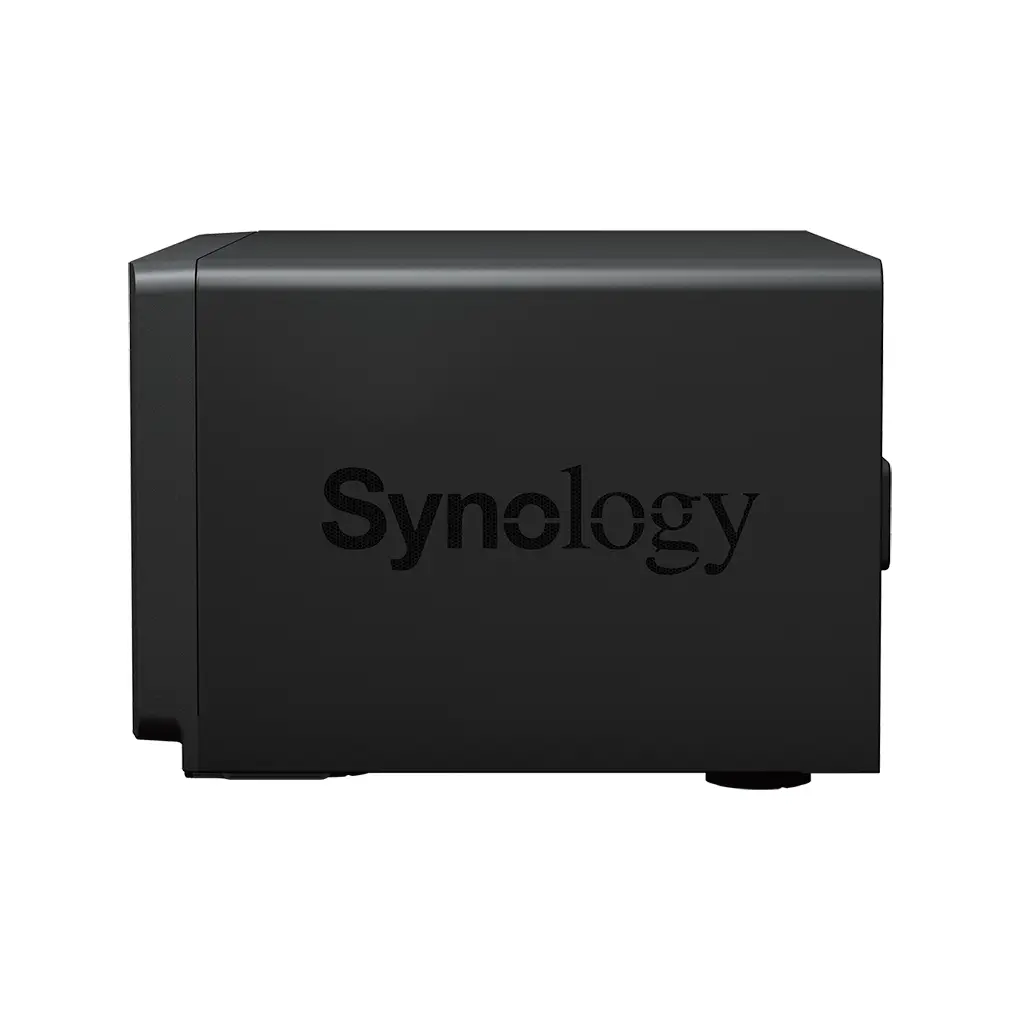

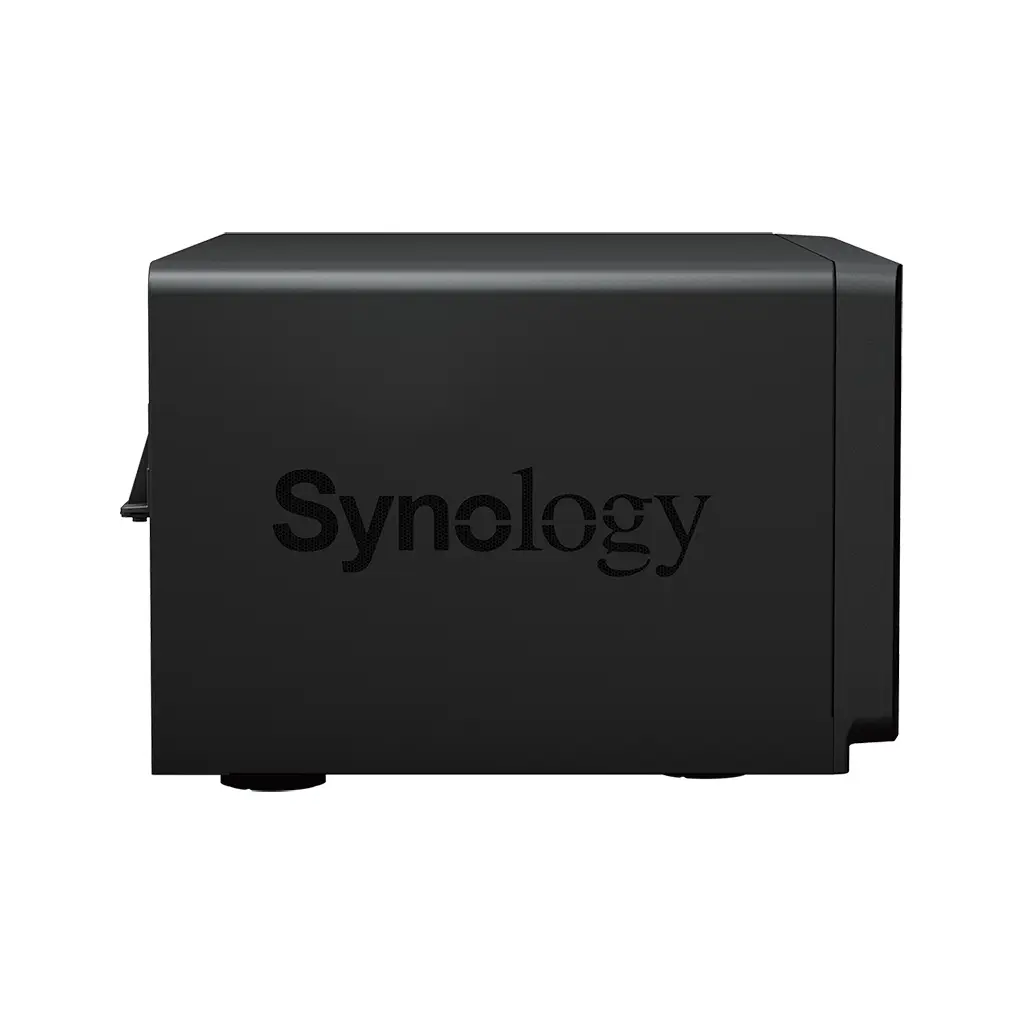

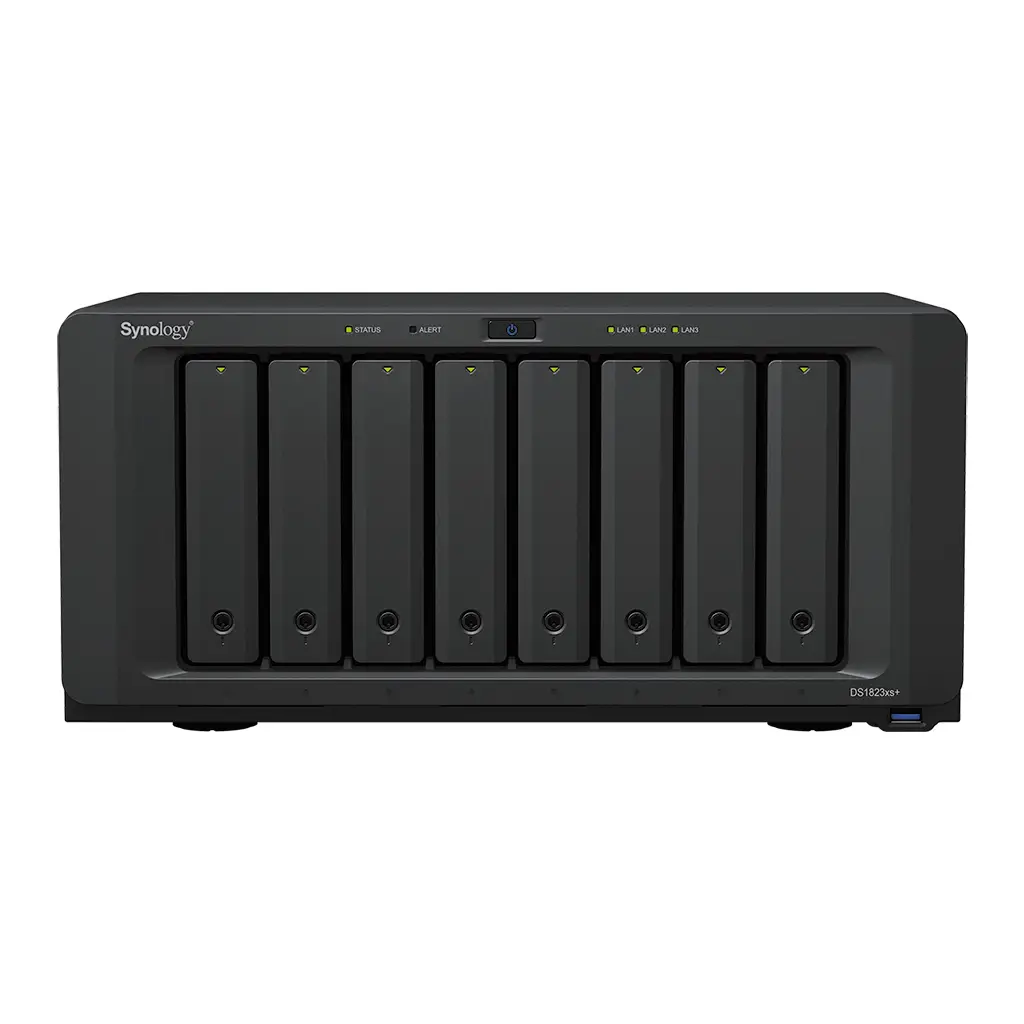

Produktbilder

Storage

Storage drives installed

Nej

Total installed storage capacity

0 TB

Number of storage drives installed

0

Number of storage drives supported

8

Installed storage drive type

Nej

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

Serial ATA

Storage drive sizes supported

2.5,3.5,M.2 "

Number of M.2 (M & B) slots

2

RAID support

Ja

RAID levels

0, 1, 5, 6, 10, JBOD

Online RAID migration

Ja

Online RAID expansion

Ja

Hot-swap drive bays

Ja

Supported file systems

BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Processor

Processor manufacturer

AMD

Processor family

Ryzen Embedded

Processor generation

AMD Ryzen Embedded V1000 Series

Processor model

V1780B

Processor frequency

3.35 GHz

Processor boost frequency

3.6 GHz

Processor cores

4

Number of processors supported

1

Memory

Internal memory

8 GB

Internal memory type

DDR4

Maximum RAM supported

32 GB

Memory slots

2

Memory form factor

SO-DIMM

ECC

Ja

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000,10000 Mbit/s

Ethernet LAN data rate supported (max)

10000 Mbit/s

Copper ethernet cabling technology

10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T

iSCSI support

Ja

Supported network protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Link aggregation

Ja

Ports & interfaces

Ethernet LAN (RJ-45) ports

4

USB port

Ja

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

eSATA ports quantity

2

PCI Express x8 (Gen 3.x) slots

1

Design

Chassis type

Tower

Cooling type

Active

Product colour

Black

Number of fans

2 fan(s)

Fan diameter

120 mm

LED indicators

Ja

Built-in display

Nej

Cable lock slot

Ja

Cable lock slot type

Kensington

Built-in speaker(s)

Nej

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Ja

Backup features

Cloud, iSCSI LUN

Multilingual support

Ja

Noise level

23.6 dB

Card reader integrated

Nej

Snapshot

Ja

Management protocols

SNMP

Security algorithms

AES

Access Control List (ACL)

Ja

Reset button

Ja

On/off switch

Ja

Built-in FTP server

Ja

Browser supported

Google Chrome Firefox Microsoft Edge Safari

System log

Ja

Software

Operating system installed

DiskStation Manager

Operating system version

7.1.1

Server operating systems supported

Windows Server 2019

Power

Power supply location

Built-in

Power supply unit (PSU) capacity

250 W

Number of power supply units

1

Redundant power supply (RPS) support

Nej

Power consumption (typical)

87.93 W

AC input voltage

100 - 240 V

AC input frequency

50 / 60 Hz

Weight & dimensions

Width

343 mm

Depth

243 mm

Height

166 mm

Weight

6200 g

Packaging content

Cables included

AC, LAN (RJ-45)

Power cables quantity

1

Sustainability

Sustainability compliance

Ja

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95 %

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 95 %

Other features

Compliance certificates

CE, RoHS

Certification

FCC BSMI VCCI RCM EAC CCC KC
