APC Back-UPS 1600VA 230V AVR French Sock

Produkt

Tillverkare

APC

Produktnamn

Back-UPS 1600VA 230V AVR French Sock

Tillverkarens länk

https://www.apc.com/shop/se/sv/products/APC-Back-UPS-1600VA-23..

Produktkoder

Tillverkarens produktkoder

• BX1600MI-FR

GTIN- / EAN-koder

• 0731304420507

Produktbilder

Features

UPS topology

Line-Interactive

Output power capacity

1.6 kVA

Output power

900 W

Waveform

Sine

Input operation voltage (min)

140 V

Input operation voltage (max)

300 V

Input frequency

50/60 Hz

Output operation voltage (min)

230 V

Output operation voltage (max)

230 V

Output frequency

50/60 Hz

Output frequency regulation

0.5 Hz

Output voltage regulation

10 %

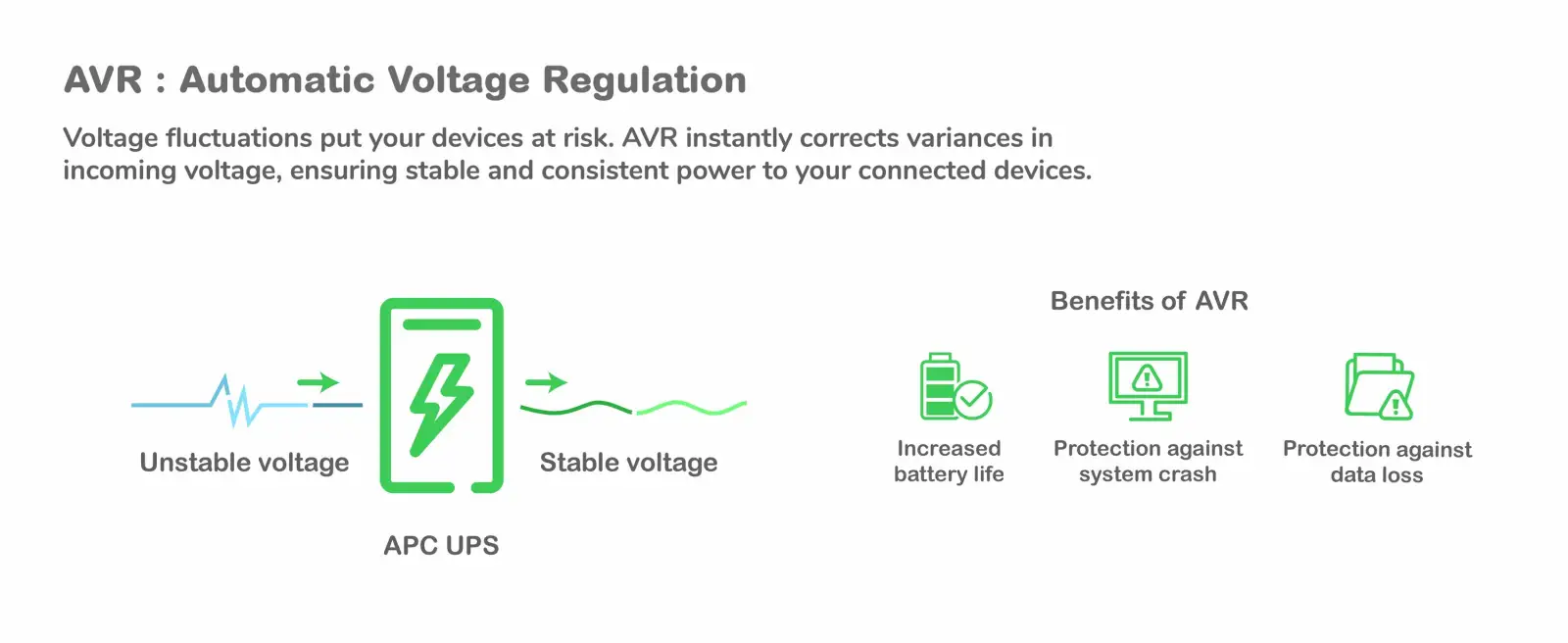

Automatic Voltage Regulation (AVR)

Ja

Response time

6 ms

Input power factor

0.56

Noise level

40 dB

Surge protection

Ja

Audible alarm(s)

Ja

Audible alarm modes

Low battery alarm

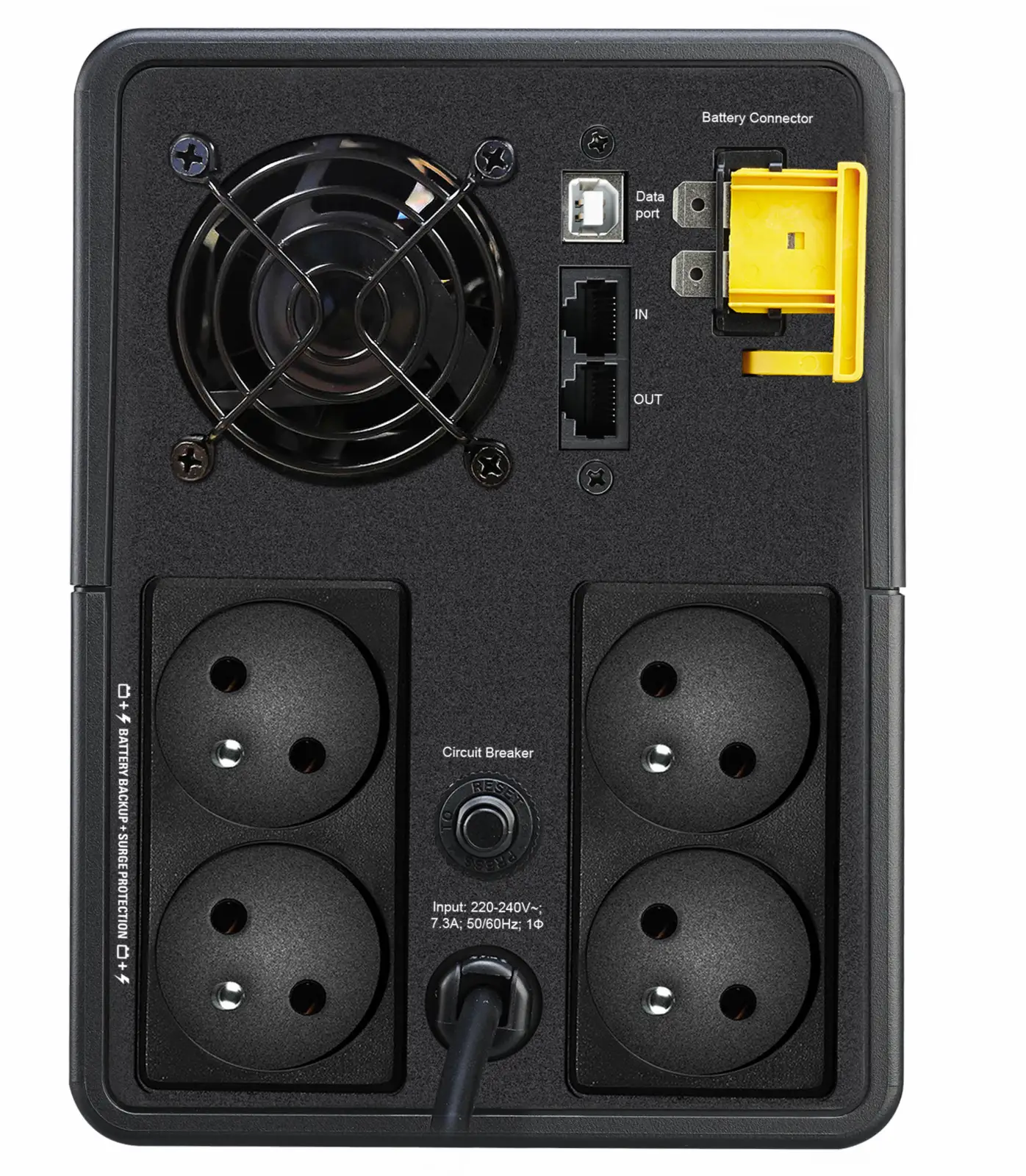

Ports & interfaces

AC outlet types

Type E

Power plug

Type F

AC outlets quantity

4 AC outlet(s)

USB port

Ja

USB 2.0 ports quantity

1

USB port type

USB Type-B

Ethernet LAN (RJ-45) ports

2

SmartSlot

Nej

SmartConnect port

Nej

Battery

Battery technology

Sealed Lead Acid (VRLA)

Typical backup time at full load

1 min

Typical backup time at half load

6.5 min

Battery life (max)

2 year(s)

Battery recharge time

8 h

Design

Form factor

Compact

Product colour

Black

Cable length

1.2 m

Built-in fan

Ja

LED indicators

Ja

International Protection (IP) code

IP20

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 40 °C

Operating relative humidity (H-H)

0 - 95 %

Operating altitude

0 - 3000 m

Certificates

Compliance certificates

RoHS

Certification

CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2

Packaging content

Cables included

Input power cable

Management card included

Nej

Manual

Ja

Weight & dimensions

Width

140 mm

Depth

390 mm

Height

190 mm

Weight

10300 g

Packaging data

Package width

235 mm

Package depth

495 mm

Package height

297 mm

Package weight

11300 g

Logistics data

Harmonized System (HS) code

85078000
